Planning Information
Model CT30G 30" (762) Gas Cooktop
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/06
1
Model CT30G
New features make cooking a greater pleasure than
ever. For instance, at higher settings the patented Dual
Stacked Burner design uses its upper-level burner for
maximum heat transfer. Merely turn down the illuminated knob and the lower-tier burners delivers finetuning control and True Simmer. This patented feature
allows you to have the slightest of flame and enjoy a
simmer with no boiling or scorching.
Available in your choice of classic or platinum stainless
steel finish.
The sealed burners and deep recess of the seamless
drawn pan area make clean up of any of those previously unsightly spills a snap.
A more powerful 15,000 Btu/hr (4.4 kW) burner is now
standard.
Let Wolf, the corporate companion and kitchen soul
mate of Sub-Zero, fuel your passion for cooking and
kitchen design.

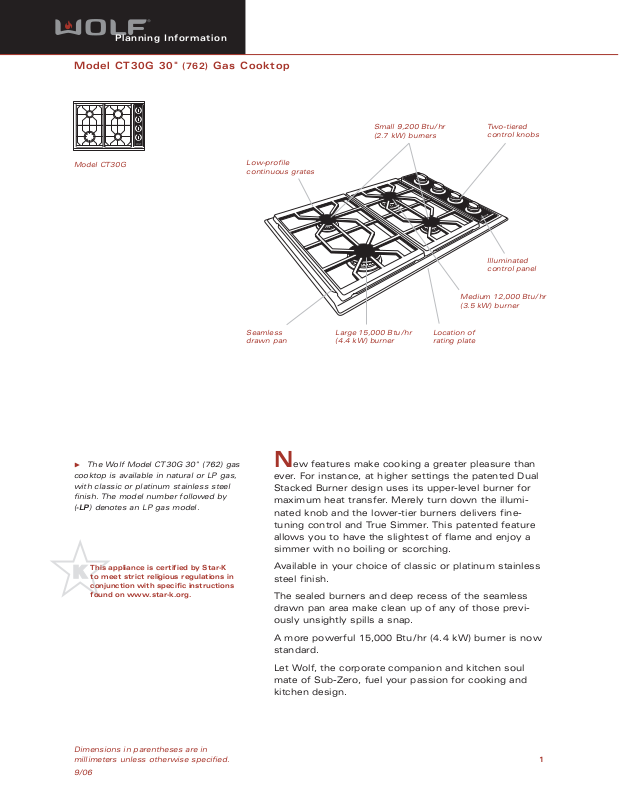

The Wolf Model CT30G 30" (762) gas
cooktop is available in natural or LP gas,
with classic or platinum stainless steel
finish. The model number followed by
(-LP) denotes an LP gas model.
This appliance is certified by Star-K
to meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.
Small 9,200 Btu/ hr
(2.7 kW) burners
Low-profile
continuous grates
Two-tiered
control knobs
Large 15,000 Btu/ hr
(4.4 kW) burner
Seamless
drawn pan
Illuminated
control panel
Medium 12,000 Btu/ hr
(3.5 kW) burner
Location of
rating plate
Page 2
Planning Information
Model CT30G 30" (762) Gas Cooktop
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/8" (3).
2
OVERALL DIMENSIONS
FEATURES
Available in natural and LP gas
Stainless steel top construction, available in
classic and platinum stainless steel finishes
Four dual-stacked, sealed burners with
automatic reignition on all settings
One large 15,000 Btu/ hr (4.4 kW) sealed
burner with 800 Btu/ hr (.2 kW) delivered at
simmer
One medium 12,000 Btu/ hr (3.5 kW) sealed
burner with 800 Btu/ hr (.2 kW) delivered at
simmer
Two small 9,200 Btu/ hr (2.7 kW) sealed
burners with 300 Btu/ hr (.1 kW) delivered at
simmer
Individual spark ignition system
True Simmer setting on all burners
Illuminated control panel with two-tiered
control knobs
Low-profile cast iron continuous burner
grates with matte porcelain finish
Seamless drawn burner pan
Certified by Star-K to meet religious
regulations
CSA certified for US and Canada
Two and five year residential warranty –
exclusions apply; warranty information can
be found on our website, wolfappliance.com
21"
(533)
OVERALL
DEPTH
30" (762)
OVERALL WIDTH
4" (102)
Page 3
Planning Information
Model CT30G 30" (762) Gas Cooktop
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
SPECIFICATIONS
Overall Cooktop Width 30" (762)
Overall Cooktop Height 4" (102)
Overall Cooktop Depth 21" (533)
Cooktop Cut-Out Width 29" (737)
Cooktop Cut-Out Depth 191/4" (489)
Minimum Cabinet Depth 223/4" (578)
Burner Rating
One 15,000 Btu/ hr (4.4 kW) burner with 800 Btu / hr
(.2 kW) delivered at simmer
One 12,000 Btu/ hr (3.5 kW) burner with 800 Btu / hr
(.2 kW) delivered at simmer
Two 9,200 Btu/ hr (2.7 kW) burners with 300 Btu / hr
(.1 kW) delivered at simmer
Gas Rating 45,400 Btu/ hr (13.3 kW)
Electrical Supply Requirements 120 V AC, 60 Hz
15 amp dedicated circuit
Power Cord 6' (1.8 m) power cord with
3-prong grounded plug
Shipping Weight 50 lbs (23 kg)
Specifications are subject to change without notice.
MODEL OPTIONS
Classic Stainless Steel CT30G/S
Platinum Stainless Steel CT30G/P
Natural gas models listed, for LP gas add
(-LP) to the model numbers.
VENTILATION OPTIONS
30" (762) Cooktop or Pro wall
hood or liner
30" (762) downdraft ventilation
system
36" (914) Cooktop or Pro island
hood
For additional information, refer to the
Wolf Cooktop Ventilation or Pro
Ventilation sections of our website,
wolfappliance.com.
ACCESSORIES
One-piece wok grate and single
burner grate
Filler strip
High altitude conversion kit
Accessories are available through your
Wolf dealer. To obtain local dealer
information, visit the Locator section of
our website, wolfappliance.com.
Model CT30G
Page 4
Planning Information
Model CT30G 30" (762) Gas Cooktop
Dimensions in parentheses are in
millimeters unless otherwise specified.
4

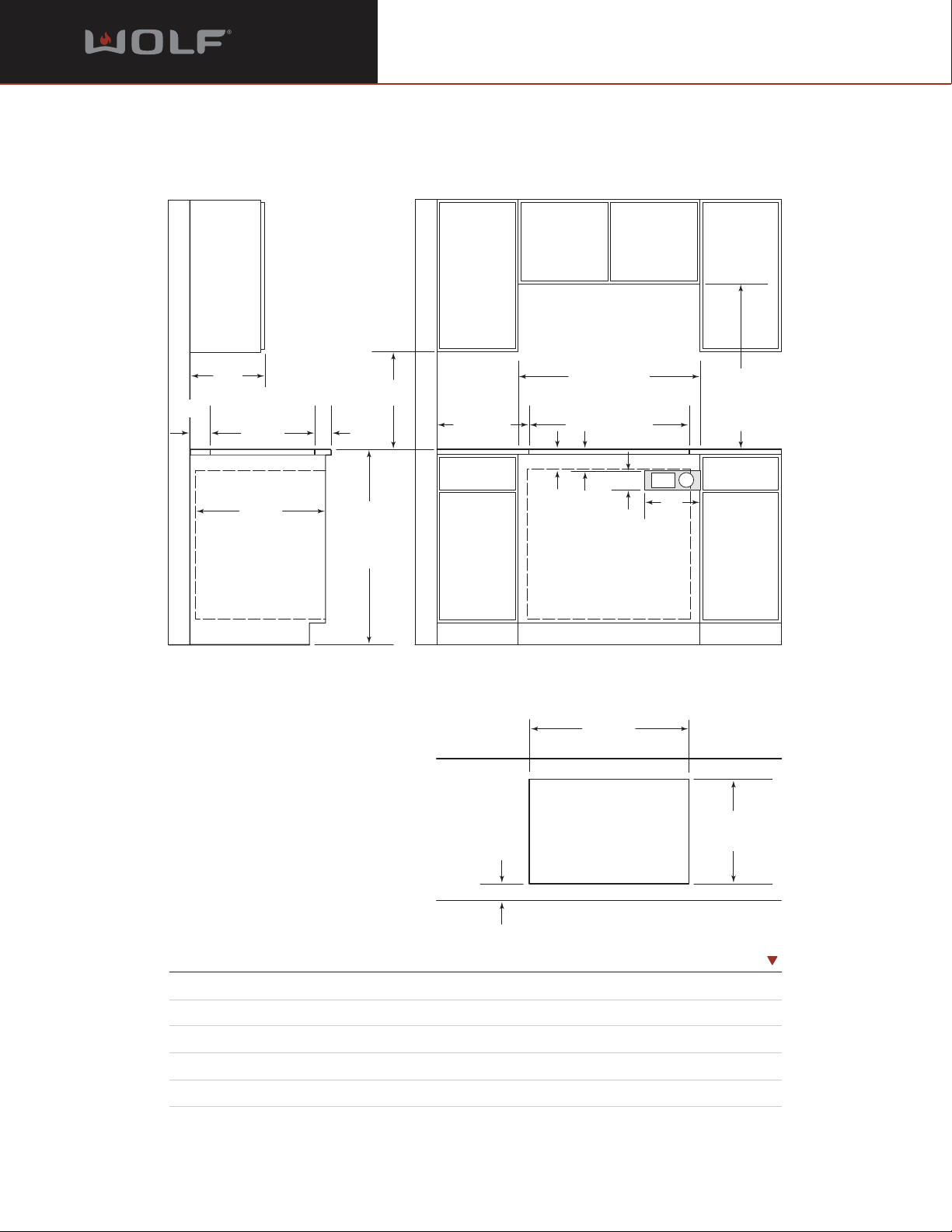

INSTALLATION SPECIFICATIONS
DIMENSIONS
Cooktop Cut-Out Width 29" (737)
Recommended Cabinet Width 33" (838)
Cooktop Cut-Out Depth 191/4" (489)
Minimum Cabinet Depth 223/4" (578)
Location of Electrical and Gas Supply Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
21/2"**
(64)
13" max
(330)
191/4" (489)
COOKTOP CUT-OUT
DEPTH
21/2"min
(64)
18"
(457)
9"*min (229)
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
33" (838)
RECOMMENDED
CABINET WIDTH
30"min (762)
29" (737) COOKTOP
CUT-OUT WIDTH
4" (102)
31/2" (89)
33/4"min
24"min
(610)
*Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18" (457) above countertop.
**Minimum clearance from rear edge of cooktop cut-out to combustible materials up to 18" (457) above countertop.
36" (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
(95)
30-INCH OVEN OPENING
29" (737)
COOKTOP CUT-OUT WIDTH
E
10"
(254)
30" (762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
G
21/2"min
(64)
FRONT OF COUNTERTOP
191/4" (489)
COOKTOP
CUT-OUT DEPTH
Page 5
Planning Information
Model CT30G 30" (762) Gas Cooktop
Dimensions in parentheses are in
millimeters unless otherwise specified.
5
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions, cut-out dimensions and
installation specifics.
Wolf recommends using 33" (838) wide
cabinets with the 30" (762) cooktop.
A Wolf downdraft system, Cooktop or Pro
ventilation hood is recommended. When
installing a ventilation hood, refer to the specific
requirements of the hood for the minimum
dimension to the countertop. Also refer to
Ventilation Recommendations in the Cooktop
Ventilation or Pro Ventilation sections of our
website, wolfappliance.com.
The Wolf 30" (762) gas cooktop requires a
separate 120 V AC, 60 Hz power supply. The
service should have its own 15 amp circuit
breaker and a grounded 3-prong receptacle
should be located within the reach of the
6' (1.8 m) power cord. Locate electrical within
the shaded area shown in the Installation
Specifications illustration on page 4.
IMPORTANT NOTE: A ground fault circuit
interrupter (GFCI) is not recommended and may
cause interruption of operation.
When a gas cooktop is installed above
cabinets, the gas and electrical placement is not
critical. A grounded outlet needs to be placed
within 4' (1.2 m) of the right rear of the
cooktop.
A Wolf 30" (762) built-in single oven may be
installed below this cooktop. For this installation, the electrical and gas supply for the
cooktop should be installed in the adjacent
cabinet. Refer to page 6 for additional specifications. Be aware of the depth of the cooktop
when planning for this installation.
IMPORTANT NOTE: Wolf gas cooktops are
designed and agency approved for installation
with Wolf built-in ovens only.
IMPORTANT NOTE: When a oven is installed
below the cooktop, unless you are using
cabinets deeper than 24" (610), it is recommended that the electrical supply for the oven
be placed in an adjacent cabinet within reach of
the conduit. A 2" (51) diameter hole to route the
conduit through cabinetry will be required. Refer
to page 6 for location of electrical supply and
additional specifications.
Wolf gas cooktops are designed to operate
on natural gas at 5" (12.5 mb) WC (water
column) pressure or LP (propane) gas at 10" (25
mb) WC pressure. The minimum line pressure
for natural gas is 7" (17.5 mb) WC and 11"
(27.4 mb) WC for LP gas. The maximum gas
supply pressure to the regulator should never
exceed 14" (34.9 mb) WC; .5 psi (3.5 kPa). The
cooktops are supplied with a
1
/2" NPT male gas
connection at the right rear bottom corner of
the cooktop. The male connector exits the unit
straight down and you are supplied with a
regulator with two female connectors.
Wolf gas cooktops using natural gas
function up to an altitude of 8,000' (2438 m)
without any adjustment. Natural gas installations from 8,000' (2438 m) to 10,000' (3048 m)
need the high altitude conversion kit. LP gas
installations will operate up to 10,000' (3048 m)
without adjustment.
You must follow all National Electrical Code
and gas regulations. In addition, be aware of
local codes and ordinances when installing your
services.
When multiple cooktop units are installed
side by side, refer to the countertop cut-out
dimensions on page 7.
Refer to the installation instructions
shipped with each Wolf product for detailed
specifications.
This cooktop is intended for indoor use only.
Page 6
Planning Information
Model CT30G 30" (762) Gas Cooktop
Dimensions in parentheses are in
millimeters unless otherwise specified.
6

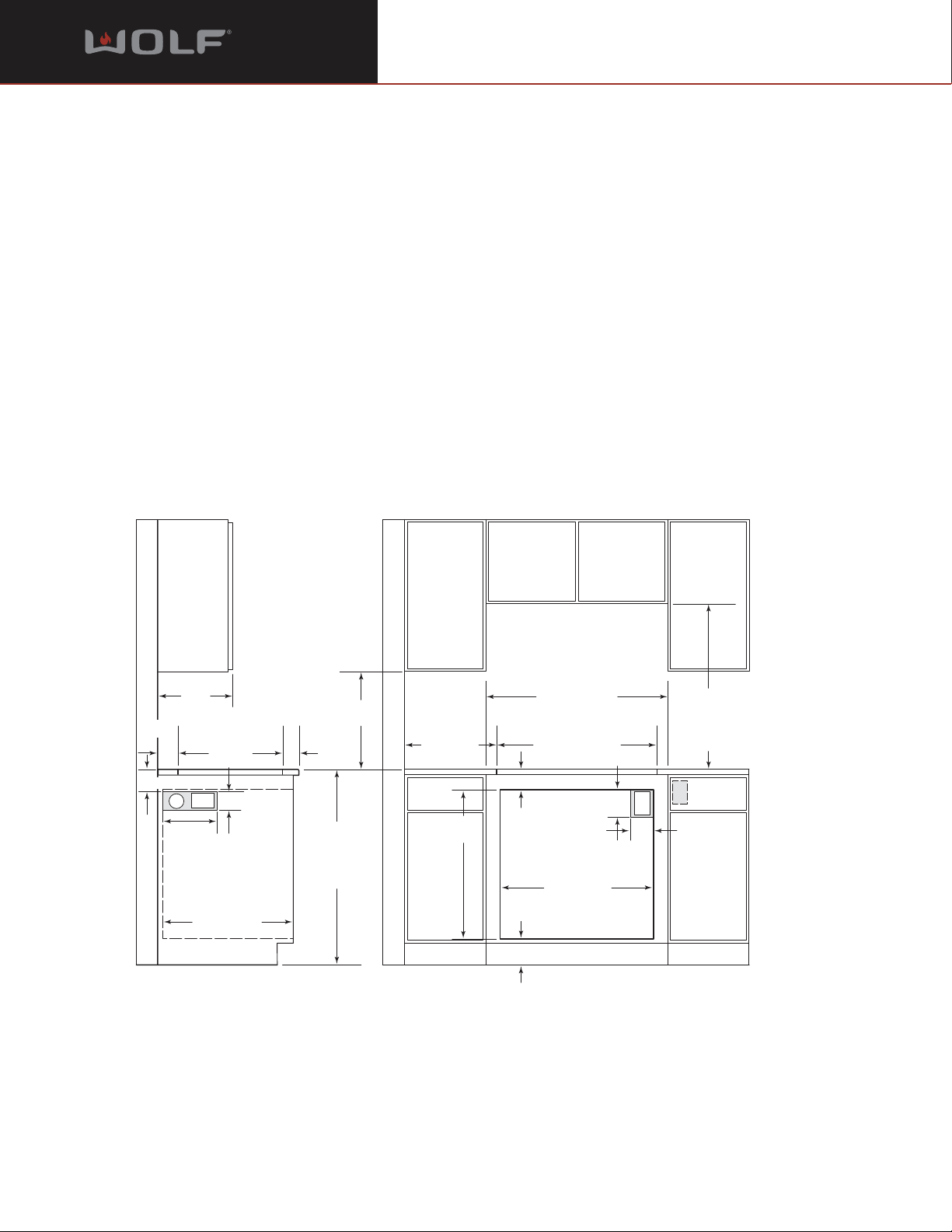

Installation specifications for a 30" (762) gas cooktop installed above a 30" (762) built-in oven.
INSTALLATION OF 30" GAS
COOKTOP ABOVE A BUILT-IN OVEN
A Wolf 30" (762) gas cooktop may be installed
above the Wolf 30" (762) built-in single oven.
Refer to the illustration below for specifications
for this installation.
IMPORTANT NOTE: When a oven is installed
below the cooktop, unless you are using
cabinets deeper than 24" (610), it is recommended that the electrical supply for the oven
and the gas and electrical supply for the cooktop
be located in the adjacent right side cabinet. A
2" (51) diameter hole to route the conduit
through cabinetry will be required.
IMPORTANT NOTE: Wolf gas cooktops are
designed and agency approved for installation
with Wolf built-in ovens only.
Wolf recommends using 33" (838) wide cabinets
for this installation. A minimum 24" (610) of
usable cabinet depth is required. The cabinet
base must be able to support 250 lbs (113 kg).
For electrical requirements and additional
specifications for the built-in oven, refer to the
Built-In Ovens section of our website,
wolfappliance.com.
9"*min (229)
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
18"
(457)
191/4" (489)
COOKTOP CUT-OUT
DEPTH
21/2"min
(64)
36" (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
13" max
(330)
30" (762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
21/2"**
(64)
*Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18" (457) above countertop.
**Minimum clearance from rear edge of cooktop cut-out to combustible materials up to 18" (457) above countertop.
Unless you are using cabinets deeper than 24" (610), the electrical supply for the oven and the gas and electrical supply for the cooktop should
be located in the adjacent right side cabinet as shown.
29" (737) COOKTOP
CUT-OUT WIDTH
33" (838)
RECOMMENDED
CABINET WIDTH
30"min (762)
G
E
10" (254)
31/2" (89)
COOKTOP
GAS SUPPLY AND
ELECTRICAL LOCATION
IN ADJACENT RIGHT
SIDE CABINET
24" min (610)
43/4" min (121)
E
E
5"
(127)
281/2" (724)
OVEN OPENING WIDTH
4"
(102)
OVEN ELECTRICAL
LOCATION WITHIN
OPENING APPLIES
ONLY TO CABINETS
DEEPER THAN 24" (610)
273/16"
(691)
33/4" min (95)
4" (102)
Page 7
Planning Information
Model CT30G 30" (762) Gas Cooktop
Dimensions in parentheses are in
millimeters unless otherwise specified.
7
INTEGRATED MODULES—
MULTIPLE UNIT INSTALLATION
With Wolf's integrated modules, you have the
ultimate in customization. You can create your
own design by mixing and matching the various
components within this system. And when you
couple these modules with other cooktops
within the Wolf inventory you and your client will
truly understand freedom of choice.
Some Wolf integrated modules can be installed
together or with a 30" (762) or 36" (914)
cooktop. When multiple units are installed side
by side, the cut-out dimensions that are shown
in the illustration are derived by adding 1
1
/4" (32)
additional space for each additional unit, to give
you your total cut-out width. Refer to the illustration below for countertop cut-out dimensions
for installation of multiple cooktops.
IMPORTANT NOTE: Refer to the pages for each
specific integrated module for installation
limitations.

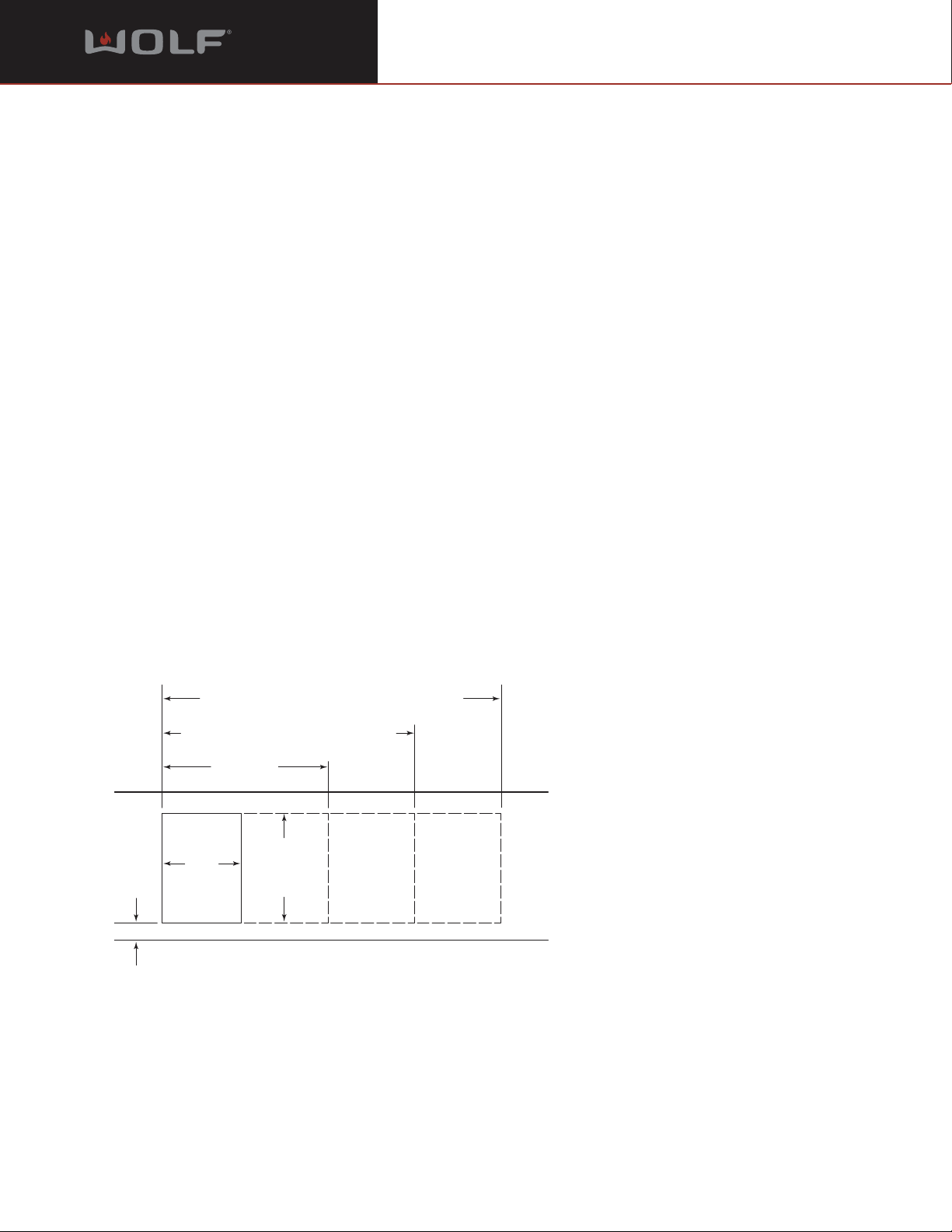

Countertop cut-out dimensions for installation of multiple cooktop units.
IMPORTANT NOTE: Where multiple cooktops
and/ or modules are installed side by side, each
unit must have its own separate recommended
electrical circuit. When multiple gas cooktops
and/ or modules are installed next to one
another, they can receive their gas supply from a
common line. However, each unit must have its
own regulator installed between the mainline
and the cooktop or module.
When two or more cooktops or modules are
installed together, an integrated module filler
strip is recommended. Contact your Wolf dealer
for information on this accessory component.
For gas and electrical requirements, additional
specifications and installation limitations, refer to
the Integrated Modules section of our website,
wolfappliance.com.
IMPORTANT NOTE: Review specific installation
instructions for product to product capabilities.
593/4"
591/2"
501/4"
441/2"
441/4"
(1124) 30" COOKTOP AND ONE MODULE
291/4"
TWO MODULES WIDTH
14"
(356)
21/2"min
(64)
CUT-OUT
WIDTH
FRONT OF COUNTERTOP
(1518) FOUR MODULES WIDTH OR
(1511) 30" COOKTOP AND TWO MODULES OR
(1276) 36" COOKTOP AND ONE MODULE
(1130) THREE MODULES WIDTH OR
(743)
191/4"
(489)
CUT-OUT
DEPTH
Loading...
