Planning Information
30" (762) Framed Electric Cooktop
MODEL CT30E
Dimensions in parentheses are in
millimeters unless otherwise specified.
7/06
1
Model CT30E
Behind the sophisticated, minimalist exterior, beneath
that perfectly smooth, subtly patterned glass that
cleverly reduces scratches, there is a high-performance
cooking tool.
The black ceramic glass top is beautifully complemented by your choice of classic, platinum or carbon
stainless steel trim finish.
Multiple cooking elements with different zones offers
exceptional control of temperature for pans and pots of
every size. All of the heating elements offer True
Simmer along with one element that enables you to set
a temperature for melting.
Let Wolf, the corporate companion and kitchen soul
mate of Sub-Zero, fuel your passion for cooking and
kitchen design.
The Wolf Model CT30E 30" (762)
framed electric cooktop is available with
the classic, platinum or carbon stainless
steel trim finish.
This appliance is certified by Star-K
to meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.

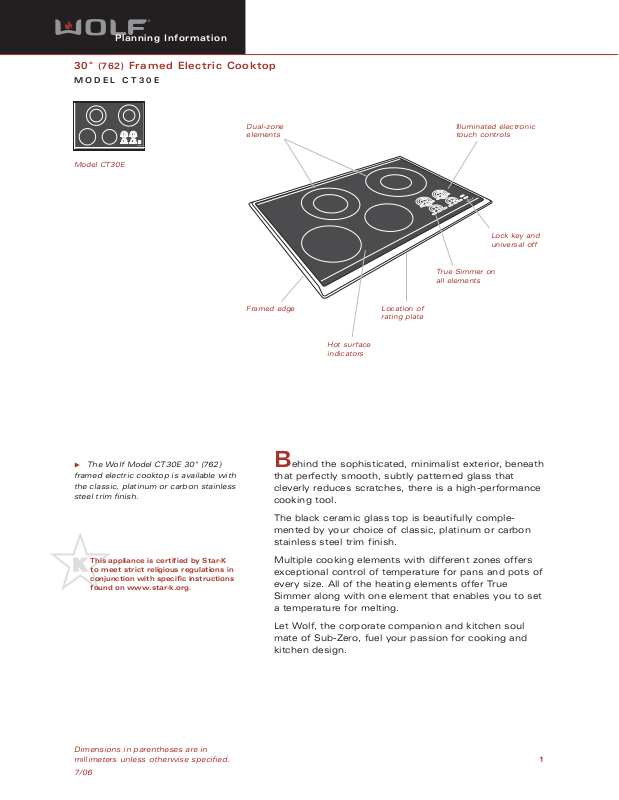

Illuminated electronic
touch controls
Dual-zone
elements
Location of
rating plate
True Simmer on
all elements
Lock key and
universal off
Framed edge
Hot surface
indicators
H
IG
H
N
O
O
F
F
2
O
E
N
F
O
O
Z
M
I
S
IGH
H
H
G
I
H
N
N
OFF O
O
F
F
2
O
E
N
O
Z
SIM
IM
S
H
G
I
H
N
O
F
F
O
M
I
S
F
Page 2
Planning Information
30" (762) Framed Electric Cooktop
MODEL CT30E
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/8" (3).
2
FEATURES
Classic, platinum and carbon stainless steel
trim finishes
Easy-to-clean black ceramic glass surface is
resistant to scratching, staining, impact and
heat— translucent surface allows you to see
the glow of hot elements
Illuminated electronic touch controls with
graduated control lighting
Four ribbon-type radiant heating elements
with six temperature zones
Dual-zone elements for flexible cooking
True Simmer setting on all elements
Melt setting on one element
Hot surface indicators on all elements
High frequency pulsation elements improve
cooking performance and control
Temperature limiter to ensure that safe
operating temperature of ceramic glass is
never exceeded
Child safety lock key and universal off
Certified by Star-K to meet religious
regulations
CSA certified for US and Canada
Two and five year residential warranty –
exclusions apply; warranty information can
be found on our website, wolfappliance.com
OVERALL DIMENSIONS
21"
(533)
OVERALL
DEPTH
30" (762)
OVERALL WIDTH
31/2" (89)
Page 3
Planning Information
30" (762) Framed Electric Cooktop
MODEL CT30E
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
SPECIFICATIONS
Overall Cooktop Width 30" (762)
Overall Cooktop Height 31/2" (89)
Overall Cooktop Depth 21" (533)
Cooktop Cut-Out Width 283/8" (721)
Cooktop Cut-Out Depth 191/4" (489)
Minimum Cabinet Depth 223/4" (578)
Heating Element Maximum Power
(2) Dual – 2200 W outer / 750 W inner and
1900 W outer / 950 W inner
(2) Single – 1500 W and 1200 W
Heating Element Outer Diameter
(2) Dual – 9" (229) and 8
1
/2" (216)
(2) Single – 7" (179) and 61/2" (165)
Electrical Supply Requirements 240 V AC / 60 Hz / 40 amp
208 V AC / 60 Hz / 30 amp
Conduit 4 ft (1.2 m) flexible 3-wire
Electric Rating 6.8 kW at 240 V
5.2 kW at 208 V
Shipping Weight 45 lbs (20 kg)
Special Note Cooktop can be installed above
a Wolf built-in single oven
Specifications are subject to change without notice.
MODEL OPTIONS
Classic Stainless Trim CT30E/S
Platinum Stainless Trim CT30E/P
Carbon Stainless Trim CT30E/B
VENTILATION OPTIONS
30" (762) Cooktop or Pro wall
hood or liner
30" (762) downdraft ventilation
system
36" (914) Cooktop or Pro island
hood
For additional information, refer to the
Wolf Cooktop Ventilation or Pro
Ventilation sections of our website,
wolfappliance.com.
ACCESSORIES
Filler strip
Accessories are available through your
Wolf dealer. To obtain local dealer
information, visit the Locator section of
our website, wolfappliance.com.
Model CT30E
Page 4
Planning Information
30" (762) Framed Electric Cooktop
MODEL CT30E
4

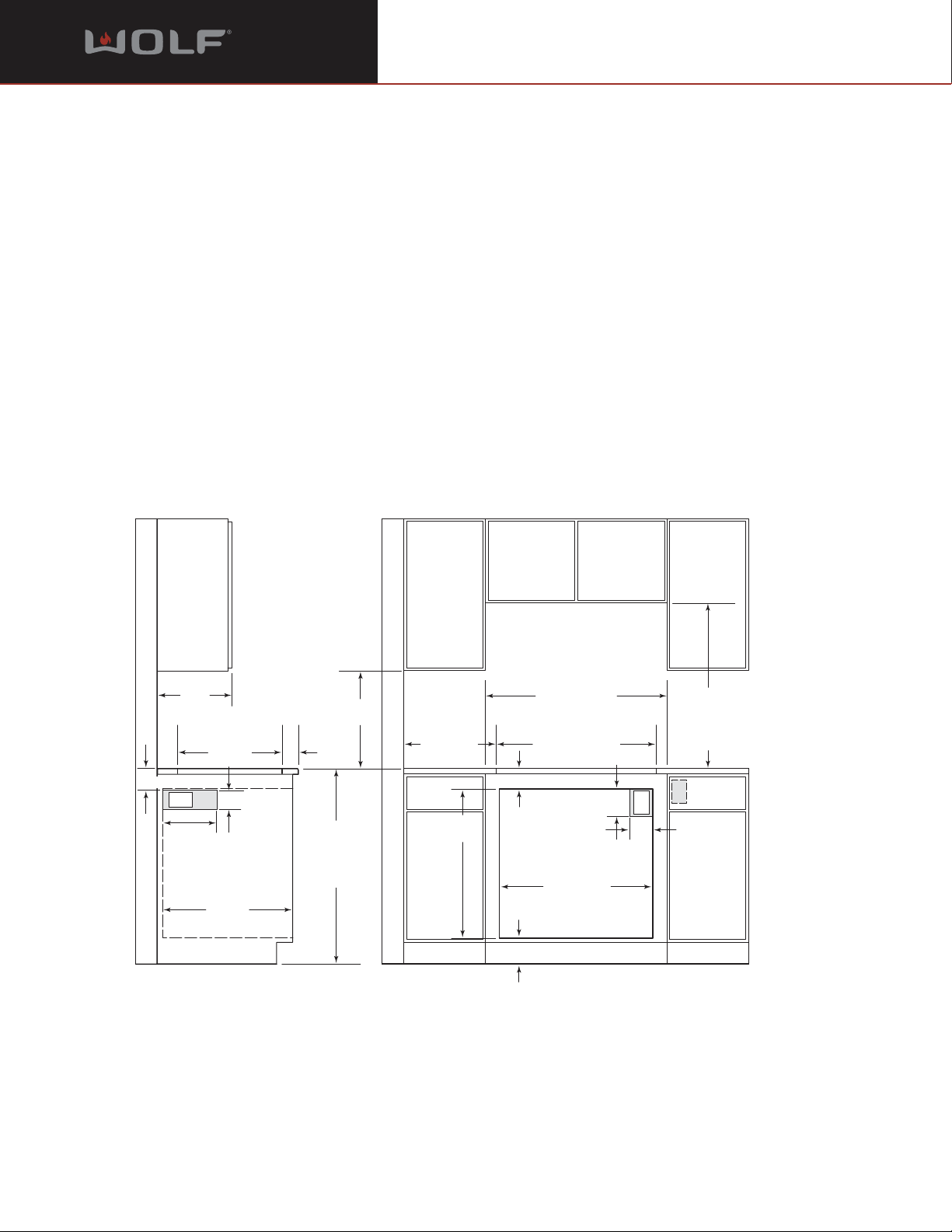

INSTALLATION SPECIFICATIONS
DIMENSIONS
Cooktop Cut-Out Width 283/8" (721)
Recommended Cabinet Width 33" (838)
Cooktop Cut-Out Depth 191/4" (489)
Minimum Cabinet Depth 223/4" (578)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
13" max
(330)
191/4" (489)
2"**
COOKTOP CUT-OUT
(64)
DEPTH
21/2"min
(64)
18"
(457)
2"*min (51)
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
33" (838)
RECOMMENDED
CABINET WIDTH
30"min (762)
283/8" (721) COOKTOP
CUT-OUT WIDTH
30" (762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
4" (102)
10"
(254)
E
31/2" (89)
33/4"min
24"min
(610)
*Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18" (457) above countertop. **Minimum clearance
from rear edge of cooktop cut-out to combustible materials up to 18" (457) above countertop.
36" (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
(95)
30-INCH OVEN OPENING
283/8" (721)
COOKTOP CUT-OUT WIDTH
191/4" (489)
21/2"min
(64)
FRONT OF COUNTERTOP
COOKTOP
CUT-OUT DEPTH
Page 5
Planning Information
30" (762) Framed Electric Cooktop
MODEL CT30E
Dimensions in parentheses are in
millimeters unless otherwise specified.
5
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions, cut-out dimensions and
installation specifics.
Wolf recommends using 33" (838) cabinets
with the 30" (762) cooktop.
A Wolf downdraft system, Cooktop or Pro
ventilation hood is recommended. When
installing a ventilation hood, refer to the specific
requirements of the hood for the minimum
dimension to the countertop. Also refer to
Ventilation Recommendations in the Cooktop
Ventilation or Pro Ventilation sections of our
website, wolfappliance.com.
The Wolf 30" (762) framed electric cooktop
requires a separate, grounded 3-wire 240 V AC,
60 Hz, 40 amp or 208 V AC, 60 Hz, 30 amp
service with its own circuit breaker. It has a 4'
(1.2 m) flexible 3-wire conduit for connection at
the electrical supply. Locate electrical within the
shaded area shown in the Installation Specifications illustration on page 4.
A Wolf 30" (762) or 36" (914) built-in single
oven may be installed below this cooktop. For
this installation, the electrical supply for the
cooktop should be installed in the adjacent
cabinet. Refer to page 6 for additional specifications. Be aware of the depth of the cooktop
when planning for this installation. The bottom
cabinet support must be able to support 250
lbs (113 kg).
IMPORTANT NOTE: Wolf electric cooktops are
designed and agency approved for installation
with Wolf built-in ovens only.
IMPORTANT NOTE: When a built-in oven is
installed below the cooktop, unless you are
using cabinets deeper than 24" (610), it is
recommended that the electrical supply for the
oven be placed in an adjacent cabinet within
reach of the conduit. A 2" (51) diameter hole to
route the conduit through cabinetry will be
required. Refer to page 6 for location of electrical supply and additional specifications.
You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.
If the 30" (762) framed electric cooktop is to
be used with any combination of additional
cooktop units or modules with a filler strip, the
cut-out width increases to 29" (737). When
multiple cooktop units or modules are installed
side by side, refer to the countertop cut-out
dimensions on page 7.
Refer to the installation instructions
shipped with each Wolf product for detailed
specifications.
This cooktop is intended for indoor use only.
Page 6
Planning Information
30" (762) Framed Electric Cooktop
MODEL CT30E
Dimensions in parentheses are in
millimeters unless otherwise specified.
6

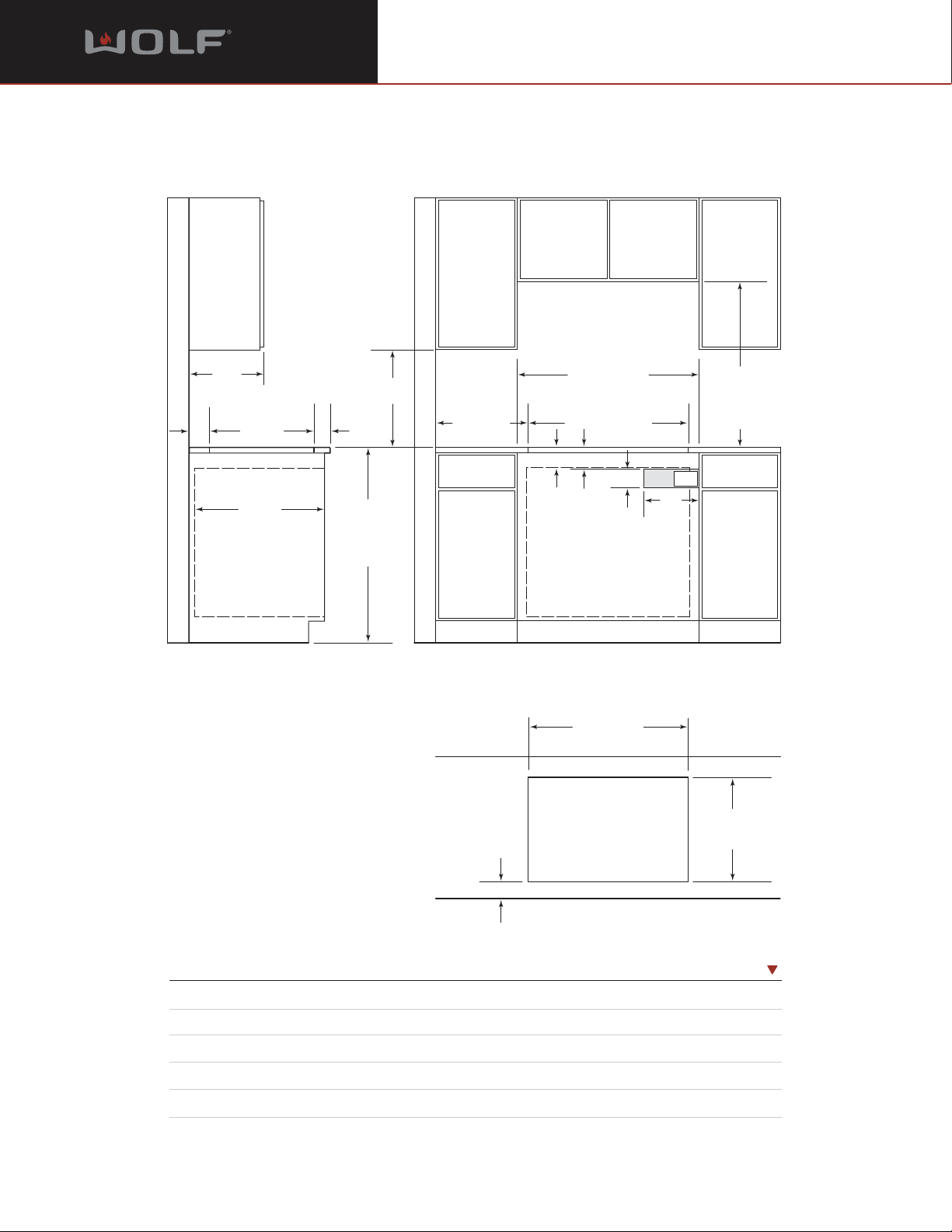

Installation specifications for a 30" (762) framed electric cooktop installed above a 30" (762) built-in single oven.
INSTALLATION OF 30" ELECTRIC
COOKTOP ABOVE A BUILT-IN OVEN
A Wolf 30" (762) framed electric cooktop may be
installed above the Wolf 30" (762) built-in single
oven. Refer to the illustration below for specifications for this installation.
IMPORTANT NOTE: When a oven is installed
below the cooktop, unless you are using
cabinets deeper than 24" (610), it is recommended that the electrical supply for the oven
and the electrical supply for the cooktop be
located in the adjacent right side cabinet. A 2"
(51) diameter hole to route the conduit through
cabinetry will be required.
IMPORTANT NOTE: Wolf electric cooktops are
designed and agency approved for installation
with Wolf built-in ovens only.
Wolf recommends using 33" (838) wide cabinets
for this installation. A minimum 24" (610) of
usable cabinet depth is required. The cabinet
base must be able to support 250 lbs (113 kg).
A Wolf 30" (762) framed electric cooktop may
also be installed above the Wolf 36" (914) built-in
oven.
For electrical requirements and additional
specifications for the built-in oven, refer to the
Built-In Ovens section of our website,
wolfappliance.com.
2"*min (51)
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
18"
(457)
191/4" (489)
COOKTOP CUT-OUT
DEPTH
21/2"min
(64)
36" (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
13" max
(330)
30" (762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
*Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18" (457) above countertop.
Unless you are using cabinets deeper than 24" (610), the electrical supply for the oven and the electrical supply for the cooktop should be
located in the adjacent right side cabinet as shown.
283/8" (721) COOKTOP
CUT-OUT WIDTH
33" (838)
RECOMMENDED
CABINET WIDTH
30"min (762)
24" min
(610)
10"
(254)
31/2"(89)
E
COOKTOP
ELECTRICAL
LOCATION IN
ADJACENT RIGHT
SIDE CABINET
33/4" min (95)
43/4" min (121)
273/16"
(691)
E
E
5"
(127)
281/2" (724)
OVEN OPENING WIDTH
4"
(102)
OVEN ELECTRICAL
LOCATION WITHIN
OPENING APPLIES
ONLY TO CABINETS
DEEPER THAN 24" (610)
4" (102)
Page 7
Planning Information
30" (762) Framed Electric Cooktop
MODEL CT30E
Dimensions in parentheses are in
millimeters unless otherwise specified.
7

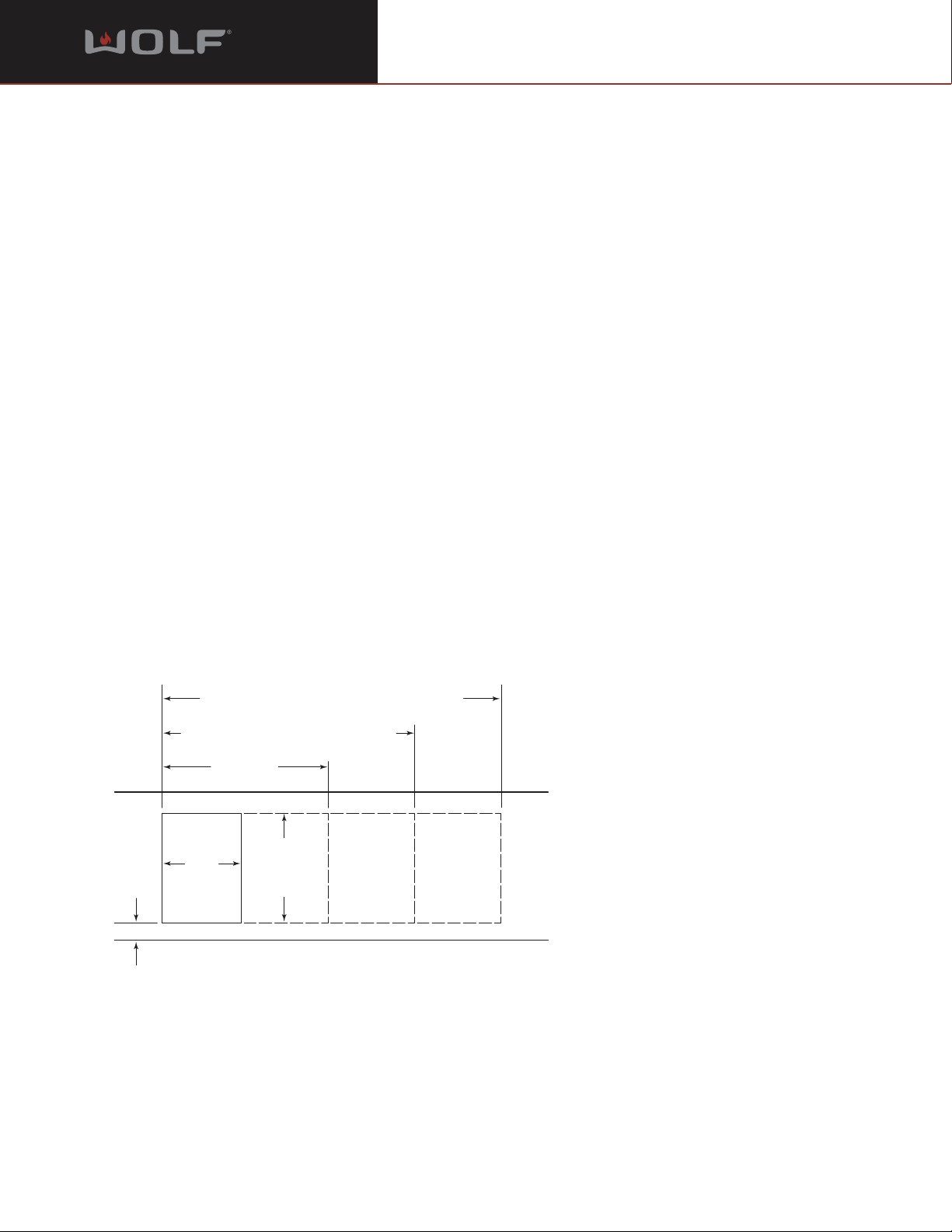

INTEGRATED MODULES—
MULTIPLE UNIT INSTALLATION
With Wolf's integrated modules, you have the
ultimate in customization. You can create your
own design by mixing and matching the various
components within this system. And when you
couple these modules with other cooktops
within the Wolf inventory you and your client will
truly understand freedom of choice.
Some Wolf integrated modules can be installed
together or with a 30" (762) or 36" (914)
cooktop. When multiple units are installed side
by side, the cut-out dimensions that are shown
in the illustration are derived by adding 1
1
/4" (32)
additional space for each additional unit, to give
you your total cut-out width. Refer to the illustration below for countertop cut-out dimensions
for installation of multiple cooktops.
IMPORTANT NOTE: Refer to the pages for each
specific integrated module for installation
limitations.
Countertop cut-out dimensions for installation of multiple cooktop units.
IMPORTANT NOTE: Where multiple cooktops
and/ or modules are installed side by side, each
unit must have its own separate recommended
electrical circuit. When multiple gas cooktops
and/ or modules are installed next to one
another, they can receive their gas supply from a
common line. However, each unit must have its
own regulator installed between the mainline
and the cooktop or module.
When two or more cooktops or modules are
installed together, an integrated module filler
strip is recommended. Contact your Wolf dealer
for information on this accessory component.
For electrical requirements, additional specifications and installation limitations, refer to the
Integrated Modules pages on our website,
wolfappliance.com.
IMPORTANT NOTE: Review specific installation
instructions for product to product capabilities.
593/4"
591/2"
501/4"
441/2"
441/4"
(1124) 30" COOKTOP AND ONE MODULE
291/4"
TWO MODULES WIDTH
14"
(356)
21/2"min
(64)
CUT-OUT
WIDTH
FRONT OF COUNTERTOP
(1518) FOUR MODULES WIDTH OR
(1511) 30" COOKTOP AND TWO MODULES OR
(1276) 36" COOKTOP AND ONE MODULE
(1130) THREE MODULES WIDTH OR
(743)
191/4"
(489)
CUT-OUT
DEPTH
Loading...
