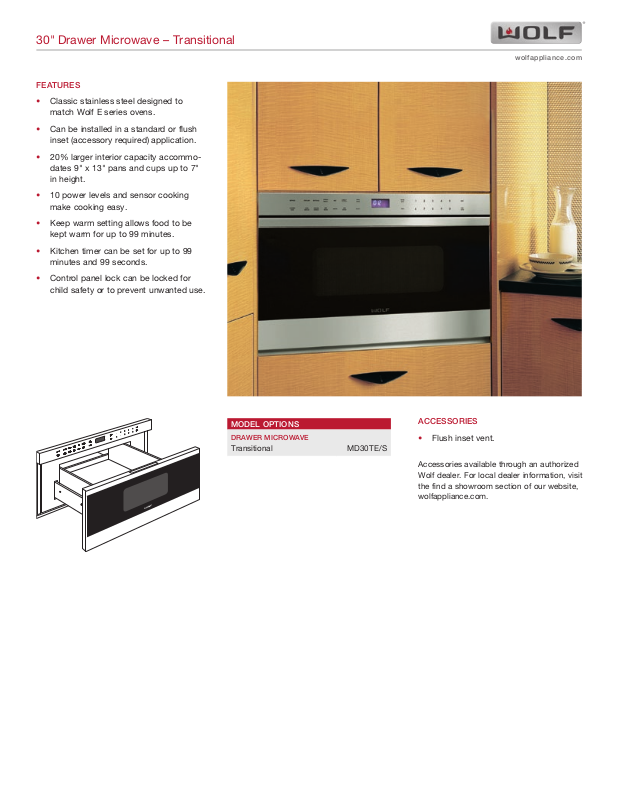

Page 1
30" Drawer Microwave – Transitional
FEATURES
• Classic stainless steel designed to
match Wolf E series ovens.
• Can be installed in a standard or flush
inset (accessory required) application.
• 20% larger interior capacity accommo-
dates 9" x 13" pans and cups up to 7"
in height.
• 10 power levels and sensor cooking
make cooking easy.
• Keep warm setting allows food to be
kept warm for up to 99 minutes.
• Kitchen timer can be set for up to 99
minutes and 99 seconds.
• Control panel lock can be locked for
child safety or to prevent unwanted use.
wolfappliance.com
MODEL OPTIONS
DRAWER MICROWAVE
Transitional MD30TE/S
ACCESSORIES
• Flush inset vent.
Accessories avail able through an authorized
Wolf dealer. For local dealer information, visit
the find a showroom section of our website,
wolfappliance.com.
Page 2
30" Drawer Microwave – Transitional
"
SIDE
SIDE
NOTE: All dr
Dashed line represents profile of unit
wolfappliance.com
SPECIFICATIONS
PRODUCT
Dimensions 297/8"W x 151/8"H x 217/8"D
Weight 96 lb
OVEN INTERIOR
Capacity 1.2 cu ft
5
Dimensions 17
/16"W x 71/8"H x 169/16"D
ELECTRICAL
Power 950 W
Supply 120 VAC, 60 Hz
Service 15 amp circuit
Power Cord 4 ft
Specifications are subject to change without
notice. Visit wolfappliance.com/specs for the
most up-to-date information.
Dimensions may vary ±
1
/8" (3). Dimensions in
parentheses are millimeters unless otherwise
specified.
STANDARD I
NSTALLATION
DIMENSIONS
297/8" (759)
151/8"
(384)
11/4"
(32)
217/8" (556)
BEHIND FRAME
13/4"
(45)
POWER CORD
FLUSH INSET INSTALLATION
CHANNEL
145/8"
(372)
215/8" (549)
45/8"
(118)
OPEN DRAWER
161/2
(419)
ANTI-TIP BLOCK
BASE SUPPORT
VIEW
awer microwave ovens require the same opening dimensions.
143/4" (375)
OPENING
HEIGHT
.
TOP VIEW
E
221/8" (562)
W
OPENING WIDTH
FRONT VIEW
(559)
22"
OPENING
DEPTH
ANTI-TIP BLOCK
1515/16" (405)
FLUSH INSET
HEIGHT
VIEW
*Will be visible and should be finished to match cabinetry.
NOTE: Dashed line represents profile of unit.
11/4" (32)
TOP VIEW
E
4" (102)
A
301/8" (765)
FLUSH INSET WIDTH
FRONT VIEW
7
/16"(11)
3
/4" (19)
W
231/4"
(591)
FLUSH INSET
DEPTH
FINISHED
CLEATS*
©Wolf Appliance, Inc. all rights reserved. 10/2013
