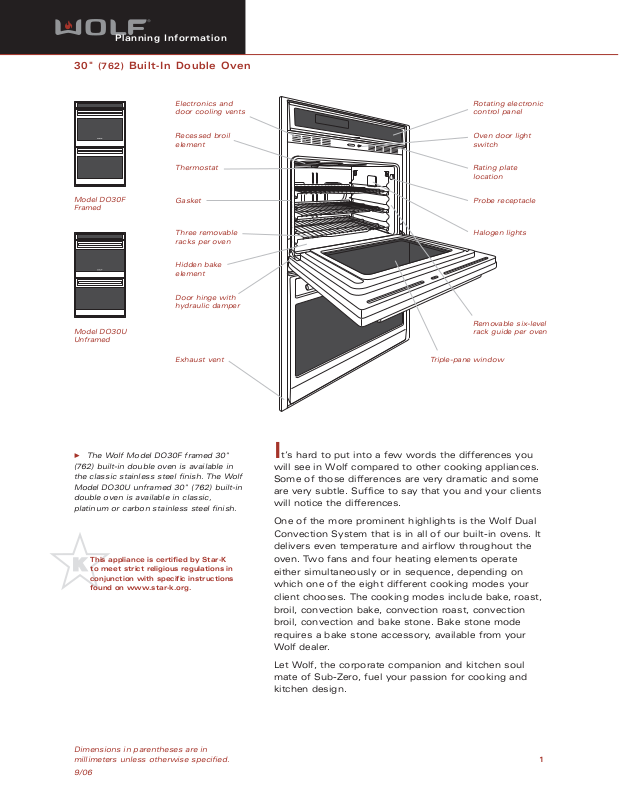

Page 1
Planning Information
30" (762) Built-In Double Oven
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/06
1
Model DO30F
Framed
Model DO30U
Unframed
Rotating electronic
control panel
Electronics and
door cooling vents
Recessed broil
element
Probe receptacle
Halogen lights
Removable six-level
rack guide per oven
Three removable
racks per oven
Hidden bake
element
Triple-pane window
Door hinge with
hydraulic damper
Exhaust vent
Rating plate
location
Oven door light
switch
Thermostat
Gasket
It’s hard to put into a few words the differences you
will see in Wolf compared to other cooking appliances.
Some of those differences are very dramatic and some
are very subtle. Suffice to say that you and your clients
will notice the differences.
One of the more prominent highlights is the Wolf Dual
Convection System that is in all of our built-in ovens. It
delivers even temperature and airflow throughout the
oven. Two fans and four heating elements operate
either simultaneously or in sequence, depending on
which one of the eight different cooking modes your
client chooses. The cooking modes include bake, roast,
broil, convection bake, convection roast, convection
broil, convection and bake stone. Bake stone mode
requires a bake stone accessory, available from your
Wolf dealer.
Let Wolf, the corporate companion and kitchen soul
mate of Sub-Zero, fuel your passion for cooking and
kitchen design.
The Wolf Model DO30F framed 30"
(762) built-in double oven is available in
the classic stainless steel finish. The Wolf
Model DO30U unframed 30" (762) built-in
double oven is available in classic,
platinum or carbon stainless steel finish.
This appliance is certified by Star-K
to meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.
Page 2
Planning Information
30" (762) Built-In Double Oven
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/8" (3).
2
FEATURES
Dual convection logic control system
Eight cooking modes— bake, roast, broil,
convection bake, convection roast, convec-
tion broil, convection and bake stone (with
bake stone accessory) in each oven
Rotating glass touch control panel
Cobalt blue porcelain oven interiors
Three removable racks with full-extension
bottom rack and removable six-level rack
guide in each oven
Large viewing triple-pane windows
Dual interior halogen lighting
Hidden bake element in each oven
Recessed broil element in each oven
Temperature probe and receptacle in each
oven
Proof feature and dehydration feature
(accessory required) in each oven
Self-clean, delayed start and sabbath feature
in each oven
Door hinge with hydraulic damper assures
smooth opening and closing of the door
Factory installed trim
Certified by Star-K to meet religious
regulations
CSA certified for US and Canada
Two and five year residential warranty –
exclusions apply; warranty information can
be found on our website, wolfappliance.com
OVERALL DIMENSIONS
50"
(1270)
297/8"
(759)
3"
(76)
RIGHT SIDE VIEW
POWER CORD
CHANNEL
17/8"
(48)
24" (610)
BEHIND FRAME
481/2"
(1232)
INSIDE
SIDE TRIM
TOP VIEW
17/8"
(48)
283/16"
(716)
OPEN OVEN DOOR
28"
(711)
11/4"
(32)
24"
(610)
203/4"
(527)
Page 3
Planning Information
30" (762) Built-In Double Oven
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
SPECIFICATIONS
Overall Oven Width 297/8" (759)
Overall Oven Height 50" (1270)
Overall Oven Depth 24" (610)
Open Oven Door Clearance 203/4" (527)
Usable Oven Interior Capacity* (per oven) 2.7 cu ft (96 L)
Oven Interior Dimensions 21
1
/2"W x 161/2"H x 163/8"D
(per oven) (546 x 419 x 416)
Recommended Cabinet Width 33" (838)
Minimum Cabinet Width 30" (762)
Minimum Cabinet Depth 24" (610)
Minimum Base Support 400 lbs (181 kg)
Electrical Supply Requirements 240/ 208 V AC, 60 Hz
50 amp dedicated circuit
Conduit 5 ft (1.5 m) flexible 4-wire
Electric Rating 8.9 kW at 240 V
6.7 kW at 208 V
Total Amps 37
Shipping Weight 466 lbs (211 kg)
*Oven capacity is calculated using new AHAM standards
(AHAM OV-1-2005).
Specifications are subject to change without notice.
MODEL OPTIONS
Framed Door Style –
Classic Stainless Steel DO30F/S
Unframed Door Style –
Classic Stainless Steel DO30U/S
Platinum Stainless Steel DO30U/P
Carbon Stainless Steel DO30U/B
ACCESSORIES
Bake stone accessory, includes
stone, rack and peel
Two-piece broiler pan and
temperature probe
Set of three 30" (762) oven racks
Dehydration racks with door stop
Accessories are available through your
Wolf dealer. To obtain local dealer
information, visit the Locator section of
our website, wolfappliance.com.
Model DO30F
Framed
Model DO30U
Unframed
Page 4
Planning Information
30" (762) Built-In Double Oven
Dimensions in parentheses are in
millimeters unless otherwise specified.
4
WALL INSTALLATION
DIMENSIONS
Rough Opening Width 281/2" (724)
Rough Opening Height 495/8" (1260)
Recommended Cabinet Width 33" (838)
Minimum Cabinet Width 30" (762)
Minimum Cabinet Depth 24" (610)
See Installation Instructions shipped with unit for detailed specifications.
IMPORTANT NOTE: Unless you are using cabinets deeper
than 24" (610), it is recommended that the electrical supply
be placed in an adjacent cabinet within reach of the conduit.
Choose the location shown in the illustration that best suits
your installation.
33"
RECOMMENDED CABINET WIDTH
(838)
30"min (762)
E
24"min (610)
OPENING DEPTH
495/8"
(1260)
OPENING
HEIGHT
67"max
(1702)
281/2" (724)
OPENING WIDTH
ELECTRICAL LOCATION
WITHIN OPENING
APPLIES ONLY TO
CABINETS DEEPER
THAN 24" (610)
(127)
5"
4"
(102)
E
E
E
Page 5
Planning Information
30" (762) Built-In Double Oven
Dimensions in parentheses are in
millimeters unless otherwise specified.
5
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions, finished rough opening
dimensions and installation specifics.
Wolf recommends using 33" (838) cabinets
with the 30" (762) double oven for ease of
installation. You will need a minimum 24" (610)
of usable cabinet depth. The cabinet must be
able to support 400 lbs (181 kg).
Wolf built-in ovens have a face trim on all
four sides and will overlap stiles and rails. The
trim overlaps
1
/8" (3) on the bottom, 3/16" (5) on
the top and
3
/4" (19) on each side.
The 30" (762) double oven requires a
separate, grounded 4-wire 240/208 V AC,
60 Hz, 50 amp service with its own circuit
breaker. It is provided with a 5' (1.5 m) flexible
4-wire conduit for connection at the electrical
supply.
IMPORTANT NOTE: Unless you are using
cabinets deeper than 24" (610), it is recommended that the electrical supply be placed in
an adjacent cabinet within reach of the conduit.
A 2" (51) diameter hole to route the conduit
through cabinetry will be required. Refer to
page 4 for location of electrical supply and additional specifications.
You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.
Refer to the installation instructions
shipped with each Wolf product for detailed
specifications.
