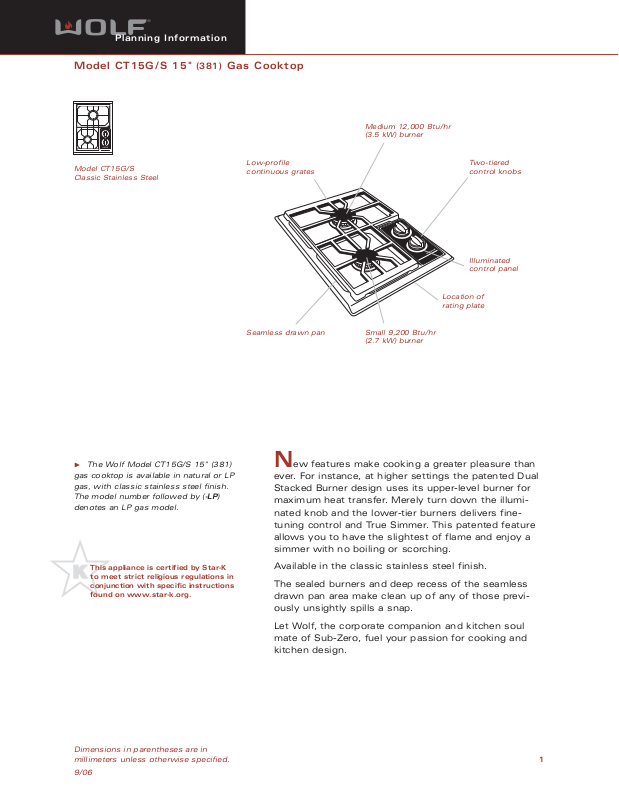

Page 1
Planning Information
Model CT15G/S 15" (381) Gas Cooktop
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/06
1
Model CT15G/S
Classic Stainless Steel
New features make cooking a greater pleasure than
ever. For instance, at higher settings the patented Dual
Stacked Burner design uses its upper-level burner for
maximum heat transfer. Merely turn down the illuminated knob and the lower-tier burners delivers finetuning control and True Simmer. This patented feature
allows you to have the slightest of flame and enjoy a
simmer with no boiling or scorching.
Available in the classic stainless steel finish.
The sealed burners and deep recess of the seamless
drawn pan area make clean up of any of those previously unsightly spills a snap.
Let Wolf, the corporate companion and kitchen soul
mate of Sub-Zero, fuel your passion for cooking and
kitchen design.
The Wolf Model CT15G/S 15" (381)
gas cooktop is available in natural or LP
gas, with classic stainless steel finish.
The model number followed by (-LP)
denotes an LP gas model.
This appliance is certified by Star-K
to meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.
Medium 12,000 Btu/ hr
(3.5 kW) burner
Low-profile
continuous grates
Small 9,200 Btu/ hr
(2.7 kW) burner
Two-tiered
control knobs
Seamless drawn pan
Illuminated
control panel
Location of
rating plate
Page 2
Planning Information
Model CT15G/S 15" (381) Gas Cooktop
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/8" (3).
2
FEATURES
Available in natural and LP gas
Stainless steel top construction with classic
stainless steel finish
Two dual-stacked, sealed burners with
automatic reignition on all settings
One medium 12,000 Btu/ hr (3.5 kW) sealed
burner with 800 Btu/ hr (.2 kW) delivered at
simmer
One small 9,200 Btu/ hr (2.7 kW) sealed
burner with 300 Btu/ hr (.1 kW) delivered at
simmer
Individual spark ignition system
True Simmer setting on both burners
Illuminated control panel with two-tiered
control knobs
Low-profile cast iron continuous burner
grate with matte porcelain finish
Seamless drawn burner pan
Certified by Star-K to meet religious
regulations
CSA certified for US and Canada
Two and five year residential warranty –
exclusions apply; warranty information can
be found on our website, wolfappliance.com
OVERALL DIMENSIONS
21"
(533)
OVERALL
DEPTH
15" (381)
OVERALL WIDTH
4" (102)
Page 3
Planning Information
Model CT15G/S 15" (381) Gas Cooktop
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
SPECIFICATIONS
Overall Cooktop Width 15" (381)
Overall Cooktop Height 4" (102)
Overall Cooktop Depth 21" (533)
Cooktop Cut-Out Width 14" (356)
Cooktop Cut-Out Depth 191/4" (489)
Minimum Cabinet Depth 223/4" (578)
Burner Rating
One 12,000 Btu/ hr (3.5 kW) burner with 800 Btu / hr
(.2 kW) delivered at simmer
One 9,200 Btu/ hr (2.7 kW) burner with 300 Btu / hr
(.1 kW) delivered at simmer
Gas Rating 21,200 Btu/ hr (6.2 kW)
Electrical Supply Requirements 120 V AC, 60 Hz
15 amp dedicated circuit
Power Cord 6' (1.8 m) power cord with
3-prong grounded plug
Shipping Weight 30 lbs (14 kg)
Special Note Cooktop can be installed in combination
with other cooktops or modules
Specifications are subject to change without notice.
MODEL OPTIONS
Classic Stainless Steel CT15G/S
Natural gas model listed, for LP gas add
(-LP) to the model number.
VENTILATION OPTIONS
30" (762) Cooktop or Pro wall
hood or liner
30" (762) or 45" (1143) downdraft
ventilation system
36" (914) Cooktop or Pro island
hood
For additional information, refer to the
Wolf Cooktop Ventilation or Pro
Ventilation sections of our website,
wolfappliance.com.
ACCESSORIES
Filler strip
Bracket supports for installation
of two integrated modules with
downdraft (Model DD30 only)
High altitude conversion kit
Accessories are available through your
Wolf dealer. To obtain local dealer
information, visit the Locator section of
our website, wolfappliance.com.
Model CT15G/S
Classic Stainless Steel
Page 4
Planning Information
Model CT15G/S 15" (381) Gas Cooktop
Dimensions in parentheses are in
millimeters unless otherwise specified.
4
INSTALLATION SPECIFICATIONS
DIMENSIONS
Cooktop Cut-Out Width 14" (356)
Recommended Cabinet Width 33" (838)
Cooktop Cut-Out Depth 191/4" (489)
Minimum Cabinet Depth 223/4" (578)
Location of Electrical and Gas Supply Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
t
13" max
(330)
21/2"**
(64)
COOKTOP CUT-OUT
LOCATION OF GAS
SUPPLY MAY ALSO
EXTEND 5" ON FLOOR
FROM BACK WALL
5"
(127)
191/4" (489)
DEPTH
21/2"min
COUNTERTOP
(457)
(64)
36" (914)
STANDARD
FLOOR TO
HEIGHT
18"
7"*min (178)
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
33" (838)
RECOMMENDED
CABINET WIDTH
14" (356)
COOKTOP CUT-OUT
WIDTH
4" (102)
G
E
15"
(381)
LOCATION OF GAS SUPPLY
MAY ALSO EXTEND 5" ON
FLOOR FROM BACK WALL
15"
(381)
15"
(381)
30" (762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
NOTE: Application shown allows for installation of two 15" (381) modules side-by-side with 33" (838) recommended cabinet width. 18" (457)
recommended cabinet width for installation of single 15" (381) cooktop or module. *Minimum clearance from both side edges of cooktop cut-ou
to combustible materials up to 18" (457) above countertop. **Minimum clearance from rear edge of cooktop cut-out to combustible materials up
to 18" (457) above countertop.
21/2"min
(64)
14" (356)
COOKTOP CUT-OUT
WIDTH
FRONT OF COUNTERTOP
191/4" (489)
COOKTOP
CUT-OUT DEPTH
Page 5
Planning Information
Model CT15G/S 15" (381) Gas Cooktop
Dimensions in parentheses are in
millimeters unless otherwise specified.
5
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions, cut-out dimensions and
installation specifics.
When multiple 15" (381) cooktop modules
are installed side by side, refer to the countertop cut-out dimensions on page 6.
A Wolf downdraft system, Cooktop or Pro
ventilation hood is recommended. When
installing a ventilation hood, refer to the specific
requirements of the hood for the minimum
dimension to the countertop. Also refer to
Ventilation Recommendations in the Cooktop
Ventilation or Pro Ventilation sections of our
website, wolfappliance.com.
The Wolf 15" (381) gas cooktop requires a
separate 120 V AC, 60 Hz power supply. The
service should have its own 15 amp circuit
breaker and a grounded 3-prong receptacle
should be located within the reach of the
6' (1.8 m) power cord. Locate electrical within
the shaded area shown in the Installation
Specifications illustration on page 4.
iIMPORTANT NOTE: A ground fault circuit
interrupter (GFCI) is not recommended and may
cause interruption of operation.
For the 15" (381) gas cooktop, the gas
service may be supplied through the floor if the
cooktop is not installed above an oven. Refer
to the Installation Specifications illustration on
page 4 for placement of electrical and gas
supply.
Wolf gas cooktops are designed to operate
on natural gas at 5" (12.5 mb) WC (water
column) pressure or LP (propane) gas at 10" (25
mb) WC pressure. The minimum line pressure
for natural gas is 7" (17.5 mb) WC and 11"
(27.4 mb) WC for LP gas. The maximum gas
supply pressure to the regulator should never
exceed 14" (34.9 mb) WC; .5 psi (3.5 kPa). The
cooktops are supplied with a
1
/2" NPT male gas
connection at the right rear bottom corner of
the cooktop. The male connector exits the unit
straight down and you are supplied with a
regulator with two female connectors.
Wolf gas cooktops using natural gas
function up to an altitude of 8,000' (2438 m)
without any adjustment. Natural gas installations from 8,000' (2438 m) to 10,000' (3048 m)
need the high altitude conversion kit. LP gas
installations will operate up to 10,000' (3048 m)
without adjustment.
You must follow all National Electrical Code
and gas regulations. In addition, be aware of
local codes and ordinances when installing your
services.
Refer to the installation instructions
shipped with each Wolf product for detailed
specifications.
This cooktop is intended for indoor use only.
Page 6
Planning Information
Model CT15G/S 15" (381) Gas Cooktop
Dimensions in parentheses are in
millimeters unless otherwise specified.
6
INTEGRATED MODULES—
MULTIPLE UNIT INSTALLATION
With Wolf's integrated modules, you have the
ultimate in customization. You can create your
own design by mixing and matching the various
components within this system. And when you
couple these modules with other cooktops
within the Wolf inventory you and your client will
truly understand freedom of choice.
Some Wolf integrated modules can be installed
together or with a 30" (762) or 36" (914)
cooktop. When multiple units are installed side
by side, the cut-out dimensions that are shown
in the illustration are derived by adding 1
1
/4" (32)
additional space for each additional unit, to give
you your total cut-out width. Refer to the illustration below for countertop cut-out dimensions
for installation of multiple cooktops.
IMPORTANT NOTE: Refer to the pages for each
specific integrated module for installation
limitations.
Countertop cut-out dimensions for installation of multiple cooktop units.
IMPORTANT NOTE: Where multiple cooktops
and/ or modules are installed side by side, each
unit must have its own separate recommended
electrical circuit. When multiple gas cooktops
and/ or modules are installed next to one
another, they can receive their gas supply from a
common line. However, each unit must have its
own regulator installed between the mainline
and the cooktop or module.
When two or more cooktops or modules are
installed together, an integrated module filler
strip is recommended. Contact your Wolf dealer
for information on this accessory component.
For gas and electrical requirements, additional
specifications and installation limitations, refer to
the Integrated Modules section of our website,
wolfappliance.com.
IMPORTANT NOTE: Review specific installation
instructions for product to product capabilities.
593/4"
591/2"
501/4"
441/2"
441/4"
(1124) 30" COOKTOP AND ONE MODULE
291/4"
TWO MODULES WIDTH
14"
(356)
21/2"min
(64)
CUT-OUT
WIDTH
FRONT OF COUNTERTOP
(1518) FOUR MODULES WIDTH OR
(1511) 30" COOKTOP AND TWO MODULES OR
(1276) 36" COOKTOP AND ONE MODULE
(1130) THREE MODULES WIDTH OR
(743)
191/4"
(489)
CUT-OUT
DEPTH
