Planning Information
15" (381) Framed Electric Cooktop
MODEL CT15E/S
Dimensions in parentheses are in
millimeters unless otherwise specified.
7/06
1

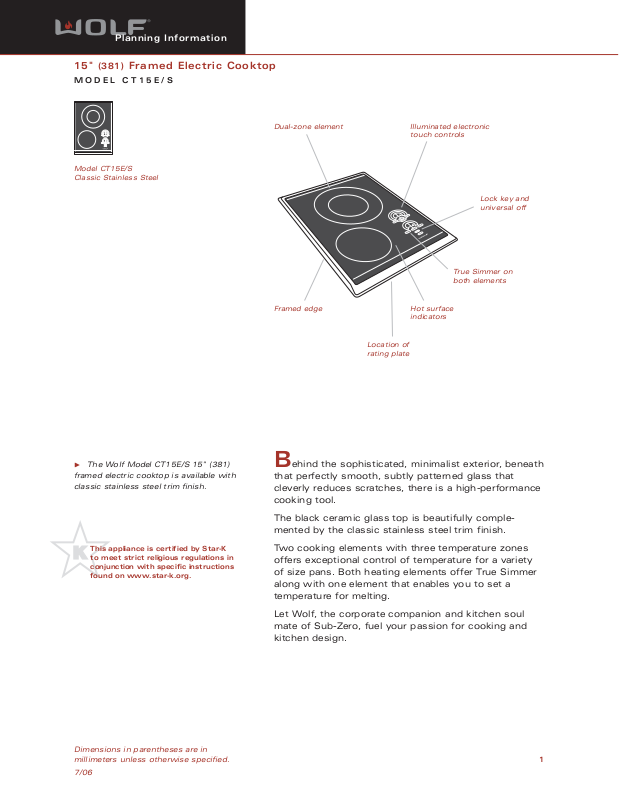

Model CT15E/S
Classic Stainless Steel
Behind the sophisticated, minimalist exterior, beneath
that perfectly smooth, subtly patterned glass that
cleverly reduces scratches, there is a high-performance
cooking tool.
The black ceramic glass top is beautifully complemented by the classic stainless steel trim finish.
Two cooking elements with three temperature zones
offers exceptional control of temperature for a variety
of size pans. Both heating elements offer True Simmer
along with one element that enables you to set a
temperature for melting.
Let Wolf, the corporate companion and kitchen soul
mate of Sub-Zero, fuel your passion for cooking and
kitchen design.
The Wolf Model CT15E/S 15" (381)
framed electric cooktop is available with
classic stainless steel trim finish.
This appliance is certified by Star-K
to meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.
Illuminated electronic
touch controls
Dual-zone element
Hot surface
indicators
True Simmer on
both elements
Lock key and
universal off
Location of
rating plate
Framed edge
HIGH
OFF ON
ZONE 2
SIM
H
G
I
H
N
O
F
OF
O
M
I
S
F
OF
Page 2
Planning Information
15" (381) Framed Electric Cooktop
MODEL CT15E/S
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/8" (3).
2
FEATURES
Classic stainless steel trim finish
Easy-to-clean black ceramic glass surface is
resistant to scratching, staining, impact and
heat— translucent surface allows you to see
the glow of hot elements
Illuminated electronic touch controls with
graduated control lighting
Two ribbon-type radiant heating elements
with dual temperature zones on one element
Dual-zone element for flexible cooking
True Simmer setting on both elements
Melt setting on single element
Hot surface indicators on all elements
High frequency pulsation elements improve
cooking performance and control
Temperature limiter to ensure that safe
operating temperature of ceramic glass is
never exceeded
Child safety lock key and universal off
Certified by Star-K to meet religious
regulations
CSA certified for US and Canada
Two and five year residential warranty –
exclusions apply; warranty information can
be found on our website, wolfappliance.com
OVERALL DIMENSIONS
21"
(533)
OVERALL
DEPTH
15" (381)
OVERALL WIDTH
31/2" (89)
Page 3
Planning Information
15" (381) Framed Electric Cooktop
MODEL CT15E/S
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
SPECIFICATIONS
Overall Cooktop Width 15" (381)
Overall Cooktop Height 31/2" (89)
Overall Cooktop Depth 21" (533)
Cooktop Cut-Out Width 133/8" (340)
Cooktop Cut-Out Depth 191/4" (489)
Minimum Cabinet Depth 223/4" (578)
Heating Element Maximum Power
(1) Dual – 2200 W outer / 750 W inner
(1) Single – 1200 W
Heating Element Outer Diameter
Dual – 9" (229)
Single – 61/2" (165)
Electrical Supply Requirements 240/ 208 V AC, 60 Hz
15 amp dedicated circuit
Conduit 4 ft (1.2 m) flexible 3-wire
Electric Rating 3.4 kW at 240 V
2.6 kW at 208 V
Shipping Weight 30 lbs (14 kg)
Special Note Cooktop can be installed in combination
with other cooktops or modules
Specifications are subject to change without notice.
MODEL OPTION
Classic Stainless Trim CT15E/S
VENTILATION OPTIONS
30" (762) Cooktop or Pro wall
hood or liner
30" (762) or 45" (1143) downdraft
ventilation system
36" (914) Cooktop or Pro island
hood
For additional information, refer to the
Wolf Cooktop Ventilation or Pro
Ventilation sections of our website,
wolfappliance.com.
ACCESSORIES
Filler strip
Bracket supports for installation
of two integrated modules with
downdraft (Model DD30 only)
Accessories are available through your
Wolf dealer. To obtain local dealer
information, visit the Locator section of
our website, wolfappliance.com.
Model CT15E/S
Classic Stainless Steel
Page 4
Planning Information
15" (381) Framed Electric Cooktop
MODEL CT15E/S
4
INSTALLATION SPECIFICATIONS
DIMENSIONS
Cooktop Cut-Out Width 133/8" (340)
Recommended Cabinet Width 33" (838)
Cooktop Cut-Out Depth 191/4" (489)
Minimum Cabinet Depth 223/4" (578)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
t
13" max
(330)
2"**
191/4" (489)
(64)
COOKTOP CUT-OUT
DEPTH
21/2"min
(64)
18"
(457)
2"*min (51)
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
33" (838)
RECOMMENDED
CABINET WIDTH
133/8" (340)
COOKTOP CUT-OUT
WIDTH
4" (102)
30" (762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
36" (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
NOTE: Application shown allows for installation of two 15" (381) modules side-by-side with 33" (838) recommended cabinet width. 18" (457)
recommended cabinet width for installation of single 15" (381) cooktop or module. *Minimum clearance from both side edges of cooktop cut-ou
to combustible materials up to 18" (457) above countertop. **Minimum clearance from rear edge of cooktop cut-out to combustible materials up
to 18" (457) above countertop.
21/2"min
(64)
E
15"
(381)
133/8" (340)
COOKTOP CUT-OUT
WIDTH
FRONT OF COUNTERTOP
15"
(381)
191/4" (489)
COOKTOP
CUT-OUT DEPTH
Page 5
Planning Information
15" (381) Framed Electric Cooktop
MODEL CT15E/S
Dimensions in parentheses are in
millimeters unless otherwise specified.
5
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions, cut-out dimensions and
installation specifics.
A Wolf downdraft system, Cooktop or Pro
ventilation hood is recommended. When
installing a ventilation hood, refer to the specific
requirements of the hood for the minimum
dimension to the countertop. Also refer to
Ventilation Recommendations in the Cooktop
Ventilation or Pro Ventilation sections of our
website, wolfappliance.com.
If the 15" (381) framed electric cooktop is to
be used with any combination of additional
cooktop units or modules with a filler strip, the
cut-out width increases to 14" (356). When
multiple cooktop units or modules are installed
side by side, refer to the countertop cut-out
dimensions on page 6.
The Wolf 15" (381) framed electric cooktop
requires a separate, grounded 3-wire 240/208 V
AC, 60 Hz, 15 amp service with its own circuit
breaker. It has a 4' (1.2 m) flexible 3-wire
conduit for connection at the electrical supply.
Locate electrical within the shaded area shown
in the Installation Specifications illustration on
page 4.
You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.
Refer to the installation instructions
shipped with each Wolf product for detailed
specifications.
This cooktop is intended for indoor use only.
Page 6
Planning Information
15" (381) Framed Electric Cooktop
MODEL CT15E/S
Dimensions in parentheses are in
millimeters unless otherwise specified.
6
INTEGRATED MODULES—
MULTIPLE UNIT INSTALLATION
With Wolf's integrated modules, you have the
ultimate in customization. You can create your
own design by mixing and matching the various
components within this system. And when you
couple these modules with other cooktops
within the Wolf inventory you and your client will
truly understand freedom of choice.
Some Wolf integrated modules can be installed
together or with a 30" (762) or 36" (914)
cooktop. When multiple units are installed side
by side, the cut-out dimensions that are shown
in the illustration are derived by adding 1
1
/4" (32)
additional space for each additional unit, to give
you your total cut-out width. Refer to the illustration below for countertop cut-out dimensions
for installation of multiple cooktops.
IMPORTANT NOTE: Refer to the pages for each
specific integrated module for installation
limitations.
Countertop cut-out dimensions for installation of multiple cooktop units.
IMPORTANT NOTE: Where multiple cooktops
and/ or modules are installed side by side, each
unit must have its own separate recommended
electrical circuit. When multiple gas cooktops
and/ or modules are installed next to one
another, they can receive their gas supply from a
common line. However, each unit must have its
own regulator installed between the mainline
and the cooktop or module.
When two or more cooktops or modules are
installed together, an integrated module filler
strip is recommended. Contact your Wolf dealer
for information on this accessory component.
For electrical requirements, additional specifications and installation limitations, refer to the
Integrated Modules pages on our website,
wolfappliance.com.
IMPORTANT NOTE: Review specific installation
instructions for product to product capabilities.
593/4"
591/2"
501/4"
441/2"
441/4"
(1124) 30" COOKTOP AND ONE MODULE
291/4"
TWO MODULES WIDTH
14"
(356)
21/2"min
(64)
CUT-OUT
WIDTH
FRONT OF COUNTERTOP
(1518) FOUR MODULES WIDTH OR
(1511) 30" COOKTOP AND TWO MODULES OR
(1276) 36" COOKTOP AND ONE MODULE
(1130) THREE MODULES WIDTH OR
(743)
191/4"
(489)
CUT-OUT
DEPTH
