Subaru Robin Power Products PKX201 User Manual

PARTS
MANUAL

Model

PKX201
PUMP

PUB-PP5872
Rev. 07/03

940 Lively Blvd. • Wood Dale, IL 60191 • Phone: [phone] • Fax: [phone]

e-mail: [e-mail] • www.robinamerica.com

© Copyright 2003 Robin America, Inc.

HOW TO USE THIS MANUAL

Robin engines are identifi ed by MODEL, SPECIFICATION, and CODE NUMBER. For each
model there may be many different versions called specifi cations. Each specifi cation will be
unique in some way. The difference may only be the paint color or it may have a different type
of PTO or some other signifi cant difference.

In order the identify the correct service part number, it is important to confi rm the specifi ca-
tion and code numbers for your engine. The specifi cation and code number together are
know as the PRODUCT NUMBER.

All Robin 4 cycle engines have a Product Number label similar to the label illustrated below.

The Product Number Label has a 15 digit alphanumeric string that consists of the
SPECIFICATION (SPEC) number (11 digits) and the CODE number (4 digits). Please
note the illustration below:

P K X 201

SPEC NO. (11 digits) CODE NO. (4 digits)

PRODUCT NO. (15 digits)

PKX201 - 3 - 07-03

X X X X

MANUAL LAYOUT

1

2

1

6

4

3

7

9

2

3

5

4

8

1. SECTION NAME Parts are broadly classifi ed according to their functions.
Refer to the Group Index (table of contents) for respective section name.

2. FIG. No. The FIG. number indexes the reference and part numbers to the illustration. Figure numbers
that vary only in the tens place (i.e..: 700 and 710) are in a group of the same section
(i.e..:Electrical Device Group).

3. REF. No . The Reference number identifi es the part illustration with the corresponding part number in the
part list.

4. SUBASSEMBLY SUBASSEMBLY parts of part assembly are listed below the assembly part. The subassembly
part reference number is indicated by the number led by "-" such as "-1", "-2".

5. PART NUMBER It is the number assigned for sales unit. Use the PART No. when making an order.

6. DESCRIPTION It is designation of the part.

7. QTY. Quantity of each part used for each product.

8. REMARKS This gives a distinctive feature and/or a supplementary comment for the type, the specifi cation,

and the part concerned. It also shows part number(s) interchangeable for the part.

9. FROM-TO This section shows the CODE No. to indicate the history of progress in which improved parts
have been introduced in the product. The FROM-TO CODE No. helps to identify PART No.
being employed in the product concerned. See the examples below:

- The part is used in the product irrespective of CODE No.
2101- The part is used in the products with CODE No. of 2101 and after this number.

- 2100 The part is used in the products with CODE No. of 2100 and before this number.

PKX201 - 4 - 07-03

GROUP INDEX

Group Name Page

PUMP ......................................................................................................... 6

CRANKCASE GROUP............................................................................... 8

CRANKSHAFT GROUP........................................................................... 10

INTAKE and EXHAUST GROUP.............................................................. 12

GOVERNOR GROUP .............................................................................. 16

COOLING and STARTING GROUP......................................................... 18

FUEL, LUBRICANT GROUP.................................................................... 20

CARBURETOR GROUP .......................................................................... 22

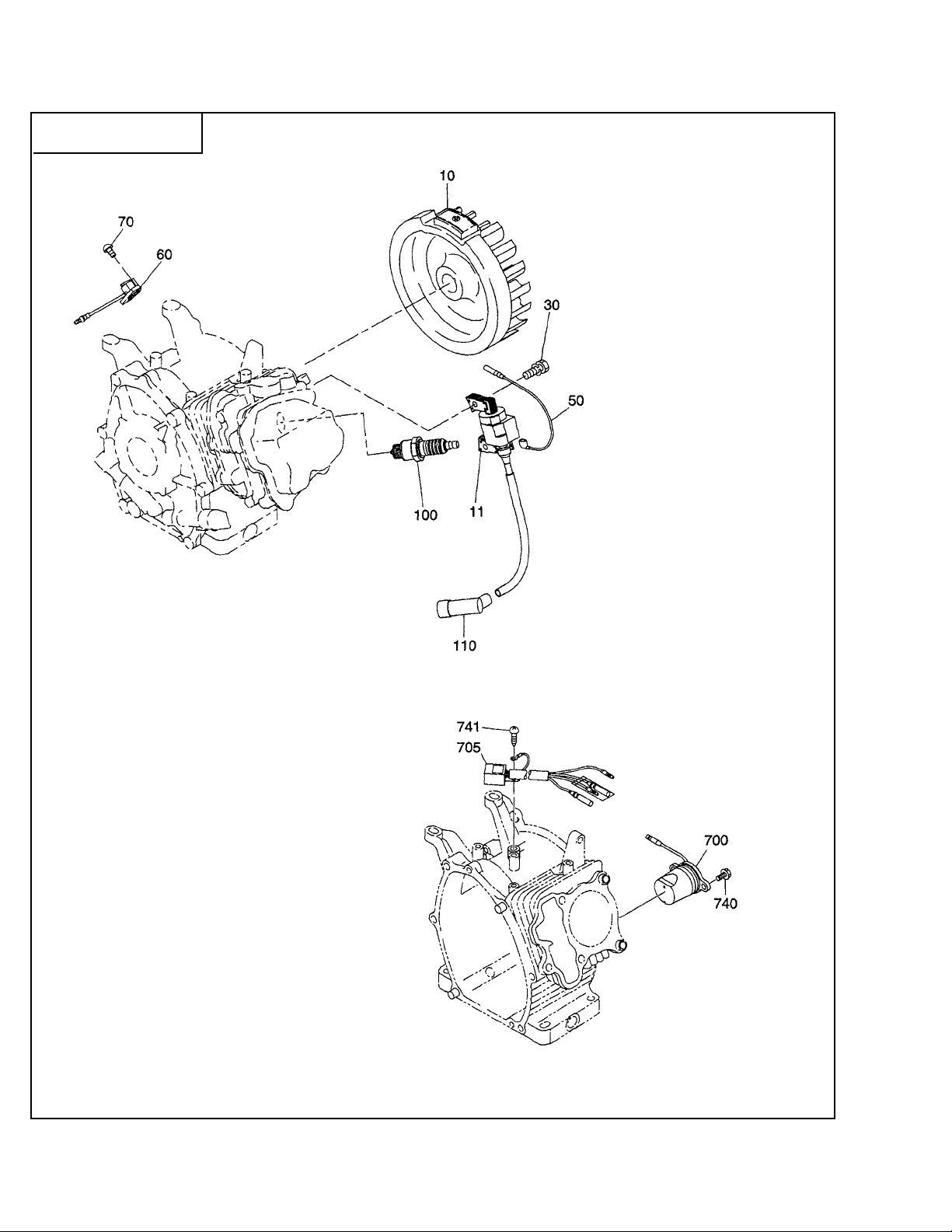

ELECTRIC DEVICE GROUP .................................................................. 24

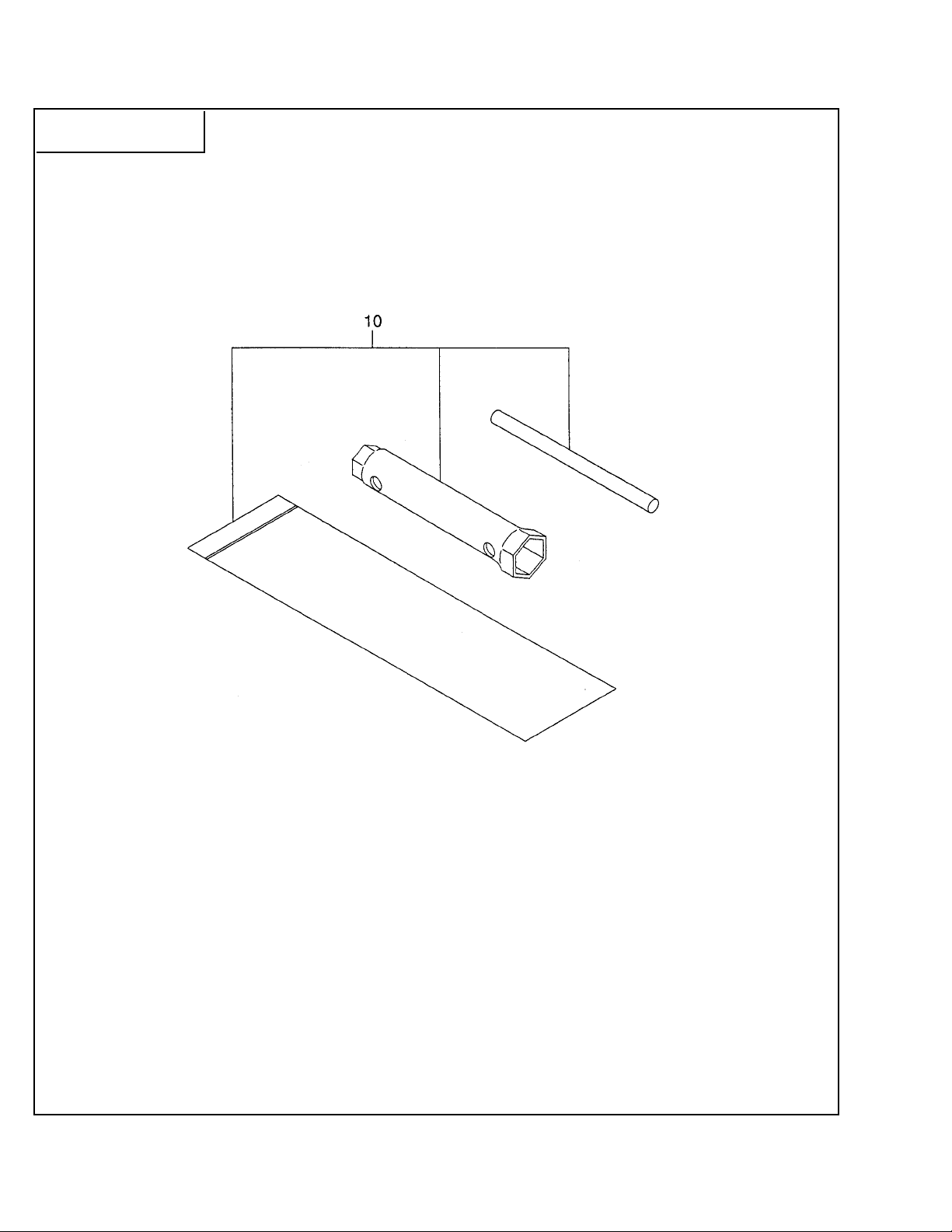

ACCESSORY GROUP............................................................................. 26

INDEX OF DESCRIPTION SYMBOLS

SYMBOL DESCRIPTION

AY........................... ASSEMBLY

CP...........................COMPLETE

EX........................... EXPORT (from Japan)

FIG..........................FIGURE

FR........................... FRONT

" ..............................INCH

INCL. ......................INCLUDE

~L............................LITER

L= ...........................LENGTH (in. mm)

L.H. (LH)................. LEFT-HAND SIDE

MECH..................... MECHANICAL

NO (NON)............... NONE

OPT......................... OPTIONAL

O.S. ........................OVER SIZE

SYMBOL DESCRIPTION

P= ........................... PITCH (in mm)

P.T.O. (PTO) ........... POWER TAKE OFF

REF......................... REFERENCE

R.H. (RH)................ RIGHT HAND SIDE

RR. .........................REAR

STD. .......................STANDARD

SW.......................... SWITCH

T= ...........................THICKNESS (in mm)

UN ..........................UNIT

U.S..........................UNDER SIZE

~V ........................... VOLTAGE

~W .......................... WATT

W/ ........................... WITH

W/O ........................WITHOUT

PKX201 - 5 - 07-03

SECTION 1 PUMP GROUP

FIG. 100

PKX201 - 6 - 07-03

SECTION 1 PUMP GROUP

REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
110 470-01125-78 CASING 1 100
115 470-01127-92 O RING 1 100
120 470-01135-33 VOLUTE CASING 1 100
130 470-01135-32 IMPELLER 1 100
140 470-01106-88 MECHANICAL SEAL 1 100
145 470-01104-66 ADJUSTING WASHER 3 100
150 470-01150-14 O RING 1 100
170 470-01100-22 PLUG 1 100
172 471-00000-05 O RING 1 100
180 001-13082-50 BOLT and WASHER AY 4 100
210 470-01125-79 FLANGE BRACKET 1 100
280 471-00000-03 SOCKET BOLT 4 100
285 471-00000-02 SEAL WASHER 4 100
310 470-01126-62 SUCTION FLANGE 1 100
314 001-13082-00 BOLT and WASHER AY 3 100
320 470-01126-65 CHECK VALVE 1 100
350 470-01170-26 COUPLING AY 2 100
410 470-01132-45 DELIVERY FLANGE 1 100
414 001-13082-50 BOLT and WASHER AY 4 100
420 470-01105-41 PACKING, delivery 1 100
460 470-01100-22 PLUG 1 100
462 471-00000-05 O RING 1 100
510 470-01181-59 STRAINER 1 100
520 471-00000-01 HOSE BAND 3 100
610 470-01172-32 FRAME 1 100
670 470-01105-15 CUSHION RUBBER 4 100
680 001-66082-00 BOLT 4 100
684 003-20080-00 SPRING WASHER 4 100
686 003-10080-00 WASHER 4 100
690 002-17080-00 NUT 8 100
695 001-13083-50 BOLT and WASHER AY 4 100

PKX201 - 7 - 07-03

SECTION 2 CRANKCASE GROUP

FIG. 200

PKX201 - 8 - 07-03

SECTION 2 CRANKCASE GROUP

REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
10 276-10102-41 CRANKCASE CP 1 W/ OIL SENSOR 5692~ 200
276-10102-21 CRANKCASE CP 1 W/ OIL SENSOR ~5691 200
20 237-14201-03 VALVE GUIDE 2 200
26 277-16010-01 STEM SEAL 1 200
30 044-02502-00 OIL SEAL 1 200
40 060-02800-21 BALL BEARING 1 5723~ 200
060-02800-20 BALL BEARING 1 ~5722 200
50 277-15011-03 PIPE KNOCK 2 200
60 010-50802-50 STUD 2 200
70 010-50603-51 STUD 2 200
75 044-00600-20 OIL SEAL 1 200
80 040-11400-30 PLUG 2 200
90 021-11400-20 GASKET 2 200
210 277-11001-31 MAIN BEARING COVER 1 5692~ 200
277-11001-21 MAIN BEARING COVER 1 5753~5691 200
277-11001-11 MAIN BEARING COVER 1 ~5752 200
220 044-02502-10 OIL SEAL 1 200
230 060-02501-40 BALL BEARING 1 5753~ 200
060-02500-10 BALL BEARING 1 ~5752 200
250 277-45004-21 GOVERNOR GEAR CP 1 200
260 263-41901-03 GOVERNOR SLEEVE 1 200
270 277-63601-13 OIL GAUGE 1 200
275 277-65001-03 FILLER PLUG 1 200
280 021-31600-20 GASKET 1 200
281 021-31600-20 GASKET 1 200
300 001-04083-50 FLANGE BOLT 6 200
610 276-13001-01 CYLINDER HEAD CP 1 200
620 276-15001-13 GASKET, head 1 200
630 011-00802-40 FLANGE BOLT 4 200
631 001-04083-50 FLANGE BOLT 1 200
680 277-15501-01 ROCKER COVER CP 1 200
690 277-16001-03 GASKET, rocker cover 1 200
700 277-15011-03 PIPE KNOCK 2 200
710 011-00600-20 FLANGE BOLT 4 200
850 085-10800-00 RUBBER PIPE 1 200
960 276-99001-07 GASKET SET 1 200

Gasket Sets include the following:
Fig. 200 items 90, 280, 620 and 690
Fig. 400 items 340 and 550

PKX201 - 9 - 07-03

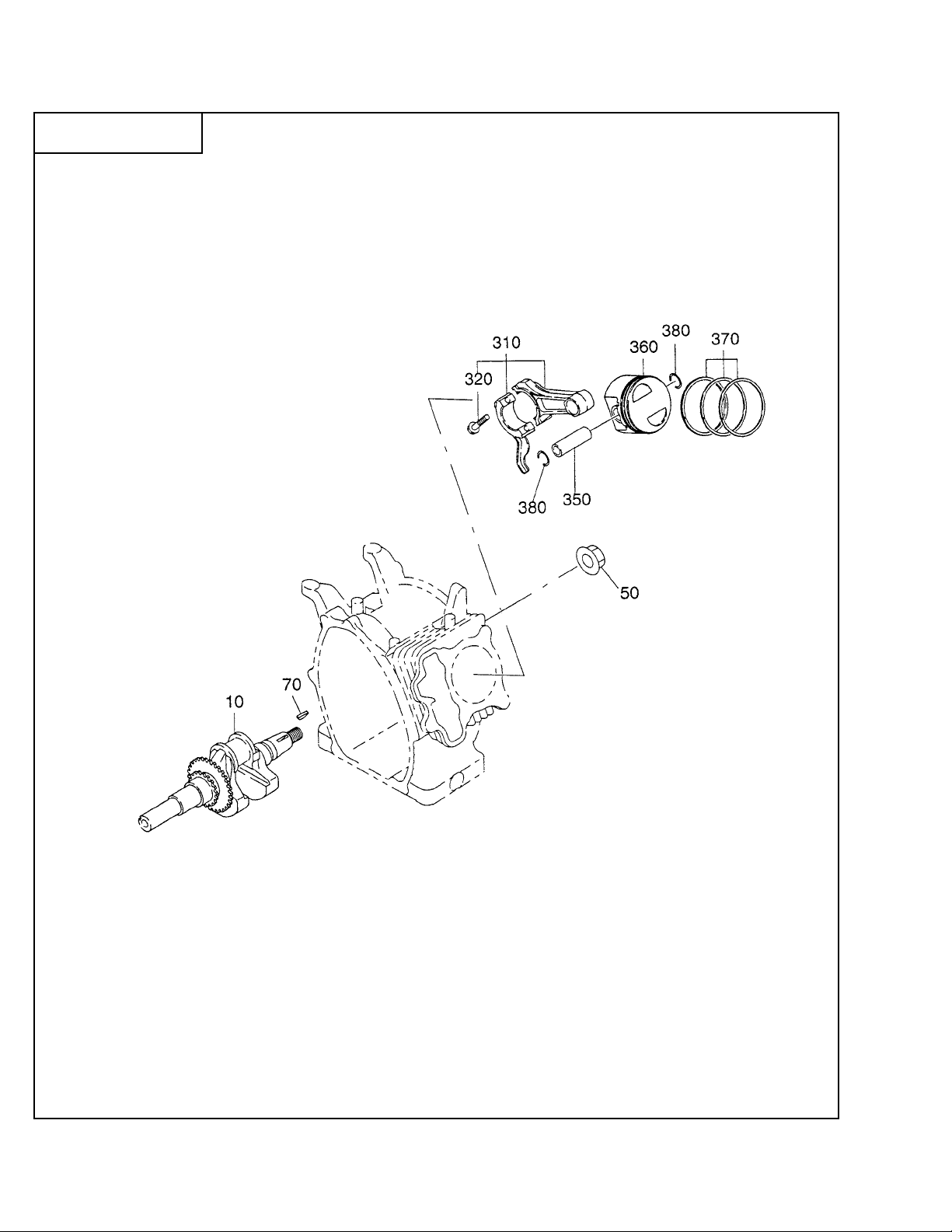

SECTION 3 CRANKSHAFT GROUP

FIG. 300

PKX201 - 10 - 07-03

SECTION 3 CRANKSHAFT GROUP

REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
10 276-20301-21 CRANKSHAFT CP 1 5692~ 300

276-20301-01 CRANKSHAFT CP 1 ~5691 300
50 018-01400-20 FLANGE NUT 1 300
70 032-30300-10 WOODRUFF KEY 1 300
310 276-22501-10 CONNECTING ROD AY 1 300
320 277-23001-03 CONNECTING ROD BOLT 2 300
350 276-23301-03 PISTON PIN 1 300
360 276-23401-03 PISTON 1 300
370 276-23511-07 PISTON RING SET 1 300
380 215-25004-03 CLIP 2 300

PKX201 - 11 - 07-03

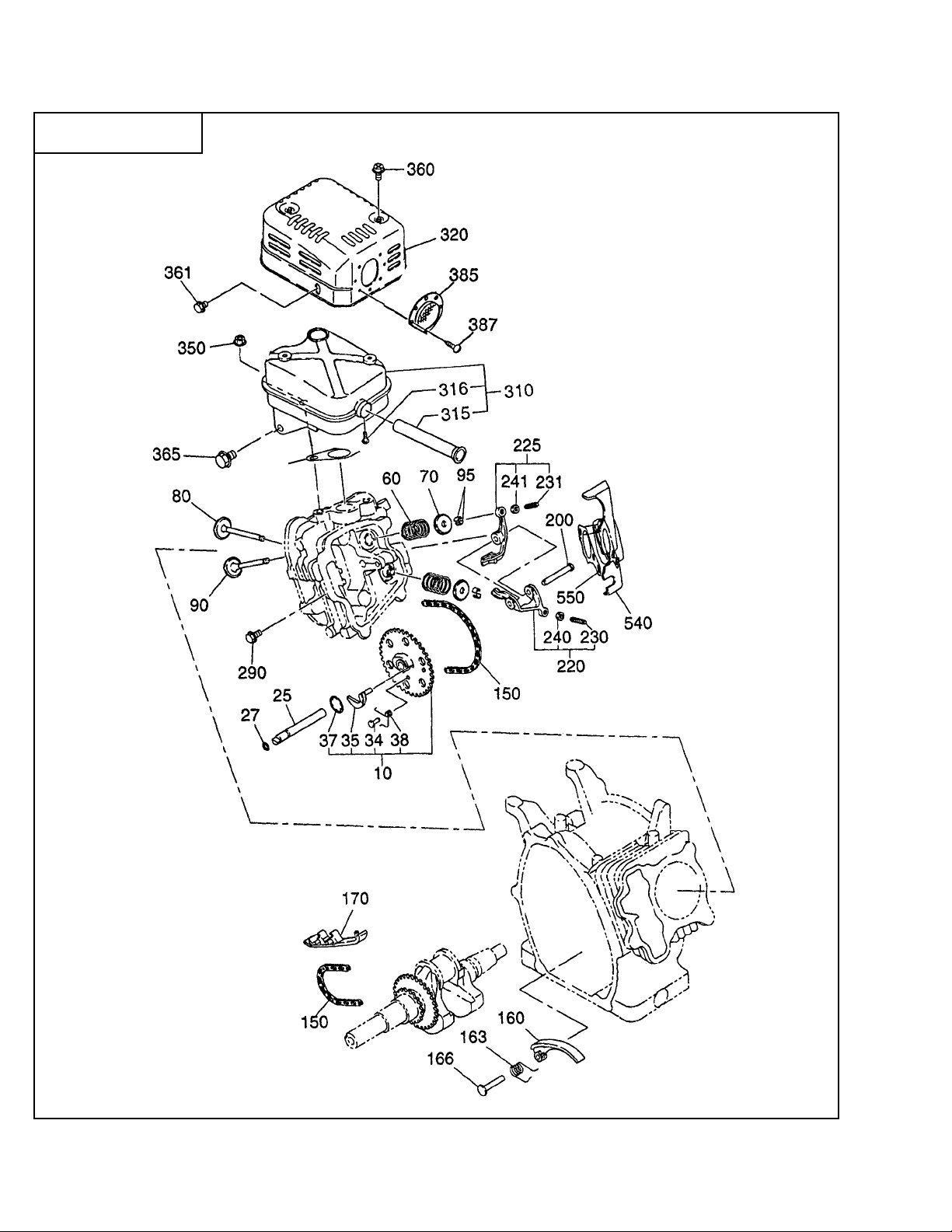

SECTION 4 INTAKE and EXHAUST GROUP

FIG. 400

340

PKX201 - 12 - 07-03

SECTION 4 INTAKE and EXHAUST GROUP

REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.

10 277-31601-01 CAMSHAFT CP 1 400
25 277-35101-03 PIN, camshaft 1 400
27 024-00600-10 O RING 1 400
34 277-38601-03 PIN, spring 1 400
35 277-36401-03 RELEASE LEVER 1 400
37 277-36501-03 CLIP 1 400
38 277-38701-03 RETURN SPRING 1 400
60 279-33601-03 VALVE SPRING 2 400
70 269-33701-03 RETAINER 2 400
80 276-33401-33 INTAKE VALVE 1 400
90 276-33501-33 EXHAUST VALVE 1 400
95 132-10KA0-31 COLLET VALVE 4 400
150 276-35601-01 TIMING CHAIN CP 1 400
160 277-36911-03 TENTIONER 1 400
163 277-37101-03 SPRING, tentioner 1 400
166 277-36902-03 PIN, tentioner 1 400
170 277-36913-13 CHAIN GUIDE 1 400
200 277-35001-23 PIN, rocker 1 5692~ 400
277-35001-13 PIN, rocker 1 5661~5691 400
277-35001-03 PIN, rocker 1 ~5660 400
220 277-36101-00 ROCKER ARM AY, in 1 400
225 277-36102-00 ROCKER ARM AY, ex 1 400
230 014-90500-10 ADJUST SCREW 1 400
231 014-90500-10 ADJUST SCREW 1 400
240 017-00500-20 NUT 1 400
241 017-00500-20 NUT 1 400
290 011-00600-20 FLANGE BOLT 1 400
310 276-30111-01 MUFFLER CP 1 400
315 277-37601-01 SPARK ARRESTOR 1 400
316 015-00400-60 TAPPING SCREW 1 400
320 276-34201-01 MUFFLER COVER CP 1 5753~ 400
277-34201-01 MUFFLER COVER CP 1 ~5752 400
340 277-35201-03 GASKET, muffl er 1 400
350 980-20082-80 FLANGE NUT 2 400
360 015-20600-90 TAPPING BOLT 2 400
361 011-00600-10 FLANGE BOLT 1 400
365 011-00801-50 FLANGE BOLT 1 400
385 277-37203-01 SCREEN CP 1 400
387 015-00400-60 TAPPING SCREW 2 400
540 277-32902-H3 INSULATOR 1 400
550 277-32903-H3 GASKET, insulator 1 400
570 002-38060-00 FLANGE NUT 2 400
580 011-00600-50 FLANGE BOLT 1 400
850 085-10800-00 RUBBER PIPE 1 400

PKX201 - 13 - 07-03

SECTION 4 INTAKE and EXHAUST GROUP

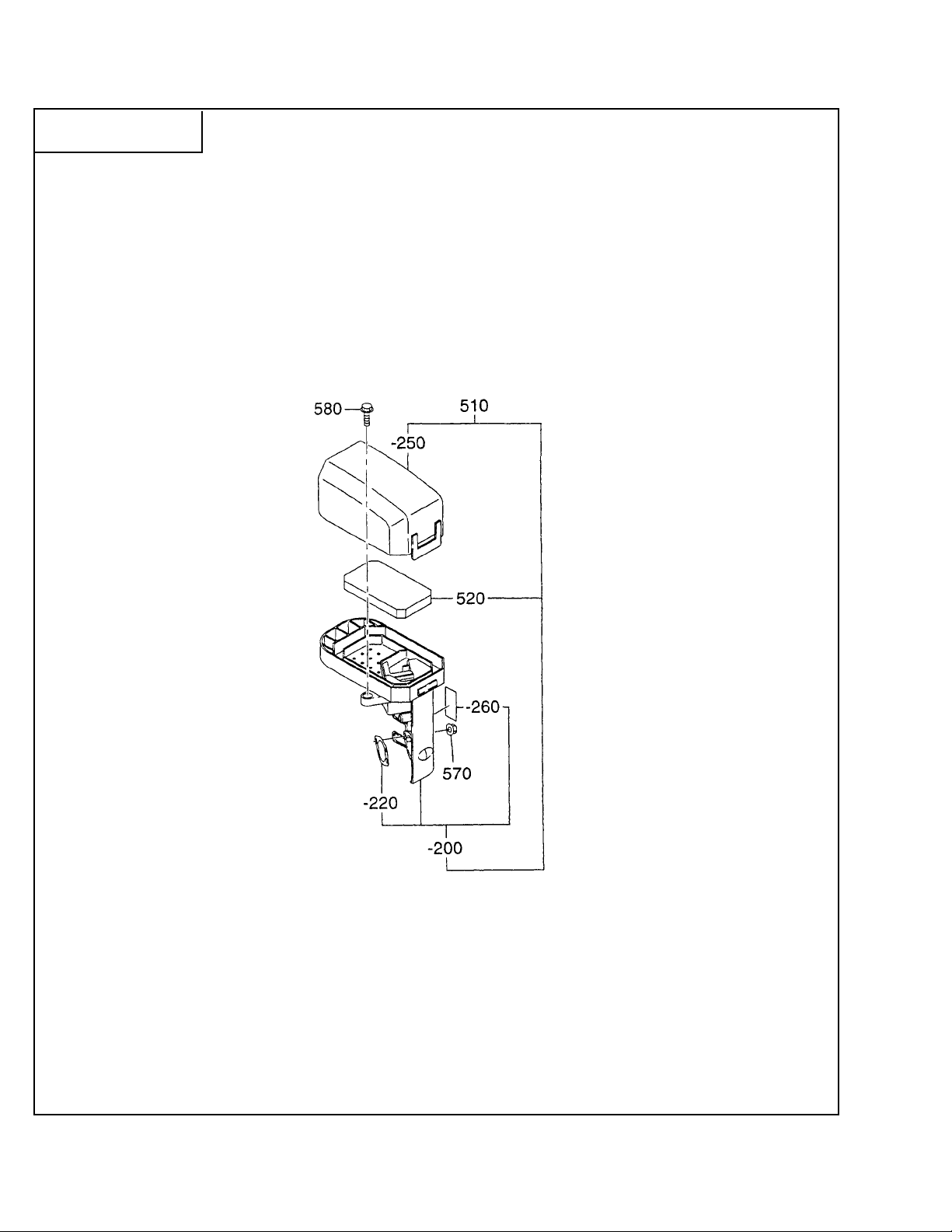

FIG. 410

PKX201 - 14 - 07-03

SECTION 4 INTAKE and EXHAUST GROUP

REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.

510 277-32611-00 AIR CLEANER AY 1 Foam 410

-200 277-32601-08 BASE CP 1 Foam 410

-220 277-32604-08 PACKING 1 410

-250 277-32602-08 COVER CP 1 410

-260 277-32609-08 LABEL 1 410

520 277-32603-08 ELEMENT 1 Foam 410

PKX201 - 15 - 07-03

SECTION 5 GOVERNOR GROUP

FIG. 500

PKX201 - 16 - 07-03

SECTION 5 GOVERNOR GROUP

REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.

10 277-42301-13 GOVERNOR LEVER 1 500
20 277-42201-33 GOVERNOR SHAFT 1 5600~ 500
277-42201-23 GOVERNOR SHAFT 1 5539~5599 500
277-42201-13 GOVERNOR SHAFT 1 ~5538 500
30 279-42701-01 GOVERNOR ROD CP 1 500
40 277-42801-13 ROD SPRING 1 500
50 003-13050-00 CLIP 1 500
60 013-00602-45 BOLT and WASHER AY 1 500
70 018-60600-20 NUT 1 500
80 279-42502-23 GOVERNOR SPRING 1 500
310 277-43301-13 SPEED CONTROL LEVER 1 500
340 277-43501-03 STOP PLATE 1 500
350 020-00601-70 WASHER 1 500
355 021-70600-70 FRICTION WASHER 1 500
360 014-00601-80 SCREW 1 500
370 002-17060-00 NUT 1 500
375 237-45004-23 SPRING, adjust 1 500
435 277-46001-01 SPEED CONTROL BRKT 1 500
450 002-35060-00 SELF LOCK NUT 1 500
485 011-00600-20 FLANGE BOLT 2 500

PKX201 - 17 - 07-03

SECTION 6 COOLING and STARTING GROUP

FIG. 600

PKX201 - 18 - 07-03

SECTION 6 COOLING and STARTING GROUP

REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.

10 276-51201-11 BLOWER HOUSING CP 1 Yellow 600
20 073-20051-40 LABEL, trademark 1 600
40 011-00600-30 FLANGE BOLT 4 600
60 277-52711-11 BAFFLE 1, case 1 5631~ 600
277-52711-01 BAFFLE 1, case 1 ~5630 600
61 277-52702-03 BAFFLE 2, head 1 600
80 001-04061-60 FLANGE BOLT 1 5631~ 600
011-00600-20 FLANGE BOLT 1 ~5630 600
81 011-00600-20 FLANGE BOLT 1 600
210 268-50201-30 RECOIL STARTER AY 1 600

-1 270-50115-08 SPIRAL SPRING 1 600

-2 269-50120-08 REEL 1 600

-3 269-50110-08 STARTER ROPE 1 600

-4 261-50100-08 STARTER KNOB 1 600

-5 270-50125-08 RATCHET 2 600

-6 227-50131-08 FRICTION SPRING 1 600

-11 268-50145-18 STARTER PULLEY 1 600

-35 270-50261-08 RATCHET GUIDE 1 600

-49 227-50152-08 SET SCREW 1 600
220 011-00600-10 FLANGE BOLT 4 600

PKX201 - 19 - 07-03

SECTION 7 FUEL, LUBRICATION GROUP

FIG. 700

PKX201 - 20 - 07-03

SECTION 7 FUEL, LUBRICATION GROUP

REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
10 276-60101-11 FUEL TANK CP 1 Yellow 700

20 073-20051-81 LABEL, warning 1 700
23 276-95101-03 LABEL, model 1 700
30 043-04300-50 FUEL TANK CAP CP 1 700
40 064-13600-10 FUEL FILTER 1 700
48 050-51200-20 UNION 1 700
60 002-38060-00 FLANGE NUT 2 700
63 011-00601-30 FLANGE BOLT 1 700
80 X85-10612-30 RUBBER PIPE 1 700
90 X56-11000-30 HOSE CLAMP 2 700
224 277-43801-01 CHOKE LEVER CP 1 700

PKX201 - 21 - 07-03

SECTION 7 FUEL, LUBRICATION GROUP

FIG. 710

210

PKX201 - 22 - 07-03

SECTION 7 FUEL, LUBRICATION GROUP

REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
210 276-62301-10 CARBURETOR AY 1 700

-1 106-62538-08 THROTTLE VALVE 1 #160 700

-2 209-62351-08 SCREW 1 700

-3 277-62525-08 CHOKE VALVE 1 700

-5 246-62420-08 PILOT JET 1 #40 700

-8 277-62520-08 CHOKE LEVER 1 700

-11 276-62530-08 THROTTLE SHAFT 1 700

-12 227-62451-08 BOLT 1 700

-14 277-62500-08 NEEDLE 1 700

-15 277-62515-08 PIN 1 700

-16 277-62506-08 FLOAT BODY 1 700

-17 214-62450-08 PACKING 1 700

-18 214-62540-08 CHAMBER PACKING 1 700

-19 226-62506-08 FLOAT AY 1 700

-20 276-62440-08 MAIN NOZZLE 1 700

-22 277-62404-08 MAIN JET 1 #81.3 700

-24 226-62701-18 CLIP 1 700

-28 277-62360-08 BOLT 1 700

-41 230-62446-08 SPRING 1 700

-44 207-62410-08 AIR JET 1 700

-45 106-62410-08 AIR JET, pilot 1 700

-104 236-62541-08 PACKING 1 700

PKX201 - 23 - 07-03

SECTION 8 ELECTRIC DEVICE GROUP

FIG. 800

PKX201 - 24 - 07-03

SECTION 8 ELECTRIC DEVICE GROUP

REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.

10 276-79230-11 FLYWHEEL CP 1 800
11 277-79431-01 IGNITION COIL CP 1 800
30 001-14062-50 BOLT and WASHER AY 2 800
50 277-73102-H1 WIRE 2 CP 1 800
60 X66-00003-61 SWITCH AY 1 800
70 015-00400-90 TAPPING SCREW 2 800
100 065-01401-50 SPARK PLUG 1 800
110 065-50002-70 SPARK PLUG CAP 1 800
700 277-76301-11 OIL SENSOR CP 1 800
705 KU3-11043-11 FLOAT C/U CP3 1 800
740 001-14061-60 BOLT and WASHER AY 2 800
741 015-20500-10 TAPPING SCREW 1 800

PKX201 - 25 - 07-03

SECTION 9 ACCESSORY GROUP

FIG. 900

PKX201 - 26 - 07-03

SECTION 9 ACCESSORY GROUP

REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
10 227-90301-H0 ACCESSORY TOOL KIT 1 900

PKX201 - 27 - 07-03

PRINTED IN THE USA
