Subaru STI (2014), BRZ (2014), Forester (2014), XV Crosstrek (2014), Impreza (2014) Navigation System Quick Reference Manual

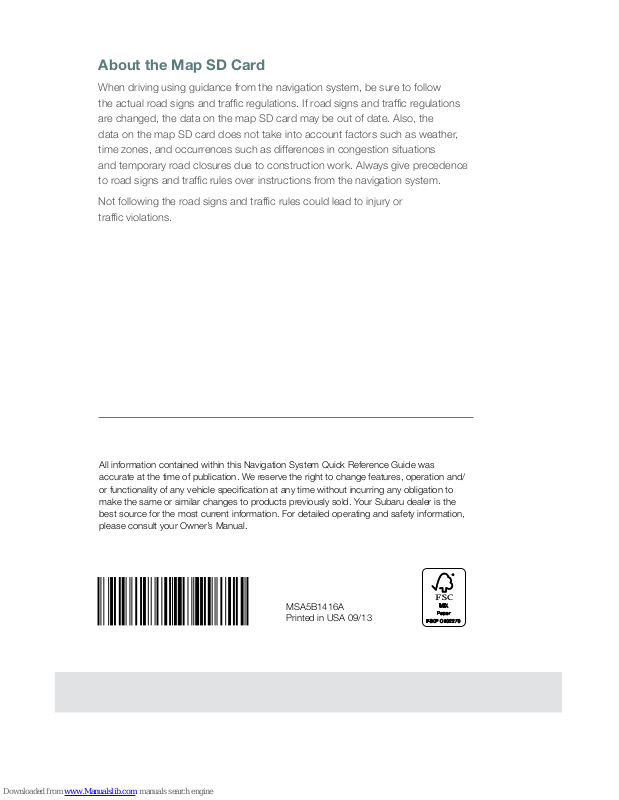

About the Map SD Card

When driving using guidance from the navigation system, be sure to follow
the actual road signs and trafc regulations. If road signs and trafc regulations
are changed, the data on the map SD card may be out of date. Also, the
data on the map SD card does not take into account factors such as weather,
time zones, and occurrences such as differences in congestion situations
and temporary road closures due to construction work. Always give precedence
to road signs and trafc rules over instructions from the navigation system.

Not following the road signs and trafc rules could lead to injury or
trafc violations.

All information contained within this Navigation System Quick Reference Guide was
accurate at the time of publication. We reserve the right to change features, operation and/
or functionality of any vehicle specication at any time without incurring any obligation to
make the same or similar changes to products previously sold. Your Subaru dealer is the
best source for the most current information. For detailed operating and safety information,
please consult your Owner’s Manual.

MSA5B1416A
Printed in USA 09/13

2014

BRZ, Forester, Impreza,
WRX & STI and XV Crosstrek

Navigation System

Quick Reference Guide

Table of Contents

Safety

Navigation Introduction

Emergency Screen

Finding an Address

Finding a Point of Interest

Setting HOME as a Favorite

Notes

2

3

4 – 5

6 – 9

10 – 11

12 – 13

14

2

Safety

Your Navigation System will assist you in reaching your destination and,
if used properly, can do so with speed and ease. To use the system as
safely as possible, follow all safety directions.

• Before attempting to use this system while driving, learn how to use it.
Make sure you read the entire Navigation System Owner’s Manual Supplement.
Do not allow others to use this system until they read the manual and understand
the instructions.

• You should program your destination and select your route only when your vehicle
is not moving. While driving, listen to the voice instructions as much as possible
and only glance at the screen briey and when it is safe to do so.

• The data in the system may occasionally be incomplete as road conditions and
driving restrictions (no left turns, road closures, etc.) change. Before you follow
system instructions, make sure to check whether you can comply with the
instructions legally and safely. Do not be distracted by the navigation screen.
Failure to keep your attention on the road could lead to an accident.

• The system cannot warn you of environmental or street hazards or the
availability of emergency systems. If you are unsure about the safety of
an area, don’t drive into it.

• Use this system only where it is legal to do so. Some states may have laws
prohibiting the use of video screens within the driver’s sight.

And remember, this system is never a substitute for the driver’s personal judgment.

To start the Navigation System, start the engine and press the

map button. The

opening screen (Subaru Starlink™) will appear, followed by the CAUTION screen.
Read the instructions on the screen. If not previously selected, touch

LANGUAGES

to select a language. Then touch

I AGREE

when illuminated.

3

Safety & Navigation

Information

Emergency

Screen

Finding an

Address

Finding a Point

of Interest

Setting HOME

as a Favorite

Safety &

Navigation

Introduction

Navigation Introduction

Your Navigation System helps you nd and store addresses, places and
attractions based on your map location and more. Prior to using the system,
be sure to read the entire Navigation System Owner’s Manual Supplement so
you have a complete understanding of the system. For your convenience, this
Quick Reference Guide is for regularly used features only.

The control panel is your access to the Navigation System. Some of
the controls and functions cannot be used unless the vehicle is stationary.

Map Button

Press the map button to access the
map screen. Then touch

MENU

to

access the screen above.

Show Map

Touch

SHOW MAP

to access the map
screen and to start navigation on the
map. The map shows the current position,
recommended route if previously selected,
and reduces the surrounding area to
display on the map being used.

Trafc Summary

Touch to open the Trafc Summary screen.
XM Trafc

®

customer subscription required.

Destination

Touch

DESTINATION

, and then select which
method to use to reach your destination
by entering the address, selecting a

4

3

2

1

6

5

favorite place, selecting a position
on the map, or selecting from the
destination history list.

My Route

Touch

MY ROUTE

. You can
also perform various route related
functions such as editing or
canceling the route, adding way
points, selecting a different route,
avoiding a part of the route or
performing a navigation simulation.

More...

Touch

MORE

to select navigation
settings, get help, start a system
demo, or start various other
auxiliary applications.

1

2

4

3

5

6

4

Emergency Screen (Where Am I?)

From the map screen, touch the icon at upper right corner of screen,
then touch

WHERE AM I?

.

Select between

CAR REPAIR, POLICE, HEALTH

or

GAS STATION

.

This screen shows the latitude and longitude of your current position. Touch

HELP NEARBY

.

5

Safety & Navigation

Information

Emergency

Screen

Finding an

Address

Finding a Point

of Interest

Setting HOME

as a Favorite

Find the item you want on the list, and then touch that item.

The name and address of the location are displayed in the black bar at the top of
the screen and the entire route is displayed on the map. Touch

MORE

to change

the route plan or to review route alternatives, or touch

GO!

to start navigation.

The screen now displays several options:

Use

to display the previous suggestion.

Use

to display the next suggestion.

Touch

FILTER

to help rene the search. A keyboard appears so

you can input a specic location, such as “Subaru”.

Touch

BACK

to return to the map.

Emergency

Screen

6

Finding an Address

1

2

Touch the map button to display the Map screen, then touch

MENU

to access the

navigation menu screen.

On the navigation menu, touch

DESTINATION

.

3

Touch

FIND ADDRESS

.

7

Safety & Navigation

Information

Emergency

Screen

Finding an

Address

Finding a Point

of Interest

Setting HOME

as a Favorite

4

By default, the country and state for your current position are displayed.
If necessary, touch

COUNTRY OR STATE

, a keyboard appears and then

enter the rst few letters of the country name.

Finding an

Address

5

Touch

CITY/ZIP CODE

. A keyboard appears. Type the city name or

input the city zip code, if known. As you type the city name, touch

RESULTS

at the lower right of the screen and a list appears with
possible city choices. Scroll to nd the city name. When the correct
city is found, touch

DONE

and the city name is automatically

transferred to the address screen.

8

Finding an Address

Note: If the destination will be used frequently, you can save it to favorites
as follows, before touching

NEXT

. Touch

MORE

, and then touch

ADD TO FAVORITES

. A keyboard appears with the destination address. You
can store that address or type a name for that address. Touch the arrow to the
right of the address. This clears the address from only the screen so that you
can give the address a name. After inputting the name, then touch

DONE

.

6

7

8

Touch

STREET

. A keyboard appears. Then type the street name. As you type the street

name, touch

RESULTS

at the lower right of the screen and a list appears with possible

choices. Scroll to nd the street name. When the correct street is found, touch

DONE

and the street name is automatically transferred to the address screen. Note: For streets
that are preceded by a direction such as North, South, etc., type the street name rst.

Touch

HOUSE NUMBER

. A keyboard appears. Then type the house number.

Touch DONE and the house number is automatically transferred to the address
screen. Note: If the house number is not found, the center of the street is selected
as the destination.

The map is displayed with the selected point at the center. Touch

NEXT

to set

the destination, or touch

BACK

to select another destination.

9

Safety & Navigation

Information

Emergency

Screen

Finding an

Address

Finding a Point

of Interest

Setting HOME

as a Favorite

Finding an

Address

You are automatically returned to the map with the destination now set as
a favorite. Touch

NEXT

, then touch

GO!

. The map screen appears with

the route. Start driving following the navigation.

10

Finding a Point of Interest

You can also find addresses by using Find Places. You can use this in
the event you do not have a specific address but can refer to a specific
place, such as a gas station, restaurant, accommodation, etc.

1

Touch the map button to display the map screen. Touch

MENU

, touch

DESTINATION

, then touch

FIND PLACES

. You can select from the four preset

categories shown or touch

QUICK SEARCH AROUND HERE

. A keyboard appears

for you to enter the name of a specic location.

You can display locations on the list in name order, in order of the distance from the
current position or previously conrmed position. If you want to change the order in
which entries are presented in the list, touch

MORE

at the lower center of the screen

and select the style that you want.

3

2

After entering the rst few characters, touch

RESULTS

at the lower right of the

screen to view a list of names of characters you entered.

11

Safety & Navigation

Information

Emergency

Screen

Finding an

Address

Finding a Point

of Interest

Setting HOME

as a Favorite

Finding a Point

of Interest

4

5

After a summary of the route plan is displayed, the entire route is displayed
on the map. The route is researched automatically. Touch

MORE

to change

the route plan, or touch

GO!

to start navigation.

Find the item you want on the list, and then touch that item. The map is
displayed with the selected point at the center. The name and address
of the location are displayed in the black bar at the top of the screen.
Note: Touch

to display the longitude and latitude about the selected

spot. Touch

BACK

to return to the map.

12

Setting HOME as a Favorite

1

Follow steps 1 through 8 on pages 6–9 (Finding an Address) of this guide.

2

Touch

ADD TO FAVORITES

a keyboard will appear. Enter the name HOME for the

destination and then touch

DONE

. You are automatically returned to the map with

the destination set. Start driving following the navigation.

13

Safety & Navigation

Information

Emergency

Screen

Finding an

Address

Finding a Point

of Interest

Setting HOME

as a Favorite

Choosing HOME from the Destination List

Setting HOME

as a Favorite

1

If the Map screen is displayed, touch

MENU

, then touch

DESTINATION

and then touch

FAVORITES

. The destination list is displayed.

2

Touch HOME to select it as the destination. The map is displayed in
full-screen mode with HOME at the center. Touch

NEXT

. After a summary
of the route plan is displayed, the entire route is displayed on the map.
Touch

GO!

to start navigation.

Notes

14

Notes

15

Notes

16
