Subaru RGX3800, RGX7100, RGX7800, RGX3000, RGX5100 User Manual

RGX3000
RGX3800
RGX5100
RGX7100
RGX7800

3ZZ9990434

Original

DANGER

Using a generator indoors CAN KILL YOU IN MINUTES.

Generator exhaust contains carbon monoxide. This is
a poison you cannot see or smell.

(California Proposition 65)

WARNING :

The engine exhaust from this product contains
chemicals known to the State of California to
cause cancer, birth defects or other reproductive
harm.

NEVER use inside a home
or garage, EVEN IF doors
and windows are open.

Only use OUTSIDE and
far away from windows,
doors, and vents.

FEDERAL EMISSIONS COMPONENT DEFECT WARRANTY

EMISSIONS COMPONENT DEFECT WARRANTY COVERAGE – This emission warranty is applicable in all States, except the state

of California.

Fuji Heavy Industries Ltd. and Robin America Inc., Lake Zurich Illinois, (herein “ROBIN AMERICA”) warrant(s) to the initial retail purchaser and
each subsequent owner, that this Nonroad engine (herein “engine”) has been designed, built, and equipped to conform at the time of initial sale
to all applicable regulations of the U.S.
Environmental Protection Agency (EPA), and that the engine is free of defects in materials and workmanship which would cause this engine to
fail to conform with EPA regulations during its warranty period.

For the components listed under PARTS COVERED, the service dealer authorized by ROBIN AMERICA will, at no cost to you, make the
necessary diagnosis, repair, or replacement necessary to ensure that the engine complies with applicable U.S. EPA regulations.

EMISSION COMPONENT DEFECT WARRANTY PERIOD

The warranty period for this engine begins on the date of sale to the
initial purchaser and continues for a period of two years.

PARTS COVERED

Listed below are the parts covered by the Emission Components
Defect Warranty. Some of the parts listed below may require
scheduled maintenance and are warranted up to the first scheduled
replacement point for that part.

EXHAUST EMISSIONS

(1) Fuel Metering System

(i) Carburetor and internal parts (and/or pressure regulator or

fuel injection system).
(ii) Air/fuel ratio feedback and control system, if applicable.
(iii) Cold start enrichment system, if applicable.
(iv) Regulator assy (gaseous fuel, if applicable)

(2) Air Induction System

(i) Intake manifold, if applicable
(ii) Air filter.

(3) Ignition System

(i) Spark plugs.
(ii) Magneto or electronic ignition system.
(iii) Spark advance/retard system, if applicable.

(4) Exhaust manifold, if applicable
(5) Miscellaneous Items Used in Above Systems

(i) Electronic controls, if applicable
(ii) Hoses, belts, connectors, and assemblies.
(iii) Filter lock assy (gaseous fuel, if applicable)

*EVAPORATIVE EMISSIONS

(1) Fuel Line
(2) Fuel Line Fittings
(3) Clamps

*Fuji is not liable for the warranty on these parts if these parts are

installed on the engine by the equipment manufacture. Please refer
to the equipment manufactures warranty.

OBTAINING WARRANTY SERVICE

To obtain warranty service, take your engine to the nearest authorized

Robin America service dealer . Bring your sales receipts indicating date
of purchase for this engine. The service dealer authorized by ROBIN
AMERICA will perform the necessary repairs or adjustments within a
reasonable amount of time and furnish you with a copy of the repair
order. All parts and accessories replaced under this warranty become
the property of ROBIN AMERICA.

WHAT IS NOT COVERED

*Conditions resulting from tampering, misuse, improper adjustment

(unless they were made by the service dealer authorized by ROBIN

AMERICA during a warranty repair), alteration, accident, failure to
use the recommended fuel and oil, or not performing required
maintenance services.

*The replacement parts used for required maintenance services.

*Consequential damages such as loss of time, inconvenience, loss of

use of the engine or equipment, etc.

*Diagnosis and inspection charges that do not result in warranty-

eligible service being performed.

*Any non-authorized replacement part, or malfunction of authorized

parts due to use of non-authorized parts.

OWNER’S WARRANTY RESPONSIBILITIES

As the engine owner, you are responsible for the performance of the
required maintenance listed in your owner’s manual. ROBIN

AMERICA recommends that you retain all receipts covering
maintenance on your engine, but ROBIN AMERICA cannot deny
warranty solely for the lack of receipts or for your failure to ensure
the performance of all scheduled maintenance.

As the engine owner, you should however be aware that ROBIN
AMERICA may deny warranty coverage if your engine or a part has
failed due to abuse, neglect, improper maintenance or unapproved
modifications.

You are responsible for presenting your engine to the nearest service
dealer authorized by ROBIN AMERICA when a problem exists.

If you have any questions regarding your warranty rights and
responsibilities, you should contact the Robin America customer
service department at 1-800-277-6246 for the information.

THINGS YOU SHOULD KNOW ABOUT THE EMISSION
CONTROL SYSTEM WARRANTY MAINTENANCE AND
REPAIRS

You are responsible for the proper maintenance of the engine.
You should keep all receipts and maintenance records covering the
performance of regular maintenance in the event questions arise.
These receipts and maintenance records should be transferred to
each subsequent owner of the engine. ROBIN AMERICA reserves

the right to deny warranty coverage if the engine has not been properly
maintained. Warranty claims will not be denied, however, solely
because of the lack of required maintenance or failure to keep
maintenance records.

MAINTENANCE, REPLACEMENT OR REPAIR OF EMISSION
CONTROL DEVICES AND SYSTEMS MAY BE PERFORMED BY
ANY REPAIR ESTABLISHMENT OR INDIVIDUAL;
HOWEVER, WARRANTY REPAIRS MUST BE PERFORMED BY A
SERVICE DEALER AUTHORIZED BY ROBIN AMERICA. THE USE
OF PARTS THAT ARE NOT EQUIVALENT IN PERFORMANCE AND
DURABILITY TO AUTHORIZED PARTS MAY IMPAIR THE
EFFECTIVENESS OF THE EMISSION CONTROL SYSTEM AND MAY
HAVE A BEARING ON THE OUTCOME OF A WARRANTY CLAIM.

If other than the parts authorized by ROBIN AMERICA are used for
maintenance replacements or for the repair of components affecting
emission control, you should assure yourself that such parts are
warranted by their manufacturer to be equivalent to the parts
authorized by ROBIN AMERICA in their performance and durability.

HOW TO MAKE A CLAIM

All repair qualifying under this limited warranty must be performed by a
service dealer authorized by ROBIN AMERICA. In the event that any

emission-related part is found to be defective during the warranty period,
you shall notify Robin America customer service department at 1-800­277-6246 and you will be advised of the appropriate warranty service
d

ealer or service providers where the warranty repair can be performed.

WS6645

FOREWORD

Thank you for purchasing a Robin generator.

This manual covers operation and maintenance of the Robin generators.
All information in this publication is based on the latest production
information available at the time of approval for printing.

Pay special attention to statements preceded by the following words:

DANGER

Indicates a possibility of death or serious injury if instructions are not
followed.

WARNING

Indicates a strong possibility of severe personal injury, loss of life and
equipment damage if instructions are not followed.

［CAUTION］

Indicates a possibility of personal injury or equipment damage if instructions
are not followed.

ENGLISH

NOTE:

Gives helpful information.

If a problem should arise, or if you have any questions about the generator,
consult an authorized dealer or service shop

WARNING

■

The generator is designed to give safe and dependable service if
operated according to instructions.

■

Do not operate the generator before you have read and
understood the instructions. Failure to do so could result in death,
personal injury or equipment damage.

CONTENTS

1. SAFETY PRECAUTIONS

2. SPECIFICATIONS

3. COMPONENTS

4. PRE-OPERATION CHECKS

5. OPERATING PROCEDURES

6. WATTAGE INFORMATION

7. SPARK ARRESTER

8. MAINTENANCE SCHEDULE

9. "HOW-TO" MAINTENANCE

10. PREPARATION FOR STORAGE

11. TROUBLESHOOTING

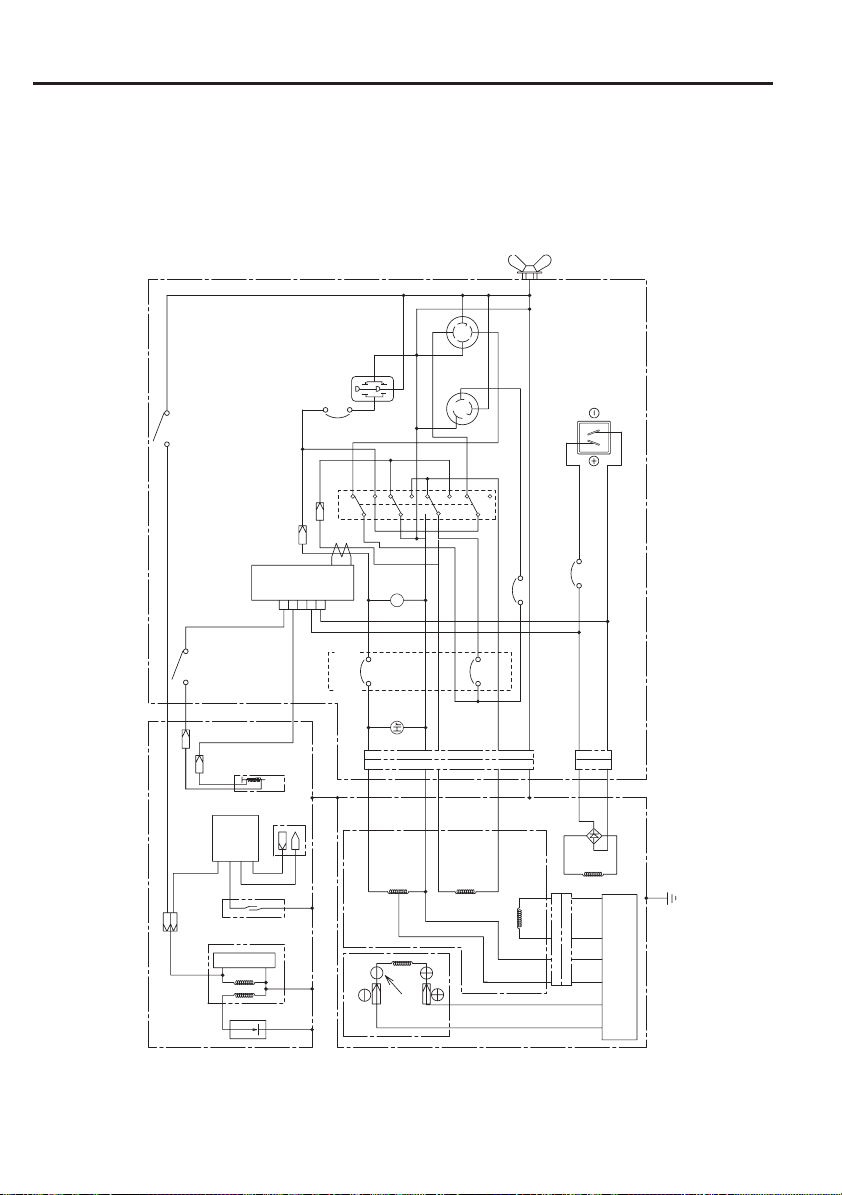

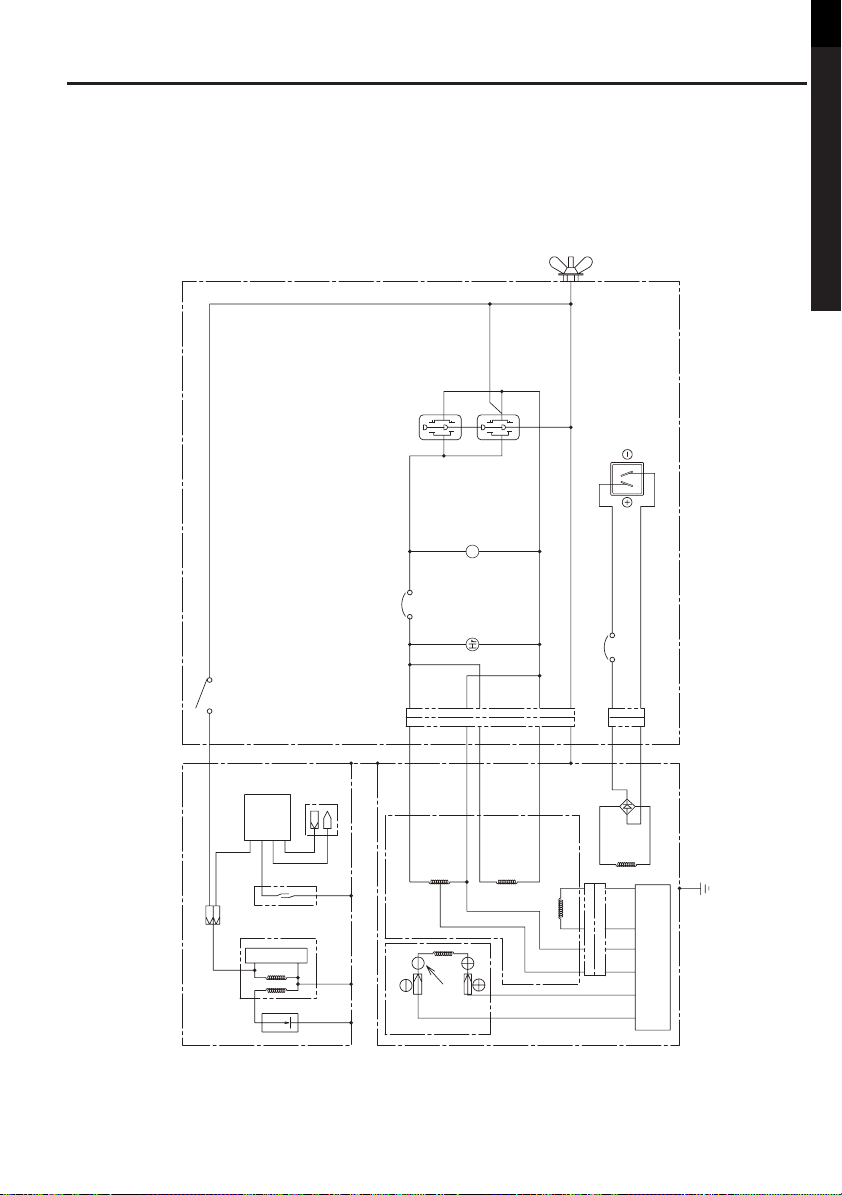

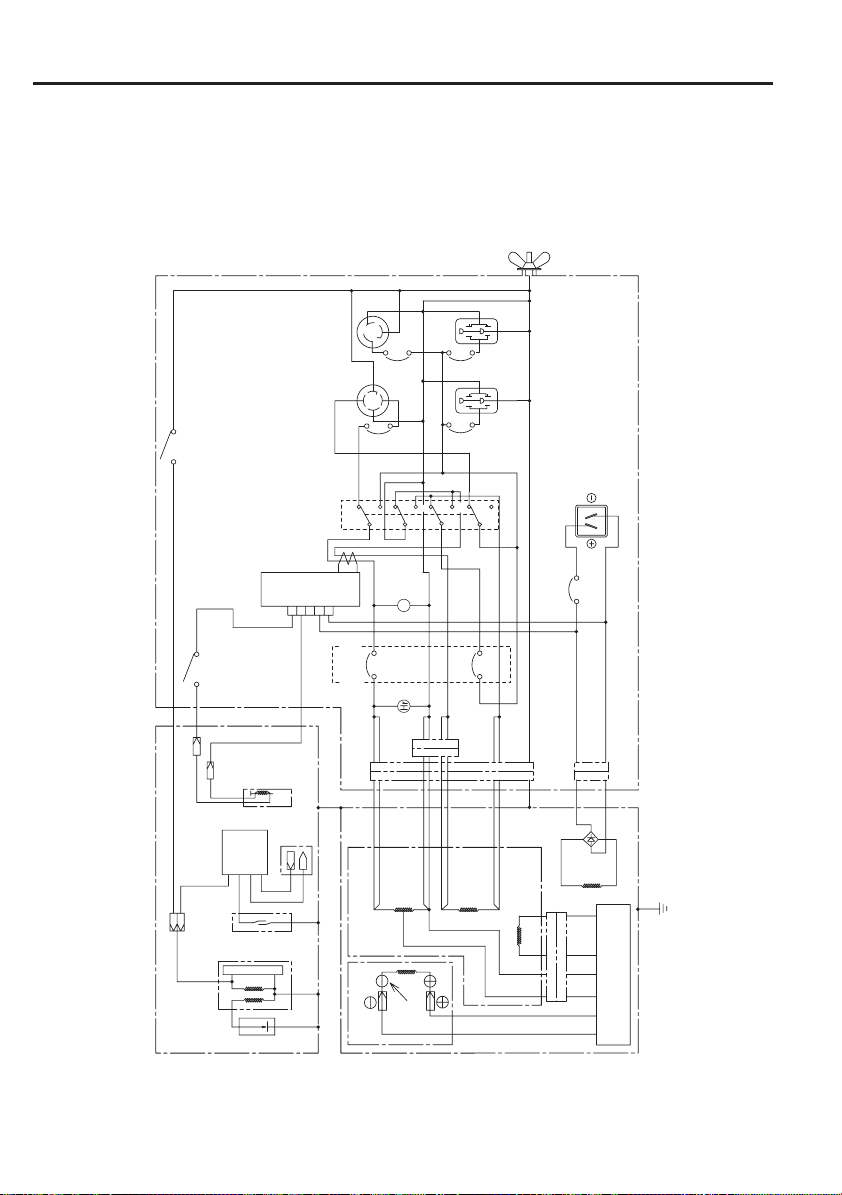

12. WIRING DIAGRAM

・・・・・ ・ ・ ・ ・・・・・・・・ ・ ・ ・

・・・・・ ・ ・ ・ ・・・・・・・・ ・ ・ ・ ・

・・・・・ ・ ・ ・ ・ ・・・・・・・

・・・・・ ・ ・ ・ ・ ・・・・・・

・・・・・ ・ ・ ・ ・ ・・・・・・

・・・・・ ・ ・ ・ ・・・・・・・・ ・ ・

・・・・・ ・ ・ ・ ・ ・・・・・・

・・・・・ ・ ・ ・ ・ ・・・・・・・・

・・・・・ ・ ・ ・ ・・・・・・・・ ・ ・

・・・・・ ・ ・ ・ ・ ・ ・・・・

・・・・・ ・ ・ ・ ・ ・ ・・・・

・・・・・ ・ ・ ・ ・ ・ ・・・

1

3

4

7

11

22

24

25

27

31

32

33

1. SAFETY PRECAUTIONS

Please make sure you review each precaution carefully.

WARNING

Do not operate the generator near gasoline or gaseous fuel because of the
potential danger of explosion or fire.
Do not fill the fuel tank with fuel while the engine is running. Do not smoke or
use open flame near the fuel tank. Be careful not to spill fuel during refueling.
If fuel is spilt, wipe it off and let dry before starting the engine.

WARNING

Do not place in flammables near the generator.
Be careful not to place fuel, matches, gunpowder, oily cloths, straw, trash, or any other in flammables
near the generator.

WARNING

Do not operate the generator inside a room, cave, tunnel, or other
insufficiently ventilated area.
Always operate it in a well-ventilated area, otherwise the engine may
become overheated, and the poisonous carbon monoxide gas, an
odorless, colorless, poison gas, contained in the exhaust gas will
endanger human lives.
Operate generator only outdoors and far from open windows, doors,
ventilation intakes and other openings.
Keep the generator at least 1 meter (3 feet) away , including overhead,
from any structure or building use.

1m

1m

ENGLISH

WARNING

Do not enclose the generator nor cover it with a box.
The generator has a built-in forced air cooling system, and may become overheated if it is enclosed.
If generator has been covered to protect it from the weather during non use, be sure to remove it and
keep it well away from the area during generator use.

WARNING

Operate the generator on a level surface.
It is not necessary to prepare a special foundation for the generator.
However, the generator will vibrate on an irregular surface, so choose a level place without surface
irregularities.
If the generator is tilted or moved during operation, fuel may spill and / or the generator may tip over,
causing a hazardous situation.
Proper lubrication cannot be expected if the generator is operated on a steep incline or slope. In such
a case, piston seizure may occur even if the oil is above the upper level.

WARNING

Pay attention to the wiring or extension cords from the generator to the connected device.
If the wire is under the generator or in contact with a vibrating part, it may break and
possibly cause a fire, generator burnout, or electric shock hazard.
Replace damaged or worn cords immediately.

−1−

WARNING

Do not operate in rain, in wet or damp conditions, or with wet hands.
The operator may suffer severe electric shock if the generator is wet due to rain or snow.

WARNING

If wet, wipe and dry it well before starting. Do not pour water directly over the generator, nor wash it
with water.

WARNING

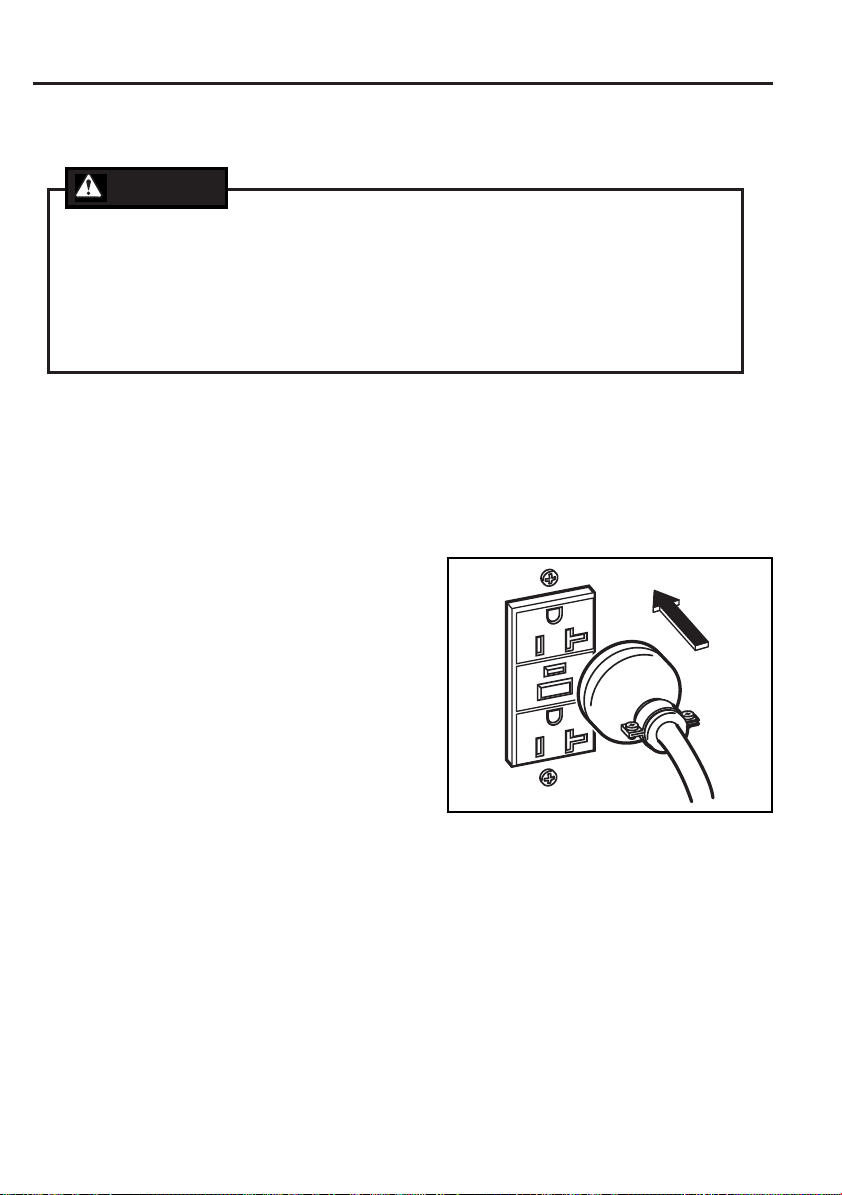

Be extremely careful that all necessary electrical grounding procedures are followed during each and
every use. Failure to do so can be fatal.

WARNING

Do not contact the generator to a commercial power line. Connection to a commercial
power line may short circuit the generator and ruin it or cause electric shock hazard.
Use the transfer switch for connecting to domestic circuit.

WARNING

No smoking while handling the battery. The battery emits flammable hydrogen gas,
which can explode if exposed to electric arcing or open flame.
Keep the area well-ventilated and keep open flames/sparks away when handling the battery.

WARNING

Engine becomes extremely hot during and for some time after operation.
Keep combustible materials well away from generator area.
Be very careful not to touch any parts of the hot engine especially the muffler area
or serious burns may result.

WARNING

Keep children and all bystanders at a safe distance from work areas.

WARNING

It is absolutely essential that you know the safe and proper use of the power tool or appliance that
you intend to use. All operators must read, understand and follow the tool/appliance owners manual.
Tool and appliance applications and limitations must be understood. Follow all directions given on
labels and warnings. Keep all instruction manuals and literature in a safe place for future reference.

WARNING

Use only "LISTED" extension cords.
When a tool or appliance is used outdoors, use only extension cords marked "For Outdoor Use".
Extension cords, when not in use should be stored in a dry and well ventilated area.

WARNING

Always switch off generator's AC circuit breaker and disconnect tools or appliances when not in use,

before servicing, adjusting, or installing accessories and attachments.

CAUTION

Make sure the engine is stopped before starting any maintenance, servicing or repair.
Make sure maintenance and repair of the generator set are performed by properly trained personnel only.

−2−

2. SPECIFICATIONS

MODEL

Type

Voltage regulating system

AC Output

Rated voltage-Frequency

Rated current

Rated power factor

Safety device type

DC Output

Rated voltage

Rated current

Safety device type

Model

Type

Displacement

Fuel

Fuel tank capacity

Engine Generator

Engine oil capacity

Spark plug

Starting system

Direction of rotation

Length

Width

Dimension

Height

Dry weight

Specifications are subject to change without notice.

*1: ( ) shows the filled amount up to the "LEVEL" position.
*2: ( ) shows dimensions with Battery frame.
*3: ( ) shows dry weight with Electric starter.

V-Hz

A

VA (W)Rated output

V

A

mL

L

L

mm

mm

mm

kg

2400 4200

EX17D

ROBIN, Air-cooled, 4-stroke, OHC, Gasoline Engine

12.8
(16.6)*1

Recoil

starter

600

47

RGX3800

Brush, self-exciting, 2-poles, single phase

24.2 / 12.120 35 / 17.5

2900

EX21D

211

Automotive Unleaded Gasoline

0.6

620

(870)*2

450

500

(57.5)*3

RGX5100 RGX7100RGX3000

AVR type

120/240-60120-60

1.0

Fuse-less circuit breaker

12

8.3

Fuse-less circuit breaker

EX30D EX35D

287 404169

17.8
(21.5)*1

1.0 1.2

BR-6HS (NGK)

Electric starter / Recoil

Counter - clockwise

675

(925)*2

510 420

570 500

52

69

(79)*3

41.7 / 20.8

5000

88

(98)*3

22.0
(27.5)*1

725

(975)*2

530

580

RGX7800

50 / 25

6000

EX40D

91

(101)*3

ENGLISH

−3−

3. COMPONENTS

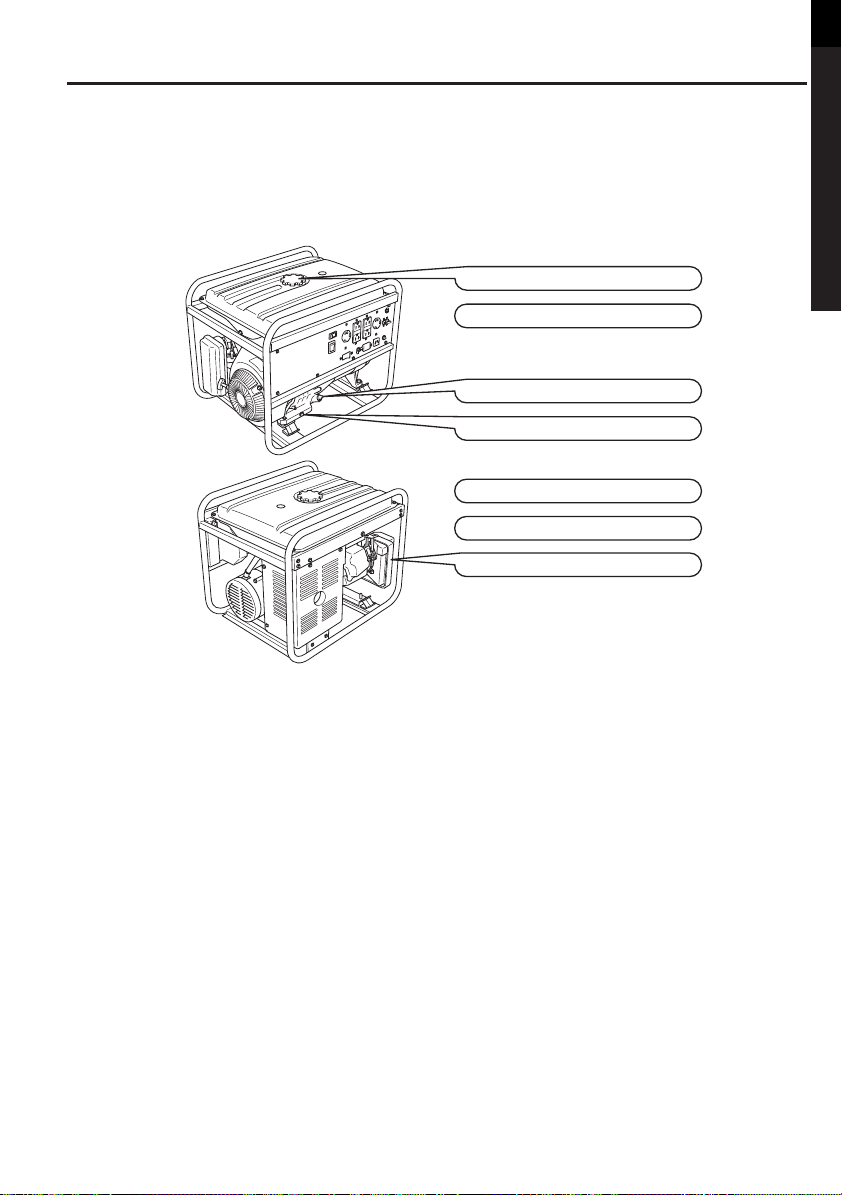

RGX3000, 3800, 5100

Fuel strainer
(

Fuel valve

Recoil starter
handle

)

Recoil starter

Fuel tank

Fuel gauge

Engine switch

Control panel

Oil gauge (oil filler)

Oil drain plug

Tank cap

Spark plug cap

Muffler cover

Choke lever

Air cleaner

Exhaust outlet

−4−

RGX7100, 7800

Recoil starter
handle

Fuel tank

Recoil starter

Fuel gauge

Tank cap

Engine switch

Oil gauge (oil filler)

Oil drain plug

ENGLISH

Control panel

Choke lever

Muffler cover

−5−

Spark plug cap

Air cleaner

Muffler

CONTROL PANEL

(RGX3000)

Engine switch

(RGX3800)

AC receptacle 20A

[Electric starter model]

Key switch

Engine switch

AC circuit
breaker

(RGX5100, 7100, 7800)

Idle Control Switch

AC receptacle 20A

Earth (ground
terminal

AC receptacle 30A

ï

Earth (ground
terminal

AC receptacle 30A

AC circuit
breaker

)

AC receptacle 20A

)

Hour meter

AC circuit
breaker

Hour meter

Pilot lamp

DC circuit
breaker

DC

receptacle

Pilot lamp

Idle Control
Switch

Full power
switch

DC circuit
breaker

DC

receptacle

AC receptacle 30A

Pilot lamp

[Electric starter model]

Key switch

Engine switch

AC circuit
breaker

Full power
switch

Earth (ground) terminal

−6−

Hour meter

receptacle

DC

AC circuit
breaker

DC circuit
breaker

4. PRE-OPERATION CHECKS

CHECK ENGINE OIL

Before checking or refilling oil, be sure
generator is located on stable and level
surface with engine stopped.

■

Remove oil filler cap and check the
engine oil level.

■

If oil level is below the lower level line,
refill with suitable oil (see table) to
upper level line. Do not screw in the
oil filler cap when checking oil level.

■

Change oil if contaminated.
(See "How-To" Maintenance.)

Oil capacity (Upper level) :

RGX3000 . . . . . . . . . . . . . . 0.6 (0.15)

RGX3800 . . . . . . . . . . . . . . 0.6 (0.15)

RGX5100 . . . . . . . . . . . . . . 1.0 (0.26)

RGX7100 . . . . . . . . . . . . . . 1.2 (0.32)

RGX7800 . . . . . . . . . . . . . . 1.2 (0.32)

L (U.S. gal)

Recommended engine oil :

Use 4-stroke automotive detergent oil
of API service class SE or higher grade
(SG, SH or SJ is recommended).

10W-30

or 10W-40 is recommended

for general, all-temperature use. If
single viscosity oil is used, select the
appropriate viscosity for the average
temperature in your area.

SAE

Upper level
Lower level

Single grade

Multigrade

Ambient
temperature

5W

Oil filler cap
(Oil gauge)

10W

20W

#20

10W

-

10W

30

ENGLISH

#30

#40

-

40

−7−

CHECK ENGINE FUEL.

WARNING

Do not refuel while smoking or near open flame or other such
potential fire hazards. Otherwise fire accident may occur.

NOTE :
THIS ENGINE IS CERTIFIED TO OPERATE
ON AUTOMOTIVE UNLEADED GASOLINE.

■

Check fuel level at fuel level gauge.

■

If fuel level is low, refill with
unleaded automotive gasoline.

■

Be sure to use the fuel filter screen
on the fuel filter neck.

Fuel tank cap

LEVEL

Fuel filter screen

Fuel Amount

up to "LEVEL" position :

(L)

RGX3000
RGX3800
RGX5100

RGX7100
RGX7800

RGX3000 . . . . . . . . . . . . . . . . . 12.8

RGX3800 . . . . . . . . . . . . . . . . . 12.8

FULL

RGX5100 . . . . . . . . . . . . . . . . . 12.8

RGX7100 . . . . . . . . . . . . . . . . . 22.0

EMPTY

RGX7800 . . . . . . . . . . . . . . . . . 22.0

EMPTY

WARNING

Make sure you review each warning in order to prevent fire hazard.

■

Do not refill tank while engine is running or hot.

■

Close fuel valve before refueling with fuel.

■

Be careful not to admit dust, dirt, water or other foreign objects Into
fuel.

■

Wipe off spilt fuel thoroughly before starting engine.

■

Keep open flames away.

−8−

EF

FULL

CHECKING COMPONENT PARTS

Check following items before starting engine:

■

Fuel leakage from fuel hose, etc.

■

Bolts and nuts for looseness.

■

Components for damage or breakage.

■

Generator not resting on or against any adjacent wiring.

CHECK GENERATOR SURROUNDINGS

WARNING

Make sure you review each warning in order to prevent fire hazard.

■

Keep area clear of in flammables or other hazardous materials.

■

Keep generator at least 3 feet (1 meter) away from buildings or other
structures.

■

Only operate generator in a dry, well ventilated area.

■

Keep exhaust pipe clear of foreign objects.

■

Keep generator away from open flame. No smoking!

■

Keep generator on a stable and level surface.

■

Do not block generator air vents with paper or other material.

BATTERY INSTALLATION (Electric Starter Model)

Recommended Battery

Type ; Lead-acid battery
Capacity (Ah/5hr) ; 12V-21AH or more
Size ; Less than 185(L) x 125(W) x 160(H) mm

ENGLISH

Earth Cable(BLACK)

Starter Cable(RED)

Battery Plate

Setting Plate

Setting Bolt

Bolt

−9−

Nut

Bolt

Battery Frame #1

Bolt

Battery Frame #2

Protection Plate

Bolt

Nut

Nut

Bolt

WARNING

Death, personal injury and/or property damage may occur unless
instructions are followed carefully.

■

Use battery of recommended capacity.

■

Turn the starter switch to the "STOP" position when mounting or
dismounting battery. When mounting battery, connect the positive (+)
cable first and then the negative (

-

) cable to the battery. Be careful not to
short battery cables. When dismounting battery, disconnect negative (
cable first.

RED CABLE : To positive (+) terminal
BLACK CABLE : To negative (

■

Should the connection be made in incorrect manner, the generator will

-

) terminal

be broken.

■

Tighten bolts and nuts on terminals securely so they will not be
loosened by vibration.

■

Disconnect battery cables when charging battery.

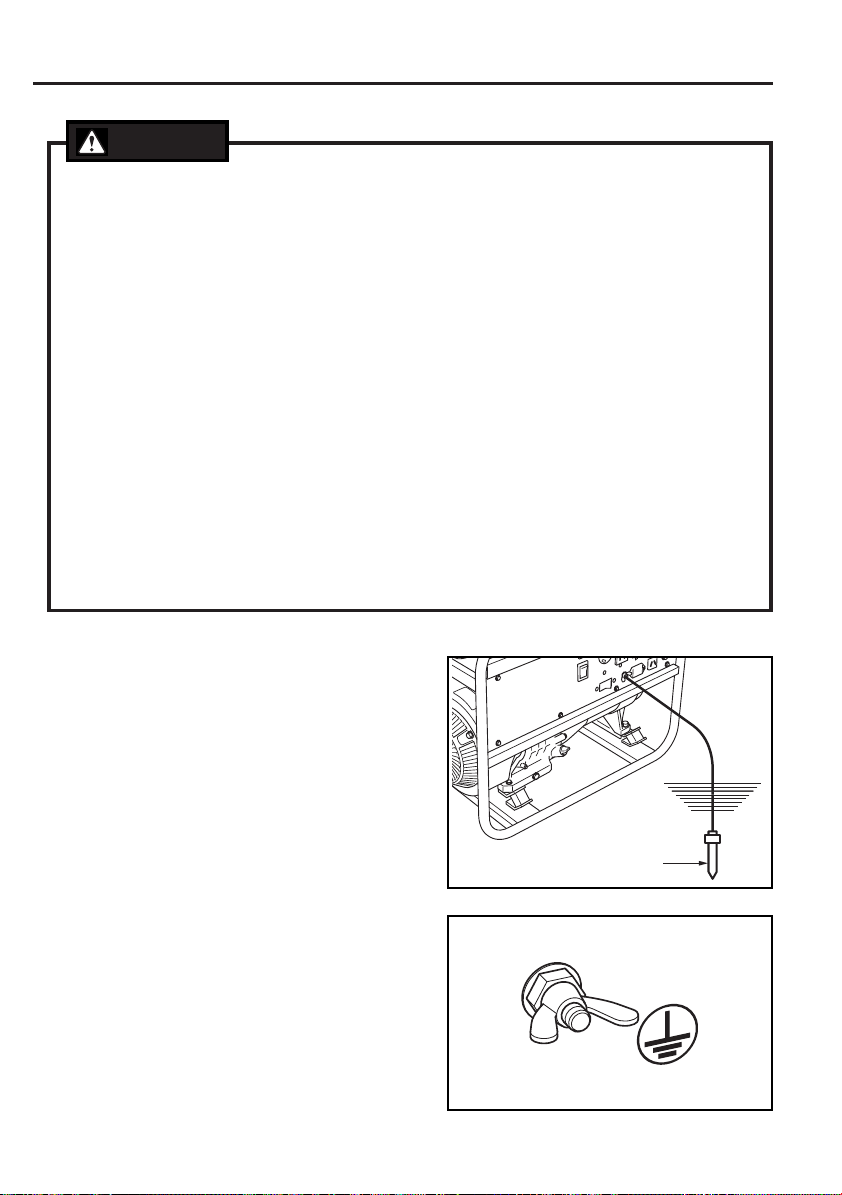

GROUNDING THE
GENERATOR

■

To ground the generator to the earth,
connect the grounding lug of the
generator to the grounding spike
driven into the earth or to the
conductor which has been already
grounded to the earth.

Grounding spike

-

)

■

If such grounding conductor or
grounding electrode is unavailable,
connect the grounding lug of the
generator to the grounding terminal of
the using electric tool or appliance.

−10−

5. OPERATING PROCEDURES

STARTING THE GENERATOR

CAUTION

［

Check the oil level before each operations as outlined by the article
"CHECK ENGINE OIL"

］

ENGLISH

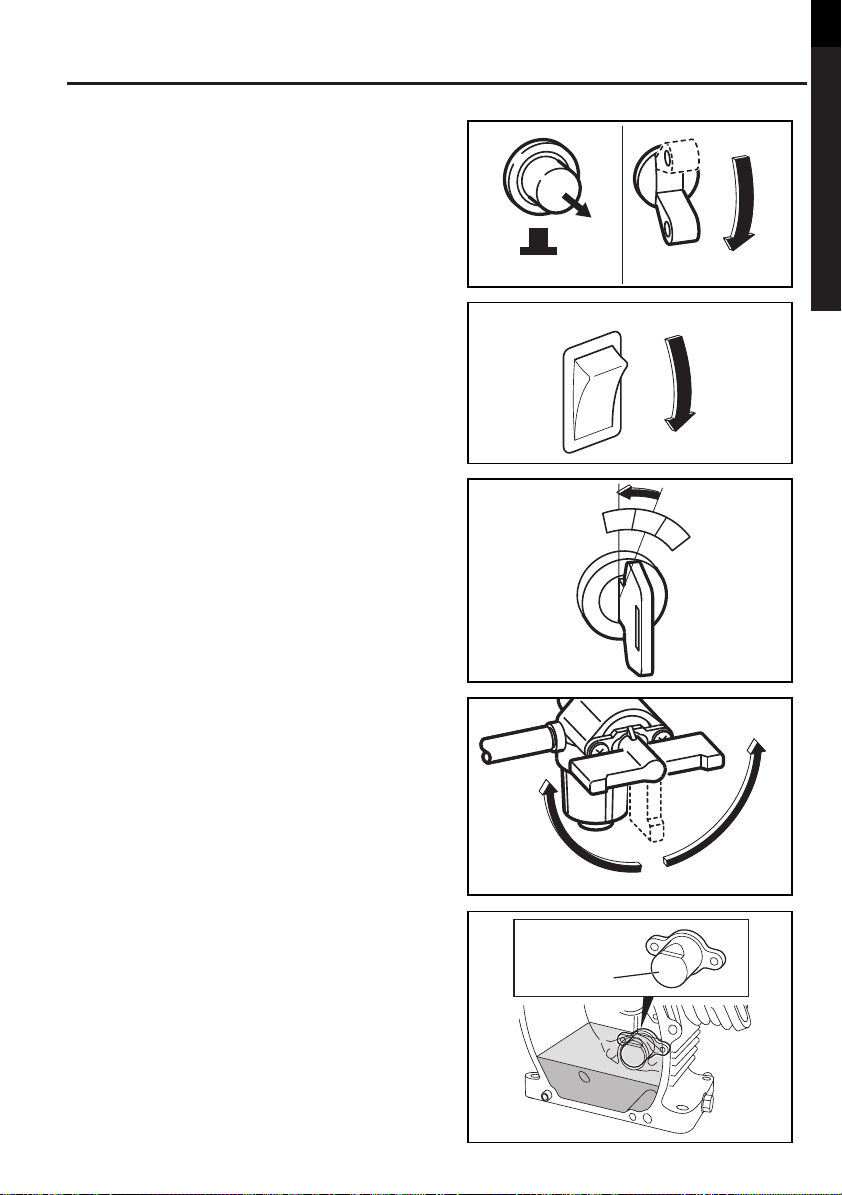

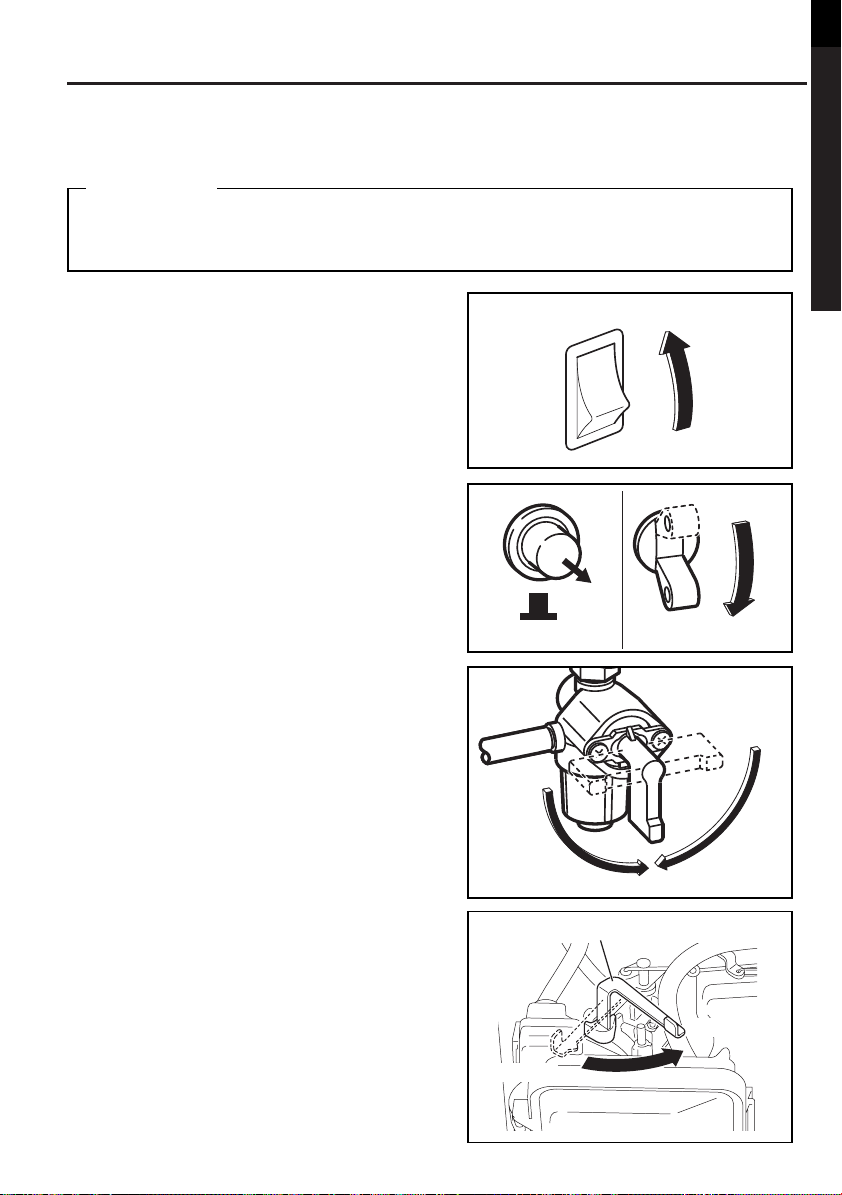

(a) Turn the Engine switch to the position

"ON".

(b) Turn the AC circuit breaker to the

position "OFF".

(c) Open the fuel valve.

CLOSE

OFF

ON

OFF

ON

OFF

CLOSE

OPEN

(d) Set choke lever to close if the engine

is cold.

Choke lever

CLOSE

OPEN

−11−

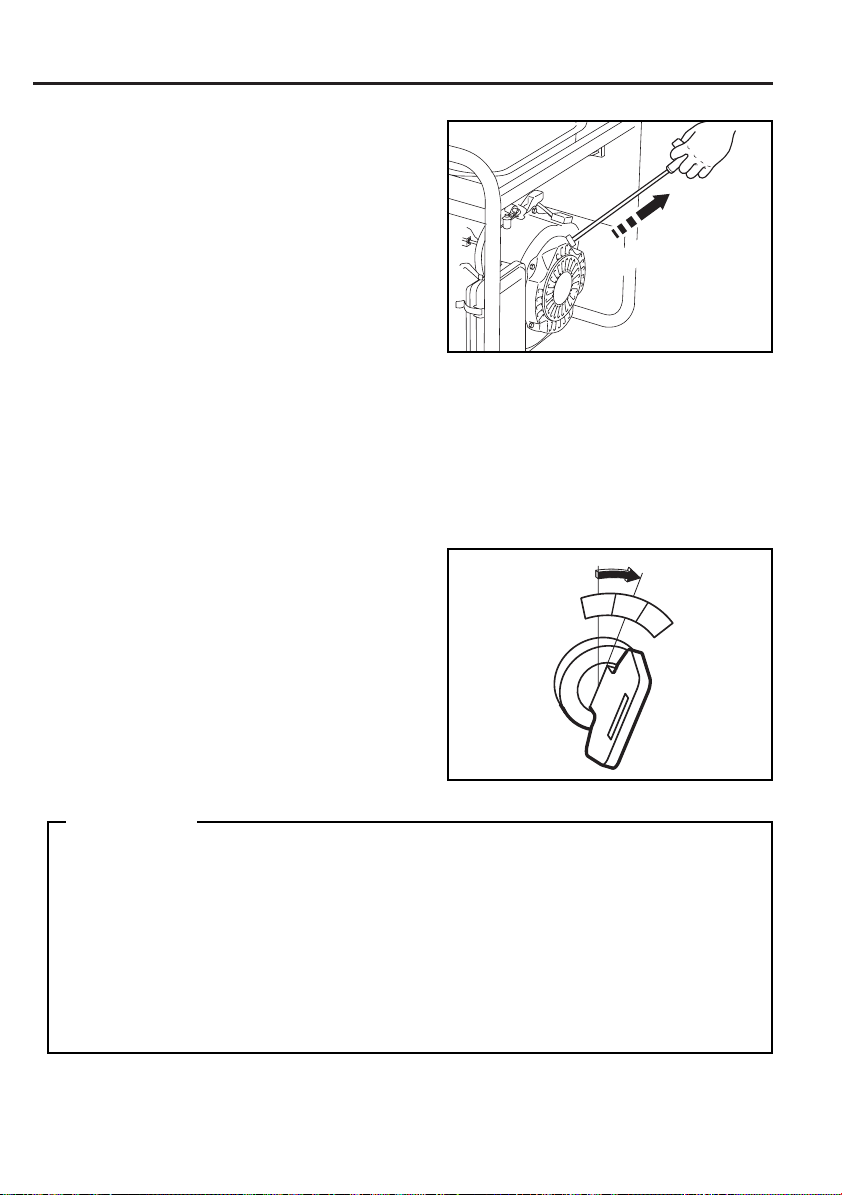

(e) [Recoil starter model]

Pull the starter handle slowly until
passing the compression point
(resistance will be felt), then return
the handle to its original position
and pull briskly.

■

If the engine fails to start after several
attempts, repeat above procedures
with choke lever returned to "OPEN"
position.

■

Do not fully pull out the rope.

■

After starting, allow the starter handle
to return to its original position while
still holding the handle.

(f) [Electric starter model]

Insert the key into the key switch and
turn it clockwise to the "RUN" position
to start the engine.
Then turn the key further to the
"START" position. The engine will be
started by starting motor.

STOP

Pull briskly

RUN

STOP

RUN

START

START

CAUTION

［

■

Do not run the starting motor over 5 seconds continuously.

］

If the engine fails to start, return the key to the "RUN" position and wait
about 10 seconds then start again.

■

Do not turn the key switch to "START" position when the engine is

running to prevent damage of starting motor.

■

When starting the engine by recoil starter, set the key switch at the "ON"
position and pull the starter handle.

−12−

(g) After the engine started, return the

choke lever gradually to "OPEN"
position.

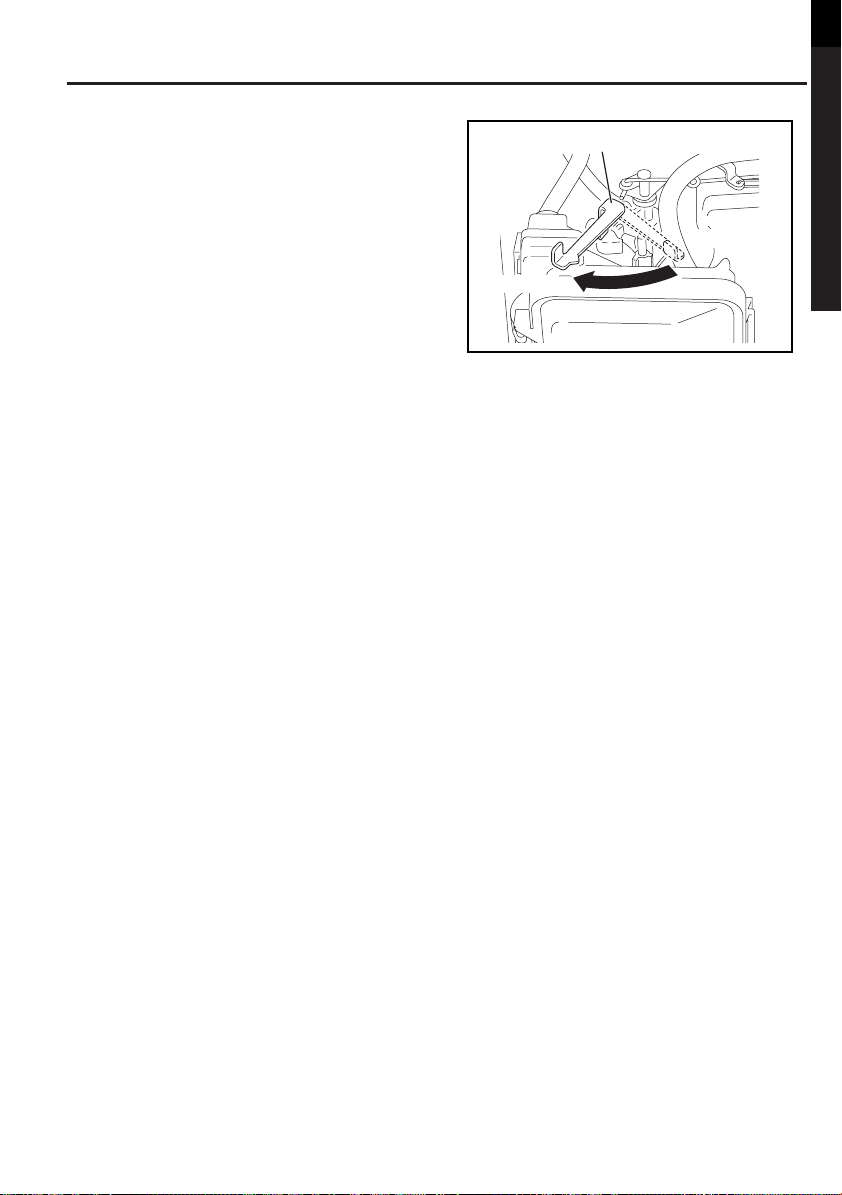

(h) Warm up the engine without a load for

a few minutes.

Choke lever

ENGLISH

CLOSE

OPEN

−13−

USING ELECTRIC POWER

WARNING

■

Make sure that the appliance is switched OFF before connecting it to
the generator.

■

Do not move the generator while it is running.

■

Be sure to ground the generator if the connected appliance is
grounded. Failure to ground unit may lead to electrical shock.

(1) AC APPLICATION

(a) Make sure the pilot lamp is turned on.

(b) Turn off the switch (es) of the electrical

appliance (s) before connecting to the
generator.

(c) Insert the plug (s) of the electrical

appliance(s) into the receptacle.

■

Check the amperage of the receptacles used referring to TABLE 1, and be
sure not to take a current exceeding the specified amperage.

■

Be sure that the total wattage of all appliances dose not exceed the rated
output of the generator.

−14−

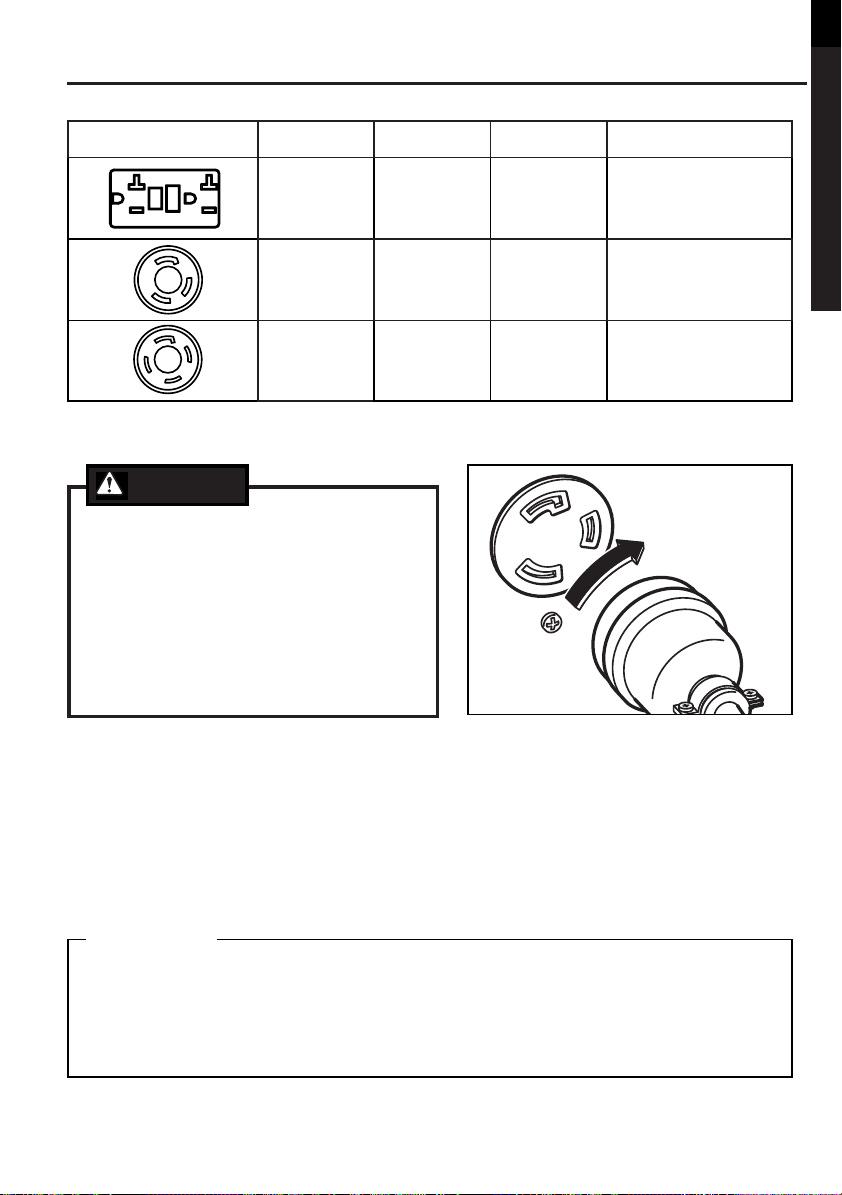

Style Ampere Receptacle AC plug Description

GFCI (Ground Fault
Circuit Interrupter)
Receptacle, duplex

(REC1)

up to 20A

NEMA

5-20R

NEMA

5-20P

ENGLISH

up to 30A

up to 30A

NEMA

L5-30R

NEMA

L14-30R

TABLE 1

NEMA

L5-30P

NEMA

L14-30P

Locking Receptacle
(REC3)

Locking Receptacle
(REC4)

WARNING

■

To take power out from the TWIST
LOCK RECEPTACLE, insert the
plug into the receptacle, and turn
it clockwise to the lock position.

■

Be sure to ground the generator if
the connected electrical device Is
grounded.

NOTE :

When the AC circuit breaker turns off during operation, the generator is over

loaded or the appliance is defective. Stop the generator immediately, check the
appliance and / or generator for overloading or detect and have repaired as
necessary by Robin dealer or service shop.

TWIST

CAUTION

［

］

The duplex 120V receptacle is protected by a GFCI (Ground Fault Circuit
Interrupter). GFCI shuts off the output current from the duplex 120V
receptacle when a ground fault occurs in the generator or the appliance.
Please note that other receptacles are not protected by GFCI.

−15−

(d) Turn the AC circuit breaker to the

position "ON".

(e)Turn on the switch of the appliance.

ON

ON

OFF

GFCI RECEPTACLE

After starting the engine, check the GFCI for proper functioning by the following
test procedure.

■

Push blue TEST button, The red RESET button will pop out exposing the word
TRIP. Power is now off at the outlets protected by the GFCI, indicating that the
device is functioning properly.

■

If TRIP dose not appear when testing, do not use the generator. Call a
qualified electrician.

■

To restore power, push RESET button.

WARNING

If the RESET button pops out during operation, stop the generator
immediately and call a qualified electrician for checking generator and
the appliances.

−16−

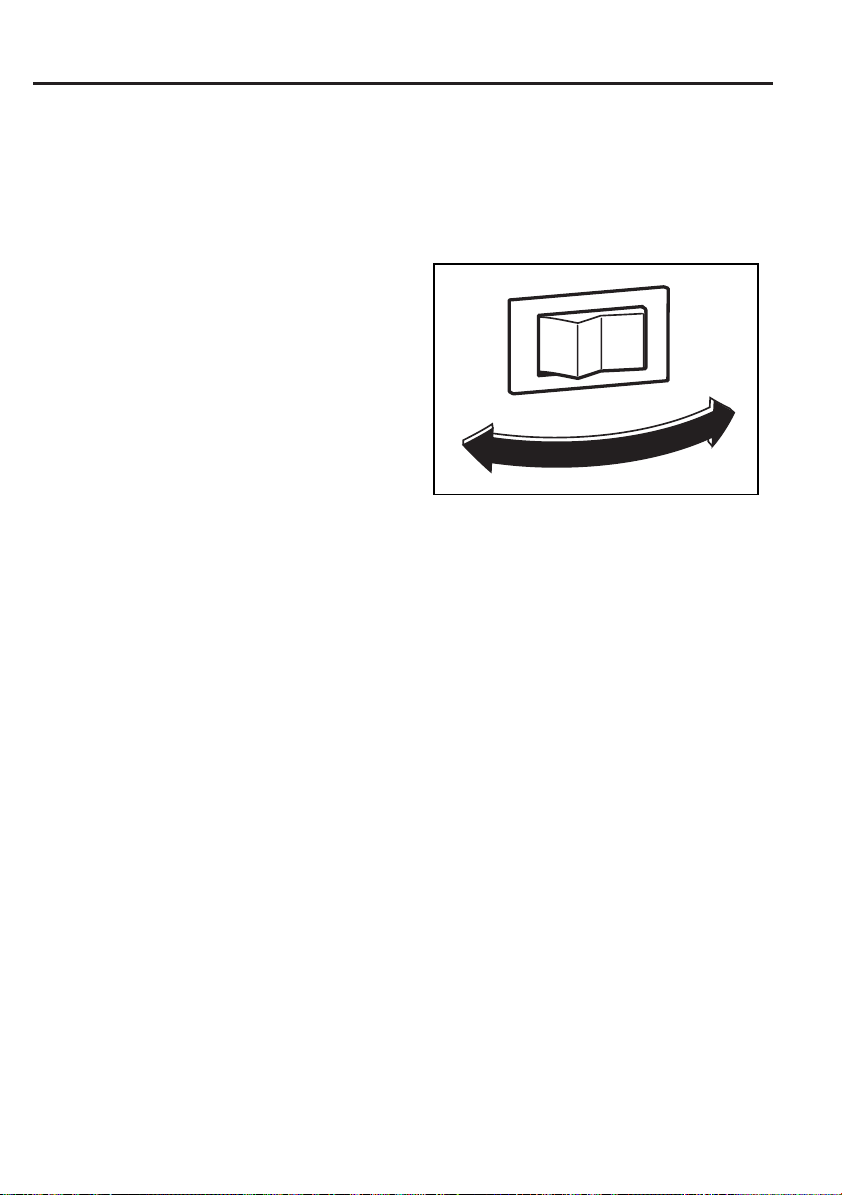

FULL POWER SWITCH (Except RGX3000)

Select the voltage using the FULL
POWER SWITCH in accordance with the
electrical appliance.
Refer to

［

TABLE 2.

CAUTION

120V

］

Change the FULL POWER SWITCH
after turning the AC circuit breaker

to "OFF".

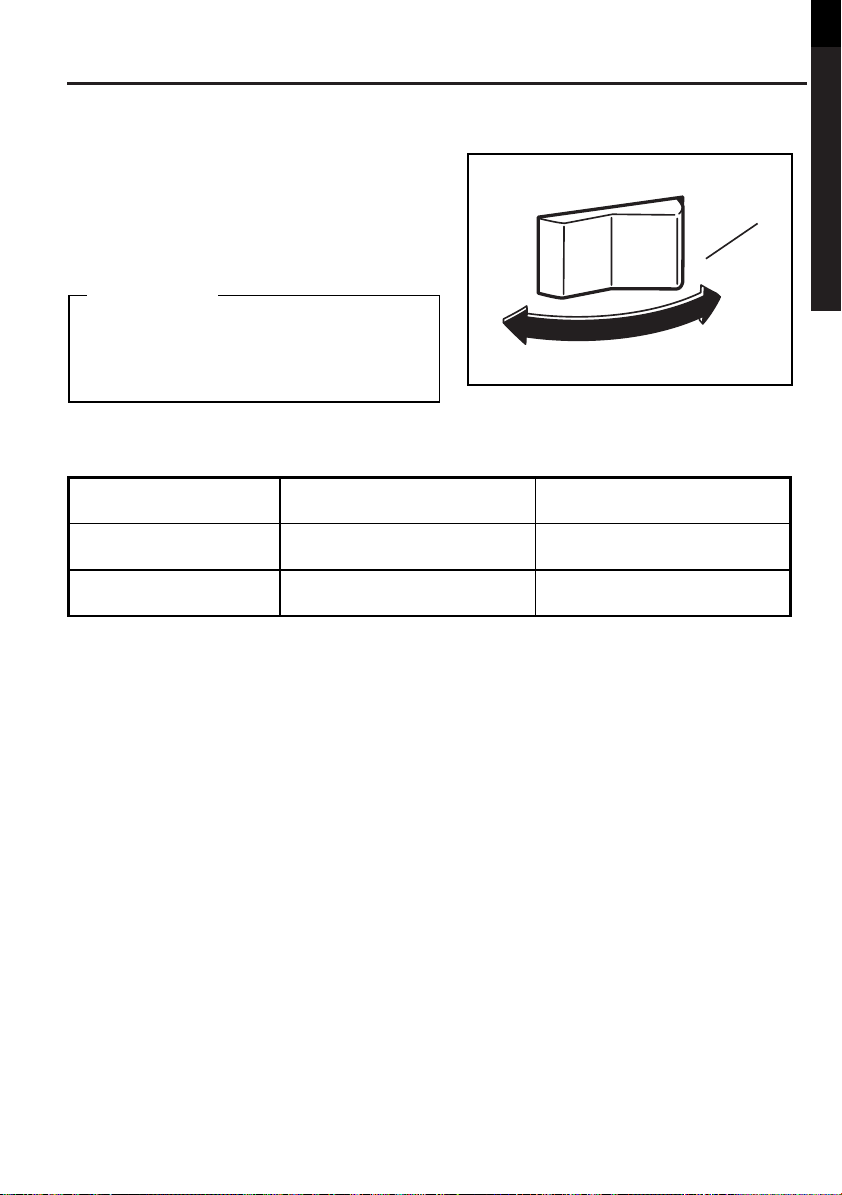

Switch position Lower Voltage Receptacle Higher Voltage Receptacle

120V Activated full rated output N.A

120/240V Activated half of rated output Activated full rated output

TABLE 2

120V

ENGLISH

240V

−17−

IDLE CONTROL SWITCH (Except RGX3000)

IDLE CONTROL

SWITCH

automatically reduces engine speed when load is OFF,
and automatically increases engine speed to rated r.p.m. when load is ON.
IDLE CONTROL

SWITCH

provides fuel economy and low noise operation at no­load running.

(1) HOW TO USE IDLE CONTROL SWITCH

■

Start the engine with IDLE CONTROL
SWITCH off.

ON

OFF

NOTE :

Warm up the engine without a load for a
few minutes.

■

Turn IDLE CONTROL SWITCH on.

(2) CHECKING THE OPERATION

When IDLE CONTROL

■

Overloaded ?

SWITCH does

not operate normally, please check following :

Please make it sure that the generator is not overload.

NOTE :

Most induction loads such as electric motors require three to five times more
wattage than their ratings during starting.
This starting wattage should not exceed the rated output of the generator for proper
operation of

■

Turn

IDLE CONTROL

SWITCH.

IDLE CONTROL SWITCH

off when the

IDLE CONTROL

SWITCH does not

work normally under the rated output.

NOTE :

The

IDLE CONTROL

In such cases turn the

SWITCH may not operate when the applied load is under 40W.

IDLE CONTROL SWITCH

off.

(3) STOPPING THE ENGINE

■

Turn off the switch of load.

■

Switch off generator's AC breaker.

■

Disconnect tool or appliance.

■

Turn the

■

Turn the STOP SWITCH to the position "O" (OFF).

IDLE CONTROL SWITCH

off.

NOTE :

Allow the engine about 3 minutes to cool down at no-load before stopping.

−18−

(2) DC APPLICATION

(Only for charging 12 volt battery)

DC receptacle (Only for charging 12 volt
battery)

For charging 12 voltage battery, 12V-8.3A
(100W) of maximum AC power can be
taken out from the DC receptacle by
means of the exclusive DC cable.

The exclusive DC cable is come with your
generator set (included in the package).

RED
CABLE

+

DC receptacle

BLACK
CABLE

ENGLISH

-

DC Circuit Breaker

DC circuit breaker is turned off to shut down the DC power, when the DC is over
the usage range or the battery is defective.

Check the generator and/or battery for overloading or defect, and turn on the DC
circuit breaker after no problem and defect are found out.

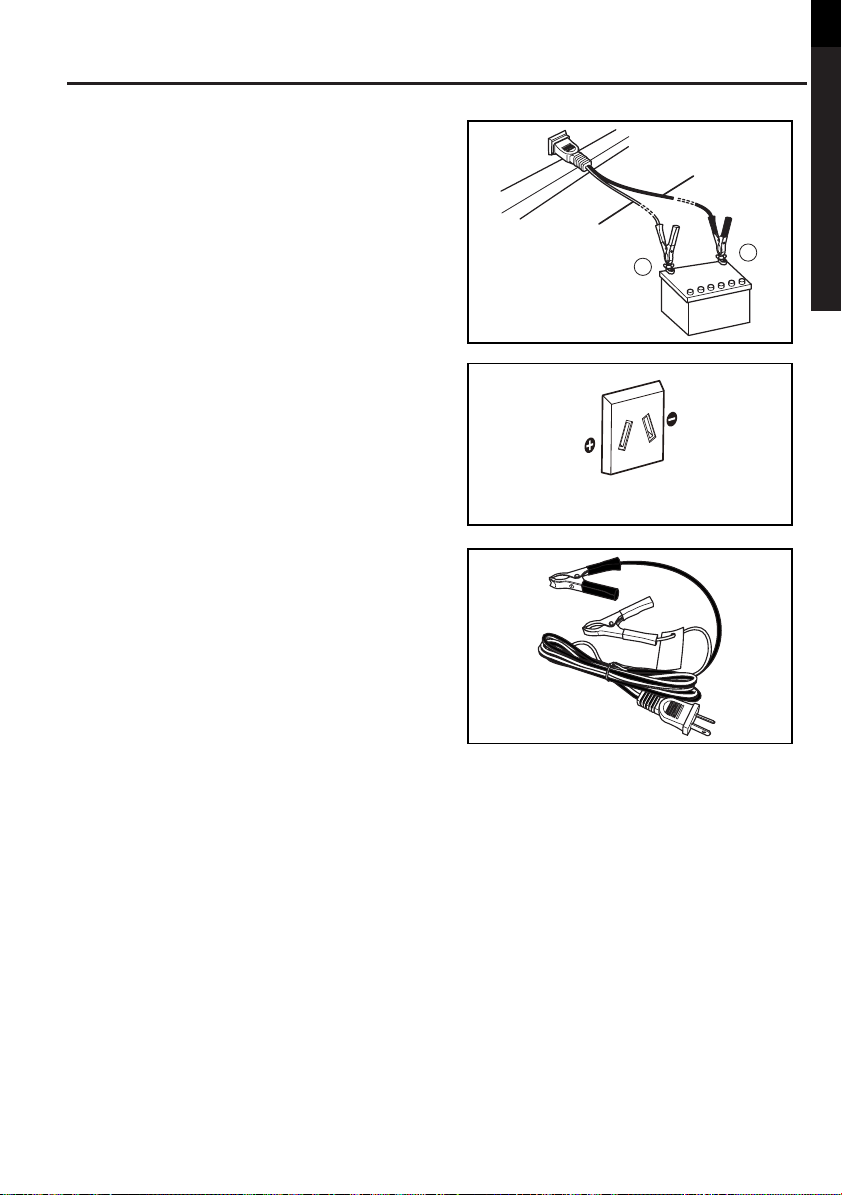

Connection of exclusive DC cable :

■

Connect positive (red) clip of DC cable to positive (+) terminal on battery.

■

Connect negative (black) clip of DC cable to negative (-) terminal on battery.

−19−

Battery Charging Procedures :

1) Stop engine.

2) Remove all connections from battery.

3) Insert the plug of exclusive DC cable into DC receptacle.

4) Connect positive (red) clip of DC cable to positive (+) terminal on battery, and
then connect negative (black) clip of DC cable to negative (-) terminal on

battery.

5) Take out all plugs at the battery electrolyte fluid filler ports.

6) Check the electrolyte fluid level, and refill the distilled water as necessary.

7) Start engine.

8) Make sure that the pilot lamp is turned on.

9) Make sure that the DC circuit breaker is in the ON position.

10) Battery charging will be started.

CAUTION

［

■

Do not use both AC and DC output at the same time.

■

Install correct positive (red) or negative (black) cable to the correct

］

polarity on the battery.

■

Connect and disconnect DC cable with engine stopped.

■

An explosive hydrogen gas is discharged through vent holes in the
battery during the charging process.
Do not allow spark or open flame around the generator or battery during
the charging process.

■

Electrolyte fluid contains sulphuric acid, and so the fluid can burn eyes
and clothing. Be extremely careful to avoid contact.
If injured, wash the affected area immediately with large quantities of
water and consult a doctor for treatment.

■

Charging time is varied according to the kind of battery and discharged
level of battery.
Measure the specific gravity of electrolyte fluid by means of hydrometer
every one hour during battery charging.
Make sure if the DC circuit breaker is not turned off.
Battery charging is completed when the specific gravity is in the range of

1.26 to 1.28.

−20−

STOPPING THE GENERATOR

ON

(a) Turn off the power switch of the

electric equipment and unplug the cord
from receptacle of the generator.

(b) Turn the AC circuit breaker to the

"OFF" position.

(c) Allow the engine about 3 minutes to

cool down at no-load before stopping.

(d)

［Recoil starter model

］

Turn the engine switch to the position
"OFF".

［Electric starter model

］

Turn the key switch to the STOP
position.

(e) Close the fuel valve.

OIL SENSOR

(a) The oil sensor detects the fall in oil

level in the crankcase and automati­cally stops the engine when the oil
level falls below a predetermined level.

(b) When engine has stopped

automatically, switch off generator's

AC circuit breaker, and check the oil
level.
Refill engine oil to the upper level as
instructed on page 7 and restart the
engine.

(c) If the engine does not start by usual

starting procedures, check the oil level.

CLOSE

OFF

STOP

Oil sensor

STOP

ON

OFF

RUN

RUN

ST

ART

OPEN

ENGLISH

OFF

START

CLOSE

−21−

6. WATTAGE INFORMATION

Some appliances need a "surge" of energy when starting.
This means that the amount of electrical power needed to start the appliance may exceed
the amount needed to maintain its use.
Electrical appliances and tools normally come with a label indicating voltage, cycles / Hz,
amperage (amps) and electrical power needed to run the appliance or tool.
Check with your nearest dealer or service center with questions regarding power surge of
certain appliances or power tools.

■

Electrical loads such as incandescent lamps and hot plates require the same wattage
to start as is needed to maintain use.

■

Loads such as fluorescent lamps require 1.2 to 2 times the indicated wattage during
start-up.

■

Loads for mercury lamps require 2 to 3 times the indicated wattage during start-up.

■

Electrical motors require a large starting current. Power requirements depend on the
type of motor and its use. Once enough "surge" is attained to start the motor,
the appliance will require only 50% to 30% of the wattage to continue running.

■

Most electrical tools require 1.2 to 3 times their wattage for running under load during
use. For example, a 5,000 watt generator can power a 1800 to 4000 watt electrical
tool.

■

Loads such as submersible pumps and air compressors require a very large force to
start. They need 3 to 5 times the normal running wattage in order to start.
For example, a 5,000 watt generator would only be able to drive a 1,000 to 1,700 watt
pump.

NOTE :

The following wattage chart is general guide only. Refer to your specific appliance for
correct wattage.

To determine the total wattage required to run a particular electrical appliance or tool,
multiply the voltage figure of the appliance/tool by the amperage (amps) figure of same.
The voltage and amperage (amps) information can be found on a name plate which is
normally attached to electrical appliances and tools.

Applications

Incandescent lamp, Heater

Fluorescent lamp, Electric tool

Mercury lamp

Pump, Compressor

RGX3000 RGX3800

2400

1300

950

600

Applicable Wattage(W)

RGX5100 RGX7100

2900

1600

1150

700

4200

2300

1700

1050

5000

2750

2000

1250

RGX7800

6000

3300

2400

1500

−22−

VOLTAGE DROP IN ELECTRIC EXTENSION CORDS

When a long electric extension cord is used to connect an appliance or tool to the
generator, a certain amount of voltage drop or loss occurs in the extension cord
which reduces the effective voltage available for the appliance or tool.
The chart below has been prepared to illustrate the approximate voltage loss when
an extension cord of 300 feet (approx. 100 meters) is used to connect an
appliance or tool to the generator.

ENGLISH

Nominal

cross

section

mm

0.75 18 7 30/0.18 2.477 2.5V 8V

1.27 16 12 50/0.16 1.486 1.5V 5V 7.5V 12V 15V 18V

A.W.G.

2

2.0 14 17 37/0.26 0.952 1V 3V 5V 8V 10V 12V 15V

3.5 12 to 10 23 45/0.32 0.517

5.5 10 to 8 35 70/0.32 0.332

Allowable

current

No. A 1A 3A 5A 8A 10A 12A 15A

No.of strands

/ strands dia.

No./mm

Resistance

Ω/100m

Current Amp.

12.5V

─ ─ ─ ─

1.5V 2.5V 4V 5V 6.5V 7.5V

─

1V 2V 2.5V 3.5V 4V 5V

─

─

Voltage drop

−23−

7. SPARK ARRESTER

In a dry or wooded area, it is recommendable to use the product with a spark arrester.

Some areas require the use of a spark arrester. Please check your local laws and
regulations before operating your

product

The spark arrester must be cleaned regularly to keep it functioning as designed.
A clogged spark arrester :

● Prevents the flow of exhaust gas ● Reduces engine output

● Increases fuel consumption ● Makes starting difficult

If the engine has been running, the muffler and the spark arrester will be very hot.
Allow the muffler to cool before cleaning the spark arrester.

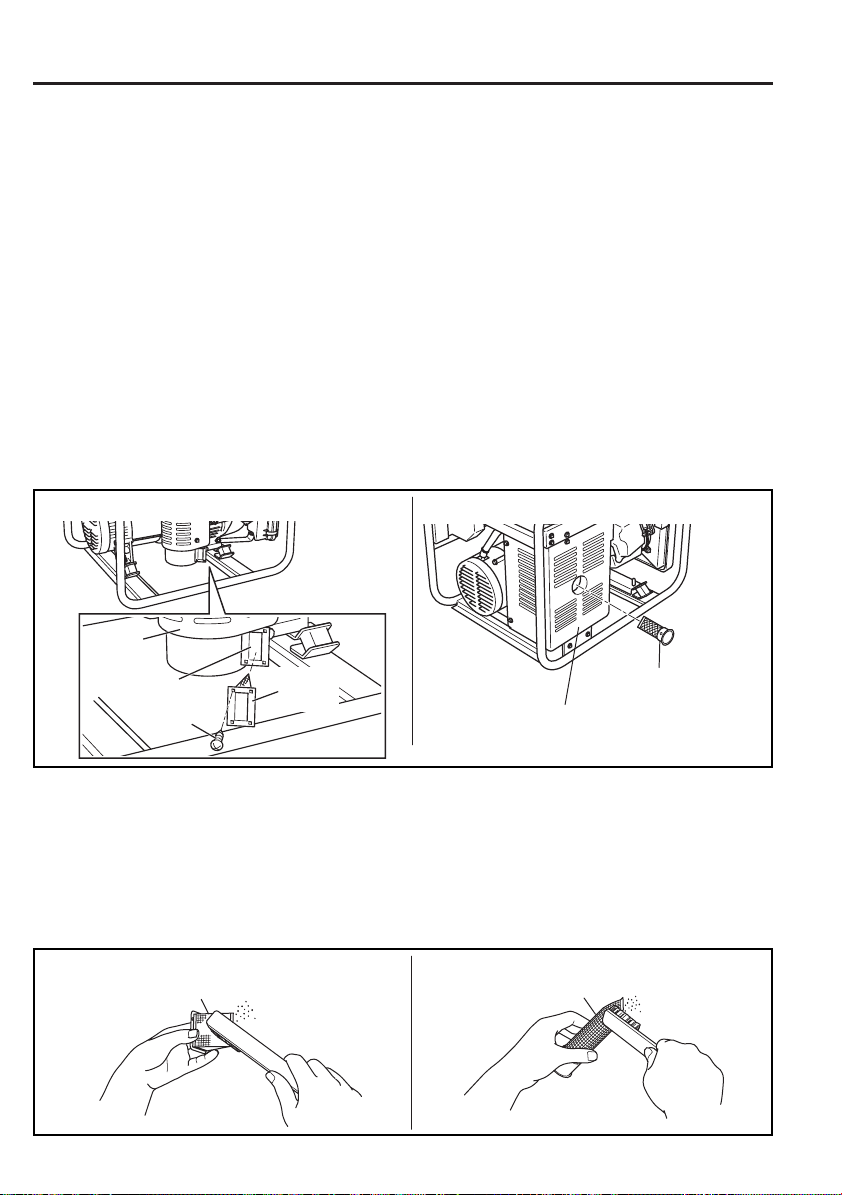

How to remove the spark arrester

1. Remove the flange bolts from the muffler cover and remove the muffler cover.

2. Remove the special screw from the spark arrester and remove the spark arrester
from the muffler.

Muffler
cover

Exhaust
outlet

Screw

Spark
arrester
screen

.

RGX7100, 7800RGX3000, 3800, 5100

Spark arrester screen

Muffler cover

Clean the spark arrester screen

Use a brush to remove carbon deposits from the spark arrester screen.
Be careful to avoid damaging the screen.

The spark arrester must be free of breaks and holes. Replace the spark arrester if it
is damaged.

Install the spark arrester, and muffler protector in the reverse order of disassembly.

RGX7100, 7800RGX3000, 3800, 5100

Spark arrester screen

−24−

Spark arrester screen

8. MAINTENANCE SCHEDULE

MAINTENANCE, REPLACEMENT, OR REPAIR OF THE EMISSION CONTROL DEVICES
AND SYSTEMS MAY BE PERFORMED BY ANY NONROAD ENGINE REPAIR
ESTABLISHMENT OR INDIVIDUAL.

DAILY INSPECTION

Before running the generator, check the following service items:

Enough gasoline

Excessive vibration,noise

Enough clean engine oil

Loose or broken bolts and nuts

Leakage of gasoline and engine oil

Safe surroundings

Clean air cleaner element

PERIODIC MAINTENANCE

Periodic maintenance is vital to safe and efficient operation of your generator.
Check the table below for periodic maintenance intervals.

IT IS ALSO NECESSARY FOR THE USER OF THIS GENERATOR TO
CONDUCT THE MAINTENANCE AND ADJUSTMENTS ON THE EMISSION­RELATED PARTS LISTED BELOW TO KEEP THE EMISSION CONTROL
SYSTEM EFFECTIVE.

The emission control system consists of the following parts :

(1) Carburetor and internal

parts

(2) Cold start enrichment

system, if applicable

(3) Intake manifold, if

applicable

(4) Air cleaner elements

(5) Spark plug

(6) Magneto or electronic

ignition system

(7) Spark advance/retard

system, if applicable

(8) Exhaust manifold, if

applicable

(9) Hoses, belts,

connectors, and
assemblies

ENGLISH

The maintenance schedule indicated in the table is based on the normal generator
operation. Should the generator be operated in extremely dusty condition or in
heavier loading condition, the maintenance intervals must be shortened depending
on the contamination of oil, clogging of filter elements, wear of parts, and so on.

−25−

Periodic Maintenance Schedule table

Every

Maintenance Items

Clean generator and check bolt and nuts

Check and refill engine oil

Change engine oil (*Note1)

Clean spark plug

Clean air cleaner

Clean spark arrester

Replace air cleaner element

Clean fuel filter

Clean and adjust spark plug and electrodes

Replace spark plug

Remove carbon from cylinder head (*Note 2)

Check and adjust valve clearance (*Note 2)

Clean and adjust carburetor (*Note 2)

Check and

Replace fuel lines

Overhaul engine (*Note 2)

Check AC receptacles

Check DC termianl

Check engine switch

Check rotor

Check stator

Replace engine mount

replace carbon brushes

8 hours

(Daily)

●

●

●(Initial

20 hours)

●(Daily)

●(Daily)

●(Daily)

Every
50 hours
(Weekly)

(Daily)

(Refill daily up to upper level)

Every

200 hours

(Monthly)

●(Every

100 hours)

(Every 100 hours)

●

●

(Every 100 hours)

●

●

●

●

Every

500

hours

●

●

●

●

●

Every

1000

hours

● (Yearly)

●

●

●

●

*Note: 1. Initial oil change should be performed after first twenty (20) hours of operation.

Thereafter change oil every hundred (100) hours.
Before changing oil, check for a suitable way to dispose of old oil.
Do not pour it down into sewage drains, onto garden soil or into open streams. Your
local zoning or environmental regulations will give you more detailed instructions on
proper disposal.

*Note: 2. As to the procedures for these items, please refer to the SERVICE MANUAL or

consult your nearest service dealer.

−26−

9. "HOW-TO" MAINTENANCE

ENGINE OIL CHANGE

■

Change engine oil every 100 hours.
(For new engine, change oil after 20
hours.)

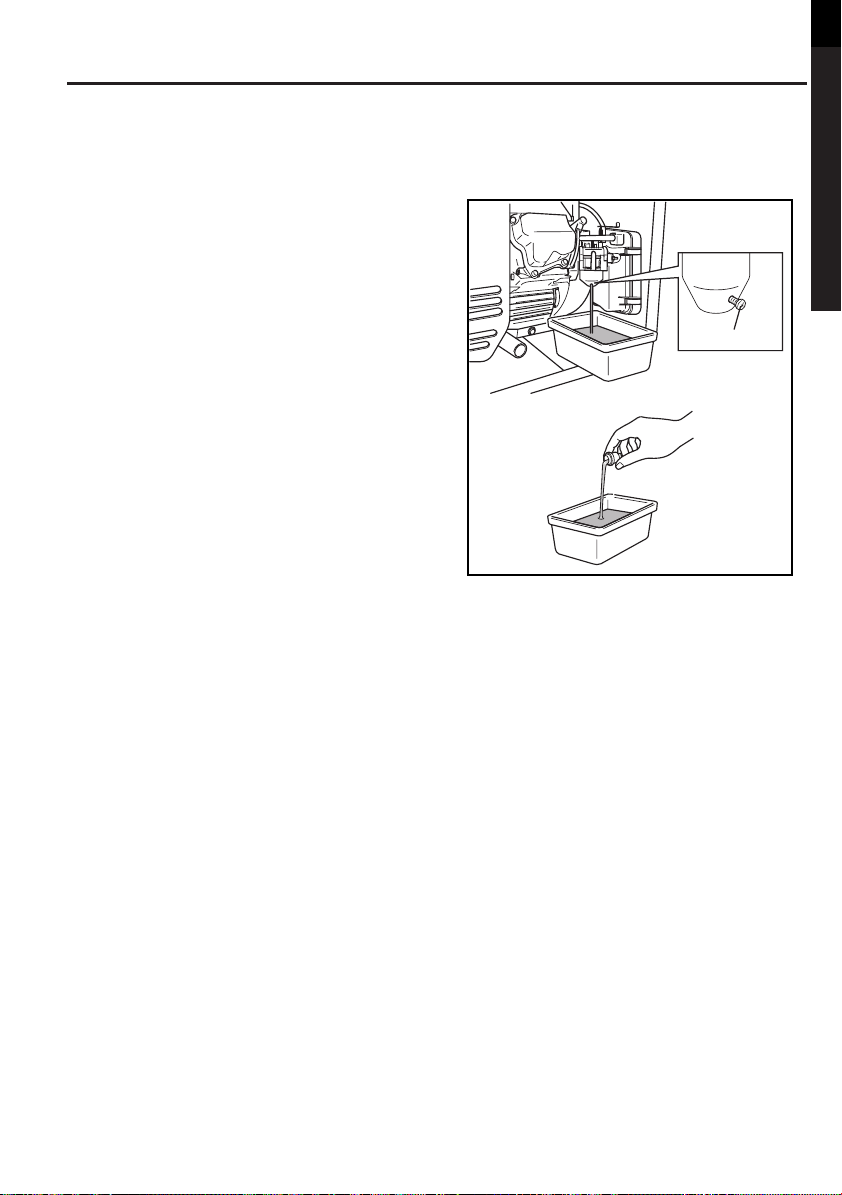

(a) Drain oil by removing the drain plug

and the oil filler cap while the engine
is warm.

(b) Reinstall the drain plug and fill the engine with oil until it reaches the upper level

on the oil filler cap.

■

Use fresh and high quality lubricating oil to the specified level as directed on page 7.

If contaminated or deteriorated oil is used or the quantity of the engine oil is not
sufficient, the engine damage will result and its life will be greatly shortened.

SERVICING THE AIR CLEANER

Maintaining an air cleaner in proper condition is very important.
Dirt induced through improperly installed, improperly serviced or inadequate
elements damages and wears out engines. Keep the element always clean.

(a) Remove the bolt of air cleaner cover. (RGX7100, 7800)

Remove the air cleaner cover and cleaner element.

(b) Urethane form : Wash urethane form element in kerosene or diesel fuel. Then

saturate the element in a mixture of 3 parts kerosene or diesel fuel and 1 part
engine oil.
Squeeze the element to remove the mixture and install it in the air cleaner.

Oil drain plug

ENGLISH

NOTE :

Instead of washing oil (kerosene), it is possible to wash the urethane foam element

in a solution of mild detergent and warm water.

Then rinse the element thoroughly in clean water.

Allow the element to dry thoroughly. Soak the element in clean engine oil and
squeeze out excess oil.

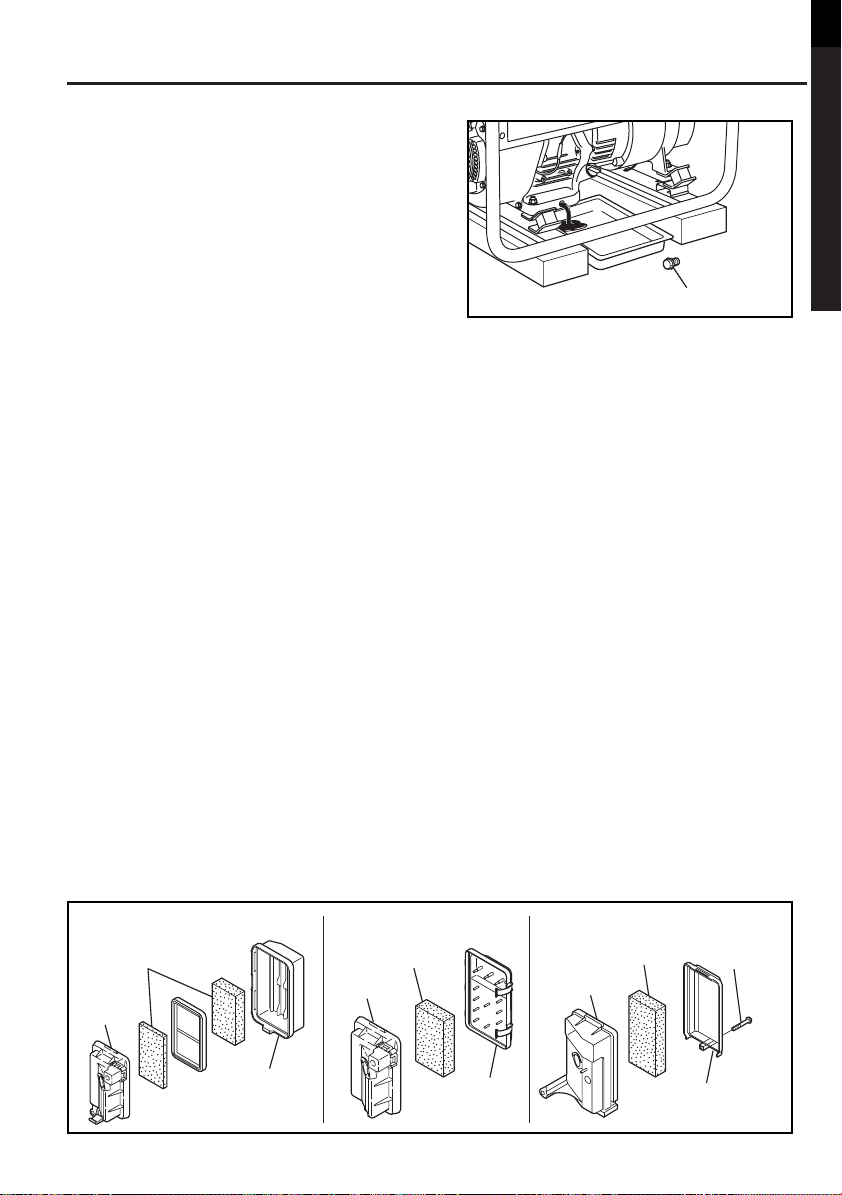

RGX3000, 3800 RGX5100 RGX7100, 7800

Base

Element

Air cleaner
cover

Bolt

Element

Base

Air cleaner
cover

Element

Base

Air cleaner
cover

−27−

CLEANING AND ADJUSTING
SPARK PLUG

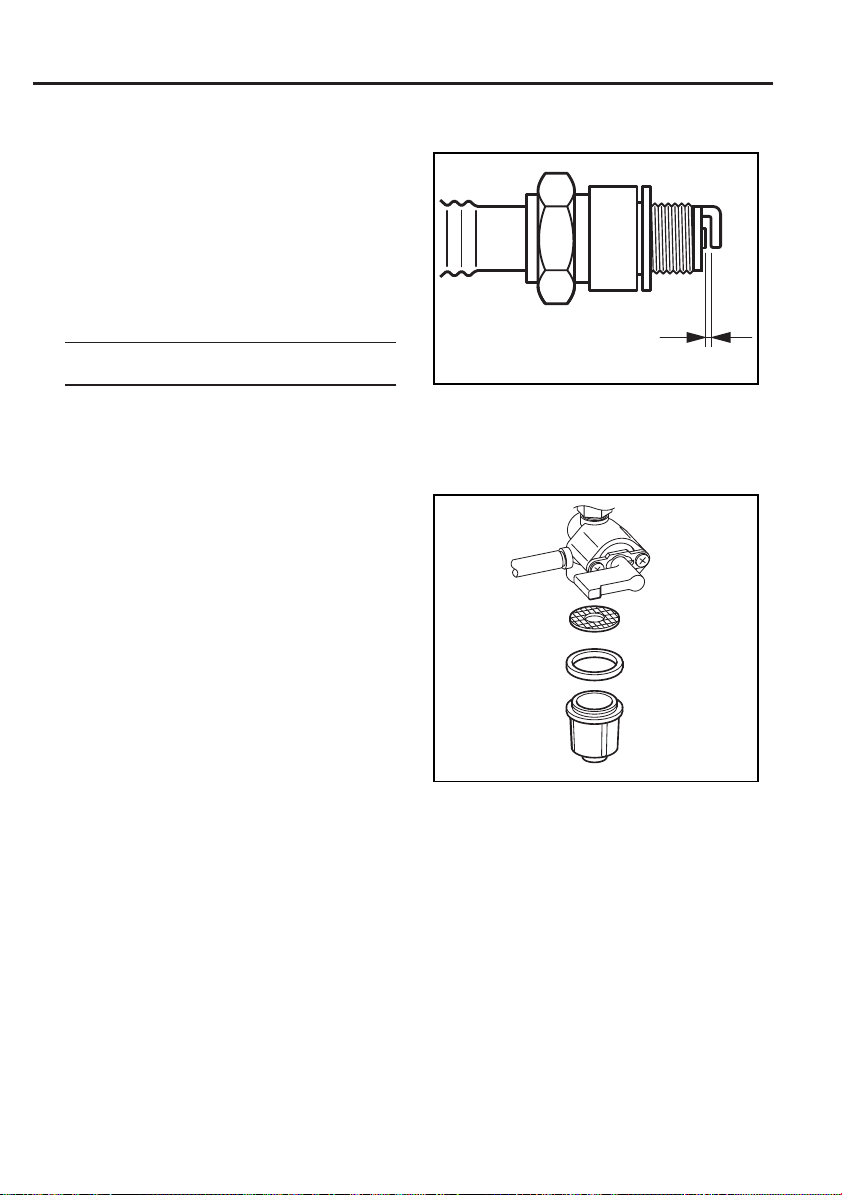

(a)

If the plug is contaminated with carbon,
remove it using a plug cleaner or wire
brush.

(b) Adjust the electrode gap to 0.6 to 0.7

mm (0.024 to 0.028 in.).

Spark plug : BR-6HS (NGK)

CLEANING FUEL STRAINER

Dirt and water in the fuel are removed by
the fuel strainer.

(a) Remove the strainer cup and throw

away water and dirt.

(b) Clean the screen and strainer cup

with gasoline.

(c) Tightly fasten the cup to main body,

making sure to avoid fuel leak.

Gap 0.6 to 0.7 mm
(

0.024 to 0.028 in.

)

−28−

CHECKING CARBON BRUSH

Brush Maintenance Essentials (Effective Length)

The brush is the area which touches the slip ring, and its surface must be kept
smooth.

If it is not smooth then carbon and other substances will adhere between the brush
and slip ring.

This must be buffed with sandpaper or the like because it is hazardous.

The usable length of the brush is 5~11mm, so if the brush is 5mm long or less
replace it with a new one.

This is done because if the length of the
brush gets any shorter, its contact
pressure with the slip ring will decrease,
resulting in a drop in generator efficiency
and the output voltage.

ENGLISH

Check the brush every 500 hours to
confirm its length.

In addition, check the brush length if the
generator malfunctions, such as when it is
not generating power or its voltage is low.

−29−

Length when new

10~11mm

Effective brush length

5 mm

Brush Maintenance Essentials (Disassembly and Assembly)

Disassembly

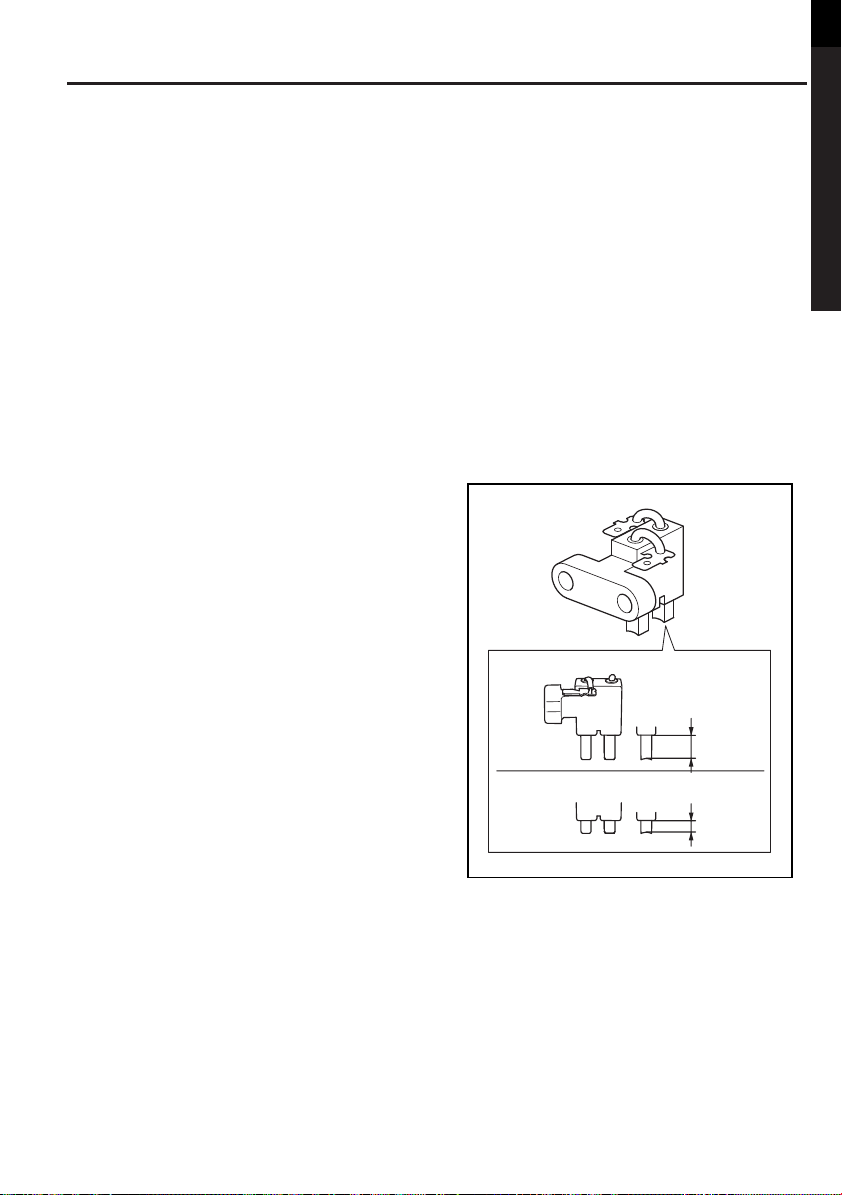

1. Remove the two flange bolts (M5 x 20),
then remove the bracket cover.

Brush

2. Remove the two flange bolts (M5 x 16),
then remove the brush.

Slip ring

Assembly

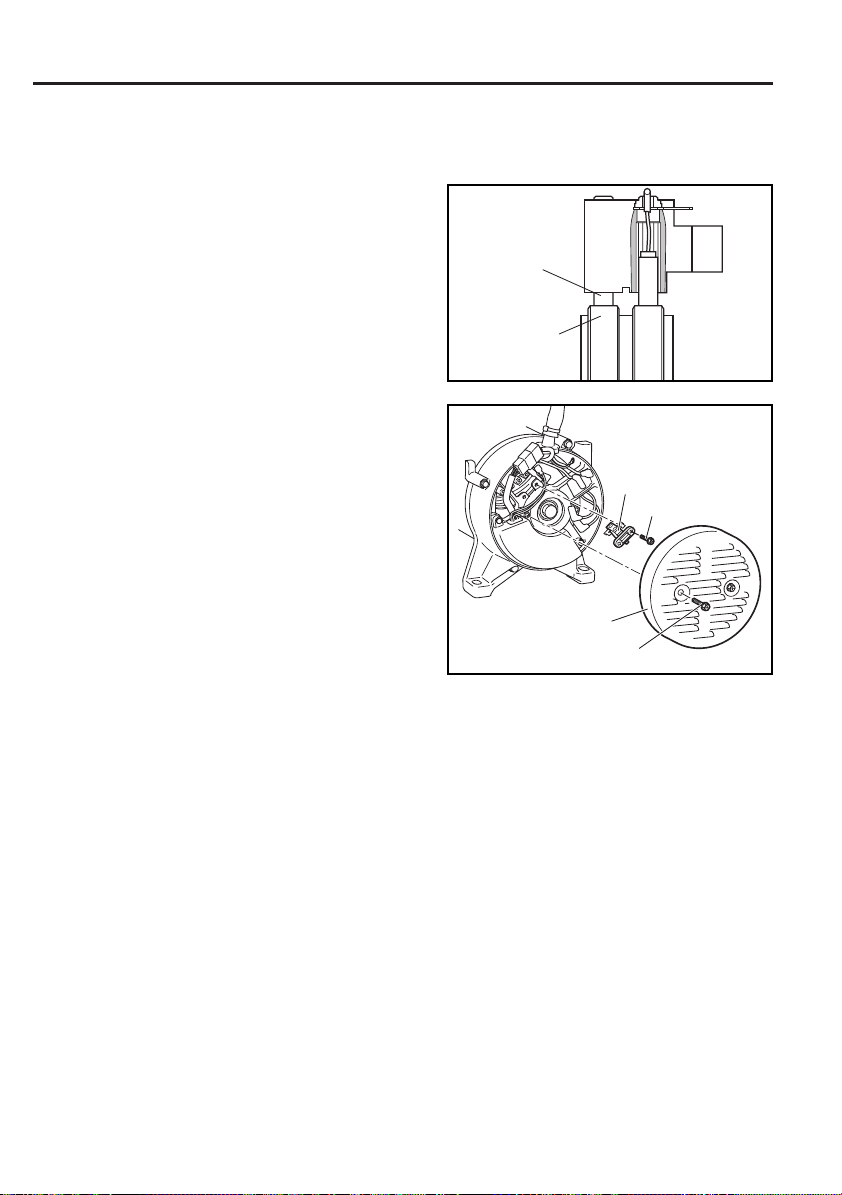

1. While pressing the brush against the
slip ring, secure it (1.5~2N
tightening it with the two flange bolts
(M5 x 16).
When doing so, confirm that the brush
is in the proper position relative to the
slip ring.

2. Secure the bracket cover (3~4N
tightening it with the two flange bolts
(M5 x 20).

・m) by

Brush holder

・m) by

Bracket cover

Flange bolts

Flange bolts

−30−

10. PREPARATION FOR STORAGE

The following procedures should be followed prior to storage of your generator for
periods of 6 months or longer.

■

Drain fuel from fuel tank carefully by
disconnecting the fuel line.
Gasoline left in the fuel tank will
eventually deteriorate making engine­starting difficult.

■

Remove the carburetor float chamber
and also drain the carburetor.

■

Change engine oil.

■

Check for loose bolts and screws,
tighten them if necessary.

■

Clean generator thoroughly with oiled cloth. Spray with preservative if
available. NEVER USE WATER TO CLEAN GENERATOR !

■

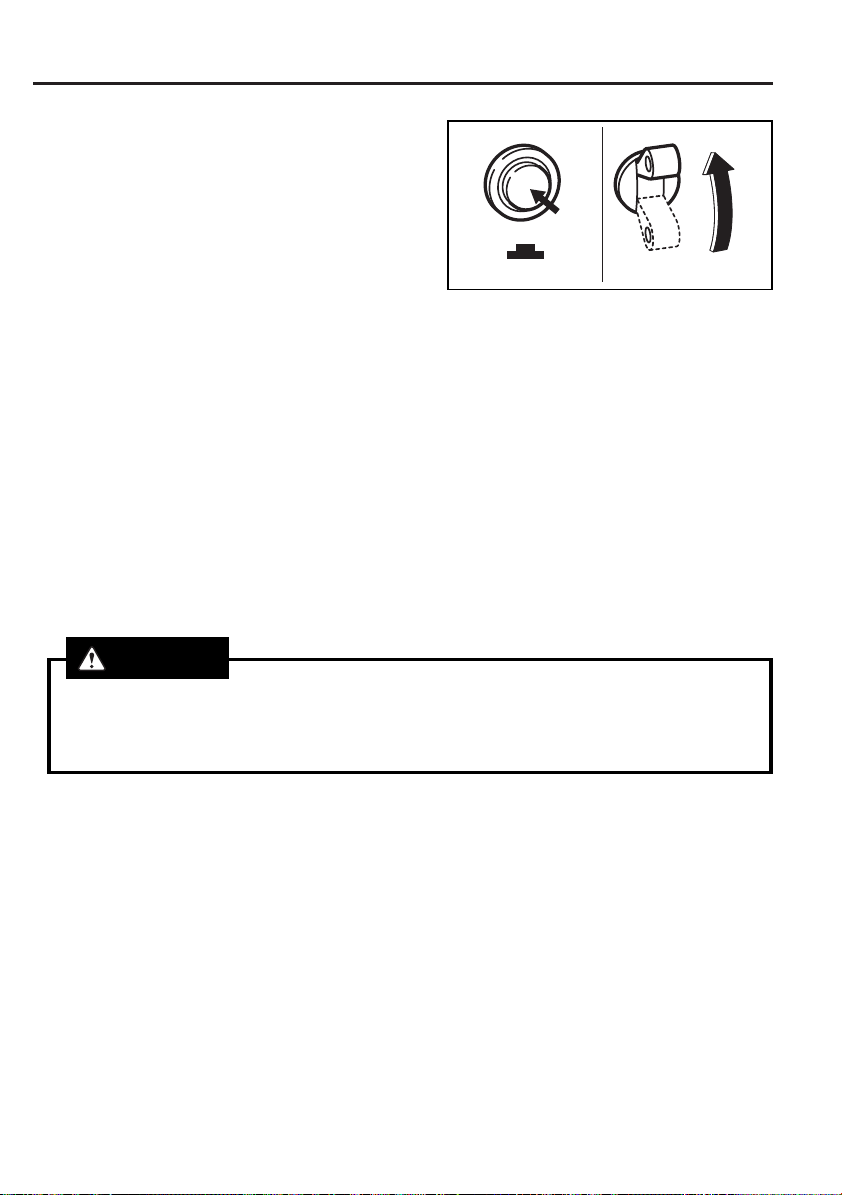

Pull starter handle until resistance is felt, leaving handle in that position.

■

Store generator in a well ventilated, low humidity area.

ENGLISH

Drain screw

−31−

11. TROUBLESHOOTING

When generator engine fails to start after several attempts, or if no electricity is
available at the output socket, check the following chart. If your generator still fails
to start or generate electricity, contact your nearest Robin dealer or service shop

for further information or corrective procedures.

When Engine Fails to Start :

Check if choke lever is in its proper
position.

Check if fuel valve is open.

Check fuel level.

Check if engine switch is in OFF.

Check to make sure generator is not
connected to an appliance.

Check spark plug for loose spark plug
cap.

Check spark plug for contamination.

Set the choke lever to "CLOSE"

position.

If closed, open fuel valve.

If empty, refill fuel tank making sure not
to overfill.

Turn engine switch to ON.

If connected, turn off the power switch
on the connected appliance and unplug.

If loose, push spark plug cap back into
place.

Remove spark plug and clean electrode.

When No Electricity Is Generated at Receptacle :

After making sure that the total wattage

of the electrical appliance is within

Check to make sure AC circuit breaker

is in the "ON" position.

permissible limits and there are no

defects in the appliance, turn the AC

circuit breaker to the "ON" position.

If breakers continue to actuate, consult

your nearest servicing dealer.

Check AC receptacle and DC terminals
for loose connection.

Check to see if engine starting was

attempted with appliances already

connected to generator.

Low power.

Secure connection if necessary.

Turn off switch on the appliance, and

disconnect cable from receptacle.

Reconnect after generator has been

started properly.

Carbon brushes are excessively worn

−32−

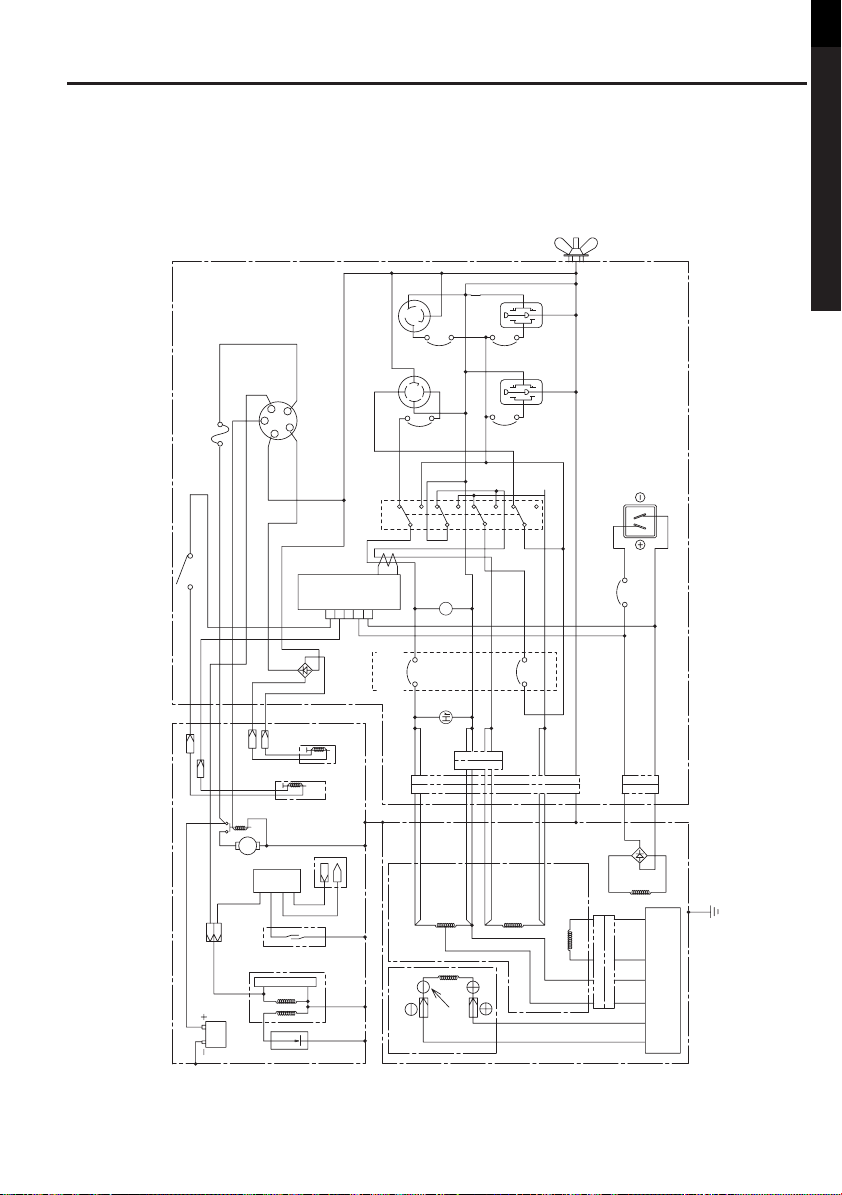

12. WIRING DIAGRAM

WXW

XWXWX

PL

Blu

Pilot lamp

Grn/Y

Earth

(Ground)

DC Output

receptacle

terminal

DC12V

Y : Yellow

Grn/Y : Green/Yellow

W/Blk : White/Black

Org : Orange

Gry : Gray

R : Red

Brn/W : Brown/White

Grn : Green

Brn : Brown

Blk : Black

Wiring color code

Blk/W : Black/White

Blu : Blue

ENGLISH

Pur : Purple

W : White

Grn/W : Green/White

LBlu : Light blue

Grn/Y

Engine switch

Blk

CONTROL BOXENGINE

Blk

Org

Blk

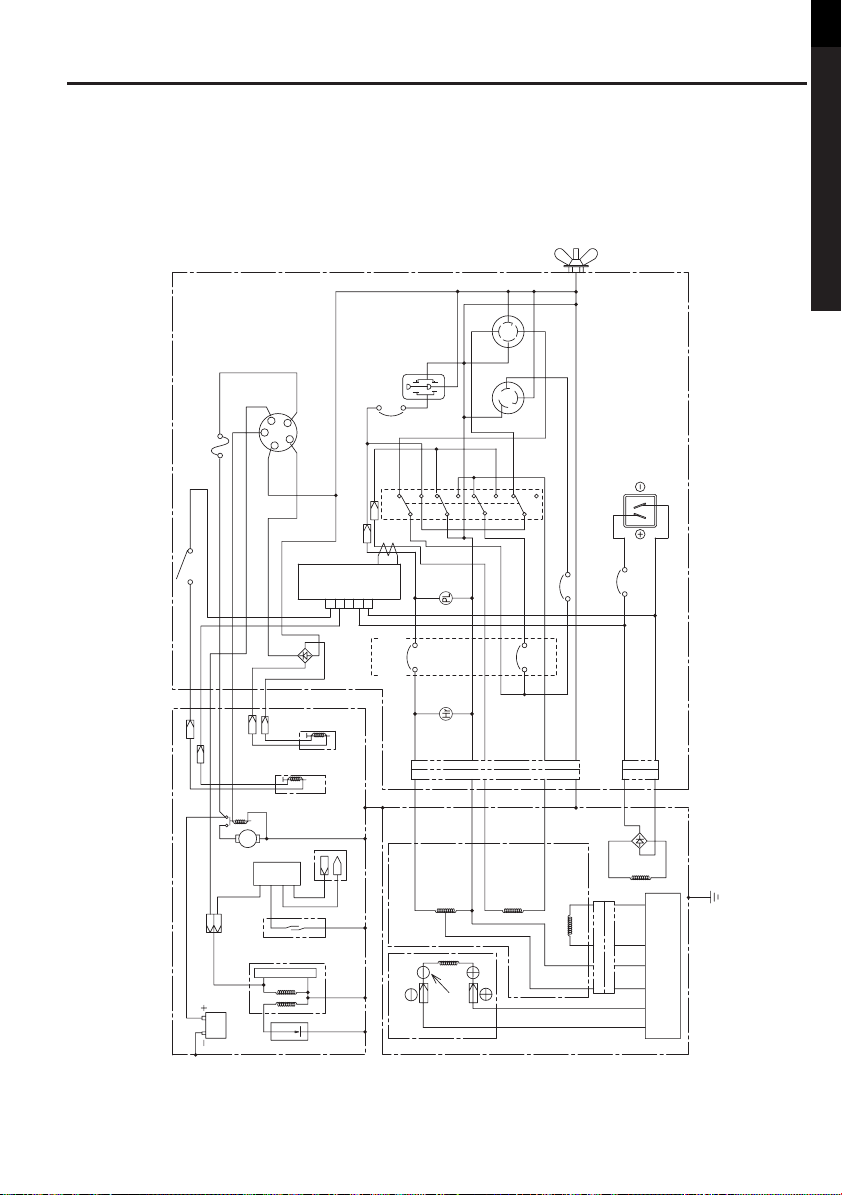

RGX3000 (60Hz-120V)

Oil sensor unit

Y

Y/R

Oil sensor switch

Ignition coil

Spark plug

AC circuit

GENERATOR

breaker

RR R

AC　

winding 1

Slip

ROTOR STAT OR

−33−

ring

Grn/Y

Grn/Y

Sub coil

DC circuit

YY

Brn

W

breaker

W

W

Bridge

Brn

diode

Y

Y

Blk Blk

Blu Blu

Brn

Brn

DC winding

AVR unit

Grn/Y

Hour meter

Org

AC　

winding 2

Blu

Y

Blu Blu

Gry

Grn/Y

Engine switch

Blk

R

Org

Full power

switch

Grn/Y

WXW

X

R
breaker
AC circuit

120/240

120V

13467

2

5

Y : Yellow

Grn/Y : Green/Yellow

W/Blk : White/Black

Pur : Purple

Earth

(Ground)

Grn/Y

X

Y

Gry

30A

W

Grn/Y

W

Org

X

9

8

Blu

30A

Blu

10

12

11

R

terminal

DC Output

receptacle

DC12V

Org : Orange

Gry : Gray

R : Red

Brn/W : Brown/White

Grn : Green

Brn : Brown

Blk : Black

Wiring color code

Blk/W : Black/White

Blu : Blue

W : White

Grn/W : Green/White

LBlu : Light blue

Idle control

switch

WW

CONTROL BOXENGINE

W

W

Oil sensor unit

Blk

Org

Blk

RGX3800 (60Hz-120/240V)

13425

W

solenoid
Slowdown

Y

Y/R

Oil sensor switch

Ignition coil

Spark plug

Idle control unit

R

PL

AC circuit

breaker

RR

AC

winding 1

Slip

ring

ROTOR STATOR

GENERATOR

−34−

Pilot lamp

Hour meter

Gry

Org

Gry

Org

Blu

R

AC

winding 2

Blu

Y

AC circuit breaker

Grn/Y Grn/Y

Blu Blu

Grn/Y

YY

Sub coil

Brn

DC circuit

breaker

Blk

W

WW

W

Blk Blk

Bridge

diode

Brn

Y

Brn

DC winding

Grn/Y

Y

Blu Blu

Brn

AVR unit

CONTROL BOX

W

W

ST

M-

Fuse

Org Org

R

Blk

Idle control switch

W

Gry

Blu

Grn/Y

ENGLISH

Y : Yellow

Grn/Y : Green/Yellow

W/Blk : White/Black

Pur : Purple

Earth

(Ground)

Grn/Y

terminal

DC Output

receptacle

W

DC circuit

breaker

Blk

DC12V

Org : Orange

Gry : Gray

R : Red

Brn/W : Brown/White

Grn : Green

Brn : Brown

Blk : Black

Wiring color code

Blk/W : Black/White

Blu : Blue

W : White

Grn/W : Green/White

LBlu : Light blue

Grn/Y

Gry

X

Y

30A

W

W

M+

Grn/Y

B

Key switch

IG

Gry

R

Org

Full power

switch

Idle control unit

XWX

R
breaker
AC circuit

120/240V

120V

13467

2

5

R

Pilot lamp

13425

Org

8

Grn/Y

W

X

30A

Blu

Blu

9

10

12

11

R

R

Blu

AC circuit breaker

W

Blu

AC circuit

breaker

Hour meter

Charge coil

W

W

solenoid
Slowdown

Magnetic switch

Electric starter

RR

Org

Gry Gry

Org

Oil sensor unit

Org

Y

Y/R

Oil sensor switch

Ignition coil

Spark plug

AC

AC

winding 1

Slip

ring

ROTOR STATOR

GENERATOR

winding 2

Y

R

Blk

ENGINE

Blk

Blk

Blk

Battery

RGX3800 [Electric Starter Model] (60Hz-120/240V)

−35−

Grn/Y

Blu Blu

Grn/Y

YY

Sub coil

Blu

Brn

Blk

W

W

Blk

Bridge

diode

Y

Brn

DC winding

Grn/Y

Brn

Y

Blu

Brn

AVR unit

Blu

Grn/Y

Earth

(Ground)

terminal

Y : Yellow

W/Blk : White/Black

Grn/Y : Green/Yellow

Pur : Purple

Grn/Y

Engine switch

Blk

WW

CONTROLBOXENGINE

Blk

Idle control

switch

W

W

Blk

Org

Full power

13425

solenoid
Slowdown

Oil sensor unit

Y

Y/R

Oil sensor switch

Ignition coil

Spark plug

W

Grn/Y

30A

X

breaker
AC circuit

X

Y

30A

W

breaker
AC circuit

120/240V

120V Only

134

679

2

Idle control unit

5

Pilot lamp

switch

PL

AC circuit

breaker

Gry

RR

Gry

AC

winding 1

Slip ring

ROTOR STATOR

GENERATOR

8

Hour meter

Org

Org

W

XWX

WXW

10

11

Blu

Blu

AC

breaker
AC circuit

X

breaker
AC circuit

Blu

12

Blu

Blu

winding 2

R

W

Grn/Y

Grn/Y

Grn/Y

Blu

Blu

Sub coil

GrnGrn

DC12V

DC Output

receptacle

W

DC circuit

breaker

Blk

W

W

Blk

Brn

Bridge

diode

Blu

Blu

WW

Brn

DC winding

AVR unit

Grn/Y

Org : Orange

Gry : Gray

R : Red

Brn/W : Brown/White

Grn : Green

Brn : Brown

Blk : Black

Wiring color code

Blk/W : Black/White

Blu : Blue

W : White

Grn/W : Green/White

LBlu : Light blue

RGX5100, 7100, 7800 (60Hz-120/240V)

−36−

ENGLISH

Y : Yellow

Grn/Y : Green/Yellow

W/Blk : White/Black

Pur : Purple

Earth

(Ground)

Grn/Y

DC Output

receptacle

W

terminal

DC12V

Org : Orange

Gry : Gray

R : Red

Brn/W : Brown/White

Grn : Green

Brn : Brown

Blk : Black

Wiring color code

Blk/W : Black/White

Blu : Blue

W : White

Grn/W : Green/White

LBlu : Light blue

Grn/Y

W

Grn/Y

30A

X

breaker
AC circuit

X

Y

Grn/Y

M+

B

ST

Key switch

M-

Fuse

Org Org

R

IG

Grn/Y

Gry

Blk

W

13467

Full power

switch

30A

W

120/240V

120VONLY

2

breaker
AC circuit

5

WXW

X

breaker
AC circuit

WXW

X

breaker
AC circuit

Blu

9

10

12

8

11

Blu

Idle control switch

W

CONTROL BOXENGINE

Idle control unit

13425

Gry

Blu

Blu

AC circuit

breaker

Charge coil

W

W

Slowdown solenoid

Magnetic switch

Electric starter

Oil sensor unit

Org

Y

Y/R

Oil sensor switch

Ignition coil

Blk

Blk

Pilot lamp

PL

Hour meter

Blu

Gry

Org

RR

Gry

Org

AC

winding 1

AC

Blu Blu

winding 2

Grn/Y

Grn/Y

Sub coil

BluBlu

W

DC circuit

breaker

WW

Brn

Bridge

diode

Grn

R

Battery

Blk

Spark plug

GENERATOR

Slip

ring

ROTOR STAT OR

R

W

RGX5100, 7100, 7800 [Electric Starter Model] (60Hz-120/240V)

−37−

Blu

Blu

W

Grn

Blk

Blk

DC winding

AVR unit

Brn

Grn/Y

ISSUE EMD-GU6809

PRINTED IN JAPAN
September 2009

IMPRESO EN JAPÓN
Septiembre 2009
