Page 2
With more than 40 years of performance
and quality second to none, Subaru
engines have earned a worldwide
reputation for high quality performance
and reliability. Here’s what the Subaru name
means to the market:
• With less recoil pulling force, an electronic ignition system and automatic
decompression, our engines offer easy starting every time.
• High power and torque, extended running time and high compression ratios
ensure premium performance in a broad range of applications.
• Designed with cast-iron cylinder liners, high carbon steel crankshaft supported
by steel ball bearings and an electronic low oil shut-off, Subaru engines are
built to last.
• With more than 4,500 Subaru dealers in North America and the support of
a 2-Year Limited Warranty, the strength of the Subaru network remains long
after the sale.
• Subaru engines meet or exceed EPA and California emission standards for
environmentally friendly operation.
Subaru Engines
Industry-leading generator technology and state-of-the-art engines ensure the ultimate level of performance and reliability. With
a complete line of generators from 1,100 watts to 13,000 watts, we offer a model tailored to suit any application from home and
recreation to construction and industrial. And with the engine and generator designed as a complete integral unit, you receive
exceptional performance with synergy for a superior product covered by a single warranty.
W
hen it comes to power — Subaru
is the name
you can trust for the total power package.
The Subaru Generator Advantage
•
Easy-to-start Subaru engines with advanced technology and
proven durability
•
Extra-large, soft-tone mufflers for quiet running
•
High power output for maximum versatility
•
Rugged industrial design for protection in the harshest conditions
•
Large capacity fuel tank for extended running times
•
2-Year Limited Warranty on the entire unit, regardless of the application,
exemplifies our commitment after the sale
*Model shown RGV7500
*Model shown R1700i
Page 3
Efficient Power Creation
While conventional generators produce one
AC sine wave per engine rotation, Subaru
inverter generators create more than 300 AC
sine waves per rotation. More electrical
power is produced by Subaru inverter
generators from each engine rotation.
However, the power produced must first be changed to the form needed to power electrical
appliances. This conversion is performed in two steps within the Subaru inverter module.
First, the electrical power is converted to DC power. Then the DC power is inverted by the
electronics of the inverter module to output very clean 120-Volt, 60-Hz AC power.

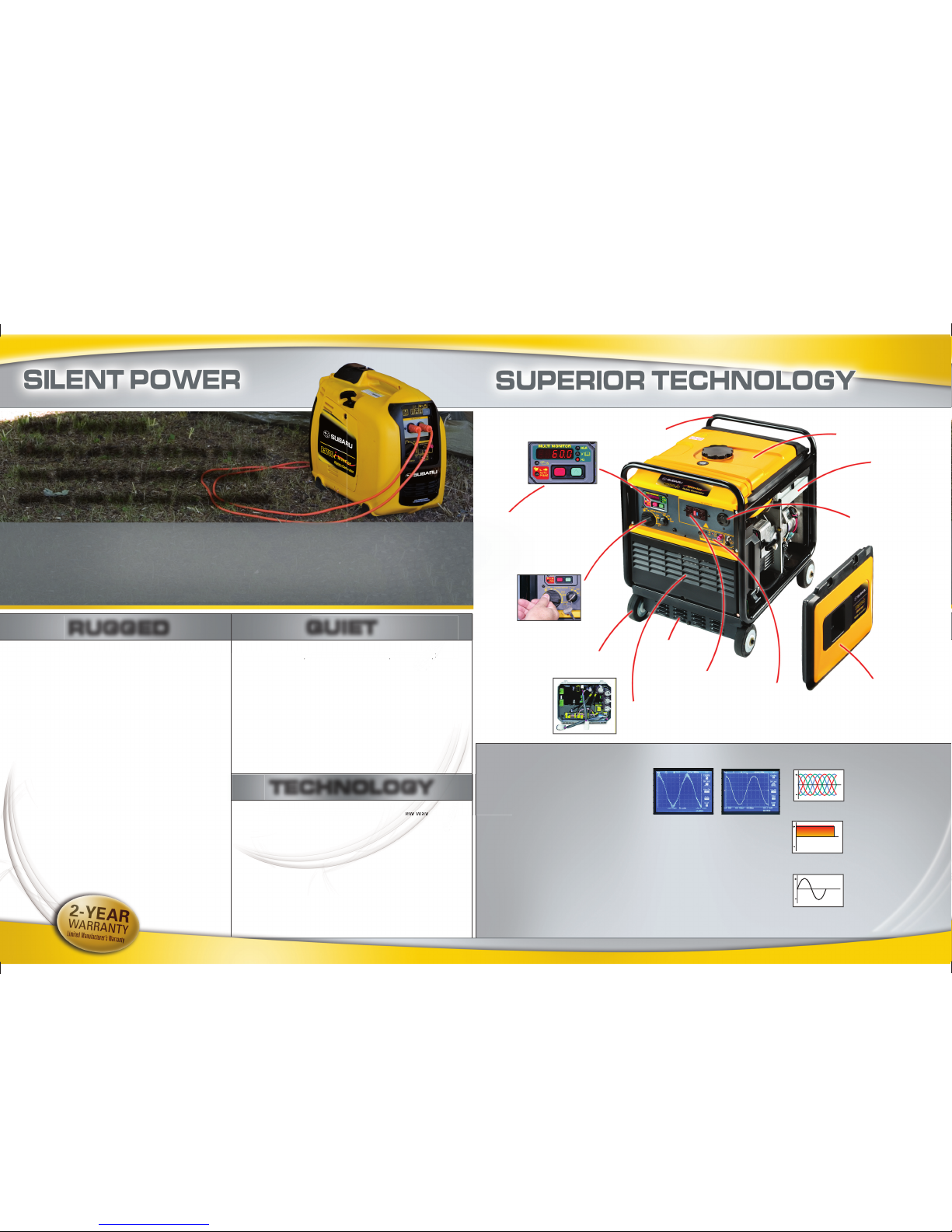

Multi-Monitor display
Sound attenuating
resin panels with
foam lining
Steel base with
sound absorbing
foam lining
Extra large, three layer steel
fuel tank with fuel gauge
Inverter
Module
Extra large
muffler and
US Forestryapproved spark
arrestor
Full tubular steel frame
(on RG3200iS and
RG4300iS)
GFCI duplex
receptacles
Twist-Lock receptacle
(on RG3200iS and
RG4300iS)
Easy single dial control
Four wheels for easy moving
(on RG3200iS and RG4300iS)
12V battery
charging
Auto-Power System
Adjusts the engine speed to meet
the power requirement. Reduces
sound and fuel use.
Step 1
Step 2
Step 3
Produce three-phase AC
power at up to 20,000 Hz
Convert AC power to
DC power
Convert DC power to
clean AC power at 120
Volts/60 Hz
So rugged you’ll quickly find Subaru is the hardest working member
of your crew or your household. That’s why Subaru inverter generators
are backed by a full 2-Year Limited Warranty for both consumer
and commercial use. Here’s why we’re confident in our
generator brawn:
• High surge capacity allows for output as high as 120 percent
over rated power for up to 20 seconds
• Easy starting for demanding appliances and equipment, from
RV air conditioners to air compressors and power tools
• Embedded heat sensors monitor critical components and shut
off the power output when an overload condition is sensed
• Multi-Monitor displays the generator performance: voltage,
frequency, hours of operation and overload condition
• Subaru industrial grade engine ensures
optimum performance
Typical generator
sine wave
Inverter generator
sine wave
So quiet you’ll hardly know Subaru is at work for you. Here’s why:
• A fully enclosed design with sound attenuating resin panels
featuring foam lining and a steel base equipped with sound
absorbing lining
• Three-layer steel fuel tank
• Auto-Power System adjusts the engine speed to meet
power requirement
• Extra large muffler
The new inverter technology by Subaru offers you a new way to
reach your power objectives — a clean, safe and quiet alternative.
Here’s what inverter generators have to offer:
• Clean and stable power for sensitive electronic
equipment, including computers, consumer
electronics and electronic tools
• A lighter and more compact generator design
• Increased efficiency, which reduces fuel consumption,
extending time between refueling
Inverter Generators
Whether it’s on the job, at the lake, or in your
home, Subaru has the generator designed to
meet your needs and exceed your expectations.
By combining our durability, power and exceptional quality with our state-of-the-art inverter technology, we offer a generator
that works hard and quietly. Our inverter generators are quiet enough for a camping expedition with your buddies, but strong
enough to withstand the rigors of your jobsite. Whether it’s commercial or residential use, you’ll find our generators are
silently taking the market by storm and we’re putting our reputation behind them with a full 2-Year Limited Warranty for both
commercial and residential use.
RUGGED
TECHNOLOGY
ly know Subaru is at work for you. Here’s why:
QUIET
*Model shown RG3200iS
*Model shown R1700i
Page 4
Extra large muffler with
US Forestry-approved
spark arrestor
Powered by
Subaru
industrial
engines
Full tubular
steel frame
Extra large
fuel tank with
fuel gauge
Twist-Lock receptacles
(except R1100 and RGX2900)
12V battery
charging
High performance alternator
with maximum surge capacity
Designed for the demands of contractors, homeowners and
recreational users, Subaru is built to withstand even the most
demanding applications. With features like this, we’re sure you’ll
understand why.
• High surge capacity allows for output as high as
150 percent over rated power for up to 20 seconds
• Easy starting for demanding appliances and
equipment, from air compressors and submersible
pumps to refrigerators and power tools
• Heavy-duty electrical components feature copper windings
with high-temperature insulation
• Large ball-bearing-supported rotor assemblies
• Solenoid actuated AC circuit breakers provide reliable
overload protection
• Heavy-duty Twist-Lock receptacles
• Industrial-grade Subaru engines
• Tough steel construction with large steel fuel tanks
featuring zinc plating and a recessed control panel
• Full 2-year Limited Warranty on commercial, residential or
recreational applications

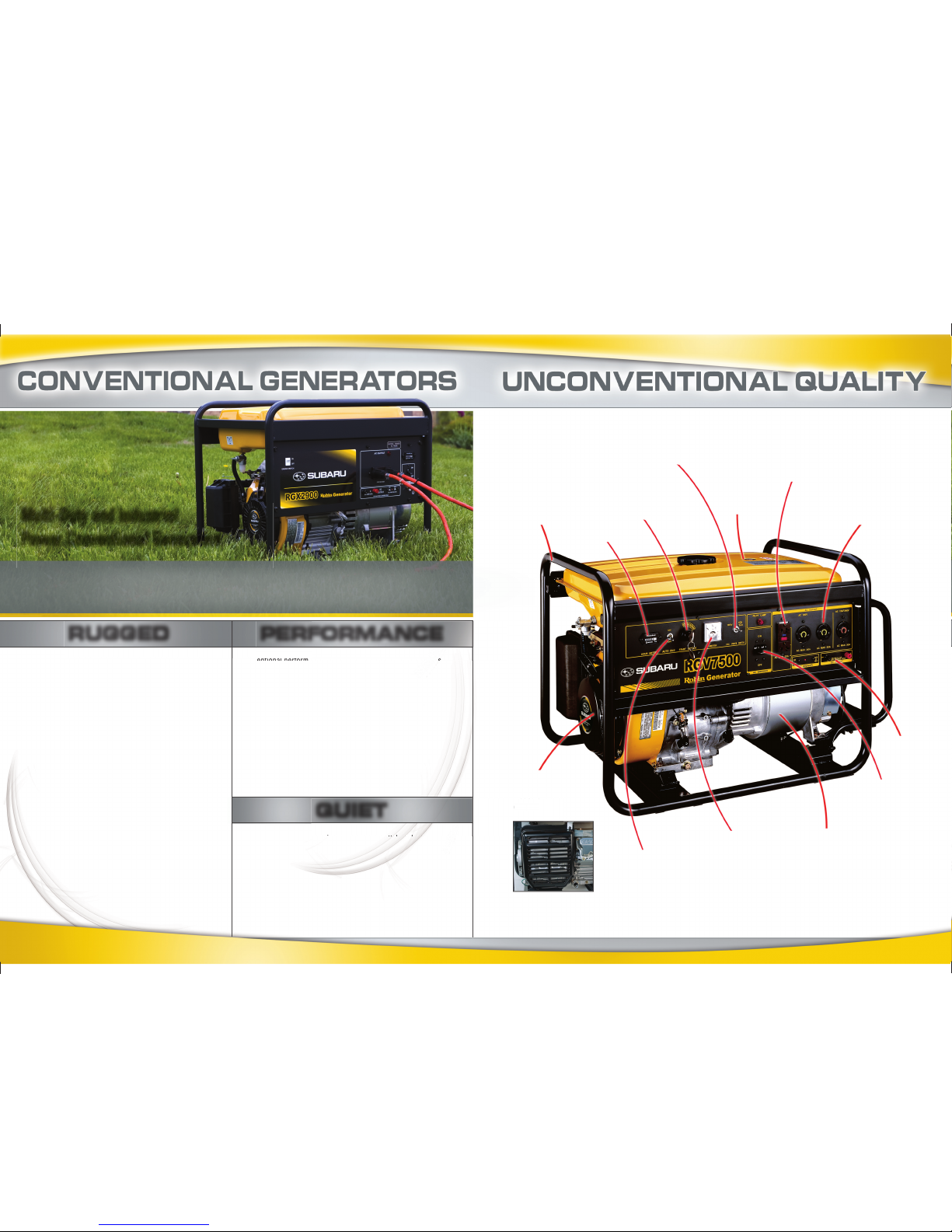

GFCI receptacles
for added safety
Electric start
(most models)
Hour meter
(most models)
Full power switch (allows 120V full
power connection to one receptacle)
Solenoid actuated
AC circuit breakers
Volt meter
(most models)
Idle Control System
(most models)
Features vary by model
Multi-Duty and Industrial
Power Conventional Generators
Exceptional performance in the most rigorous applications. It’s
easy to see why:
• Automatic decompression, easy-pull recoil starter, and high
energy electronic ignition system provide reliable easy starting
• Clean and stable power output
• Extra large fuel tanks with fuel gauges provide a long run time
• High efficiency Subaru engines consume less fuel and
increase run time
• Full power switch allows 120V full power connection to one
Twist-Lock receptacle
Though not as quiet as our inverter generators, Subaru has
always been known for a durable design with minimal noise.
Here’s why:
• Extra large mufflers
• Sound-suppressing industrial air cleaners
• Automatic Idle Control lowers the engine speed when no
electrical power is needed
RUGGED
PERFORMANCE
industrial
engi
nes
QUIET
Subaru conventional generators have long been a legend on the jobsite and among homeowners with a desire for quality. Featuring
durability, an easy-start system and an array of features, Subaru’s conventional generators remain a top choice for homeowners
and contractors alike.
*Model shown RGV7500
*Model shown RGX2900
Page 5

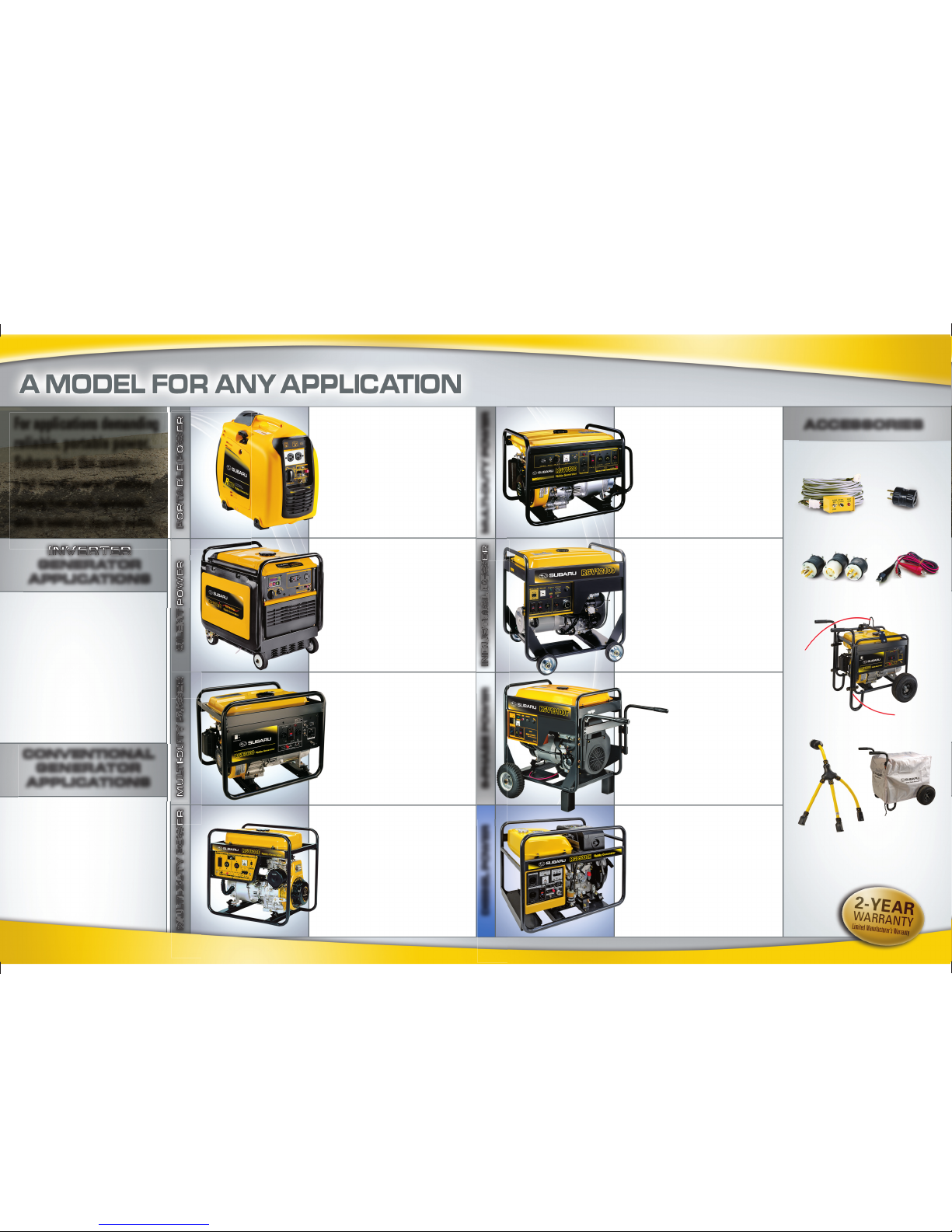

PORTABLE POWER
SILENT POWERMULTI-DUTY POWER
INDUSTRIAL POWER
3-PHASE POWER
MULTI-DUTY POWER
MULTI-DUTY POWER
2-Wheel Kit
Remote Control for RV Adapter
Model RGV12100
Twist-Lock Plugs Battery Charging Cables
Generator Cover
ACCESSORIES
P
OWER
INVERTER
GENERATOR
APPLICATIONS
CONVENTIONAL
GENERATOR
APPLICATIONS
Ideal for applications where noise and
stable power waves are critical factors.
• Construction sites
• Power tools
• Job trailers
• Lighting and electronics
• Sensitive instrumentation
• Camping/RV
• Home/offi ce emergency back-up
• Construction sites
• Air compressors
• Power tools
• Utility trucks
• Emergency service vehicles
• Factory maintenance
• Emergency back-up
• Farm and ranch operations
Portable Power
R1100, R1700i
Maximum Output .................1,100 and 1,650 watts
Sound Rating .......................59 dbA
Voltage ..................................120 V
Starter ...................................Recoil
Maximum Output .................3,200 and 4,300 watts
Sound Rating .......................58 and 62 dbA
Voltage ..................................120 V
Starter ...................................Electric
(Recoil Back-up)
Maximum Output .................2,900, 3600, 4,800 watts
Sound Rating.......................... 68, 71, and 72 dbA
Voltage ..................................120/240 V
.................................................... (RGX2900 120V only)
Starter ...................................Recoil
(RGX4800 offers electric start with recoil backup)
Maximum Output ...................13,000 watts
Sound Rating .........................77 dbA
Voltage ....................................208V 3-Phase or
.................................................. 120V Single Phase
Starter ..................................... Electric
Silent Power
RG3200iS, RG4300iS
Multi-Duty Power
RGX2900, RGX3600, RGX4800
Multi-Duty Power
RGV6100
Maximum Output ...................12,000 watts
Sound Rating .........................77 dbA
Voltage ....................................120/240 V
Starter ..................................... Electric
Maximum Output ...................7,300 watts
Sound Rating .........................76 dbA
Voltage ....................................120/240 V
Starter ..................................... Recoil or
.......................................................(Electric Start with Recoil
Maximum Output ................... 5,800 watts
Sound Rating .........................75 dbA
Voltage ....................................120/240 V
Starter ..................................... Recoil or
( .....................................................Electric Start with Recoil
Multi-Duty Power
RGV7500
Industrial Power
RGV12100
3-Phase Power
RGV13100T
For applications demanding
reliable, portable power,
Subaru has the answer—
a full line of generator solutions,
ranging from small, l
ightweight
units to industrial capacity models.
Spider Adapter
(converts a 30 amp
receptacle to three
household receptacles)
Lifting Eye
*Model shown R1100
*Model shown RG4300iS
*Model shown RGX3600
DIESEL POWER
Maximum Output ...................3,300 and 5,000 watts
Sound Rating .........................78 and 80 dbA
Voltage ....................................120/240V
Starter ..................................... Electric with
Recoil Backup
Diesel Power
RGD3300H, RGD5000H
*Model shown RGD5000H
Page 6
CLASS INVERT ER SILENT PORTABLE POWER MULTI-DUT Y POWER
INDUSTRIAL
POWER
3-PHASE
POWER
DIESEL POWER
GENERATOR
Model
RG3200iS RG4300iS R1700i R1100 RGX2900 RGX3600
RGX4800/
RGX4800E
RGV6100/
RGV6100E
RGV7500/
RGV7500E
RGV12100 RGV13100T RGD3300H RGD5000H
Type
Inverter
Brush-Type
Self-Excited
Brushless,
Self-Excited
Brushless, Self-Excited Brush-Type Self-Excited Brushless, Self-Excited
Voltage Regulation
Inverter Type AVR Type Capacitor Type Capacitor Type AVR Type
Current
Transformer
Capacitor Type
AC Output
Frequency
60 Hz/Single Phase
60 Hz/Single
Phase
60 Hz/Single Phase
60 Hz/1 &
3 Phase
60 Hz/Single Phase
Voltage
120V 120V 120V 120V 120V 120/240V 120/240V 120/240V 120/240V 120/240V 120/208V 120/240V 120/240V
Max. Output (watts) 3,200 4,300 1,650 1,100 2,900 3,600 4,800 5,800 7,300 12,000 13,000 3,300 5,000
Max. Amps
26.7 35.8 13.8 9.2 24.2 30/15 40/20 48.3/24.2 60.8/30.4 100/50 *** 27.5/13.8 41.7/20.8
Rated Output (watts) 2,800 3,800 1,400 900 2,400 3,000 4,100 4,800 6,000 10,000 10,000 3,000 4,500
Rated Amps
23.3 31.7 11.7 7.5 20 25/12.5 34.2/17.1 40/20 50/25 83.3/41.7 *** 25.0/12.5 37.5/18.8
dbA Rating @ Rated
Output (7 meters)
50dbA 62dbA 59dbA 59dbA 68dbA 71dbA 72dbA 75dbA 76dbA 77dbA 77dbA 78dbA 80dbA
Current Protection
Electronic Circuit Breaker and GFCI Fuseless Circuit Breaker and GFCI Fuseless Circuit Breaker and GFCI Fuseless Circuit Breaker and GFCI
ENGINE
Model
EX21, 7hp EX27, 9hp EH09, 2.4hp EH09, 2.4hp EX17, 6hp EX21, 7hp EX27, 9hp EH34, 11hp EH41, 13.5hp EH65, 22hp EH63, 18hp Hatz 1B30 Hatz1B40
Type
Subaru OHC Subaru OHV Subaru OHC Subaru OHC Subaru OHV 4-Cycle Single Cylinder Diesel
Low Oil System
Low Oil Shutdown Low Oil Shutdown Low Pressure Low Pressure
Fuel Tank Capacity
2.9 Gal. 3.4 Gal. 1.1 Gal. 1.1 Gal. 4.4 Gal. 4.4 Gal. 4.4 Gal. 5.7 Gal. 7.3 Gal. 11.4 Gal. 11.4 Gal. 4.4 Gal. 4.4 Gal.
Continuous Operation
(Hours at Rated Load)
6.5 hrs. 5.3 hrs. 4 hrs. 4.2 hrs. 10.5 hrs. 8.4 hrs. 6 hrs. 7 hrs. 7 hrs. 8.2 hrs. 8.9 hrs. 8.5 hrs. 5.9 hrs.
Starting System**
Electric Start (Recoil Back-up) Recoil Recoil Recoil or Electric with Recoil Back-up Electric Electric with Recoil Backup
Battery Recommendation
(or equal)
Interstate
YTX7L-BS
Interstate
YB12AL-A
N/A N/A N/A N/A Interstate SP40 Interstate SP40
Dimensions (L x W x H)
21" x 19" x 23" 23" x 21" x 24" 19" x 12" x 18" 19" x 12" x 18" 23" x 20" x 19" 24" x 18" x 20"
26" x 21" x 22"
32" x 21" x 22"
27" x 19" x 25"
27" x 21" x 21"
34" x 21" x 21"
33" x 30" x 34" 51" x 34" x 37"* 31" x 20" x 23" 31" x 20" x 23"
Dry Wt. (Recoil/Electric)
130 lbs. 163 lbs. 45 lbs. 55 lbs. 106 lbs. 119 lbs. 154/172 lbs. 172/180 lbs. 198/209 lbs. 329 lbs. 315 lbs. 192 lbs. 229 lbs.
RECEPTACLES
GFCI 120V, 20A Duplex
••••• ••••••••
120V, 20A Twist-Lock
•
120V, 30A Twist-Lock
•• ••••••••
120/240V, 20A Twist-Lock
•••
120/240V, 30A Twist-Lock
•• ••
120/240V, 50A Twist-Lock
•
120V/208V, 30A Twist-Lock
•
12V DC Charging
••••• ••••• ••
Control Panel
Meters
Multi-Monitor w/LED Display - Voltmeter,
Hour Meter, Frequency & Overload Condition
Indicator Lights: Pilot Lamp, Overload
Condition & Auto Power Saver
Hour Meter Hour Meter Voltmeter Voltmeter & Hour Meter Voltmeter & Hour Meter
Idle Control
Auto-Power System • • • • •
Full Power Switch
N/A •••• ••
Wheel Kit
4-Wheel Standard N/A Optional 2-Wheel Optional 2-Wheel
4-Wheel Standard
Optional 2-Wheel
2-Wheel Standard
Optional 2-Wheel
Specifi cations subject to change without notice *Dimensions less wheel kit: 33" x 24" x 28" **Battery not included on electric start models ***RGV13100T Amps: • 120V Single Phase = 28 amps/leg • 208V Single Phase = 27.7 amps • 3 Phase = 34.6 amps
G
FCI 120V, 20A Duple
x
12
1
240
, 30A Twist-Loc
k
12
0V
V,
A Twi
st-Loc
k
Fr
r
eq
6
0
H
H
z/Single Phas
e
6
0 Hz/Sin
Ph
ase
6
0 Hz/
Si
ng
e
6
0 Hz/1 &
3
Phase
Max.
utput (watts
)
3,
200
4,
300
65
0
,10
003
,600 4,800 5,800 7,300
2,000 13,000
Rated Output (watts
)
3,800400
90
0
4
00
3,0004,
4,800
,000
,000
T
y
S
ubaru OH
C
S
ubaru OHV
S
ubaru OH
C
S
ubaru OH
CSO
HV
Fuel Tank Capacit
y
2.9 G
al.
3
.4 Gal
.1 Gal
.
.1
G
4
.4 Gal. 4.4 Ga
l.
4
.4
G
5
.7
.7.G
al.
1.4 Gal
.
11.4
G
.
Starting System**
Electric S
ta
rt
(Recoil Back-up
)
Reco
Recoil
il or Electric with Recoil Back-
up
lectric
Page 7
Subaru is a division of Fuji Heavy Industries Ltd., headquartered in Tokyo, Japan. Fuji is a global
manufacturing company of diversified premium brand products. Total annual sales exceed $13 billion.
There are four main divisions: Subaru Automotive, Aerospace, Eco Technologies and the
Industrial Products Division. All divisions share a common history of innovation that brings
added value to the Company’s premium products.
Subaru industrial engines and equipment have earned a reputation throughout the
world for high performance and durability in the most demanding applications.
Subaru is the fourth largest engine manufacturer in the world, with
annual production exceeding 1 million engines.
Advanced engineering, high technical expertise and state-of-the-art
robotic manufacturing are hallmarks of Fuji, which proactively
shares technology between divisions in order to stay on the
cutting edge, lead competition and provide customers
with outstanding products.
In recent years, Fuji has earned a worldwide
recognition for technical advances in its
Subaru automobiles, such as Subaru’s
All Wheel Drive (AWD) system,
horizontally opposed engines
and the turbo-charged 300
horsepower WRX STI
performance car. Fuji
has built its solid
reputation on 60 years
of success.
Robin America, Inc.
FUJI HEAVY INDUSTRIES, LTD.
940 Lively Boulevard
Wood Dale, IL 60191-1204, USA
tel: 630-350-8200 • toll free: 800-277-6246
PUB-GENFL rev. 4/2007
Loading...
