Page 1

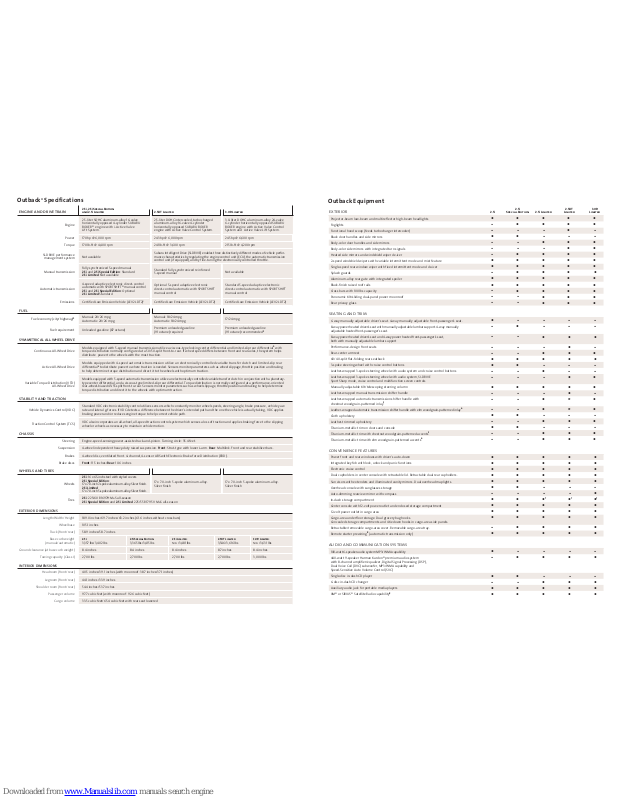

Outback® Specifications

ENGINE AND DRIVETRAIN

2.5i, 2.5i Special Edition and 2.5i Limited 2.5XT Limited 3.0R Limited

Engine

2.5-liter SOHC aluminum-alloy 16-valve horizontally opposed 4-cylinder SUBARU BOXER® engine with i-Active Valve Lift System.

2.5-liter DOHC intercooled, turbocharged aluminum-alloy 16-valve 4-cylinder horizontally opposed SUBARU BOXER engine with Active Valve Control System.

3.0-liter DOHC aluminum-alloy 24-valve 6-cylinder horizontally opposed SUBARU BOXER engine with Active Valve Control System and Active Valve Lift System.

Power 170 hp @ 6,000 rpm 243 hp @ 6,000 rpm 245 hp @ 6,600 rpm

Torque 170 lb-ft @ 4,400 rpm 241 lb-ft @ 3,600 rpm 215 lb-ft @ 4,200 rpm

SI-DRIVE performance

management system

Not available

Subaru Intelligent Drive (SI-DRIVE) enables three distinctively different modes of vehicle performance characteristics by regulating the engine control unit (ECU), the automatic transmission control unit (if equipped), and by fine-tuning the electronically controlled throttle.

Manual transmission

Fully synchronized 5-speed manual

2.5i and 2.5i Special Edition: Standard

2.5i Limited: Not available

Standard fully synchronized reinforced 5-speed manual

Not available

Automatic transmission

4-speed adaptive electronic direct-control automatic with SPORTSHIFT® manual control

2.5i and 2.5i Special Edition: Optional

2.5i Limited:Standard

Optional 5-speed adaptive electronic direct-control automatic with SPORTSHIFT manual control

Standard 5-speed adaptive electronic direct-control automatic with SPORTSHIFT manual control

Emissions Certified Low Emission Vehicle (LEV2 LDT2)

Certified Low Emission Vehicle (LEV2 LDT2) Certified Low Emission Vehicle (LEV2 LDT2)

FUEL

Fuel economy (city/highway)

Manual: 20/26 mpg Automatic: 20/26 mpg

Manual: 18/24 mpg Automatic: 18/24 mpg

17/24 mpg

Fuel requirement Unleaded gasoline (87 octane)

Premium unleaded gasoline (91 octane) required

Premium unleaded gasoline (91 octane) recommended

SYMMETRICAL ALL-WHEEL DRIVE

Continuous All-Wheel Drive

Models equipped with 5-speed manual transmission utilize a viscous-type locking center differential and limited-slip rear differential

with torque distribution normally configured at a 50/50-split front-to-rear. If wheel speed differs between front and rear axles, the system helps distribute power to the wheels with the most traction.

Active All-Wheel Drive

Models equipped with 4-speed automatic transmission utilize an electronically controlled variable transfer clutch and limited-slip rear differential

to distribute power to where traction is needed. Sensors monitor parameters such as wheel slippage, throttle position and braking

to help determine torque distribution and direct it to the wheels with optimum traction.

Variable Torque Distribution (VTD)

All-Wheel Drive

Models equipped with 5-speed automatic transmission utilize an electronically controlled variable transfer clutch in conjunction with a planetarytype center differential, and a viscous-type limited-slip rear differential. Torque distribution is normally configured at a performance-oriented rear-wheel-biased 45/55 split front-to-rear. Sensors monitor parameters such as wheel slippage, throttle position and braking to help determine torque distribution and direct it to the wheels with optimum traction.

STABILITY AND TRACTION

Vehicle Dynamics Control (VDC)

Standard VDC electronic stability control utilizes sensors which constantly monitor wheel speeds, steering angle, brake pressure, vehicle yaw rate and lateral g-forces. If VDC detects a difference between the driver’s intended path and the one the vehicle is actually taking, VDC applies braking power and/or reduces engine torque to help correct vehicle path.

Traction Control System (TCS)

VDC also incorporates an all-wheel, all-speed traction control system which senses a loss of traction and applies braking force to the slipping wheel or wheels as necessary to maintain vehicle motion.

CHASSIS

Steering Engine-speed-sensing power-assisted rack-and-pinion. Turning circle: 35.4 feet.

Suspension 4-wheel independent heavy-duty raised suspension. Front: Strut-type with lower L-arm. Rear: Multilink. Front and rear stabilizer bars.

Brakes 4-wheel disc, ventilated front. 4-channel, 4-sensor ABS with Electronic Brake-force Distribution (EBD).

Brake discs Front: 11.5 inches/Rear: 10.6 inches

WHEELS AND TIRES

Wheels

2.5i: 16 x 6.5-inch steel with styled covers

2.5i Special Edition:

17 x 7.0-inch 7-spoke aluminum-alloy. Silver finish.

2.5i Limited: 17 x 7.0-inch 5-spoke aluminum-alloy. Silver finish.

17 x 7.0-inch 5-spoke aluminum-alloy. Silver finish

Tires

2.5i: 225/60 R16 97H M+S all-season

2.5i Special Edition and 2.5i Limited: 225/55 R17 95V M+S all-season

EXTERIOR DIMENSIONS

Length/Width/Height 189.0 inches/69.7 inches/63.2 inches (61.6 inches without cross bars)

Wheelbase 105.1 inches

Track (front/rear) 58.9 inches/58.7 inches

Base curb weight

(manual/automatic)

2.5i:

3,357 lbs/3,402 lbs

2.5i Special Edition:

3,365 lbs/3,415 lbs

2.5i Limited:

N/A/3,481 lbs

2.5XT Limited:

3,546/3,616 lbs

3.0R Limited:

N/A/3,631 lbs

Ground clearance (at base curb weight) 8.4 inches 8.4 inches 8.4 inches 8.7 inches 8.4 inches

Towing capacity (Class I) 2,700 lbs 2,700 lbs 2,700 lbs 2,700 lbs 3,000 lbs

INTERIOR DIMENSIONS

Headroom (front/rear) 40.5 inches/39.1 inches (with moonroof: 38.7 inches/37.1 inches)

Legroom (front/rear) 44.1 inches/33.9 inches

Shoulder room (front/rear) 54.4 inches/53.7 inches

Passenger volume 97.7 cubic feet (with moonroof: 92.6 cubic feet)

Cargo volume 33.5 cubic feet/65.4 cubic feet with rear seat lowered

Outback Equipment

EXTERIOR

Projector-beam low-beam and multireflector high-beam headlights •

•

Foglights -

•

Functional hood scoop (feeds turbocharger intercooler) -

•

Black door handles and side mirrors •

•

Body-color door handles and side mirrors -

•

Body-color side mirrors with integrated turn signals -

- -

•

Heated side mirrors and windshield wiper de-icer -

• • •

•

2-speed windshield wipers with variable intermittent mode and mist feature •

• • •

•

Single-speed rear window wiper with fixed intermittent mode and de-icer •

• • •

•

Splash guards -

• • •

•

Aluminum-alloy rear gate with integrated spoiler •

• • •

•

Black-finish raised roof rails •

•

Cross bars with 100 lbs capacity -

•

Panoramic tilt/sliding dual-panel power moonroof -

•

Rear privacy glass -

•

SEATING AND TRIM

6-way manually adjustable driver's seat. 4-way manually adjustable front-passenger's seat.

•

- -

8-way power heated driver's seat with manually adjustable lumbar support. 4-way manually

•

adjustable heated front-passenger's seat.

8-way power heated driver's seat and 4-way power heated front-passenger's seat,

- -

•

both with manually adjustable lumbar support

Performance-design front seats

- -

•

Rear-center armrest

- -

•

60/40-split flat-folding rear seatback

• •

•

3-spoke steering wheel with cruise control buttons

• •

Leather-wrapped 3-spoke steering wheel with audio system and cruise control buttons

- -

•

Leather-wrapped 3-spoke steering wheel with audio system, SI-DRIVE

- -

•

Sport Sharp mode, cruise control and multifunction screen controls

Manually adjustable tilt/telescoping steering column

•

Leather-wrapped manual transmission shifter handle

•

Leather-wrapped automatic transmission shifter handle with

•

chestnut woodgrain-patterned inlay

Leather-wrapped automatic transmission shifter handle with elm woodgrain-patterned inlay6

•

Cloth upholstery

•

Leather-trimmed upholstery

•

Titanium-metallic trim on doors and console

•

Titanium-metallic trim with chestnut woodgrain-patterned accents5 -

•

Titanium-metallic trim with elm woodgrain-patterned accents6 -

•

CONVENIENCE FEATURES

Power front and rear windows with driver’s auto-down

• • • • •

Integrated key fob with lock, unlock and panic functions •

•

Electronic cruise control •

•

Dual cupholders in center console with retractable lid. Retractable dual rear cupholders. •

•

Sun visors with extenders and illuminated vanity mirrors. Dual overhead maplights. •

•

Overhead console with sunglasses storage •

•

Auto-dimming rearview mirror with compass -

•

In-dash storage compartment •

•

Center console with 12-volt power outlet and enclosed storage compartment •

•

12-volt power outlet in cargo area •

•

Cargo-area underfloor storage. Dual grocery bag hooks. •

•

Concealed storage compartments and 4 tiedown hooks in cargo-area side panels.

Retractable/removable cargo-area cover. Removable cargo-area tray.

•

Remote starter prewiring8 (automatic transmission only) •

•

AUDIO AND COMMUNICATION SYSTEMS

100-watt 6-speaker audio system MP3/WMA capability

•

440-watt 9-speaker Harman Kardon® premium audio system -

• • • •

with 8-channel amplifier/equalizer, Digital Signal Processing (DSP), Dual Voice Coil (DVC) subwoofer, MP3/WMA capability and Speed-Sensitive Auto Volume Control (SVC)

Single-disc in-dash CD player

•

- - -

6-disc in-dash CD changer

- -

• • •

Auxiliary audio jack for portable media players •

•

XM® or SIRIUS® Satellite Radio capability8 •

•

2.5i 2.5XT 3.0R

2.5i Special Edition 2.5i Limited Limited Limited

Page 2

Satin White Pearl WIC WIC WIL

WIL

Quartz Silver Metallic OBC OBC OBL

OBL

Harvest Gold Metallic

WIC

WIC WIL

WIL

Seacrest Green Metallic WIC WIC WIL

WIL

Deep Bronze Metallic WIC WIC WIL

WIL

Obsidian Black Pearl OBC OBC OBL

OBL

Newport Blue Pearl/ OBC OBC OBL

OBL

Quartz Silver Metallic

Diamond Gray Metallic/ OBC OBC

OBL

Quartz Silver Metallic

NOT AVAILABLE

PAINT

Outback Color Combinations

Paint

Quartz Silver Metallic

Newport Blue Pearl/ Quartz Silver Metallic

Seacrest Green Metallic

Deep Bronze Metallic

Harvest Gold Metallic

Diamond Gray Metallic/ Quartz Silver Metallic

Satin White Pearl

Obsidian Black Pearl

Warm Ivory Leather (WIL)Off-Black Cloth (OBC)

Upholstery

Warm Ivory Cloth (WIC) Off-Black Leather (OBL)

Colors

2.5i Special Edition2.5i

2.5i

Limited

2.5XT

Limited

3.0R

Limited

2.5i 2.5XT 3.0R

2.5i Special Edition 2.5i Limited Limited Limited

INSTRUMENTATION

Analog speedometer, tachometer, coolant temperature and fuel gauges

•

Sport-design electroluminescent lighting

•

Gauge needles full-sweep on start-up

•

Digital odometer and automatic transmission (when equipped) shift-position indicator

•

Digital trip computer

•

Multifunction screen displaying trip computer functions and selected

• •

SI-DRIVE system mode (Intelligent, Sport or Sport Sharp)

CLIMATE CONTROL

Manually adjustable CFC-free air conditioning system with rotary controls for temperature,

•

4-speed fan and airflow direction

Dual-zone automatic digital climate control system with controls for temperature,

- -

• •

•

6-speed fan, airflow direction, automatic mode and CFC-free air conditioning

SECURITY

Keyless entry system with cargo-area unlock and answer-back electronic chirp

• •

•

Antitheft security system with engine immobilizer

• • • •

•

SAFETY

ACTIVE

Subaru Symmetrical All-Wheel Drive

•

SUBARU BOXER engine

•

• • •

•

4-wheel independent heavy-duty raised suspension

•

• •

Vehicle Dynamics Control (VDC)

•

Traction Control System (TCS)

• • •

•

Daytime Running Lights (DRL)

•

Tire Pressure Monitoring System (TPMS)

•

PASSIVE

Dual-stage deployment driver's and front-passenger's front airbags (SRS)9

•

Subaru advanced frontal airbag system (SRS)9

• • • •

•

Side-curtain airbags protecting front and rear outboard occupants (SRS)9

• •

•

Seat-mounted front side-impact airbags (SRS)9

•

Height-adjustable active front-seat head restraints

•

Three individual height-adjustable rear head restraints

•

Height-adjustable 3-point front seatbelts with pretensioners and force limiters. 3-point rear

•

seatbelts at all seating positions.

Rear child-safety door locks

• •

•

LATCH system: Lower Anchors and Tethers for Children

•

Safety brake pedal system

•

Energy-absorbing collapsible steering column

•

Ring-shaped reinforcement frame body structure

•

OPTIONAL EQUIPMENT

4-speed adaptive electronic direct-control automatic transmission with SPORTSHIFT manual control °

•

5-speed adaptive electronic direct-control automatic transmission with SPORTSHIFT manual control

•

Touch-screen GPS navigation system with multifunction screen displaying

trip computer functions

•

Standard ° Optional - Not available

1 2009 Subaru Outback 2.5i non-tur bo models achieving a Part ial Zero Emission Vehicle (PZEV) rating b y the California Air Resource s Board are available in all 50 states. O nly those distributed in Calif ornia, Connecticut,

Maine, Massachusetts, Ne w York, Rhode Island, Vermont and Washingt on are eligible for the 15 years or 150,0 00 mile emissions warranty. ( PA adopted CA LEV for 200 8, but does not have PZEV w arranty coverage. ) California PZEV certified vehic les are considered the cleanes t gasoline powered vehicles b ecause they meet Califo rnia’s strongest tailpipe emissions stan dard for Super Ultra Low Emission Vehicle ( SULEV). (Subaru o ffers other 2009 model e mission warran ties for high-cost par ts in only those sta tes adopting CA LEV Pr ogram.)

2 2009 EPA fuel economy estimates. Ac tual mileage may vary. 3 Regular unleaded gasoline with an oc tane rating of 87

AKI or greater may be used. Using regular unlea ded gasoline could result in reduc ed engine performance. Se e Owner’s Manual for more detailed information.

4 Limited-slip rear differe ntial not available on base

Outback 2.5i.

5 With Off-Black leathe r upholstery. See color comb inations chart. 6 With Warm Ivory leather uphols tery. See color combinatio ns chart. 7 Optional navigation system replac es in-dash storage

compartment.

8 Remote star ter and satellite radio available as a ccessories. Satelli te radio hardware and required mon thly subscription sold se parately. See your dealer. 9 The Supplemental Restrain t System (SRS) af fords

the driver and the front passenger addi tional protectio n in moderate to severe fro ntal and side-impac t collisions and outboard 2nd-r ow passengers additional pr otection in moder ate to severe side-impac t collisions. This system provide s supp lemen tal pr otec tion o nly, an d seatbelts must b e worn in order to avoid injuries to ou t-of-position occup ants upon airbag deploym ent and to provide the bes t combined protec tion in a serious acciden t. Children should always be properly restrained in one of the rear seats. See Owner's Manual for recommen ded seating positi on.

10 Available only with optional automat ic transmission.

Some images shown are for illustration p urposes only. Specific ations in this brochure are based on the la test product informa tion available at the time of publica tion. For the most up-to -date product info rmation, log on to subaru.com. Some equipment sh own in photo graphy in this brochure is optional a t extra cost. Speci fic options may be available onl y in combination with other optio ns. Specific combinations o f equipment or features may vary from time to time and b y geographic area. Certain a ccessories and equipment may n ot be available at the time of public ation. Subaru of America, In c., reserves the righ t to change or discontinue at any time, without notice, price s, colors, materials, equipmen t, accessories, spe cifications, models an d packages without incurring any o bligation to make the same or similar changes on vehicl es previously sold. Colo rs shown may vary due to reproduc tion and printing processe s.

This brochure was prepared by Subaru of A merica, Inc. A warrant y from Subaru of America, Inc ., is available only on cars sold to th e first retail purchaser throu gh an authorized Subaru dealer in the contin ental U.S. or Alaska. Subaru, SUBARU BOXER, Add ed Security and

Outback are registered trademarks. Har man Kardon is a registered trademar k of Harman International Industries , Inc. SIRIUS is a registered trad emark of Sirius

Satellite Radio Inc.

XM is a registered trademark of X M Satellite Radio Inc. SPOR TSHIFT is a registered tra demark of Prodrive Ltd. Home Link is a registered trademark of P rince Corporation, a who lly owned subsidiary

of Johnson Controls. Kelley Blue B ook is a registered trademark o f Kelley Blue Book Co., Inc. Smar tWay is a registered trademark o f the U.S. Environmental Protec tion Agency. For more info rmation, contact your Subaru dealer or log on to subaru.com.
