Indoor Comfort Products Brought to You
by the Manufactured Home Experts!

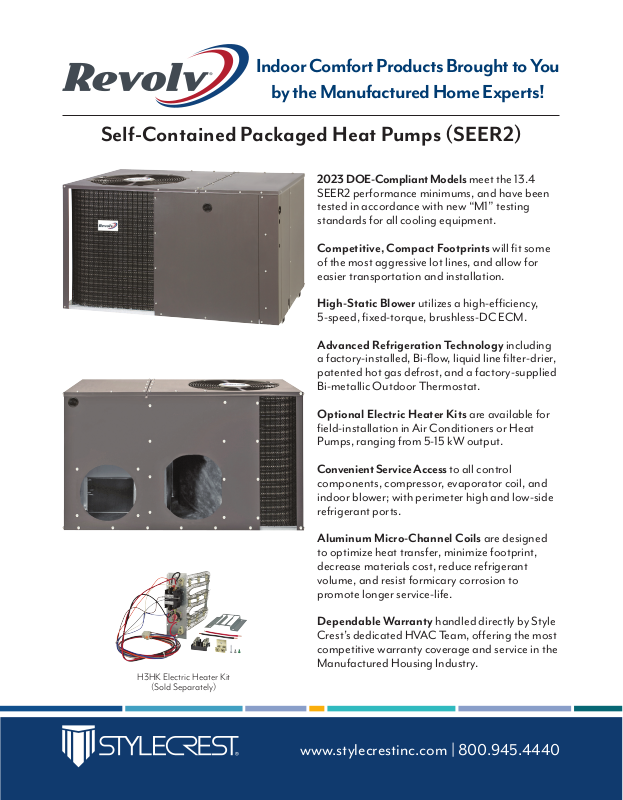

Self-Contained Packaged Heat Pumps (SEER2)
2023 DOE-Compliant Models meet the 13.4
SEER2 performance minimums, and have been
tested in accordance with new “M1” testing
standards for all cooling equipment.
Competitive, Compact Footprints will fit some
of the most aggressive lot lines, and allow for
easier transportation and installation.
High-Static Blower utilizes a high-efficiency,
5-speed, fixed-torque, brushless-DC ECM.
Advanced Refrigeration Technology including
a factory-installed, Bi-flow, liquid line filter-drier,
patented hot gas defrost, and a factory-supplied
Bi-metallic Outdoor Thermostat.
H3HK Electric Heater Kit
(Sold Separately)
Optional Electric Heater Kits are available for
field-installation in Air Conditioners or Heat
Pumps, ranging from 5-15 kW output.
Convenient Service Access to all control
components, compressor, evaporator coil, and
indoor blower; with perimeter high and low-side
refrigerant ports.
Aluminum Micro-Channel Coils are designed
to optimize heat transfer, minimize footprint,
decrease materials cost, reduce refrigerant
volume, and resist formicary corrosion to
promote longer service-life.
Dependable Warranty handled directly by Style
Crest’s dedicated HVAC Team, offering the most
competitive warranty coverage and service in the
Manufactured Housing Industry.
www.stylecrestinc.com | 800.945.4440
Page 2
Self-Contained Packaged Heat Pumps (SEER2)
Nominal
Tons ¹
Style Crest
Item # & Model
AHRI
Cert. #
Cooling
Capacity
SEER2 EER2
Heating
Capacity
HSPF2
R-410A
Charge
MCA 2MOP 2Sound
2 RQ94RD-024K 209853116 23 MBH 13.4 10.6 22.8 MBH 6.7 75.8 Oz 16.2 25 A 77 dB
2.5 RQ94RD-030K 209853117 28.6 MBH 13.4 10.6 28.6 MBH 6.7 73.8 Oz 18.7 30 A 78 dB
3 RQ94RD-036K 209853118 34.2 MBH 13.4 10.6 34.2 MBH 6.7 70.6 Oz 24.6 40 A 77 dB
3.5 RQ94RD-042K 209853120 40 MBH 13.4 10.6 40 MBH 6.7 97.4 Oz 29.3 45 A 77 dB
4 RQ94RD-048K 209853121 45.5 MBH 13.4 10.6 46 MBH 6.7 99.5 Oz 31.4 50 A 77 dB
5 RQ94RD-060K 209853122 56 MBH 13.4 10.6 58.5 MBH 6.7 106.1 Oz 44.5 70 A 73 dB
1) Refer to AHRI listings for actual capacities and performance data.
2) Electrical data for unit-only, which would not include the addition of any field-installed electric heater.
Nominal
Tons ¹
Style Crest
Item # & Model
Item
Width
Item
Depth
Item
Height
Minimum
Pad Size
Ship
Width
Ship
Depth
Ship
Height
Ship
Weight
UPC
2 RQ94RD-024K 49" 35" 30 ⁄" 49" x 35" 51" 37 ½" 31" 286 lbs 663132448395
2.5 RQ94RD-030K 49" 35" 30 ⁄" 49" x 35" 51" 37 ½" 31" 288 lbs 663132448364
3 RQ94RD-036K 49" 35" 30 ⁄" 49" x 35" 51" 37 ½" 31" 300 lbs 663132448333
3.5 RQ94RD-042K 63" 35" 38 ⁄" 63" x 35" 65" 37 ½" 39" 348 lbs 663132448302
4 RQ94RD-048K 63" 35" 38 ⁄" 63" x 35" 65" 37 ½" 39" 353 lbs 663132448272
5 RQ94RD-060K 63" 35" 38 ⁄" 63" x 35" 65" 37 ½" 39" 353 lbs 663132448241
Packaged Unit Accessories
Style Crest Item# Item Description
3”
A
5.5
B
H3HK005H-01C Nominal 5kW, Heater Kit, 240V/1/60
H3HK008H01B Nominal 8kW, Heater Kit, 240V/1/60
H3HK010H-01C Nominal 10kW, Heater Kit, 240V/1/60
H3HK015H-01C Nominal 15kW, Heater Kit, 240V/1/60
Alternate Power
Supply Entry
Opening for
12" Diameter
Supply Duct
Opening for
14" Diameter
Return Duct
294941 Duct Collar, 12"Ø, Round, Metal
294942 Duct Collar, 14"Ø, Round, Metal
1039295 Single Circuit Adapter, 4-Pole
913554 Circuit Breaker, 1-Phase, 2-Pole, 60A
9.15
3.15
9.0
17.50
1013934 Tie Down Kit, High Wind, Pkg’d Units
10.15
1”
D
W
Packaged System Accessories
Item # Item Description
1181225 Flex Duct, 12"Ø, 25ft L, R-8 Fiberglass
1181425 Flex Duct, 14"Ø, 25ft L, R-8 Fiberglass
112012 RA Filter Box & Trunk Line Connector
1113038 Plastic Pipe Strap, 100ft x ¾" x 0.05"
110225 Nylon Draw Bands, 36"L, 50-Pack
110248 Nylon Draw Bands, 48"L, 50-Pack
6014932 Duct Strap, Woven Fabric, 100ft x 1 ¾"
Item # Item Description
11121010 Metal Wye Adapter, 12"Ø x 2-10" Ø
11121212 Metal Wye Adapter, 12"Ø x 2-12" Ø
111412 Metal Wye Adapter, 14"Ø x 2-12" Ø
11141414 Metal Wye Adapter, 14"Ø x 2-14" Ø
1112108 Round Duct Transition, 12"Ø-10"Ø
1114128 Round Duct Transition, 14"Ø-12"Ø
www.stylecrestinc.com | 800.945.4440
©Style Crest®, Inc. 2022 | Product availability and specifications are subject to change without notice. | 11/14/2022 | RQ94RD (M1) Packaged Heat Pumps | Sell Sheet, RVL-0099
