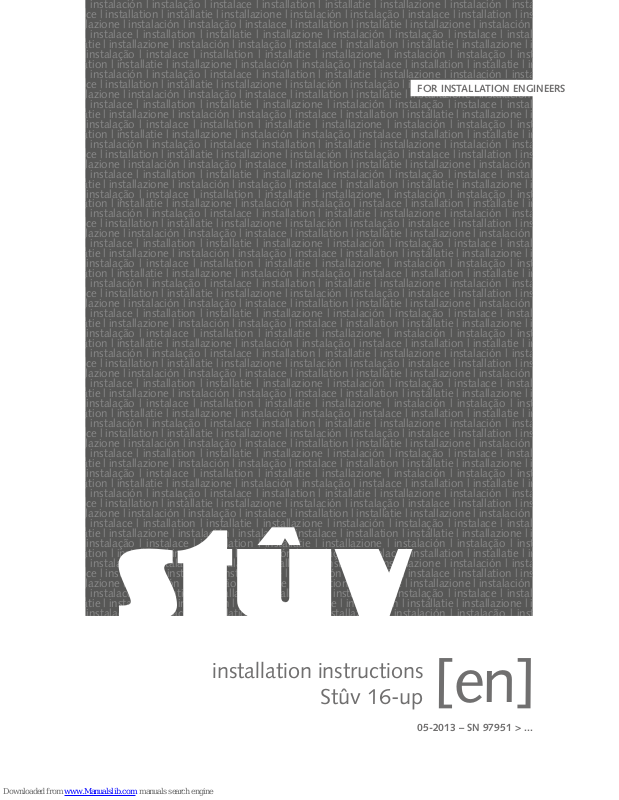

Page 1
05-2013 – SN 97951 > ...
installation instructions
Stûv 16-up
[en]
FOR INSTALLATION ENGINEERS
Page 2
2
Stûv 16-up - installation [en] - 05-2013
SN 97 851 - ...
Contents
This Stûv stove has been designed
to offer you maximum comfort and
safety. It has been manufactured
with the greatest of care. If however
you should find the slightest
dissatisfaction with it, please contact
your supplier.
PRESENTATION OF THE PRODUCT 3
Standards, certification and technical characteristics 3
Dimensions 4
Overview 5
Recommandations 5
Tools 6
INSTALLATION 7
Installing the S16-Up bracket 7
CONTACTS 11
We recommend that you read these
instructions prior to installation.
Some configurations might have an
impact on the sequence of operations to
be performed.
Page 3
3
Stûv 16-up - installation [en] - 05-2013
SN 97 851 - ...
Standards, certification and technical characteristics
The Stûv 16-up stoves
(for intermittent operation) comply
with the requirements of EN European
Standards in terms of efficiency,
gas emissions, safety etc….
Data provided in this notice are
supplied by a certified laboratory.
The Stûv 16-up stove technically
comprises a Stûv 16-cube installed on
a base. All information concerning the
Stûv 16-cube thus applies to the Stûv
16-up.
Test results according to EN13240 : 2001
and 13240-A2 :2004 standards (stoves)
Stûv sa
B-5170 Bois-de-Villers (Belgium)
10 QA 101322906
EN 13240 : 2001 / A2 : 2004
Wood stove Stûv 16/58-Up
Minimum safety distance from
adjacent combustible materials :
– behind : 5cm
– on the sides : 15cm
– below : 0cm
Recommended fuel : wood logs only
CO emissions : < 0.09%
Average smoke temperature
at rated power : 283° C
Nominal heat power : 8kW
Efficiency : 80%
Particle emissions : 73mg/Nm
3
Please read the installation
instructions and directions for use !
Stûv sa
B-5170 Bois-de-Villers (Belgium)
10 QA 101322906
EN 13240 : 2001 / A2 : 2004
Wood stove Stûv 16/68-Up
Minimum safety distance from
adjacent combustible materials :
– behind : 5cm
– on the sides : 15cm
– below : 0cm
Recommended fuel : wood logs only
CO emissions : < 0.09%
Average smoke temperature
at rated power : 330°C
Nominal heat power : 9kW
Efficiency : 77%
Particle emissions : 72mg/Nm
3
Please read the installation
instructions and directions for use !
Stûv sa
B-5170 Bois-de-Villers (Belgium)
10 QA 101322906
EN 13240 : 2001 / A2 : 2004
Wood stove Stûv 16/78-Up
Minimum safety distance from
adjacent combustible materials :
– behind : 7cm
– on the sides : 15cm
– below : 0cm
Recommended fuel : wood logs only
CO emissions : < 0.09%
Average smoke temperature
at rated power : 378°C
Nominal heat power : 10kW
Efficiency : 75%
Particle emissions : 70mg/Nm
3
Please read the installation
instructions and directions for use !
PRESENTATION OF THE PRODUCT
Page 4
4
A B C D
Stûv 16/58-cube 580 448 290 430
Stûv 16/68-cube 680 548 340 530
Stûv 16/78-cube 780 648 390 630
506
265
Ø 63,5
B
421
506
50
A
265
Ø 180
678
C
D
Ø 63,5
5271 36
203
MAX
330
495
545
180
B
421
506
50
A
265
678
Ø 63,5
5271 36
203
MAX
330
495
545
Stûv 16-up - installation [en] - 05-2013
SN 97 851 - ...

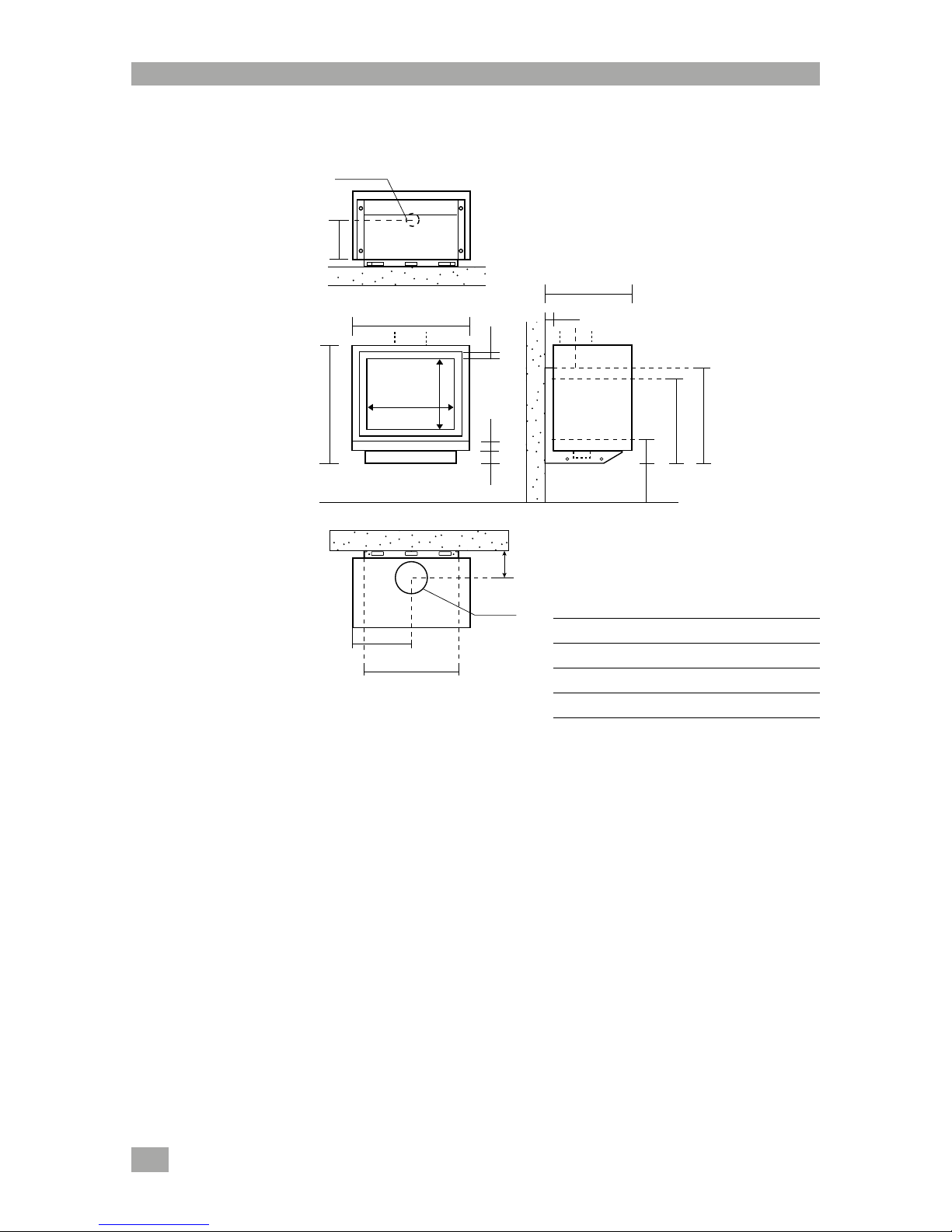

Dimensions
view from above
front and profile views
view from below
Outside air inlet
Stûv 16-up
Page 5
5
1
2
3
4
5
Stûv 16-up - installation [en] - 05-2013
SN 97 851 - ...
Recommandations
We strongly recommend you entrust
the installation of this Stûv to a
qualified professional who is able to
ensure that the characteristics of the
smoke flue correspond to the stove
installed.
The installation of the stove, its
accessories and surrounding materials
must adhere to all regulations (local
and national) and all standards
(national and European).
Some national and local regulations
require the installation of an access
flap in the connection between the
stove and the smoke flue.
The stove has to be installed in such
a way as to facilitate access to sweep
the stove, the connection duct and
the smoke flue.
Any modification made to the system
may be dangerous and will invalidate
the guarantee.

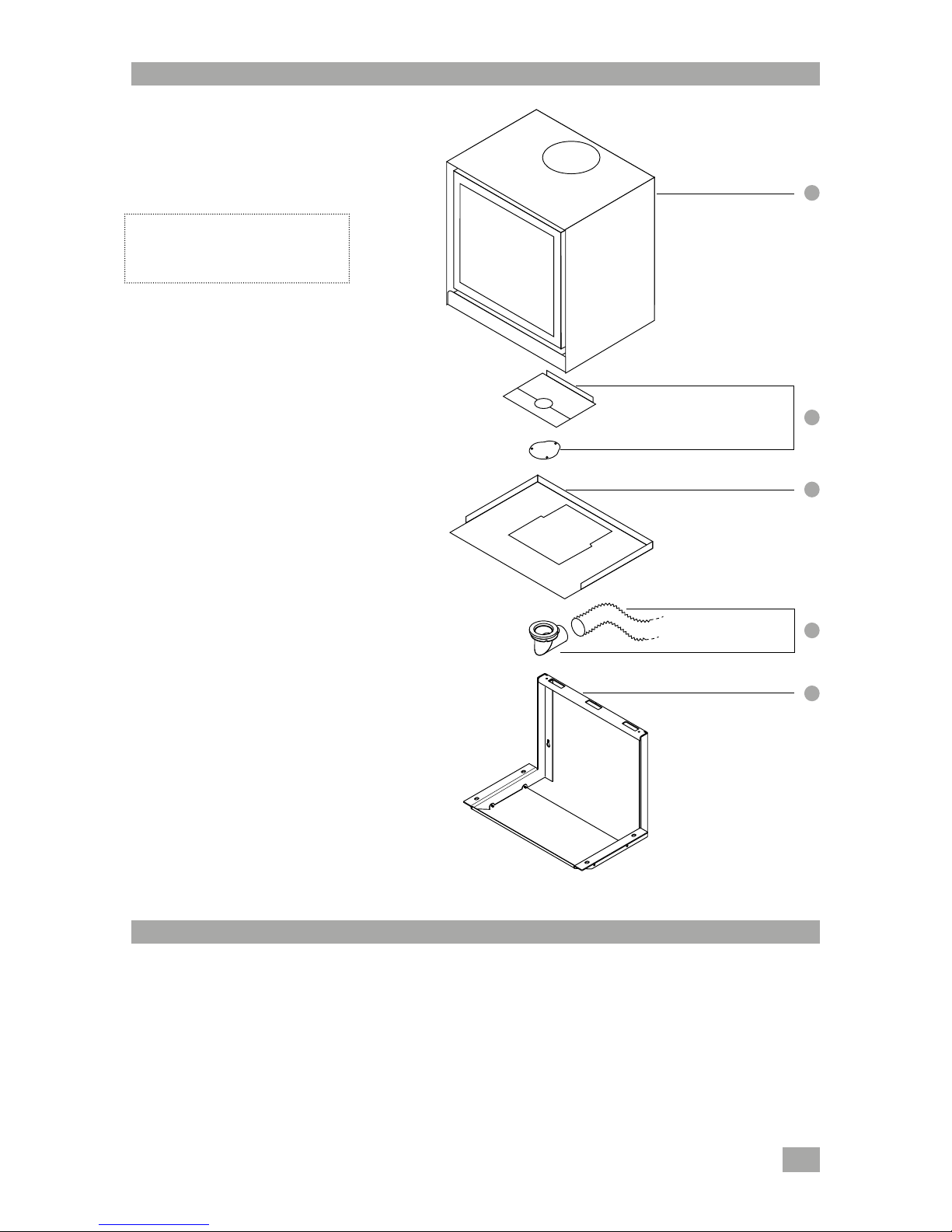

Overview
Included with the stove (basic)
[1] fireplace
[2] cable outlet
[3] support plate
Option
[4] Outside air intake kit: Flue outlet
+ Ø 63 mm flexible tubing (3m)
[5] S16-Up bracket
Page 6
6
21 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
21 3 4 5 6 7 8 9 10 11
21 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
21 3 4 5 6 7 8 9 10 11
Torx
21 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
21 3 4 5 6 7 8 9 10 11
21 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
21 3 4 5 6 7 8 9 10 11
21 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
21 3 4 5 6 7 8 9 10 11
10 cm
21 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
21 3 4 5 6 7 8 9 10 11
21 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
21 3 4 5 6 7 8 9 10 11
10 cm
Stûv 16-up - installation [en] - 05-2013
SN 97 851 - ...

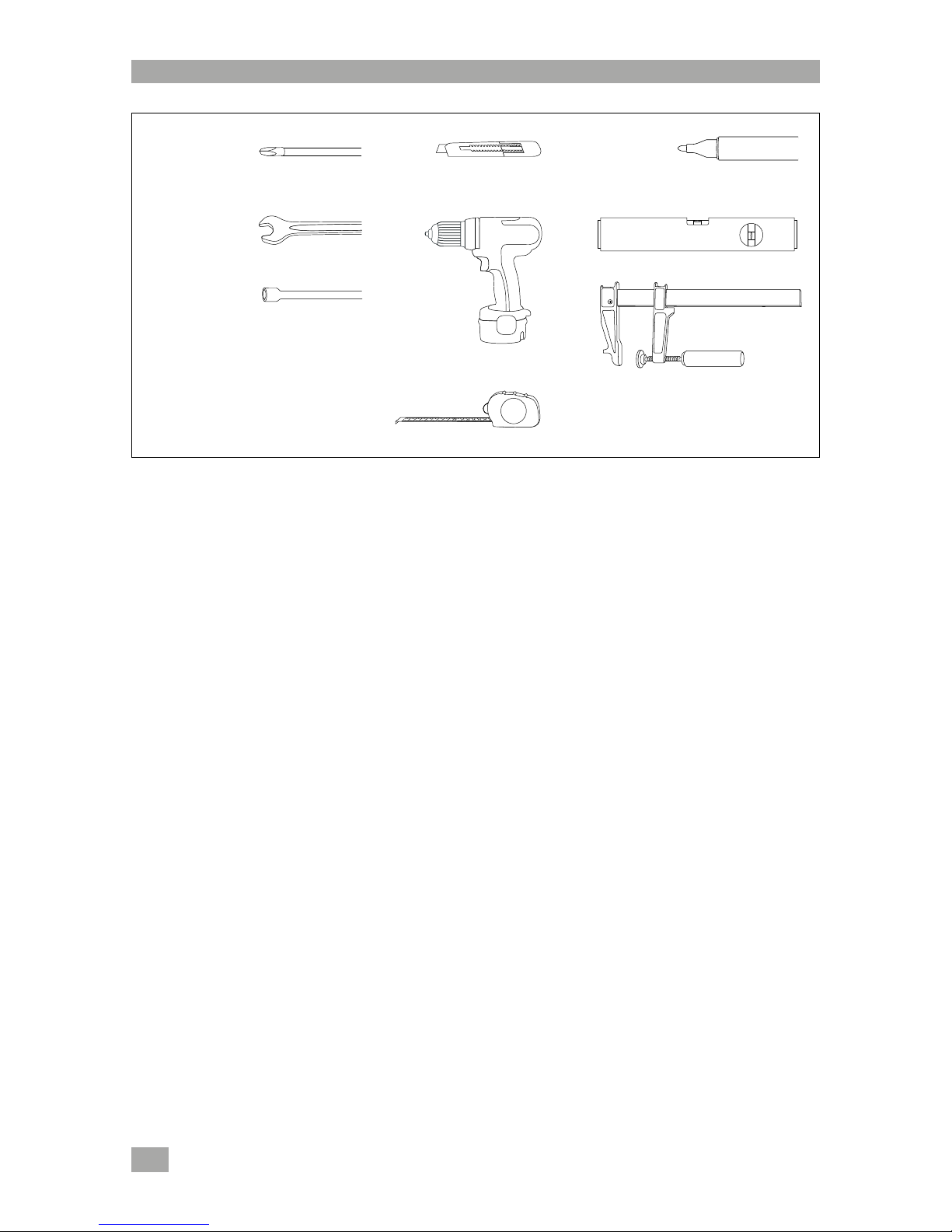

Tools
Page 7
7
1
2
3
Stûv 16-up - installation [en] - 05-2013
SN 97 851 - ...
INSTALLATION
Installing the S16-Up bracket

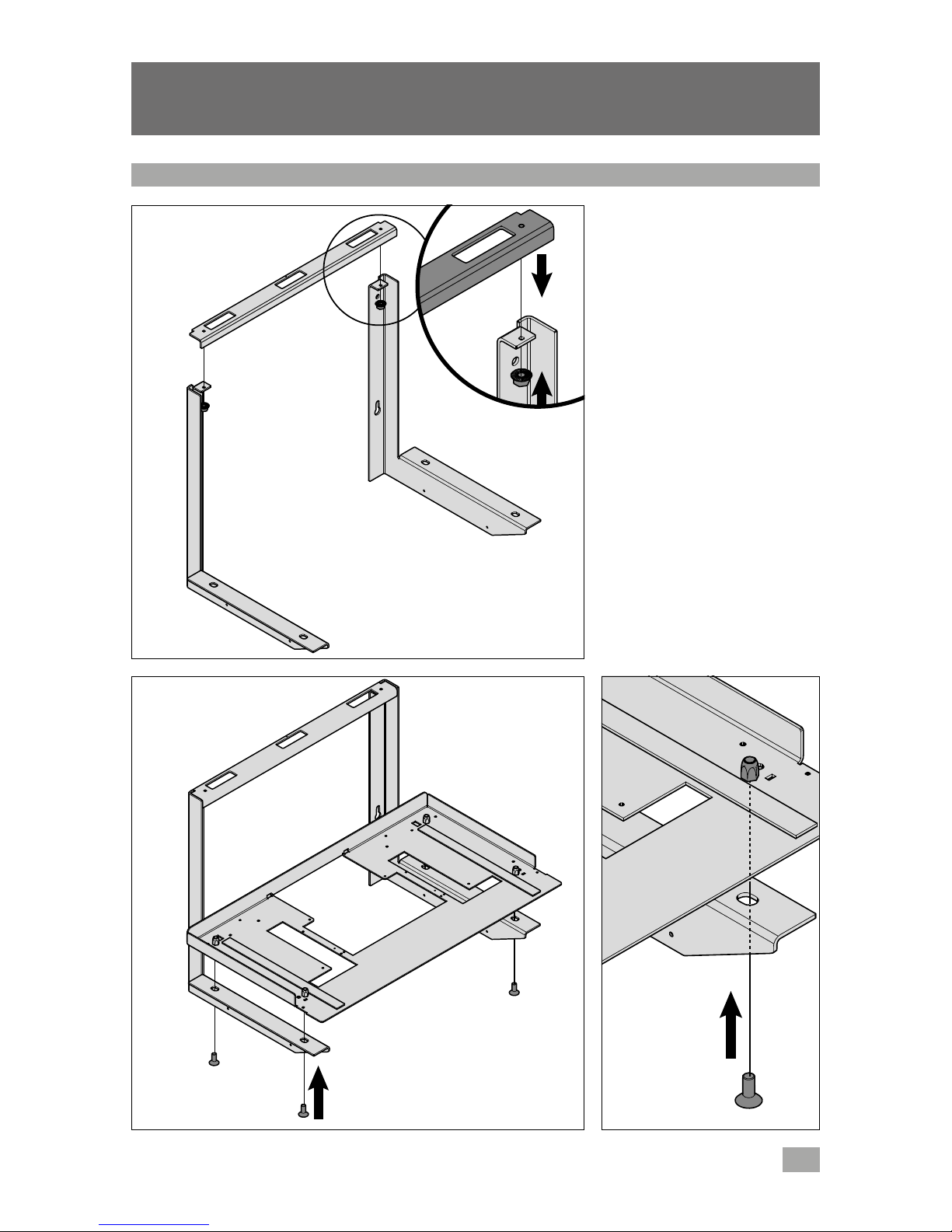

When fitting the pre-installation plate
[diagrams 2 & 3], engage the screws
but do not tighten them. Final fixing
does not take place until the stove has
been positioned
Page 8
8
Max 533 mm
Y
4
5
8 9
6 7
Stûv 16-up - installation [en] - 05-2013
SN 97 851 - ...
Installing the S16-Up bracket (continued)

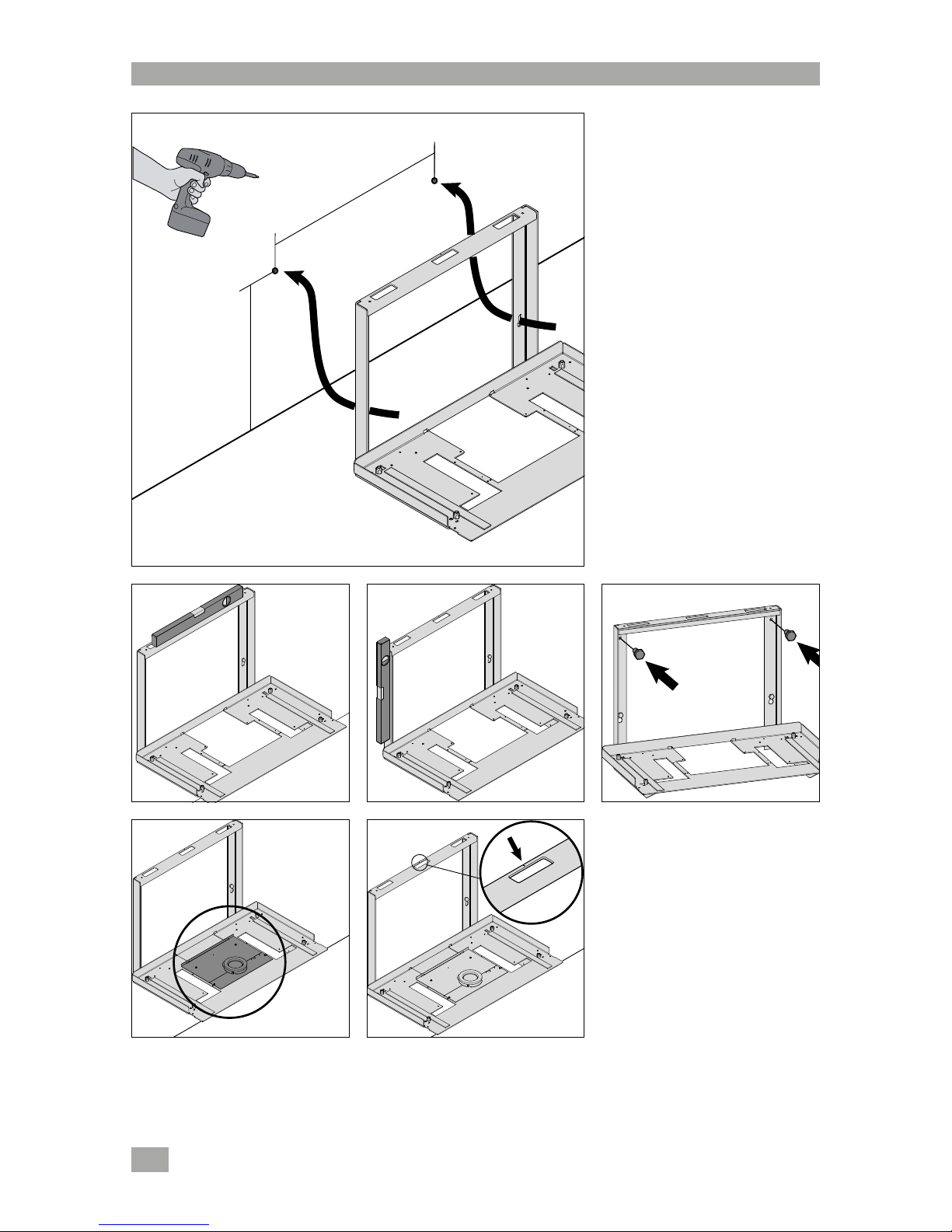

When installing the external air
feed [image 8]refer to the Stûv 16
installation instructions, Chapter
""Combustion air connection"".
The centre corresponding to the
vertical from the smoke outlet is
indicated by a mark on the top rule
[diagram 9].
Take care to fix the bracket through
the 2 keyholes at the bottom
The maximum height measurement is
603 mm.
The width measurement is [Y]:
- 380 mm for S16/58
- 480 mm for S16/68
- 580 mm for S16/78
The wall-mounting screws [diagrams4
& 7] are not supplied by Stûv. Be sure
to use equipment appropriate for the
nature of the wall.
Warning!
The space provided for inserting
the screw is 100 mm: take car to
use a compatible size. Do not use
countersunk screws.
Page 9
9
1
2
10
11
12
Stûv 16-up - installation [en] - 05-2013
SN 97 851 - ...

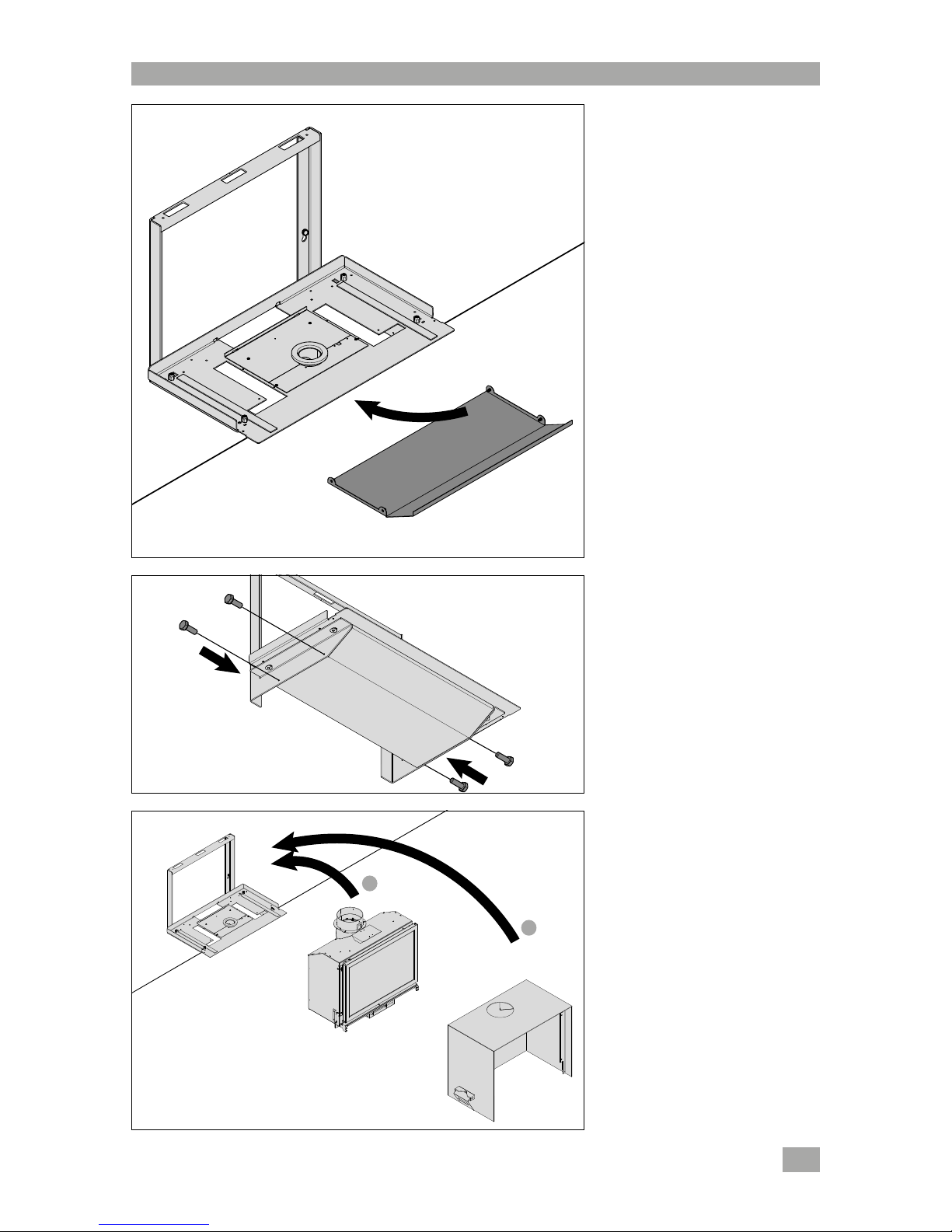

When installing the stove [image
12]refer to the Stûv 16 installation
instructions, Chapter "Positioning of
the stove".
Installing the S16-Up bracket (continued)
Page 10
Page 11
11
Stûv 16-up - installation [en] - 05-2013
SN 97 851 - ...
Stûv stoves are designed and
manufactured in Belgium by:
Concept & Forme sa
rue Jules Borbouse 4
B-5170 Bois-de-Villers (Belgium)
[email protected] – www.stuv.be
Importer for the UK
Jet Master Fires Ltd – Unit 2
Peacock trading Estate, Goodwood Rd
S050 4NT Eastleigh – Hampshire
T 0870 727 0105
[email protected]
www.jetmaster.co.uk
Importer for Finland
Ilkka Alatarvas OY
Pikkujärventie 4B
01680 Vantaa
T 400 872 858
www.takkamaailma.com
Importer for Sweden
Eldoform Sverige AB
Slipgatan 2 – 117 39 Stockholm
T 0707 883 53 – www.eldoform.se
Importer for Denmark
Stove APS
Aldershvilevej 84 – 2880 Bagsvaerd
T 51 33 10 93
Importer for Estonia
Tulering Kaminasalong Oü
Sopruse 145 – 13417 Tallinn
T +372 56 249 004 - www.tulering.ee
