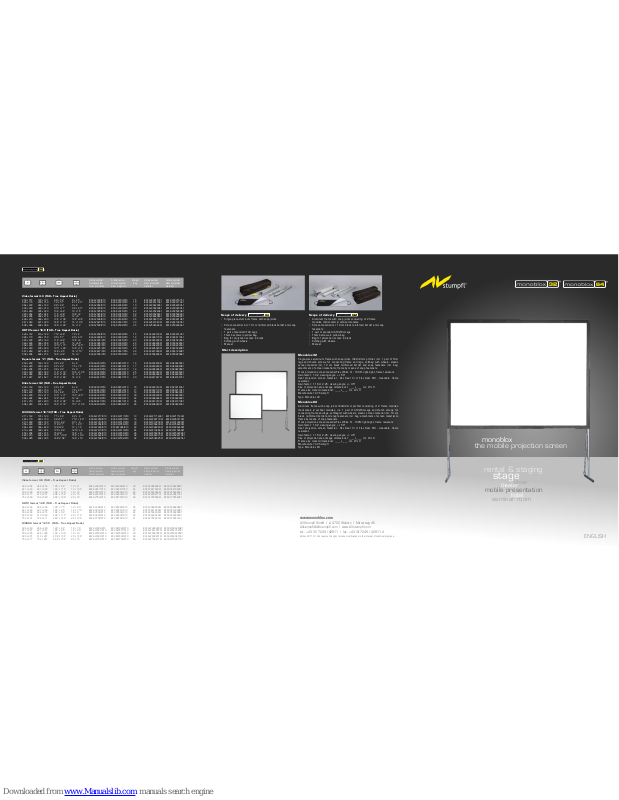

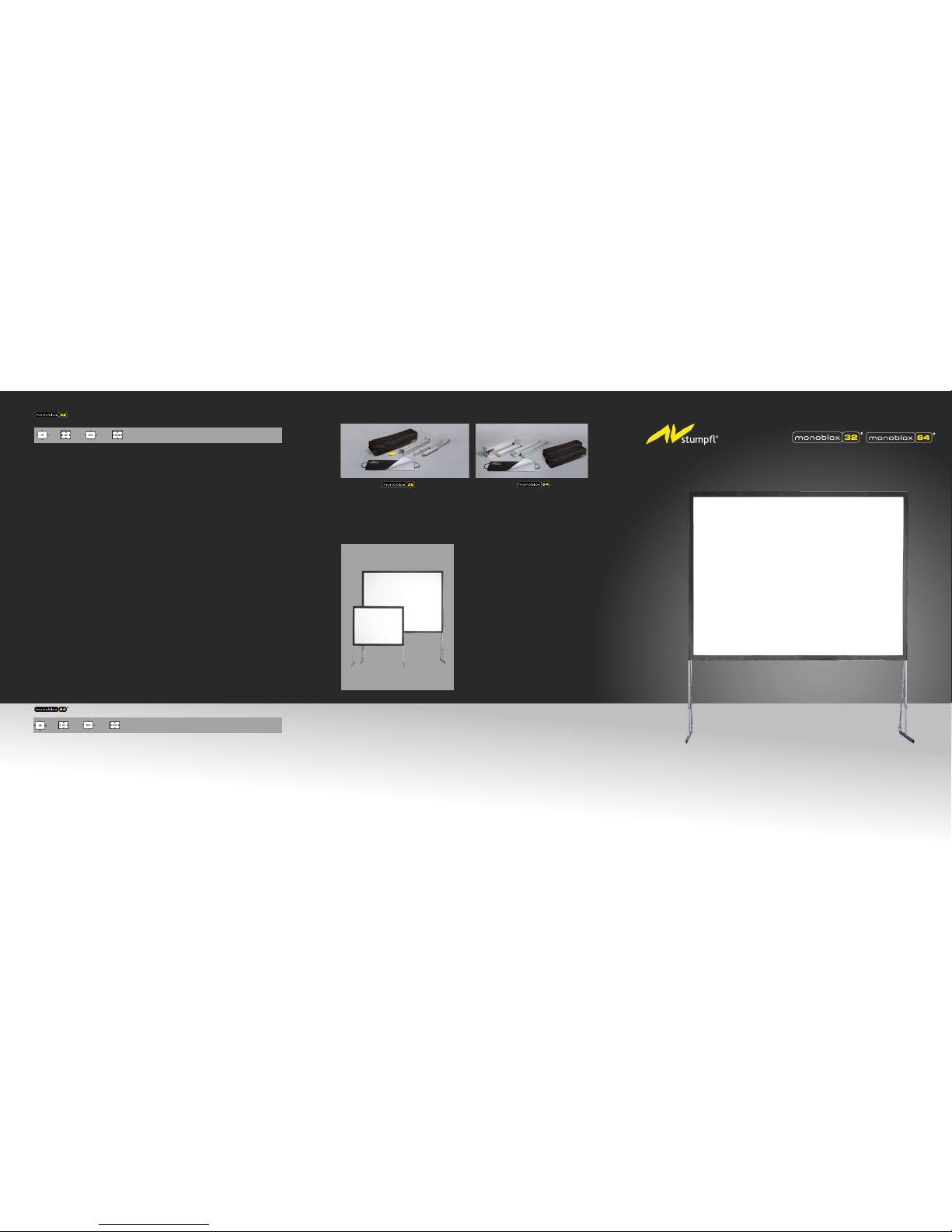

stage
rental & staging
seminar room
theater
mobile presentation
show
hotel
monoblox
the mobile projection screen
Monoblox 3 2
Single-pie ce aluminum frame wi th snap jo ints (32x3 2-mm profil e), incl. 1 pair of T32legs a nd thu mb scre ws for connec ting f rame an d legs , softb ag wit h wheel s, ela stic
screen material inc l. 1 0 cm blac k re inforced border and snap fast eners incl. bag;
attachment of screen material to frame by me ans of snap fasteners.
Front proj ection scre en material Flex White CI - 100 % light-tight , flame res istant.
Gain facto r: 1.02, vi ewing angle : +/- 50°
Rear projection scree n mate rial - Flex Rear CI or Flex Rear MO - cleana ble, flame
resistant.
Gain facto r: 1.18 or 2.25; viewi ng angle: +/ - 45°
Size of pr ojection ar ea (image d imensions): ____x____ c m, W x H
Frame size (outer dim ensions): _ ___x____ cm, W x H
Manufactur er: AV Stumpfl
Type: Monoblox 32
Short des cription
www.monoblox.com
AV Stumpfl GmbH I A 4702 Wallern I Mitterweg 46
AVstumpfl@AVstumpfl.com I www.AVstumpfl.com
tel.: +43 (0) 7249 / 42811 I fax: +43 (0) 7249 / 42811-4
Edition 2011-12. We reserve the right to make modifications in the interest of technical progress.
Monoblox 6 4
Aluminum frame with sna p joints (64x32- mm prof ile) con sisting of 2 frame mo dules
(horizonta l), 2 vertica l modul es, inc . 1 pair of AT32/ 64-Legs and t humb sc rews fo r
connecting frame and le gs, softbag( s) with whee ls, elastic s creen mater ial incl. 10 cm
black, reinf orced border an d snap fastene rs incl. bag; att achment of scr een material to
frame by m eans of sna p fasteners .
Front proj ection scre en material Flex White CI - 100% l ight-tight, flame resi stant.
Gain facto r: 1.02; vi ewing angle : +/- 50°
Rear projection scree n mate rial - Flex Rear CI or Flex Rear MO - cleana ble, flame
resistant.
Gain facto r: 1.18 or 2.25; viewi ng angle: +/ - 45°
Size of pr ojection ar ea (image d imensions): ____x____ c m, W x H
Frame size (outer dim ensions): _ ___x____ cm, W x H
Manufactur er: AV Stumpfl
Type: Monoblox 64
Scope of d elivery
· Single- piece alumi num frame w ith snap joi nts
· Screen material in cl. 10 cm r einforced bl ack border and snap
fasteners
· 1 pair of standard T32-Legs
· Thumb s crews in ye llow bag
· Bag for projection screen in black
· Softbag with wheel s
· Manual
Scope of d elivery
· Aluminu m frame wit h snap join ts consistin g of 2 fram e
modules (h orizontal), 2 vertical modules
· Screen material in cl. 10 cm b lack reinfor ced border and snap
fasteners
· 1 pair of standard AT32/64-Legs
· Thumb s crews in ye llow bag
· Bag for projection screen in black
· Softbag with wheel s
· Manual
Article number Article number Weight Article number Article number
Overall system Overall system in kg Front projection Rear projection
Front projection Rear projection material material
Video format 4:3 (TAR – True Aspect Ratio)
386 x 294 366 x 274 12‘8“ x 9‘8“ 12‘ x 9‘ BXV-AV386/R10 BXV-RV386/R10 38 BXF-AV386294A1 BXF-RV386294B1
447 x 340 427 x 320 14‘8“ x 11‘2“ 14‘ x 10.5‘ BXV-AV447/R10 BXV-RV447/R10 44 BXF-AV447340A1 BXF-RV447340A1
508 x 386 488 x 366 16‘8“ x 12‘8“ 16‘ x 12‘ BXV-AV508/R10 BXV-RV508/R10 48 BXF-AV508386A1 BXF-RV508386A1
630 x 477 610 x 457 20‘8“ x 15‘8“ 20‘ x 15‘ BXV-AV630/R10 BXV-RV630/R10 55 BXF-AV630477A1 BXF-RV630477A1
752 x 569 732 x 549 24‘8“ x 18‘8“ 24‘ x 18‘ BXV-AV752/R10 BXV-RV752/R10 69 BXF-AV752569A1 BXF-RV752569A1
HDTV format 16:9 (TAR – True Aspect Ratio)
386 x 226 366 x 206 12‘8“ x 7‘5“ 12‘ x 6‘9“ BXV-AC386/R10 BXV-RC386/R10 35 BXF-AC386226A1 BXF-RC386226A1
447 x 260 427 x 240 14‘8“ x 8.5‘ 14‘ x 7‘10“ BXV-AC447/R10 BXV-RC447/R10 38 BXF-AC447260A1 BXF-RC447260B1
508 x 294 488 x 274 16‘8“ x 9‘8“ 16‘ x 9‘ BXV-AC508/R10 BXV-RC508/R10 42 BXF-AC508294A1 BXF-RC508294B1
630 x 363 610 x 343 20‘8“ x 11‘11“ 20‘ x 11‘3“ BXV-AC630/R10 BXV-RC630/R10 50 BXF-AC630363A1 BXF-RC630363A1
752 x 431 732 x 411 24‘8“ x 14‘2“ 24‘ x 13.5‘ BXV-AC752/R10 BXV-RC752/R10 61 BXF-AC752431A1 BXF-RC752431A1
WUXGA format 16:10 (TAR – True Aspect Ratio)
386 x 249 366 x 229 12‘8“ x 8‘2“ 12‘ x 7‘6“ BXV-AW386/R10 BXV-RW386/R10 33 BXF-AW386249A1 BXF-RW386249B1
447 x 287 427 x 267 14‘8“ x 9‘5“‘ 14‘ x 8‘9“ BXV-AW447/R10 BXV-RW447/R10 37 BXF-AW447287A1 BXF-RW447287B1
508 x 325 488 x 305 16‘8“ x 10‘8“ 16‘ x 10‘ BXV-AW508/R10 BXV-RW508/R10 39 BXF-AW508325A1 BXF-RW508325B1
630 x 401 610 x 381 20‘8“ x 13‘2“ 20‘ x 12‘6“ BXV-AW630/R10 BXV-RW630/R10 48 BXF-AW630401A1 BXF-RW630401A1
752 x 477 732 x 457 24‘8“ x 15‘8“ 24‘ x 15‘ BXV-AW752/R10 BXV-RW752/R10 58 BXF-AW752477A1 BXF-RW752477A1
Article number Article number Weight Article number Article number
Overall system Overall system in kg Front projection Rear projection
Front projection Rear projection material material
Video format 4:3 (TAR – True Aspect Ratio)
203 x 157 183 x 137 6‘8“ x 5‘2“ 6‘ x 4.5‘ BXS-AV203/R10 BXS-RV203/R10 15 BXF-AV203157A1 BXF-RV203157A1
220 x 170 200 x 150 7‘3“ x 5‘7“ 6‘7“ x 4‘11“ BXS-AV220/R10 BXS-RV220/R10 15 BXF-AV220170A1 BXF-RV220170A1
264 x 203 244 x 183 8‘8“ x 6‘8“ 8‘ x 6‘ BXS-AV264/R10 BXS-RV264/R10 19 BXF-AV264203A1 BXF-RV264203A1
300 x 230 280 x 210 9‘10“ x 7‘7“ 9‘2“ x 6‘11“ BXS-AV300/R10 BXS-RV300/R10 20 BXF-AV300230A1 BXF-RV300230A1
325 x 249 305 x 229 10‘8“ x 8‘2“ 10‘ x 7.5‘ BXS-AV325/R10 BXS-RV325/R10 22 BXF-AV325249A1 BXF-RV325249B1
345 x 264 325 x 244 11‘4“ x 8‘8“ 10‘8“ x 8‘ BXS-AV345/R10 BXS-RV345/R10 23 BXF-AV345264A1 BXF-RV345264B1
386 x 294 366 x 274 12‘8“ x 9‘8“ 12‘ x 9‘ BXS-AV386/R10 BXS-RV386/R10 25 BXF-AV386294A1 BXF-RV386294B1
406 x 310 386 x 290 13‘4“ x 10‘2“ 12‘8“ x 9.5‘ BXS-AV406/R10 BXS-RV406/R10 26 BXF-AV406310A1 BXF-RV406310B1
447 x 340 427 x 320 14‘8“ x 11‘2“ 14‘ x 10.5‘ BXS-AV447/R10 BXS-RV447/R10 33 BXF-AV447340A1 BXF-RV447340A1
508 x 386 488 x 366 16‘8“ x 12‘8“ 16‘ x 12‘ BXS-AV508/R10 BXS-RV508/R10 35 BXF-AV508386A1 BXF-RV508386A1
HDTV format 16:9 (TAR – True Aspect Ratio)
238 x 143 218 x 123 7‘10“ x 4‘8“ 7‘2“ x 4‘ BXS-AC238/R10 BXS-RC238/R10 15 BXF-AC238143A1 BXF-RC238143A1
286 x 170 266 x 150 9‘5“ x 5‘7“ 8‘9“ x 4‘11“ BXS-AC286/R10 BXS-RC286/R10 18 BXF-AC286170A1 BXF-RC286170A1
345 x 203 325 x 183 11‘4“ x 6‘8“ 10‘8“ x 6‘ BXS-AC345/R10 BXS-RC345/R10 20 BXF-AC345203A1 BXF-RC345203A1
386 x 226 366 x 206 12‘8“ x 7‘5“ 12‘ x 6‘9“ BXS-AC386/R10 BXS-RC386/R10 22 BXF-AC386226A1 BXF-RC386226A1
392 x 230 372 x 210 12‘10“ x 7‘7“ 12‘2“ x 6‘11“ BXS-AC392/R10 BXS-RC392/R10 23 BXF-AC392230A1 BXF-RC392230A1
425 x 249 405 x 229 13‘11“ x 8‘2“ 13‘3“ x 7.5‘ BXS-AC425/R10 BXS-RC425/R10 25 BXF-AC425249A1 BXF-RC425249B1
447 x 260 427 x 240 14‘8 x 8.5‘ 14‘ x 7‘10“ BXS-AC447/R10 BXS-RC447/R10 28 BXF-AC447260A1 BXF-RC447260B1
508 x 294 488 x 274 16‘8“ x 9‘8“ 16‘ x 9‘ BXS-AC508/R10 BXS-RC508/R10 30 BXF-AC508294A1 BXF-RC508294B1
Square format 1:1 (TAR – True Aspect Ratio)
203 x 203 183 x 183 6‘8“ x 6‘8“ 6‘ x 6‘ BXS-AQ203/R10 BXS-RQ203/R10 16 BXF-AQ203203A1 BXF-RQ203203A1
249 x 249 229 x 229 8‘2“ x 8‘2“ 7.5‘ x 7.5‘ BXS-AQ249/R10 BXS-RQ249/R10 17 BXF-AQ249249A1 BXF-RQ249249B1
294 x 294 274 x 274 9‘8“ x 9‘8“ 9‘ x 9‘ BXS-AQ294/R10 BXS-RQ294/R10 18 BXF-AQ294294A1 BXF-RQ294294B1
340 x 340 320 x 320 11‘2“ x 11‘2“ 10.5‘ x 10.5‘ BXS-AQ340/R10 BXS-RQ340/R10 25 BXF-AQ340340A1 BXF-RQ340340A1
386 x 386 366 x 366 12‘8“ x 12‘8“ 12‘ x 12‘ BXS-AQ386/R10 BXS-RQ386/R10 27 BXF-AQ386386A1 BXF-RQ386386A1
447 x 447 427 x 427 14‘8“ x 14‘8“ 14‘ x 14‘ BXS-AQ447/R10 BXS-RQ447/R10 30 BXF-AQ447447A1 BXF-RQ447447A1
Slide format 3:2 (TAR – True Aspect Ratio)
203 x 143 183 x 123 6‘8“ x 4‘8“ 6‘ x 4‘ BXS-AD203/R10 BXS-RD203/R10 16 BXF-AD203143A1 BXF-RD203143A1
243 x 170 223 x 150 8‘ x 5‘7“ 7‘4“ x 4‘11“ BXS-AD243/R10 BXS-RD243/R10 17 BXF-AD243170A1 BXF-RD243170A1
294 x 203 274 x 183 9‘8“ x 6‘8“ 9‘ x 6‘ BXS-AD294/R10 BXS-RD294/R10 18 BXF-AD294203A1 BXF-RD294203A1
332 x 230 312 x 210 10‘11“ x 7‘7“ 10‘3“ x 6‘11“ BXS-AD332/R10 BXS-RD332/R10 20 BXF-AD332230A1 BXF-RD332230A1
386 x 264 366 x 244 12‘8“ x 8‘8“ 12‘ x 8‘ BXS-AD386/R10 BXS-RD386/R10 22 BXF-AD386264A1 BXF-RD386264B1
447 x 310 427 x 290 14‘8“ x 10‘2“ 14‘ x 9.5‘ BXS-AD447/R10 BXS-RD447/R10 24 BXF-AD447310A1 BXF-RD447310B1
496 x 340 476 x 320 16‘3“ x 11‘2“ 15‘7“ x 10.5‘ BXS-AD496/R10 BXS-RD496/R10 26 BXF-AD496340A1 BXF-RD496340A1
WUXGA format 16:10 (TAR – True Aspect Ratio)
217 x 143 197 x 123 7’1’’ x 4’8’’ 6´2“ x 4´ BXS-AW217/R10 BXS-RW217/R10 13 BXF-AW217143A1 BXF-RW217143A1
260 x 170 240 x 150 8´6“x 5´7“ 7´10“ x 4´11“ BXS-AW260/R10 BXS-RW260/R10 16 BXF-AW260170A1 BXF-RW260170A1
313 x 203 293 x 183 10´3“x 6´8“ 9´7“ x 6´ BXS-AW313/R10 BXS-RW313/R10 18 BXF-AW313203A1 BXF-RW313203A1
356 x 230 336 x 210 11´8“x7´7“ 11´ x 6´11“ BXS-AW356/R10 BXS-RW356/R10 20 BXF-AW356230A1 BXF-RW356230A1
386 x 249 366 x 229 12´8“x8´2“ 12´ x 7.5´ BXS-AW386/R10 BXF-RW386/R10 22 BXF-AW386249A1 BXF-RW386249B1
410 x 264 390 x 244 13´5“x 8´8“ 12´10“ x 8´ BXS-AW410/R10 BXS-RW410/R10 24 BXF-AW410264A1 BXF-RW410264B1
458 x 294 438 x 274 15´x9´8“ 14´4“ x 9´ BXS-AW458/R10 BXS-RW458/R10 26 BXF-AW458294A1 BXF-RW458294B1
484 x 310 464 x 290 15´11“x10´2“ 15´2“ x 9.5´ BXS-AW484/R10 BXS-RW484/R10 28 BXF-AW484310A1 BXF-RW484310B1
508 x 325 488 x 305 16´8“x10´8“ 16´8“ x 10´ BXS-AW508/R10 BXS-RW508/R10 32 BXF-AW508325A1 BXF-RW508325A1

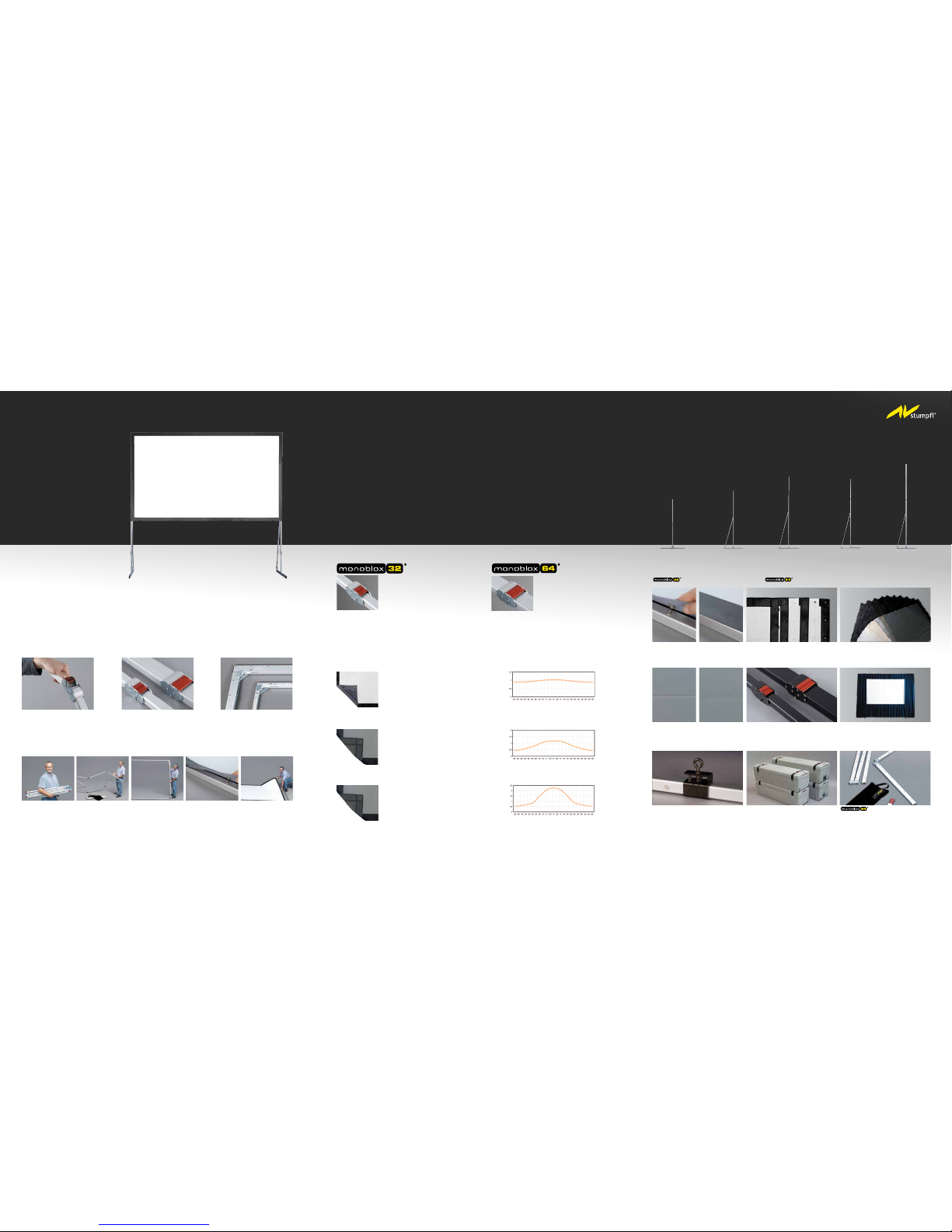

Page 2
High-preci sion snap joints are a guarantee for ea sy and safe handling.
Shear join ts on the i nside guara ntee
highest fr ame stabili ty.
Monoblox - the mobile projection screen
MONOBLOX wow s people all over the worl d as it combines our time -tested frame system w ith stable, reliable and automatically engagi ng snap joint s that allow a single-pie ce frame. Th is system is excellent fo r applications which require the frame
to be set up as easil y and qui ckly as p ossible. In dividual pa rts cannot get los t or be mixed u p. Therefor e, MONOBLOX is
ideal for renting out. Stability, weight a nd transport volume have been o ptimized and are in perfect harm ony. To e nsure optimu m packing f or each size we have developed two types of profiles made o f hardened aluminum alloy - MONOBLOX 32 and MO NOBLOX 64.
The folded frame convinces
through its low transport
volume.
When the frame is pulled open
the joints engage automatically.
After locking the inner folding
joints in place the screen achieves maximum stability.
The elastic screen material is
placed on the frame and attached to the frame via snap
fasteners.
The supplied legs are fixed to
the rear of the frame by means
of thumb screws.
Long produ ct life thr ough harden ed
metal comp onents.
the original
made in austria/europe
simple to set up
no tools required
5 years‘ warranty
long-term stability
low transport volume
true aspect ratio
brilliant image quality
Standard screen material
The screen materials that are standard supply have proven their worth all over the world in professional applications by
showing long-term stability, strength and brilliant image quality.
Front proj ection screen material
FLEX WHITE CI
100% light -tight
Seamless f or lengths of up to 21 0 cm
Weight: ~ 2 95 g/m²
Thickness: ~ 0.22 mm
Gain facto r: 1.02
Rear proje ction screen m aterial
FLEX REAR CI
Virtually no „hot spo t“ formatio n
Seamless f or lengths of up to 21 0 cm
(Optional Seamless Op tics™ for l engths
exceeding 210 cm)
Weight: ~ 3 70 g/m²
Thickness: ~ 0.28 mm
Gain facto r: 1.18
Rear proje ction screen m aterial
FLEX REAR MO
Seamless f or lengths up to 305 c m
Weight: ~ 3 80 g/m²
Thickness: ~ 0.28 mm
Gain facto r: 2.25
Single-pie ce folding fra me
Standard pro file 32 x 32mm (1 1/4 “ x 11/4 “)
Made o f spec ial ext ruded a nd har dened a luminum allo y with a weight of 0.6 kg/m, which
is our most popular dimensi on. Thi s syst em
is suitabl e for sizes up to 508 x 386 cm (16 ‘
x 12‘).
Folding frame wit h plug-in vertical
modules
Standard pro file 64 x 32mm (2 1/2 “ x 11/4 “)
Statically optimized, this truss s tyle profile is
used a s a standard profile for formats from
447 x 260 cm ( 14‘ x 7‘10“) to 752 x 569 cm
(24‘ x 18‘ ).
Optional versions
Frame design
On demand, frame and legs are available anodized in
black.
Drape Kit
The Drap e Kit turns your projection screen into a
stage..
Transport cases with buckle belt
The stockable and study flight cases with integrated
rollers are available in two sizes. The woven strap with
a buckle belt, well known from the aircraft industry,
ensures maximum safety and stability.
Snap fasteners and edge reinforcement
There is a choice of different snap fastener s and
edge reinf orcement in black and white availa ble.
Screen materials
Wide choice o f projection m aterials and border
variants.
Easy Fly
The adapter with eyelet can be attached quickly and
easily at any point of the frame. For use as Flying
Screen, for Monoblox32 and Monoblox 64.
InviSnap™
This new and patented way of mounting the screen
material offers a level projection screen without visible
snap fastener heads.
Depending on application and requirem ents there ar e 5 different folding legs a vailable:
AT48-Leg:
Overall height: 415 cm
Min. mounting height: 9 cm
Max. mounting height: 161cm
AT32-Leg:
Overall height: 320 cm,
Min. mounting height: 6 cm,
Max. mounting height: 113 cm
AT64-Leg:
Overall height: 550 cm
Min. mounting height: 9 cm
Max. mounting height: 176 cm
T32-Leg
Overall height: 220 cm,
Min. mounting height: 6 cm,
Max. mounting height: 82 cm
Standard supply
AT32/64-Leg
Overall height: 430 cm,
Min. mounting height: 9 cm
Max. mounting height: 146 cm
Standard supply
Seamless Optics™
Welded seams are standard for larger screen surfaces
and do not cause any problems for projection (Ill. 1). A
special welding procedure allows production of homogenous display areas with a seamless look (Ill. 2).
Format changes
The horizontal elements of a projection screen can be
combined with 3 different v ertical eleme nts, e.g.
allowing format changes from 4:3 to 16:9 or 16:9 to
16:10.
