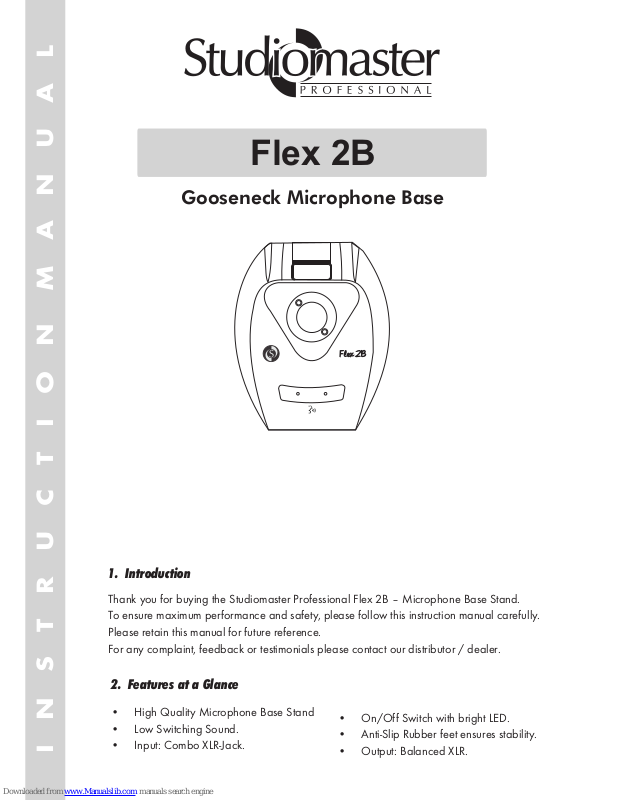

Studiomaster Professional Flex 2B Instruction Manual

I N S T R U C T I O N M A N U A L

Flex 2B

Gooseneck Microphone Base

1. Introduction

Thank you for buying the Studiomaster Professional Flex 2B – Microphone Base Stand.
To ensure maximum performance and safety, please follow this instruction manual carefully.
Please retain this manual for future reference.
For any complaint, feedback or testimonials please contact our distributor / dealer.

2. Features at a Glance

• High Quality Microphone Base Stand

• Low Switching Sound.

• Input: Combo XLR-Jack.

• On/Off Switch with bright LED.

• Anti-Slip Rubber feet ensures stability.

• Output: Balanced XLR.

* Design and specification are subject to change without notice.

3. Product Components

4. Product Usage

Cables:

• Make sure good quality, low noise shielded cables are used. Good cables ensure good signal
integrity.

Note:

• Studiomaster Professional highly recommends using the Flex 2B with the Flex 2 Gooseneck
microphone.

• The Flex 2 microphone requires between 11 - 52 V phantom supply to operate. Inadequate
power supply may result poor performance & reduced dynamic range.

• Ensure the phantom supply in the mixer / external power supply unit is off before all connections
are done.

Gooseneck Microphone Base Stand (Flex 2B) ….........................................x 1

Instructions Manual …......................................................................................x 1

1. Input Connector: Connect the Gooseneck
microphone base this combo XLR-Jack Input.

2. ON/Off Switch: This switch is used to on or off the
connected microphone as required. The blue LED lights
up when the microphone is active.

3. Output: Connect the output of this base into the input
of a mixer.

5. Product Care Instructions

• Do not drop the microphone base this could severely damage the product.

• Please keep this product away from direct sunshine & Rain.

• Please disconnect from power supply when the product is not being used for a long time.

• Do not open any of the components yourself, for repairs please get in touch with your
retailer.

• Please read the owner manual before using this product.

• Please place product in flight case while transportation.

3

1

2

is a registered trademark of Audioplus in India. © Copyright Audioplus, 2008. All rights reserved. Any unauthorised reproduction
or use of logos, images or design elements is strictly prohibited by law. No part of the compilation may be reproduced in any manner or
translated without written permission.

REV00/SMFLEX2B/Nov 2011
