StudioHub ADAPT-GPI Users Guide

Small Products Technical Manual

for Powered and Passive Panels

Table of Contents

Part # Page

StudioHub+ Standard Pinout
& Power Consumptions Illustration 3

How to Power StudioHub+ - via PS-Cube 4
How to Power StudioHub+ - via a Hub or Wall-Wart 5

Active (Powered) MatchJacks

MatchJack Preamp, Input MJ-IN 6
MatchJack Preamp, Output MJ-OUT 7
AES/EBU to S/PDIF Converter MJ-SPDIFIN 8
S/PDIF to AES/EBU Converter MJ-SPDIFOUT 9
Analog to Digital Converter MJ-AD 10
Digital to Analog Converter MJ-DA 11
Digital Distribution Amplifier MJ-DDA 12

Passive Panels

Dual XLR Female Adapter Mono/Stereo SH-2XLRF 13
Dual XLR Male Adapter Mono/Stereo SH-2XLRM 14
Dual XLR Male-Female Panel SH-2XLRMF 15
Single XLR Female Panel SH-1XLRF 16
Single XLR Male Panel SH-1XLRM 17
Single XLR 5-Pin Female Panel SH-1XLRF5PIN 18

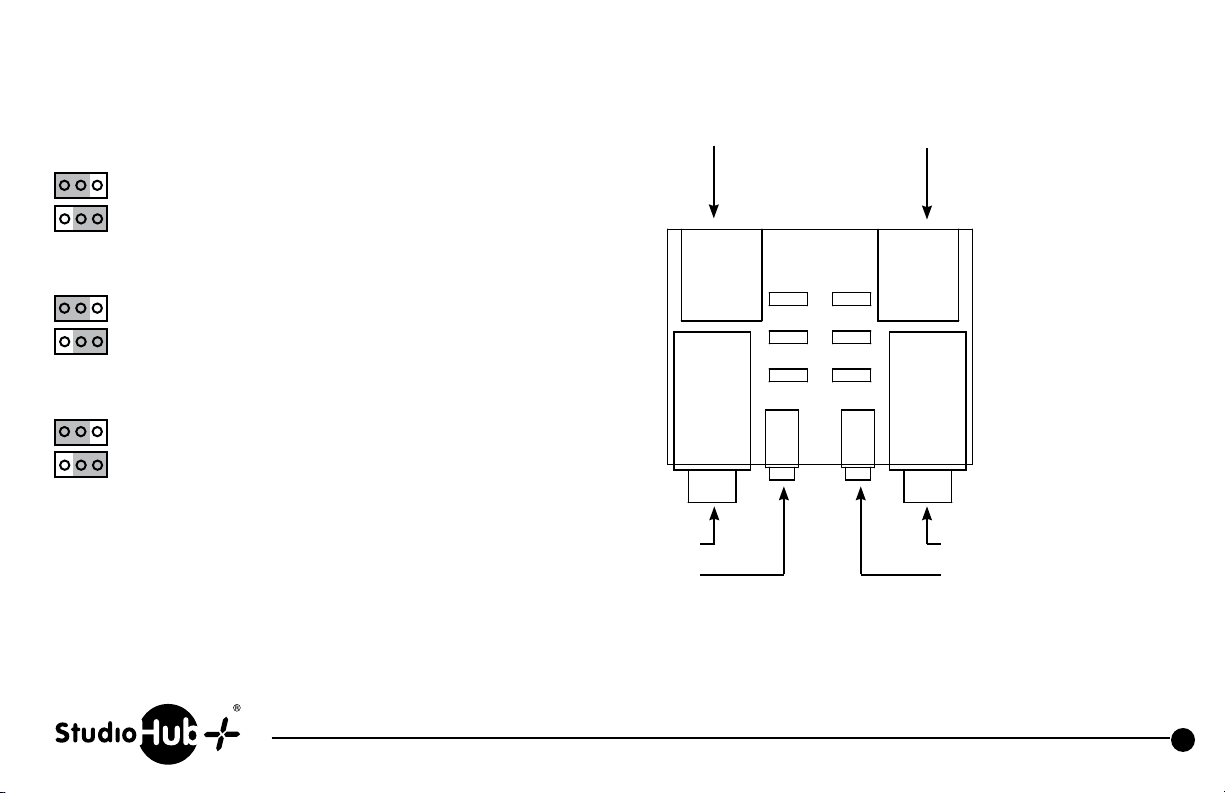

1/4” & Mini TRS Panel
1/4” & Mini TRS Panel
4 Source Switcher Panel SH-4SW* 21
Breakout Adapter ADAPT-BO 22

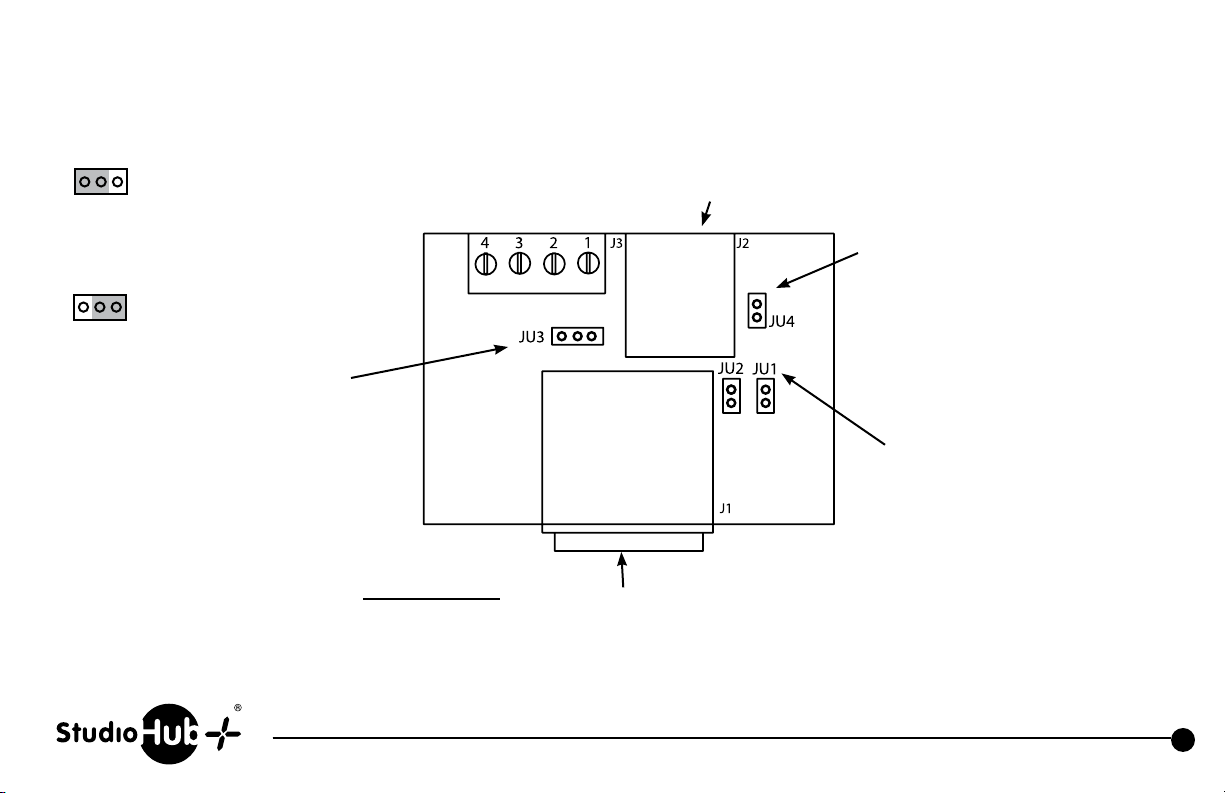

Breakout Adapter ADAPT-GPI 23
PS-CUBE “DC-Link” Power Inserter PS-CUBE 24
Mic Single XLR Female w/PTT Panel SH-MICPTTPAS 27

(Unbalanced)
(Balanced)

SH-1/4UNBAL 19

SH-1/4BAL 20

Active (Powered) Panels Part # Page

4 Source Switcher Panel SH-4SWSS 25
Mic Preamp Panel SH-MIC 26
Mic Preamp w/PTT Panel SH-MICPTT 27
Headphone Amplifier Panel SH-HPB 28
Dual Headphone Amp. Panel SH-HPDUAL 29
Monitor Level Control Panel SH-LEVEL 30
Monitor Amp Panel SH-AMP w/o Speaker 31
SH-AMPSPKR w/Speaker 31

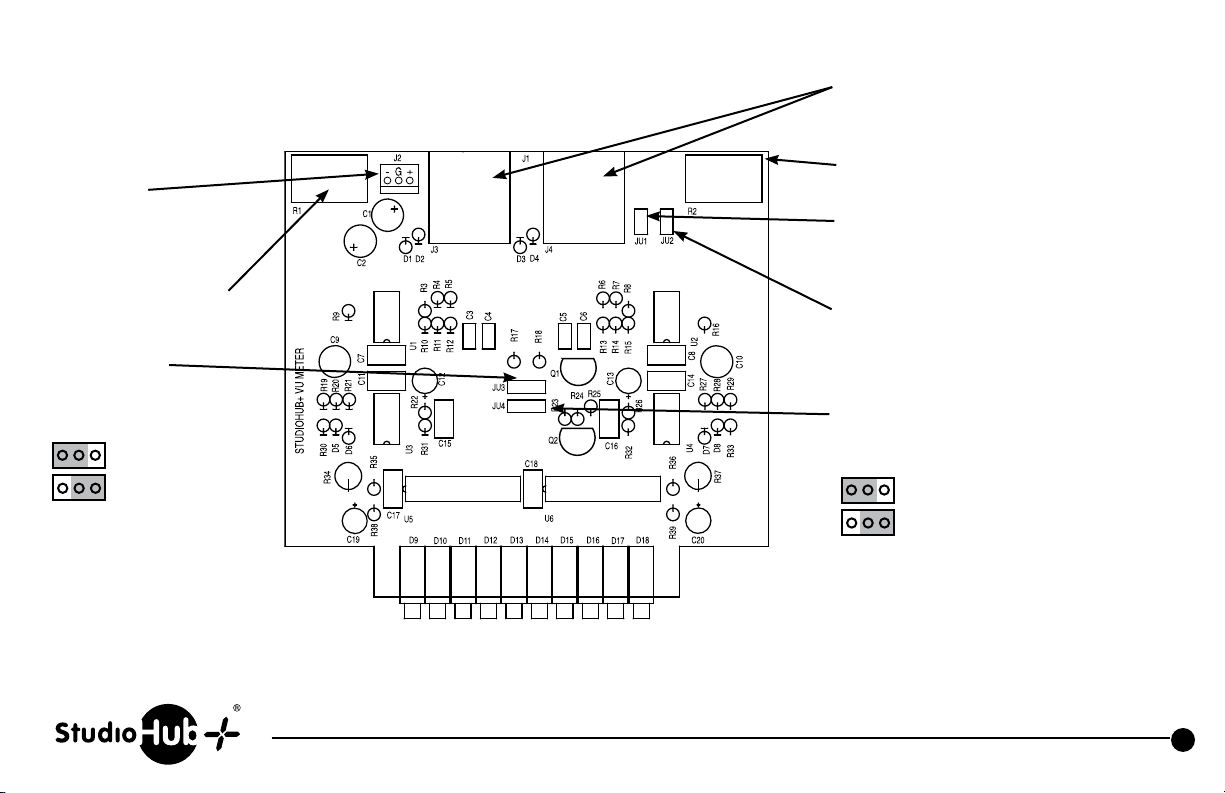

Dual VU Meter Panel SH-VUV(Vertical) 32
SH-VUH (Horizontal) 32

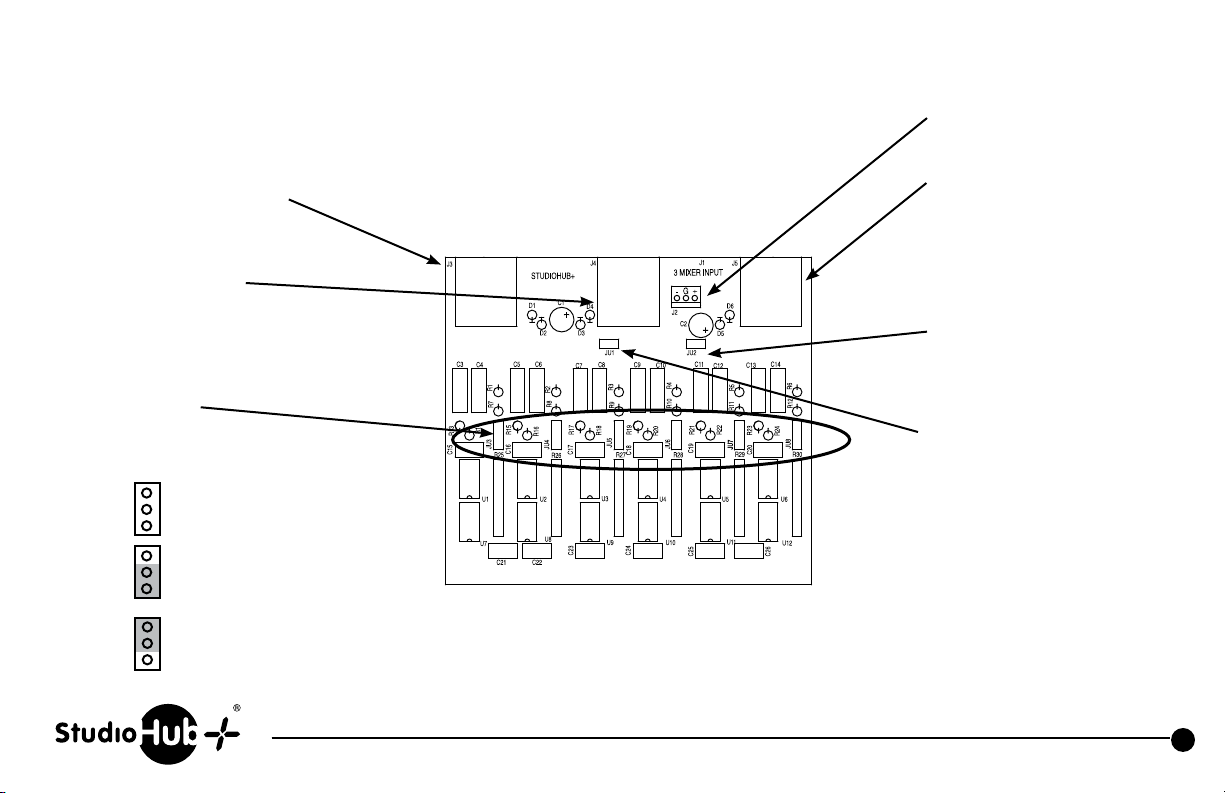

3 Mixer Panel (Input) SH-MIXER 33
3 Mixer Panel (Output) SH-MIXER 34
LCD Display Panel SH-LCDV(Vertical) 35
SH-LCDH(Horizontal) 35
In/Out Balanced MatchJack SH-DUALMATCH 36
In/Out Balanced MatchJack SH-MATCHPANEL 37

Warranty/Repair Policy/Returns

* Obsolete Part

2

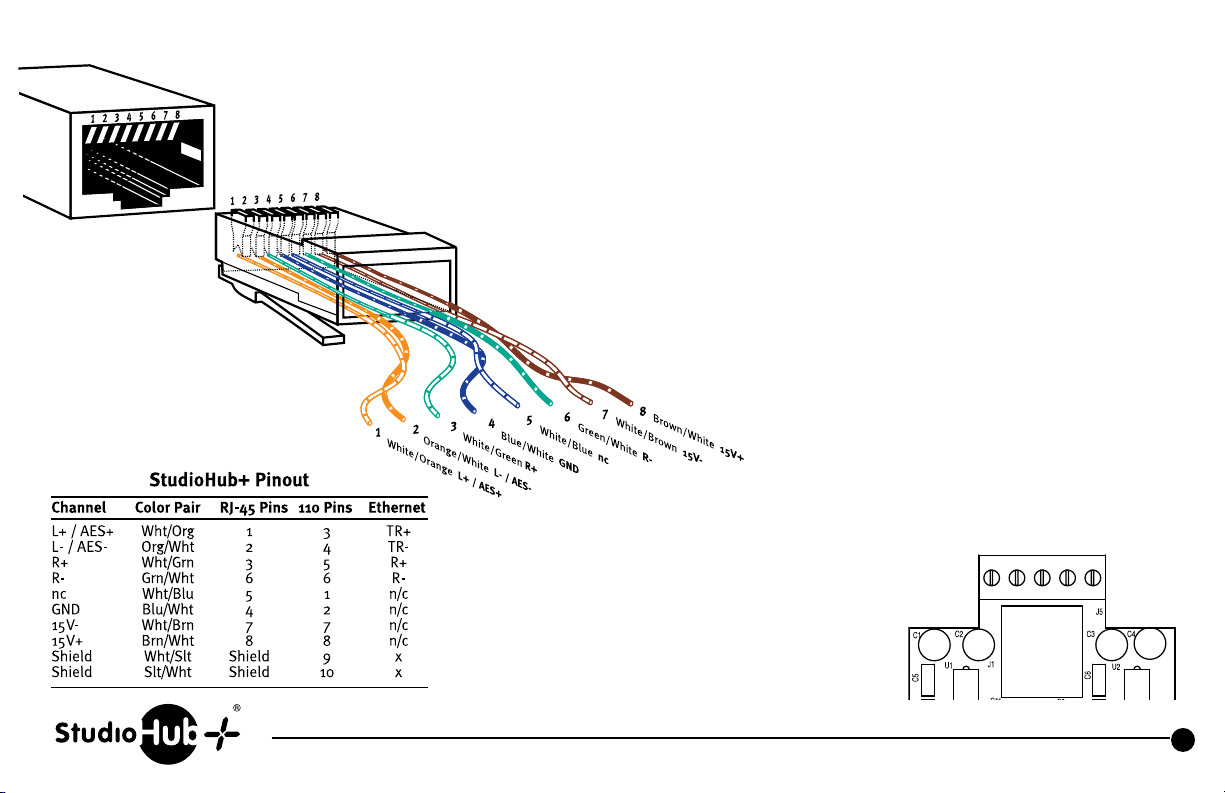

StudioHub+

LEFT RIGHT

Standard Pinout

(T568B Standard)

Current consumption for each StudioHub+ active device. Refer to this list
when calculating the total number of devices that can be run together
on any individual power supply.

Part # Description Current

MJ-OUT Analog MatchJack Out (IHF to Pro) 75ma
MJ-IN Analog MatchJack In (Pro to IHF) 35ma
MJ-SPDIFOUT SPDIF OUT (S/PDIF and Optical to AES) 100ma
MJ-SPDIFIN SPDIF IN (AES to S/PDIF) 0 (passive)
MJ-AD Digital MatchJack A to D 150ma
MJ-DA Digital MatchJack D to A 150ma
MJ-DDA Digital MatchJack Distribution Amplifier 165ma*
SH-DUALMATCH Dual Match Panel 100ma
SH-HP Headphone Panel 100ma
SH-MIC Mic Pre-Amp Panel 55ma
SH-MIXER 3 Input Stereo Mixer with mix-minus 125ma
SH-AMPSPKR Monitor Amp Panel (w/ Speaker) 1400ma
SH-LEVEL Monitor Panel 145ma
SH-VUV Dual VU Meter Panel 150ma
SH-LCDV LCD Display Panel 75ma
DA6-DC DA Hub (Single) 575ma
SUM4-DC Combiner Hub (Single) 175ma

* Powered via 9v DC (single ended) wall wart

or +/-15vDC StudioHub+ power supply

+-G-+

Stand-Alone Versions

Some active StudioHub+ products were
previously available in “Stand-Alone”
versions with barrier strip connectivity for
audio I/O. The following illustrates the
pinout for this barrier strip.

[phone] • Fax [phone] • www.studiohub.com

3

Revised 4-21-10

s

s

se

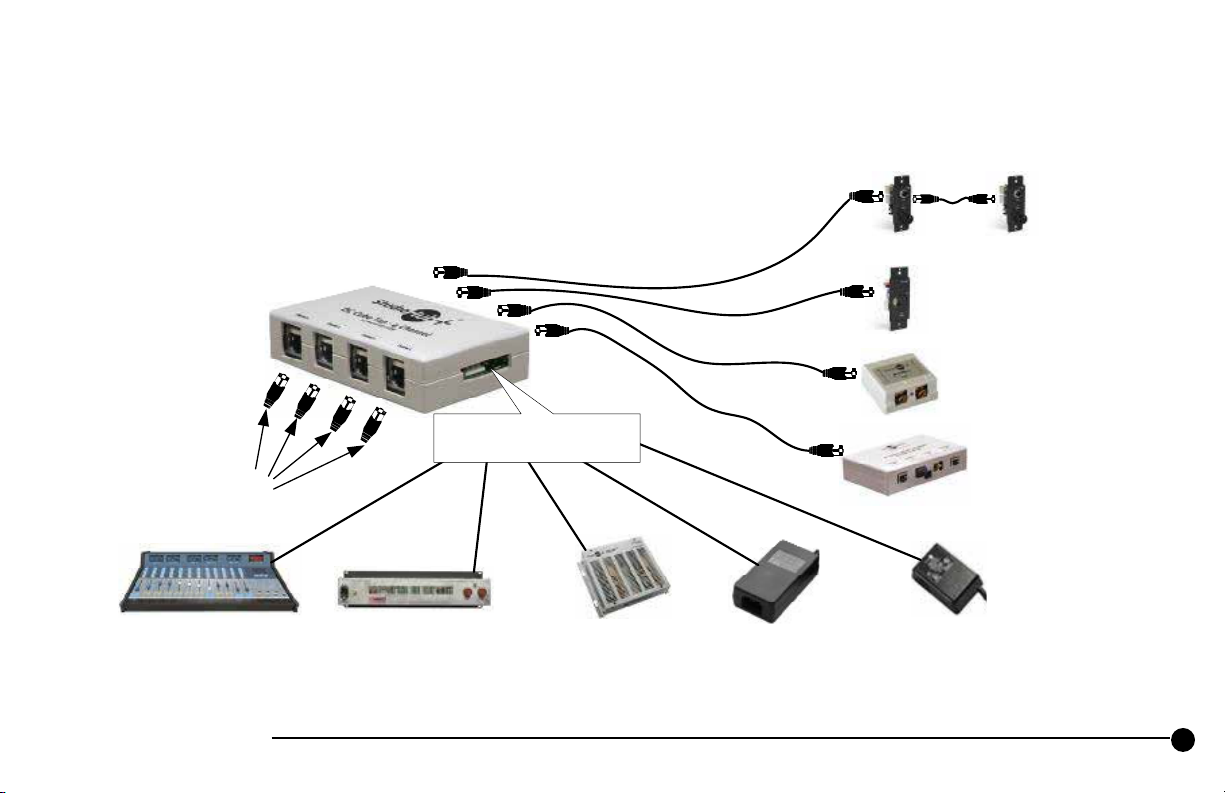

Powering StudioHub+ Active Device

Many StudioHub+devices areactiveand are poweredby+/- 15vDC. Powercan be supplied viathe StudioHub+ “DC-Link”
system that uses CAT-5pair#4(White/Brown)for power, or powercan be supplied viaaseparate powersupply.
Seethe current consumption charttodetermine howmanydevices canbepoweredwithdifferent systems.

I-Powering viaPS-Cube (for up to 4devices)

Headphoneampslink

together foraudio &DC

SH-MIC

PS-Cube

MatchJack

5-pinMTA &3-pin MTE

powerconnectors(in parallel)

From 4separate

D to A

Converter

udio sendsorfeed

1Amp

PoweraPS-CUBEfroma

RadioSystems Console

cable#16998(6') / 15884(1')

(3-pin MTAto3-pin MTE)

PoweraPS-CUBEfroma

RS ConsolePower Supply

(16-pinMR-16 to 5-pinMTA)

1Amp

Usecab le#16600

3Amps

PoweraPS-CUBEfrom a

PS-EXTU PowerSupply

(the cableisincluded)

(4-pin MR-4 to 5-pinMTA)

400ma

PoweraPS-CUBE from a

PS-WWUCUBE PowerSupply

(the captivecable is included)

(captive to 3-pinMTE)

200ma

PoweraPS-CUBE from a

PS-WWCUBEPower Supply

(the captivecable is included)

(captive to 3-pinMTE)

How to Power StudioHub+ - via PS-Cube

4

s

s

PoweraPS-CUBEfroma

RadioSystems Console

se cable#16998(6') / 15884(1')

(3-pin MTAto3-pin MTE)

PoweraPS-CUBEfroma

RS ConsolePower Supply

Usecab le#16600

(16-pinMR-16 to 5-pinMTA)

PoweraPS-CUBEfrom a

PS-EXTU PowerSupply

(the cableisincluded)

(4-pin MR-4 to 5-pinMTA)

PoweraPS-CUBE from a

PS-WWCUBEPower Supply

(the captivecable is included)

(captive to 3-pinMTE)

PoweraPS-CUBE from a
PS-WWUCUBE PowerSupply

(the captivecable is included)

(captive to 3-pinMTE)

II -PoweringVi aaHub (for up to 16 devices)

SH-HP

SH-HP

Headphoneampslin k

together foraudio &DC

Revised 4-21-10

PS-EXTU

3amp bi-polar

15vDC powersupply

Useany Hubinwhich themodelnumber endsin“DC”

(HUB18-DCorHUB36-DCorHUB8-DC or HUB16-DC

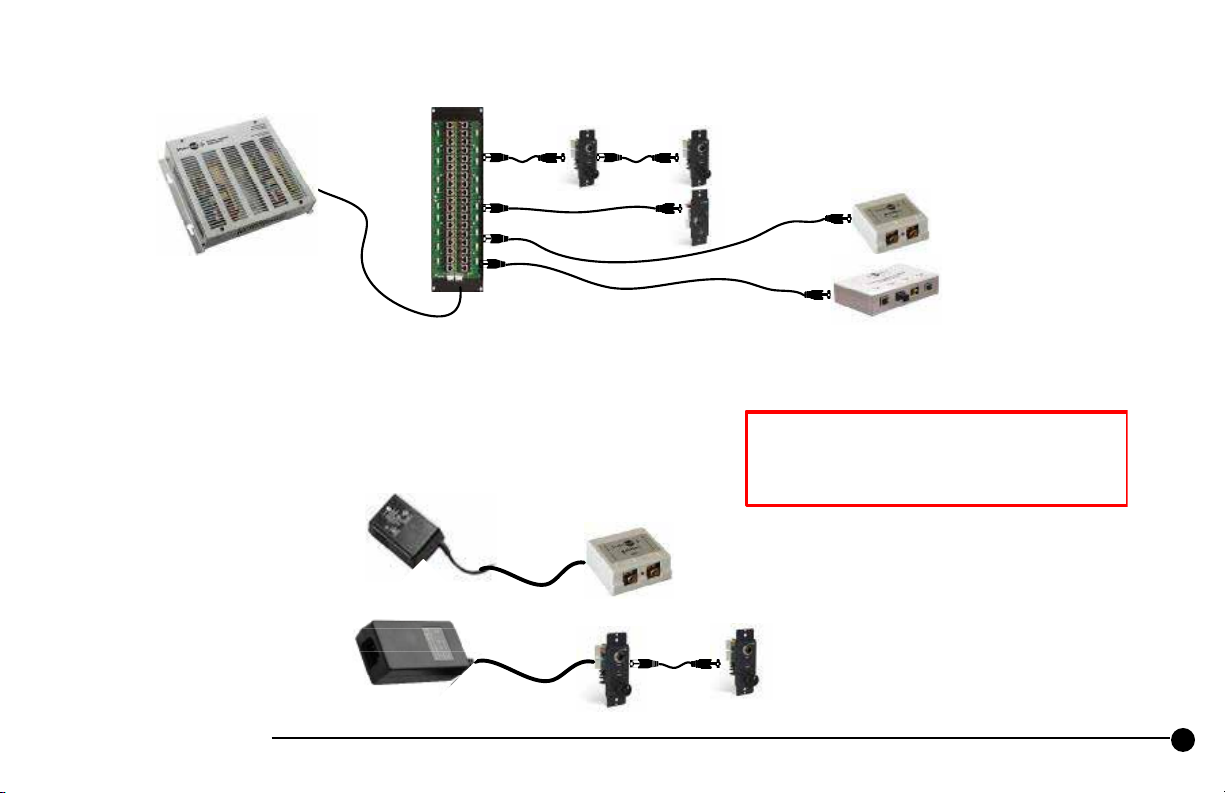

III-Powering viaa“WallWart” or Desk-Top PowerSupply

ower an individual MatchJackorPanel

from aPSWW-SH PowerSupply

(the captive3-pin to MTAcable

from aPSWWU-SHPower Supply

(the captive3-pin to MTAcable

is included)

PowermultiplePanels

is included)

SH-HP

SH-MIC

NOTE –All powersuppliesshown areUniversal Voltage
switchingsuppliesand accept from 100 to 240VAC input

powerEXCEPTthe “non UniversalWal l-Wart”

PS-WWCUBE andPS-WWSH supplies

whichare 110VAC inputpower only.

SH-HP

MatchJack

DtoA

Converter

SH-HP

MatchJack

SH-HP

Headphoneampslinktogether foraudio &DC.

Powerup to4headphone amps from onePS-WWU

andupto2headphoneamps from 1PSWW

How to Power StudioHub+ - via a Hub or Wall-Wart

5

Revised 4-21-10

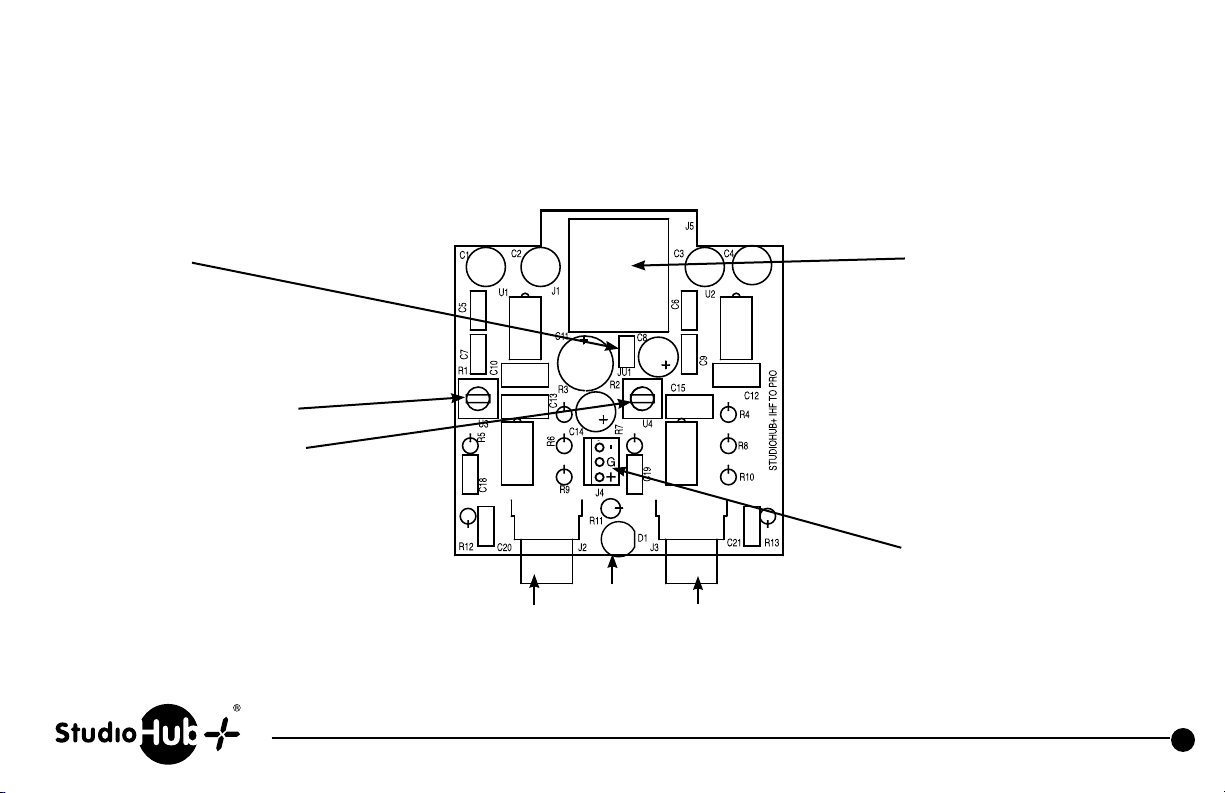

JU1
Install to connect shield ground
to power ground

Left level adjust

Right level adjust

Left output RCA

Power

LED

Audio and power input
provided on RJ-45

Direct power input
+/- 15 volts DC

Right output RCA

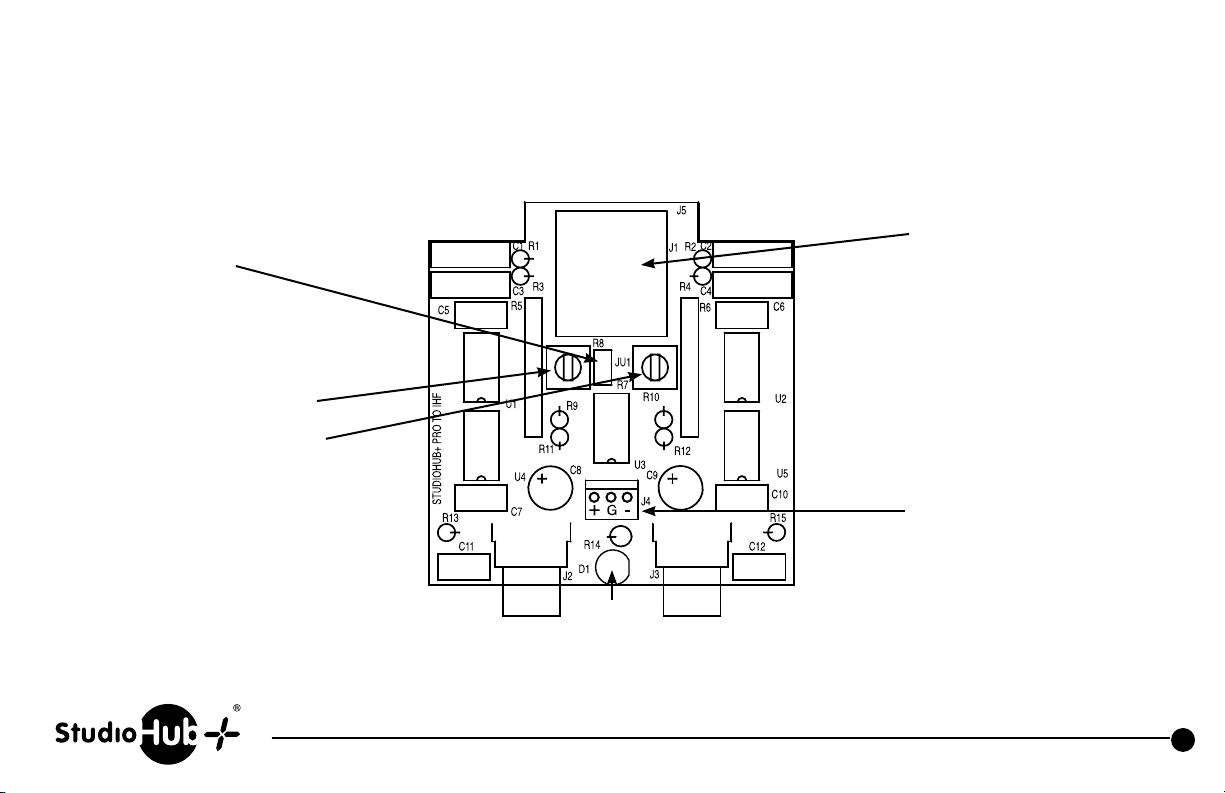

Part # MJ-IN StudioHub+ MatchJack Preamp, Input

[phone] • Fax [phone] • www.studiohub.com

6

Revised 4-21-10

JU1
Install to connect
shield ground to
power ground

Left level adjust

Right level adjust

Audio and power input
provided on RJ-45

Direct power input
+/- 15 volts DC

Power

Right input RCALeft input RCA

LED

Part # MJ-OUT StudioHub+ MatchJack Preamp, Output

[phone] • Fax [phone] • www.studiohub.com

7

Revised 4-21-10

* RCA S/PDIF output

ASM

J1

J2

T1

JU1

StudioHub+ AES/EBU RJ-45 input

JU1

Install to connect
shield ground to
power ground

R1 R1

R2

J3

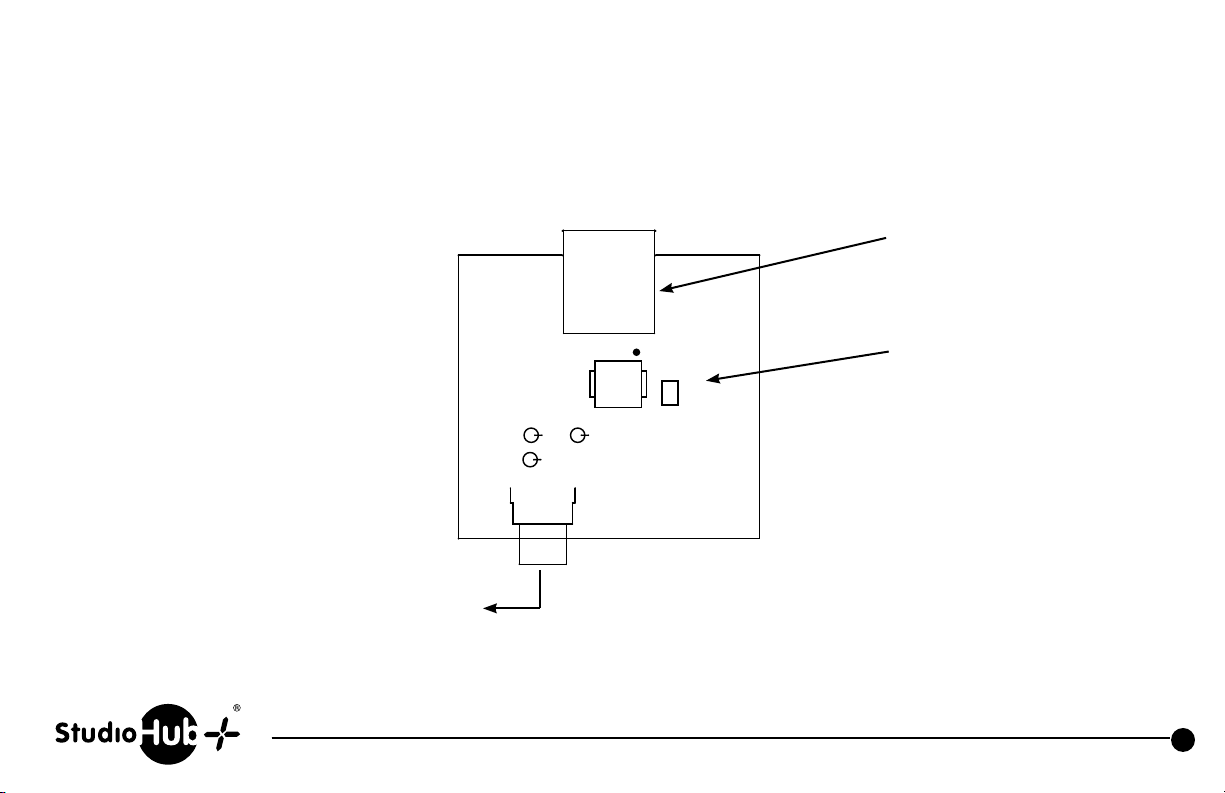

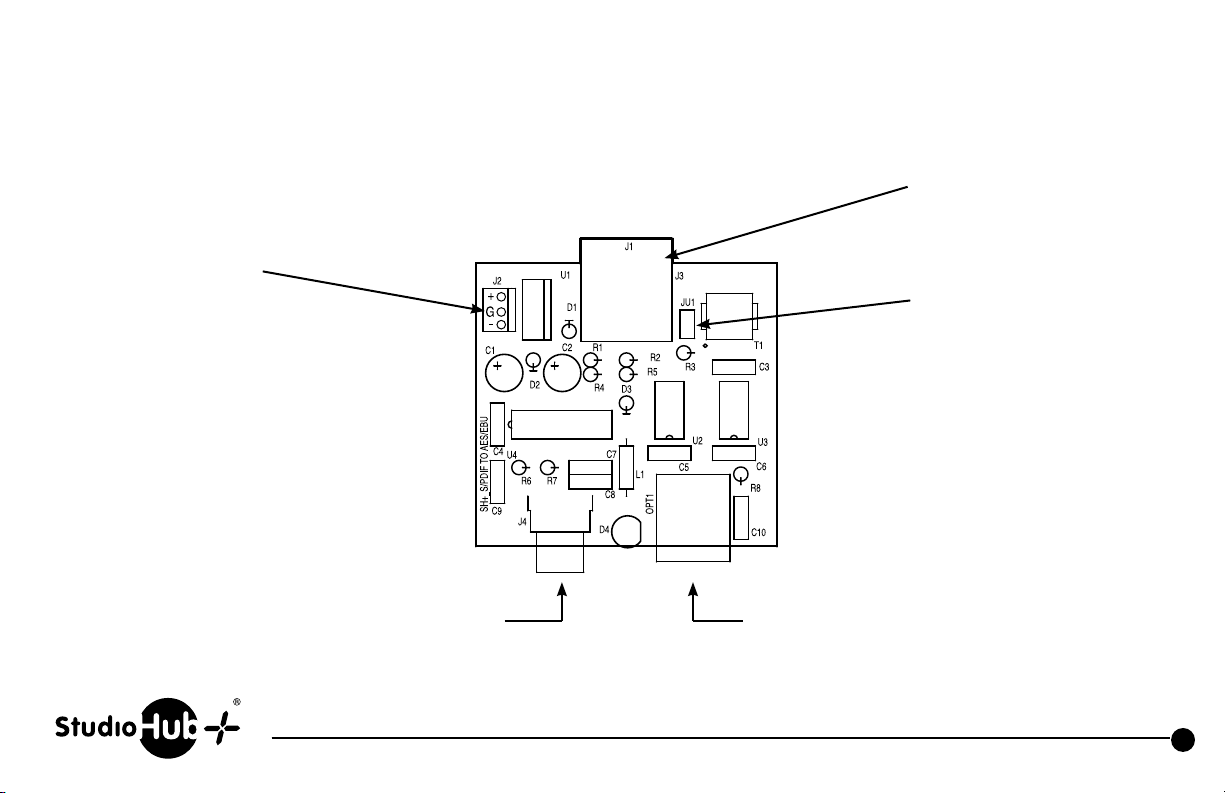

Part # MJ-SPDIFIN StudioHub+ S/PDIF to AES/EBU Converter

[phone] • Fax [phone] • www.studiohub.com

8

Direct power in
+/- 15 volts DC

Revised 4-21-10

StudioHub+ AES/EBU
output and power in

JU1

Install to connect
shield ground to
power ground

* RCA S/PDIF input *Optical Input

Part # MJ-SPDIFOUT StudioHub+ S/PDIF to AES/EBU Converter

[phone] • Fax [phone] • www.studiohub.com

* Use only one

9

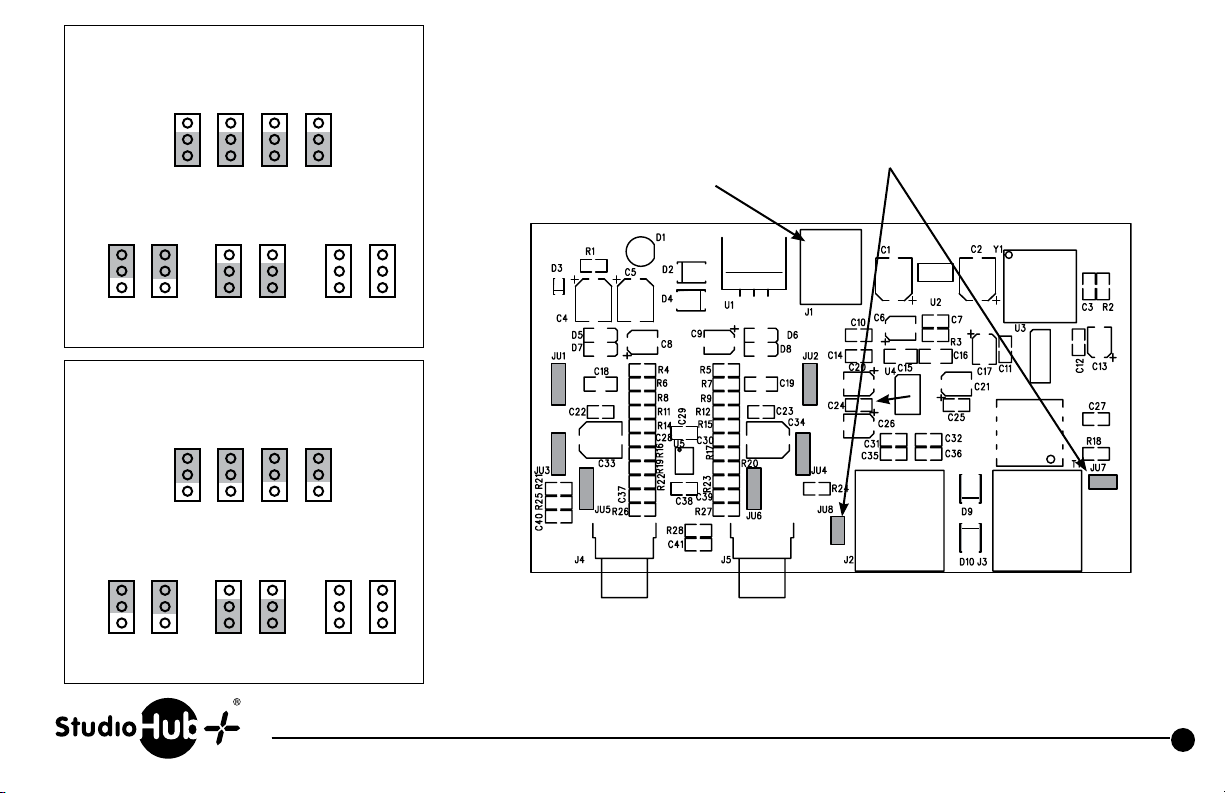

Pro Level Input

Set Input Level

JU3 JU4 JU5 JU6

IHF

PRO

Short all lower pins

Set Nominal Input Sensitivity*

JU1 JU2 JU1 JU2 JU1 JU2

DC power in +/- 15 volts DC
(unit can also be powered by
StudioHub+ “DC-Link” via RJ-45’s)

Revised 4-21-10

JU7, JU8

Install to connect RJ-45 shield
to ground to power ground

C

D

0dBu

Short Upper Pins Short Lower Pins Short No Pins

C

D

C

D

+4dBu +8dBu

Consumer Level Input

Set Input Level

JU3 JU4 JU5 JU6

IHF

PRO

Short all upper pins

Set Nominal Input Sensitivity*

JU1 JU2 JU1 JU2 JU1 JU2

C

D

-15dBv

Short Upper Pins Short Lower Pins

C

D

C

D

-10dBv -6dBv

Short No Pins

* Set for station standard
reference level to provide unit
output headroom of 20dB.

Unbalanced Inputs

Balanced

Input

AES/EBU

Output

Left Right

Part # MJ-AD StudioHub+ Analog to Digital Converter

[phone] • Fax [phone] • www.studiohub.com

10

JU1 and Ju2

Install to connect
RJ-45 shield
to ground

Analog Output

Revised 10-6-10

DC power in +/- 15 volts DC
(unit can also be powered by
StudioHub+ “DC-Link” via RJ-45’s)

Power Supply Connector

REDBLUWHT

+15vG-15v

AES/EBU InputTOSlink InputCoaxial Input

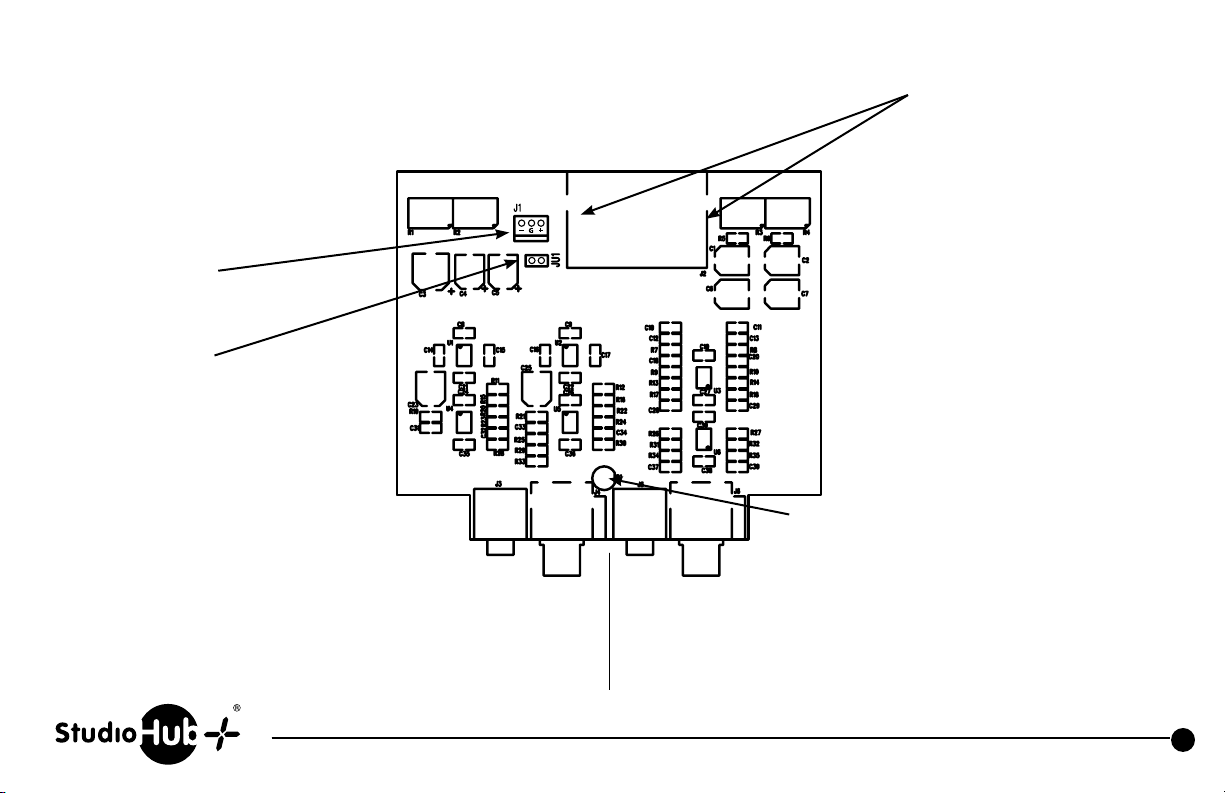

Part # MJ-DA StudioHub+ Digital to Analog Converter

[phone] • Fax [phone] • www.studiohub.com

11

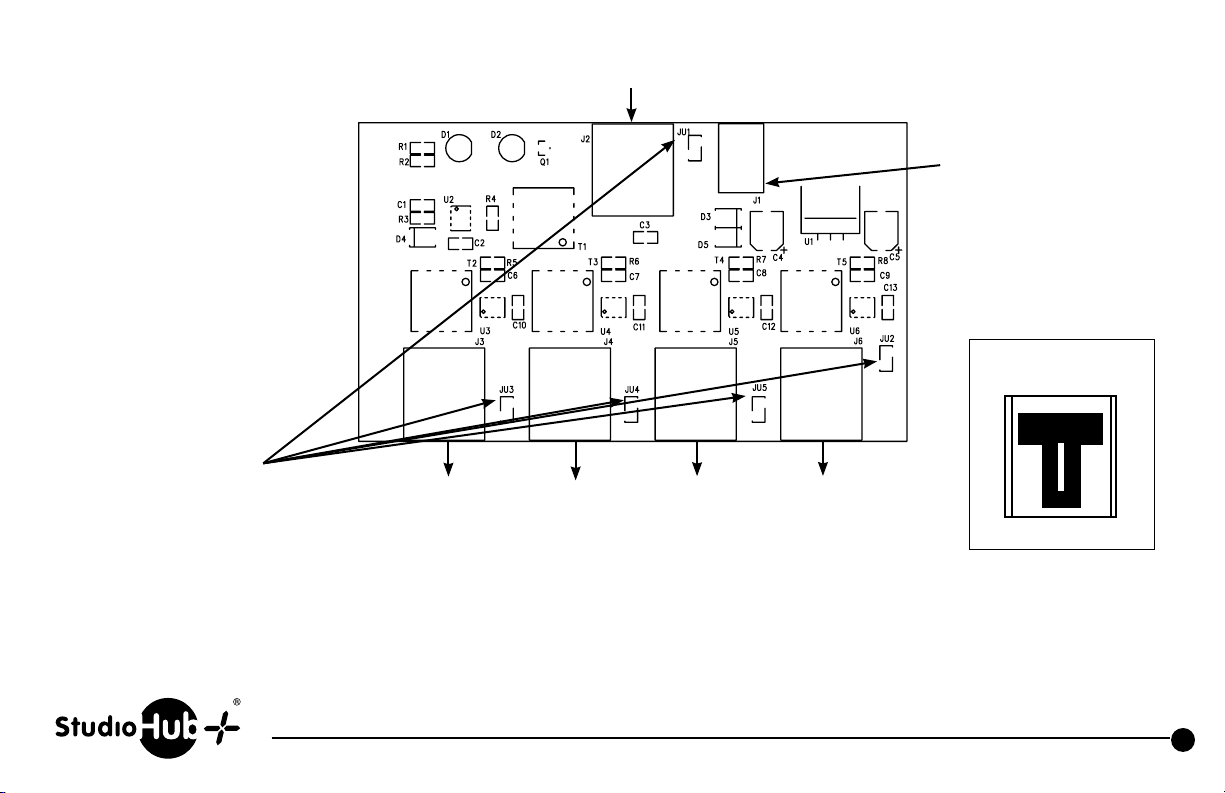

JU1 - Ju5

Install to connect
RJ-45 shield
to ground

AES Input

AES Output #1 AES Output #2 AES Output #3

Revised 4-21-10

DC power in +/- 15 volts DC
(unit can also be powered by
StudioHub+ “DC-Link” via RJ-45’s)

Power Supply Connector

REDBLUWHT

AES Output #4

+15vG-15v

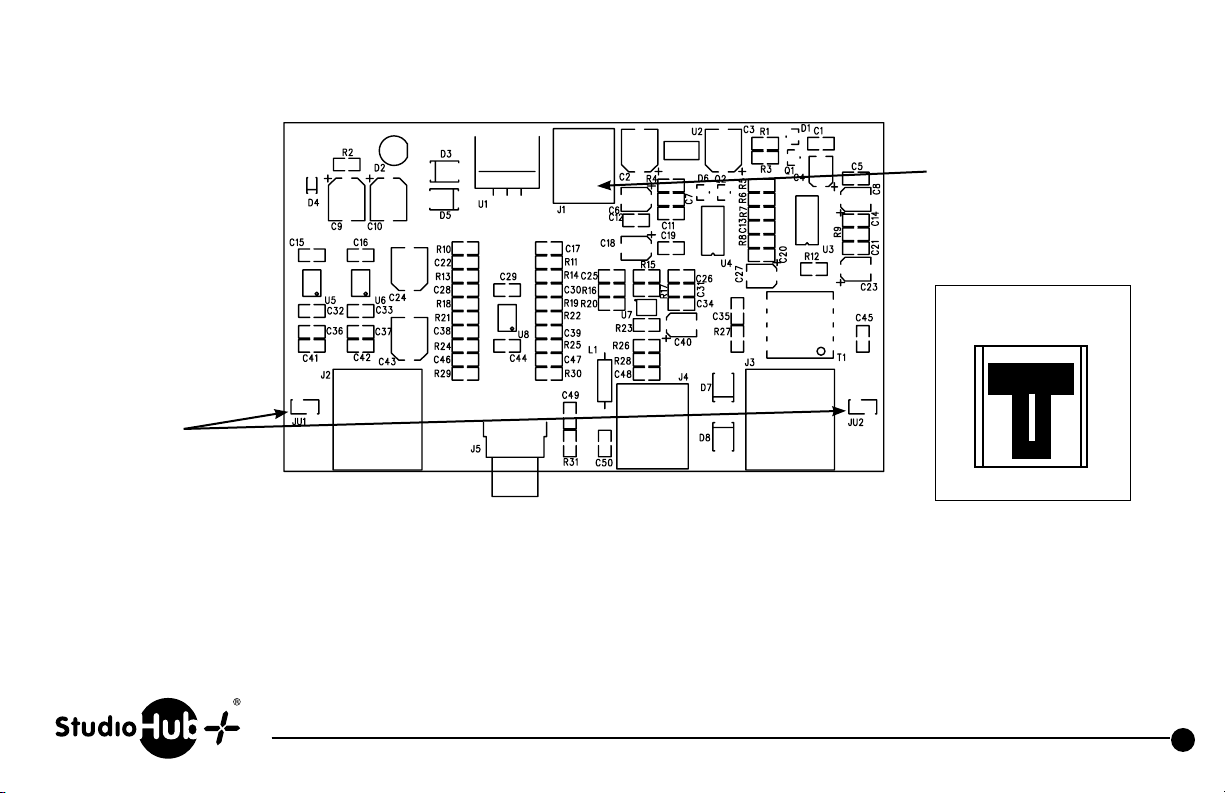

Part # MJ-DDA StudioHub+ Digital Distribution Amplifier

[phone] • Fax [phone] • www.studiohub.com

12

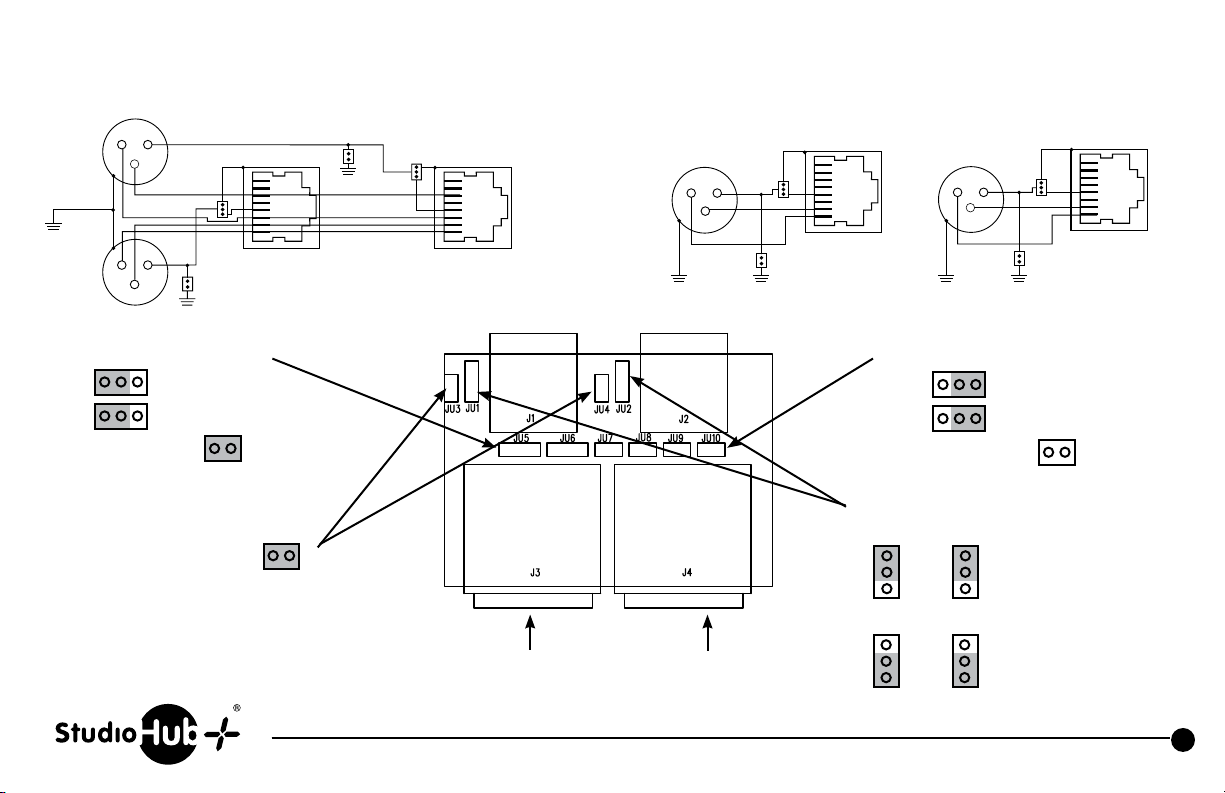

When programmed for stereo operation:

8
7
6
5
4
3
2
1

2

1

3

2

1

3

8
7
6
5
4
3
2
1

Left
XLR

Right
XLR

CHASSIS
GROUND

RJ-45 #2

JU3

JU1

RJ-45 #1

JU2

JU4

CHASSIS
GROUND

CHASSIS
GROUND

L & R XLR feed both RJ45’s in stereo.

1

2

Right
XLR

CHASSIS
GROUND

Left
XLR

3

1

2

3

CHASSIS
GROUND

JU1

JU3

8
7
6
5
4
3
2
1

RJ-45 #1

CHASSIS
GROUND

JU4

JU2

8
7
6
5
4
3
2
1

RJ-45 #2

When programmed for Mono Operation:

Left XLR feeds RJ45-1, pins 1 & 2 only.
Right XLR feeds RJ45-2, pins 1 & 2 only.

8
7
6

JU1

JU3

5
4
3
2
1

RJ-45 #1

Right
XLR

CHASSIS
GROUND

Left
XLR

2

CHASSIS
GROUND

1

3

CHASSIS
GROUND

Revised 4-21-10

8
7
6

JU2

JU4

5
4
3
2
1

RJ-45 #2

1

2

3

CHASSIS
GROUND

To configure for stereo operation

JU5

JU6

JU7, JU8, JU9, JU10

XLR PIN1 select jumper

Install JU3 to connect
Left XLR pin 1 to chassis ground

Install JU4 to connect
Right XLR pin 1 to chassis ground

StudioHub+ RJ45 “A” for mono only
or stereo operation

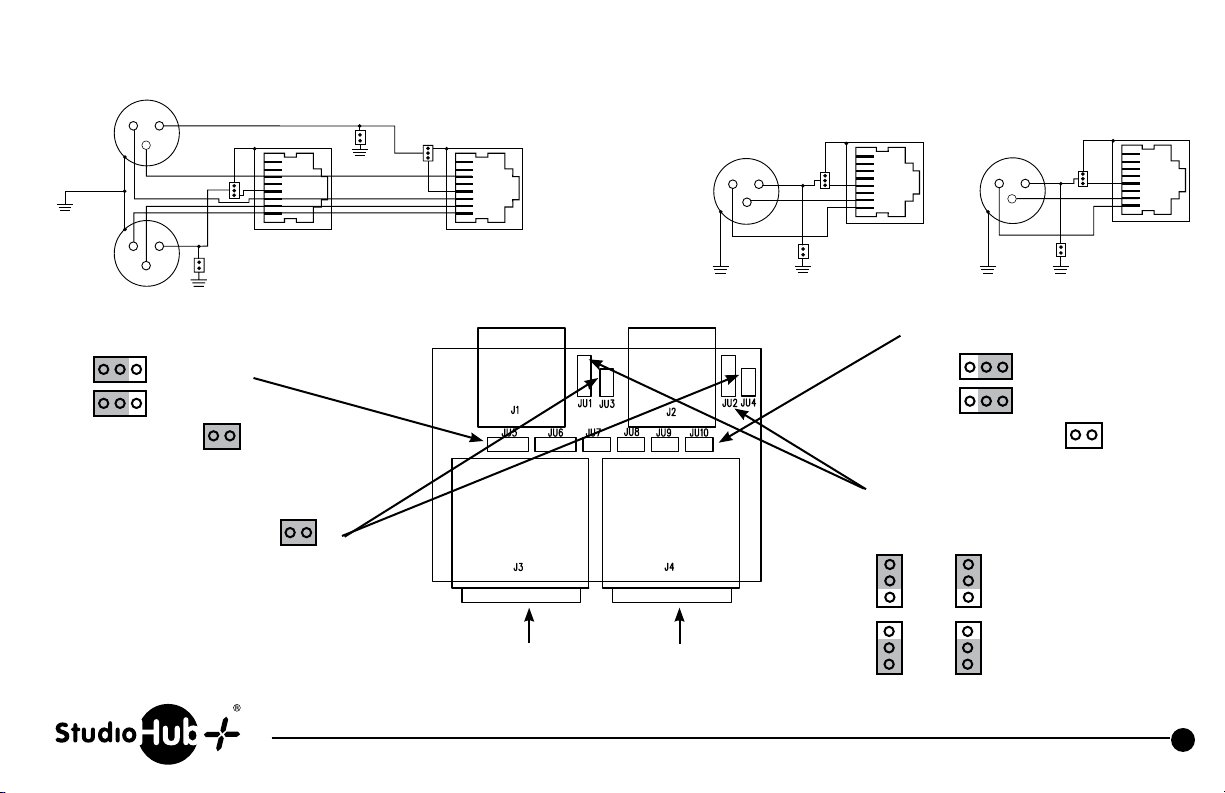

Part # SH-2XLRF StudioHub+ Dual XLR Female Adapter Mono/Stereo

StudioHub+ RJ45 “B”
for stereo operation

[phone] • Fax [phone] • www.studiohub.com

To configure for mono operation

JU5

JU6

JU7, JU8, JU9, JU10

RJ45 shield and ground select jumpers

Left Right

JU1 JU2

Install to connect
XLR Pin 1 to RJ-45 shield

JU1 JU2

Install to connect
XLR Pin 1 to RJ-45
power ground (RJ-45 pin 4)

13

When programmed for stereo operation:

8
7
6
5
4
3
2
1

2

1

3

2

1

3

8
7
6
5
4
3
2
1

Left
XLR

Right
XLR

CHASSIS
GROUND

RJ-45 #2

JU3

JU1

RJ-45 #1

JU2

JU4

CHASSIS
GROUND

CHASSIS
GROUND

L & R XLR feed both RJ45’s in stereo.

1

2

Right
XLR

CHASSIS
GROUND

Left
XLR

3

1

2

3

CHASSIS
GROUND

JU1

JU3

8
7
6
5
4
3
2
1

RJ-45 #1

To configure for stereo operation

JU5

JU6

JU7, JU8, JU9, JU10

XLR PIN1 select jumper

Install JU3 to connect
Left XLR pin 1 to chassis ground

Install JU4 to connect
Right XLR pin 1 to chassis ground

JU4

JU2

CHASSIS
GROUND

8
7
6
5
4
3
2
1

RJ-45 #2

StudioHub+ RJ45 “A” for mono only
or stereo operation

Part # SH-2XLRM StudioHub+ Dual XLR Male Adapter Mono/Stereo

When programmed for mono operation:

Left XLR feeds RJ45-1, pins 1 & 2 only.
Right XLR feeds RJ45-2, pins 1 & 2 only.

8
7
6

JU1

JU3

5
4
3
2
1

RJ-45 #1

Right
XLR

Left
XLR

2

CHASSIS
GROUND

1

3

CHASSIS
GROUND

To configure for mono operation

JU5

JU6

JU7, JU8, JU9, JU10

RJ45 shield and ground select jumpers

Left Right

JU1 JU2

JU1 JU2

JU1 JU2

StudioHub+ RJ45 “B”
for stereo operation

[phone] • Fax [phone] • www.studiohub.com

2

CHASSIS
GROUND

Revised 4-21-10

8
7
6

JU2

JU4

5
4
3
2
1

RJ-45 #2

1

3

CHASSIS
GROUND

Install to connect
XLR Pin 1 to RJ-45 shield

Install to connect XLR Pin 1
to RJ-45 power ground
(RJ-45 pin 4)

14

Revised 4-21-10

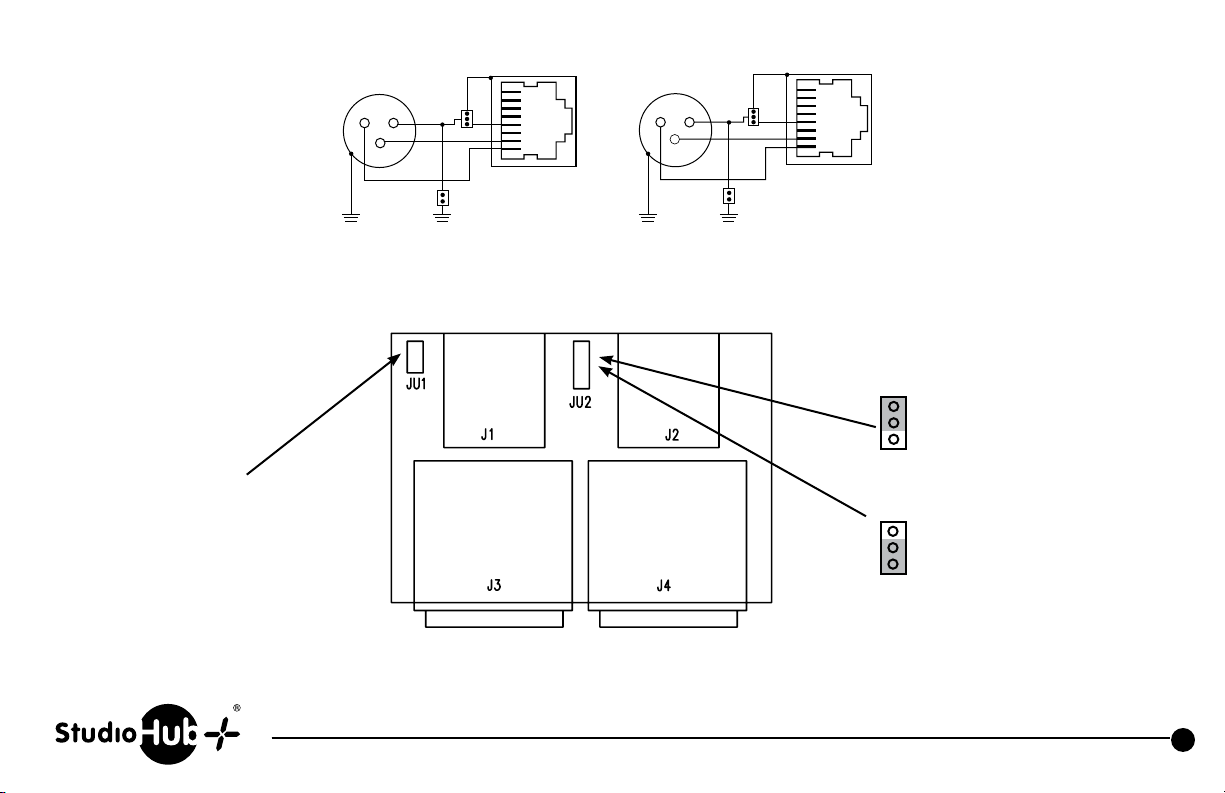

Install JU1 to connect XLR(s)
pin 1 to chassis ground

Female
XLR

2

CHASSIS
GROUND

JU1

8
7
6
5
4
3
2
1

RJ-45 #2

8
7
6

JU2

1

3

5
4
3
2
1

Male
XLR

2

3

JU2

1

RJ-45 #1

JU1

CHASSIS
GROUND

CHASSIS
GROUND

CHASSIS
GROUND

RJ45-1 RJ45-2

JU2

Install to connect XLR(s) pin 1
to StudioHub+ RJ45 shield

JU2

Install to connect XLR(s) pin 1
to StudioHub+ RJ45
power ground (RJ-45 pin 4)

Female XLR Male XLR

Part# SH-2XLRMF StudioHub+ Dual XLR Male/Female Panel

[phone] • Fax [phone] • www.studiohub.com

15

Revised 4-21-10

(Note - There is a stereo only version of this product.

See www.studiohub.com/legacyproducts)

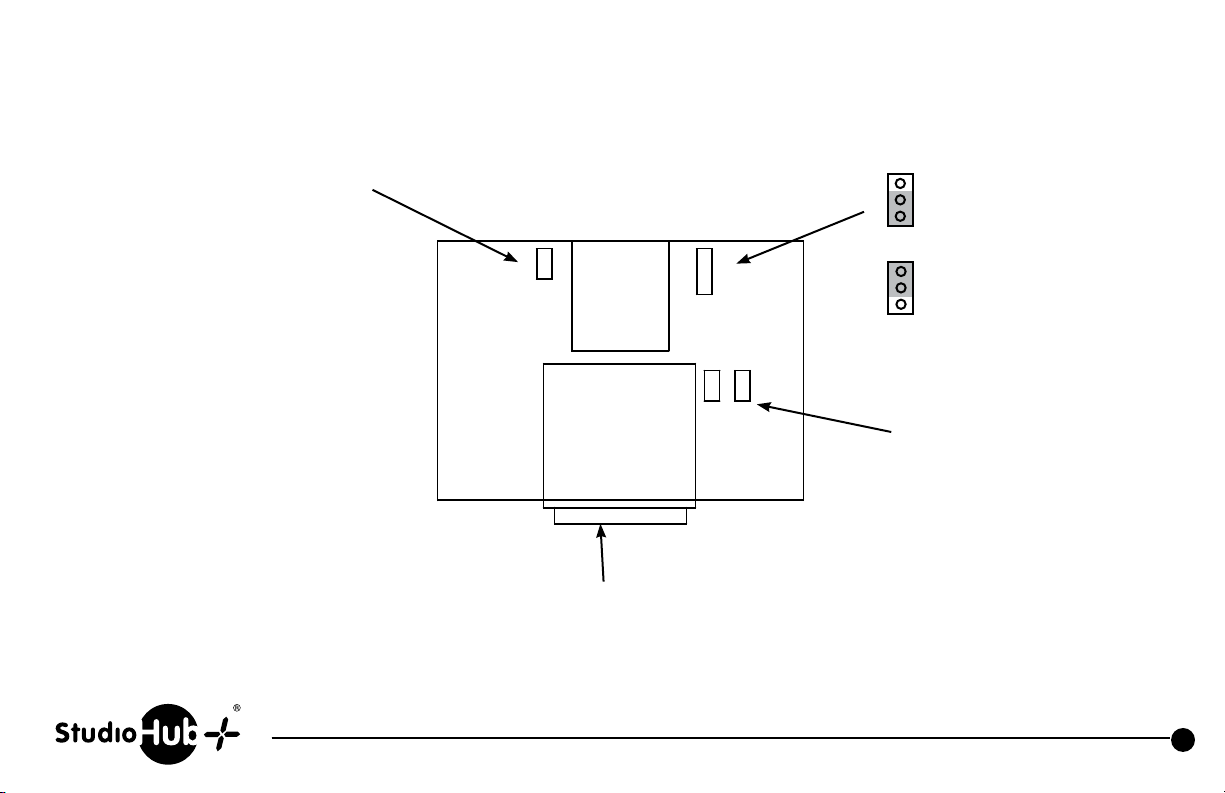

JU1

Install to connect XLR pins to chassis ground

STUDIOHUB+

F XLR TO RJ45

JU2

Install to connect XLR pins to
power ground

JU2

JU1

J1

JU4JU3

Install to connect XLR pin 1 to
shield ground

JU3, JU4

J2

Install for left and right in parallel
Remove for left only

XLR

Part # SH-1XLRF StudioHub+ Single XLR Female Panel

[phone] • Fax [phone] • www.studiohub.com

16

Revised 4-21-10

(Note - There is a stereo only version of this product.

See www.studiohub.com/legacyproducts)

JU1

Install to connect XLR pins to chassis ground

STUDIOHUB+

M XLR TO RJ45

JU2

Install to connect XLR pins to
power ground

JU2

JU1

J1

JU4JU3

Install to connect XLR pin 1 to
shield ground

JU3, JU4

J2

Install for left and right in parallel
Remove for left only

XLR

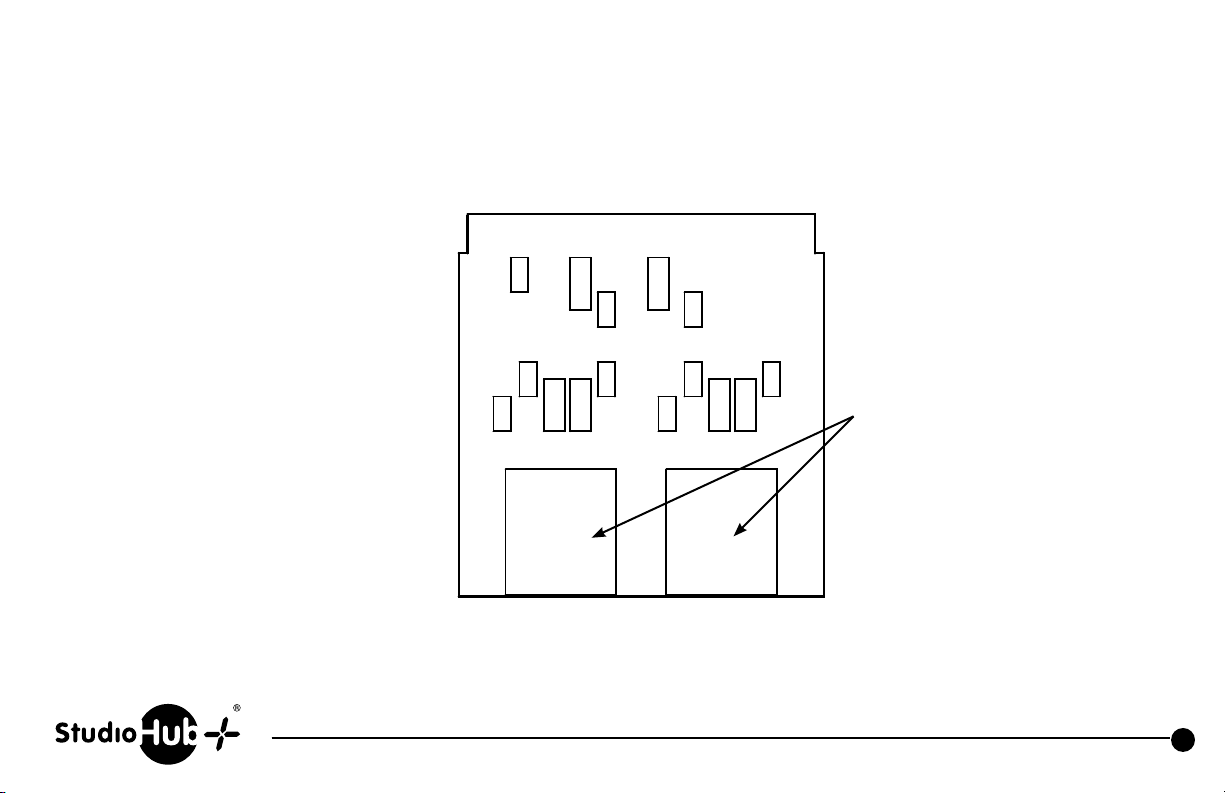

Part # SH-1XLRM StudioHub+ Single XLR Male Panel

[phone] • Fax [phone] • www.studiohub.com

17

Install to connect external power
to light mic boom LED (5-15VDC)
via pins 3 & 4 on barrier
strip connector

JU3

Install to connect external power
to light mic boom LED (15VDC)
via pin 8 of RJ-45 when connected
to a standard StudioHub+ powered
Cube or Hub.

5-Pin XLR Pin Out

1 - Ground
2 - Audio +
3 - Audio –
4 - LED –
5 - +DCV

NOTE: Unused StudioHub+ RJ-45 pin 5 (CAT-5 wht/blu wire) is
connected to light mic boom LED when connected to ground
(DC voltage must be provided either via barrier strip pin 4 or
StudioHub+ pin 8. Program JU3 accordingly).

Gnd

+5-15VDC

Gnd

Pull-to-Gnd to

light LED

5-Pin XLR

(Mating 5-pin male in-line male

XLR connector included)

Part # SH-1XLRF

Modified 6-18-14

JU4

Install to connect XLR pins to
XLR chassis ground

JU1, JU2

Install both jumpers to apply left
and right mic audio in parallel on
RJ-45 connector (StudioHub+
standard pins 1 & 2 for left, and
pins 3 & 6 for right). Remove both
jumpers to apply mic audio to left
channel only.

Made for Yellowtec Mic Arms

5

Pin StudioHub+ Single XLR 5Pin Female Panel

[phone] • Fax [phone] • www.studiohub.com

18

Revised 4-21-10

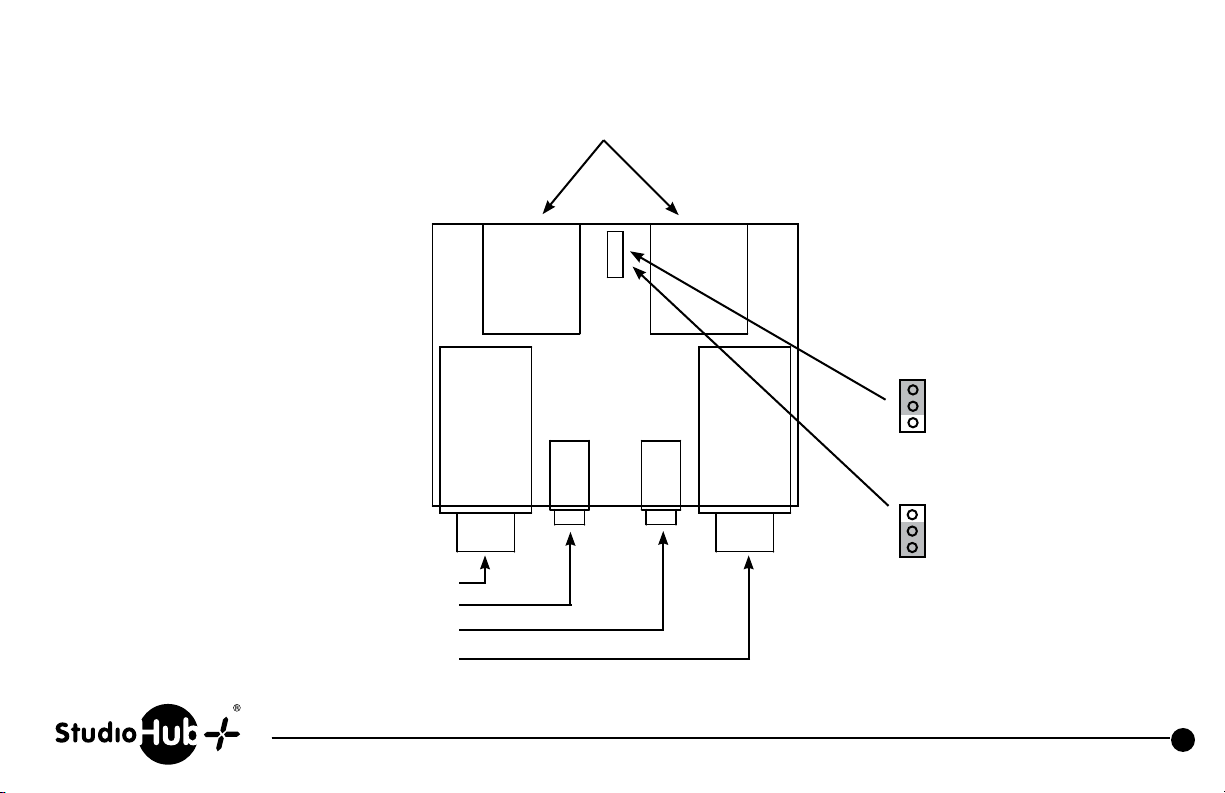

JU1 and JU2*
Install to tie StudioHub+ RJ45 right - connection to StudioHub+ shield.

Install to tie StudioHub+ RJ45 right - connection to StudioHub+ power ground.

JU3 and JU4*

Install to tie StudioHub+ RJ45 left - connection to StudioHub+ shield.

Install to tie StudioHub+ RJ45 left - connection to StudioHub+ power ground.

JU5 and JU6*

Install to tie 1/4” and mini TRS sleeve to StudioHub+ RJ45 shield.

Install to tie 1/4” and mini TRS sleeve to StudioHub+ RJ45 power ground.

*Improper use of JU1, JU2, JU3, JU4 may result in no output, excessive noise,
crosstalk, oscillation, or circuit failure.

Stereo unbalanced 1/4”

1/4” and mini TRS wiring

Tip = Left + StudioHub+ RJ45 connection

Ring = Right StudioHub+ RJ45 connection

Stereo unbalanced mini TRS

1/4” and mini TRS J3 and J5 are in

parallel. Use only one at a time.

Sleeve = See JU5 and JU6

Stereo unbalanced StudioHub+
RJ45. Signal to/from J3 and J5

STUDIOHUB+

UNBAL WORLD

GND

SHLD

J1

JU3

J5

SHLD

R-

JU1 JU2

L-

SLV

JU5

J4J3

GND

JU4

J6

JU6

1/4” and mini TRS J4 and J6 are in
parallel. Use only one at a time.

Stereo unbalanced StudioHub+
RJ45. Signal to/from J4 and J6

J2

Stereo unbalanced 1/4”

Stereo unbalanced mini TRS

Part # SH-1/4UNBAL StudioHub+ 1/4” & Mini TRS Panel (Unbalanced)

[phone] • Fax [phone] • www.studiohub.com

19

2 Stereo StudioHub+ RJ45(s) in parallel

Revised 4-21-10

1/4” TRS & mini TRS, (J3/J4 and
J5/J6) are in parallel. Use only one
at a time.

Left balanced 1/4”TRS

Left balanced mini TRS
Right balanced mini TRS
Right balanced 1/4” TRS

1/4” mini TRS
(J3, J4, J5, J6) wiring

JU1

Tip = +
Ring = —
Sleeve = See JU1 pinouts below

J1

J5

1/4" AND MINI TRS

STUDIOHUB+

J6

J2

JU1 (upper pins)

Install to connect sleeve of
all 1/4” and mini jacks to

J4J3

StudioHub+ RJ45 shield

JU1 (lower pins)

Install to connect sleeve of
all 1/4” and mini jacks to
StudioHub+ RJ45
power ground

Part # SH-1/4BAL StudioHub+ 1/4” & Mini TRS Panel (Balanced)

[phone] • Fax [phone] • www.studiohub.com

20

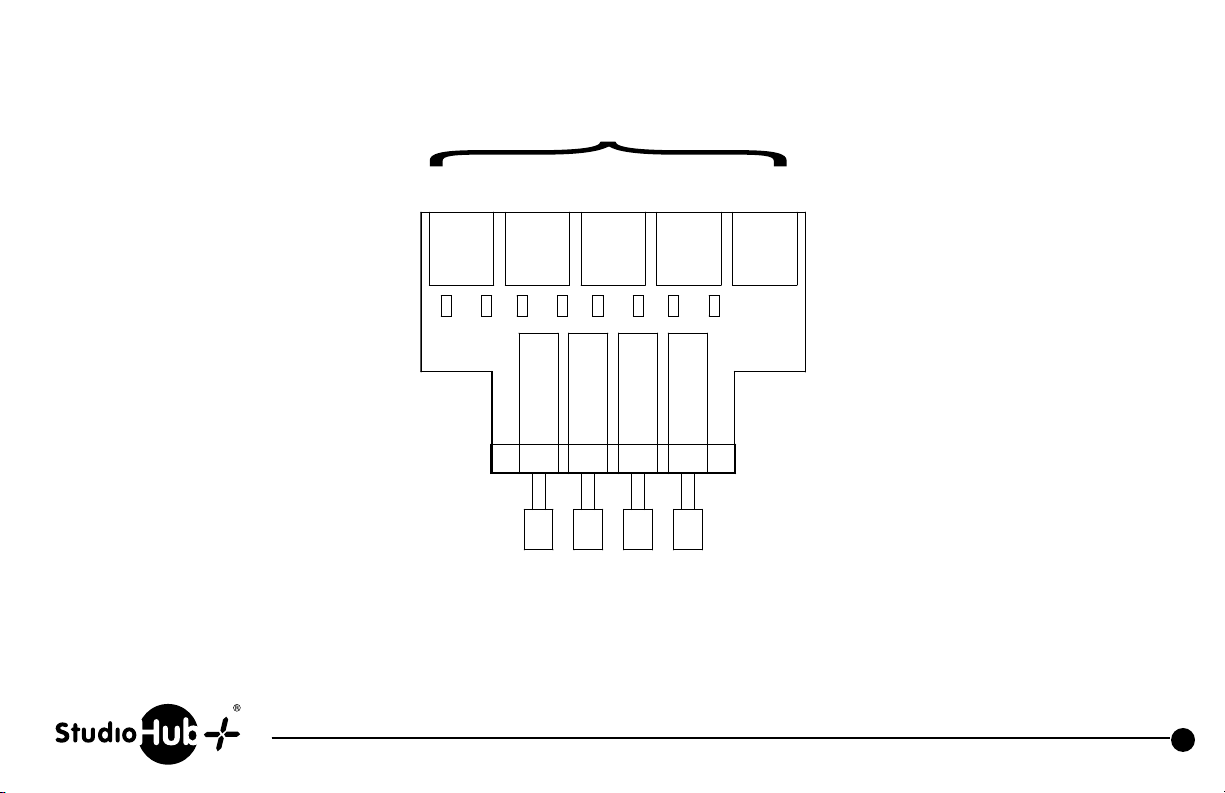

Jumpers JU1-JU8 tie +15volt and –15volt
from input RJ45(s) to the output RJ45 J5

Stereo StudioHub+ RJ45

input 1 input 2 input 3 input 4 output

Revised 01-02-13

Note:

This part obsolete as of
September 2012.

Replaced by active model
SH-4SWA

JU1 –15volts input 1
JU2 +15volts input 1
JU3 –15volts input 2
JU4 +15volts input 2
JU5 –15volts input 3
JU6 +15volts input 3
JU7 –15volts input 4
JU8 +15volts input 4

STUDIOHUB+

FOUR SELECT BOARD

J2J1

SW1

J3

1 2 3 4

Input selects

J4

J5

JU8JU7JU6JU5JU4JU3JU2JU1

(Obsolete Part) SH-4SW StudioHub+ 4 Source Switcher Panel

[phone] • Fax [phone] • www.studiohub.com

21

These internal buses and jumpers allow
+15volts, –15volts and shield to be connected
from the two studioHub+ RJ45(s) and the termi­nal block.

A circuit path requires at least two jumpers.

JU1 install to tie terminal block shield
to internal shield bus.

JU2 install to tie terminal block –15volts
to internal –15volt bus.

JU3 install to tie terminal block +15volts
to internal +15volt bus.

JU4 install to tie StudioHub+ RJ45 J2
+15volts to internal +15volt bus.

JU5 install to tie StudioHub+ RJ45 J2
–15volts to internal –15volt bus.

JU6 install to tie StudioHub+ RJ45 J3
+15volts to internal +15volt bus.

JU7 install to tie StudioHub+ RJ45 J3
–15volts to internal –15volt bus.

JU8 install to tie StudioHub+ RJ45 J2
shield to internal shield bus.

JU9 install to tie StudioHub+ RJ45 J3
shield to internal shield bus.

SHIELD

JU8

J2

JU1

+15V

Revised 4-21-10

J1

-15V
JU7

2 StudioHub+ RJ45 with

R6

pins below in parallel

1. Left + or AES/EBU+

-15V

-15V
JU5

R4

R2

JU3JU2

+15V

JU6JU4

+15V

SHIELDSHIELD

JU9

R5

R1

R3

2. Left – or AES/EBU–

3. Right +

6. Right –

4. Power Ground

STUDIOHUB+ BREAKOUT

J3

5. Future

Part # ADAPT-BO StudioHub+ Breakout Adapter

[phone] • Fax [phone] • www.studiohub.com

22

••••••••••••••••

Revised 3-30-11

RJ-45 ADAPT-GPI Pin Out for
Wheatstone BLade GPIO

RJ-45 Pin1- Audio Ground
RJ-45 Pin2- Logic 7 In/Out
RJ-45 Pin3- Logic 8 In/Out
RJ-45 Pin4- Logic 9 In/Out
RJ-45 Pin5- Logic 10 In/Out
RJ-45 Pin6- Logic 11 In/Out
RJ-45 Pin7- Logic 12 In/Out
RJ-45 Pin8- +5V Digital

J2

RJ-45 #2 (J2)

Pins 1-8

8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1

J1

J3

RJ-45 #1 (J1)

Pins 1-8

STUDIOHUB+ ADAPT-GPI

Part # ADAPT-GPI StudioHub+ Breakout Adapter

[phone] • Fax [phone] • www.studiohub.com

23

Revised 01-02-13

AudIn

AudIn

AudIn

AudIn

Ch. 1

Ch. 2

Ch. 3

Ch. 4

Notes:

Power is added to audio
connections and available
on the 4 output RJ-45’s (J1-J4).
The four stereo audio feeds
are kept seperated and
isolated.

Channels are independent,
isolated and independently
fused with self resetting
thermal fuses.

Power Supply
+/-15v In (or) Out
Max power provided 3 amps.

PS-EXTU Power Connector.

Allows P/N PS-EXTU wall-top
power supply to provide power.
Max power provided 3 amps.

J5

Powered-Side Feed to Devices

Aud Out
Pwr Out

R1

J1 J2 J3 J4

R2

+15V

-15V

G

n/c

Aud Out
Pwr Out

R3 R4 R5 R6 R7 R8

Aud Out

Pwr Out

Aud Out
Pwr Out

n/c

G

-15V

+15V

J7 J8 J9 J10

Ch. 1

Ch. 2

Ch. 3

Non-Powered Input Side

Ch. 4

PS-WW Cube Power Connector.

Allows P/N PS-WWCube or
PS-WWUCube desktop power
supply to provide power.
Max power provided 400 ma.

Power Supply
+/-15v In (or) Out.
Max power provided 3 amps.

J6

Loop-Thru Power Connector.

Power supply cable P/N 11516
(1 ft.) required. Contact the
factory to acquire at no charge
if needed.

Part # PS-CUBE StudioHub+ “DC-Link” Power Inserter

[phone] • Fax [phone] • www.studiohub.com

24

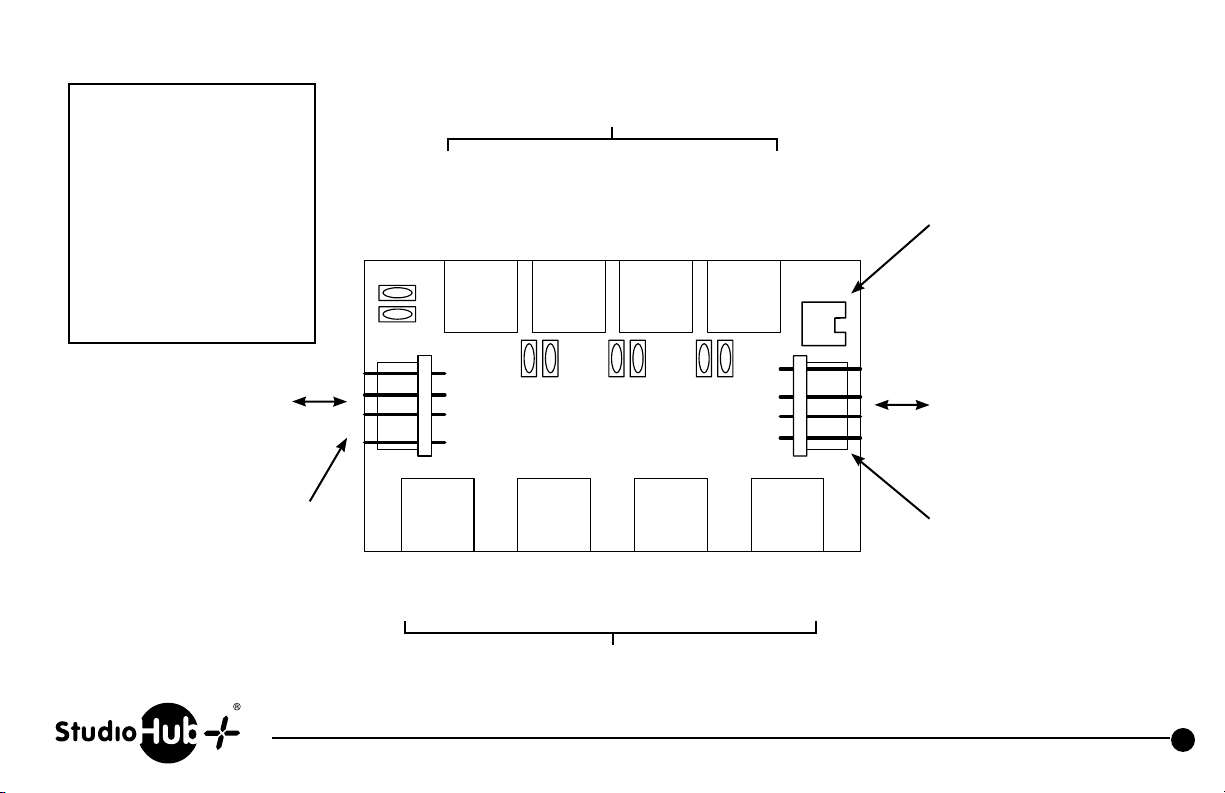

StudioHub+ 4 Source Switcher

The SH-4SHSS is an active
device and must be
powered via +/- 15VDC.
Power flows via StudioHub+
“DC-Link” if connected to any
Cat-5 cable with +/- 15VDC
active on Pins 7&8. Or, utilize
optional power supply is
part # PS-WWUSH.

Input selects will be
maintained in the event
of a power failure.

Input select switches may
be remote controlled via pins
on connector J4.

The unit is fully bidirectional
and may switch
4 inputs to 1 output or
1 input to 4 outputs

This circuit board is packaged
alone for single 1x4 use, or up to
4 maybe interconnected for up
to a 1x16 switching application.

I/O B I/O A I/O 4

(I/O A & I/O B are in parallel)

J3

JU2

PWR

J8

JU1

1234G

LOGIC OUTPUT

JU6JU5JU4JU5

1 2 3 4

Special Purpose Logic Output J8
(Special PROM required)

1 +5VDC
2 NC

4 Pull to Ground #2
5 GND

3 Pull to Ground #1

I/O 3 I/O 2 I/O 1

JU7

PGM

ONLY

J5

J6

Daisy
Chain

Part #

Revised 07-22-15

(Note - There are older versions of this product.

See www.studiohub.com/legacyproducts)

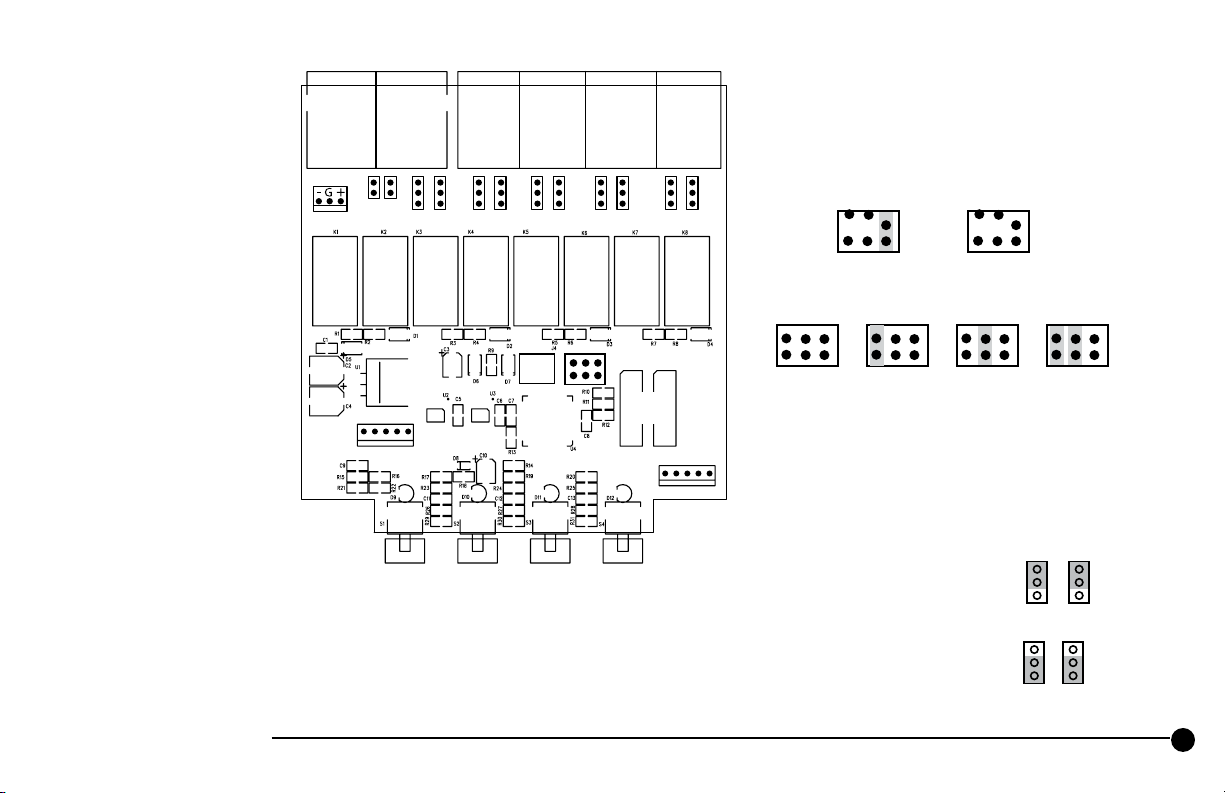

J5 – Programing

(Note- power must be cycled for mode change)

JU12JU11 JU10JU9JU8

J7

1234G

Install C for
momentary

operation

(default)

a b c

Supports

1 SH-4SHSS

board

a b c

4 switches

total

Supports

2 SH-4SHSS

a b c a b c a b c

8 switches

Shielding Jumpers:

boards

total

Remove C for

holding

operation

a b c

Supports

3 SH-4SHSS

boards

12 switches

total

Supports

4 SH-4SHSS

boards

16 switches

total

JU1 – insert to connect power ground to chassis ground
JU2 – insert to connect power ground to shield

Mono/Stereo Jumpers JU5-JU12:

Stereo

To make inputs stereo set
both jumpers to upper position

To make inputs mono set

Mono

both jumpers to lower position

SH-4SWSS StudioHub+ 4 Source Switcher Panel

[phone] • Fax [phone] • www.studiohub.com

25

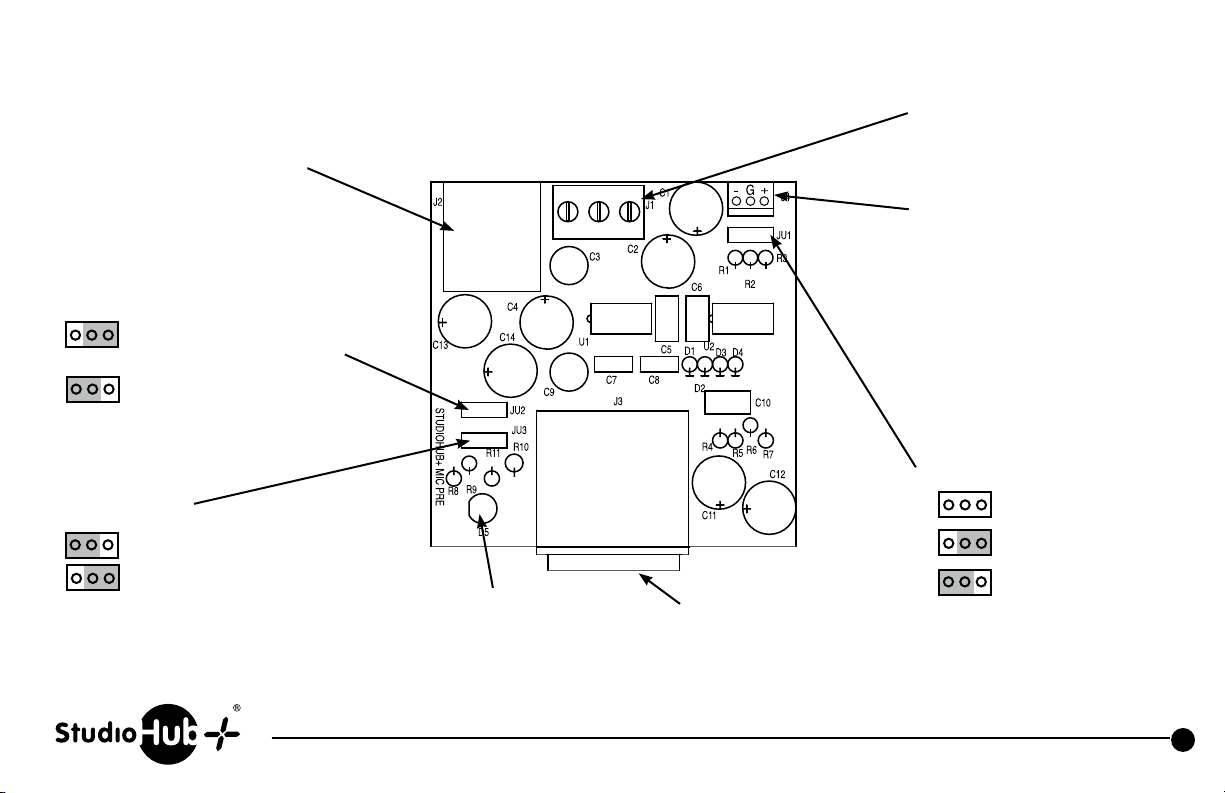

3 2 1

StudioHub+ RJ45 Output and power in.
Output appears on both left (1 & 2) and
right (3 &6) connector pins

JU2

XLR pin 1 select

Install to connect XLR pin 1
to RJ-45 shield.

Install to connect XLR pin 1
to power ground & J1 pin 3

Power Ground

Output –

Revised 05-06-09

Output +

Output Audio

Direct power input
+/- 15 volts DC

JU3

Phantom Power

Off

On (+15 Volts)

Power LED

XLR Microphone input

Part # SH-MIC StudioHub+ Mic Preamp Panel

[phone] • Fax [phone] • www.studiohub.com

JU1 Gain

26dB

46dB

66dB

26

Revised 07-22-15

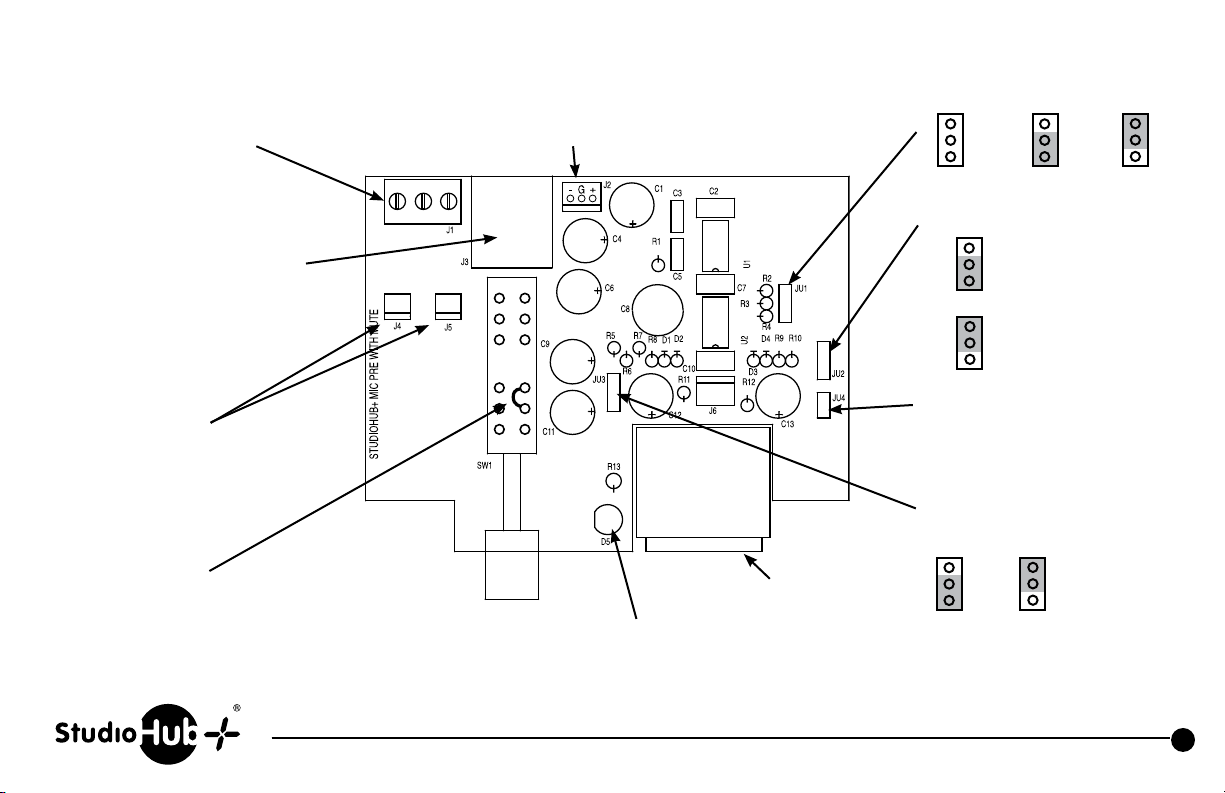

Output audio provided on
barrier strip

StudioHub+ RJ45 Output and power in.
Output appears on both left (1 & 2)
and right (3 &6) connector pins

JU1 & JU2

Isolated dry N. O.
switch contacts

Install jumper to
defeat push to talk
(on/off switching of mic output)

Also Available with no preamplification Part # SH-MICPTTPAS StudioHub+ Mic Connector w/PTT Panel

Shield Ground

Output +

Output –

Push to talk

Note: Specify on order
Push On/Push Off or
momentary operation

Direct power input
+/- 15 volts DC

Switch “pushed” LED

Part # SH-MICPTT StudioHub+ Mic Preamp w/PTT Panel

XLR Microphone input

[phone] • Fax [phone] • www.studiohub.com

JU1 Gain

26dB 46dB 66dB

JU2 XLR pin 1 select
Install to connect

XLR pin 1 to
shield ground

Install to connect
XLR pin 1 to
power ground

JU4

Install to connect XLR pin 1
to chassis ground

JU3

Phantom Power
Off On (+15 volts)

27

Revised 11-28-12

(Note - There are older versions of this product.

See www.studiohub.com/legacyproducts)

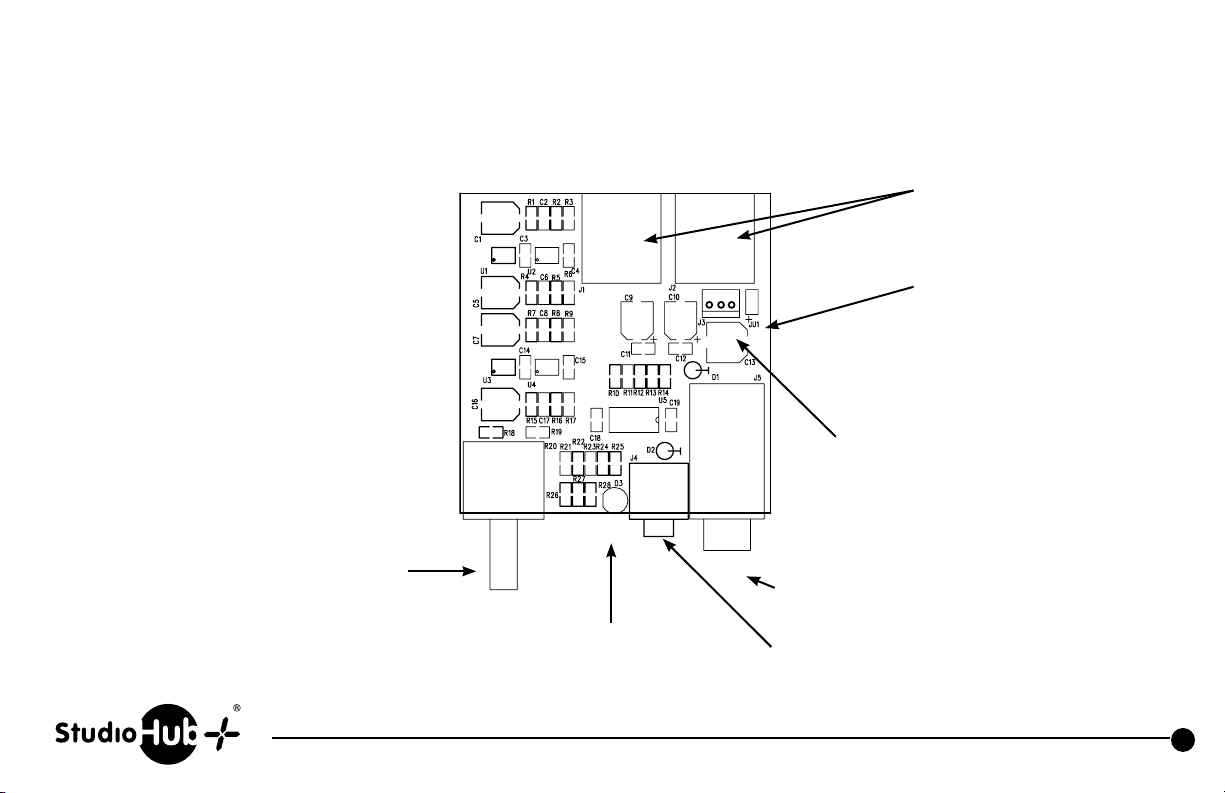

2 StudioHub+ RJ45
input and power on
connectors in parallel

Headphone level

Blue Power LED

G

+

-

JU1
Install to connect shield
ground to power ground

Direct power input
+/- 15 volts DC

1/4” headphone jack

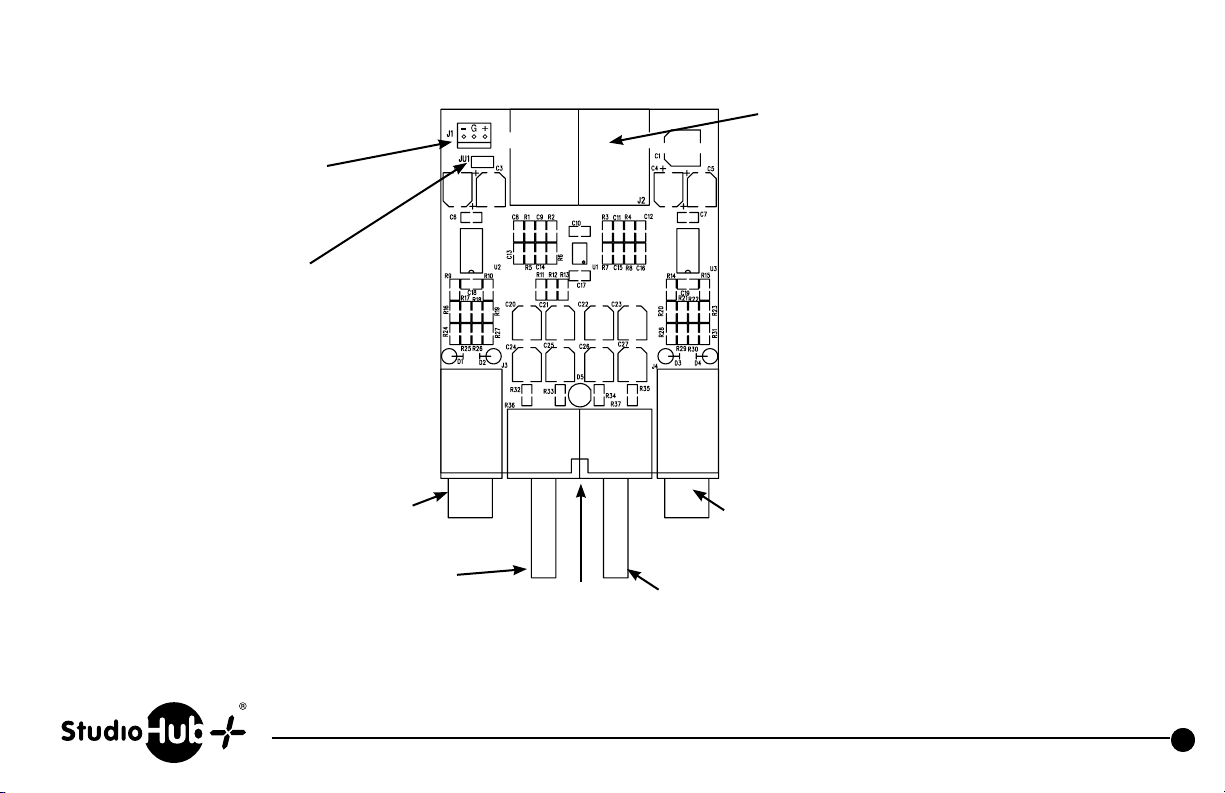

1/8” (mini) headphone jack

Part # SH-HPB StudioHub+ Headphone Amplifier Panel

[phone] • Fax [phone] • www.studiohub.com

28

J1 Direct power input
+/- 15 volts DC

JU1
Install to connect shield
ground to power ground

1/4” headphone jack
HP AMP #1

Revised 5-08-13

J2 Two StudioHub+ RJ45
input and power on
connectors in parallel

StudioHub+ Heaphone Amplifier
Dual Output Version

RJ-45 input jacks remain in
parallel (there is only 1 input.)

Each output is isolated and
at full power (with separate
output amplifier chips.)

Current consumption is 100ma.
All other specifications are
identical to single (SH-HP) model.

1/4” headphone jack
HP AMP #2

Headphone level
HP AMP #1

Power

LED

Headphone level
HP AMP #2

Part # SH-HPDUAL StudioHub+ Headphone Amplifier Dual Plate

[phone] • Fax [phone] • www.studiohub.com

29

Revised 4-21-10

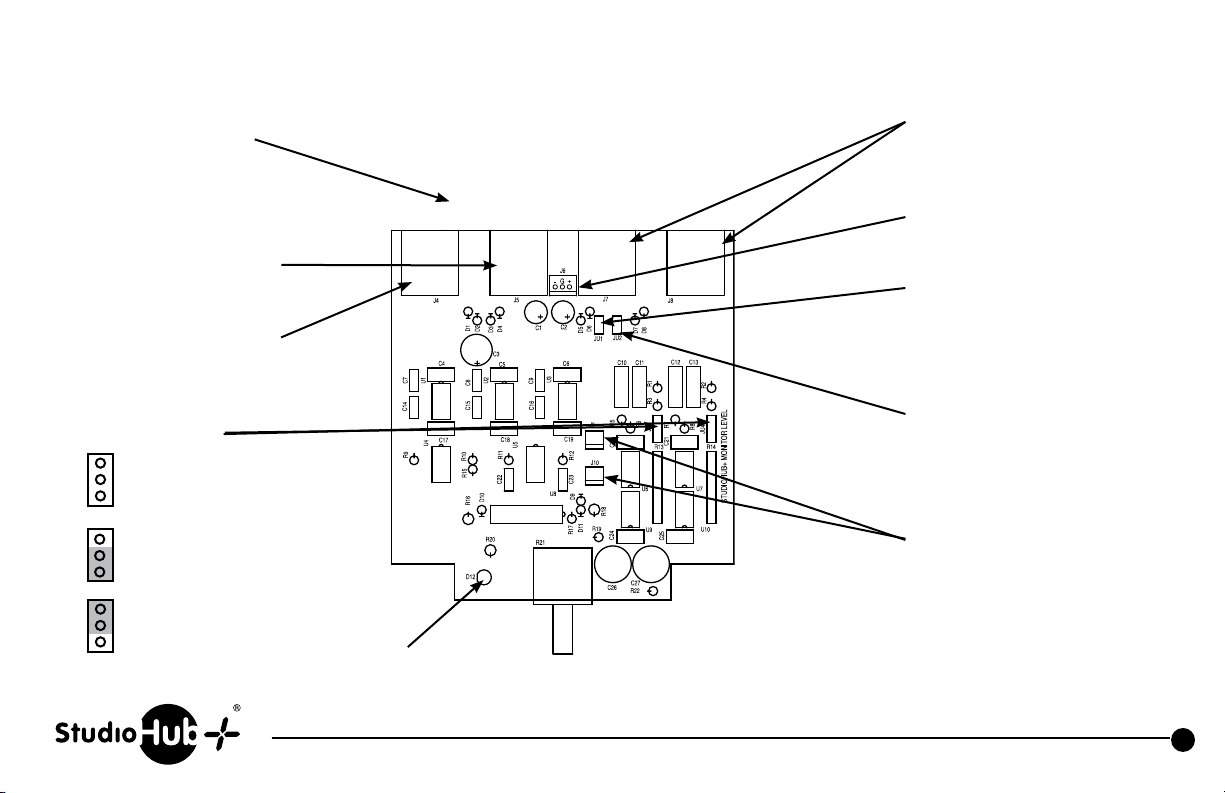

Audio and power input
provided on barrier strip

Stereo StudioHub+ RJ45(s)
stereo output and power in

Stereo StudioHub+ RJ45(s)
mono output and power in

JU3, JU4 gain select

Unity -
no jumper

+10dB

+20dB

2 StudioHub+ RJ45
input and power in
connectors in parallel

Direct power input
+/- 15 volts DC

JU1

Install to connect shield ground
and power ground

JU2

Install to connect shield ground
and chassis ground

JU9, JU10

2 mute control connectors in
parallel. Short the pins on either
connector together for mute

Power LED

Level

Part # SH-LEVEL StudioHub+ Monitor Level Control Panel

[phone] • Fax [phone] • www.studiohub.com

30

Revised 4-21-10

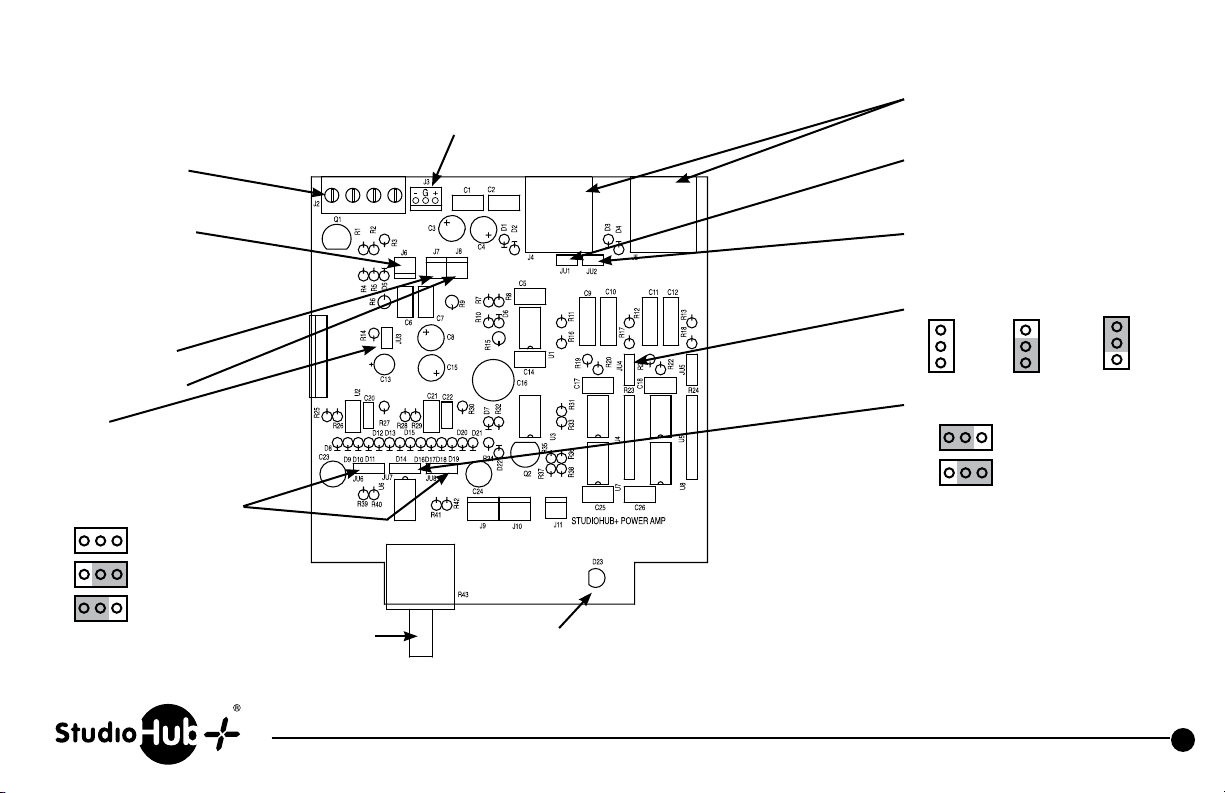

Speaker Outputs

JU6 Mute
Short these pins
together to mute

J7 Left speaker

J8 Right speaker

JU3
Install for stereo operation

JU6 and JU8 Power limit

Full power

Medium power

Low power

L
e

f
t

Level control

R

G

G

i

r

r

g

o

o

h

u

u

t

n

n

d

d

Direct power in
+/- 15 volts DC

2 StudioHub+ RJ45 Input and
power in connectors in parallel

JU1
Install to connect shield
ground to power ground

JU2
Install to connect shield
ground to chassis ground

JU4, JU5 Gain Straps
Unity +10dB +20dB
Gain

JU7 Mono - Stereo jumper
Stereo operation

Mono operation

Left output is a mix of left and
right inputs. Right output is muted

Signal
Present
LED

StudioHub+ Monitor Amp Panel

Part # SH-AMP w/o Speaker

Part # SH-AMPSPKR w/Speaker

[phone] • Fax [phone] • www.studiohub.com

31

Direct power input
+/- 15 volts DC

Top row/right row LED
level control

JU3

Top row/left row
LED input select.

Left input

Right input

Revised 4-21-10

2 StudioHub+ RJ45
Input and power in connectors
in parallel

Bottom row/right row LED
level control

JU1

Install to connect shield
ground to power ground

JU2

Install to connect shield
ground to chassis ground

JU4
Bottom row/right row LED
input select

Right input

Left input

Part # SH-VUV Dual VU Meter Panel (Vertical)

Part # SH-VUH Dual VU Meter Panel (Horizontal)

•

[phone]

Fax [phone] • www.studiohub.com

32

Direct power input
+/- 15 volts DC

Revised 4-21-10

StudioHub+ RJ45
input 1 and power in

Stereo StudioHub+ RJ45
input 2 and power in

Gain Straps (pre-fader)

JU3, JU4 Input 1

JU5, JU6 Input 2

JU7, JU8 Input 3

No jumper for unity gain
normal for +4dBu applications

+10dB gain

+20dB gain

StudioHub+ RJ45
Input 3 and power in

JU2

Install to connect shield
ground to chassis ground

JU1

Install to connect shield
ground to power ground

Part # SH-MIXER StudioHub+ 3 Mixer Panel (Input Board)

[phone] • Fax [phone] • www.studiohub.com

33

ASSEMBLY STAND ALONE 12103A

ASSEMBLY STUDIOHUB+ 12102A

StudioHub+ RJ45 main output.
Mix of inputs 1, 2 and 3.
Also power in

Revised 4-21-10

StudioHub+ RJ45mix minus output.
Mix of inputs 1 and 2 only.
Also power in

C7C6

U4

J3

D4

J1

C3

C1

C2

D1

J2

C11

D3

J4

U3

C10

C5C4

U2

C9

D2

U1

C8

R4

C23

C15

U6

C22

R3

C18 C19

C17

R2

U5

R1

C16

J7

J5 J6 J8

C21

C20

C14

C13

C12

J10

R16
R15

R14
R13

R19

R12
R11

R10
R9

R18

R8
R7

J9

R6
R5

R17

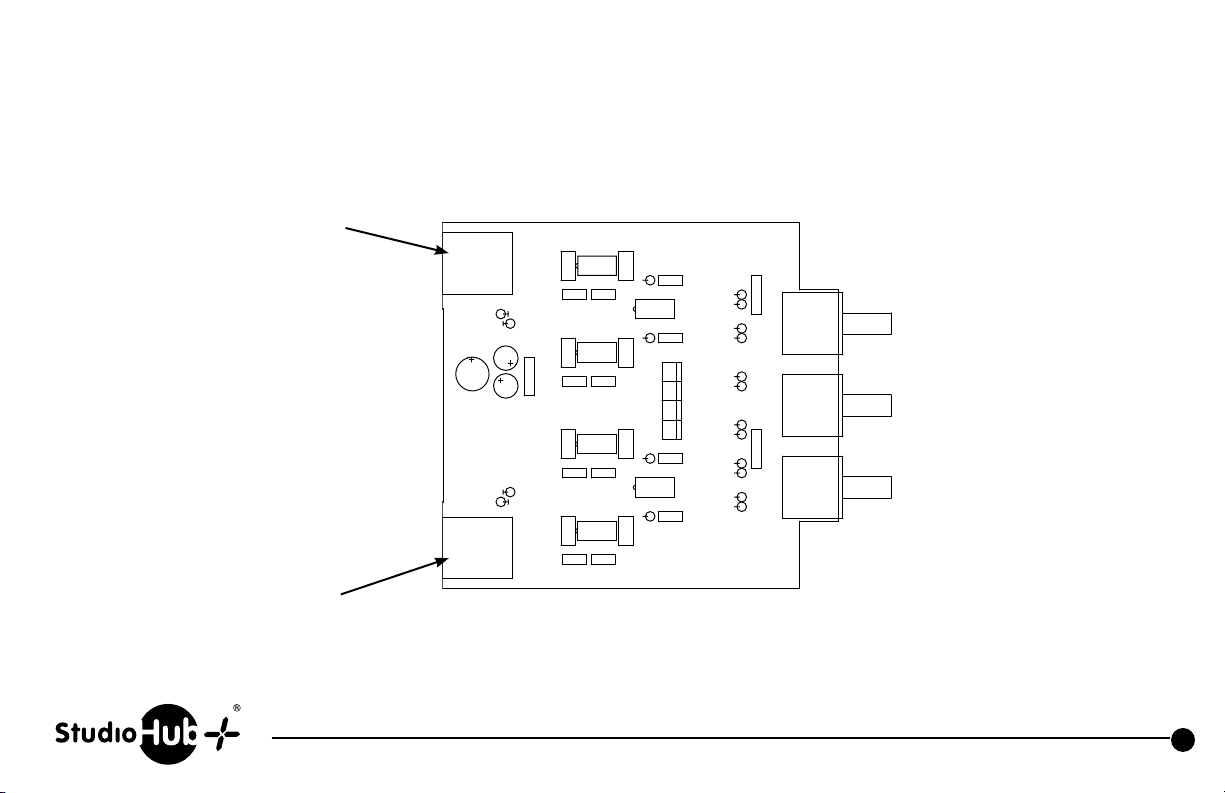

STUDIOHUB+ 3 MIXER OUTPUT

Input 3

mix level

Input 2

mix level

Input 1

mix level

Part # SH-MIXER StudioHub+ 3 Mixer Panel (Output Board)

[phone] • Fax [phone] • www.studiohub.com

34

Revised 4-21-10

JU1

Install to connect
shield ground to
chassis ground

JU2

Install to connect
shield ground to
power ground

JU3

Install/remove to
reverse direction of
rotary encoder

StudioHub+ RJ45 data input,
data output and power in.

Direct power input

+/- 15 volts DC

RJ-45 Pin-Outs Function
1 TxD+
2 TxD­3 RxD+
6 RxD­8 +15 volt
4 ground

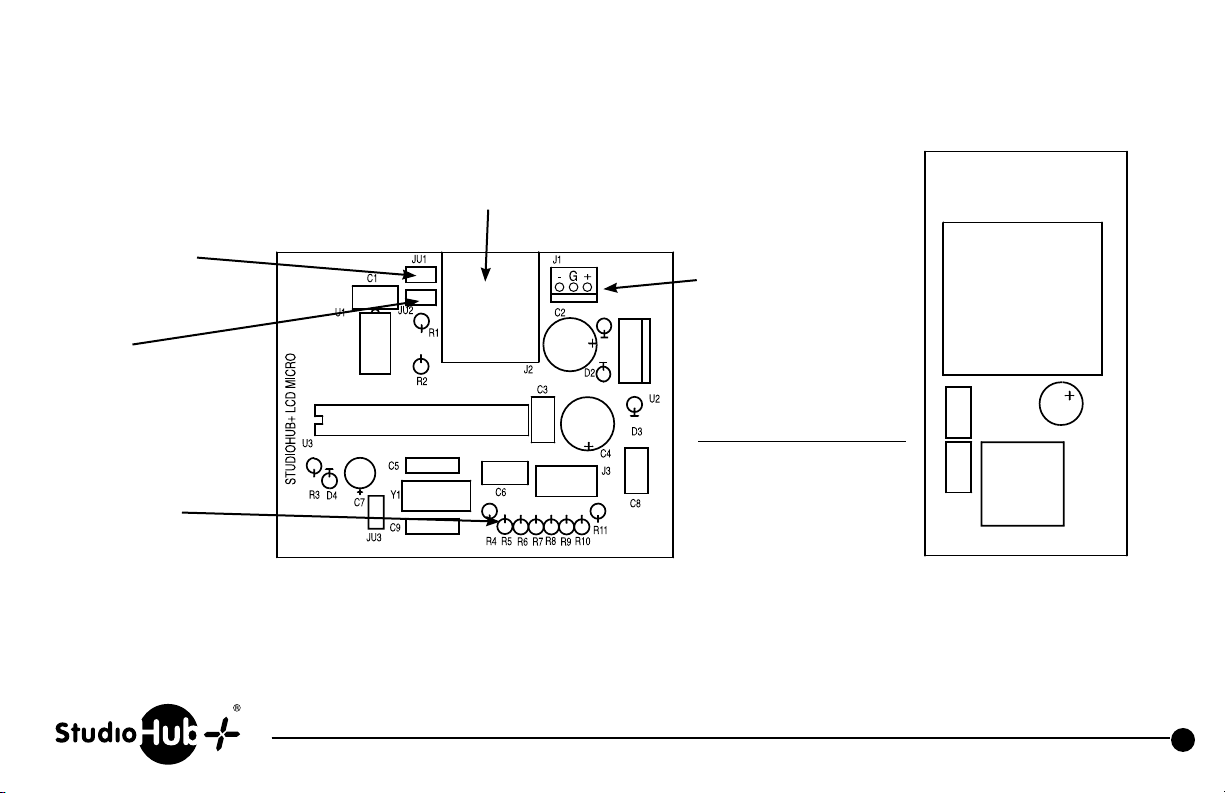

This board must be used in conjunction

with the LCD display board.

Part # SH-LCDV StudioHub+ Vertical LCD Controller Panel

Part # SH-LCDH StudioHub+ Horizintal LCD Controller Panel

STUDIOHUB+

LCD DISPLAY BOARD

Interface Pin-Outs

S1

C2

C3

C1

S2

This board to be used in conjunction

with the LCD micro board

[phone] • Fax [phone] • www.studiohub.com

35

Let Level

Right Level

Let Level

Revised 4-21-10

Audio in/out and power input
provided on RJ-45’s

Right Level

JU3

Install to connect shield
ground to chassis ground

Balanced

Output

and

Power In

Balanced

Input

and

Power In

Power LED

Left Right

Left Right

IHF Unbalanced Input IHF Unbalanced Output

Part # SH-DUALMATCH StudioHub+ In/Out Balanced Panel

[phone] • Fax [phone] • www.studiohub.com

J3
Direct power input
+/- 15 volts DC

JU1 and JU2

(install both the same)

Board power
from J5

Board power
from J4

JU4

Install to connect shield
ground to power ground

36

Created 9-28-11

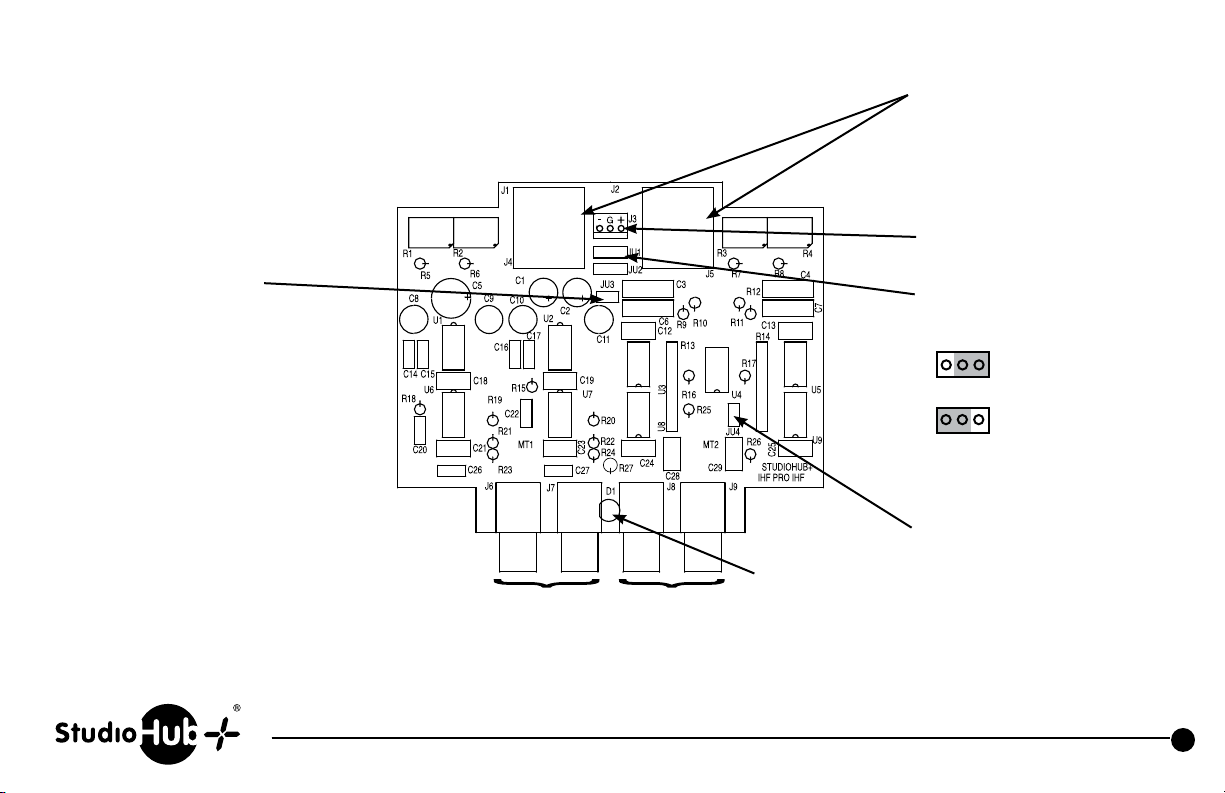

J1
Direct power input
+/- 15 volts DC

JU1

Install to connect shield
ground to chassis ground

Right Level

Let Level

1/8”
(mini) TRS
Phone IHF

Unbalanced

Input

Balanced

Input

and

Power

Left & Right

RCA

IHF

Unbalanced

Input

Balanced

Output

and

Power

1/8”
(mini) TRS
Phone IHF
Unbalanced
Output

Let Level

Left & Right
RCA
IHF
Unbalanced
Output

Right Level

Power LED

Audio in and out and StudioHub+
“DC-Link” +/- 15VDC power
provided on RJ-45’s

Part # SH-MATCHPANEL StudioHub+ In/Out Balanced Panel

[phone] • Fax [phone] • www.studiohub.com

37

Warranty

Radio Systems, Inc., warrants this equipment to be free from defects in materials and workmanship for a period of one (1) year.

This warranty extends to first users of the product and future owners who purchase the product within the warranty period.

The terms of this warranty are null and void if this product is stored or operated in an environment not conducive to electronic equipment, or shows
signs of misuse or modifications which affect the proper functioning of the product. This warranty does not apply to damage caused by fire, smoke,
flood, lightning, or acts of nature and physical abuse.

Radio Systems, Inc., and its associated companies, authorized distributors, and personnel are not liable for loss of revenues or other damages, or
effects to the broadcast signal quality or coverage which may result from the from the improper functioning of this product.

Repair Policy

Technical assistance is available at any time, at no charge, by phone or correspondence.

During the warranty period, there will be no charge for parts or service made to units which show no sign of misuse by customer or lightning caused
damage. The customer is responsible for the cost of shipping their unit back to Radio Systems for repair.

During the warranty period, shipment of small parts and assemblies may also be made at a charge to the user. Emergency shipments of replacement
parts and circuits will be made at the user’s request for an extra shipping and service charge. Chargeable services will be made COD or on Net-30 day
terms to users with established accounts.

During the warranty period, full credit or return of COD charges (less any service and expedited shipping charges) will be made to users who return the

defective parts or circuits within 30 days, if the damage is covered under the terms of the warranty.

Return Instructions

Contact Radio Systems for a return authorization number.
Pack all items carefully and ship prepaid, via UPS insured, to: Radio Systems, Inc.

Attn: R.A. # __________
601 Heron Drive
Logan Township, New Jersey 08085-1741

Enclose a note which includes your name, company, phone number, the serial number, return address (no box numbers),
and a complete description of the problem.

[phone] • Fax [phone] • www.studiohub.com

Revised 07-22-2015

601 Heron Drive • Logan Township, New Jersey 08085 • [phone] • Fax [phone]

www.studiohub.com • www.radiosystems.com
