The Desk You Deserve

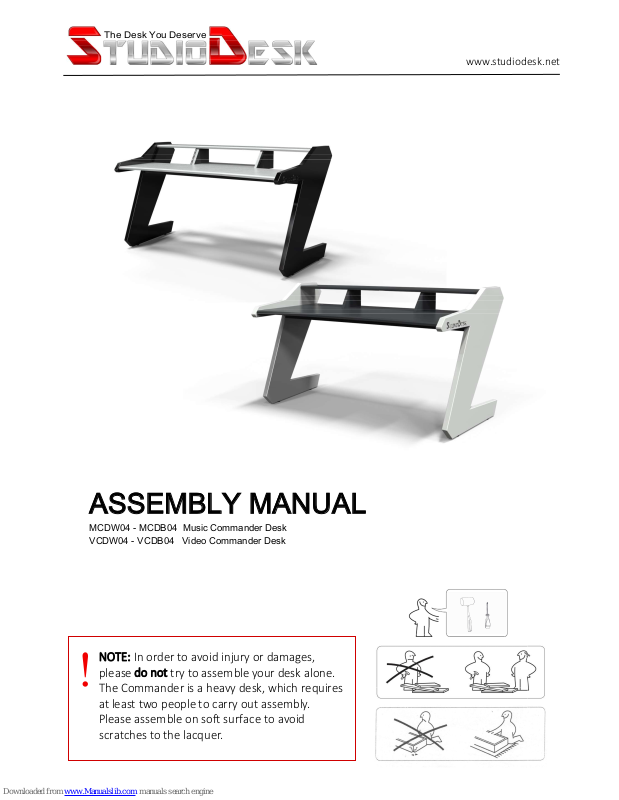

ASSEMBLY MANUAL
MCDW04 - MCDB04 Music Commander Desk
VCDW04 - VCDB04 Video Commander Desk
NOTE: In order to avoid injury or damages,
please do not try to assemble your desk alone.
The Commander is a heavy desk, which requires
at least two people to carry out assembly.
Please assemble on soft surface to avoid
scratches to the lacquer.
!
www.studiodesk.net
15
Cage nuts and
M6 Screws
16 pcs each
The Desk You Deserve
Thank you for making StudioDesk your desk of choice!
Before beginning assembly of your desk, let’s get familiar with the parts you have received in your package.
Please match the corresponding numbers on this page with the drawings.
1. Desk Surface
2. Strengthening board
3. Shelf dividers - (left and right)
4. Cable management
5. Top shelf
6. Legs - (left and right)
7. Metal L bar
Hardware
Wooden parts
Tools needed
(Not included)
Rubber hammer
Phillips Screwdriver
Wooden Dowels
24 pcs
12
8
Metal corner
18 pcs
Desk tips
4 pcs
9
M6 Screw
83 pcs
10
Rack rails*
4 pcs
13
Included with Music and
video commander only
L
R
6
14
Wood screws
2 pcs
7
16
Washers
7 pcs
1
Step One
Insert dowels (12) into the holes as
shown in the illustration. Use a
rubber hammer if needed.
3
Step Three
Fix assembled parts together using
metal corners (8) and M6 screws (10)
as shown in the illustration.
8
10
11
4
Step Four
NOTE: Two people are required for the remainder of
assembly! Screw the desk tips (9) to the legs. Place the
assembled middle section onto the corresponding
holes on the left leg. Take special care to avoid
scratching the lacquered surface. Push the middle
section down until the dowels seat properly in their
respective holes. Use a rubber hammer, if needed.
2
Step Two
Assemble parts together as shown
in the illustration.
www.studiodesk.net
5
Step Five
Once dowels are in place and boards sit tight to the leg,
use metal corners (8) and M6 screws (10) to fix the
middle section to the leg.
Note! Turn the metal corner’s shorter edge downward
6
Step Six
7
Step Seven
Carefully lift the right leg on top of the middle section
To match leg holes with the dowels. Ensure that every dowel
lines up with its corresponding hole on the leg. Gently push
the leg down until the middle section seats together.
8
Step Eight
Fix middle section to the right leg using metal corners (8)
and M6 screws (10)
Note! Turn the metal corner’s shorter edge downward
Fix metal bar to the strengthening board using washers (16) and
M6 Screws (10). Holes are predefined.
9
Step Nine
Turn desk to a standing position. Fix
rack rails (13) to the legs and dividers
using M6 screws (10). To fix rack
components to rack rails use screws
and cage nuts (16)
8
10
Put strengthening board (2) in place. Connect it
with the dowels from Step 5. Use metal corners
(8) and M6 screws (10) to fix the strengthening
board to the leg and wood screws (14) to fix
strengthening board to the cable management
