ASSEMBLY MANUAL
KEYBLLWHB04 Keyboard stand Reissue as of June 2019
KEYWHLBLB05 Keyboard stand Black board as of June 2019
NOTE: Please assemble on soft surface to
avoid scratches or damages to the lacquered
wood.
!
The Desk You Deserve
Thank you for making StudioDesk the desk of your choice!
Before starting on assembling your keyboard stand let’s get familiar with the parts you have received in your
package. Please match the corresponding numbers on this page with the drawings.
Wooden parts
1. Main board
2. Strengthening board
3. Legs - left and right
3
1
2
Hardware
4
Metal corner 8 pcs
Dim 30x30x50mm
L
R
R
Tools you will need (Not included)
Rubber hammer
5
Wooden Dowels 10 pcs
6
M6 Screw 32 pcs
Phillips screwdriver
2
1

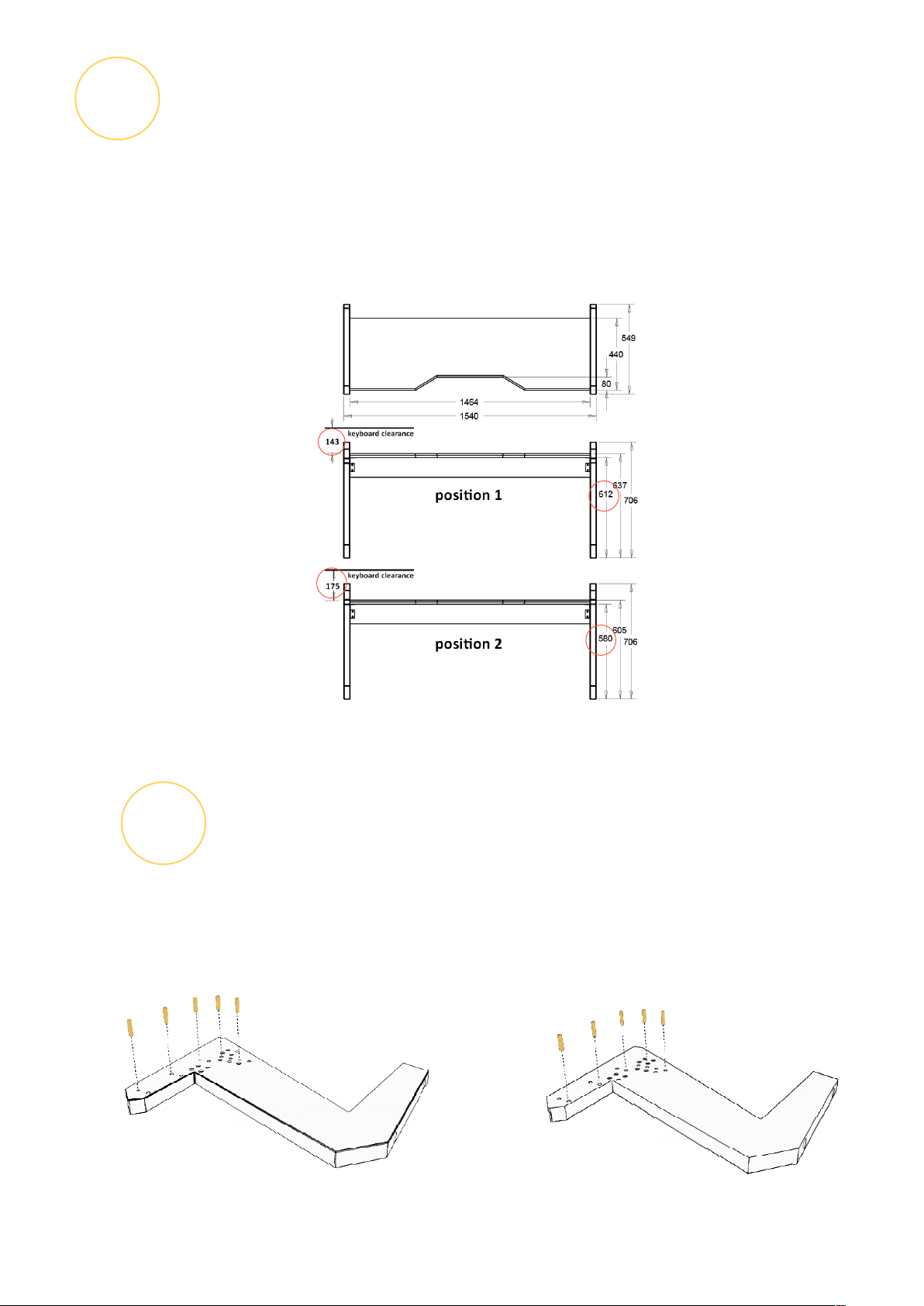

Step One
Your keyboard stand can be assembled in two different heights.
The picture below will help you to determine which height will be perfect for you.
As you can see. there are two positions. If used with Music Commander desk, position one
will allow you 143 mm keyboard clearance but will also give you more leg space.
In position 2 your keyboard clearance will be up to 175 mm and your leg space will be 580 mm
from the floor.
2
Step Two
We are assuming that you decide on which heigt you want to have your keyboard.
Install wooden dowels based on your decision.
Position 1
Position 2
3
3

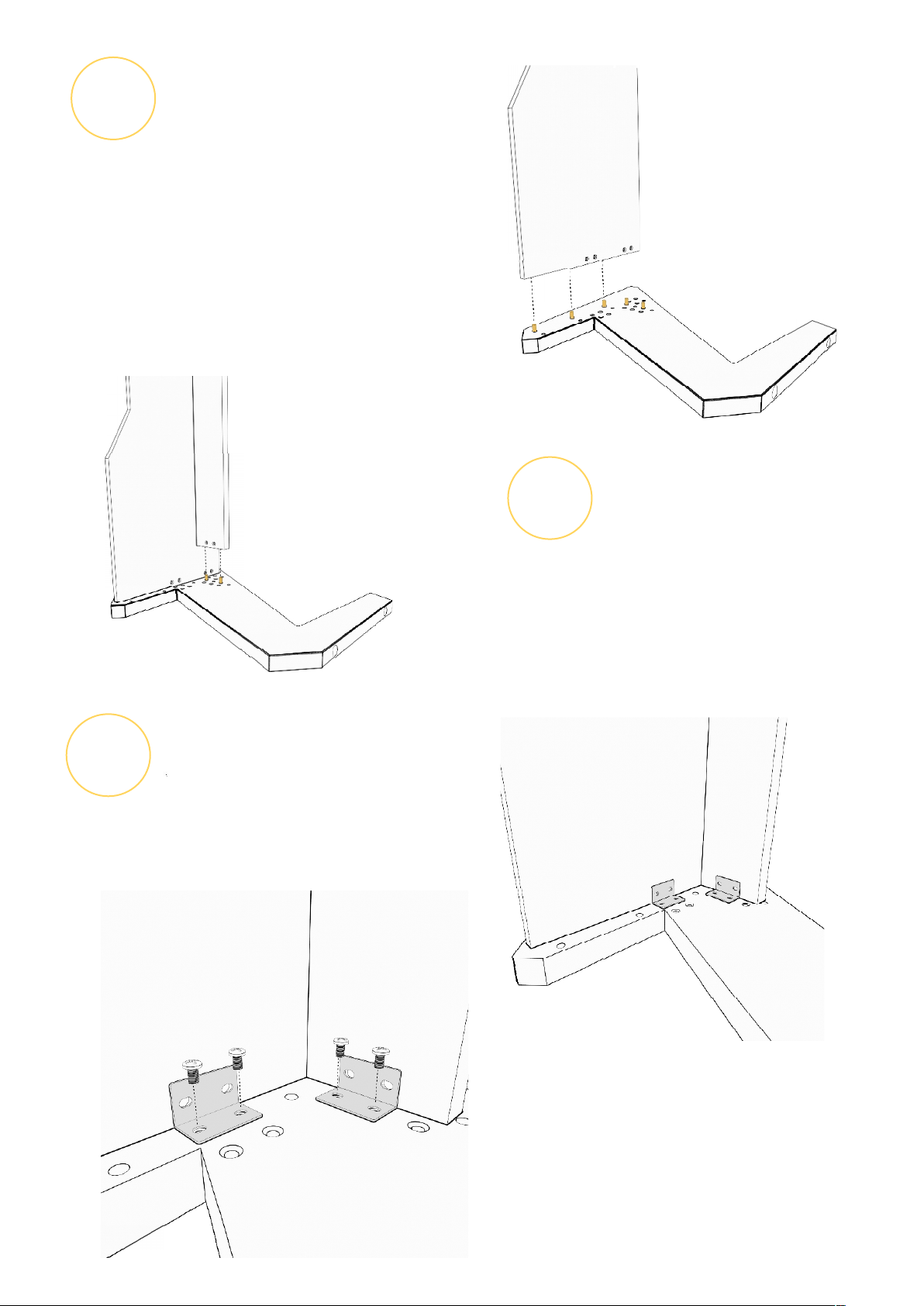

Step Three
We will continue this manual
assuming that you decide to have
Your keyboard on higher position.
Install main board (1) on coresponding
dowels (5) as shown on the ilustration.
5
Step Five
Fix main board (1) and strenthening board
(2) with metal barackets (4) and M6 scewes
(6).
4
Step Four
Install strenthening board (2)
on coresponding dowels (5)
4
6
Step Six
Fix main strenghtening board
(2) with metal barackets (4) and
M6 scewes (6).
8
7
Step Seven
Insert wooden dowels (5) as shown
on the ilustration left.
Step Eight
Istall the leg on the top of the construction as shown on the ilustration below.
Fix main board and strenghtening board with metal brackets and M6 screws.
