Studio Designs Light Pad Support Bars User Manual
B
22
A
A
21
B
3

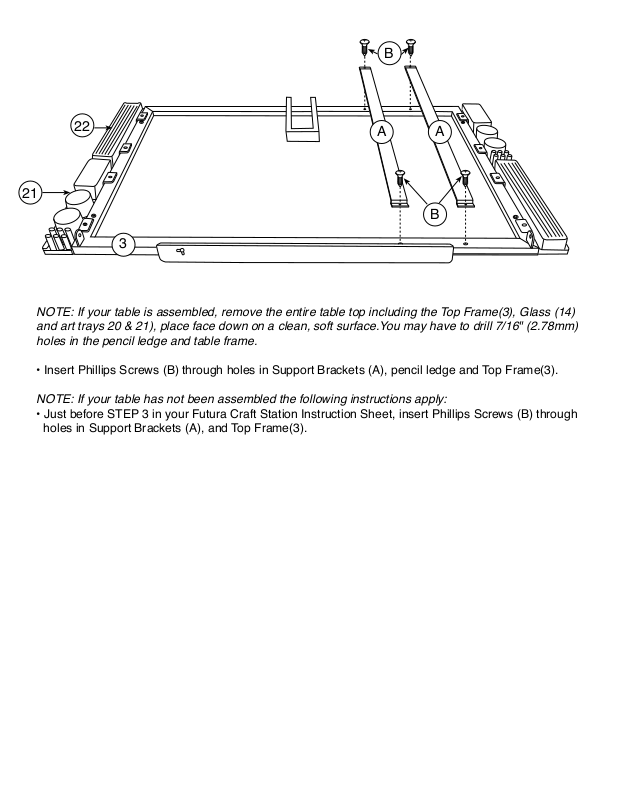

NOTE: If your table is assembled, remove the entire table top including the Top Frame(3), Glass (14)
and art trays 20 & 21), place face down on a clean, soft surface.You may have to drill 7/16" (2.78mm)
holes in the pencil ledge and table frame.
• Insert Phillips Screws (B) through holes in Support Brackets (A), pencil ledge and Top Frame(3).
NOTE: If your table has not been assembled the following instructions apply:
• Just before STEP 3 in your Futura Craft Station Instruction Sheet, insert Phillips Screws (B) through
holes in Support Brackets (A), and Top Frame(3).
B
A A
B
2
NOTE: If your table is assembled, remove the entire table top including the frame, glass and art trays,
place face down on a clean, soft surface. You may have to drill 7/64” (2.78mm) holes in the Pencil
Ledge (5) and Top Frame (2).
Insert Phillips Screws (B) through holes in Support Brackets (A), Pencil Ledge (5) and Top Frame (2).
NOTE: If your table has not been assembled the following instructions apply:
• After #2 on page 7 in your Vision Craft Station Instruction Sheet, insert Phillips Screws (B) through
holes in Support Brackets (A), Pencil Ledge (5) and Top Frame (2).
5
