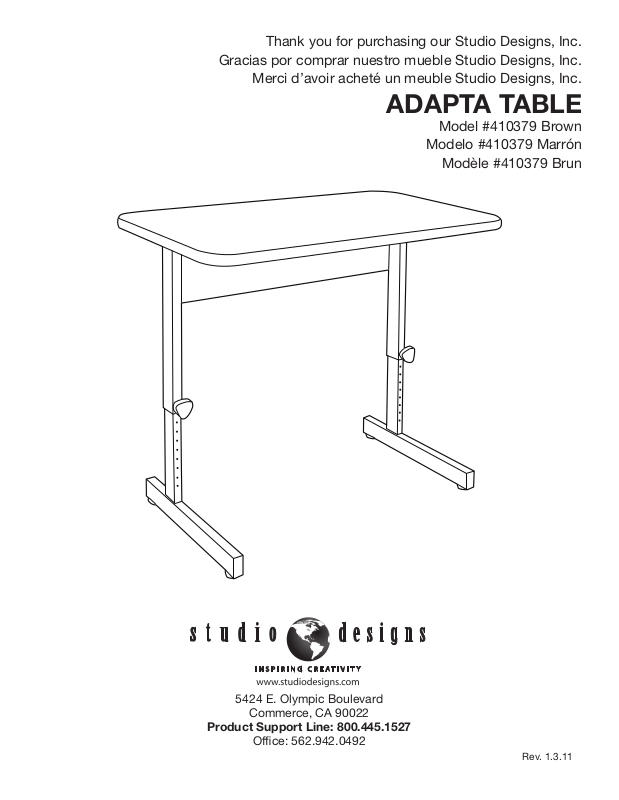

Studio Designs Adapta Table User Manual [en, fr, es]

Thank you for purchasing our Studio Designs, Inc.

Gracias por comprar nuestro mueble Studio Designs, Inc.

Merci d’avoir acheté un meuble Studio Designs, Inc.

ADAPTA TABLE

Model #410379 Brown

Modelo #410379 Marrón

Modèle #410379 Brun

5424 E. Olympic Boulevard

Commerce, CA 90022

Product Support Line: 800.445.1527

Ofce: 562.942.0492

Rev. 1.3.11

6

4

8

1

7

2

3

5

ASSEMBLY INSTRUCTIONS

4

8

5

IMPORTANT:

CAREFULLY UNPACK & IDENTIFY EACH COMPONENT BEFORE ATTEMPTING TO ASSEMBLE. REFER TO PARTS LIST.
PLEASE TAKE CARE WHEN ASSEMBLING THE UNIT AND ALWAYS SET THE TABLE TOPS ON A CLEAN, SOFT SURFACE.

1.

PLACE TOP (1) ON CLEAN, FLAT SURFACE. ATTACH LEG
FRAMES (2) TO TOP (1) USING ALLEN BOLTS (7). INSERT
LEGS (3) INTO FRAMES AS SHOWN, AND LOCK IN PLACE
WITH ADJUSTMENT KNOBS (6). HEIGHT MAY BE ADJUSTED
AS DESIRED.

NOTICE!

FINGER TIGHTEN BOLTS UNTIL BASE IS ATTACHED TO TOP.

TIGHTEN ALL BOLTS AFTER UNIT IS COMPLETELY ASSEMBLED.

2.

ATTACH REAR PANEL (4) TO LEG FRAMES USING ALLEN
BOLTS (8) AS SHOWN. INSERT FLOOR LEVELERS (5) INTO
BOTTOM OF LEGS.

ADAPTA
