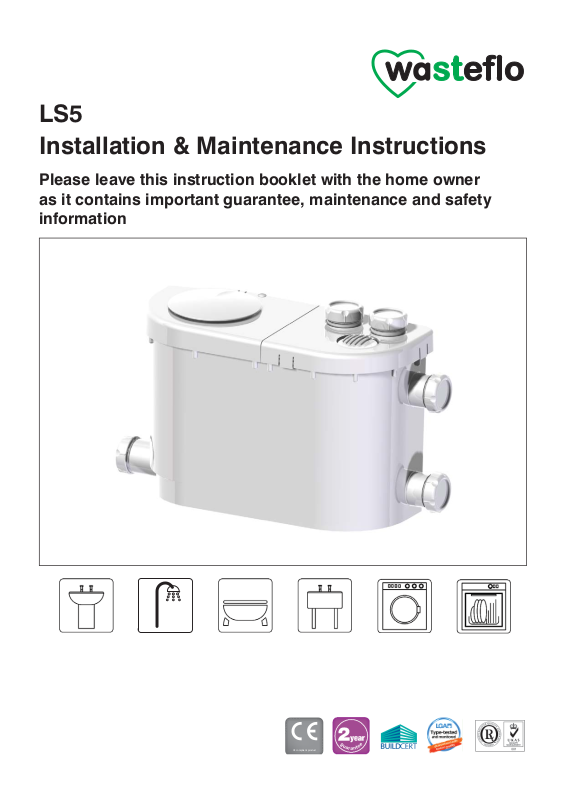

Stuart Turner Pumps User Manual

LS5
Installation & Maintenance Instructions

Please leave this instruction booklet with the home owner
as it contains important guarantee, maintenance and safety
information

CE compliant product

IMPORTANT

In the unlikely event of experiencing a problem with
this product, please contact our helpline on
0844 98 000 97

Due to the nature of this product DO NOT attempt to
return or remove this product from its installation.

Please read installation details carefully as they are intended to ensure this product
provides long, trouble free service. Failure to install the unit in accordance with the
installation instructions will lead to invalidation of the warranty.

CONTENTS

Page

Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Electrical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Technical Specifi cation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

- 2 -

Cont ...

PRODUCT DESCRIPTION

The LS5 is a compact automatic Lifting Station for domestic use, designed for the

drainage of washbasins, showers, bath tubs, sinks, washing machines or dishwashers.

The LS5 has five inlet connections, to pump waste away from bathroom sanitary ware or

kitchen appliances.

Please note the following warning signs.

Warning of possible electrical hazard.

Possible danger to personnel or important installation requirement.

APPLICATION

 All the safety and operating instructions in this booklet must be

followed.

 The unit must not be used for any other application without the written

consent of Stuart Turner Limited.

 The unit must be installed by a qualified person.
 The unit is not suitable for heavy commercial/industrial applications.
 The plumbing installation must comply with the Building Regulations.
 This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be made
by children without supervision.

 Children should be supervised to ensure that they do not play with the

appliance.

 All pipework referred to in this installation manual are typical PVC

waste pipe size's used in the UK.

STORAGE

If this product is not to be installed immediately on receipt, ensure that it is stored in a

dry, frost and vibration free location in its original packaging.

- 3 -

Cont ...

ACCESSORIES CHECKLIST

A

Non-Return Valve Assy, Cover,
Flexible Outlet Connector &
Clips

Qty 1

IMPORTANT: With the product
removed from its packaging check
for any damage prior to installation.
If any damage is found contact Stuart
Turner Ltd within 24 hours of receipt.

Qty 2

B

Inlet Connector

C

Qty 1

Hose Connector

D

Qty 5

Reducing ring to
suit 32 mm (1¼ ")
diameter pipe

1 LOCATION

1.11 The unit can be connected under a washbasin or in a closet. Allow a minimum
height of 220 mm above the unit, for maintenance and servicing.

1.12 The unit must be positioned away from heat sources, such as radiators and
heaters.

1.13 Care must be taken to protect the unit against frost and freezing. All pipes at risk
of freezing must be protected by thermal insulation.

2 CONNECTIONS

Outlet 32 mm (1¼ ")

180mm
See Note 2

OR

See Note 1

2.11 Note 1: Only connect one sanitary device per inlet connection.

2.12 Note 2: The shower tray/bath (lowest waste outlet) must be a minimum of
180 mm above the base of the macerator, to ensure necessary drainage
and must not contain a trap.

- 4 -

Cont ...

3 INSTALLATION

INSTALLATION GUIDELINES

3.4 m

3.11 Always use smooth bends or
2 x 45

o

bends. Do not use 90

o

elbows.

3.12 You must install vertical
pipework first. Diagonal runs
are not permitted. Connection to
the soil discharge pipe must be

o

with a 45

inclined connection.

3.13 If the discharge is lower than the
unit, to prevent water siphoning
from the outlet pipe, an air
admittance valve must be used
(not supplied) capable of
withstanding 6 psi, and fitted to a
vertical vent pipe at least 3.4 m
higher than the unit.

3.14 If the unit is to be installed within
furniture or cupboards, or boxed
in, allow space for motor ventilation
through the top cover leaving at
least 90 mm between the unit and
any shelf/boxing.

3.15 If either a dishwasher or washing machine
are to be used, they must always be fitted
using the top connectors.

Cont ...
