STSLITE C525 MATRIX User Manual

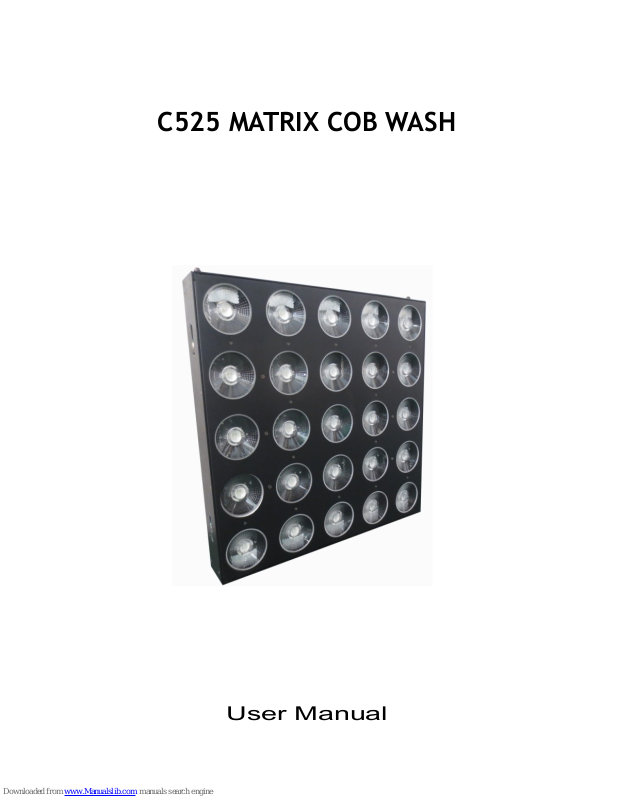

C525 MATRIX COB WASH

User Manual

1

Ver1.0

Table of contents

INTRODUCTION ……………………………………………….…………………………..2

SAFETY INSTRUCTIONS…………………………………………………………………2

OPERATING DETERMINATIONS…………………………………………….…………..3

DESCRIPTION OF THE DEVICE…………………………………………………………4

INSTALLATION………………………………………………………………….…………..5

OPERATION……………………………………………………………………….………...6

Stand alone operation…………………………………………………………….…………6

Master slave operation…………………………………………………………….……..…6

DMX controlled operation………………………………………………………….…….…6

Addressing…………………………………………………………………………….…..…6

Control board………………………………………………………………………….…..…6

DMX protocol………………………………………………………………………….…..…7

TECHNICAL SPECIFICATIONS…………………………………………………….……7

2

Every person involved with installation. operation and maintenance of this fixture has to

- be qualified

- follow the instruction of this manual

- consider this manual to be part of the total product

- Keep this manual for the entire service life of the product

- pass this manual to every future owner or use of the product

INTRODUCTION

Thank you for choosing our fixture, if you follow up the instruction given in this manual we be sure that

you will enjoy this product for a long period of time

SAFETY INSTRUCTION

This device has left our premises in absolutely perfect condition .In order to maintain this condition and

to ensure a safe operation, it is absolutely necessary for the user to follow the safety instruction and

warning notes written in this user manual.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution! Never touch them with wet hands .as this could lead

CAUTION!

Be careful with your operations, With a dangerous voltage you can suffer a dangerous electric

CAUTION !

Keep this device away from rain and moisture

Unplug mains lead before opening the housing
