Struers LaboForce-1 Instruction Manual
LaboForce-1
Instruction Manual
Manual No.: 15277001
Date of Release .08.2012
LaboForce-1
ries or parts not included in the present
Instruction Manual
Always state Serial No and Voltage/frequency if you have technical questions or when ordering spare parts.
You will find the Serial No. and Voltage on the type plate of the machine itself. We may also need the Date
and Article No of the manual. This information is found on the front cover.
The following restrictions should be observed, as violation of the restrictions may cause canc ellat i on of
Struers legal obligations:
Instruction Manuals: Struers In s t ruction Manual may only be used in connection with Struers equipment
covered by the Instruction Manual.
Service Manuals: Struers Service Manual may only be used by a trained technician authorised by Struers.
The Service Manual may only be used in connection with Struers equipment covered by the Service Manual.
Struers assumes no responsibility for errors in the manual text/illustrations. The information in this manual is
subject to changes without notice. The manual may mention accesso
version of the equipment.
Original instructions. The contents of this manual is the property of Struers. Reproduction of any part of
this manual without the written permission of Struers is not allowed.
All rights reserved. © Struers 2012.
Struers A/S
Pederstrupvej 84
DK-2750 Ballerup
Denmark
Telephone +45 44 600 800
Fax +45 44 600 801
LaboForce-1
Instruction Manual
LaboForce-1
Safety Precaution Sheet
To be read carefully
before use
1. The operator should be fully aware of the use of the machine according
to the Instruction Manual. The machine must be mounted securely on
the grinding/polishing machine.
2. Be sure that the actual voltage corresponds to the voltage stated on the
back of the machine. The machine must be earthed.
3. Blue lubricant: follow the current safety rules for handling, mixing, f i ll i ng,
emptying and disposal of the alcohol-based lubricant.
4. If you observe malfunctions or hear unusual noises - stop the machine
and call technical service.
The equipment should only be used for its intended purpose and as detailed in the Instruction Manual.
The equipment is designed for use with consumables supplied by Struers. If subject ed t o mis us e, improper
installation, alteration, neglect, accident or improper repai r, Struers will accept no responsibility for
damage(s) to the user or the equipment.
Dismantling of any part of the equipment, during service or repair, should always be performed by a qualified
technician (electromechanical, electronic, mechanical, pn eumatic, etc.).
LaboForce-1
Instruction Manual
Disposal
Equipment marked with a WEEE symbol
electronic components and must not be disposed of as general
waste.
Please contact your local authorities for information on the correct
method of disposal in accordance with national legislation.
contain electrical and
LaboForce-1
Instruction Manual
User’s Guide
Table of Contents Page
1. Getting Started
Checking the Contents of Packing ..................................................... 2

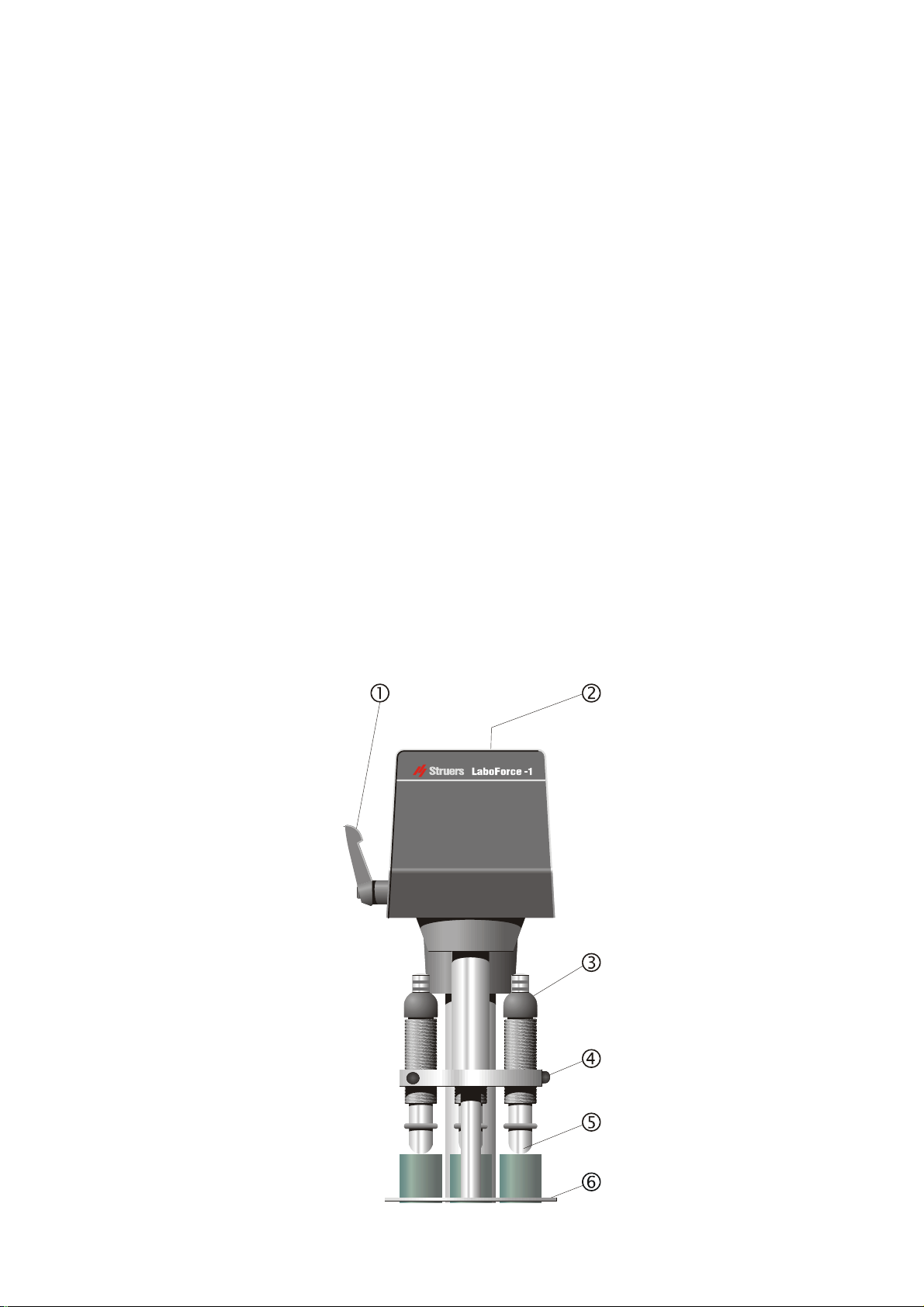

Getting Acquainted with LaboForce-1 ................................................ 2
Setting up LaboForce-1 ...................................................................... 3
Adjusting the Specimen Mover Position ............................................. 3
Distance to Preparation Disc .................................................... 3
Connecting LaboForce-1 .................................................................... 4
Supplying Power ....................................................................... 4
Communication ......................................................................... 4

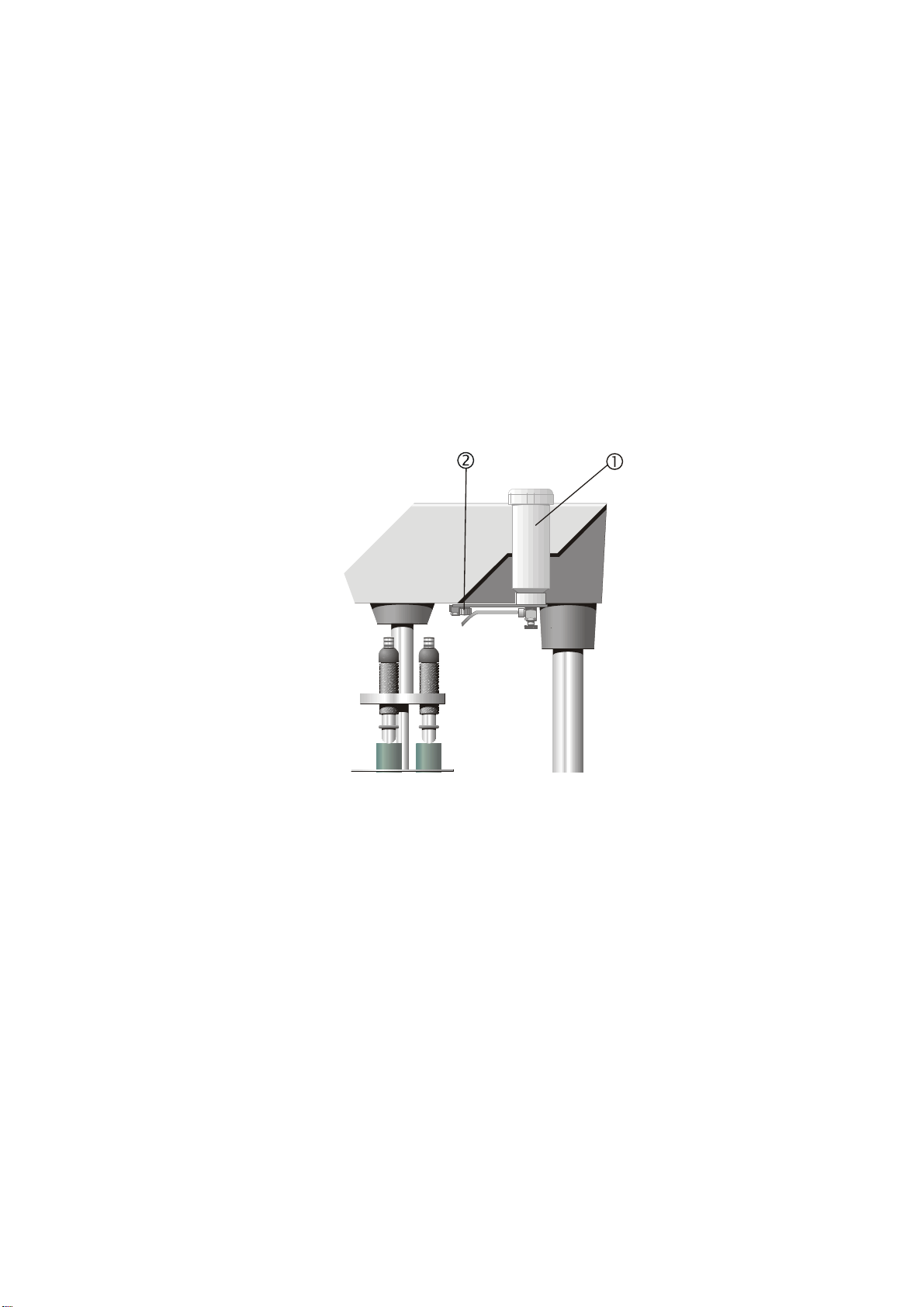

Mounting a Drip Lubricator ................................................................. 5
Mounting a LaboDoser Dosing Unit ................................................... 5
2. Operation
Inserting a Specimen ......................................................................... 6
Adjusting the Force ............................................................................ 6
Operating LaboForce-1 ...................................................................... 7
Replacing the Specimen Mover Plate ................................................ 7
Operating a Drip Lubricator ................................................................ 8
Changing Lubricant ............................................................................ 8
1
