Structured Cable Products 960 Operating Instructions Manual

HDMI EXTENDER OVER 5 COAXIAL CABLE

PART #960

OPERATING INSTRUCTIONS

2

HDMI EXTENDER OVER 5 COAXIAL CABLES

PART# 960

Introduction

Benets from using SCP’s 960:

1) The length of a HDMI cable is xed and unchangeable after is produced. The HDMI connector
can only be soldered or terminated by a professional worker in a factory environment. The user can
not reduce or increase the size by themselves if there was need for it. By using coaxial cables this
issue is resolved and length can be adjusted by the user or installer.

2) By using the SCP 960, the transmission distance for 1080P reaches 100 meters. In the
other hand, HDMI cables must be customized when the length reaches over 10 meters.

3) SCP’s HDMI Extender 960 has the ability to auto adjust the buering and amplifying. Series con-
nection of the SCP 960 achieve long distance transmissions of HDMI signals. When two pairs or more
SCP 960s are stacked together, they can be used to create a larger distribution or daisy chained.

4) The IR system can control the sources from the termination.

The HDMI Extender 960 oers various solutions for its use including digital entertainment centers,
HDTV, retail setups, show/convention sites, HDTV, STB, DVD, Projector factories, data center con­trol, information distribution centers, conference room presentations, school and corporate training
environments.

HDMI EXTENDER OVER 5 COAXIAL CABLES

Contents

• Product Overview 4

• Features 4

• Package Contents 6

• Connections and Operations 6

• Specications 7

• Panel Descriptions 8

PART# 960

3

• Typical Application 9

• Maintenance 9

• Product Service 9

• Provided Service 9

• Mail-In Service 10

• Warranty 10

• Warranty Limits And Exclusions 10

4

!

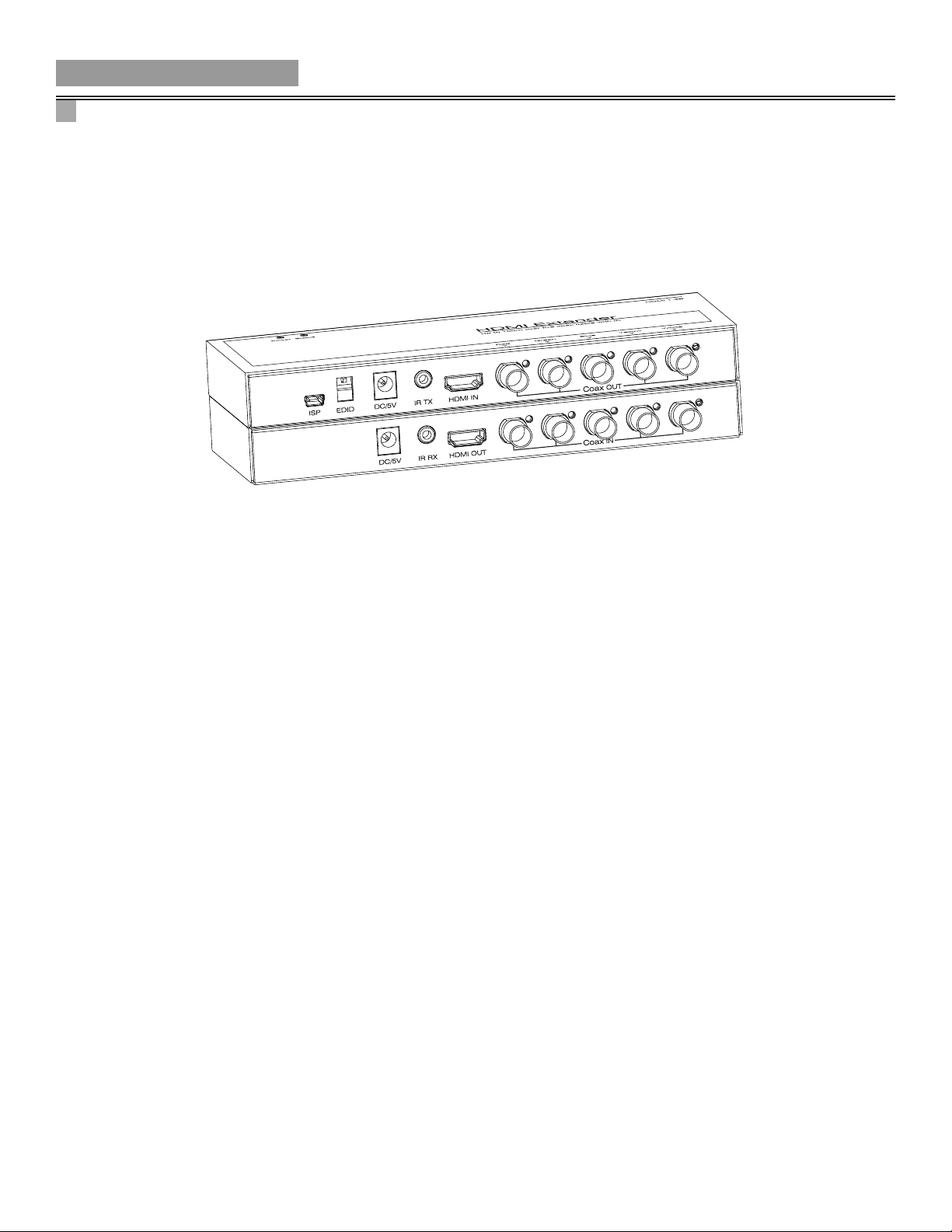

PRODUCT OVERVIEW

FEATURES

HDMI EXTENDER OVER 5 COAXIAL CABLES

PART# 960

• Very simple operation of the one pair as a full functional module.

• Use ve coaxial cables to substitute HDMI cable to achieve long distance transmissions.

• Transmission distance reaches up to 100 meters under 1080p video format.

• Auto-adjustment of feedback, equalization and amplication.

• HDMI® High Speed / HDMI v1.3b supported.

• HDCP compliant.

• Each port supports HDMI or DVI inputs.

• LED indicators show power and video signal status.

• ESD protection inside.

• Mounting ears supplied.

• Transfer Infrared control signal together with the HDMI signal.

• Capable of being cascaded.

HDMI EXTENDER OVER 5 COAXIAL CABLES

!

!

!

!

!

!

!

!

!

!

1. Do not expose this apparatus to

rain, moisture, dripping or

splashing and that no objects filled

with liquids, such as vases, shall be

placed on the apparatus.

6. Clean this apparatus

only with dry cloth.

2. Do not install or place this unit in

a bookcase, built-in cabinet or in

another confined space. Ensure the

unit is well ventilated.

3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct the
unit’s ventilation openings with
newspapers, tablecloths,
curtains, and similar items.

4. Do not install near any heat

sources such as radiators, heat

registers, stoves, or other apparatus

(including amplifiers) that produce

heat.

5. Do not place sources of naked

flames, such as lighted candles, on

the unit.

7. Unplug this apparatus

during lightning storms or

when unused for long

periods of time.

!"!"#$%&'%!%(&!)$*&#!'$#+!

,#$-!.&/01!*234&+!$0!$#!

)/0'(&+!)2#%/'532#36!2%!

)35178!

9. Only use attachments /

accessories specified by

the manufacturer.

10. Refer all servicing to

qualified service

personnel.

PART# 960

Structured Cable Products reserves the right to make changes in the hardware, packaging
and any accompanying documentation without prior written notice.

Warning:

To reduce the risk of re, electric shock or product damage:

5

6

Position.1

Position.2

Functions

0

0

Copy EDID from the specific sink (note1)

0

1

1080P stereo (Using Embedded EDID) (note2)

1

0

1080P 5.1 (Using Embedded EDID) (note3)

1

1

1080P 7.1(Using Embedded EDID) (note4)

HDMI EXTENDER OVER 5 COAXIAL CABLES

PART# 960

Package Contents

• Main unit. 960-A.

• Main unit. 960-B.

• Mounting ears.

• Operating instructions.

• 2x 5VDC power supply .(One for 960-A,one for 960-2).

• IR TX unit (IR emitter cable) for 960-A.

• IR RX unit (IR receiver cable) for 960-B.

Connections and Operations

1) Connect the HDMI input source ( such as HD-DVD, PS3, STB etc. )into SCP’s 960-A

2) Connect ve coaxial cables to both the outputs of 960-A and inputs of 960-B. Please pay attention
that the right connection of the two cables match the colors.

3) Connect the HDMI output such as HD-LCD, HD-DLP into 960-B.

4) Connect the IR TX UNIT into 960-A IR TX; Connect the IR RX UNIT into 960-B IR RX.

5) DIP switch description.

NOTE: DIP switch from left to right match Position 1, Position 2 in the table below. ON: 1, OFF: 0

Note1: In this mode, the EDID data of the sink device such as TV set will be passed to the HDMI source with­out any changing.

Note2: The extender will use the embedded 1080P-stereo EDID when the DIP switch is in this mode. The
EDID will be 1080P video and stereo audio.

Note3: The extender will use the embedded 1080P-5.1 EDID when the DIP switch is in this mode. The EDID
will be 1080P video and 5.1 audio.

Note4: The extender will use the embedded 1080P-7.1 EDID when the DIP switch is in this mode. The EDID
will be 1080P video and 7.1 audio.

• Attention: Please insert and extract cables gently.

HDMI EXTENDER OVER 5 COAXIAL CABLES

Operating Temperature Range

-5 to +35°C (-41 to +95 °F)
Operating Humidity Range

5 to 90 % RH (no condensation)

Input Video Signal

0.5-1.0 volts p-p
Input DDC Signal

5 volts p-p (TTL)

Video Format Supported

DTV/HDTV;
1080P/1080i/720P/576P/480P/576i/480i

Output Video

HDMI 1.3+HDCP�repeat the source to
the sink�,support 3D video of HDMI1.4,
support deepcolor.

Output Audio

Support DTS-HD, Dolby-HD�repeat the
source to the sink�

Maximum Transmission
Distance

100m

Power Supply

5VDC
Power Consumption

1.5Watts (Max.)

Dimensions

207mmH!71mmW!24mmD
/1.8’’W!3.3’’H!0.9’’D

Mass (Main unit)

0.8Kgs (Pairs)/1.16lb

IR frequency

30�60KHZ

Specications

PART# 960

7

NOTE: Specications are subject to change without notice. Mass and dimensions are approximate.

8

!

!

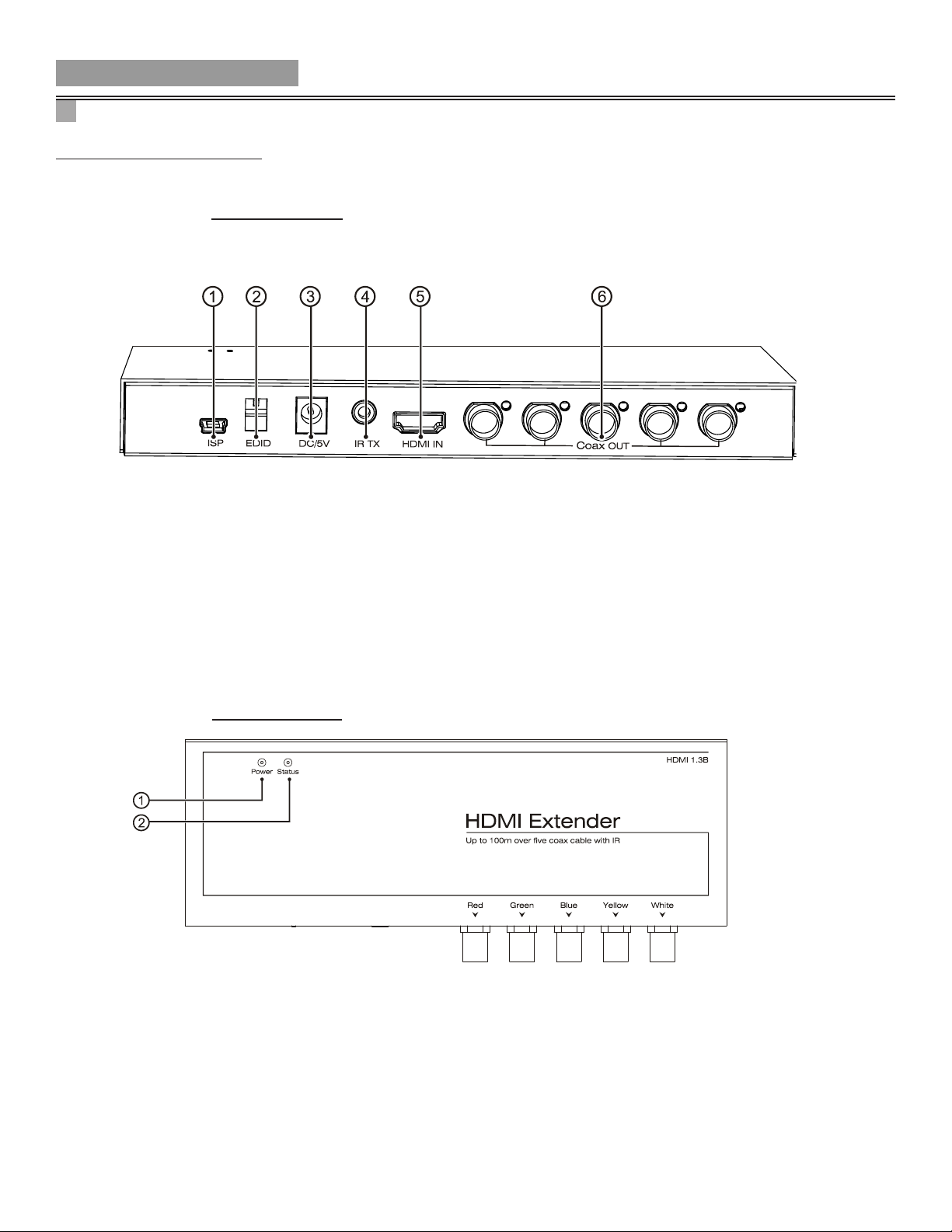

Panel Descriptions

Front Panel

1- ISP, for update the rmware of the product.

2. DIP switch, for EDID setting.

3. Power input, 5VDC .

4. IR TX output.

5. HDMI input.

6. Coaxial outputs.

HDMI EXTENDER OVER 5 COAXIAL CABLES

PART# 960

Back Panel

1. Status of power input. When power input on, the LED inside lights.

2. Status of signal connection. When this works well, the LED inside lights.

HDMI EXTENDER OVER 5 COAXIAL CABLES

PART# 960

Typical Application

Maintenance

Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine to clean this unit.

Product Service

Provided Service

1) Damage Requiring service: The unit should be serviced by qualied service personnel if:

• The DC power supply cord or AC adaptor has been damaged;

• Objects or liquids have gotten into the unit;

• The unit has been exposed to rain;

• The unit does not operate normally or exhibits a marked change in performance;

• The unit has been dropped or the cabinet damaged.

9

2) Servicing Personnel: Do not attempt to service the unit beyond that described in these operating instruc­tions. Refer all other servicing to authorized servicing personnel.

3) Replacement parts: When parts need replacing ensure the service uses parts specied by the manufacturer

or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in re,

electric shock, or other hazards.

4) Safety check: After repairs or service, ask the service to perform safety checks to conrm that the unit is in
proper working condition.

10

HDMI EXTENDER OVER 5 COAXIAL CABLES

PART# 960

Mail-In Service

When shipping the unit, carefully pack and send it prepaid, adequately insured and preferably in the original

carton. Include a letter detailing the complaint and provide a daytime phone and/or email address where you
can be reached.

If repair is needed during the limited warranty period the purchaser will be required to furnish a sales receipt/

proof of purchase indicating date of purchase, amount paid and place of purchase. Customer will be charged
for the repair of any unit received without such proof of purchase.

Warranty

If your product does not work properly because of a defect in materials or workmanship, Structured Cable

Products, Inc (referred to as “the warrantor”) will, for the length of the period indicated as below, Parts (1)
YearLabor(90) Days which starts with the date of original purchase (“Limited Warranty period”), at its option
either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished prod-

uct. The decision to repair or replace will be made by the warrantor.
During the “Labor” Limited Warranty period there will be no charge for labor. During the “Parts” warranty pe­riod, there will be no charge for parts. You must mail-in your product during the warranty period. This Limited
Warranty is extended only to the original purchaser and only covers product purchased as new. A purchase

receipt or other proof of original purchase date is required for Limited Warranty service.

Warranty Limits And Exclusions

1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES
NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COV­ER damages which occurred in shipment, or failures which are caused by products not supplied by the
warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplica­tion, alteration, faulty installation, set-up adjustments, maladjustment of consumer controls, improp­er maintenance, power line surge, lightning damage, modication, or service by anyone other than

a Factory Service Center or other Authorized Service, or damage that is attributable to acts of God.

2) There are no express warranties except as listed under “limited warranty coverage”. The warrantor is not
liable for incidental or consequential damages resulting from the use of this product, or arising out of any
breach of this warranty. (As examples, this excludes damages for lost time, cost of having someone remove or

re-install an installed unit if applicable, travel to and from the service location, loss of or damage to media or
images, data or other recorded content. The items listed are not exclusive, but are for illustration only.)

3) Parts and service, which are not covered by this limited warranty, are your responsibility.

Thank you for your purchase.

We appreciate your business. Please contact us with any questions or comments you might have.
