Models
GMDS4R
GMDS5R
GMDS6R
GMDS8R
GMDS10R
GMDS12R
GMDSX4R
GMDSX2R
GMDSX9R
GMDSN2R
GMDSN4R
GMDSN9R
G Series - GMDS Refrigerated Mid-Capacity Service Case
Applications
• Mid-capacity service
merchandiser for
refrigerated deli &
bakery items.
EXTERIOR COLOR
INTERIOR COLOR
TRIM COLOR
END PANELS
FRONT GLASS
UPPER REAR DOORS
SHELVING
LIGHTS
NOSE LIGHTS
ELECTRICAL CONNECT
REFRIGERATION
MISCELLANEOUS
□ Painted
□ Black
□ Black
□ None (Specify per line-up)
□ Curved single pane, lift-up
□ Angled clear glass rear sliding doors
□ None
□ Double row T-8 top light(s)
□ T-8 nose light
□ Leads
□ Remote DX refrigeration
Options Features Standard
□ Stainless steel
□ Stainless steel
□ White
□ Silver
□ Case to case cutaway end
□ Case to case full end
□ Cutaway with glass
□ Full with mirror
□ Flat angled single pane, lift-up
□ Front glass lock
□ Rear door lock
□ Reflective glass rear sliding doors
□ One lighted solid shelf - 16''
□ Two lighted solid shelves - 12'' & 20''
□ LED top light(s)
□ LED nose light
□ None
□ 6' power cord (self-cont.)
□ Breeze™ w/EnergyWise s/c refrigeration
□ Clean Sweep® coil cleaner (n/a w/remote)
□ Coated evaporator coil
□ Remote Glycol refrigeration
□ 1'' bumper on upper front panel
□ 2'' bumper on upper front panel
□ 2''H Full depth display risers (n/a w/shelf)
□ Meat log display riser (n/a w/shelf)
□ Rear wrapping board
□ Top mount scale stand w/receptacle
Revised
20013854
4/13/2015
ONE PART PASSION, TWO PARTS SCIENCE
(Lengths do not include 1-1/8 " end panels)
(Lengths do not include 1-1/8 " end panels)
(Lengths do not include 1-1/8 " end panels)

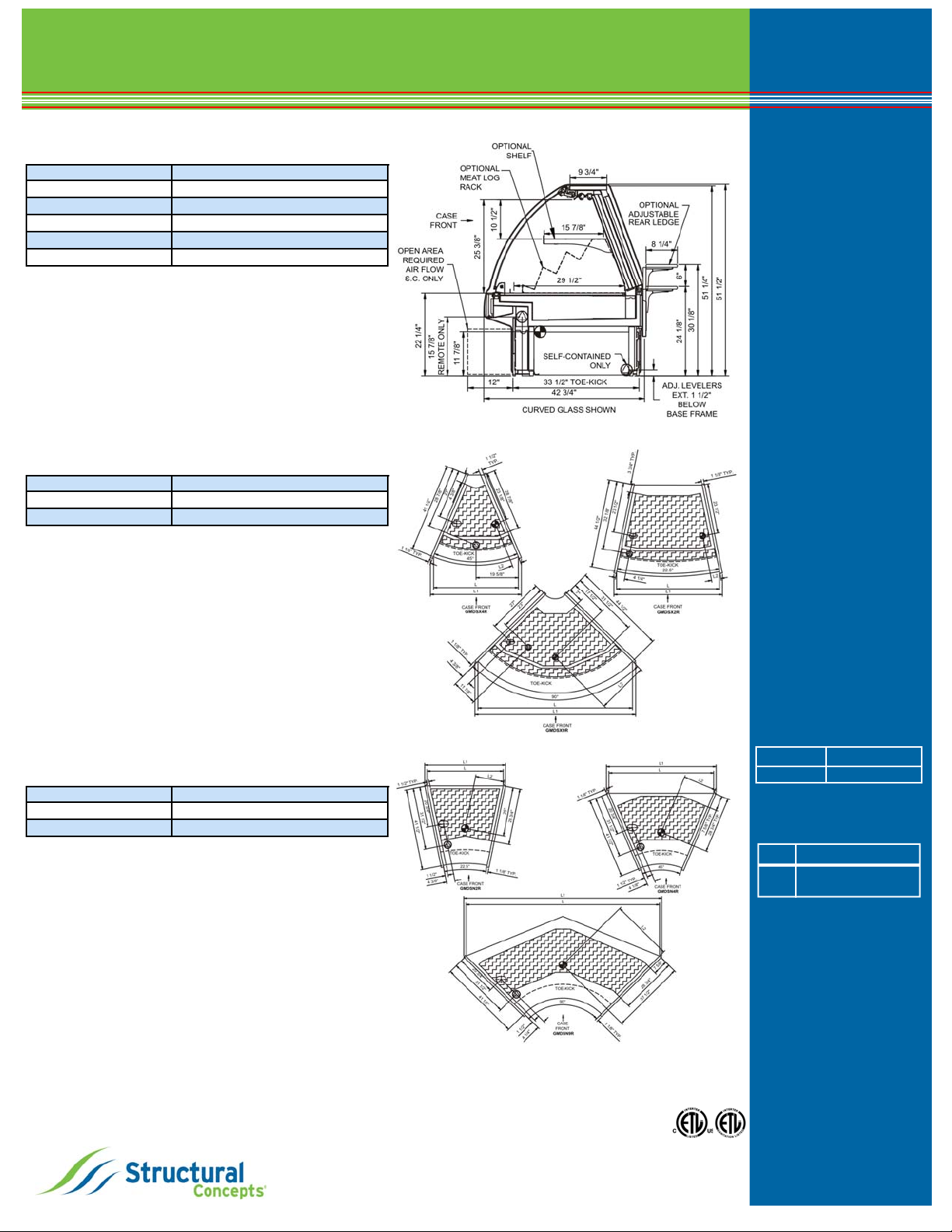

G Series GMDS Refrigerated Mid-Capacity Service Case
GMDS4R 48-3/4"L x 42-3/4"D x 51-1/4"H
Model
GMDS5R 60-5/8"L x 42-3/4"D x 51-1/4"H
GMDS6R 73-1/8"L x 42-3/4"D x 51-1/4"H
GMDS8R 97-1/2"L x 42-3/4"D x 51-1/4"H
GMDS10R 121-1/8"L x 42-3/4"D x 51-1/4"H
GMDS12R 146-1/4"L x 42-3/4"D x 51-1/4"H
L x D x H
CONVEX / OUTSIDE CURVE
GMDSX4R 39-1/8"L x 41-3/8"D x 51-1/4"H
Model
GMDSX2R 47-1/4"L x 41-3/8"D x 51-1/4"H
GMDSX9R 72-1/4"L x 41-3/8"D x 51-1/4"H
L x D x H
STRAIGHT
IMPORTANT
NOTES:
1) Units must be shimmed
during installation to
ensure the unit is level
and plumb.
CONCAVE / INSIDE CURVE
GMDSN2R 38-1/4"L x 41-3/8"D x 51-1/4"H
Model
GMDSN4R 52-5/8"L x 41-3/8"D x 51-1/4"H
GMDSN9R 97-1/4"L x 41-3/8"D x 51-1/4"H
L x D x H
INTENDED
ENVIRONMENT
Designed to operate in
ambient conditions of 75°F
with 55% relative humidity.
INTEGRATED AVG
PRODUCT TEMP
Zone Temp (°F)
40 All
INTENDED USE OF
DISPLAY AREAS
Zone Intended Use
Unpackaged
All
refrigerated products
INFORMATION IS SUBJECT TO CHANGE WITHOUT NOTICE. Visit www.structuralconcepts.com for the most current specs.
888 E. Porter Rd. Muskegon, MI 49441 231-798-8888
For more information on any
of our products or services
please visit us on the web at:
www.structuralconcepts.com
Revised
4/13/2015
