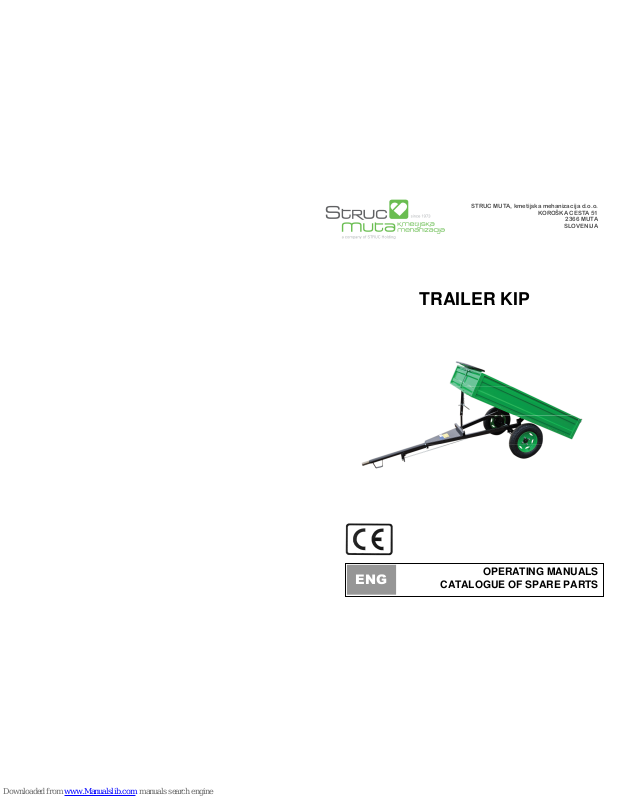

Page 1
OPERATING MANUALS
CATALOGUE OF SPARE PARTS
ENG
STRUC MUTA, kmetijska mehanizacija d.o.o.
KOROŠKA CESTA 51
2366 MUTA
SLOVENIJA
TRAILER KIP
Page 2
1. TECHNICAL SPECIFICATIONS
Capacity up to 500 kg
Caisson
dimensions
95x150x27 cm
Wheel running 113 cm
Wheels 4.00x10
Pressure in tires 2,5 bar
Brakes drum brakes activating with leg, parking
brake
Connection screw and rubber bulb
Weight cca. 90kg
2. USE
The trailer is attached to the basic machine-single axle tractor. Basic machine
does not need synchronised drive. Better guidance is achieved when the
single axle tractor is equipped with differential. Its purpose is for transport of
various loads common weight up to 500 kg on all types of road (as well as
slopes with gradient of 70° or 35° transversal). The cargo must be loaded
correctly, considering safety precautions, equally on whole load surface. It is
not purposed for transporting people in public traffic.
3. ATTACHING THE TRAILER TO SINGLE AXE TRACTOR
Prepare single axle tractor to stand on even surface. Rotate the handlebar to
the opposite side of the engine. Remove the screw for fixing the upper part of
the attachment coupling. Put the trailer’s bar into attachment coupling. Insert a
screw on the upper coupling point and protect it by a nut and washer from the
lower side.
When lifting the platform it is possible to empty the spilled cargo, wash and
clean the platform and to regulate the foot brake.
IT IS OBLIGATORILY TO USE PROTECTIVE PROP WHEN
WORKING UNDER THE LIFTED PLATFORM!
Page 3
4. MAINTENANCE
There are no special demands for maintenance, it is only necessary to care for the right
pressure in tyres and setting the brakes.
5. PRECAUTIONS FOR SAFE WORK
- ATTENTION! It is not allowed to transport people with trailer.
- choose suitable single axle tractor made by Tovarna Muta,
- load the cargo correctly,
- under age persons are not allowed to drive,
- person, who is handling with the machine is responsible to the third
person,
- use suitable clothes and shoes,
- staying close to the machine is not allowed,
- overloading is not allowed.
Page 4
6. CATALOGUE OF SPARE PARTS
Ident Description Ident Description
710 448 Washer A10 A6H 738 468 Rubber bulb Cpl. z.
710 485 Grub 5x24 BR 738 471 Screw M10x40 /4.6 /A6H
710 500 Split pin 2x13 A6H 738 472 Washer 10 A6H
710 524 Nut M6 /5 /A6H 738 473 Caisson rubber bulb Cpl. z.
710 526 Nut M8 /6 /A6H 738 499 Tractive bar Cpl.
710 529 Nut M10 /6 /A6H 738 510 Seat Cpl.
710 541 Washer 12 A6H 739 124 Nut M20x1,5 /8 /A6H
710 543 Washer A12 A6H 743 019 Wheel Cpl. 4.00x10 /4PR-
GL.P.
710 547 Washer A20 A6H 743 023 Tyre 4.00x10 4PR B14
710 552 Washer B6 A6H 743 024 Inner tube 4.00x10
710 553 Washer 8 A6H 750 061 Screw A 4,8x13 A6H
712 486 Bearing 6005 750 086 Split pin 3,2x20 A6H
712 613 Nut M12x1,2 /6 /A6H 752 270 Protective prop-lower part
713 458 Trailer nave 752 271 Protective prop-upper part
714 025 Bearing 6005 Z 752 272 Trailer spring
714 027 Cover 47 z. 752 273 Spring holder z.
714 748 Screw M10x30 /8,8 /ZN 752 280 Brake bar forks z.
715 079 Washer B8 A6H 752 282 Rubber bulb 8x35 /2,5 z.
715 578 Return spring 752 283 Rubber bulb 8x45 /2,5 z.
715 772 Distance sleeve 752 284 Rubber bulb 8x55 /2,5 z.
718 085 Split pin 2,5x20 A6H 752 336 Label Prikolica KIP
719 999 Screw M8x60 /5,6 /A6H 752 767 Chain 1,6x13 L=100mm
724 815 Stand screw M12x1,5 /M12
A6H
752 773 Trailer nave Cpl.
728 465 External snap ring 12 BR 752 788 Felly 2,5x10 Cpl. lac.
738 425 Caisson Cpl. –P 756 787
Spring ring ∅20 /D=2,2
738 434 Under part Cpl. lac. 757 237 Brake drum welded
738 447 Rear brake rubber bulb Cpl. z. 759 158 Blocking element for brake
ass.
728 455 Tractive bar ass. –P lac. 759 277 Hand pin 2,5
728 461 Brake stick 779 347 Brake jaws ass.
738 467 Brake rubber bulb z. 779 379 Spring z.
