Page 1
-20-
STRUC MUTA, Kmetijska mehanizacija d.o.o.
Koroška cesta 51
MUTA 2366
Tel.: 00386 (0)2 87 70-112/113
Fax.: 00386 (0)2 87 70-104
MOTOCULTIVATOR
MAESTRAL
OPERATING MANUALS
CATALOGUE OF SPARE PARTS
ENG
STRUC MUTA, kmetijska mehanizacija d.o.o.
KOROŠKA CESTA 51
2366 MUTA
SLOVENIJA
Page 2
1. TECHNICAL SPECIFICATIONS
Engine (detailed information are enclosed
in engine manuals)
4-stroke gasoline or diesel, single cylinder,
air cooled
max power 6,5 kW, max turns 3600 RPM
Clutch dry multidisks (optionally conical)
Speeds (by engine 3600 RPM) 4/3(wheels 4.00x12) 4/3 (wheels 5.00x12)
- I forward and backward
- II forward and backward
- III forward and backward
- IV forward
1,6 km/h
2,4 km/h
5,3 km/h
14,4 km/h
1,8 km/h
3,5 km/h
5,9 km/h
16,1 km/h
Turns of output shaft independent 943 RPM – max
Steering handlebar
rotateable for 180°, handles height
adjustable
Wheels 4.00x12 (optionally 5.00x12)
Clutch safety switch engine stop by loosing of steering lever
Blockade of activating rotary tiller by
backward gear
prevents activating backward gear and rotor
simultaneously
Brakes drum brakes (for left and right wheel
separated –parking position)
Weight cca 95 kg gasoline, 115 kg diesel

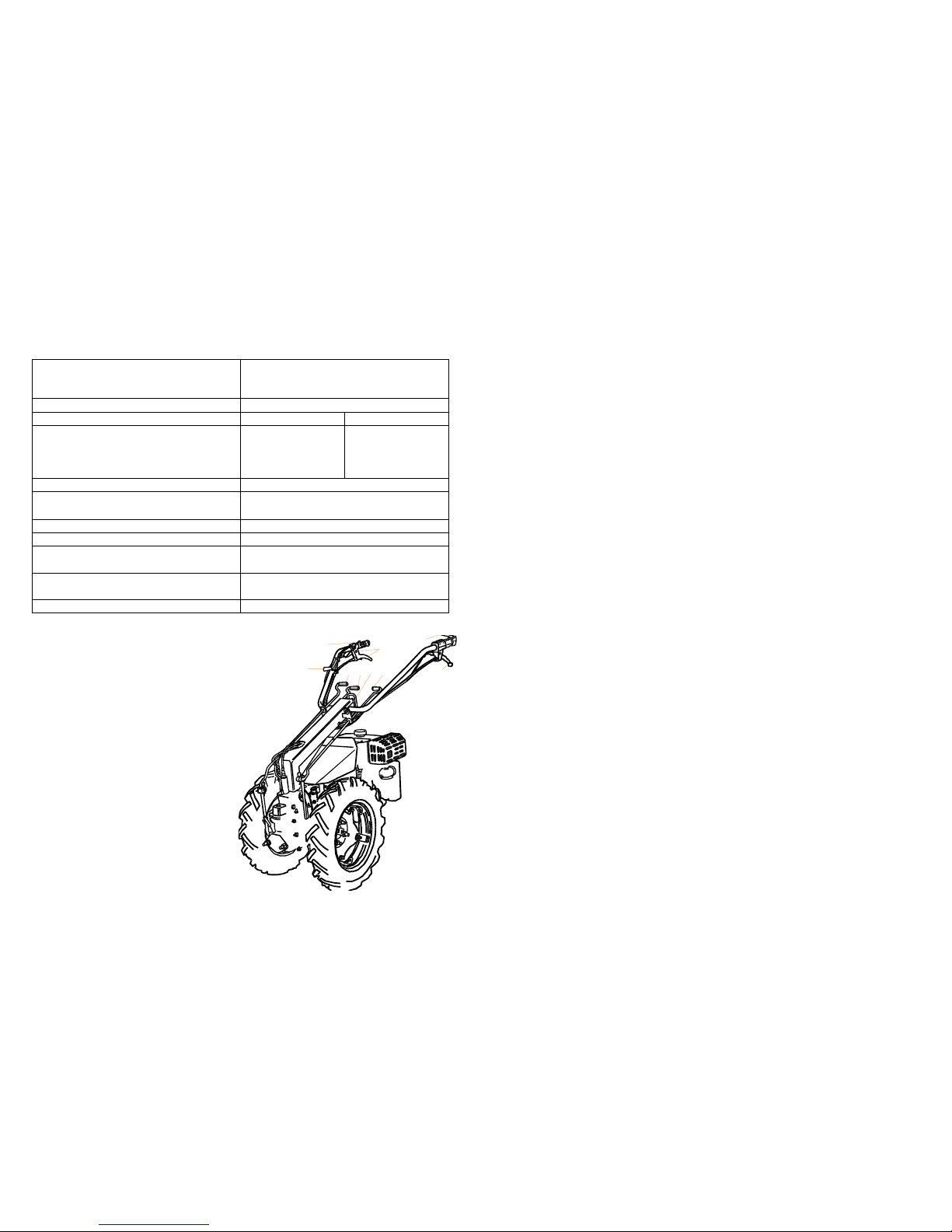

2. DESCRIPTION OF FUNCTIONS
1. gas lever
2. brake lever (right and left wheel)
3. clutch lever
4. safety switch lever
5. lever for activating the PTO
6. lever for activating forward
or backward gear
7. lever for handlebar adjustment
8. gear lever
9. differential lock lever
-19-
1
2
3
4
5
678
9
-2-
Page 3
-18-

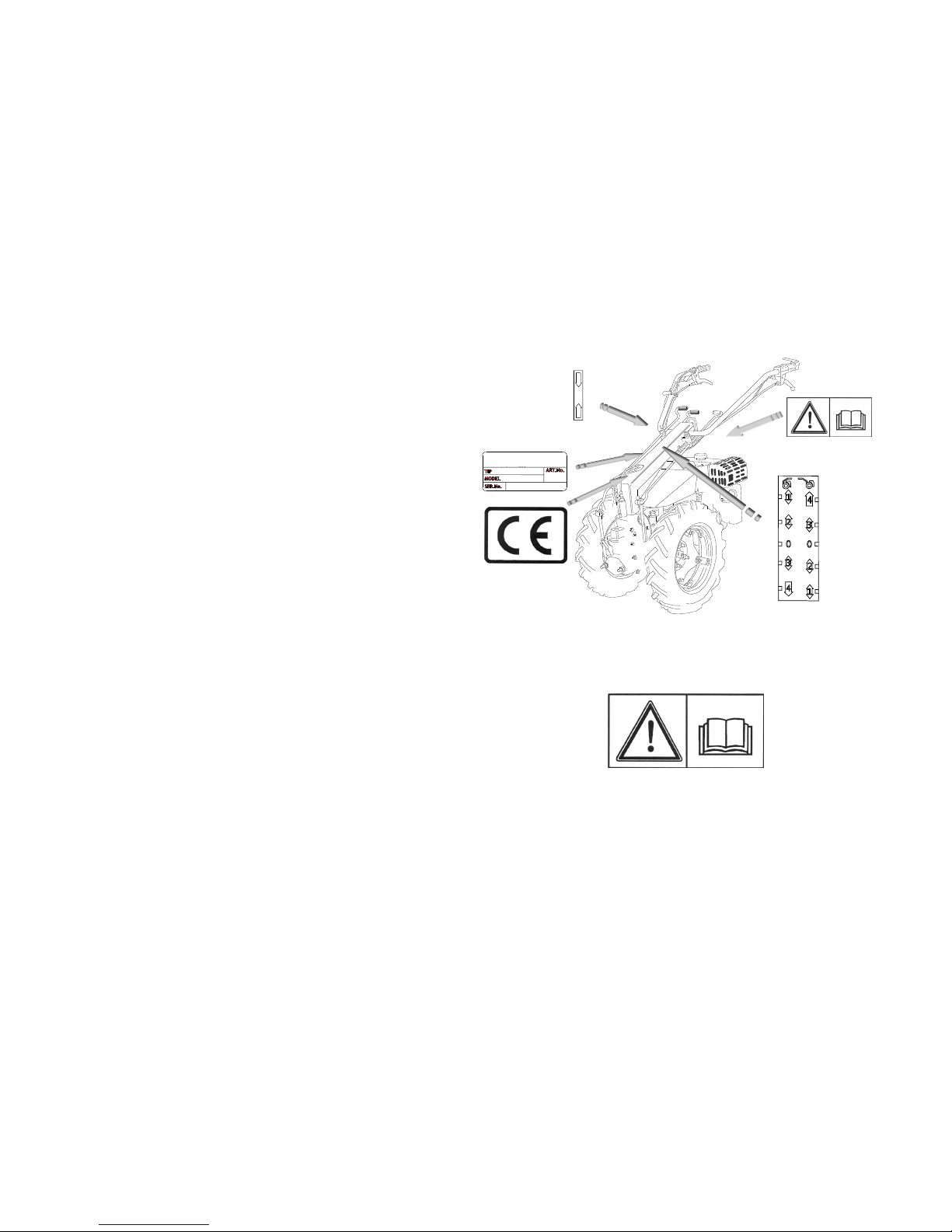

3. LABELS ON THE MACHINE
4. OPERATING MANUALS
Before use you must read the operating manuals precisely!
The operating manuals will introduce the MAESTRAL and also warn you on
particularity to which you should pay special attention. Because the MAESTRAL is a
working machine what requires also suitable knowledge, qualification to handle with
motor machines. Consideration of the manuals assures safety and faultless operation
of the machine. You will also avoid possible costs because of mishandling or wrong
maintenance of the machine. In that case the machine will be useful help by various
works. In case of buying of spare parts, please see the
-3-
Page 4
catalogue of spare parts with marked spare parts. In case of machine trouble
please go to nearest authorised service of Tovarna Muta.
WARNING!
When buying the machine please demand confirmed
indemnity bond from the dealer. With confirmed indemnity
bond you carry guarantee intervention into force. When
ordering spare parts please state the machine type, year of
production and code of spare part you are ordering.
5. USE OF MAESTRAL
Motocultivator MAESTRAL is multipurpose machine, in combination with
various attachments is performing particular works like cultivating of land on the
field or in the garden with attached rotary tiller, mowing – haymaking with
attached mowing system and cutter bar, ploughing, transport …
Superiority of the machine is multifunctional, it can perform various works, it
is easy to handle with, light machine regarding to it’s functionality.
Motocultivator MAESTRAL we can use together with attachments, made by
Štruc Management, adapted for use on this machine.
Regarding to the work we adjust also the speed of work. MAESTRAL has a
lot of possibilities in both directions. For harder work conditions we can choose
lower gear, for easy work we can choose higher gear. The work can be done more
efficiently and safe.
6. DESCRIPTION OF INDIVIDUAL FUNCTIONS OF THE
MACHINE
The handle levers on the machine we will describe in position of machine,
when the machine is ready for mowing, that means that in front of you is first the
engine thereafter is gearbox (Pic. 1). For proper functioning of the machine all the
levers should be adjusted properly, only in that case the work with machine is
easy and correct.

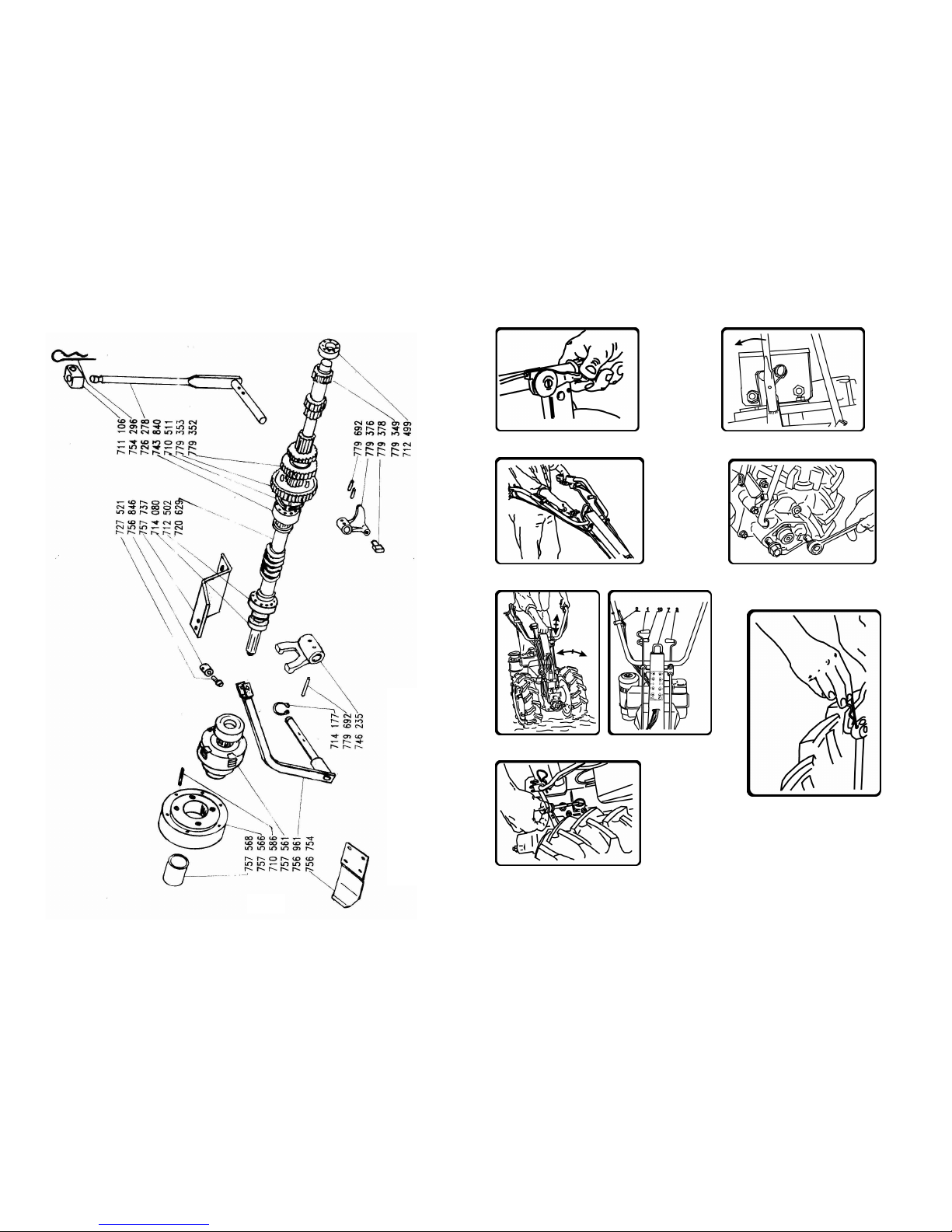

Handle bar with steering functions
- adjustment of working height of handle bar you achieve with pushing of lever
No.7 till first position, then raise or lower the handle bar regarding your body
height and attachment you are using (Pic.2)
adjustment of side deviation of the handle bar you achieve also with pushing
of lever No. 7 but till second position then you turn the handle bar to right or left
side (Pic. 11). After releasing the lever the cork should stuck into the
-4-
739492 FLANCHE 779349 ENTRY SHAFT
741127 WASHER A 12X 16 CU 779352 MOVING GEAR WHEEL
743209 PLACING SCREW M 8 779353 GEAR WHEEL I GEAR
743291 GEARBOX COVER FRONT CPL.II 779354 CONNECTING RING
743766 SANP RING INN. 18 779356 GEAR WHEEL WORKING SHAFT
743810 CLUTCH WIRE ROPE CPL. 779357 WORKING SHAFT CPL.
743811 BRAK WIRE ROPE CPL. 779364 SNAIL WHEEL
743812 DIFFERENTIAL WIRE ROPE 779365 PINION
743982 SCREW M 8X 80 779366 GUIDANCE
744483 ARM 17/28 779368 DIFFERENTIAL BLOCKADE
746235 CLUTCH FORK 779370 CROSS-SHAPED SHAFT
751027 LINER 32X25,5X0,2 779373 DIFFERENTIALN BLOCKADE LEVER
751440 LINER A 6 779374 DIFFERENTIALN BLOCKADE SPRING
753122 BRAKE LEVER 779375 DIFFERENTIALNE BLOCKADE TAP
753124 DISTANCER 779376 HANDLE
753125 SPRING 779377 LEVER
753126 BLOCKING ELEMENT 779378 LEVER TAP
753569 SPRING 779379 SPRING
754296 HAND CORK 2,8X60 - SMALL 779380 CONNECTING RING LEVER
755743 NUT M 16X1,5 779381 FLANCHE DIF.BLOCKADE
756001 HUB - DRUM CPL. 779386 GEAR WHEEL BACKWARD GEAR CPL.
756142 BEARING 6205 779388 SNAIL RING
756145 BEARING 7205 B 779389 BRAKE PLATE LEFT
756146 BEARING 6204 779575 FASTENER MUTA
756155 BEARING 6202 779576 UPPER COVER
756441 NUT M 6 779668 SPRING FOR DIF. BLOCKADE HANDLE
756846 WIRE ROPE HOLDER M6 779669 COVER WASHER
756914 GAS LEVER PLATE 779670 CASING WASHER
756915 HEIGHT REGULATION 779674 OIL DIPSTICK
756932 HANDLE DIF.BLOCKADE 779675 ADJUSTABLE FELLY CPL.
757027 ENGINE SHIELD - ACME 330 779682 HANDLE
757110 ROTATING POLE MAESTRAL 779684 WIRE ROPE HOLDER
757113 HEIGHT REGULATION LEVER 779688 DIF. BLOCKADE HANDLE
757682 DISTANCE LINER 47/37/0.25 779691 OIL WASHER 16X 24X 7
757736 SAFETY SWITCH 779692 CORK 5 X 20
757737 CLUTCH ARM 779696 SPRING
757738 CLUTCH LEVER 779702 PLATE BRAKE RIGHT
773127 BALL 6,35 779873 SPRING P2
773157 LINER B 6 779874 WASHER O 14 X 3,2
774086 SCREW M 6X 45 779879 SPRING P1
779346 GEARBOX CASING 779881 ARRESTING SCREW M12 x20,5
779347 BRAKE JAW 779882 HANDLE
-17-
Page 5
710448 LINER A 10 718621 ATTACHMENT COVER
710479 CORK 4 X 20 719198 WHEEL CPL. 4,00X12-L
710511 SNAP RING INN. 52 719293 SAFETY BLOCKADE B4
710525 NUT M 6 719294 CORK 5 X 30
710526 NUT M 8 719769 SUPPORTING PLATE CPL.
710529 NUT M 10 719781 HANDLE CPL.
710543 LINER A 12 719801 SCREW
710567 SCREW M 5 X 15 719803 GEARCHANGE HANDLE LEFT
710581 SCREW M 8 X 16 719805 GEARCHANGE HANDLE RIGHT
710607 SCREW M 10 X 25 719807 HANDLE FOR ACTIVATING P.T.O.
710619 SCREW M 10 X 50 720310 TYRE 4.00-12TP
710695 SCREW M 18 X 1,5 720312 INNER TUBE 4.00-12
710712 SHAFT LEFT CPL. 720629 SNAIL SHAFT II.
711106 JOINT 722341 WASHER O 9 X 2
711155 AXLE SAFETY-DEVICE 8 722647 WIRE ROPE
711165 RUBBER RING 722652 COVER CASING CPL.
711189 WIRE ROPE ACCESSORY 722700 COVER MAESTRAL-LAC.
711475 LINER 52/42x0,2 722703 COVER CARRIER MAESTRAL-LAC.
711476 LINER 52/42x0,3 722849 RUBBER BULB A6H
711520 LINER A 8 722928 COVER GEARBOX FRONT II.
711521 LINER A 10 724507 ARRESTING PIN
711687 SCREW M 8X 50 724815 STALL SCREW M12X1,5/M12
711688 SCREW M 8X 25 725827 GAS LEVER PLASTIC
711691 SCREW M 8X 35 726149 SPRING
711692 SCREW M 8X 22 726152 CARRING THORN CPL.
711794 CORK 6m6X 16 726278 GEARCHANGE HANDLE CPL.
712613 NUT M 12X1,5 726315 END ARM
713343 CLUTCH CPL. 726329 HANDLE N-N WITH BLOCKADE
713611 P.T.O. SHAFT 726331 LIMITER CPL.
713648 WHEEL CPL. 4,00X12-D 726333 SCREW M6/8
713649 DIFFERENTIAL - CPL. 726334 SPRING
714076 OIL WASHER 12X 22X 7 727268 SCREW M 10X 75
714080 OIL WASHER 15X 35X10 727521 SCREW M 6X 15
714094 OIL WASHER 25X 52X10 727568 LINER A 16
714177 SANP RING EXT. 14 728465 SANP RING EXT. 12
715079 LINER B 8 728543 AXLE SAFETY DEVICE 12
715367 OIL WASHER 20X 35X 7 733869 ENGINE ACME ALN 330
717131 SHAFT RIGHT CPL. 734760 LINER 24X 8,5X 6
717306 TRENAIL B 6X6X22 738061 SCREW M 8X 30
717785 HANDLE RED 739011 GAS WIRE ROPE 2100/1950
717786 HANDLE BLACK 739446 CLIP 210.207
717822 SPRING 739490 CONIC GEARWHEEL
717823 FORCE SPRING 739491 SHAFT LEFT
groove of dividing part and hole of the thorn, so that the handle bar remains in this
position. For height regulation there are 7 positions available, side deviation has one
position on the left and one on the right side.
- for some works like tillage, transport with trailer, cultivating and ploughing the
machine has to be adjusted properly. That means you must turn the handle bar for
180 degrees. In that case you must dismount all three steering levers. To do that you
must pull out with hand all the corks (Pic. 16). You dismount the levers, rotate the
handle bar and mount the levers back into place (put back the corks!). Check if the
handle bar is locked! For side deviation the procedure is the same like for mowing
position (Pic. 11).

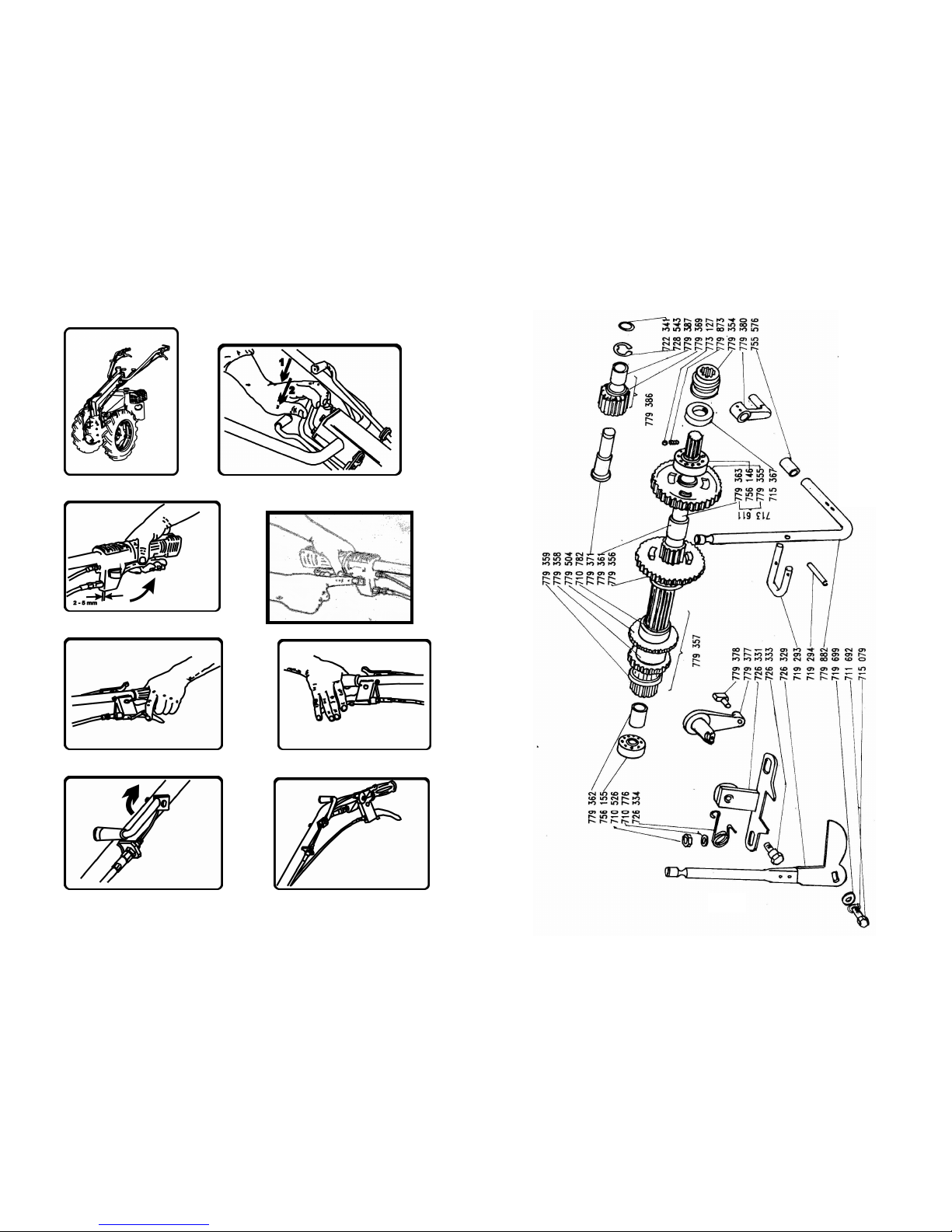

Clutch lever with safety switch
- clutch lever is mounted together with safety switch which prevents running of the
machine when the clutch lever is not pressed. This prevents eventual accidents by
unintentional release of clutch lever (the engine stops). Mechanical principle of
safety switch is blocking the clutch lever when the safety switch is not pressed. By
starting of the motor you must press the clutch lever first and then block the clutch
lever with the button inside the clutch lever holder. Starting of motor is possible
only when the clutch lever is pressed! Start the motor according to enclosed
manuals and pictures for motor.
- when the motor is running you can begin with work. The clutch lever should be used
together with lever of safety switch. When both levers are pressed (Pic. 3) you can
change the gears, drive direction or activate driven attachments (Pic. 8). When all
the levers are in correct position you begin with releasing of the clutch lever slowly
but you are still pressing the lever of the safety switch, which must be pressed all the
working time.
- the clutch is dry conical (optionally is multidisks). The clutch is adjusted correct,
when the clutch lever has 2 – 5mm of free movement.
WARNING!
M
OTOR IS NOT RUNNING WHEN THE CLUTCH LEVER AND THE
LEVER OF SAFETY SWITCH ARE NOT PRESSED (PIC.
3)
Brakes
- the brakes are by machines with differential made separately for left and right wheel
and are a support by steering – rotating the machine. Both brakes (left and right)
must be adjusted equal. Locking of brakes – parking position we achieve with
pushing of locking tonguelet into the groove, than remains the brake lever in pressed
position. You unlock the brake with pressing the brake lever again (Pic. 4a and 4b)
-5-
-16-

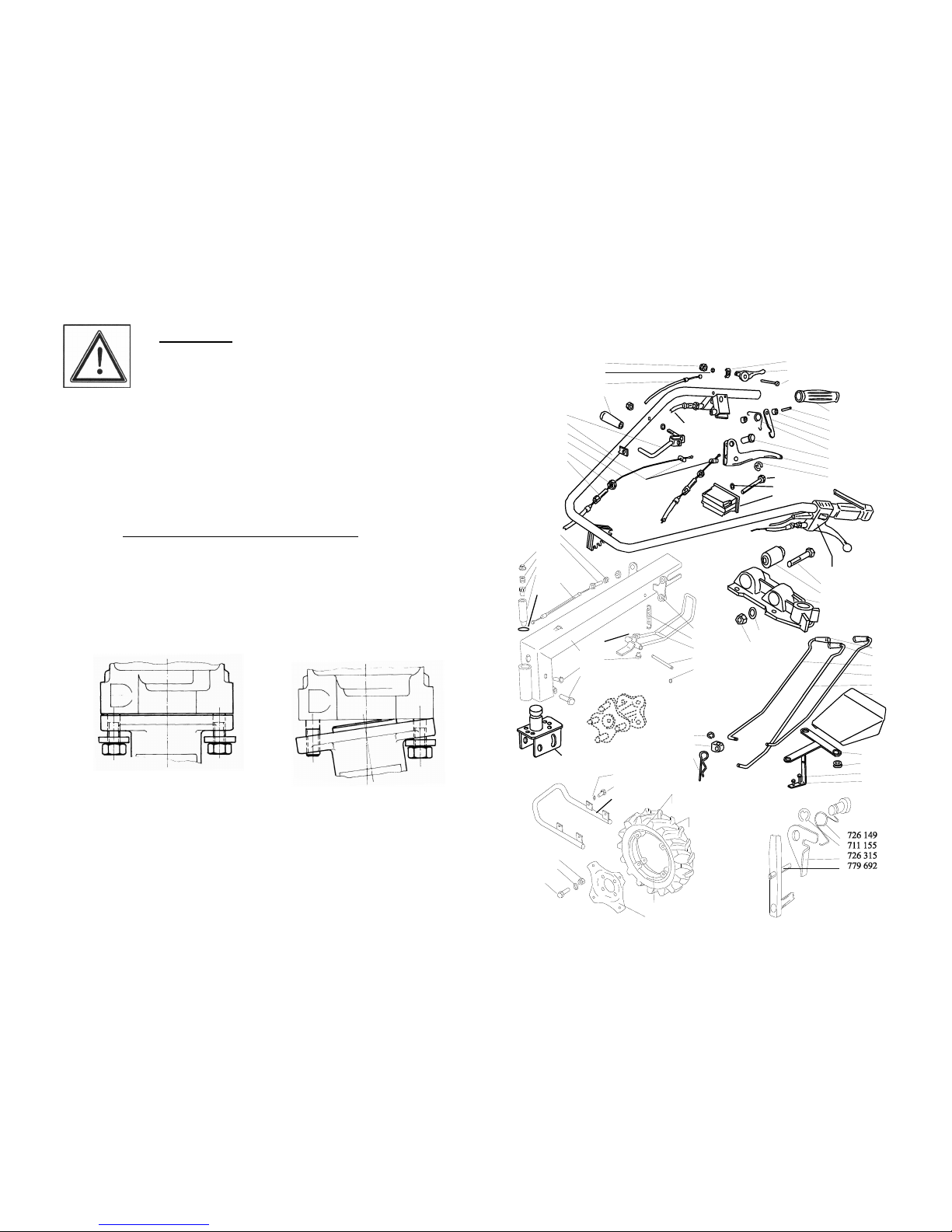

PARTS OF
MAESTRAL
Page 6
WARNING!
W
HEN THE DIFFERENTIAL LOCK IS ACTIVATED (PIC. 5B) BRAKES
ARE NOT WORKING SEPARATELY FOR LEFT AND RIGHT WHEEL – THERE
IS NO STEERING FUNCTION
!

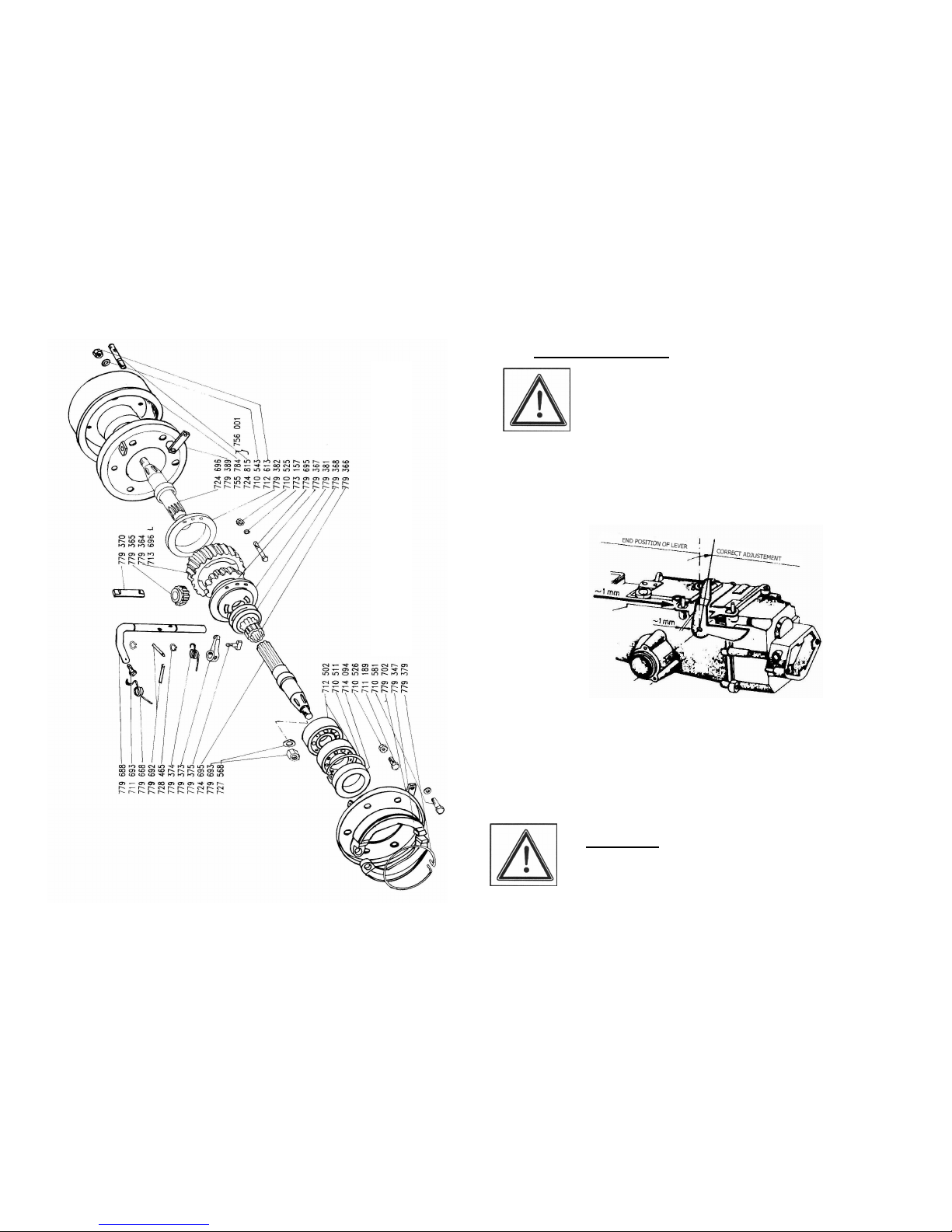

Gear changing
- there are 7 gears available on MAESTRAL – 3 forward and 3 backward. Fourth
gear is possible only when the motor is in front and serves only for transport with
trailer or moving the machine to the working place. When we rotate the handle
bar the fourth gear is blocked! We choose the desired gear with lever on the left
side – No.8, the moving direction we choose with lever forward – backward on
the right side of the machine – No.5.
When changing gears you must use the clutch! Reduce the gas and
choose the desired gear with the lever (Pic. 8).
Mounting the attachments
- you mount the attachments on the basic machine with two (2) nuts (Pic. 13, 20)
- when mounting the machine must not run (safety switch released)
- when activating the attachments with lever 5 you must use the clutch (Pic. 8)
- by attachments with quick connection you change the attachments with pulling
out the cork and than change the attachment
Correct False
Pic. 20
-6-
7 10 52 6
7 43 20 9
7 44 48 3
7 17 82 2
7 19 80 1
7 24 50 7
7 22 64 7
7 43 76 6
7 57 11 0
7 27 52 1
7 10 52 9
7 10 61 9
7 10 60 7
7 10 44 8
7 11 1 6 5
7 7 9 6 9 6
7 5 7 1 1 3
7 5 6 9 1 5
7 11 1 5 5
75 6 9 14
72 5 8 27 -(71 1 15 4)
75 6 9 48
77 9 6 82
71 0 4 79
75 3 1 24
75 3 1 26
75 3 1 25
72 2 8 49
75 3 1 22
71 1 1 55
75 6 4 41
75 1 4 40
73 9 0 11
71 7 7 86
76 1 2 71
75 6 9 27
77 9 6 84
74 3 8 10
71 0 5 26
74 3 2 09
75 7 0 27
71 1 6 92
71 5 0 79
719 198 -L
713 648 -D
720 310- tyre
720 312- tube
722 908 -felly
710 529
710 448
710 607
72 7 26 8
75 7 63 5
71 8 48 4
71 1 5 21
71 0 52 9
7 17 78 5
7 17 78 6
7 19 80 5
7 19 80 3
7 19 80 7
7 22 70 0
72 2 7 03
71 1 1 65
71 1 6 91
71 1 6 92
7 11 1 55
7 11 1 06
7 54 29 6
(75 6 053 -exte nsion )
726 152
743 982
715 079
779 575
757 736 -g asolin e
757 324 -d iesel
HANDLEBAR,WHEEL,..
743 811
710 567
-15-
Page 7
-14-
SPECIAL WARNING!
BECAUSE OF MOST FREQUENT USE FUNCTION OF
CHANGING THE MOVING DIRECTION FORWARD –
BACKWARD, YOU MUST HANDLE WITH THIS LEVER
CORRECTLY. WE DO THE CHANGING AS FOLLOWS (SHOWN
ON PICTURES 7,8,9 AND 10): YOU MUST REDUCE THE GAS,
PRESS THE CLUTCH LEVER AND MOVE THE LEVER FORWARD –
BACKWARD GENTLY. WHEN YOU ARE SURE, THE LEVER IS IN CORRECT
POSITION, SLOWLY RELEASE THE CLUTCH LEVER AND ADD THE GAS
WHEN NECESSARY. WHEN CHANGING THE MOVEMENT DIRECTION THE
SPEED OF THE MACHINE IS NOT CHANGED.
The correct adjustment you can check on the gearbox, where the limiter is
mounted. The limiter is adjusted correct when the gear change lever leans onto
limiter just before end position (app. 1mm). In that case we avoid burdening and
wearing out in the gearbox.
Differential lock
- it activates with pulling of the lever backwards, it should remain in this position.
You use the differential by hard work, when both wheels traction is required or
when one wheel slips (on slopes for example) (Pic. 5a, 5b)
WARNING!
A
CTIVATING OF DIFFERENTIAL LOCK WITHOUT CLUTCH IS NOT
ALLOWED WHEN THE MACHINE IS OPERATING OR WHEN FULL GAS. BY
REDUCING THE GAS YOU CAN ACTIVATE IT WITHOUT USE OF THE
CLUTCH
.
DIFFERENTIAL, BRAKES
-7-
Page 8
Pic. 1 Pic. 2
Pic. 3 Pic. 3b
Pic. 4a Pic. 4b
Pic. 5 -8- Pic. 5b
WORKING SHAFT
-13-
Page 9
Pic. 7 Pic. 9
Pic. 8 Pic. 13
Pic. 11 Pic. 12
Pic. 14
-9-
Pic. 16
ENTRY SHAFT
-12-
Page 10
7. MAINTENANCE
Maintenance manuals for the motor are in the motor Operating manuals. We
recommend you to check the oil level regularly every 20 hours (oil gauge) (Pic.
14). Change oil every 100 working hours or once in a season!
When changing oil the machine must be warmed up. Pour the oil out through the
hole on the bottom of the gearbox by unscrewing the oil screw. Pour in the oil
quality SAE 90 1,7l.
After the work clean the machine of earth, grass or similar dirt. When storing the
machine for longer time, grease metal parts with oiled mop.
We wish you successful work with machine MAESTRAL!
-10-
8. CATALOGUE OF SPARE PARTS

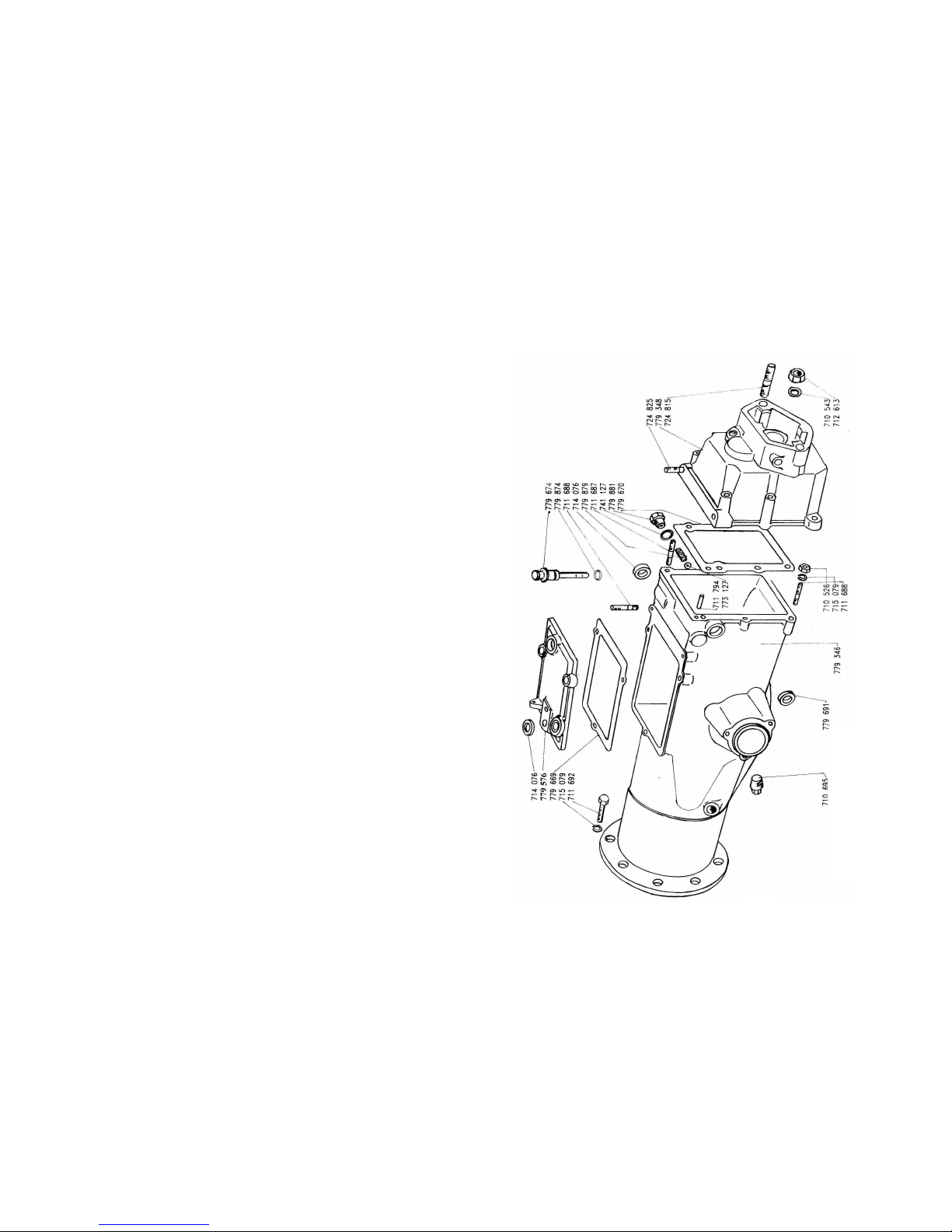

CASING
-11-
Loading...
