1 Introduction

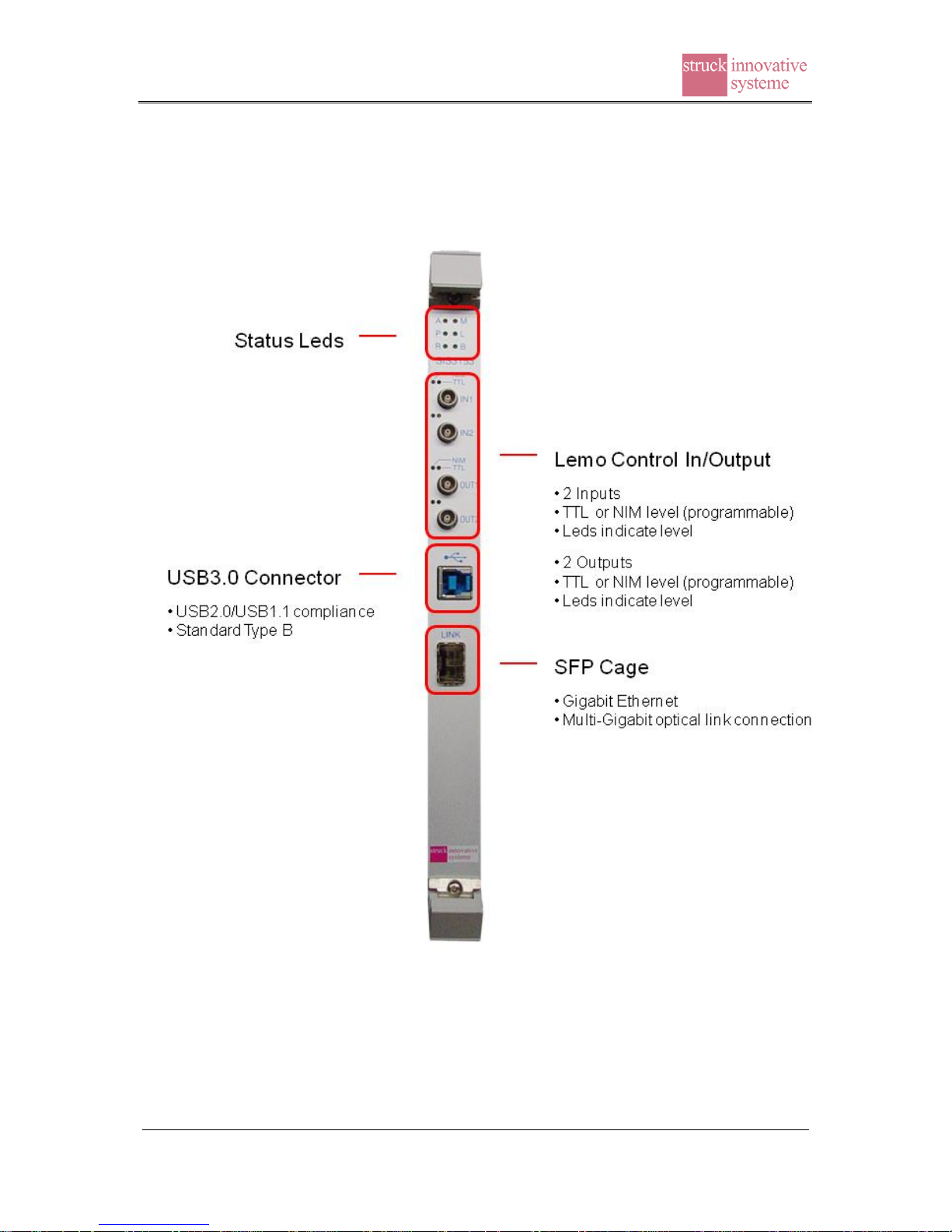

The SIS3153 USB3.0/Ethernet to VME interface is a single width 6U VME card.

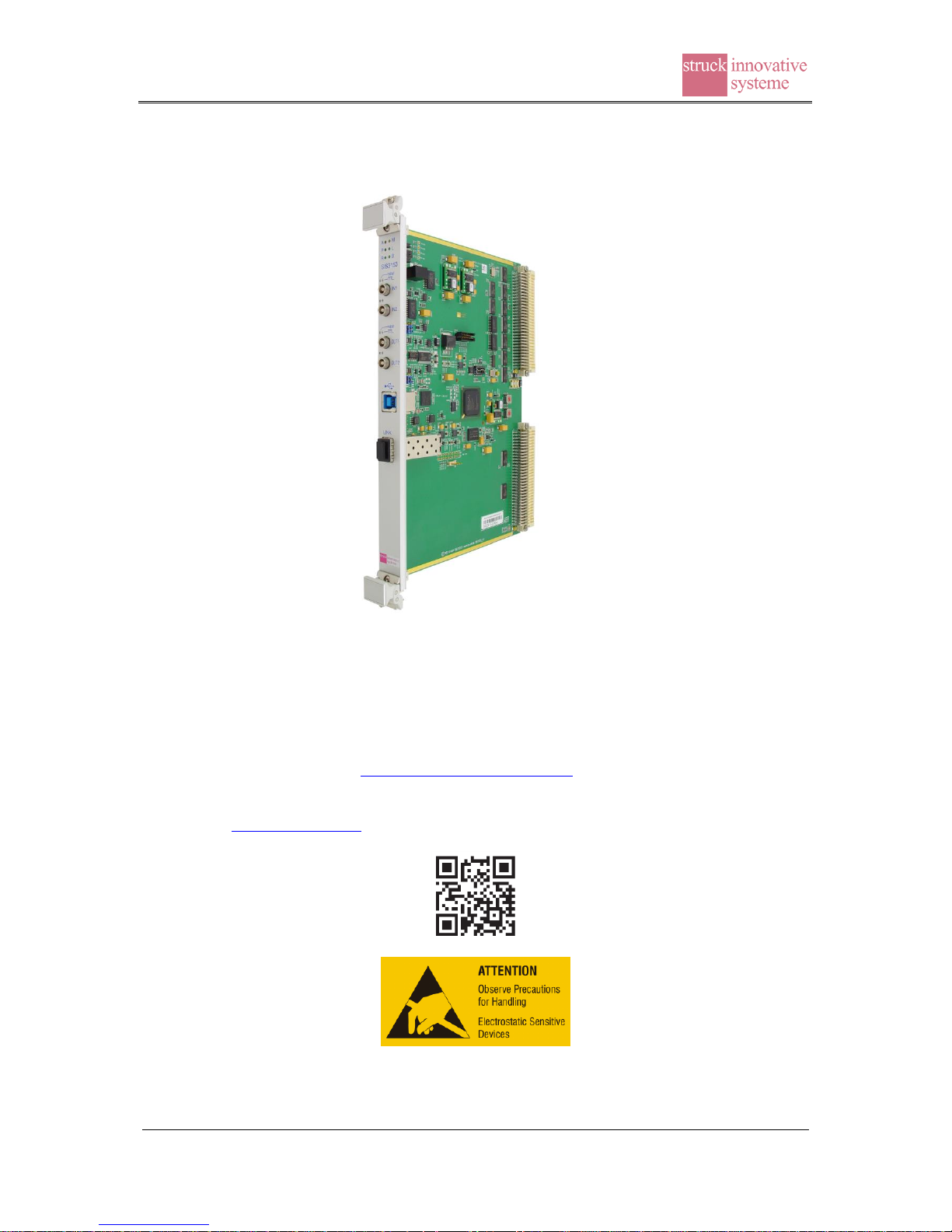

Photograph of SIS3153
As we are aware, that no manual is perfect, we appreciate your feedback and will incorporate proposed
changes and corrections as quickly as possible. The most recent version of this manual can be obtained
by email from info@struck.de.
Feel free to apply for an account for our Dokuwiki documentation web page also.
The SIS3153 firmware page is at www.struck.de/sis3153firm.html .
Information on SIS3153 applications, firmware news and other related issues will be posted on our
DAQ blog at www.struck.de/blog also.
SIS Documentation
SIS3153
VME interface
Page 5 of 38
2 Functionality
The SIS3153 interfaces the popular Universal Serial Bus (USB) and Ethernet to the VMEbus.
It uses the Cypress Semiconductor Corporation FX3 chip as USB3.0 host controller. The
modules functionality comprises:
Ethernet (UDP) connectivity (Described in ‘SIS3153 - Ethernet Addendum’)
USB3.0 / Superspeed USB functionality
USB2.0 and USB1.1 compliance
VME master read cycles:
- IACK, A16/A24/A32
- D8/D16/D32/BLT32/MBLT64/2eVME/2eSST160/2eSST267/2eSST320
VME master write cycles:
- A16/A24/A32
- D8/D16/D32/BLT32/MBLT64/2eVME
VME slave; not implemented yet
2 digital front panel inputs (NIM or TTL level, select by jumper or register bits)
2 digital front panel outputs (NIM or TTL level , select by jumper or register bits)
Possible future firmware extensions comprise
Optical connectivity
Note: A Gigabit 1000BASE-T copper SFP transceiver (Finisar FCLF-8520-3 or compatible,
Struck part number 04333) is required for Ethernet operation. The transceiver is included with
the SIS3153 if the card is ordered for Ethernet to VME Interface operation (Struck part
number 05867).
Struck Documentation
SIS3153
VME interface
Page 6 of 38
3 USB device
The SIS3153USB device (USB peripheral) is hotplugging.
The SIS3153USB device in combination with the drivers supports access to following spaces.
- SIS3153 USB register space
- VME Bus
3.1 SIS3153 USB Register space
The driver offers the following calls:
int sis3153Usb_Register_Single_Read(HANDLE usbDevice,
ULONG addr, ULONG* data) ;
int sis3153Usb_Register_Dma_Read(HANDLE usbDevice,
ULONG addr, ULONG* dmabufs,
ULONG req_nof_data, ULONG* got_nof_data) ;
int sis3153Usb_Register_Single_Write(HANDLE usbDevice,
ULONG addr, ULONG data) ;
int sis3153Usb_Register_Dma_Write(HANDLE usbDevice,
ULONG addr, ULONG* dmabufs,
ULONG req_nof_data, ULONG* put_nof_data);
SIS Documentation
SIS3153
VME interface
Page 7 of 38
3.1.1 USB Register Space Address Map
Offset
R/W
Function/Register
0x0
R/W
USB Control/Status register
0x1 R Module Id. and firmware version register
0x2 R Serial Number register
0x3
R/W
LEMO IO control register
0x4
R/W
UDP protocol configuration register
0x10
R/W
USB VME Master Status/Control register
0x11
R
USB VME Master Cycle Status Register
0x12
R
USB VME Interrupt Status Register
0x100
KA
Key reset all
0x 0000 1000
R/W
Internal RAM
..
0x 0000 1FFF
0x 0010 0000
R
USB Address/Data Test space:
Read Data = Read Address
..
0x 001F FFFF
0x 0020 0000
R
USB Speed Test space:
Read Data = Speed Counter
The Speed Counter increments every 8ns (125 MHz)
..
0x 002F FFFF
The shorthand KA stands for key address. Write access with arbitrary data to a key address
initiates the specified function
Struck Documentation
SIS3153
VME interface
Page 8 of 38
3.2 USB Register description
The function of the individual registers is described in detail in this section.
The first line after the subsection header (in Courier font) like:
#define SIS3153_CONTROL_STATUS 0x0
refers to the sis3153usb.h header file.
3.2.1 USB Control/Status Register(write/read)
#define SIS3153USB_CONTROL_STATUS 0x0
The control register is in charge of the control of some basic properties of the SIS3153 board,
like enabling Led test mode. It is implemented via a selective J/K register, a specific function
is enabled by writing a 1 into the set/enable bit, the function is disabled by writing a 1 into the
clear/disable bit (which location is 16-bit higher in the register). An undefined toggle status
will result from setting both the enable and disable bits for a specific function at the same
time.
On read access the same register represents the status register.
Bit
write Function
read Function
31
reserved
0
30
reserved
0
29
reserved
USB speed flag bit 1
28
reserved
USB speed flag bit 0
27
reserved
0
26
reserved
0
25
reserved
0
24
reserved
0
23
reserved
0
22
reserved
0
21
reserved
0
20
Clear SPI-Flash interface reset (*)
0
19
Clear USB internal access control bit 1 (*)
0
18
Clear USB internal access control bit 0 (*)
0
17
Clear Led test mode (*)
0
16
Switch off LED A (*)
0
15
reserved
Status reserved
..
..
.. 6 ..
.. 5 reserved
Status reserved
4
Set SPI-Flash interface reset
Status SPI-Flash interface reset
3
Set USB internal access control bit 1
Status USB internal access control bit 1
2
Set USB internal access control bit 0
Status USB internal access control bit 0
1
Set Led test mode
Status Led test mode
0
Switch on LED A
Status User LED A
(1=LED on, 0=LED off)
(*) denotes power up default setting, i.e. the power up reading of the register is 0x0
USB internal access control bits:
SIS Documentation
SIS3153
VME interface
Page 9 of 38
Bit 1
Bit 0
Internal read speed to USB3 controller
0
0
16 ns / 32-bit word
0
1
8 ns / 32-bit word
1
0
1 us / 32-bit word
1
1
reserved
This feature is used for test purposes only.
Struck Documentation
SIS3153
VME interface
Page 10 of 38
3.2.2 Module Id. and Firmware Revision Register ( read)
#define SIS3153USB_MODID_VERSION 0x1
This register reflects the module identification of the SIS3153USB and its minor and major
firmware revision levels. The major revision level will be used to distinguish between
substantial design differences and experiment specific designs, while the minor revision level
will be used to mark user specific adaptations.
Bit
Function
Reading
31
Module Id. Bit 15
3
30
Module Id. Bit 14
29
Module Id. Bit 13
28
Module Id. Bit 12
27
Module Id. Bit 11
1
26
Module Id. Bit 10
25
Module Id. Bit 9
24
Module Id. Bit 8
23
Module Id. Bit 7
5
22
Module Id. Bit 6
21
Module Id. Bit 5
20
Module Id. Bit 4
19
Module Id. Bit 3
3
18
Module Id. Bit 2
17
Module Id. Bit 1
16
Module Id. Bit 0
15
Major Revision Bit 7
14
Major Revision Bit 6
13
Major Revision Bit 5
12
Major Revision Bit 4
11
Major Revision Bit 3
10
Major Revision Bit 2
9
Major Revision Bit 1
8
Major Revision Bit 0
7
Minor Revision Bit 7
6
Minor Revision Bit 6
5
Minor Revision Bit 5
4
Minor Revision Bit 4
3
Minor Revision Bit 3
2
Minor Revision Bit 2
1
Minor Revision Bit 1
0
Minor Revision Bit 0
Major revision number
Application/user
0x01
Generic SIS3153USB design (internal 32-bit interface support)
0x16
Generic SIS3153USB design (internal 16-bit interface support)
SIS Documentation
SIS3153
VME interface
Page 11 of 38
3.2.3 Serial Number register
#define SIS3153USB_SERIAL_NUMBER_REG 0x2
This register holds the Serial Number of the module.
BIT
access
Name
Function
31-17
FFFE0000
RO
reserved
16
00010000
RO
Serial Number Not Valid Flag
0: valid
1: not valid
15-0
0000FFFF
RO
Serial Number
1..65535
Note: The Ethernet MAC address is 00-00-56-15-3n-nn (n-nn is the Serial Number)
Struck Documentation
SIS3153
VME interface
Page 12 of 38
3.2.4 LEMO IO control register
#define SIS3153USB_LEMO_IO_CTRL_REG 0x3
The register is implemented in a J/K fashion also and allows to check the status of the logic
level setting of the front panel inputs and outputs. In addition it can be used to control the
levels by software. Please note, that the actual control over the status of the inputs and outputs
is controlled via the LEMO I/O register
Bit
Write Function
Read Function/value
31
Disable Software Level Control (*)
0
30
reserved
0
29
reserved
0
28
reserved
0
27
reserved
0
26
reserved
0
25
reserved
0
24
reserved
0
23
Clear output 2 latch (*)
Status of input 2 latch
22
Clear output 1 latch (*)
Status of input 1 latch
21
Clear output 2 (*)
Status of input 2
20
Clear output 1 (*)
Status of input 1
19
Set input 2 to NIM level (*)
0
18
Set input 1 to NIM level (*)
0
17
Set output 2 to NIM level (*)
0
16
Set output 1 to NIM level (*)
0
15
Enable Software Level Control
Status Software Level Control
14
reserved
Status of reserved
13
reserved
Status of reserved
12
reserved
Status of reserved
11
reserved
Status of reserved
10
reserved
Status of reserved
9
reserved
Status of reserved
8
reserved
Status of reserved
7
Generate output pulse 2
0
6
Generate output pulse 1
0
5
Set output 2
Status of output 2
4
Set output 1
Status of output 1
3
Set input 2 to TTL level
Status of level input 2 (0=NIM, 1=TTL)
2
Set input 1 to TTL level
Status of level input 1 (0=NIM, 1=TTL)
1
Set output 2 to TTL level
Status of level output 2 (0=NIM, 1=TTL)
0
Set output 1 to TTL level
Status of level output 1 (0=NIM, 1=TTL)
The power up value is 0x00000000 (with the I/Os jumper configured to NIM level)
(*) denotes the power up default setting

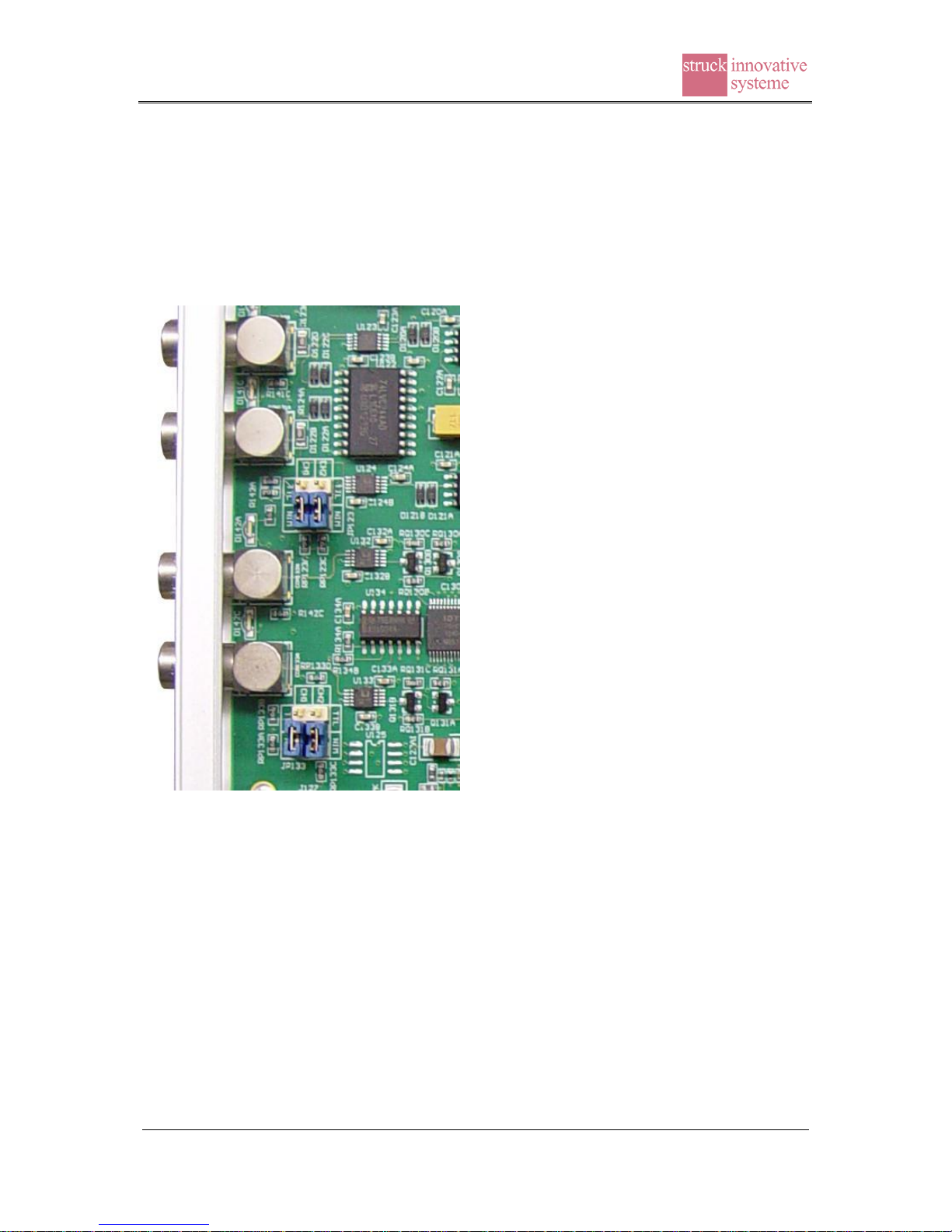

Note 1: Enable software control by setting bit 15 to gain software control over the logic levels
of the I/Os. By default the level is defined by jumpers JP123 and JP133.
Note 2: for the typical application it will be good enough to set the logic levels to the desired
levels in hardware by setting JP123 and JP133 accordingly.
SIS Documentation
SIS3153
VME interface
Page 13 of 38
3.2.5 UDP protocol configuration register
#define SIS3153_UDP_PROTOCOL_CONFIG 0x4 /* read/write; D32 */
This register is used to control the UDP data packets. The setup of the ethernet interface is
described in detail in ‘SIS3153USB - Ethernet UDP Addendum’.
Bit
31 - 9
8
7 - 5
4
3 - 0
Function
reserved
UDP transmit
Data packet
format bit
reserved
UDP transmit jumbo
Packet enable bit
UDP transmit
packet gap bits
UDP transmit
packet gap value
Gap time between UDP packets
0
256 ns
1
512 ns
2
1 us
3
2 us
4
4 us
5
8 us
6
10 us
7
12 us
8
14 us
9
16 us
0xA
20 us
0xB
28 us
0xC
32 us
0xD
41 us
0xE
50 us
0xF
57 us
The power up default value reads 0x 00000000
Struck Documentation
SIS3153
VME interface
Page 14 of 38
3.2.6 USB VME Master Status/Control register (read/write)
#define SIS3153USB_VME_MASTER_CONTROL_STATUS 0x10
The control register is in charge of the control of most of the basic properties of the SIS3153
board in write access. It is implemented via a selective J/K register, a specific function is
enabled by writing a 1 into the set/enable bit, the function is disabled by writing a 1 into the
clear/disable bit (which location is 16-bit higher in the register). An undefined toggle status
will result from setting both the enable and disable bits for a specific function at the same
time.
Bit
Write Function
Read Function
31
Clear SYSTEM VME BERR TIMER BIT1
0
30
Clear SYSTEM VME BERR TIMER BIT0
0
29
Clear LONG TIMER BIT1
0
28
Clear LONG TIMER BIT0
0
27
no function
0
26
Clear Force Dearbit
0
25
no function
0
24
Disable VME retry
0
23
no function
0
22
Clear VME REQUESTER TYPE BIT
0
21
Clear VME_REQ_LEVEL BIT1
0
20
Clear VME_REQ_LEVEL BIT0
0
19
no function
0
18
no function
0
17
Clear VME_SYSRESET bit
0
16
Clear VME System Controller Enable bit
Status VME System Controller (*2)
15
Set SYSTEM VME BERR TIMER BIT1
Status SYSTEM VME BERR TIMER BIT1
14
Set SYSTEM VME BERR TIMER BIT0
Status SYSTEM VME BERR TIMER BIT0
13
Set LONG TIMER BIT1
Status LONG TIMER BIT1
12
Set LONG TIMER BIT0
Status LONG TIMER BIT0
11
no function
0
10
Set Force Dearbit (*5)
Status Force Dearbit Enable bit
9
no function
0 8 Enable VME retry (*4)
Status VME retry Enable bit
7
no function
0 6 Set VME REQUESTER TYPE BIT
Status VME REQUESTER TYPE BIT
5
Set VME_REQ_LEVEL BIT1
Status VME_REQ_LEVEL BIT1
4
Set VME_REQ_LEVEL BIT0
Status VME_REQ_LEVEL BIT0
3
no function
0 2 no function
0 1 Set VME_SYSRESET bit (*3)
Status VME_SYSRESET bit
0
Set VME System Controller Enable bit (*1)
Status VME System Controller Enable bit
The power up value is 0x0000C100 (or 0x0001C100 with system controller set)
Notes:
(*1) is ored with switch 5 of SW162; Caution: if the jumper is not installed and the VME
system controller functionality is enabled by software, the 16 MHz clock is not active
during power up. This may result in problems with peculiar VME slave designs that use
the VME clock to initialise on board logic.
(*2) is set with switch 5 of SW162 on or if VME System Controller Enable bit is set
SIS Documentation
SIS3153
VME interface
Page 15 of 38
(*3) if Switch SW162-7 is ON and VME_SYSRESET bit is set then VME_SYSRESET is
issued
(*4) A retry error (error code 0x212) may be caused by older VME backplanes, which do not
properly terminate this previously reserved (pin B3 on connector P2) if retry is enabled.
Retry can be disabled by setting bit 24. Retry had to be activated by setting bit 8 on the
SIS3153, this behaviour is not compatible with SST transfers.
(*5) Setting bit 10 causes the SIS3153 to release busy for 170 ns in between of blockletts
during a block transfer. This gives another master the possibility to gain busmastership
during the block transfer. The SIS3153 will terminate the block transfer with an
arbitration timeout if the other master does not release busmastership within the long
timer period. The AS-AS gap of 90 ns will be extended by the 170 ns release period, i.e.
the reduction in transfer speed is negligible.
Explanation/function of bit combinations:
SYSTEM VME BERR TIMER BIT1
SYSTEM VME BERR TIMER BIT0
VME Bus Error after
0
0
1,25 s
0
1
6,25 s
1
0
12,5 s
1
1
100 s (default)
Note: The default value of 1,25 s will be fine with most of VME slaves on the market, there are peculiar cards
which will respond to a VME cycle much slower however also. The bus error code is 0x211.
LONG TIMER BIT1
LONG TIMER BIT0
LONG Timeout after 0 0
1 ms (default) 0 1
10 ms
1
0
50 ms
1
1
200 ms
LONG Timeout: arbitration timeout, no reply from current VME master or VME bus mastership not granted
The arbitration timeout error code is ox214.
VME_REQ_LEVEL BIT1
VME_REQ_LEVEL BIT0
VME Bus Request Level
0
0
BR3 (highest Level, default)
0
1
BR2
1
0
BR1
1
1
BR0
VME REQUESTER TYPE BIT
VME Bus Requester Type
0
Release when Done (default)
1
Release on Request
Struck Documentation
SIS3153
VME interface
Page 16 of 38
3.2.7 USB VME Master Cycle Status
#define SIS3153USB_VME_MASTER_CYCLE_STATUS 0x11
This register contains status information for the last VME Cycle.
D31 D16
D15 D0
VME Cycle Error Register
VME Write Transfer Byte Count Register
VME Cycle Error Codes:
- 0x100 Timeout
- 0x110 USB Protocol Error: invalid parameter
- 0x111 USB Protocol Error: USB write error
- 0x112 USB Protocol Error: USB read error
- 0x113 USB Protocol Error: USB read length error
- 0x211 VME Bus Error
- 0x212 VME_RETRY_ERROR
- 0x214 VME Arbitration Timeout
Note: The 0x100 timeout error occurs if the VME master logic is "dead" for one second. This
situation can occur if the VME slave generates DTACK_L in a fashion that violates the VME
specification. The timeout error does not occur with properly working VME slave hardware.
SIS Documentation
SIS3153
VME interface
Page 17 of 38
3.2.8 USB VME Interrupt Status Register
#define SIS3153USB_VME_INTERRUPT_STATUS 0x12
This register reflects the status of the VME IRQ lines. It can be used to check on the
occurrence of a VME interrupt.
Bit
Function
31 0 ..
..
20 0 19
Test: set IRQ
..
Test: IRQ level 2
..
Test: IRQ level 1
16
Test: IRQ level 0
15 ..
.. 8 0 7 Status VME IRQ 7 on VME BUS
6
Status VME IRQ 6 on VME BUS
5
Status VME IRQ 5 on VME BUS
4
Status VME IRQ 4 on VME BUS
3
Status VME IRQ 3 on VME BUS
2
Status VME IRQ 2 on VME BUS
1
Status VME IRQ 1 on VME BUS
0
0
Note:
To create an IACK cycle you have to execute a D8 VME read cycle with AM=0x4000 from
the address defined by (irq_level<<1)+1.. The read returns the interrupt vector as datum.
Examples:
VME IRQ level = 1 -> address = 3
VME IRQ level = 4 -> address = 9
VME IRQ level = 6 -> address = 0xd
Struck Documentation
SIS3153
VME interface
Page 18 of 38
3.3 VME Bus
The Windows driver offers the following calls:
int EXPORT sis3153Usb_Vme_Single_Read(HANDLE usbDevice,
ULONG addr,
ULONG am,
ULONG size,
ULONG* data) ;
int EXPORT sis3153Usb_Vme_Dma_Read(HANDLE usbDevice,
ULONG addr,
ULONG am,
ULONG size,
ULONG fifo_mode,
ULONG* dmabufs,
ULONG req_nof_data,
ULONG* got_nof_data) ;
Note: req_nof_data and got_nof_data are counted in longwords
int EXPORT sis3153Usb_Vme_Single_Write(HANDLE usbDevice,
ULONG addr,
ULONG am,
ULONG size,
ULONG data);
int EXPORT sis3153Usb_Vme_Dma_Write(HANDLE usbDevice,
ULONG addr,
ULONG am,
ULONG size,
ULONG fifo_mode,
ULONG* dmabufs,
ULONG req_nof_data,
ULONG* put_nof_data);
Not all combinations of the parameters are possible and allowed.
All supported VME cycles are defined in the include file
..\sis3153usb_vme_win_utils\sis3153usb_calls\ sis3153usb_vme_calls.h.
Examples:
int vme_A32D32_read(HANDLE hXDev,
u_int32_t vme_adr,
u_int32_t* vme_data ) ;
int vme_A32MBLT64_read(HANDLE hXDev,
u_int32_t vme_adr,
u_int32_t* vme_data,
u_int32_t req_num_of_lwords,
u_int32_t* got_no_of_lwords) ;
Note: req_num_of_lwords and got_no_of_lwords are counted in longwords
SIS Documentation
SIS3153
VME interface
Page 19 of 38
4 USB – SIS3153 Transfer Data Rate
The following transfer data rates were measured with a Siemens Fujitsu Celsius W420 PC
(3.4 GHz i7-3770 CPU) running under Windows 7 Professional.
4.1 USB – SIS3153 Internal Space Data Rate
appr. continuous Data Rate
Single Data Write
DMA Block Write
Single Data Read
DMA Block Read
USB2.0
15 KByte/sec
20 MByte/sec
15 KByte/sec
40 MByte/sec
USB3.0
82 KByte/sec
87 MByte/sec
84 Kyte/sec
294 MByte/sec
Struck Documentation
SIS3153
VME interface
Page 20 of 38
4.2 USB – SIS3153 VME Space Data Rate
4.2.1 VME Data Rate measured with a Chrislin VME Memory
USB2.0
approximate continuous Data Rate
Write
Read
A32-D32
15 KByte/sec
15 KByte/sec
A32-DMA-D32
9 MByte/sec
9 Myte/sec
A32-BLT32
19 MByte/sec
25 Myte/sec
A32-MBLT64
19 MByte/sec
39 Myte/sec
USB3.0
approximate continuous Data Rate
Write
Read
A32-D32
81 KByte/sec
84 KByte/sec
A32-DMA-D32
9 MByte/sec
9 Myte/sec
A32-BLT32
25 MByte/sec
26 Myte/sec
A32-MBLT64
50 MByte/sec
54 Myte/sec

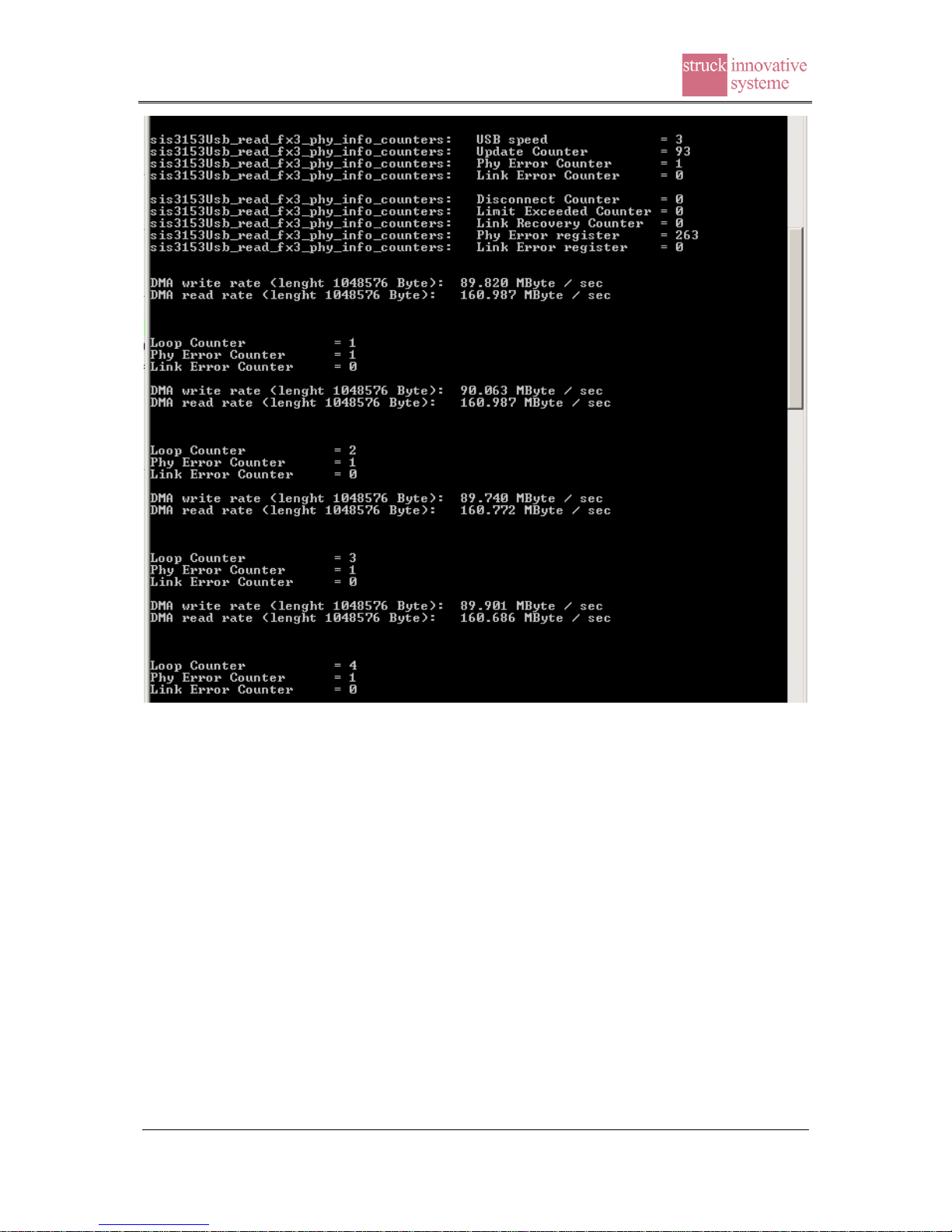

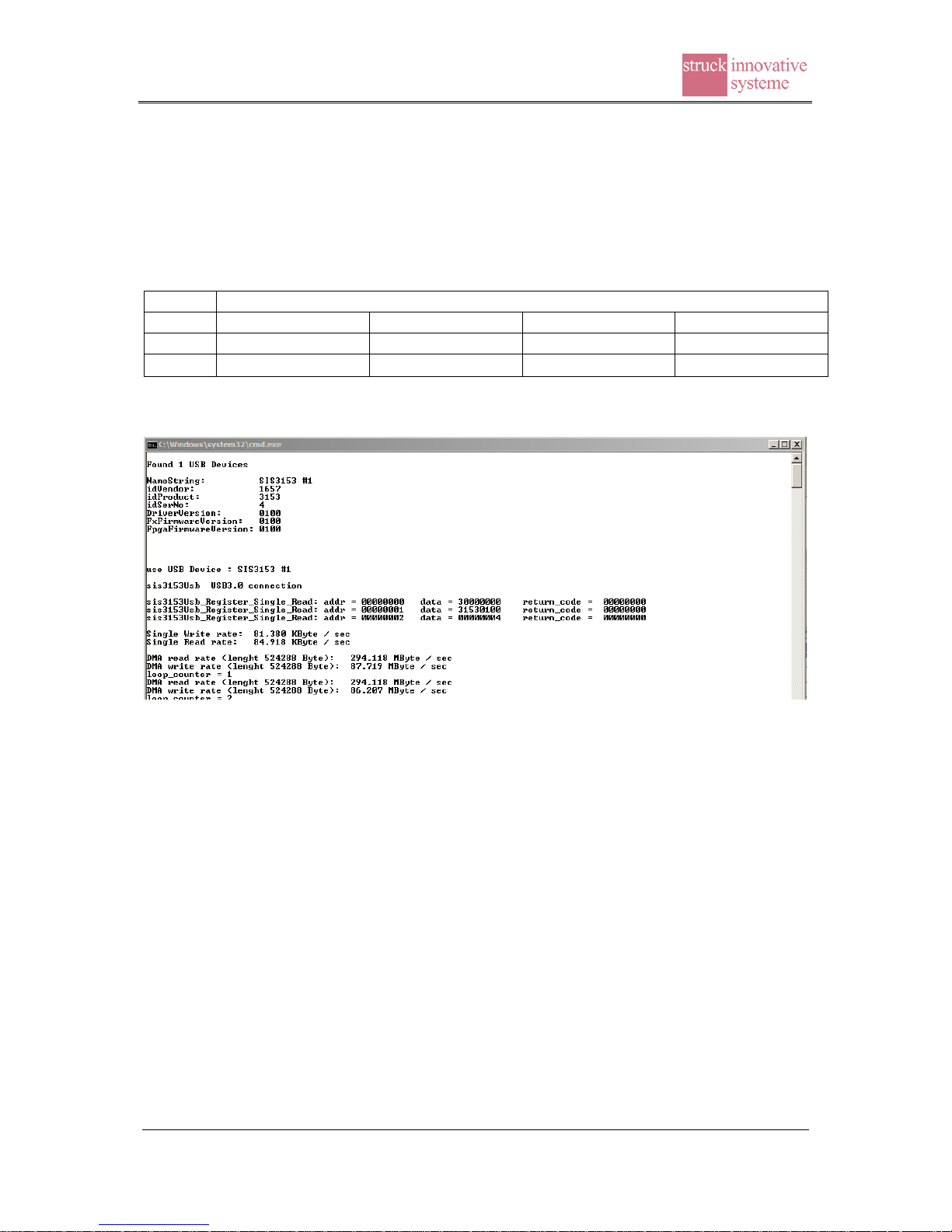

Screen shot of the test program with USB3.0 connection.
Note: The Chrislin memory is a legacy card, which does not have a state of the art VME slave
implementation, but provides means to test standard read/write cycles like A32 D32.
SIS Documentation
SIS3153
VME interface
Page 21 of 38
4.2.2 VME Data Rate measured with a SIS3305 ADC
USB2.
approximate continuous Data Rate
Read
A32-DMA-D32
15 Myte/sec
A32-BLT32
26 Myte/sec
A32-MBLT64
40 Myte/sec
A32-2eVME
40 Myte/sec
A32-2eSST160
40 Myte/sec
A32-2eSST267
40 Myte/sec
A32-2eSST320
40 Myte/sec
USB3.0
approximate continuous Data Rate
Read
A32-DMA-D32
15 Myte/sec
A32-BLT32
26 Myte/sec
A32-MBLT64
47 Myte/sec
A32-2eVME
86 Myte/sec
A32-2eSST160
127 Myte/sec
A32-2eSST267
147 Myte/sec
A32-2eSST320
175 Myte/sec

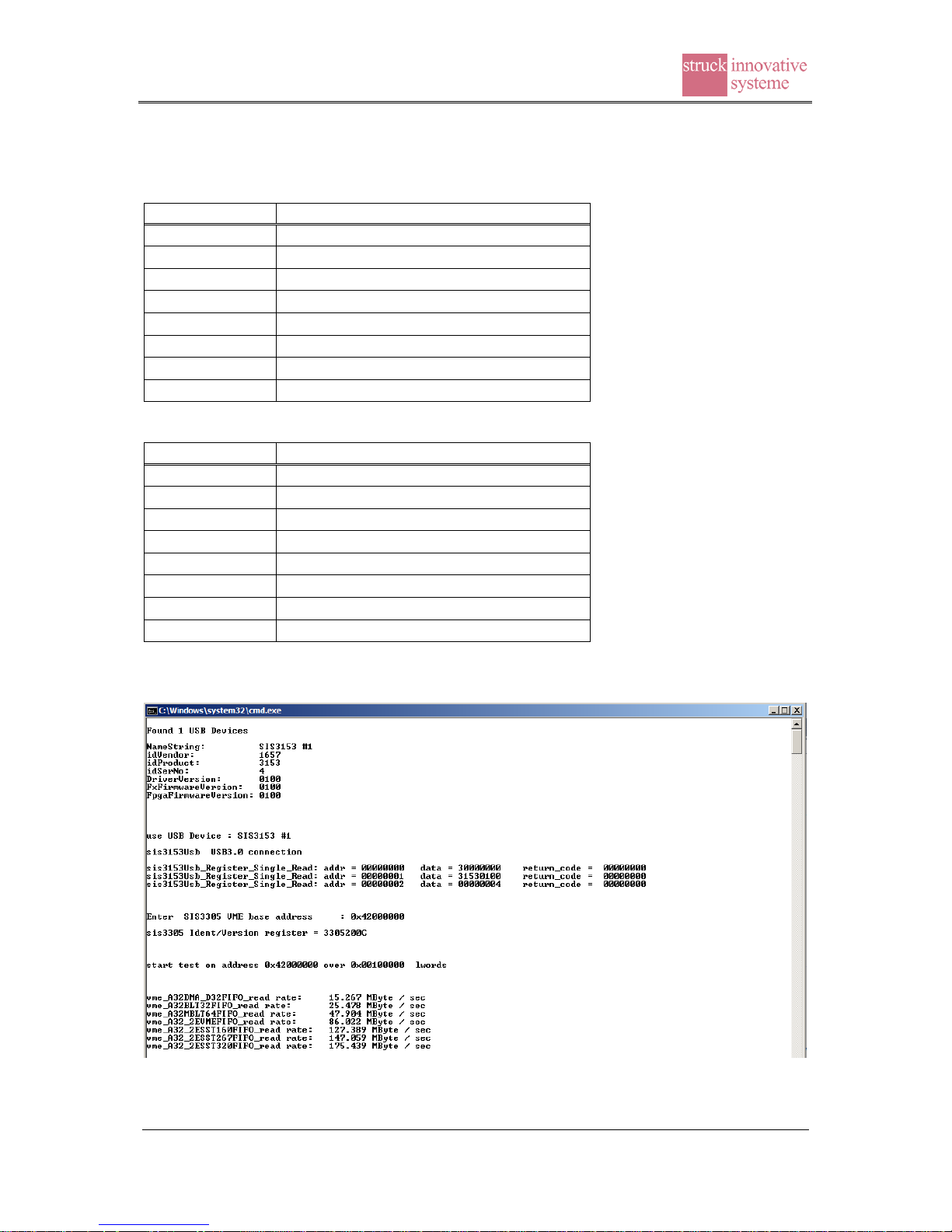

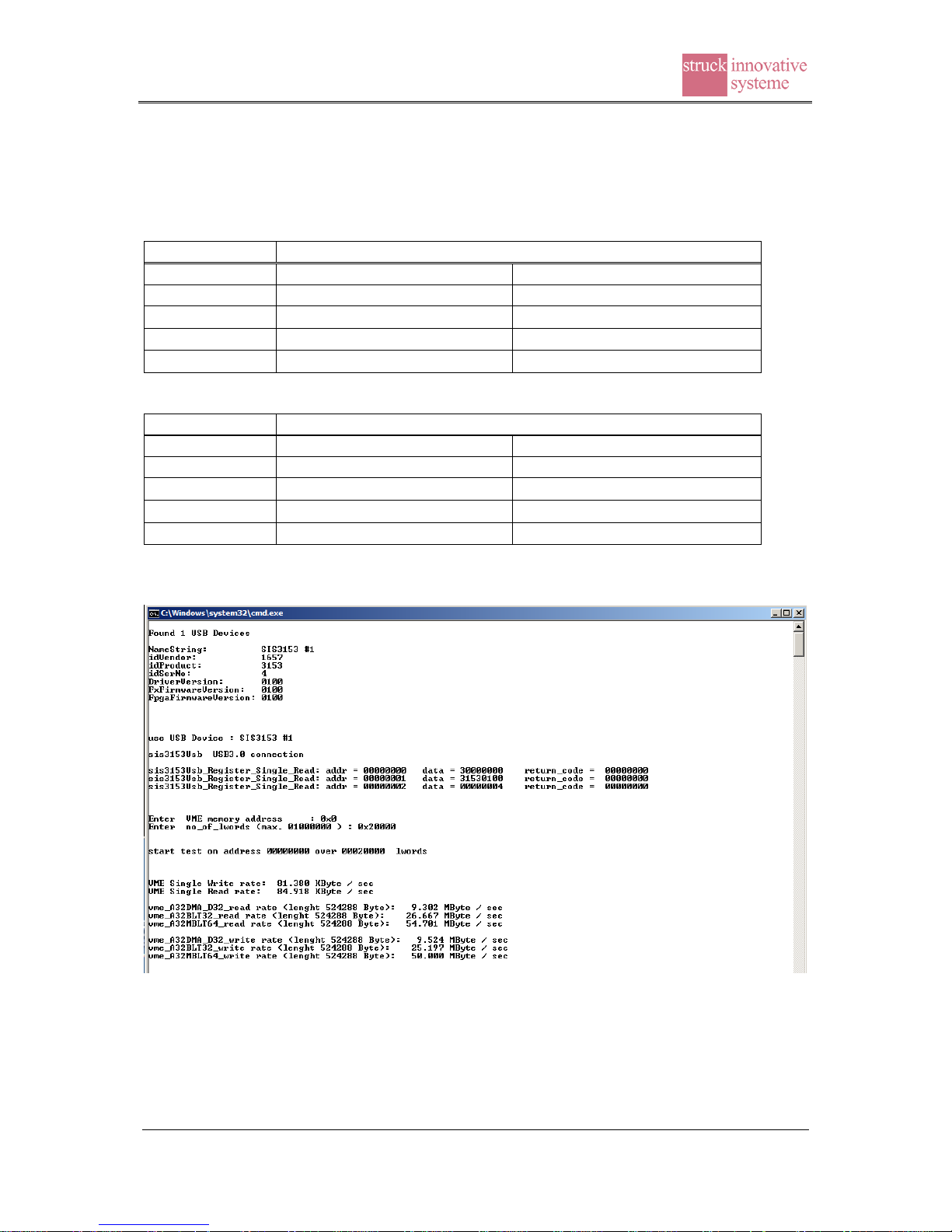

Screen shot of the test program with USB3.0 connection.
Struck Documentation
SIS3153
VME interface
Page 22 of 38
5 Front Panel Elements
The SIS3153USB has 14 front panel LEDs, 2 LEMO 00 input, 2 LEMO 00 output
connectors, a SFP cage and a type B USB connector.
SIS Documentation
SIS3153
VME interface
Page 23 of 38
6 LEDs
6.1 Front Panel LEDs
The six LEDs close to the top of the SIS3153 have the following function.
LED
Color
Description
A
Yellow
To be switched on/off under user program control (see USB
Control/Status register
(VME access to VME slave port of SIS3153, future option)
M
Yellow
VME master, lit whenever the SIS3153 accesses the VME bus
P
Green
Power, signals presence of +3.3 V supply voltage
L
Green
USB or Ethernet connection status (see below), depends on SW162-3
R
Green
Ready, lit when on board logic is configured (off during power up LED
self test)
B
Green
VME Bus Error
During power up self test and FPGA configuration all LEDs except the Ready (R) LED are
on. After the initialisation phase is completed, all LEDs except the Ready (R) LED and the
Power (P) have to go off. The status of the L LED depends on the status of the USB
connection.
Depends on the position of the Switch-3, the Link Led “L” indicates the status of the USB or
Ethernet connection.
SW162-3 = Off:
The L LED will flash N times approximately every 4 seconds. N indicates USB connection:
N
Function
0
reserved
1
USB1 connection or not connected
2
USB2.0 connection
3
USB3.0 connection
SW162-3 = On:
The Link LED indicates after Power-Up and booting the FPGA the Ethernet Link Status:
- blinking with 4 Hz (every 0.25 sec) indicates no Ethernet Link
- blinking with 0.8 Hz (every 1.25 sec) indicates DHCP request busy
- blinking with ping access
Struck Documentation
SIS3153
VME interface
Page 24 of 38
Four pairs of green surface mounted LEDs are used to indicate the logic level of the front
panel LEMO inputs and outputs.
Lit LED
Description
NIM
In/output set to NIM level
logic state
voltage
0
0 V
1
< -0.8 V
TTL
In/output set to TTL level
logic state
voltage
0
< 0.7 V
1
> 2.4 V
Note 1: the factory default power up logic level is NIM: The input default levels can be set on
JP123, the default output levels on JP133. In addition the logic level can be set in the LEMO
IO control register
Note 2: the inputs are factory terminated with 50 Ω, the outputs drive a load of 50 Ω
SIS Documentation
SIS3153
VME interface
Page 25 of 38

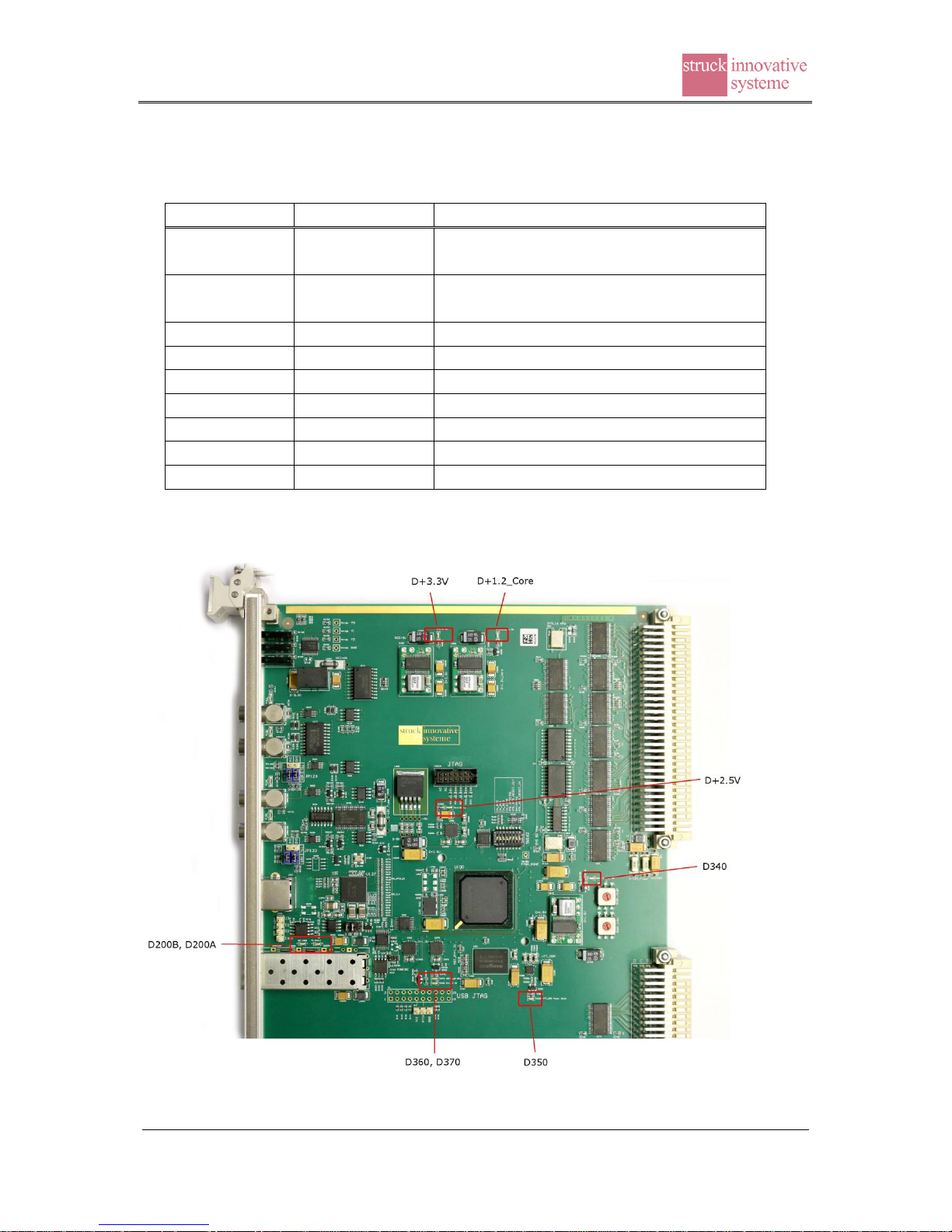

6.2 SMD LEDs
9 red surface mount LEDs are on the SIS3153 to visualize part of the board status.
LED designator
LED comment
Function
D200A
TX FAULT
Signals SFP transmit fault
(lit without SFP installed also)
D200B
RX LOS
Signals SFP link loss
(lit without SFP installed also)
D+1.2V_Core
D+1.2V_Core
Signals presence of 1.2V Core power
D+2.5V
D+2.5V
Signals presence of 2.5V power
D+3.3V
D+3.3V
Signals presence of 3.3V power
D340
D340
Signals presence of 1.5V power
D350
D350
Signals presence of VTT_VREF power
D360
D+1.2V
Signals presence of 1.2V power
D370
D370
Signals presence of 1.2V MGT power
Struck Documentation
SIS3153
VME interface
Page 26 of 38
7 SIS3153 Jumpers, Switches and Connectors
The SIS3153 card has three jumper arrays, one DIP switch and two rotary switches.

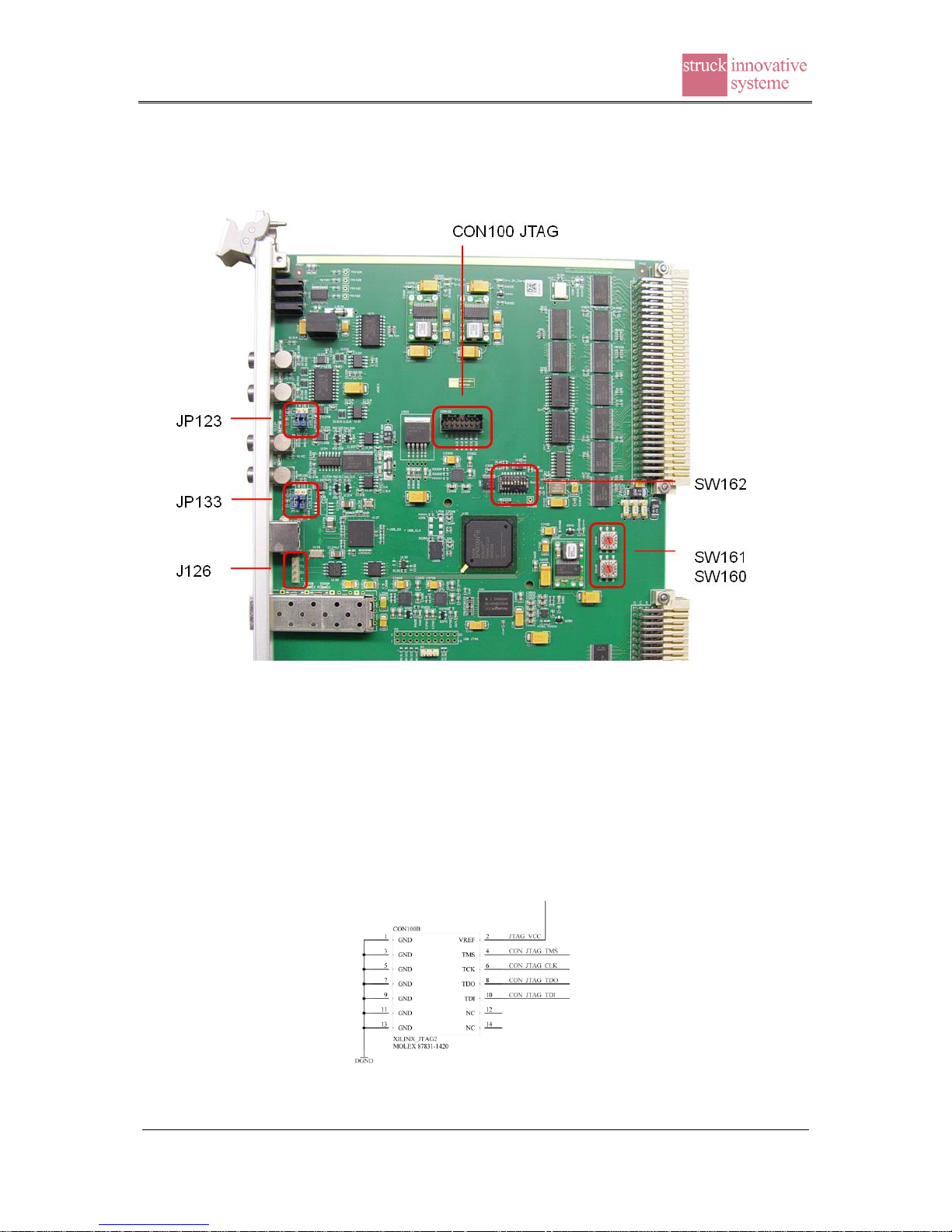

7.1 CON100 JTAG
The SIS3153’s on board logic can load its firmware from a SPI Flashprom or via the JTAG
port on connector CON100.
Hardware like the HW-USB-II-G-JTAG in connection with the appropriate software will be
required for in field JTAG firmware upgrades.
CON100 is a 2mm (i.e. metric) 14 pin header that allows you to reprogram the firmware of
the SIS3153 board with a JTAG programmer. The pinout is shown in the schematic below. It
is compatible with the cable that comes with the XILINX HW-USB-II-G-JTAG platform
cable.
Note: The board has to be powered for reprogramming over JTAG
SIS Documentation
SIS3153
VME interface
Page 27 of 38
7.2 SW161/SW160 VME Slave Address (future feature)
The two rotary hexadecimal rotary encoders SW161 and SW160 are used to define the VME
slave address. The function depends on the setting of switch SW162 also.
7.3 SW162 Dip switch System Controller/Reset Behavior/Slave Addressing
The 8 switches of SW162 are in charge of system controller function, reset behaviour and
slave addressing as listed in the table below. Factory default settings are illustrated on the left
hand side of the table.

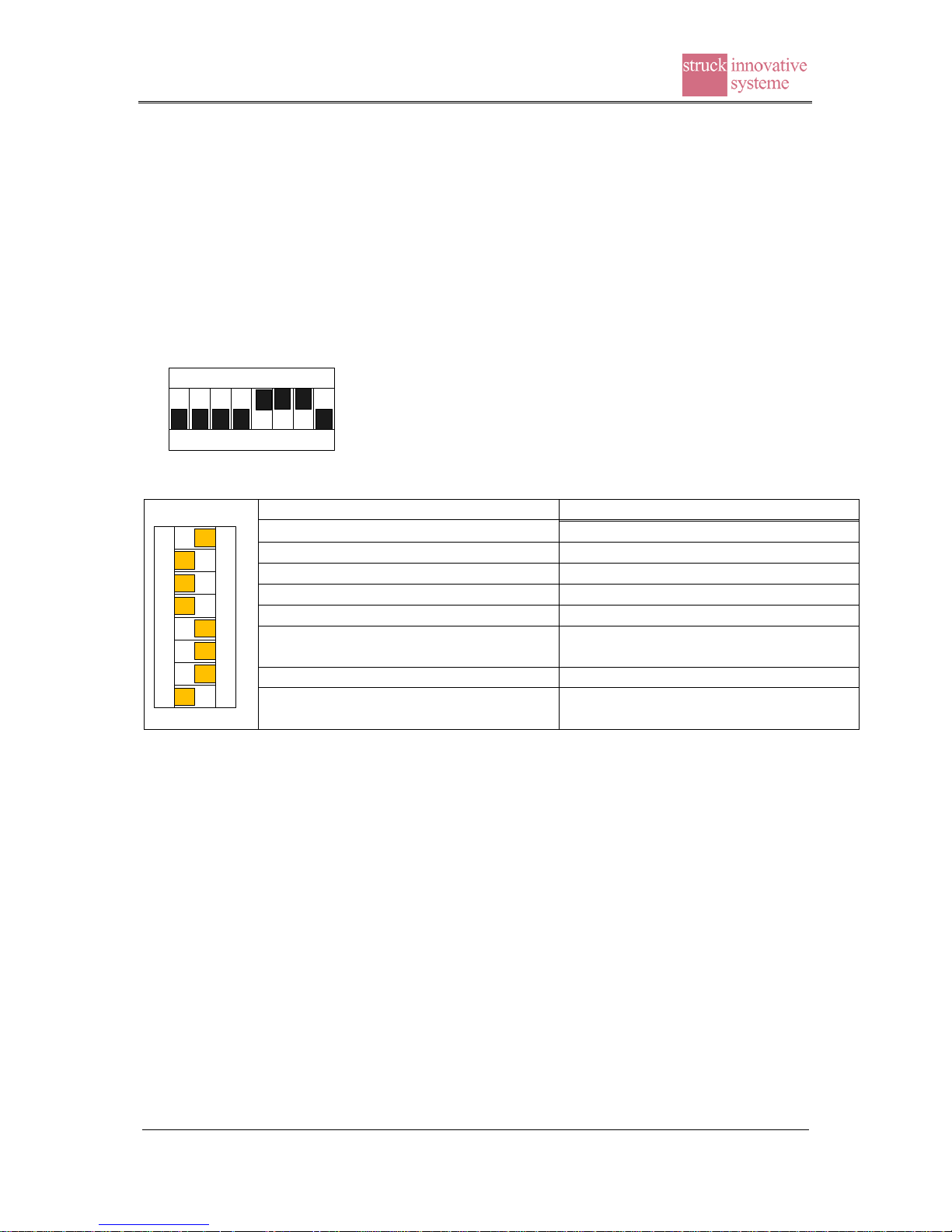

1 2 3 4 5 6 7 8
O F F
SW162
1 2 3 4 5 6 7 8
O F F
SW162
Off Function
On Function
1: Disable A32 slave addressing*
Enable A32 slave addressing*
2: *
*
3: Led L indicates USB activities
Led L indicates Ethernet activities
4: DHCP disable
DHCP enable (Ethernet)
5: System controller disable
System controller enable
6: Disconnect FPGA reset to VME
SYSRESET
Connect FPGA reset to VME
SYSRESET
7: Watchdog disable
Watchdog enable
8: Disconnect VME SYSRESET from
FPGA reset
Connect VME SYSRESET to FPGA
reset
* reserved for future slave use
Note 1: do not set switch 6 and 8 to the on position at the same time (deadlock). The
recommended setting is switch 6 on/8 off for a master/system controller and switch 6 off/8 on
for non system controller units.
Struck Documentation
SIS3153
VME interface
Page 28 of 38
7.4 JP123 LEMO input, JP133 LEMO output logic level
Example:

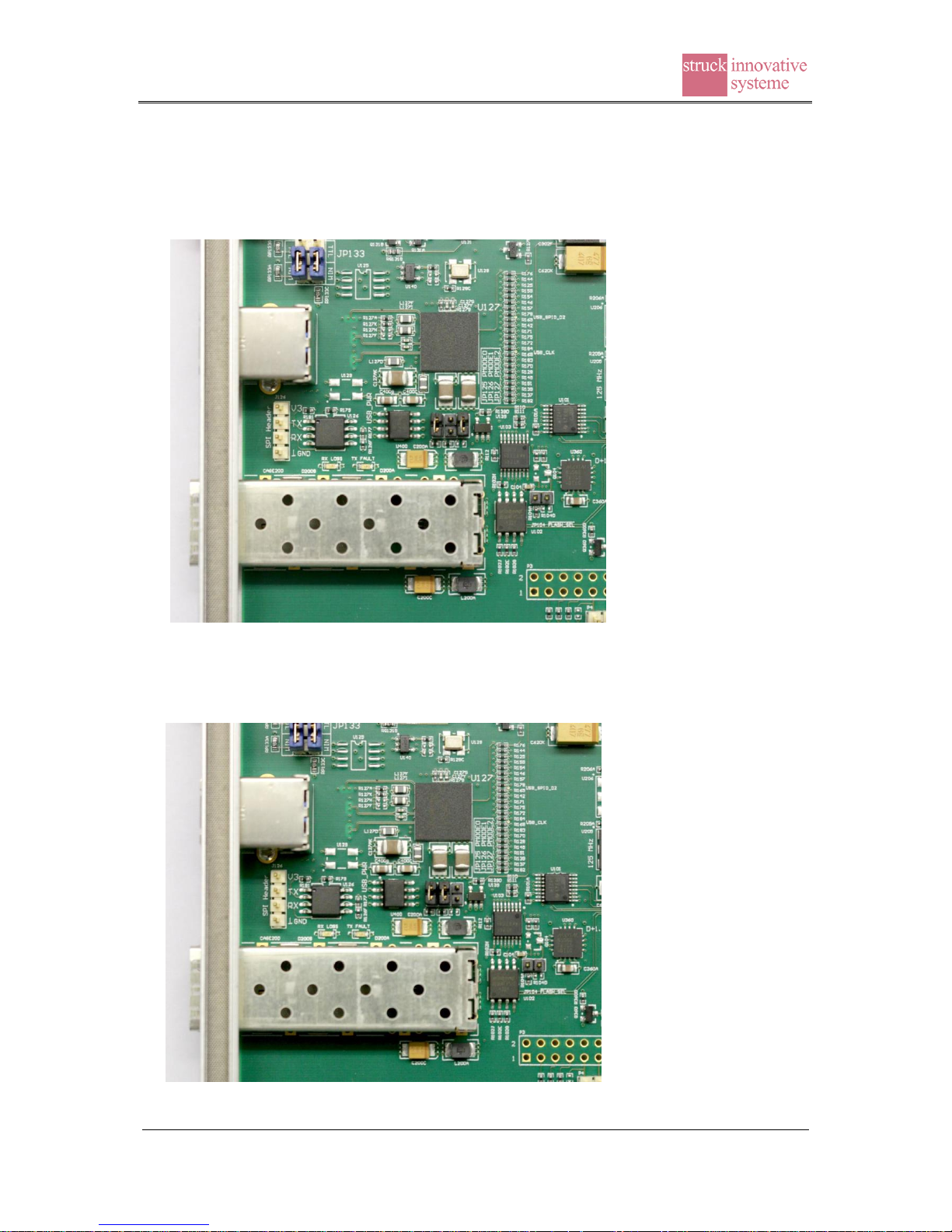

JP123 both inputs configured for NIM (i.e. at factory default setting)
JP133 both outputs configured for NIM (i.e. at factory default setting)
Note: The position for the jumpers for TTL is printed on the silk screen of the PCB.
SIS Documentation
SIS3153
VME interface
Page 29 of 38
J126 USB Controller FX3 UART interface
The UART interface can be used for debugging of the USB FX3 controller software (used by
Struck) and to force the USB FX3 controller to boot with a “Cypress default bootloader”. This
is necessary to reload a new FX3 images (Struck bootloader) into the FX3-Flashprom.
(SIS3153 V1 / SN001...005 only)
Normal operation (FX3 starts with a Struck bootloader after PowerUp) : open

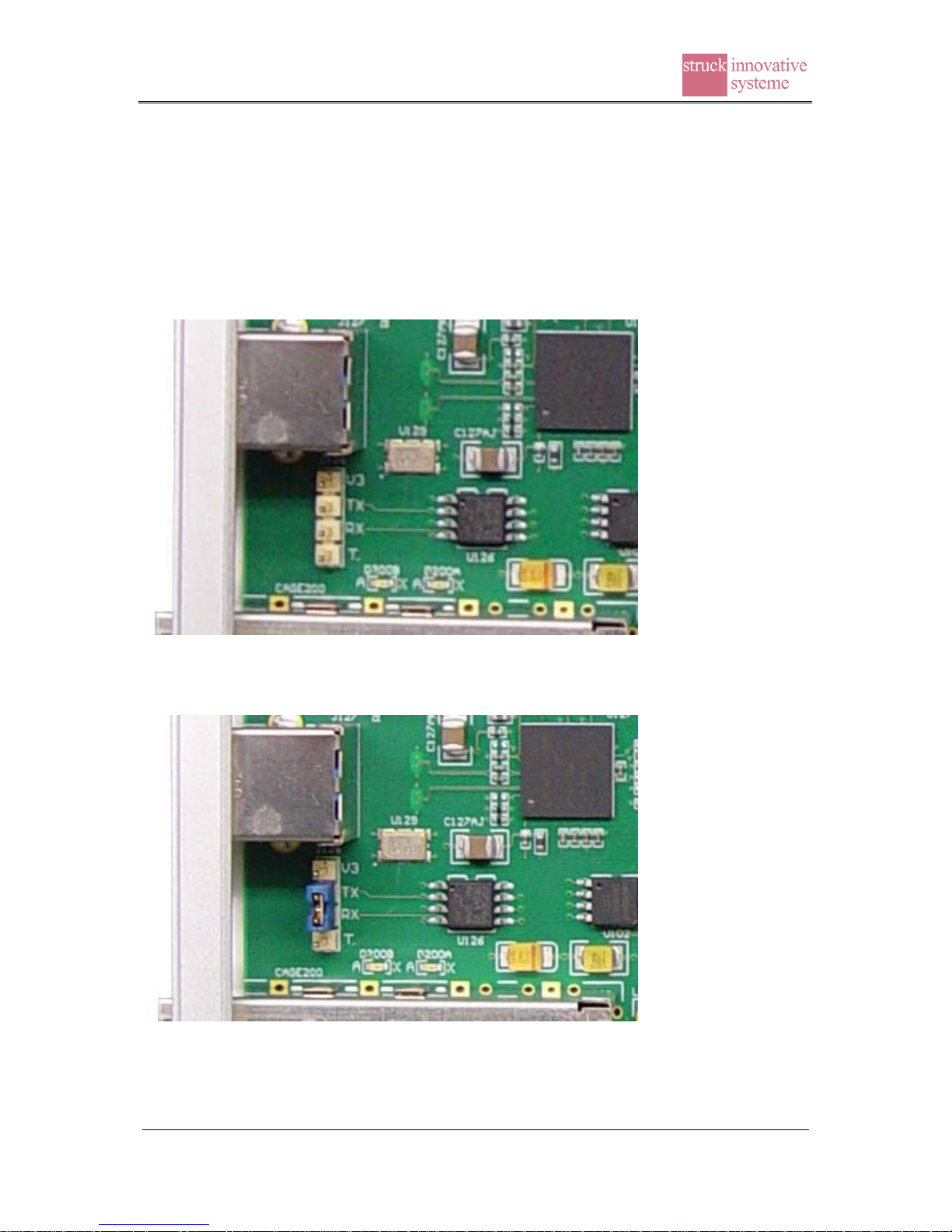

Force the FX3 to start with a “Cypress default bootloader”: Jumper between TX and RX
Struck Documentation
SIS3153
VME interface
Page 30 of 38
7.5 FX3 Boot mode (SIS3153 V2 / SN006 and above)
Normal operation (FX3 starts with a Struck bootloader after PowerUp)
PMODE0 and PMODE2 are closed
Force the FX3 to start with a “Cypress default bootloader”
PMODE0 and PMODE1 are closed
SIS Documentation
SIS3153
VME interface
Page 31 of 38
8 VME master/system controller
8.1 Multi master operation
VME is a multi master system, what allows you to use several SIS3153 modules or a mixture
of SIS31xx VME interfaces and other VME master hardware in one crate. The sections below
have to be taken into account for successful multi master operation.
8.1.1 System Controller
The SIS3153 can act as VME system controller. The 16 MHz VME system clock is generated
by the SMD oscillator U10. and enabled/disabled by switch 5 of switch array SW162.
Make sure not to have more than one system controller on the VME backplane. The system
controller has to be the leftmost master in the crate (typically it will reside in slot 1). In the
case of the SIS3153 the system controller is enabled/disabled with switch 5 of SW162.
SIS3153 system controller functionality can also be enabled/disabled via the “USB VME
Master control register. The system controller on/off status is an OR of the control register
setting and the jumper and can be read back from the status register. The factory default is
system controller enabled (as most SIS3153 cards are used in a single master environment.
Note: A VME diagnosis module like the VDIS or a measurement with a VME bus extender
can be used to check, whether a particular CPU or interface generates system clock (with all
other interfaces/CPUs unplugged from the VME backplane. Some VME slave modules may
use the system clock to initialize on board resources, this mechanism may fail if the system
clock is generated by more than one board in the crate. The system clock can also be activated
by software if the switch is in off position. In this case the user has to be aware, that no
SYSCLOCK will be generated during the power up phase of the crate. A SYSRESET may be
required by certain VME slaves for proper initialization of on board circuitry after SIS3153
SYSCLOCK generation was enabled.
8.1.2 Bus grant/bus mastership
make sure to set the jumpers on the bus grant (BG) daisy chain properly unless your crate
has an automatic daisy chain backplane (refer to the VME specification).
Make sure, that no VME master locks bus mastership. It may be a good idea to use release
when done instead of release on request where possible. It may be necessary to use a
higher arbitration timeout than the standard value of 1 ms (selected via the USB VME
Master control register).
use different bus request (BR) levels as needed. The bus request level of the SIS3153 is
programmed with the USB VME Master control register. The BR level of the SIS3153
defaults to 3 (highest level)
Struck Documentation
SIS3153
VME interface
Page 32 of 38
9 Connector types
The VME connectors and the front panel connectors used on the SIS3153 are:
Connector
Purpose
Part Number
160 pin zabcd
VME P1/P2
Harting 02 01 160 2101
90o PCB LEMO
Digitial I/O connectors
LEMO EPL.00.250.NTN
USB connector
USB connector type B
Amphenol GSB3211311 WEU
10 Software
LINUX and Windows are both supported for Ethernet and USB operation. The software can

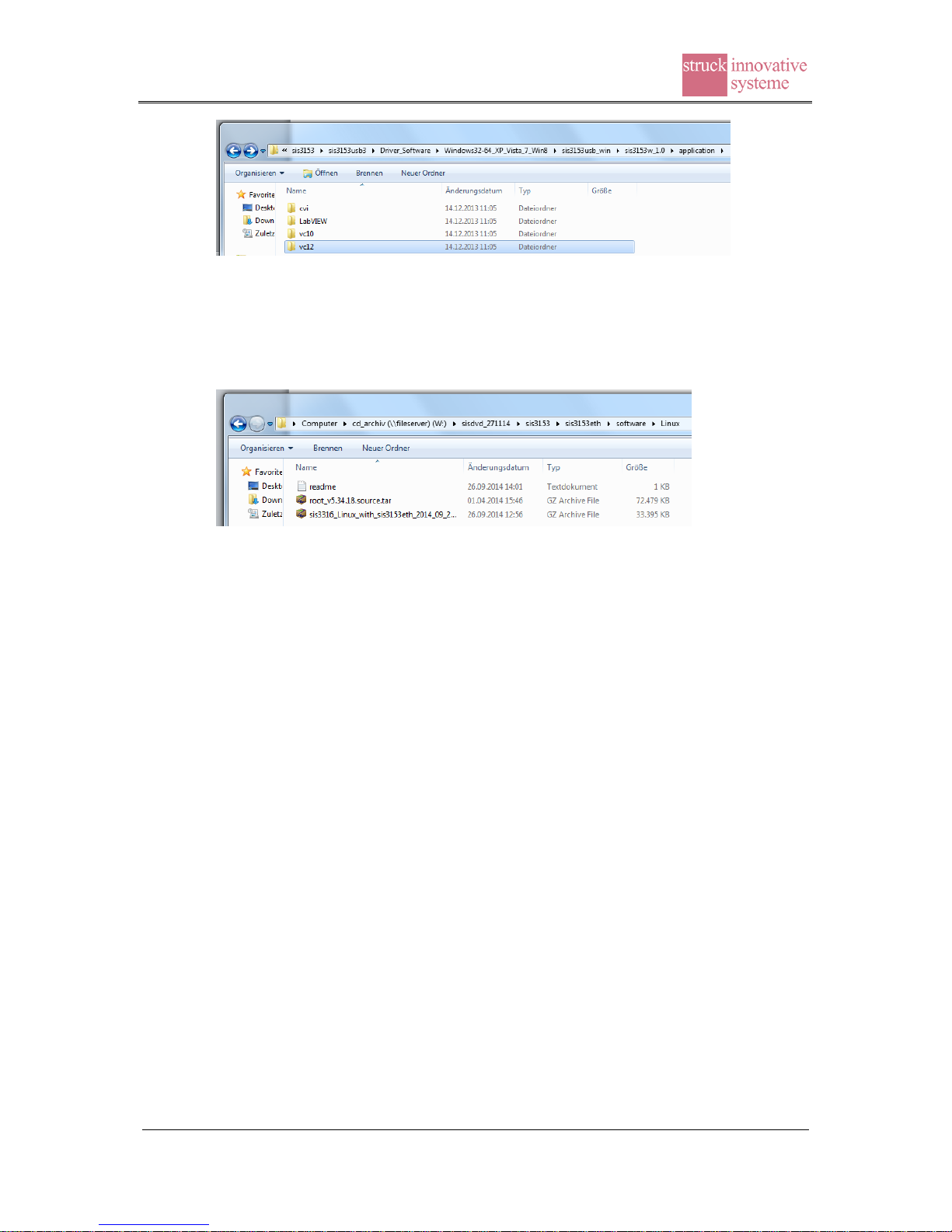

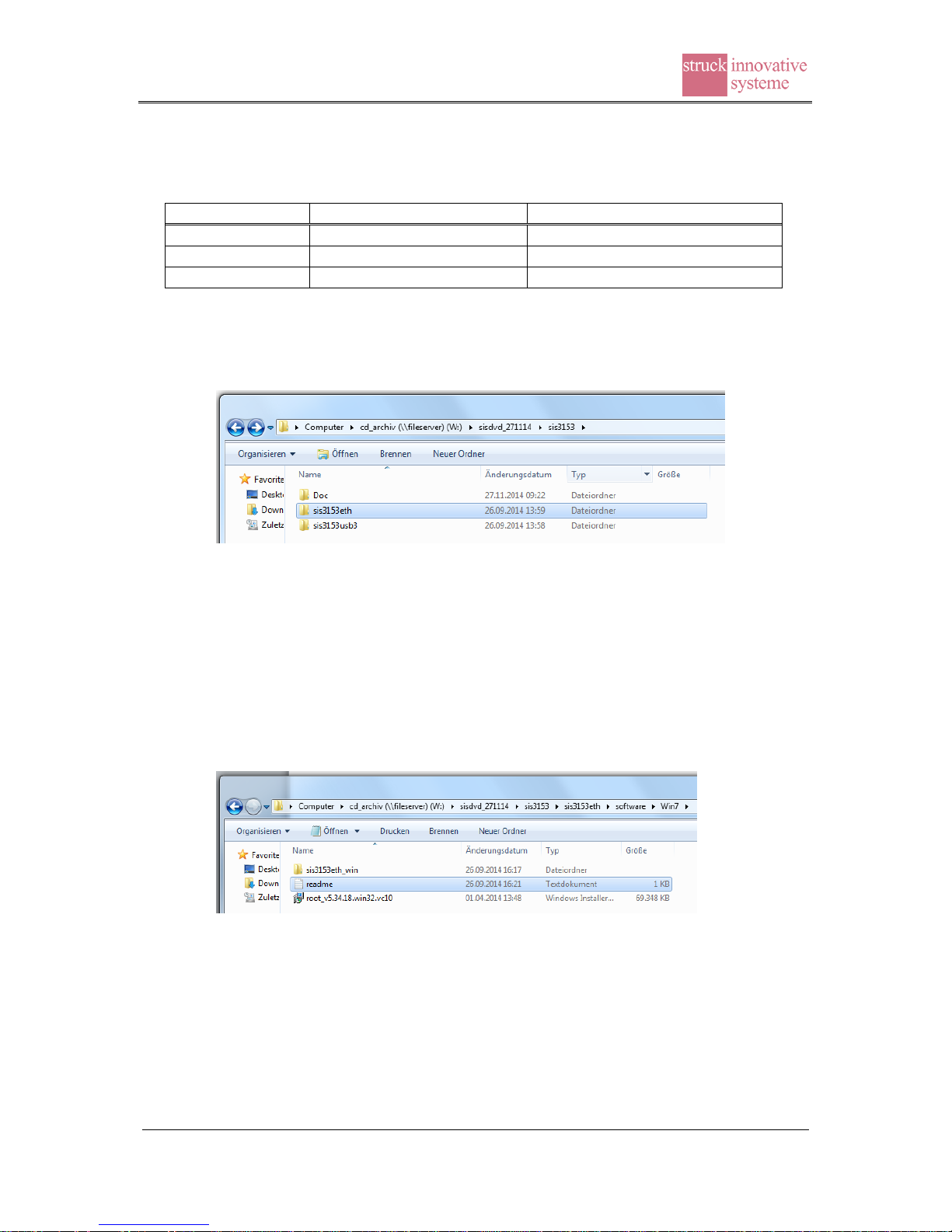

be found on the Struck product DVD as shown in the screenshot below.
Please refer to the software manuals for details.
Note: The documentation PDFs for both operating systems can be found in the Doc directory
10.1 Windows
10.1.1 Ethernet
A CERN ROOT based GUI including the installer kit for the ROOT version, that was used at the time of
generation, is furnished.
10.1.2 USB
Application examples for Labview, Microsoft Visual C++ and National Instruments CVI can
be found in the application directory as shown below.
SIS Documentation
SIS3153
VME interface
Page 33 of 38
10.2 LINUX
10.2.1 Ethernet
Like in the Windows case you’ll find a root application coming with the ROOT installer kit of the version that
was used at time of generation. A ready to run application for the SIS3316 digitizer is furnished also.
10.2.2 USB
In the LINUX case we continue to use the original SIS3150 sisusb driver, which is supporting
the SIS3153 starting with release sisusb-1.2-005.
Struck Documentation
SIS3153
VME interface
Page 34 of 38
11 Appendix
11.1 Power Consumption
Find below a table listing the currents:
Configuration
+5V
+12V
-12V
USB3 interface
< 1,0 A
0 mA
< 100 mA
SIS Documentation
SIS3153
VME interface
Page 35 of 38
11.2 USB3.0 cable length
The recommended practical length limit for USB 3.0 cables is three meters.
In reality the maximum cable length for reliable USB3.0 operation may be limited by the hardware of the host
computer. USB3.0 ports on the front of tower enclosures are typically connected to the mainboard by cables,
while rear USB3.0 ports are attached to the mainboard directly, with the latter resulting in better performance.
By default the SIS3153 ships with 1.8 m cable length. The default cable length results in reliable longterm
USB3.0 operation with a MACBook Pro and a Celsius W530 workstation (USB3.0 front port) in our lab.
So far we have not found reliable cables with active redrivers that allow for a safe extension of the possible cable
length.
While PHY errors are expected at a certain rate due the given bit error rate, the Windows USB driver may
terminate upon the first PHY error occurrence.
Note 1: In case you would like to cover longer distances you can use USB2.0 cables as a fallback solution
Note 2: The flashing frequency of the front panel L LED signals the type of the USB link connection (1 Hz
USB, 2 Hz USB2.0 and 3 Hz for USB3.0)

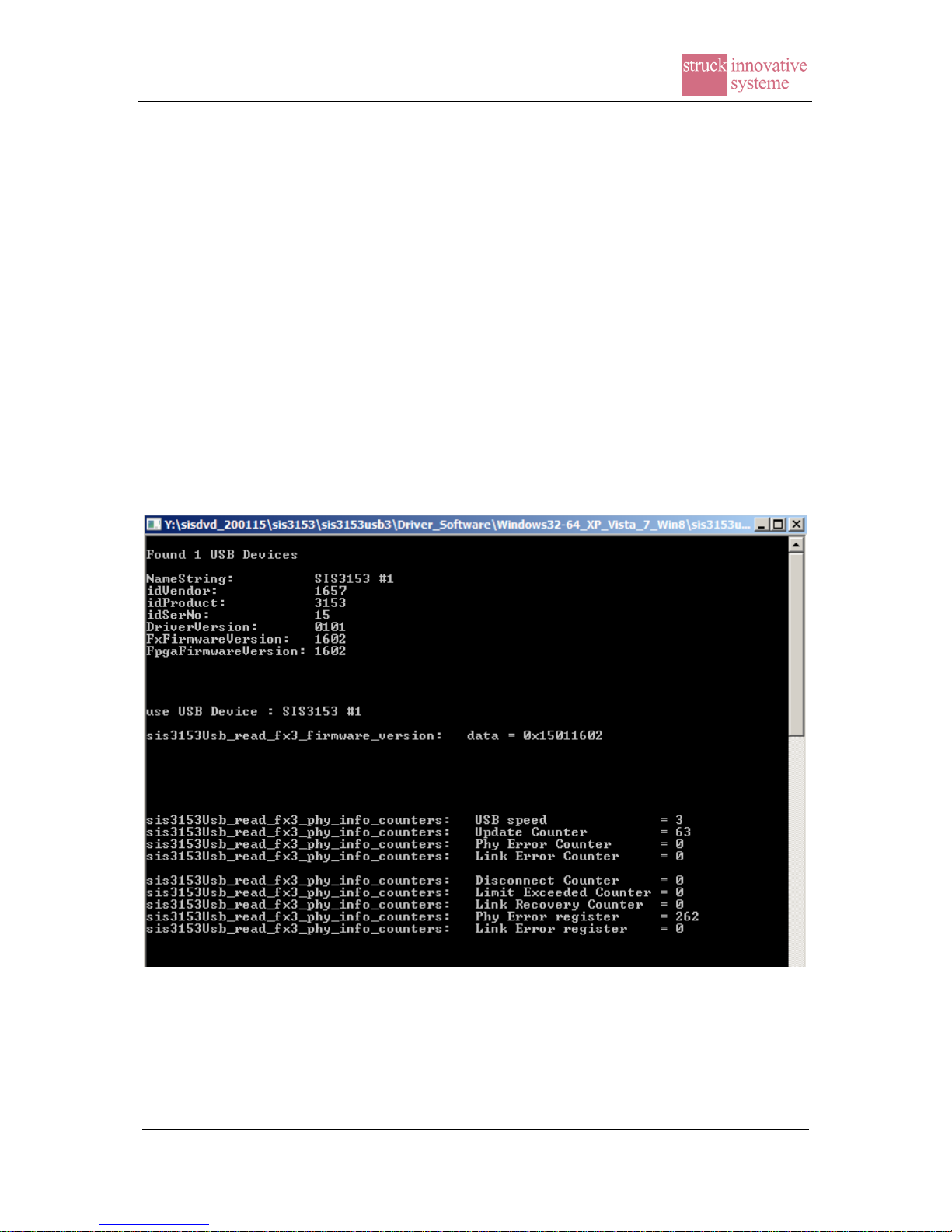

Note 3: The sis3153usb_internal_access_test program can be used to exercise the USB connection. A non
excessive PHY error count is ok., while link errors are critical. A screenshot of the output at program start is
shown below. The scrrenshot on the next page shows the output after the DMA read/write loop sequence has
started.
Struck Documentation
SIS3153
VME interface
Page 36 of 38
SIS Documentation
SIS3153
VME interface
Page 37 of 38
12 Index
+12V 34
+5V 34
-12V 34
16 MHz 31
arbitration 15
timeout 15
AS 15
BERR
timeout 15
BG 31
Blog 4
bootloader 29
BR 31
Bus Error 15, 16, 23
bus grant 31
bus request 31
bus request level 15
busmastership 15
cable length 35
CERN 32
Chrislin 20
CON100 26
connector types 32
CPU 31
CVI 32
D+1.2V_Core 25
D+2.5V 25
D+3.3V 25
D200A 25
D200B 25
D340 25
D350 25
D360 25
D370 25
D8 17
data rate 21
DHCP 27
DTACK_L 16
error
link 35
PHY 35
error codes 16
Error codes 16
ethernet 5
Ethernet MAC 11
Finisar 5
firmware 4, 26
front panel elements 22
functionality 5
FX3 29, 30
boot mode 29, 30
UART Interface 29
GUI 32
Harting 32
IACK cycle 17
interrupt vector 17
introduction 4
IRQ level 17
JP123 12, 24, 28
JP133 12, 24, 28
JTAG 26
Labview 32
LED 22, 23
front panel 23
NIM 24
TTL 24
LEDs
SMD 25
LEMO 22, 32
link error 35
LINUX 32
MAC address 11
mastership 15, 31
Microsoft 32
multi master 31
NIM 5, 12, 22, 24, 28
optical 5
oscillator 31
PHY 35
error 35
PHY error 35
ping 23
PMODE0 30
PMODE1 30
PMODE2 30
Power Consumption 34
register
control 10
firmware revision 10
interrupt status 17
LEMO I/O 12
LEMO IO control 12, 24
module Id. 10
UDP protocol configuration 13
USB control 8
USB status 8
USB VME Master control 31
USB VME Master Status 14
VME Master Control 14
VME Master Cycle Status 16
register space
USB 6
release
on request 15
when done 15
request level 15
requester 15
retry 15
return codes 16
ROOT 32, 33
RX 29
RX LOS 25
serial number 11
SFP 5, 22
Struck Documentation
SIS3153
VME interface
Page 38 of 38
SIS3153 Internal Space Data Rate 19
SIS3153 VME Space Data Rate 20
sis3153usb_internal_access_test 35
SIS3305 21
SIS3316 33
slave address 27
Software 32
SPI Flashprom 26
SST 15
SW160 27
SW161 27
SW162 27, 31
switch
system controller 31
SYSRESET 31
system controller 27, 31
timeout 16
arbitration 15, 16
BERR 15
Timeout 16
Transfer Data Rate 19
TTL 5, 12, 22, 24, 28
TX 29
TX FAULT 25
Tyco 32
U10 31
UART 29
USB 5
address map 7
device 6
register space 6
USB1.0 23
USB2.0 23
USB3.0 23
cable length 35
VDIS 31
Visual C++ 32
VME 4, 6
bus extender 31
connector 32
master 31
system controller 31
VME_RETRY 16
Windows 32
Windows driver 18
XILINX 26
Loading...
