OPERATING MANUAL

CCN64

Collated Connector Nailer

Rev: 12/17

BEFORE OPERATING THE TOOL, ALL OPERATORS SHOULD STUDY

THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY

WARNINGS AND INSTRUCTIONS. KEEP THIS MANUAL WITH THE TOOL

FOR FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS, CONTACT

YOUR SIMPSON STRONG-TIE REPSENTATIVE OR DISTRIBUTOR.

WARNING

Page 2

-2-

The CCN64 is a nailer tool that is powered by pressurised air. It is activated by pressing the nose to the work piece. It is intended to be used to drive collated nails into pre-punched holes in metal hardware used in timber construction and to drive nails in timber-to-timber framing connections. Only collated nails shall be used with this tool and the nail size, collation angle and material must meet the speciﬁcations of this manual. Keep these instructions with the tool for future reference. Contact your local Simpson Strong-Tie representative if you have any questions.

READ AND UNDERSTAND THIS MANUAL BEFORE OPERATING THE TOOL. Please note that additional safety measures may be required because of your particular application.

INTRODUCTION

CONTENTS

Tool & Fastener Speciﬁcations ......................................................................................... 3

Tool Air Fittings ................................................................................................................ 3

Safety Instructions ..................................................................................................... 4 – 5

Schematic & Parts .....................................................................................................6 – 7

Loading the Tool .............................................................................................................. 8

Unloading the Tool ........................................................................................................... 9

Tool Operation ................................................................................................................ 10

Troubleshooting ............................................................................................................. 11

Contact Details ............................................................................................................... 11

Warranty ........................................................................................................................12

Page 3

-3-

Image Model Number Dimensions Description Finish

Box

Qty

Collated Strong-Drive® SCNR RING-SHANK CONNECTOR Nail

T9A150M CN

All

Sizes

40 mm x 3.75 mm

Full round-smooth head,

Annular-Ring Shank,

Diamond point

33° – 22 nails per

paper-collated strips

316

Stainless

Steel

1,500

T10A150MCN 40 mm x 3.32mm 1,500

Collated Strong-Drive® SCN SMOOTH-SHANK CONNECTOR Nail

N10HDGPT500

40 mm x 3.75 mm

Full round-smooth head,

Smooth Shank,

Diamond point

33° – 22 nails per

paper-collated strips

Hot-dip

Galvanised

500

N10HDGPT3000 3,000

N8HDGPT500

40 mm x 3.32 mm

500

N8HDGPT4000 4,000

Need loose connector fasteners?

Visit your local Simpson Strong-Tie website to see our full range.

TOOL & FASTENER SPECIFICATIONS

Model Number: CCN64 Action: Multi-Blow Dims: L305 x W119 x H273 mm Weight: 2.1 kg Operating pressure: 6.2 – 8.3 bar (90 – 120 psi) Magazine: Single strip (approx. 28 nails) Angle: 33° – 35° Collation: Paper tape Head: Full round head Diameter: 3.3

3.8 | 4.1 mm

Length: 38 mm | 65 mm (± 2 mm)

This tool uses 3/8 inch N.P.T. male ﬁtting. The ﬁtting must relieve

air pressure when disconnected from the air supply.

TOOL AIR FITTINGS

Page 4

-4-

BEFORE HANDLING OR OPERATING THIS TOOL READ AND

UNDERSTAND THE WARNINGS IN THIS MANUAL.

SAFETY INSTRUCTIONS

EYE PROTECTION that conforms to AS/NZ speciﬁcations and

provides protection against ﬂying debris from front and sides shall always be worn by the operator and others in the work area.

The employer and/or operator are responsible to ensure proper eye protection is worn. Non-side-shielded eye protection and face shields do not provide adequate protection.

HEARING PROTECTION

that conforms to AS/

NZ speciﬁcations may

be required in some environments that include exposure to noise that could affect hearing damage.

HEAD and FOOT PROTECTION

that conforms

to AS/NZ speciﬁcations may be required in some work environments with head and foot hazards. Dress appropriately.

WARNING

• Know and understand the trigger system.

• Operate the tool only on the workpiece and at 90 degrees to the workpiece.

• Never assume the tool is empty.

• Never engage in horseplay with the tool.

• Carry the tool by the handle. Do not lift by hose.

• Never leave the tool unattended with the air supply connected.

• Do not use the tool as a hammer.

• Do not continue to use the tool if it leaks air or fails to function properly.

• Use clean, dry, regulated compressed air.

• Do not use the tool while tired, after having consumed drugs or alcohol, or while under the inﬂuence of medication.

• Do not over reach. Keep proper footing and balance at all times.

LOADING AND UNLOADING THE TOOL

• Use only nails recommended by Simpson

Strong-Tie for use in the CCN64 tool.

• Disconnect air supply before loading and unloading.

• Always handle the tool with care.

• Never point the tool at yourself or another person.

• Do not depress the nose of the tool or it will activate driving.

Page 5

-5-

TOOL OPERATION

• Keep hands and body away from discharge area of the tool.

• Never point the tool at yourself or others.

• Use at 90-degree angle on clean dry surfaces.

• The tool is activated by compressing the nose on on any surface or material.

• The tool drives continuously while the nose is compressed.

• The tool has no depth of drive adjustment and will overdrive unless stopped by lifting the nose from the workpiece surface.

• Be careful when fastening into dense woods and wood products.

• Be careful to not drive a nail onto another nail.

• When installing metal hardware, be careful that the nail point is in the pre-punched hole.

If the tool becomes jammed and all nails cannot be removed from the tool, the

tool shall be removed from service.

MAINTAINING THE TOOL

• Use care when evaluating tools.

• Always disconnect the tool from air pressure before performing maintenance.

• Use only Simpson Strong-Tie recommended fasteners and parts.

• Clean the tool after each day of use or after driving 1,000 fasteners.

• Lubricate with 3 drops of acid-free lubricant at the start of each work day or after driving 1,000 fasteners.

• Clean by wiping: magazine, nail feeder, blade guide and piston.

• Check wear parts when cleaning: magazine and blead guide.

• The tool shall be stored in a warm dry location that is out of the reach of children.

AIR SUPPLY AND CONNECTIONS

For air powered tools

to operate at their best, the air supply system must be properly installed and maintained. See your air supply equipment manual for operating,

maintenance, and safety instructions.

• DO NOT OPERATE at air pressures

in excess of 6.2 bar (90 psi.)

• Air pressure at the tool shall never exceed

8.3 bar (120 psi). EXPLOSION HAZARD!

• Do not use oxygen, combustible gases,

or bottled gases as power source for this tool. EXPLOSION HAZARD!

• Air connector on the tool must not hold

pressure when air supply is disconnected.

• Use an air hose with diameter

10 mm (3/8 inch).

• Do not depress nose while connected

to air supply or tool will activate.

• Always disconnect air supply before:

– Making adjustments; – When tool is not in use; – When performing maintenance – When moving to new work area.

SAFETY INSTRUCTIONS

Page 6

-6- - 7-

ITEM PARTS NO PARTS NAME

101 2040100-03070-0 BOLT ASSY

102 1131A-0724702-1 HANGER

103 11369-0724312-1 CAP

104 11302-0724703-1 CY LINDER CA P SEAL

105* 2041104-06020-0 O - RING

106 11399-0720002-1 COLL AR

107* 2041104-06030-0 O - RING

108 11321-0720005-1 CYLINDER SPACER

109* 2041104-06040-0 O - RING

110* 1136X-0724701-1 SEAL

111 11320-0720002-1 CYLINDER

112* 2041104-05030-0 O - R ING

113* 2041104-05040-0 O - R ING

114* 11204-0720010-2 DRIV ER UNIT

115* 11327-0724701-1 BUMPER

116* 2041104-07020-0 O - R ING

117 11230-0726604-2 GUN BO DY UNIT

118 2041100-03070-0 O - RING

119 11346-0724303-1 EN D CAP

120 1132L-0014701-1 DUSTY COVER

121 1135V-0000004-1 AIR PLUG

122 11388-0724702-2 DRIV ER GUIDE

123* 1135C-0720009-1 SPRING

124 1132N- 0724706-2 DEE P IMPACT SOCK ET 1

125 1137B-0724701-1 NUT

126 1131K-0724702-1 PIN

127 2040100-03100-3 BOLT ASSY

128 11378-0724703-1 SHAFT

129 2040201-01030-0 FLAT WASHER

130 1131L-0724701-1 POSITIONING SPRING

201 11382-0724704-1 NOSE PIECE

202 2040101-03030-1 HEX.SOC.HD.BOLT

203 2040201-03030-0 FLAT WASHER

204 2040302-23010-0 E - RING

205 1134L-0084701-1 BRACKET

206 11389-0724704-1 M AGAZIN E A

207 2040500-03020-0 LOCK NUT

208 1136Y-0724706-1 BRACKET

209 2040102-03030-0 HALF ROUND HD.HEX.BOLT

210 2040500-02010-0 LO CK NUT

211 1130S-0724701-2 STOP NA IL PLATE

212 1131D-0460001-1 URETHANE RETAINER

213 2040102-02040-0 HALF ROUND HD.HEX.BOLT

214 11390-0724704-1 PROTECTING HOOD COVER

215 11396-0724702-1 STEEL CHANNEL

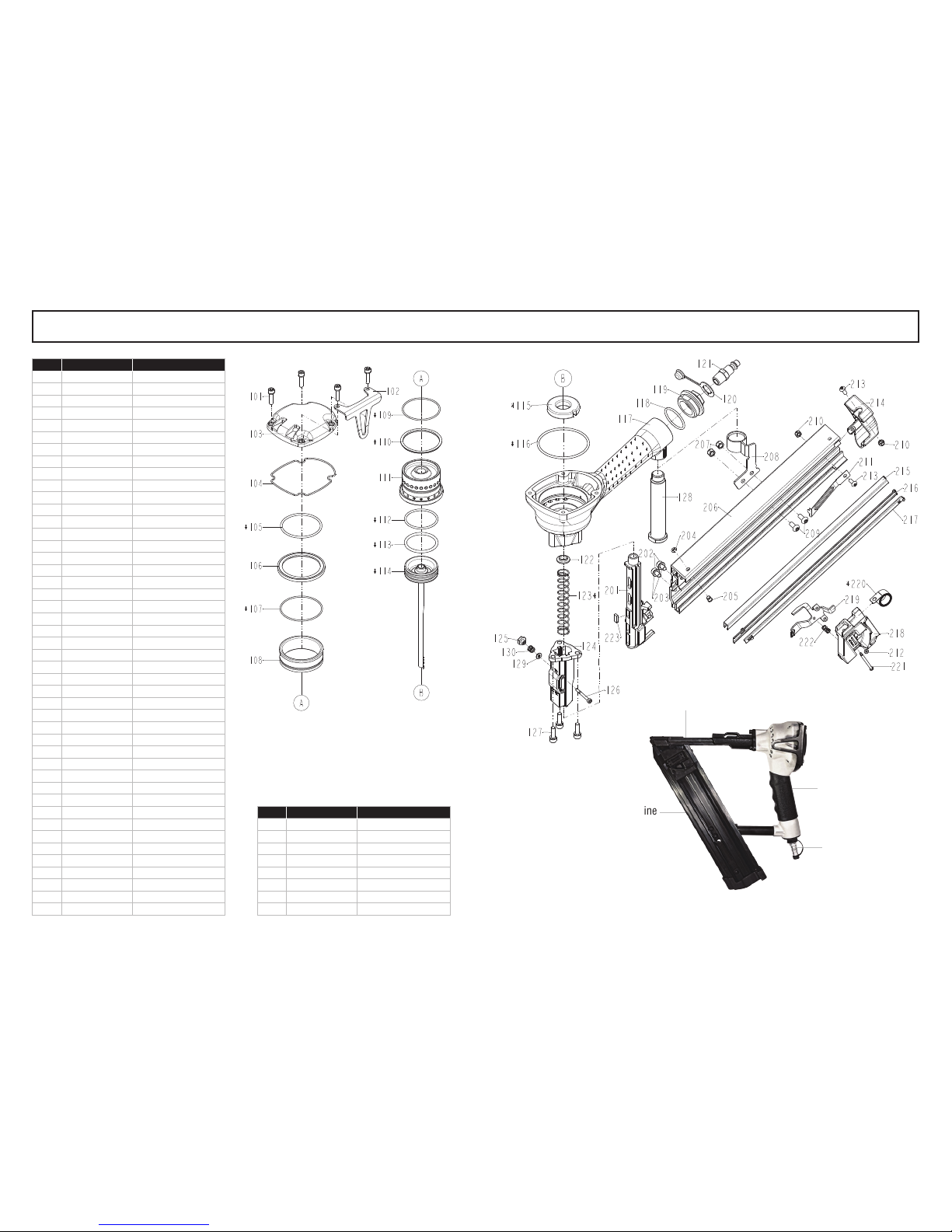

SCHEMATIC & PARTS FOR THE CCN64 TOOL

ITEM PARTS NO PARTS NAME

216 11396 -0724708-1 STEEL CHANNEL

217 11396-0724709-1 STEEL CHANNEL

218 1136E-0724703-1 PROTECTING HOOD COVER

219 1136 3-0724703-1 PUSHER

220* 11372- 0720002-2 SPRING

221 11318-0834701-1 TRIGG ER PIVOT PIN

222 113 6F- 0374 701-1 SPRING

223 1134E-0370001-1 MAGNET

Nose

Grip

Magazine

Male hose connector

(that DOES NOT

hold air pressure)

Page 7

-8-

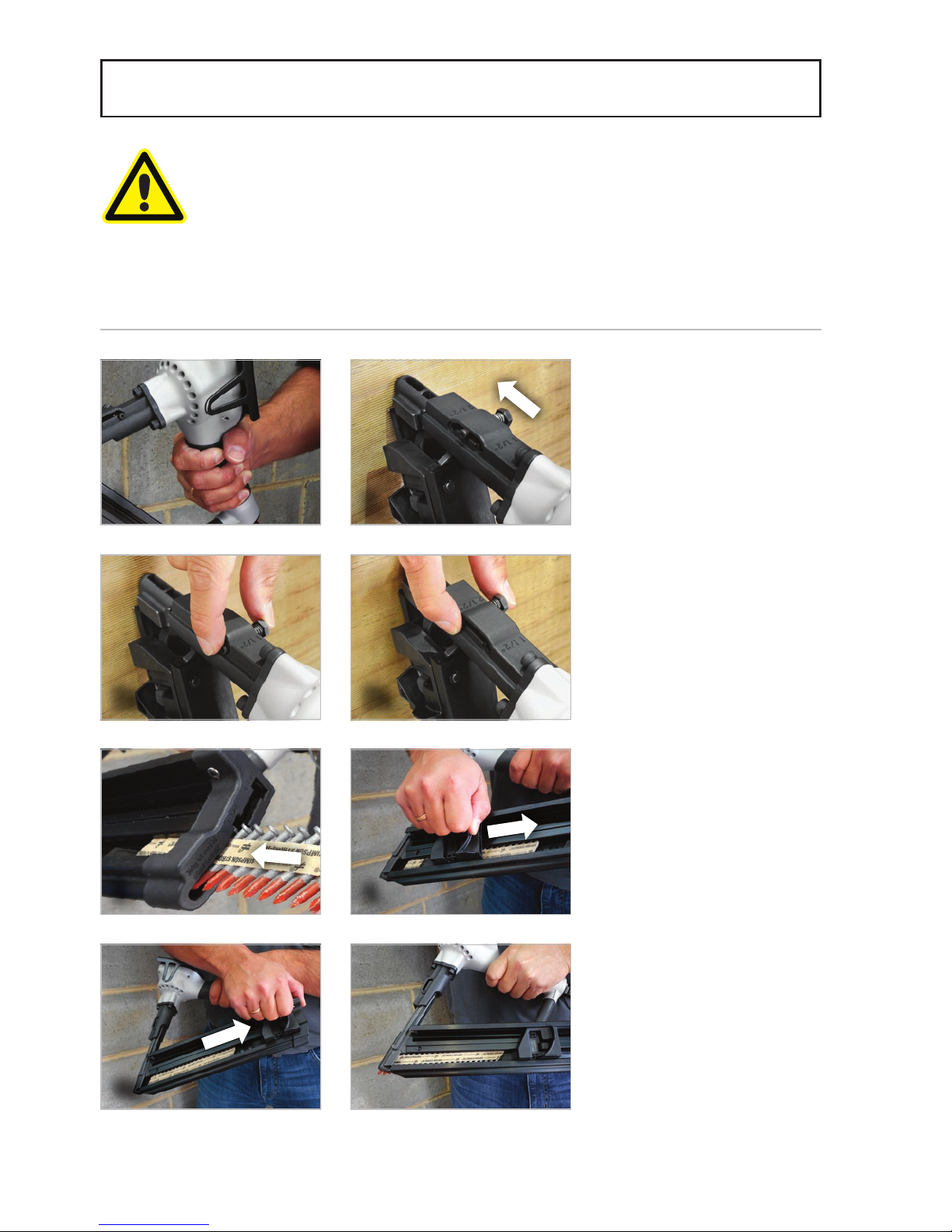

LOADING THE TOOL

WARNING

• Use only nails recommended by Simpson Strong-Tie for use in the CCN64 tool.

• Disconnect air supply before loading and unloading.

• Always handle the tool with care.

• Never point the tool at yourself or another person.

• Do not depress the nose of the tool or it will activate driving.

1. Hold the tool ﬁrmly by the grip.

2. With the fastener length selection pin at halfway, depress tool against a hard surface and slide pin to relevant size of nail intended to be used.

a. 1 ½" suits 38 mm

(± 2 mm) nails

b. 2 ½" suits 65 mm

(± 2 mm) nails

DO NOT OPERATE WITH

THE PIN AT HALF WAY

3. Hold the tool upside down and insert a strip of nails into the corresponding size slot at the rear of the magazine with the point of the nails facing the nose area. Slide nails all the way to the front of the magazine.

4. Pull the pusher to the rear of the magazine until it is engaged behind the strip of nails (4a).

2a.

4a.

2b.

Page 8

-9-

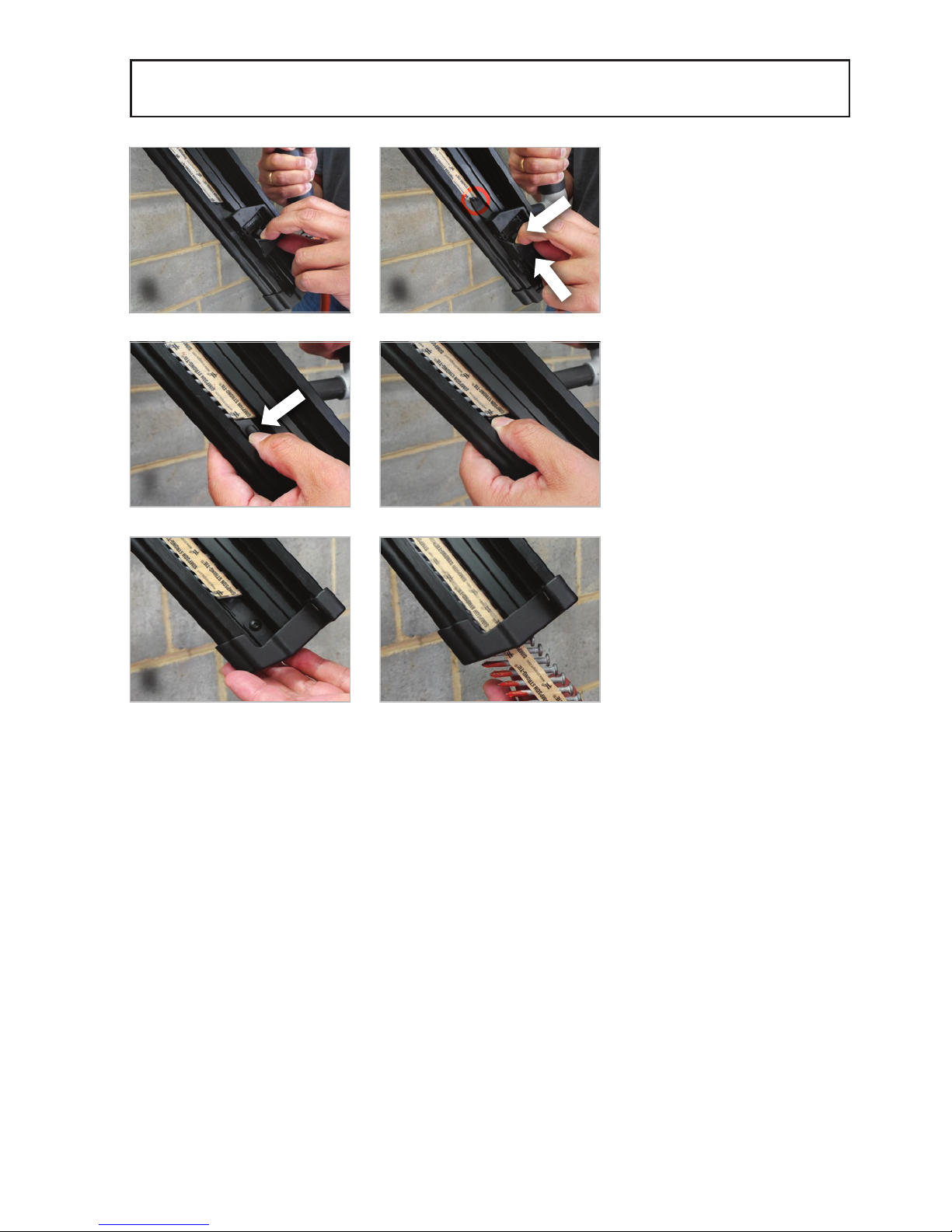

UNLOADING THE TOOL

6.5.

Disconnect air supply before loading and unloading.

5. Hold the tool upright.

6. Depress the pusher

tab (to disengage from nail strip) and slide the pusher towards the front of the magazine.

7. To release the

nail strip from the magazine, press down on the stopper.

8. The nails should

slide out the back of the magazine.

Page 9

-10-

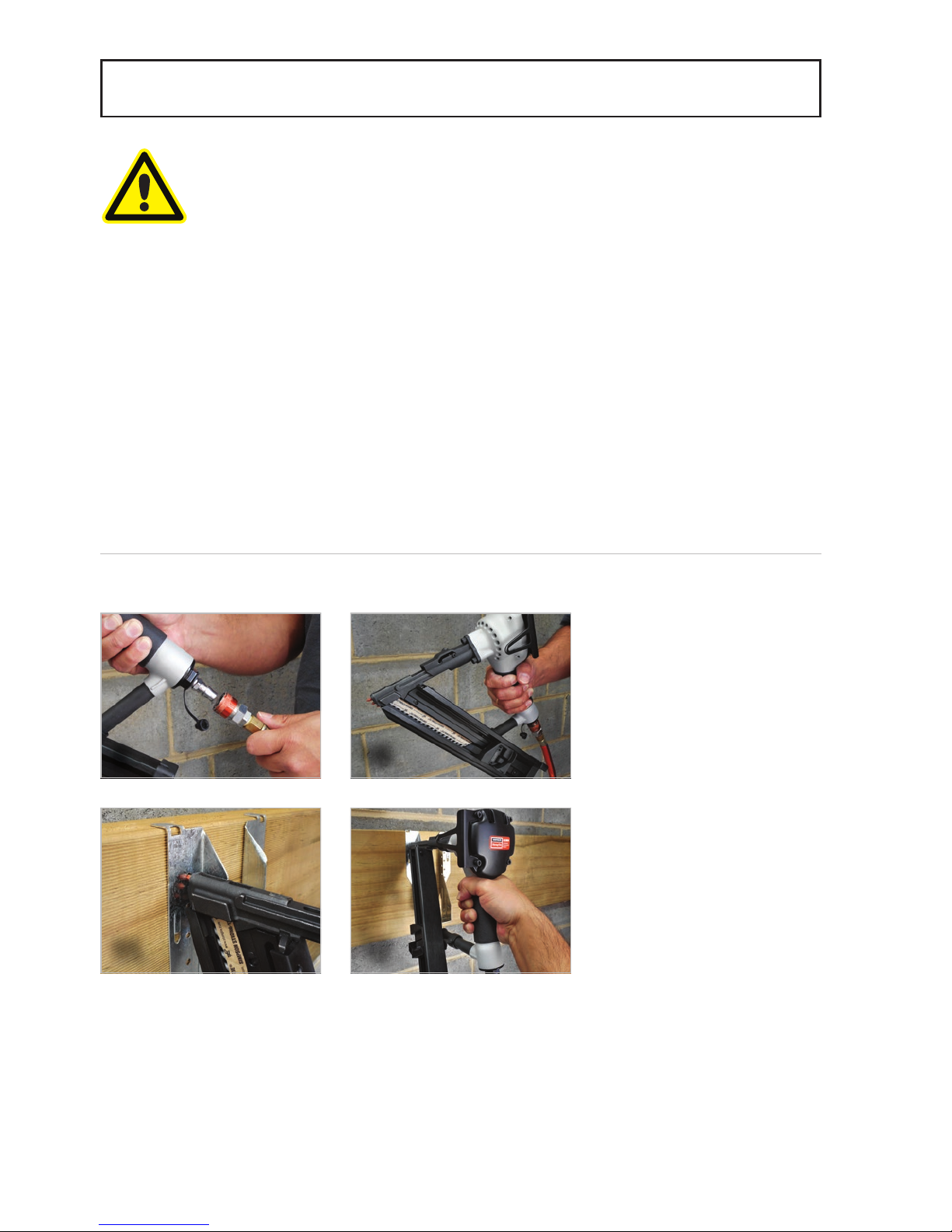

TOOL OPERATION

WARNING

• Keep hands and body away from discharge area of the tool.

• Never point the tool at yourself or others.

• Use at 90-degree angle on clean dry surfaces.

• The tool is activated by compressing the nose on on any surface or material.

• The tool drives continuously while the nose is compressed.

• The tool has no depth of drive adjustment and will overdrive unless stopped by lifting the nose from the workpiece surface.

• Be careful when fastening into dense woods and wood products.

• Be careful to not drive a nail onto another nail.

• When installing metal hardware, be careful that the nail point is in the pre-punched hole.

• If the tool becomes jammed and all nails cannot be removed from the tool, the tool shall be removed from service.

12.11.

9. Connect recommended air supply.

10. The tools is ready for use.

11. Locate hole in connector. The tool is activated by compressing the nose on the surface.

12. Depress the tool continuously against the surface at 90° until the tool disengages hammering.

10.9.

Page 10

- 11-

SYMPTOM CAUSE SOLUTION

Over driving fasteners

Excessive air pressure

Check air pressure to ensure the recommended air pressure is being used; 6.2 – 8.3 bar (90 – 120 psi)

Base material Ensure correct timber is being used.

Nails too small Use correctly sized nails.

Failure to stop drive Control nose contact to workpiece surface.

Tool does not drive or drives poorly

Activation lever in nose not working Check lever movement and replace as needed.

Wrong nails Use recommended nails.

Air supply hose Use air hose that is correct size and length.

Air supply Conﬁrm air supply volume is adequate for tool(s).

Worn or defective parts

Check and replace piston ring, piston bumper. Or driver blade as needed.

No fasteners are in the magazine Load tool.

Clogged air ports or kinked hose Check air ports for debris and hose for kinks.

Nail strip will not advance in magazine

Strip incorrectly loaded. Check that recommended nails are loaded.

Worn guide groove in the guide blade Check and replace guide blade if worn.

Magazine is jammed or bent. Check that magazine is not jammed or bent.

TROUBLE SHOOTING

Australia

1/16 Kenoma Place Arndell Park NSW 2148

Call 1300 STRONGTIE www.strongtie.com.au

New Zealand

52A Arrenway Drive Albany, Auckland 0632

Call 09 477 4440 www.strongtie.co.nz

South Africa

Unit 5 Fairway Business Park Stibitz Street, Westlake Cape Town Western Province 7945

Call 087 354 0629 www.strongtie.co.za

CONTACT DETAILS

Page 11

-12-

This 12-month Warranty applies to the Simpson Strong-Tie® CCN64 tool purchased in Australia and New

Zealand ("Products" ) and must be read in conjunction with the General Notes, Terms and Conditions of Sale, and Operating Instruction information. The beneﬁts given under this Warranty are additional to any other rights and remedies that you may have under a law in relation to the Products.

The relevant Simpson Strong-Tie entity listed at the bottom of this Warranty ("Simpson") warrants the Products to the original purchaser to be free from substantial defects in material, manufacturing, and design for a 12 month term from date of purchase, if properly stored, maintained and used in accordance with operating instructions. This Warranty does not provide a remedy for normal wear and tear or any Product that was: (1) purchased other than from an authorised Simpson Strong-Tie Australia /Simpson Strong-Tie New Zealand dealer, retailer or distributor; (2) modiﬁed or altered; (3) used with any fasteners other than authentic Simpson Strong-Tie® fasteners; (4) improperly serviced; or (5) subject to negligence or excessive use, or any use not in accordance with the printed materials provided with the Product as determined by Simpson.

This Warranty does not cover:

• Any Air compressor or regulator supplied with the Product that are manufactured by another company.

• Fasteners or other consumables purchased with the Product.

The following statement is provided where this Product is supplied to a buyer who is a "consumer" under the Australian Consumer Law:

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or a refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Procedure in claiming under this warranty:

Identifying a warranty claim:

1. Less than 12 months have elapsed from the

original date of purchase and you have original receipt/tax invoice as proof of purchase.

2. The Product:

a. does not visually ﬁt the description

(i.e. does not resemble the packaging look or website images);

b. when opened for the ﬁrst time has

loose items (i.e. washers, springs, pins, etc.) within the case; or

c. no longer functions for its intended purposes

(taking into account normal wear and tear).

Making a claim:

1. If you believe the Product is damaged or

defective, ensure the Product is no longer used for any purposes, safely store in original case, and secure for no future use.

2. Please make immediate contact with your closest

Simpson regional ofﬁce to arrange shipment of the Product back to the address below. Unless Simpson agrees with you otherwise, you will be liable to pay for the costs of returning the product to Simpson.

3. A Simpson Strong-Tie ticket number

will be issued to you.

Remedy

If Simpson agrees that you have a valid claim under this warranty, depending on the circumstances, either a replacement tool will be sent to you or a Simpson Strong-Tie representative will ensure the Product is promptly repaired and returned to you.

In Australia:

SimpsonStrong-Tie Australia Pty Limited 1/ 16 Kenoma Place, Arndell Park, NSW 2148 Phone: (61) 02 9830 4200 Email: [email protected]

In NewZealand:

SimpsonStrong-Tie NewZealand Limited 52A Arrenway Drive, Albany Auckland Phone: (64) 09 477 4440 Email: [email protected]

In South Africa:

Unit 5 Fairway Business Park Stibitz Street, Westlake Cape Town Western Province 7945 Phone: 087 354 0629

IF YOU ARE NOT A "CONSUMER" UNDER THE AUSTRALIAN CONSUMER LAW, SIMPSON DISCL AIMS ALL OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL SIMPSON BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR SPECIAL DAMAGES OR DIRECT OR INDIRECT LOSS OF ANY KIND, INCLUDING BUT NOT LIMITED TO PROPERTY DAMAGE AND PERSONAL INJURY.

OTHERWISE, TO THE EXTENT THAT THE PRODUCT IS NOT OF A KIND ORDINARILY ACQUIRED FOR PERSONAL, DOMESTIC OR HOUSEHOLD USE OR CONSUMPTION, SIMPSON’S ENTIRE LIABILIT Y IS LIMITED TO THE REPLACEMENT OF THE PRODUCT OR THE SUPPLY OF EQUIVALENT PRODUCT, THE REPAIR OF THE PRODUCT OR THE COST OF DOING SO.

T-C-CCN64AU17 12/17

LIMITED 12-MONTH WARRANTY

12 MONTH

WARR AN TY
