RFID MODULE
UHF RFID Module
RT400
User Manual
Version 1.0
Nov. 2014
StrongLink
Page 2
StrongLink RT400 UHF Module
2 / 34
CONTENT
1. GENERAL DESCRIPTION .......................................................................................... 4
2. FEATURES ..................................................................................................................... 4
3. DIMENSION DESCRIPTION ...................................................................................... 6
4. INTERFACE DESCRIPTION ...................................................................................... 6
5. SDK INFORMATION ................................................................................................... 7
6. FUNCTIONAL DESCRIPTION ................................................................................... 7
6.1 COMMON FUNCTIONS ......................................................................................................... 7
6.1.1 UhfReaderConnect () ............................................................................................................. 7
6.1.2 UhfReaderDisconnect () ......................................................................................................... 8
6.1.3 UhfOpenPort () ....................................................................................................................... 8
6.1.4 UhfClosePort () ....................................................................................................................... 9
6.1.5 UhfGetPaStatus () ................................................................................................................... 9
6.1.6 UhfGetPower () ..................................................................................................................... 10
6.1.7 UhfSetPower () ...................................................................................................................... 10
6.1.8 UhfGetFrequency () .............................................................................................................. 11
6.1.9 UhfSetFrequency () .............................................................................................................. 12
6.1.10 UhfGetRegister () ............................................................................................................... 12
6.1.11 UhfSetRegister () ................................................................................................................ 13
6.1.12 UhfResetRegister () ............................................................................................................ 14
6.1.13 UhfSaveRegister () .............................................................................................................. 14
6.1.14 UhfGetVersion () ................................................................................................................. 14
6.1.15 UhfGetReaderUID () .......................................................................................................... 15
6.1.16 UhfEnterSleepMode () ....................................................................................................... 15
6.1.17 UhfStopOperation () ........................................................................................................... 16
6.2 TAG INVENTORY FUNCTIONS ......................................................................................... 16
6.2.1 UhfStartInventory () ............................................................................................................ 16
6.2.2 UhfReadInventory () ............................................................................................................ 17
6.2.3 UhfInventorySingleTag () .................................................................................................... 17
6.3 TAG DATA OPERATION FUNCTIONS .............................................................................. 18
6.3.1 UhfReadDataByEPC () ........................................................................................................ 18
6.3.2 UhfReadDataFromSingleTag () .......................................................................................... 19
6.3.3 UhfReadMaxDataByEPC () ................................................................................................ 20
6.3.4 UhfReadMaxDataFromSingleTag () ................................................................................... 21
6.3.5 UhfWriteDataByEPC () ....................................................................................................... 22
6.3.6 UhfWriteDataToSingleTag () ............................................................................................... 22
6.3.7 UhfBlockWriteDataByEPC () ............................................................................................. 23
6.3.8 UhfBlockWriteDataToSingleTag() ...................................................................................... 24
Page 3
StrongLink RT400 UHF Module
3 / 34
6.3.9 UhfEraseDataByEPC () ....................................................................................................... 25
6.3.10 UhfEraseDataFromSingleTag () ........................................................................................ 26
6.3.11 UhfLockMemByEPC () ...................................................................................................... 27
6.3.12 UhfLockMemFromSingleTag () ........................................................................................ 27
6.3.13 UhfKillTagByEPC () .......................................................................................................... 28
6.3.14 UhfKillSingleTag () ............................................................................................................. 28
6.3.15 UhfBlockWriteEPCByEPC() ............................................................................................ 29
6.3.16 UhfBlockWriteEPCToSingleTag() .................................................................................... 30
Appendix A: Frequency Parameters ............................................................................... 32
Appendix B: Tag Parameters .......................................................................................... 34
Page 4
StrongLink RT400 UHF Module
4 / 34
1. GENERAL DESCRIPTION
RT400 is a high-integrated and high-performance UHF RFID module based on our
advanced analog circuit design and digital signal processing technology specified for
RFID. It supports ISO 18000-6C/EPC C1 GEN2 protocol and offers a much longer
operation distance than HF RFID system.
RT400 supports USB virtual COM port and can be operated via COM commands
easily. There are also APIs on Windows and Windows Mobile, users can develop UHF
RFID application swiftly. We also offer several different kinds of UHF antenna to be
cooperated with RT400.
2. FEATURES
USB1 Interface
4.5 ~ 5.5V DC power supply via USB interface
Protocol: ISO18000-6C
Frequency: 840MHz~960MHz
Power consumption(RF Pout=30dBm, 50ohm load ):
Normal Mode: 160mA
Reading Mode2: 460mA
Sleep Mode: 1.29mA
1
This USB interface adopts USB CDC protocol as a virtual COM port.
2
The current is different according to the different load. The current is tested under reading single tag in continuous
condition.
Page 5
StrongLink RT400 UHF Module
5 / 34
RF interface: IPX-female
API compatible with Windows 32bit/64bit operation system
Serial COM communication protocol available
Operating Temperature Range: -20°C ~ +50°C
Storage Temperature Range: -40°C ~ +85°C
Dimension: 80 × 65 × 7 mm
Weight: 80g(including 1.2 meters USB cable)
Page 6
StrongLink RT400 UHF Module
6 / 34

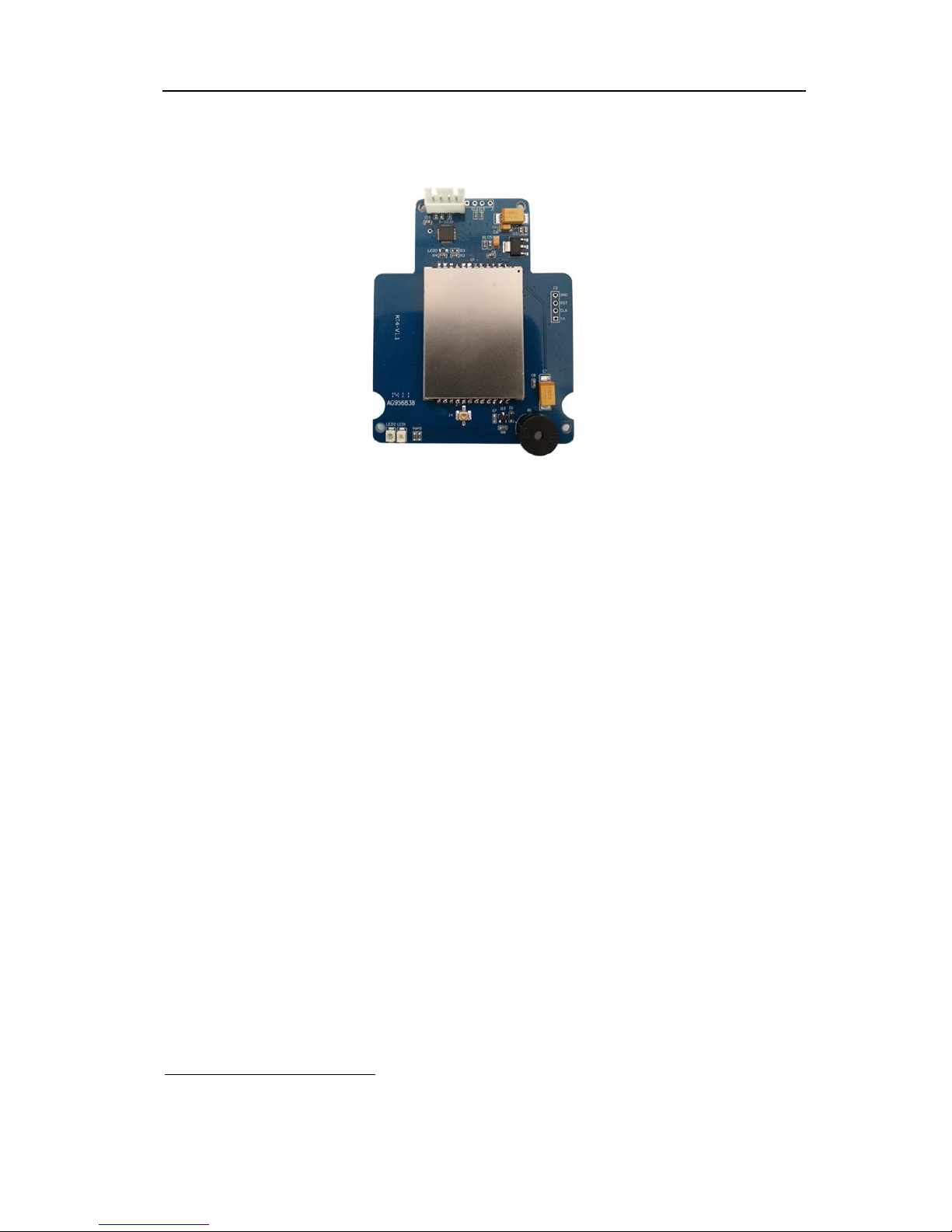

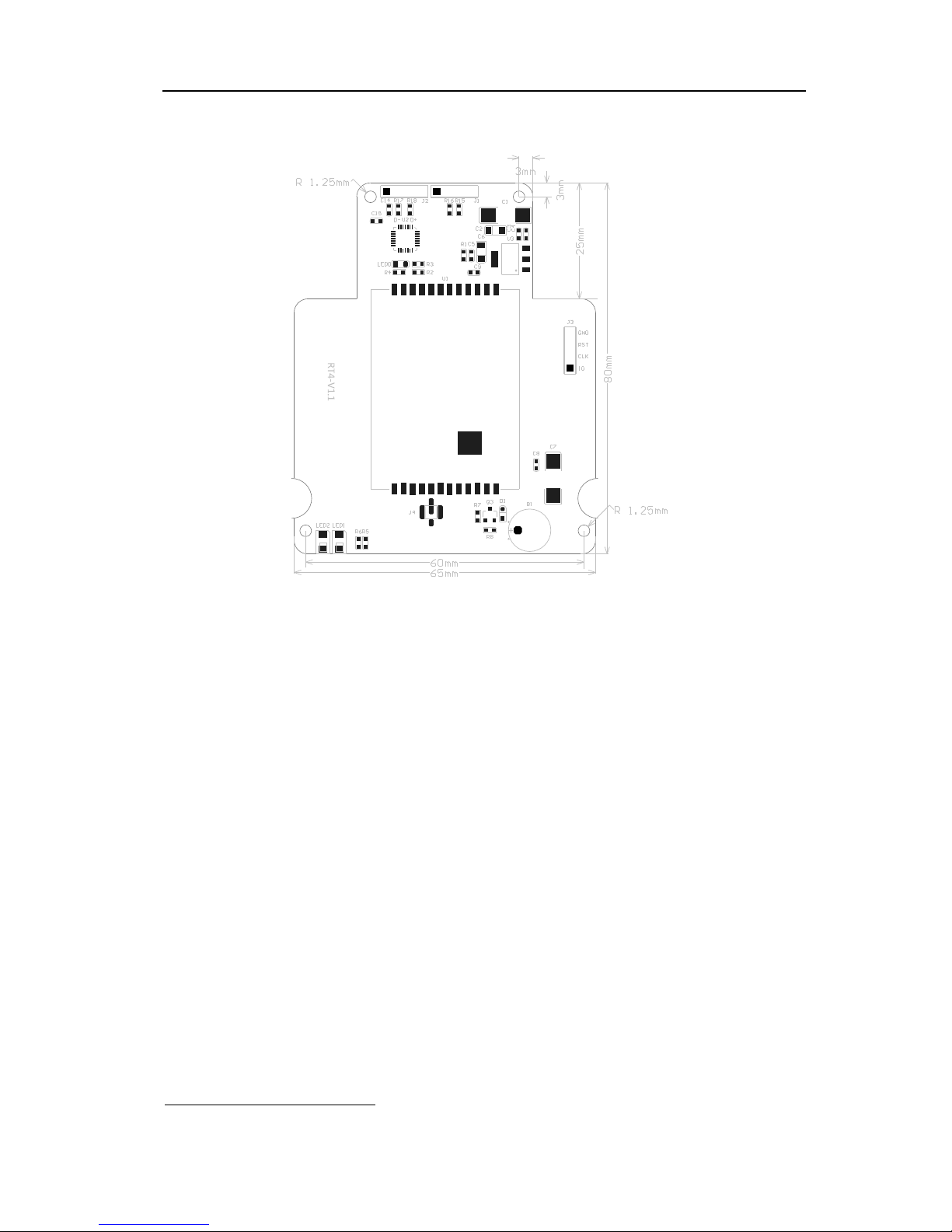

3. DIMENSION DESCRIPTION
The buzzer is the highest component on the whole board and its height is 5.5mm.
The thickness of PCB is 1mm. The height of the SAM slots on the bottom side of PCB is
2.5mm if there are SAM slots3.
4. INTERFACE DESCRIPTION

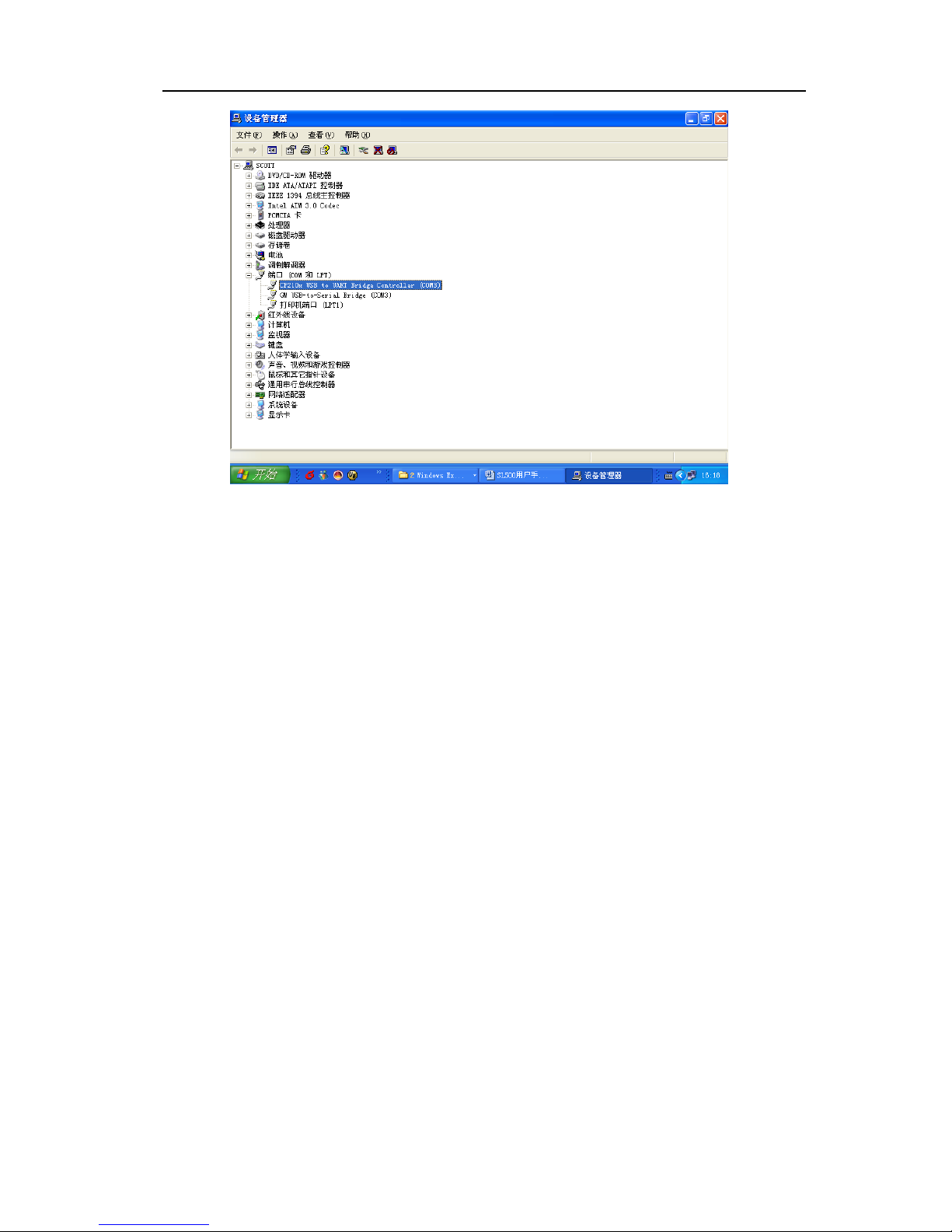

RT400 realizes its USB virtual COM via USB bridge. Connect RT400 to the USB
port of PC, after installing the driver it will come out a virtual COM. You can find the
virtual COM number on the “Device Manager ” as follows:
3
SAM slots are reserved for future use and its application is not included in the present version.
Page 7
StrongLink RT400 UHF Module
7 / 34
The driver can be downloaded from this product web page in our website.
5. SDK INFORMATION
RT400_DEMO.exe – a full UHF function demo for RT400, it needs 1024*768 pixels
at least.
RT40007_API.dll – a Windows API file from which users can call functions.
Description of these functions can be found in this document.
RT400 Communication Protocol.pdf – a communication protocol description file in
the level of COM interface.
6. FUNCTIONAL DESCRIPTION
6.1 COMMON FUNCTIONS
6.1.1 UhfReaderConnect ()
Description
Open the COM port and establish the connection.
Function Prototype
int WINAPI UhfReaderConnect (HANDLE &hCom, char* cPort, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Page 8
StrongLink RT400 UHF Module
8 / 34
Parameter Defination
HANDLE &hCom: output parameter, serial port handle, default value is NULL;
char* cPort: input parameter, serial port number;
UCHAR flagCrc: input parameter, select the baud rate and whether CRC is available,
0x00: baud rate 9600bps, CRC is unavailable;
0x01: baud rate 9600 bps, CRC is available;
0x02: baud rate 19200 bps, CRC is unavailable;
0x03: baud rate 19200 bps, CRC is available;
0x04: baud rate 57600 bps, CRC is unavailable;
0x05: baud rate 57600 bps, CRC is available;
0x06: baud rate 115200 bps, CRC is unavailable;
0x07: baud rate 115200 bps, CRC is available.
6.1.2 UhfReaderDisconnect ()
Description
Close COM port.
Function Prototype
int WINAPI UhfReaderDisconnect (HANDLE &hCom, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE &hCom: input parameter, serial port handle.
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.1.3 UhfOpenPort ()4
Description
Open the COM port and establish the connection.
Function Prototype
4
The difference between UhfReaderconnect() and UhfOpenPort() is that the former one has shaking hands process to
ensure the connetion. Actually user can use either to connect RT4 via COM port.
Page 9
StrongLink RT400 UHF Module
9 / 34
int WINAPI UhfOpenPort (HANDLE &hCom, char* cPort, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE &hCom: output parameter, serial port handle, default value is NULL;
char* cPort: input parameter, serial port number;
UCHAR flagCrc: input parameter, select the baud rate and whether CRC is available,
0x00: baud rate 9600bps, CRC is unavailable;
0x01: baud rate 9600 bps, CRC is available;
0x02: baud rate 19200 bps, CRC is unavailable;
0x03: baud rate 19200 bps, CRC is available;
0x04: baud rate 57600 bps, CRC is unavailable;
0x05: baud rate 57600 bps, CRC is available;
0x06: baud rate 115200 bps, CRC is unavailable;
0x07: baud rate 115200 bps, CRC is available.
6.1.4 UhfClosePort ()
Description
Close COM port.
Function Prototype
int WINAPI UhfReaderDisconnect (HANDLE &hCom, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE &hCom: input parameter, serial port handle.
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.1.5 UhfGetPaStatus ()
Page 10
StrongLink RT400 UHF Module
10 / 34
Description
Check the connection status.
Function Prototype
int WINAPI UhfGetPaStatus (HANDLE hCom, UCHAR* uStatus, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, serial port handle;
UCHAR* uStatus: output parameter, connection status（1byte, 0: connection succeeds; not 0:
connection fails）;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.1.6 UhfGetPower ()
Description
Get RF output power.
Function Prototype
int WINAPI UhfGetPower (HANDLE hCom, UCHAR* uPower, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR* uPower: output parameter, RF output power(1 byte);
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.1.7 UhfSetPower ()
Description
Set RF output power.
Page 11
StrongLink RT400 UHF Module
11 / 34
Function Prototype
int WINAPI UhfSetPower (HANDLE hCom, UCHAR uOption, UCHAR uPower, UCHAR
flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR uOption: input parameter, must be 0x01;
UCHAR uPower: input parameter, output power to be set;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.1.8 UhfGetFrequency ()
Description
Get RF frequency.
Function Prototype
int WINAPI UhfGetFrequency (HANDLE hCom, UCHAR* uFreMode, UCHAR* uFreBase,
UCHAR* uBaseFre, UCHAR* uChannNum, UCHAR* uChannSpc, UCHAR* uFreHop, UCHAR
flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR* uFreMode: output parameter, FREMODE(1 byte);
UCHAR* uFreBase: output parameter, FREBASE (1 byte);
UCHAR* uBaseFre: output parameter, BF(2 bytes);
UCHAR* uChannNum: output parameter, CN(1 byte);
UCHAR* uChannSpc: output parameter, SPC(1 byte);
Page 12
StrongLink RT400 UHF Module
12 / 34
UCHAR* uFreHop: output parameter, FREHOP(1 byte);
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
See to appendix A for the definition of FREMODE, FREBASE, BF, CN, SPC, FREHOP.
6.1.9 UhfSetFrequency ()
Description
Set RF frequency.
Function Prototype
int WINAPI UhfSetFrequency(HANDLE hCom, UCHAR uFreMode, UCHAR uFreBase,
UCHAR* uBaseFre, UCHAR uChannNum, UCHAR uChannSpc, UCHAR uFreHop, UCHAR
flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR uFreMode: input parameter, FREMODE(1 byte);
UCHAR uFreBase: input parameter, FREBASE(1 byte);
UCHAR* uBaseFre: input parameter, BF(2 bytes);
UCHAR uChannNum: input parameter, CN(1 byte);
UCHAR uChannSpc: input parameter, SPC(1 byte);
UCHAR uFreHop: input parameter, FREHOP(1 byte);
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.1.10 UhfGetRegister ()
Description
Get register value.
Function Prototype
int WINAPI UhfGetRegister (HANDLE hCom, int RADD, int RLEN, UCHAR* STATUS,
Page 13
StrongLink RT400 UHF Module
13 / 34
UCHAR* REG, UCHAR flagCrc)
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
int RADD: input parameter, start address of the register;
int RLEN: input parameter, data length to be read (unit: byte);
UCHAR* STATUS: output parameter, return execution status (1 byte);
UHCAR* REG: output parameter, data of the register;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.1.11 UhfSetRegister ()
Description
Set register value.
Function Prototype
int WINAPI UhfSetRegister (HANDLE hCom, int RADD, int RLEN, UCHAR* REG, UCHAR*
STATUS, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
int RADD: input parameter, start address of the register;
int RLEN: input parameter, data length to be written(unit: byte);
UHCAR* REG: input parameter, data of the register;
UCHAR* STATUS: out parameter, return execution status (1 byte);
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
Page 14
StrongLink RT400 UHF Module
14 / 34
1: CRC is available.
6.1.12 UhfResetRegister ()
Description
Restore register to default value.
Function Prototype
int WINAPI UhfResetRegister (HANDLE hCom, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.1.13 UhfSaveRegister ()
Description
Save the register value.5
Function Prototype
int WINAPI UhfSaveRegister (HANDLE hCom, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.1.14 UhfGetVersion ()
Description
Get hardware serial number and firmware serial number.
Function Prototype
5
If not save, any change of register value will be lost when power off.
Page 15
StrongLink RT400 UHF Module
15 / 34
int WINAPI UhfGetVersion (HANDLE hCom, UCHAR* uSerial, UCHAR* uVersion, UCHAR
flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR* uSerial: output parameter, hardware serial number(6 bytes);
UCHAR* uVersion: output parameter, firmware serial number(3 bytes);
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.1.15 UhfGetReaderUID ()
Description
Get module UID information.
Function Prototype
int WINAPI UhfGetReaderUID (HANDLE hCom, UCHAR* uUid, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR* uUid: output parameter, module UID information(12 bytes);
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.1.16 UhfEnterSleepMode ()
Description
Enter sleep mode.
Function Prototype
int WINAPI UhfEnterSleepMode (HANDLE hCom, UCHAR flagCrc);
Page 16
StrongLink RT400 UHF Module
16 / 34
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.1.17 UhfStopOperation ()
Description
Stop executing operation.
Function Prototype
int WINAPI UhfStopOperation (HANDLE hCom, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.2 TAG INVENTORY FUNCTIONS
6.2.1 UhfStartInventory ()
Description
Start tag inventory loop.
Function Prototype
int WINAPI UhfStartInventory (HANDLE hCom, UCHAR flagAnti, UCHAR initQ, UCHAR
flagCrc);
Return Value
1: success;
Page 17
StrongLink RT400 UHF Module
17 / 34
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR flagAnti: input parameter, anti-collision on/off(1: anti-collision inventory;0: single tag
inventory);
UCHAR initQ: input parameter, initial Q value for anti-collision, available when flagAnti is 1;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
Call UhfStartInventory() to start tag inventory loop. When flagAnti=1, anti-collision
function turns on to detect multiple tags. When flagAnti=0, anti-collision function turns off to
detect single tag. UhfStartInventory() can be combined with UhfReadInventory(),
UhfStopOperation() functions. UhfStartInventory() just starts the loop, updating data(UII) to
the buffer. UhfReadInventory() is called to read data(UII) from the buffer not from tags. When
the loop starts, the module only responses UhfStopOperation() – stops the loop.
6.2.2 UhfReadInventory ()
Description
Get UII of the tag.
Function Prototype
int WINAPI UhfReadInventory (HANDLE hCom, UCHAR* uLenUii, UCHAR* uUii);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR* uLenUii: output parameter, length of UII, 1 byte;
UCHAR* uUii: output parameter, UII, 66 bytes at least.
6.2.3 UhfInventorySingleTag ()6
Description
6
This function conflicts with tag inventory loop. User need stop tag inventory loop then run this function.
Page 18
StrongLink RT400 UHF Module
18 / 34
Single inventory, get UII of the single tag.
Function Prototype
int WINAPI UhfInventorySingleTag (HANDLE hCom, UCHAR* uLenUii, UCHAR* uUii ,
UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR* uLenUii: output parameter, length of UII, 1 byte;
UCHAR* uUii: output parameter, UII, 66 bytes at least;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.3 TAG DATA OPERATION FUNCTIONS
6.3.1 UhfReadDataByEPC ()
Description
Read tag data (indicating tag UII7).
Function Prototype
int WINAPI UhfReadDataByEPC (HANDLE hCom, UCHAR* uAccessPwd, UCHAR uBank,
UCHAR* uPtr, UCHAR uCnt, UCHAR* uUii, UCHAR* uReadData, UCHAR* uErrorCode,
UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR* uAccessPwd: input parameter, access password (4 bytes, 0x00000000 if no access
7
Select the tag with indicating UII.
Page 19
StrongLink RT400 UHF Module
19 / 34
password);
UCHAR uBank: input parameter, memory zone option;
UCHAR* uPtr: input parameter, the starting offset address;
UCHAR uCnt: input parameter, length of data to be read(unit: word, 1 word = 2 bytes, can not
be assigned zero);
UCHAR* uUii: input parameter, tag‟s UII;
UCHAR* uReadData: output parameter, tag data, at least uCnt*2 bytes;
UCHAR* uErrorCode: output parameter, error code (1 byte), valid when this function fails and
uErrorCode doesn‟t equal to 0xFF.
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.3.2 UhfReadDataFromSingleTag ()
Description
Read tag data (not indicating tag UII8).
Function Prototype
int WINAPI UhfReadDataFromSingleTag (HANDLE hCom, UCHAR* uAccessPwd, UCHAR
uBank, UCHAR* uPtr, UCHAR uCnt, UCHAR* uReadData, UCHAR* uUii, UCHAR* uLenUii,
UCHAR* uErrorCode, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: Parameter Defination, COM port handle;
UCHAR* uAccessPwd: input parameter, access password (4 bytes, 0x00000000 if no access
password);
UCHAR uBank: input parameter, memory zone option;
UCHAR* uPtr: input parameter, the starting offset address;
UCHAR uCnt: input parameter, length of data to be read(unit: word, 1 word = 2 bytes, can not
8
This function must run in the condition that there is only one single tag in the detection range.
Page 20
StrongLink RT400 UHF Module
20 / 34
be assigned zero);
UCHAR* uReadData: output parameter, tag data, at least uCnt*2 bytes;
UCHAR* uUii: output parameter, tag‟s UII;
UCHAR* uLenUii : output parameter, length of tag‟s UII;
UCHAR* uErrorCode: output parameter, error code (1 byte), valid when this function fails and
uErrorCode doesn‟t equal to 0xFF.
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.3.3 UhfReadMaxDataByEPC ()
Description
Read all data from selected memory zone(indicating UII).
Function Prototype
int WINAPI UhfReadMaxDataByEPC (HANDLE hCom, UCHAR* uAccessPwd, UCHAR
uBank, UCHAR* uPtr, UCHAR* uUii, UCHAR* Data_len, UCHAR* uReadData, UCHAR*
uErrorCode, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR* uAccessPwd: input parameter, access password (4 bytes, 0x00000000 if no access
password);
UCHAR uBank: input parameter, memory zone option;
UCHAR* uPtr: input parameter, the starting offset address;
UCHAR* uUii: input parameter, tag‟s UII;
UCHAR* Data_len: output parameter, length of data to be read, unit; byte;
UCHAR* uReadData: output parameter, tag data;
UCHAR* uErrorCode: output parameter, error code (1 byte), valid when this function fails and
uErrorCode doesn‟t equal to 0xFF.
Page 21
StrongLink RT400 UHF Module
21 / 34
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
Attention,
The module supports maximum 233 bytes memory zone and if the memory zone has more bytes
than that, this function return failure.
6.3.4 UhfReadMaxDataFromSingleTag ()
Description
Read all data from selected memory zone(not indicating UII)..
Function Prototype
int WINAPI UhfReadMaxDataFromSingleTag (HANDLE hCom, UCHAR* uAccessPwd,
UCHAR uBank, UCHAR* uPtr, UCHAR* Data_len, UCHAR* uReadData, UCHAR* uUii,
UCHAR* uLenUii, UCHAR* uErrorCode, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR* uAccessPwd: input parameter, access password (4 bytes, 0x00000000 if no access
password);
UCHAR uBank: input parameter, memory zone option;
UCHAR* uPtr: input parameter, the starting offset address;
UCHAR* Data_len: output parameter, length of data to be read, unit: byte;
UCHAR* uReadData: output parameter, tag data;
UCHAR* uUii: output parameter, tag‟s UII;
UCHAR* uLenUii: output parameter, length of tag‟s UII, unit: byte;
UCHAR* uErrorCode: output parameter, error code (1 byte), valid when this function fails and
uErrorCode doesn‟t equal to 0xFF;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
Page 22
StrongLink RT400 UHF Module
22 / 34
1: CRC is available.
Attention,
The module supports maximum 233 bytes memory zone and if the memory zone has more bytes
than that, this function return failure.
6.3.5 UhfWriteDataByEPC ()
Description
Write one word(2 bytes) into tag(indicating UII).
Function Prototype
int WINAPI UhfWriteDataByEPC (HANDLE hCom, UCHAR* uAccessPwd, UCHAR uBank,
UCHAR* uPtr, UCHAR uCnt, UCHAR* uUii, UCHAR* uWriteData, UCHAR* uErrorCode,
UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR* uAccessPwd: input parameter, access password (4 bytes, 0x00000000 if no access
password);
UCHAR uBank: input parameter, memory zone option;
UCHAR* uPtr: input parameter, the starting offset address;
UCHAR uCnt: input parameter, length of data to be written(uCnt must equal to 1);
UCHAR* uUii: input parameter, tag‟s UII;
UCHAR* uWriteData: input parameter, data to be written;
UCHAR* uErrorCode: output parameter, error code (1 byte), valid when this function fails and
uErrorCode doesn‟t equal to 0xFF;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.3.6 UhfWriteDataToSingleTag ()
Description
Page 23
StrongLink RT400 UHF Module
23 / 34
Write one word(2 bytes) into tag(not indicating UII).
Function Prototype
int WINAPI UhfWriteDataToSingleTag (HANDLE hCom, UCHAR* uAccessPwd, UCHAR
uBank, UCHAR* uPtr, UCHAR uCnt, UCHAR* uWriteData, UCHAR* uUii, UCHAR* uLenUii,
UCHAR* uErrorCode, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: Parameter Defination, COM port handle;
UCHAR* uAccessPwd: input parameter, access password (4 bytes, 0x00000000 if no access
password);
UCHAR uBank: input parameter, memory zone option;
UCHAR* uPtr: input parameter, the starting offset address;
UCHAR uCnt: input parameter, length of data to be written(uCnt must equal to 1);
UCHAR* uWriteData: input parameter, data to be written;
UCHAR* uUii: output parameter, tag‟s UII;
UCHAR* uLenUii : output parameter, length of UII;
UCHAR* uErrorCode: output parameter, error code (1 byte), valid when this function fails and
uErrorCode doesn‟t equal to 0xFF;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.3.7 UhfBlockWriteDataByEPC ()
Description
Write multiple bytes into the tag(indicating UII).
Function Prototype
int WINAPI UhfBlockWriteDataByEPC (HANDLE hCom, UCHAR* uAccessPwd, UCHAR
uBank, UCHAR* uPtr, UCHAR uCnt, UCHAR* uUii, UCHAR* uWriteData, UCHAR* uErrorCode,
UCHAR* uStatus, UCHAR* uWritedLen, UCHAR* RuUii, UCHAR flagCrc);
Page 24
StrongLink RT400 UHF Module
24 / 34
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR* uAccessPwd: input parameter, access password (4 bytes, 0x00000000 if no access
password);
UCHAR uBank: input parameter, memory zone option;
UCHAR* uPtr: input parameter, the starting offset address;
UCHAR uCnt: input parameter, length of data to be written, unit: byte;
UCHAR* uUii: input parameter, tag‟s UII;
UCHAR* uWriteData: input parameter, data to be written;
UCHAR* uErrorCode: output parameter, error code (1 byte), valid when this function fails and
uErrorCode doesn‟t equal to 0xFF;
UCHAR* uStatus: output parameter, operation result(1 byte);
UCHAR* uWritedLen: output parameter, length of data written successfully, unit: byte;
UCHAR* RuUii: output parameter, return tag‟s UII;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.3.8 UhfBlockWriteDataToSingleTag()
Description
Write multiple bytes into the tag (not indicating UII).
Function Prototype
int WINAPI UhfBlockWriteDataToSingleTag (HANDLE hCom, UCHAR* uAccessPwd,
UCHAR uBank, UCHAR* uPtr, UCHAR uCnt, UCHAR* uWriteData, UCHAR* uUii, UCHAR*
uLenUii, UCHAR* uErrorCode, UCHAR* uStatus,UCHAR* uWritedLen, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Page 25
StrongLink RT400 UHF Module
25 / 34
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR* uAccessPwd: input parameter, access password (4 bytes, 0x00000000 if no access
password);
UCHAR uBank: input parameter, memory zone option;
UCHAR* uPtr: input parameter, the starting offset address;
UCHAR uCnt: input parameter, length of data to be written, unit: byte;
UCHAR* uWriteData: input parameter, data to be written;
UCHAR* uUii: output parameter, tag‟s UII;
UCHAR* uLenUii: output parameter, length of tag‟s UII, unit: byte;
UCHAR* uErrorCode: output parameter, error code (1 byte), valid when this function fails and
uErrorCode doesn‟t equal to 0xFF;
UCHAR* uStatus: output parameter, operation result(1 byte);
UCHAR* uWritedLen: output parameter, length of data written successfully, unit: byte;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.3.9 UhfEraseDataByEPC ()
Description
Erase data in the tag(indicating UII).
Function Prototype
int WINAPI UhfEraseDataByEPC (HANDLE hCom, UCHAR* uAccessPwd, UCHAR uBank,
UCHAR* uPtr, UCHAR uCnt, UCHAR* uUii, UCHAR* uErrorCode, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR* uAccessPwd: input parameter, access password (4 bytes, 0x00000000 if no access
password);
Page 26
StrongLink RT400 UHF Module
26 / 34
UCHAR uBank: input parameter, memory zone option;
UCHAR* uPtr: input parameter, the starting offset address;
UCHAR uCnt: input parameter, length of data to be erased (unit: byte);
UCHAR* uUii: input parameter, tag‟s UII;
UCHAR* uErrorCode: output parameter, error code (1 byte), valid when this function fails and
uErrorCode doesn‟t equal to 0xFF;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.3.10 UhfEraseDataFromSingleTag ()
Description
Erase data in the tag(indicating UII).
Function Prototype
int WINAPI UhfEraseDataFromSingleTag (HANDLE hCom, UCHAR* uAccessPwd, UCHAR
uBank, UCHAR* uPtr, UCHAR uCnt, UCHAR* uUii, UCHAR* uErrorCode, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR* uAccessPwd: input parameter, access password (4 bytes, 0x00000000 if no access
password);
UCHAR uBank: input parameter, memory zone option;
UCHAR* uPtr: input parameter, the starting offset address;
UCHAR uCnt: input parameter, length of data to be erased (unit: byte);
UCHAR* uUii: output parameter, return tag‟s UII;
UCHAR* uErrorCode: output parameter, error code (1 byte), valid when this function fails and
uErrorCode doesn‟t equal to 0xFF;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
Page 27
StrongLink RT400 UHF Module
27 / 34
1: CRC is available.
6.3.11 UhfLockMemByEPC ()
Description
Lock the data of memory(indicating UII).
Function Prototype
int WINAPI UhfLockMemByEPC (HANDLE hCom, UCHAR* uAccessPwd, UCHAR*
uLockData, UCHAR* uUii, UCHAR* uErrorCode, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR* uAccessPwd: input parameter, access password (4 bytes, 0x00000000 if no access
password);
UCHAR* uLockData: input parameter, input lockdata9(3 bytes);
UCHAR* uUii: input parameter, tag‟s UII;
UCHAR* uErrorCode: output parameter, error code (1 byte), valid when this function fails and
uErrorCode doesn‟t equal to 0xFF;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.3.12 UhfLockMemFromSingleTag ()
Description
Lock the data of memory(not indicating UII).
Function Prototype
int WINAPI UhfLockMemFromSingleTag (HANDLE hCom, UCHAR* uAccessPwd, UCHAR*
uLockData, UCHAR* uUii, UCHAR* uErrorCode, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
9
About how to operate lock function, refer to <18000-6C Tag Operation Manual>
Page 28
StrongLink RT400 UHF Module
28 / 34
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR* uAccessPwd: input parameter, access password (4 bytes, 0x00000000 if no access
password);
UCHAR* uLockData: input parameter, input lockdata10(3 bytes);
UCHAR* uUii: output parameter, return tag‟s UII;
UCHAR* uErrorCode: output parameter, error code (1 byte), valid when this function fails and
uErrorCode doesn‟t equal to 0xFF;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.3.13 UhfKillTagByEPC ()
Description
Kill the tag(indicating UII).
Function Prototype
int WINAPI UhfKillTagByEPC (HANDLE hCom, UCHAR* uKillPwd, UCHAR* uUii,
UCHAR* uErrorCode, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR* uAccessPwd: input parameter, kill password(4 bytes);
UCHAR* uUii: input parameter, tag‟s UII;
UCHAR* uErrorCode: output parameter, error code (1 byte), valid when this function fails and
uErrorCode doesn‟t equal to 0xFF;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.3.14 UhfKillSingleTag ()
10
About how to operate lock function, refer to <18000-6C Tag Operation Manual>
Page 29
StrongLink RT400 UHF Module
29 / 34
Description
Kill the tag(not indicating UII).
Function Prototype
int WINAPI UhfKillSingleTag (HANDLE hCom, UCHAR* uKillPwd, UCHAR* uUii,
UCHAR* uErrorCode, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR* uAccessPwd: input parameter, kill password(4 bytes);
UCHAR* uUii: output parameter, tag‟s UII;
UCHAR* uErrorCode: output parameter, error code (1 byte), valid when this function fails and
uErrorCode doesn‟t equal to 0xFF;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.3.15 UhfBlockWriteEPCByEPC()
Description
Write EPC data into UII memory (indicating UII).
Function Prototype
int WINAPI UhfBlockWriteEPCByEPC (HANDLE hCom, UCHAR* uAccessPwd, UCHAR
uCnt, UCHAR* uUii, UCHAR* uWriteData, UCHAR* uErrorCode, UCHAR* uStatus, UCHAR*
uWritedLen, UCHAR* RuUii, UCHAR flagCrc)
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR* uAccessPwd: input parameter, access password (4 bytes, 0x00000000 if no access
Page 30
StrongLink RT400 UHF Module
30 / 34
password);
UCHAR uCnt: input parameter, length of data to be written;
UCHAR* uUii: input parameter, tag‟s UII;
UCHAR* uWriteData: input parameter, data to be written;
UCHAR* uErrorCode: output parameter, error code (1 byte), valid when this function fails and
uErrorCode doesn‟t equal to 0xFF;
UCHAR* uStatus: output parameter, operation result(1 byte);
UCHAR* uWritedLen: output parameter, length of data written successfully, unit: byte;
UCHAR* RuUii: output parameter, return the tag‟s UII;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
6.3.16 UhfBlockWriteEPCToSingleTag()
Description
Write EPC data into UII memory (not indicating UII).
Function Prototype
int WINAPI UhfBlockWriteEPCToSingleTag (HANDLE hCom, UCHAR* uAccessPwd,
UCHAR uCnt, UCHAR* uWriteData, UCHAR* uUii, UCHAR* uLenUii, UCHAR* uStatus,
UCHAR* uErrorCode, UCHAR* uWritedLen, UCHAR flagCrc);
Return Value
1: success;
Others: failure.
Parameter Defination
HANDLE hCom: input parameter, COM port handle;
UCHAR* uAccessPwd: input parameter, access password (4 bytes, 0x00000000 if no access
password);
UCHAR uCnt: input parameter, length of data to be written;
UCHAR* uUii: input parameter, tag‟s UII;
UCHAR* uWriteData: input parameter, data to be written;
UCHAR* uLenUii: output parameter, return the length of tag‟s UII, unit: byte;
Page 31
StrongLink RT400 UHF Module
31 / 34
UCHAR* uErrorCode: output parameter, error code (1 byte), valid when this function fails and
uErrorCode doesn‟t equal to 0xFF;
UCHAR* uStatus: output parameter, operation result(1 byte);
UCHAR* uWritedLen: output parameter, length of data written successfully, unit: byte;
UCHAR flagCrc: input parameter, whether CRC16 is available,
0: CRC is unavailable;
1: CRC is available.
Page 32
StrongLink RT400 UHF Module
32 / 34
Appendix A: Frequency Parameters
Parameter
Name
Type
Description
bFreMode
UCHAR*
Frequency Option:
0: 920-925MHz;
1: 840-845MHz;
2: ETSI;
3: reserved;
4: user-defined;
BFreBase
UCHAR*
Base Frequency:
0: 50MHz;
1: 125MHz;
bBaseFre
UCHAR*
Starting Frequency, value range: 840~960;
bChannNum
UCHAR*
The Number of Frequency Channels, value range: 1~16;
bChannSpc
UCHAR*
Frequency channel factor:
When bFreBase = 50, value range: 1~20;
When bFreBase = 125, value range: 1~8;
bFreHop
UCHAR*
The Way of Frequency Jump:
0: Random;
1: From high to low frequency;
2: From low to high frequency;
others: Random;
The relationships between starting frequency, stop frequency, base frequency, frequency channel, frequency
channel factor:
if(base frequency == 0)
{
stop frequency - starting frequency = (frequency channel - 1) * frequency channel factor * 0.050
}else{
stop frequency - starting frequency = (frequency channel - 1) * frequency channel factor * 0.125
}
Example: Frequency range is 920.625-924.375MHz
base frequency =1;
starting frequency decimal part is 0.625;
starting frequency integer part is 920;
starting frequency decimal part in hex: 0.625÷0.125 = 0x05;
„920‟ in binary is 11 1001 1000;
bBaseFre[0] = (byte)(11 1001 1000 >> 3); --->0x73
bBaseFre[1] = (byte)(11 1001 1000 << 5 | (0x05 & 0x1F)); --->0x05
Page 33
StrongLink RT400 UHF Module
33 / 34
stop frequency - starting frequency = (frequency channel - 1) * frequency channel factor * 0.125;
That is,
924.375 -920.625 = （frequency channel - 1）* frequency channel factor * 0.125;
So that,
（frequency channel -1）* frequency channel factor = 30;
And,
When “frequency channel”= 16, “frequency channel factor”= 2;
bFreMode = 4;
bFreBase = 1;
bFreBase = {0x73 , 0x05};
bChannNum = 16;
bChannSpc = 2;
bFreHop = 0;(Random frequency jump).
Page 34
StrongLink RT400 UHF Module
34 / 34
Appendix B: Tag Parameters
Parameter Type
Parameter Name
Defination
UCHAR*
uAccessPwd
Tag access password, length: 4 bytes.
UCHAR*
uKillPwd
Tag kill password, length: 4 bytes.
UCHAR
uBank
Tag memory zone:
0x00: RESERVED
0x01: UII
0x02: TID
0x03: USER
UCHAR*
uPtr
Starting offset address.
UCHAR
uCnt
Length of byte count.
UCHAR*
uUii
Tag‟s UII.
UCHAR*
uLenUii
Length of UII.
UCHAR*
uReadData
Data being read.
UCHAR*
uWriteData
Data to be written.
UCHAR*
uWritedLen
Length of data written successfully.
UCHAR*
uStatus
Return status, it‟s an array whose length =1.
UCHAR*
uErrorCode
Error code, it‟s an array whose length =1.
Loading...
