Strong UHF, VHF, SRT ANT 10 ECO User Manual

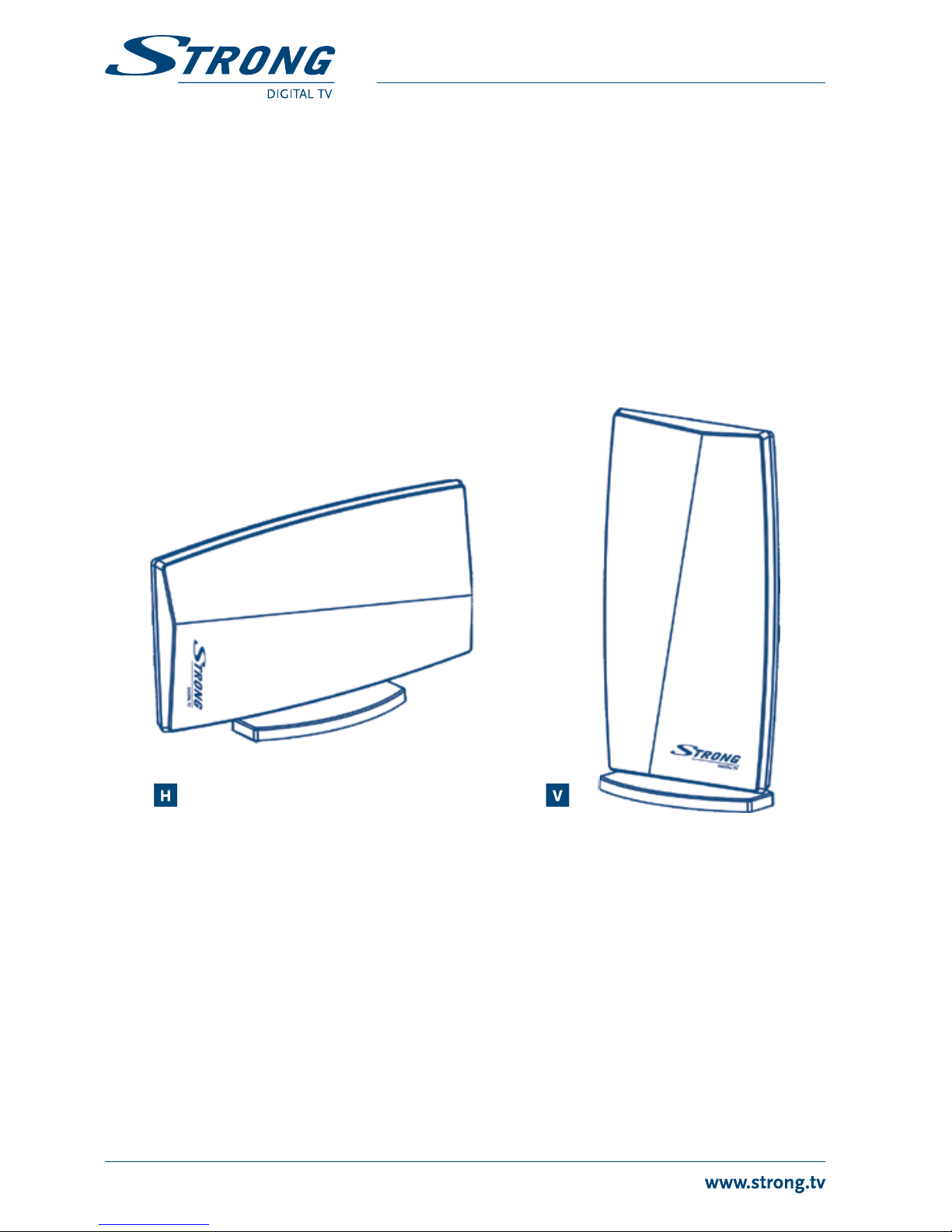

Picture similar
Digital Active Indoor
Antenna SRT ANT 10 ECO
User Manual
English
1.0 INTRODUCTION
Thank you for purchasing the STRONG SRT ANT 10 ECO DVB-T/T2 Antenna. This antenna has been specially
designed to receive digital terrestrial signals from the air. It can be connected to any Digital Terrestrial
Receiver (DVB-T/T2), and is designed for INDOOR use only.
This DVB-T/T2 antenna is an “Active type” antenna, it has a built-in low noise amplier that amplies the
received signals for better performance.
We recommend you to carefully read this user manual before you install the antenna, this will help you to
get the best performance out of your antenna.
Specications:
Frequency range: VHF 47~230 MHz, UHF 470~870 MHz
Gain: 45 dB for VHF and UHF
RF Output Impedance: 75 Ohm
Power Supply: 5 V/40 mA via RF port of the STB or
12 V DC/250 mA via external 230 V AC to DC adapter
Special Features:
Built-in Low Noise Amplier technology
High directionality: optimised pointing to the transmitter and
reduced pick-up of disturbing signals
2.0 PACKAGE CONTENT
1. SRT ANT 10 ECO – Active DVB-T/T2 Indoor Antenna
2. Coaxial Cable- 2 meters
3. Standing unit
4. User Manual
21 3
TABLE OF CONTENTS
1.0 INTRODUCTION 1
2.0 PACKAGE CONTENT 1
3.0 SAFETY NOTES 2
4.0 CONNECTING THE ANTENNA 2
