1. General description
THEATRE lighting family of Strong is composed of a set of projectors for
650W or 1000W lamps. For this reason they are appropriate in facilities where
high-power lighting is required, for instance: theatres, showrooms, etc.
STR 650-1000 F+PF is a lighting projector with pressed fresnel lens.
Moreover, this range includes some accessories which increase the
functions of the projectors.
1.1. Characteristics
Focal adjustment is included by endless screw and back knob.
Made of aluminium profiles and iron plate. Painted with black oven-
dried epoxy.
Metal filter holder and safety grille are provided with the spotlight.
Lamp not included.
STR 650-1000 F+PF reference is 21000002.
Page 4
User manual STR 650-1000 F+PF 4
1.2. Technical data
Power supply Single-phase 230V 50Hz
Lamps T-12 650W // T-11 1000W
Lamp holder Gx9,5
Aperture angle Minimum: 10º // Maximum: 63º
Lens Ø150 mm
Aluminium reflector 99,9 quality, Ø100 mm
Power supply cable 3x1,5mm2 1metro
Maximum projector temperature 160 ºC
Minimum distance to objects 2 m (at the light beam)
Maximum room temperature 40 ºC
Weight 5,5 Kg.
Dimensions 360x334x276 mm
Page 5
User manual STR 650-1000 F+PF 5

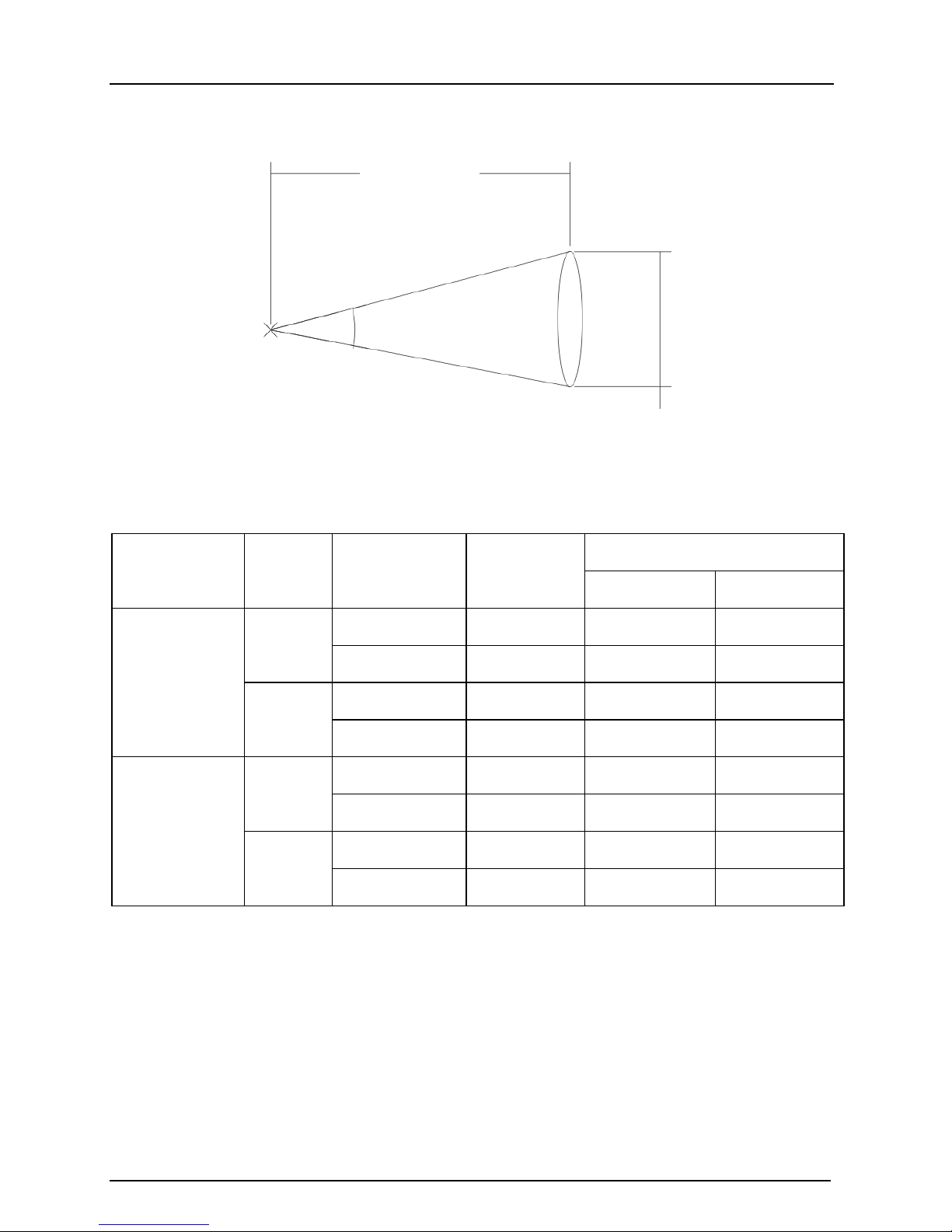

1.3. Photometric data
Fig. 1: Light beam
Luminance [lx]
Projection
distance [m]
Lamp
[W]
Aperture
angle [º]
Diameter
[cm]
Centre Round
10 (minimum)
52 5430 1004
650
63 (maximum) 260 665 253
10 (minimum) 52 6155 983
3
1000
63 (maximum) 260 942 129
10 (minimum)
92 1947 282
650
63 (maximum) 498 270 67
10 (minimum) 92 2953 456
5
1000
63 (maximum) 498 386 37
Projection
distance
Lamp
Aperture
an
g
le
Diameter
Page 6
User manual STR 650-1000 F+PF 6

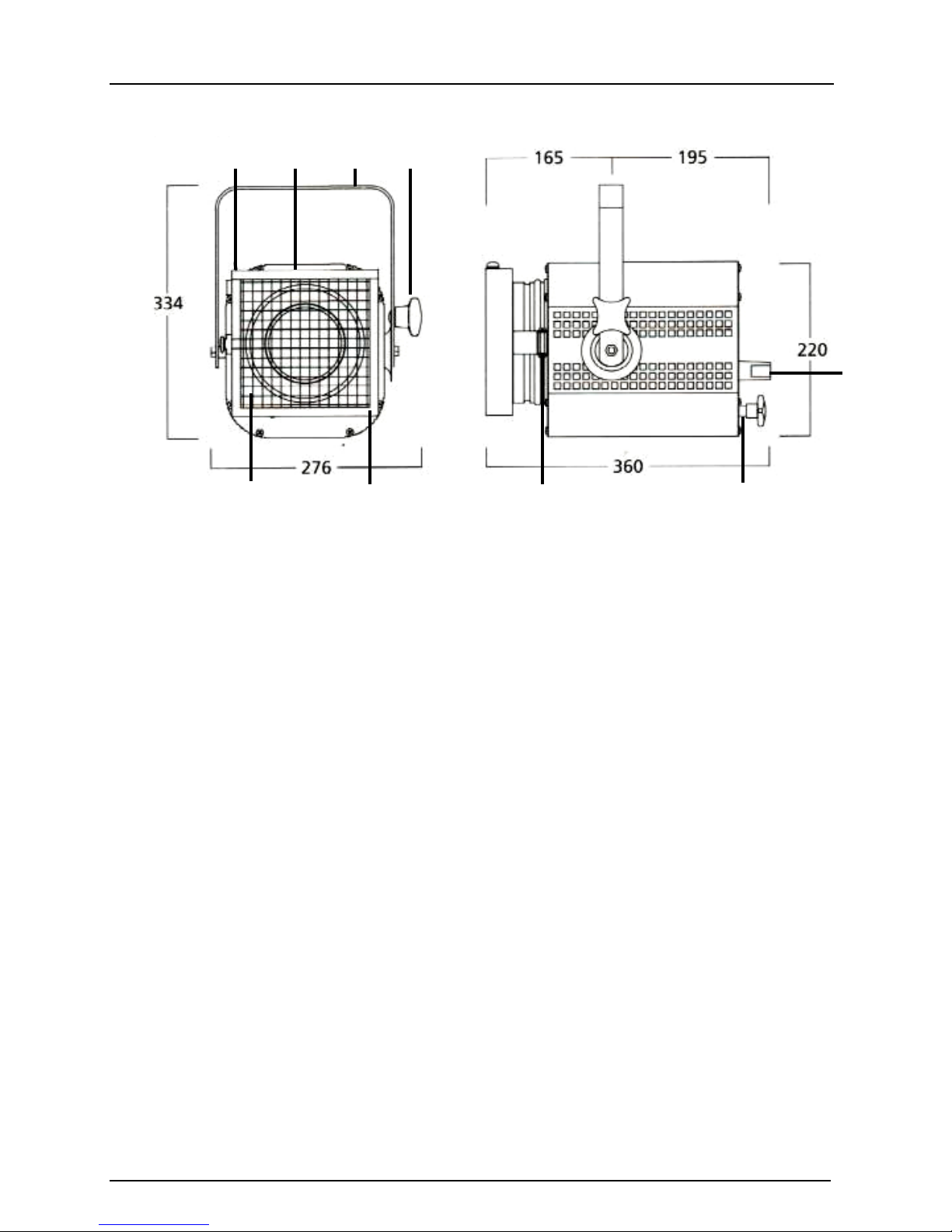

1.4. Dimensions
Fig. 2
1. Filter holder fastener 4. Fastening knob 7. Front access fastener
2. Filter holder lid 5. Filter holder 8. Orienting handle
3. Handle 6. Safety grille 9. Focal adjustment nut
1
2
3
4
5 6 7
9
8
Page 7
User manual STR 650-1000 F+PF 7

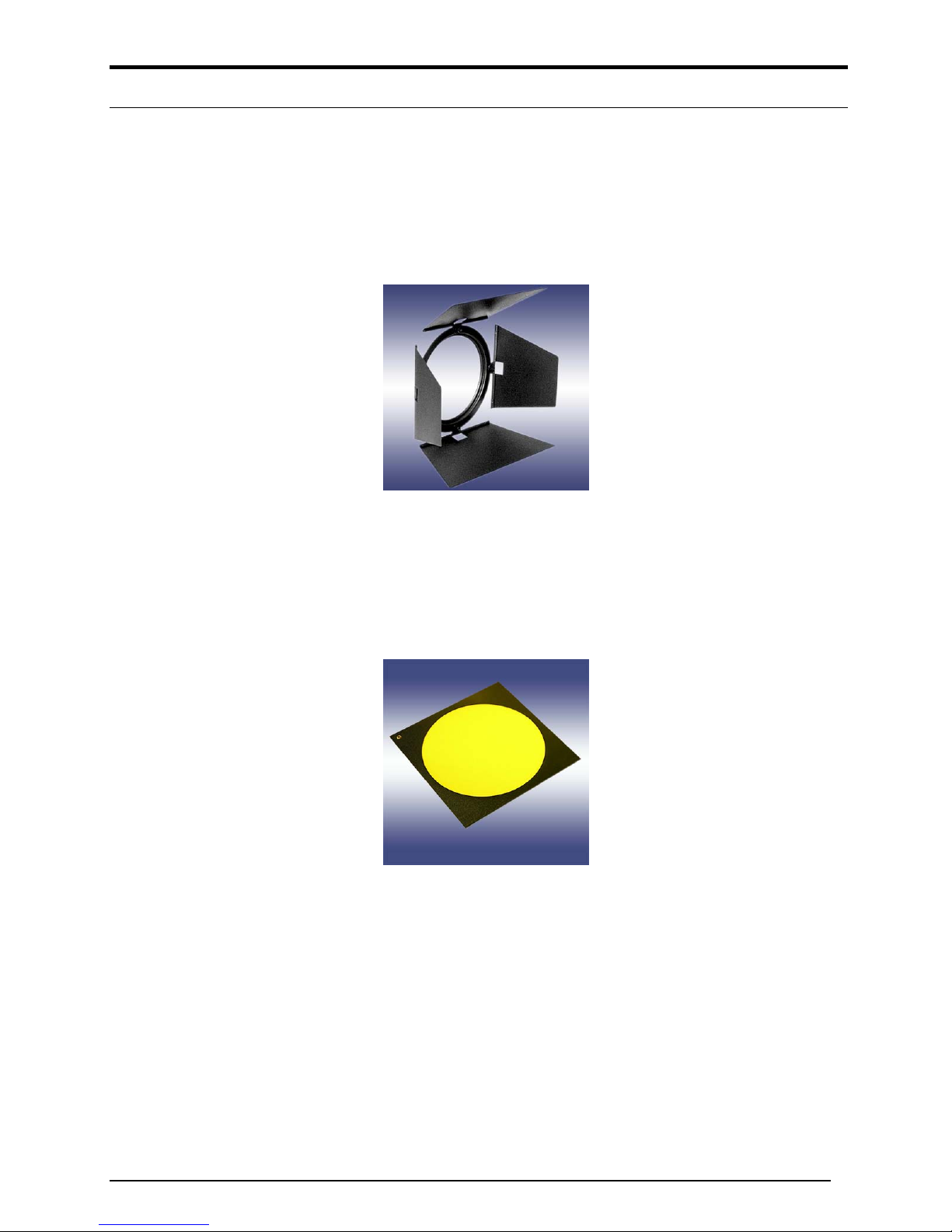

2. Accessories
The accessory range consists of the following products:
STR 650-1000 V:
Barndoor
STR 650-1000 PF:
Filter holder
Dimensions 180x185 mm. Weight: 0,15 Kg.
Page 8
User manual STR 650-1000 F+PF 8
3. Installation
ATTENTION: Before touching the spotlight surface, be sure that it has not
been working recently due to the high temperatures of the projector while
working because you risk burning yourself. For the same reason, fix the
projector away from inflammable surfaces.
First of all, you must be sure that the distance between the projector and
the closest object in the light beam should be greater than 2 meters.
Otherwise, the object could reach high temperatures which could damage it. It
is also recommended placing the projector at 0,2 meters away from any object
around it. As well, do not put the unit closed to objects which could emit heat
such as heaters and radiators.
The unit is not prepared for working in wet environments (relative humidity
greater than 90%). So it can not work under raining conditions.
It must be positioned for not interfering with its proper ventilation.
This projector is equipped with a handle (see 3 at figure 2) to allow to fa st it
at tube structures and surfaces.
The projector handle can be turned and braked by a knob that allows the
proper orientation of the device.
The spotlight must be fixed at a point completely stable and capable of
supporting the weight of the equipment (5,5 kg) via the handle, attaching it to
this point with the anchor holes. Always use M12 steel screws to set the
spotlight.
Once the projector is hanging, vertical inclination can be adjusted by the
lateral fastening knob (see 4 in figure 2). Unscrew it to orientate the projector
and screw it when you consider that the light beam is correct.
Page 9
User manual STR 650-1000 F+PF 9
3.1. Power supply connection
During handling and installation of the unit disconnect it from the current.
The spotlight is power supplied when connecting the supply hose to a 230volt 50-hertz single phase mains with ground. Before connecting the spotlight
you must be sure that the voltage supplied is correct.
3.2. Colour filter installation
WARNING: Use colour filters suitable for the temperatures that can reach
this lighting projector.
This projector incorporates a holder for colour filters (see 5 in figure 2).
To install a filter, move the filter holder fastener (see 1 in figure 2) by
pushing it laterally. Simultaneously rotate 180° the filter holder lid (see 2 in
figure 2). Then insert the colour filter in front of the safety grille so that it is
placed between the inner grooves.
Finally, proceed closing the filter holder lid in the same way as for the
opening.
Page 10
User manual STR 650-1000 F+PF 10
4. Operation
The projector can be positioned manually varying the inclination. To do
this, loosen the fastening knob (see 4 in figu re 2) and position it by holding the
back plastic handle (see 8 in figure 2).
Be careful not to touch the metal parts because the focus can reach high
temperatures.
To fix it again, turn the fastening knob clockwise until fixed it.
4.1. Aperture angle adjustment
The spotlight angle, and consequently the diameter of the light beam can
be changed by turning to right and left the focal adjustment nut (see 9 in figure
2).
Page 11
User manual STR 650-1000 F+PF 11
5. Maintenance
WARNING: Before touching the projector surface make sure that it has not
been on recently because it can operate at high temperatures with a risk of
burns.
5.1. Regular cleaning
To prevent the growth of dust and dirt which may impair the proper
operation of the equipment, it should be cleaned regularly.
For cleaning it, use a s oft, slightly and damp cloth (if the equipme nt is very
dirty, apply a little liquid detergent to the cloth).
WARNING: Do not use solvents or products containing alcohol. Make sure
that no liquid get inside the equi pm ent.
The lens cleaning must be made with a soft cloth. Water may be used but
dry it with a dry cloth to remove al l trac es of water and dust.
5.2. Lamp replacement
Before proceeding to change the lamp, make sure that the spotlight has
not been running recently because it could be hot; if so let it cool for a few
minutes.
Lamp replacement begins by turning anticlockwise the focal adjustment nut
(see 9 in figure 2) till reach its maximum position. Then open the front access
fastener (see 7 in figure 2) and the lamp can be seen inside the projector.
Carefully remove the lamp from the socket, holding it by the plastic part.
WARNING: Do not touch the glass of the lamp because it could affect the
service life of the product. If during the installation you touch the lamp glass,
wipe with a cloth moistened with alcohol.
Page 12
User manual STR 650-1000 F+PF 12
When you remove the lamp replace with a new one of the same
characteristics (Gx9.5 lamp holder).
Then, reinsert, first the pins, the lamp into the socket by pushing.
Make sure the lamp is properly held. Finally, close the projector front
access and the front access fastener (see 7 in figure 2).
Connect the spotlight and check that the lamp is functioning properly.
5.3. Lens replacement
Before proceeding to change the lens, make sure that the pr ojector has not
been running recently because it could be hot; if so let it cool for a few
minutes.
To change the lens, open the front access fastener (see 7 in figure 2). The
lens installed is at your right. An iron ring is placed around the lens. Remove it
with the help of a tool to pry it open.
WARNING: The ring holds the lens, be careful not to fall it down.
Tilt the projector and remove the lens, you can press it by the outside to
help it out. Insert the new lens. To improve the quality of the light beam be
sure of its cleanness.
Finally reinsert the steel ring for holding the lens correctly. Close the front
part of the projector and fasten it (s ee 7 in figure 2).
Verify that the light beam of the new lens is correct.
Page 13
User manual STR 650-1000 F+PF 13
6. Most common problems
Problem Usual Cause Solution
Unit does not start No current reaching the
unit
Check mains connections
Lamp does not work Replace the lamp following the
instructions of Maintenance
If the problem persists despite these measures, please contact to
FRESNEL’s Technical Service Department.
Tel: (+34) 93 274 54 28
Tel: (+34) 93 360 02 30
Fax: (+34) 93 274 47 47
