Active Outdoor Antenna DVB-T SRT ANT 15
User Manual
2
PART 1 l English
Table of Contents
1.0 Introduction 3
2.0 Package contents 4
3.0 Safety notes 5
4.0 Connecting the antenna 5
5.0 Installation of the antenna 9
3
PART 1 l English
1.0 Introduction
Thank you for purchasing the Strong SRT ANT 15 DVB-T Antenna. This antenna has been specially
designed to receive digital terrestrial signals. It can be connected to any Digital Terrestrial Receiver
(DVB-T), and is specially designed for Outdoor use. The antenna housing is UV protected and
weather-proof sealed. With the multi-functional mounting materials supplied you can install the
antenna on a wall, on your balcony or on a pole outside the house.
This DVB-T Antenna is an “Active type” antenna, it has a built-in low noise amplifier that amplifies the
received signal for better performance. The antenna therefore needs 5 V power supplied by your
terrestrial receiver, or by an AC adaptor (supplied with the antenna).
We recommend that you carefully read this user manual before you install the antenna. This will help
you to get the best performance out of your antenna.
Specifications:
Frequency range: VHF 47 - 230 MHz, UHF 470 - 870 MHz
Gain: 20 dB for VHF and UHF
RF Output Impedance: 75 Ohm
Power Supply - 2 powering methods: 5 V DC 40 mA via ANTENNA connector of the digital
terrestrial receiver or
9 V DC 100 mA via External 230 V AC to DC adapter
Special features: n Choice of installation methods:
wall-mounted or pole-mounted installation
n Built-in VHF and FM filter
n Weather-proof and UV protected housing
n Built-in low noise amplifier technology
n Highly directional to optimise accurate pointing to the
transmitter and to reduce pick up of unwanted signals
4
PART 1 l English
2.0 Package contents
1. Active DVB-T Outdoor Antenna.
2. Multidirectional base.
3. Wall mounting kit.
4. Pole Mounting kit.
5. Coaxial Cable.
6. Power Injector.
7. AC Adaptor.
8. IEC male to IEC female Coaxial Cable.
Multi-directional base Wall Mounting kit Pole Mounting kit
Coaxial Cable Power Injector AC Adaptor
Main unit
5
PART 1 l English
3.0 Safety notes
n Use only originally supplied accessories
n Before you make any connections: disconnect your equipment from the 230 V mains power
to avoid electrical shocks during installation
n Short Circuit in the coaxial cable MAY permanently damage your Digital Receiver
n Never use AC Adaptors with incorrect specifications. This MAY permanently damage your
antenna or Digital Receiver. Always check voltages and polarisation of the adaptor before
connecting it
4.0 Connecting the antenna - preparations:
Step 1: Check if the broadcast in your country is Horizontally or Vertically polarised.

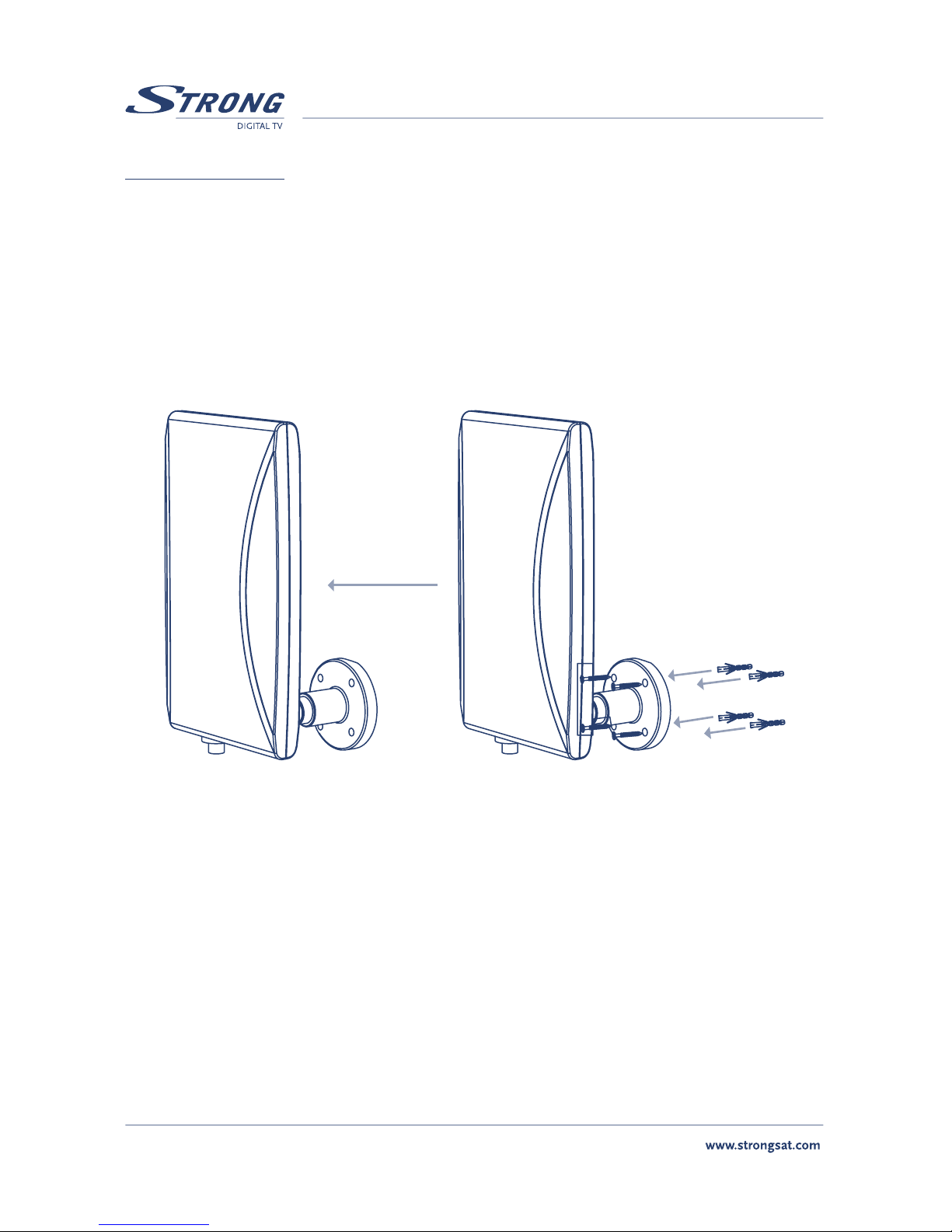

Step 2: Fix the Antenna to the multi-directional base as shown in the pictures:
6
PART 1 l English
Step 3: Depending on how the signals are broadcasted (Horizontal or Vertical) you will have
to mount your antenna in the Horizontal or Vertical position for best performance.

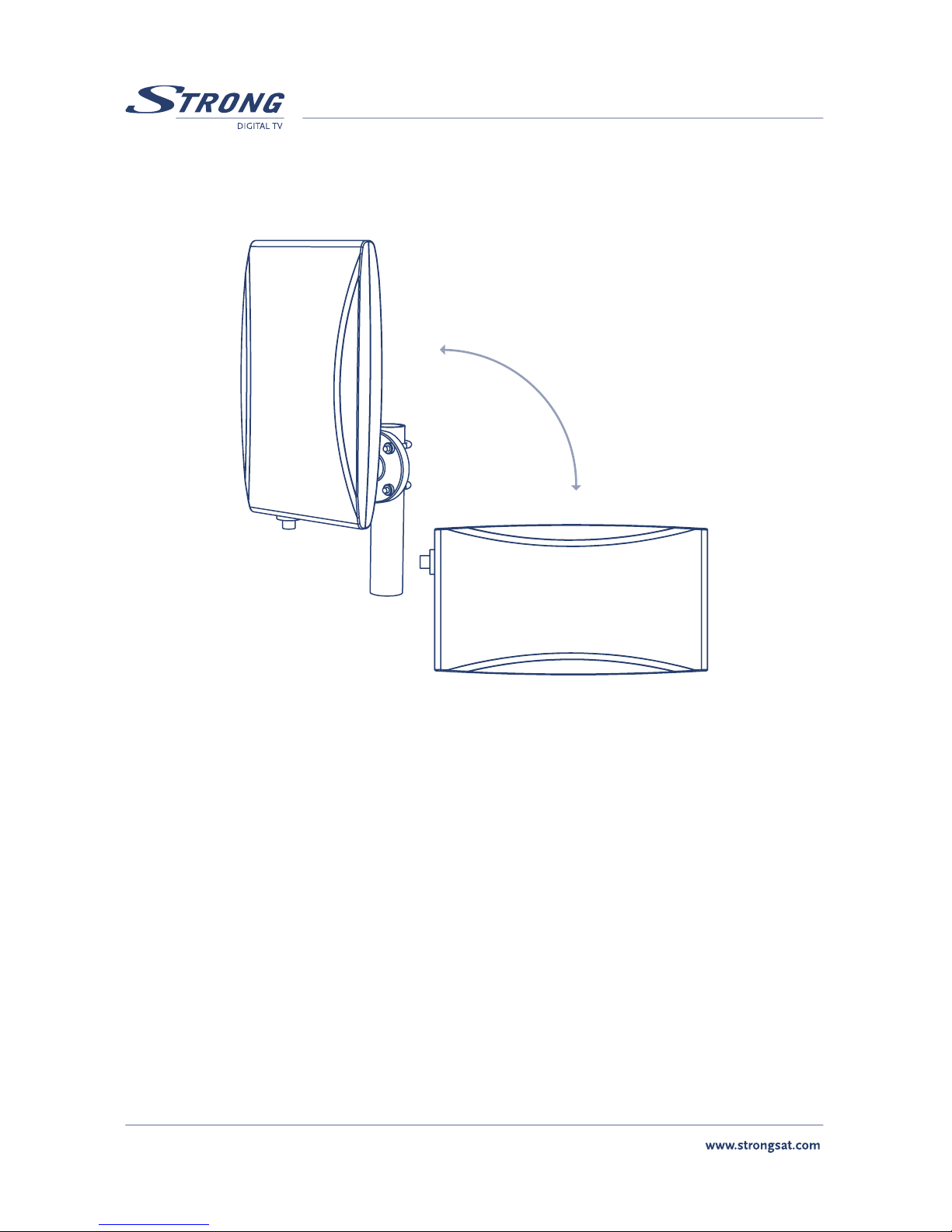

(Vertical-Broadcast) antenna mounted V (Horizontal-Broadcast) antenna mounted H
Step 4: Your antenna needs 5 V power to work properly. Check in the menu or user manual of
your terrestrial receiver to see if it supports the needed 5 V power.
A. To power the antenna with Digital Terrestrial Receiver:
1. Turn on your TV set and turn on your Digital Terrestrial Receiver.
2. Press the “MENU” button on the remote control of your Digital Terrestrial Receiver. Check in the
Set-Up or Installation Menu of your Receiver to see if the antenna power is set to “ON”.
(Normally this is indicated in the menu as ANT power, Ext Antenna power or Active antenna power).
Refer to the User Manual of your Digital Terrestrial Receiver.
7
PART 1 l English
3. Once you are sure that your receiver supports 5 V antenna power, switch off your receiver and
disconnect it from the 230 V mains power.
4. Take the supplied “long” coaxial cable and connect the end with the “F connector” (screw type
connector) to the antenna. Carefully press the inner lead of the cable into the Female-F connector at
the back of the antenna. Turn the covering nut clockwise with your HANDS until it is fixed.
5. Connect the IEC Male end to your Set Top Box. Normally the input connector on your receiver is
marked as “ANT” (in) or as (in). Refer to the User Manual of your Digital Terrestrial Receiver.
6. Connect your receiver to the 230 V mains power and switch ON your receiver and TV set.
7. Proceed to 5.0 “Antenna installation”.
Powering by STB or Digital TV
Coaxial Cable
STB or Digital TV
Water-Drop Loop
(recommended)
Indoor Outdoor
8
PART 1 l English
If your receiver does not support 5 V antenna power, then please follow the next steps:
B. To power the antenna with external power adaptor:
1. Switch OFF your receiver and disconnect it from the 230 V mains power.
2. Take the short Coaxial (IEC male to IEC female) Cable. Connect the IEC Male end to your Set Top Box.
Normally the input connector on your receiver is marked as “ANT” (in) or as “RF” (in). Refer to the
User Manual of your Digital Terrestrial Receiver.
3. Connect the other end of the cable to the connector on the power injector that is marked as “Receiver”.
4. Take the supplied “long” coaxial cable and connect the end with the “F connector” (screw type
connector) to the antenna. Carefully press the inner lead of the cable into the Female-F connector at
the back of the antenna. Turn the covering nut clockwise with your HANDS until it is fixed.
5. Connect the other side of the cable to the connector at the power injector, it is marked as “Antenna”.
6. Insert the adapter to the 230 V mains power and insert the connector at the end of the lead to the
power injector - it is marked as “DC 9 - 12 V”.
7. Proceed to chapter 5. “Installation of the antenna”.
For point B - please see drawing below:
Powering by Adaptor
Coaxial Cable
STB or Digital TV
Water-Drop Loop
(recommended)
Indoor Outdoor
AC Adaptor (DC 9 V)
Coaxial Cable
Power Insert
9
PART 1 l English
5.0 Installation of the antenna:
1. Turn on your TV set and turn on your Digital Terrestrial Receiver.
2. Press the “MENU” button on the remote control of your Digital Terrestrial Receiver. Select the Menu
on your receiver that shows you the signal level indicators. (Normally you can find the signal meter in
the Channel Scan field of the menu). Refer to the User Manual of your Digital Terrestrial Receiver.
3. Now optimise the signal strength by finding the best position for the antenna. Keeping the antenna
in your hand, try to reach the highest or best possible position. Slowly move the antenna to different
positions around the house, at the same time monitor the signal bars in the menu, once the signal
indicator shows the maximum signal, fix the antenna on that position.
Note: It is recommended NOT to place the antenna near to:
n Devices that are strong source of radiation or interference such as DECT and GSM telephones,
Transmitters, Microwaves, etc.
n Devices with high power consumption such as Electrical Heater, Air conditioner, Hairdryers, etc.
Once the best position for the antenna has been found it can be mounted and fixed in that place.
You can fix the antenna on the wall, on the balcony or on a metal pole.
10
PART 1 l English
Installation on the wall:
n Take the multi directional base and hold it to the position on the wall
n Mark the 4 holes with a pencil
n Drill 4 holes diameter 5,8 mm (make sure you are in a secured position and wear sufficient
protective clothing while drilling
n Insert the 4 plastic plugs into the drilled holes
n Hold the multi directional base on it’s position
n Use the 4 screws to fix the plastic mount on the wall
11
PART 1 l English
Installation on a metal pole, or on the balcony:
n Take a metallic pole and make sure it is properly fixed and stable enough to carry
the antenna
n Take the pole mounting kit
n Hook the 2 U bolts on the pole (or on the metal parts of the balcony)
n Take the multi-directional base and place it over the bolts
n Use the 4 wing nuts to fix them
