Strong Carbon Series, Carbon SM-CB-ART2-L Installation Manual [en, fr]

SM-CB-ART2-L

Strong™ Carbon Series

Universal Articulating Mount With Dual Arms

INSTALLATION MANUAL

CAUTION

The maximum supported weight of this wall mount is 150 lbs (68.04 kg). Use with heavier
than the maximum weight indicated may result in

instability causing possible injury.

ATTENTION

Le poids maximum de ce support mural est de 68 kg (150 lbs). L’utilisation avec un poids

haut que le poids maximum indiqué peut provoquer une instabilité et ainsi des

plus
blessures.

WARNING

Ensure these instructions are thoroughly understood before attempting installation. If unsure of any part of the installation
process, contact a professional installer for assistance.

The wall or mounting surface must be capable of supporting the combined weight of the mount and the display; otherwise the
structure must be reinforced. Installer is responsible for verifying the wall/mounting surface and the anchors used can support
the total load of the installation.

Safety gear and proper tools must be used. Failure to do so can result in property damage and/or serious injury.

A minimum of two people is required for this installation and it is highly recommended that this product be installed by qualied

professionals.

Follow all instructions and recommendations regarding suitable locations for display installation. Consult the display equipment’s
documentation for information relative to its requirements.

ATTENTION

Assurez-vous que ces instructions sont bien comprises avant de commencer l’installation. Si vous n’êtes pas certain sur une
partie du processus d’installation, contactez un installateur professionnel pour obtenir de l’aide.

Le mur ou la surface de montage doit être capable de supporter le poids combiné du support et de l’écran ; sinon la structure

doit être renforcée. L’installateur est responsable de la vérication du mur / de la surface de montage et les ancrages utilisés

peuvent supporter le poids total de l’installation.

Un équipement de sécurité et des outils appropriés doivent être utilisés. Sinon, il y pourrait avoir des dommages matériels et
/ ou des blessures graves

Un minimum de deux personnes est requis pour cette installation et il est fortement recommandé que ce produit soit installé

par des professionnels qualiés.

Suivez toutes les instructions et recommandations concernant les lieux appropriés pour l’installation de l’écran. Consultez la
documentation de l’écran pour obtenir des informations à propos des exigences.

Supported Vesa Patterns

Horizontal Measurement (mm)

75 100 200 300 400 500 600 700 800

75 M, L, XL
100 M, L, XL M, L, XL L, XL L, XL L, XL L, XL XL XL
200 M, L, XL M, L, XL L, XL L, XL L, XL L, XL XL XL
300 M, L, XL M, L, XL L, XL L, XL L, XL XL XL

(mm)

Vertical

Mesasurement

• Maximum Load:

• 150 lbs (68.04 kg) - SM-CB-ART2-L

• Maximum Extension:

• Large - 26"

• X-Large - 31"

• Wire Management

• Pan/Swivel Range: 180°

• Tilt Range: -5° /+ 15°

400 M, L, XL L, XL M, L, XL L, XL L, XL XL XL
500 XL XL XL XL XL XL
600 XL XL XL XL XL XL

SPECIFICATIONS BOX CONTENTS TOOLS REQUIRED

• Wall Arm Assembly (1)

• Horizontal Mounting Bars (2, Installed)

• Fixed TV Bracket (2)

• Adapter Plate (Installed)

• Cable Clips (3, Installed)

• Hardware Kit (1)

• Mounting Template (1)

• Power Drill

• 3/32" & 5/16" Drill Bits

• Level

• 1/2" (13mm) Wrench

• Hammer

• Stud Finder

• Phillips Screw Driver

2

HARDWARE

IMAGE DESCRIPTION ITEM QUANTITY

BAG 1

Lag Bolt

Lag Washer (B) 8.4 × 19 × 2 mm 5

Concrete Anchor (C) 10 × 50 mm 5

Screw (D) M6 × 20 mm 4

Screw (E) M6 × 40 mm 4

Screw (F) M8 × 20 mm 4

Screw (G) M8 × 40 mm 4

Screw (H) M8 × 50 mm 4

Spacer (I) 8.5 × 15 × 5 mm 4

Spacer (J) 8.5 × 17.5 × 19 mm 4

(A) 8 × 63 mm 5

BAG 2

Spacer (K) 8.5 × 17.5 × 22 mm 4

BAG 3

M6 Washer (L) 6.4 × 18 × 2 mm 8

M8 Washer (M) 8.4 × 20 × 2 mm 8

Socket Wrench (N) 10 × 58 mm 1

3

INSTALLATION

Layout and Drilling

1. Determine general location of the display.

2. Use a stud finder to find the nearest wall studs if applicable and mark their location.

NOTE: Stud sizes must be a minimum of 2"x4" and covered with no more than 3/8" thick dry wall.

3. Tape template flat and level to wall surface, aligning the template’s slots with the stud markings on the wall.

NOTE: Template corners fold up to catch debris.

4. Use a pen or pointed object to mark bore locations.

ATTENTION: Before drilling, verify there is a minimum of 1-3/8" of concrete thickness to be used for the concrete

anchors. Ensure to mount in a solid part of the block, generally 1" minimum from the side of the block.

Cinder block must meet ASTM C-90 specications.

ATTENTION: Concrete must be 2500-3000 psi density minimum. Lighter density concrete may not hold concrete anchor.

ATTENTION: A standard electric drill on slow setting should be used to drill the holes instead of a hammer drill to avoid

breaking out the back of the hole when entering a void or cavity.

5. Drill holes (Figure 1):

NOTE: Use 3/32" bit for drilling into wooden studs (x4).

NOTE: Use 5/16" bit for drilling into concrete wall (x6).

NOTE: Two additional holes and provided anchors are needed for concrete installs.

ATTENTION: Be sure to drill holes centered within studs. Do not drill into mortar joints.

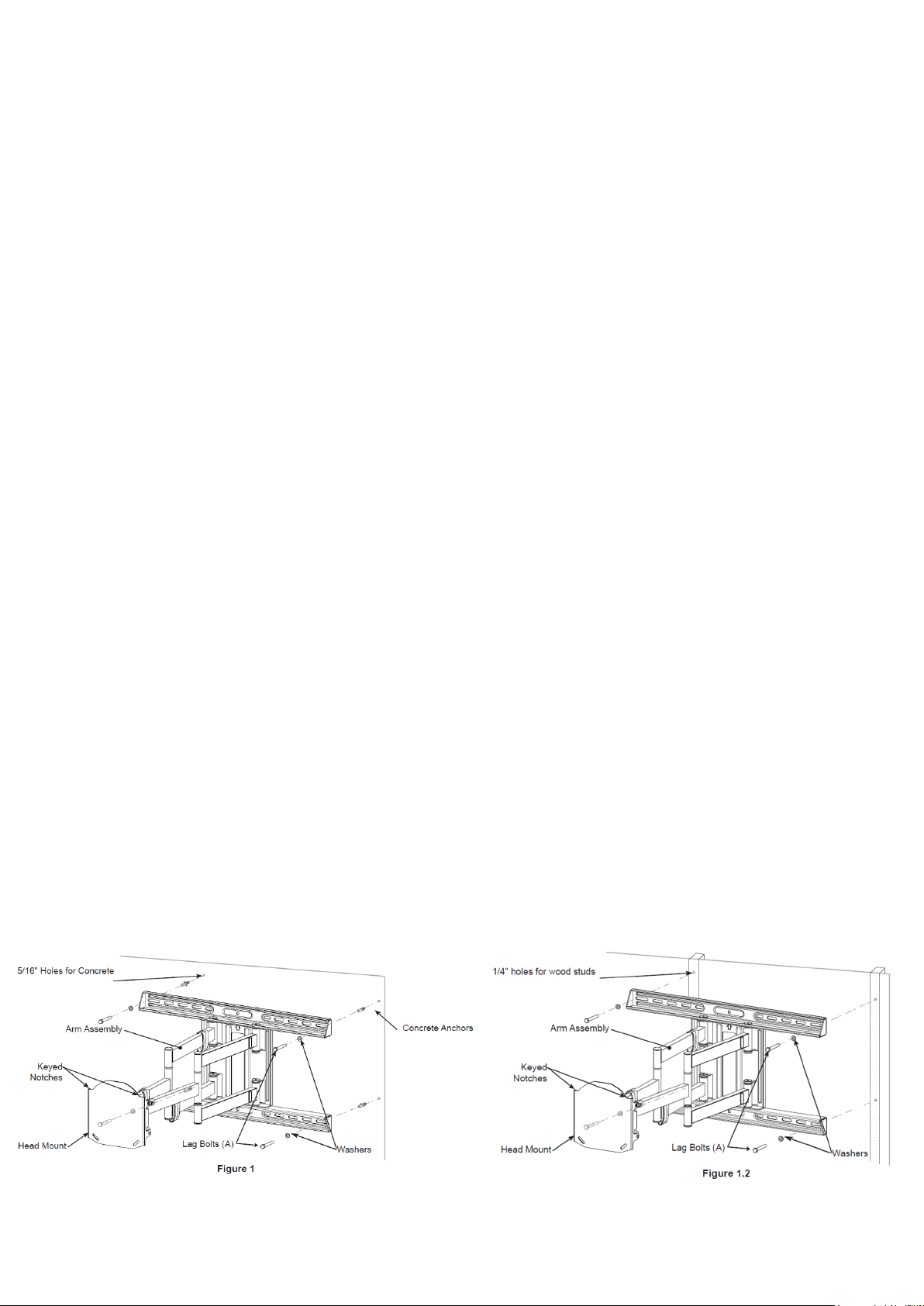

Wall Mounting of Arm Assembly

1. If needed, hammer concrete anchors (C) into wall (Figure 1).

2. Apply washers (B) to lag bolts (A).

3. Hold Arm Assembly in place while applying lag bolts (A) with

washers (B).

NOTE: A properly mounted Arm Assembly will be oriented so that its Keyed Notches side of the

Arm Assembly Head Mount is upward.

4. Tighten bolts snugly without overtightening.

CAUTION: Overtightening can damage the bolts and reduce their holding strength. Refer to the mounting template for

specics.

Mounting to a Concrete Wall Mounting to a Wood Stud Wall

concrete

4

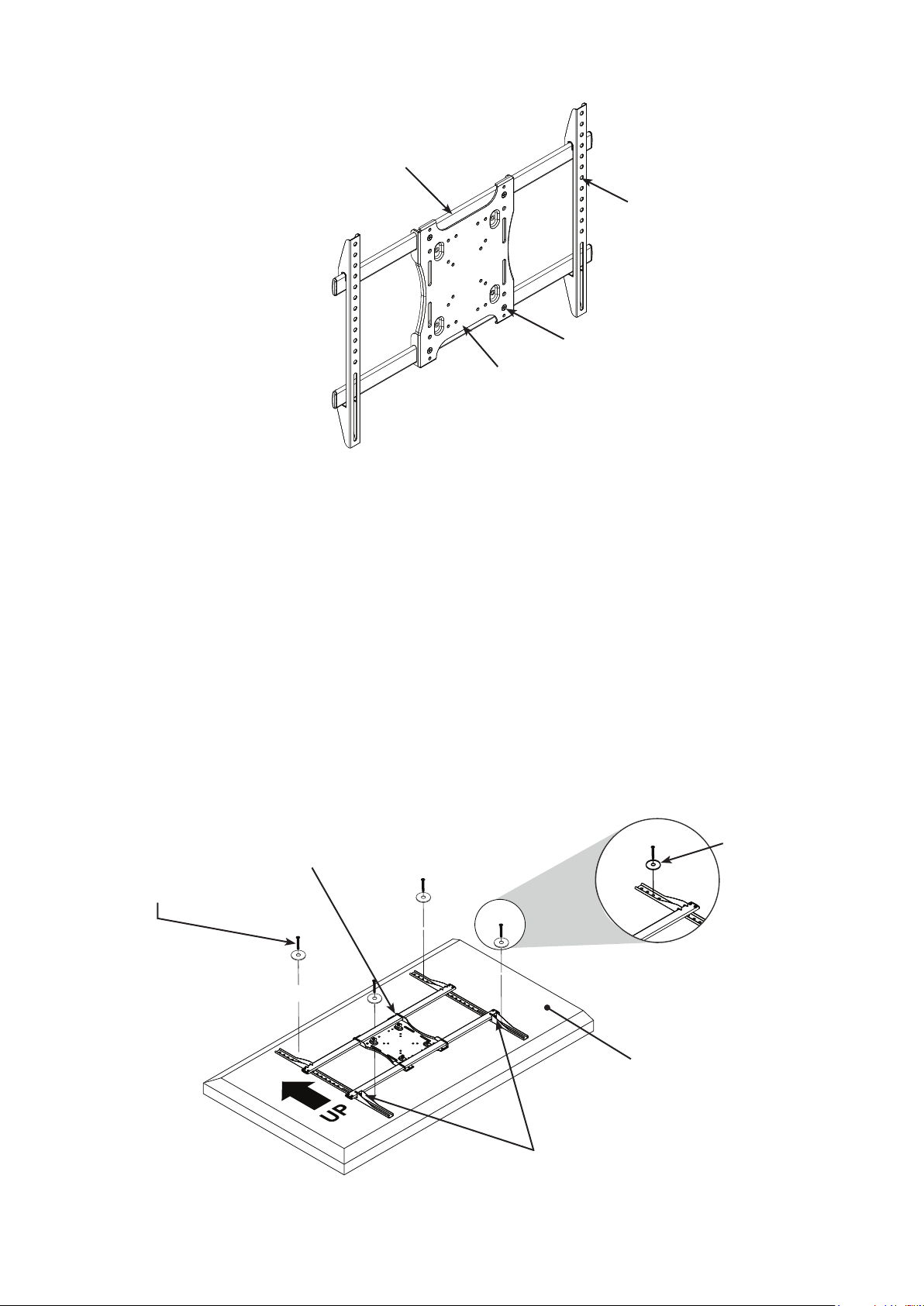

Assemble Display Bracket

1. Slide the xed TV brackets onto each end of the Horizontal Mounting Bars (Figure 2).

Horizontal Mounting Bars

Fixed TV Bracket

Bolts (pre-installed)

Adapter
Plate

Figure 2

Mount Display Bracket to Display Panel

1. Place the assembled Display Bracket on the back of the display with one Adapter Bracket aligned with a set of vertical

mounting holes (Figure 3).

2. Slide the other Adapter Bracket in or out until it aligns with the second set of vertical mounting holes.

NOTE: The Adapter Plate should be horizontally centered on the back of the at panel display.

NOTE: There are eight positions for exibility. Move the Adapter Brackets to desired location. Adapter Brackets can be

ipped around (if required).

3. Attach the Adapter Brackets using four mounting bolts (D - H) and four washers (L or M).

NOTE: Bolt size will depend on thread pattern and hole depth of the at panel being installed.

4. Once aligned, tighten all screws down with a Phillips Head Screw Driver.

Display Bracket Assembly

Bolts (D – H)

(size depends on display)

(L or M)

Figure 3

5

Display Back

Lock screw to bottom of arms.

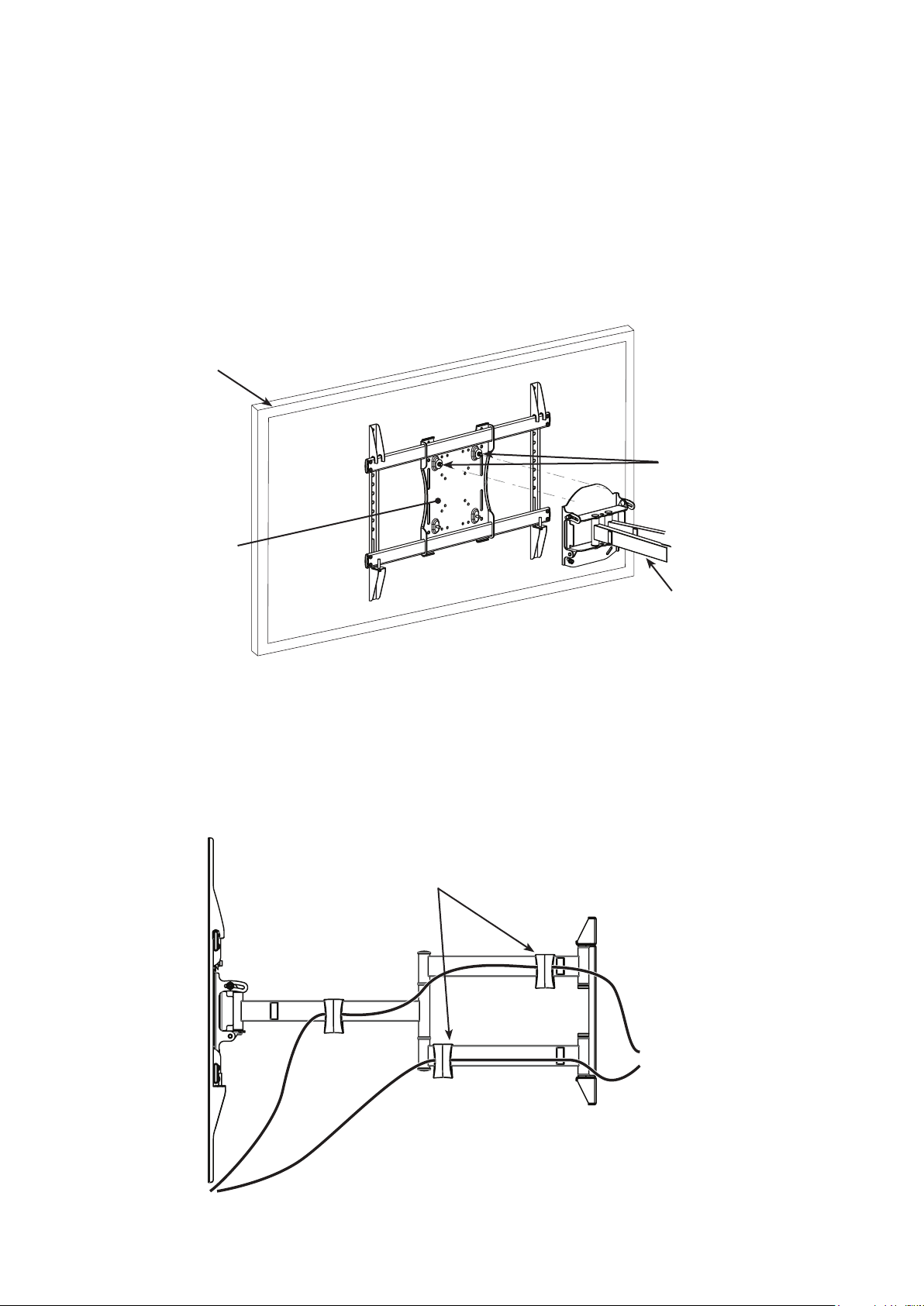

Attach Screen to Arm Assembly

1. Remove pre-installed hex nuts and nylon washers from bottom bolts on adapter plate using the provided socket wrench

(N).

2. Lift the display and hook the two pre-installed bolts in grooves on top of the Mounting Head (Figure 4).

3. Insert bottom two bolts (where hex nuts were previously installed) in bottom two holes of the Mounting Head.

4. Re-install hex nuts and nylon washers securing mount head to arms.

ATTENTION: This procedure requires two persons. Ensure that the arm is set to its maximum negative tilt prior to

attaching the display.

Display Panel

Pre-installed Bolts

Adapter Plate

Mount Head

Arm Assembly

Figure 4

Cable Cover Attachment

1. Route electrical and data cables along the Arm Assembly and secure in place using the provided Cable Covers (Figure 5).

NOTE: Ensure enough slack is provided to allow for vertical and horizontal movement before attaching the Cable

Covers.

Cable Covers

Figure 5

6

ADJUSTMENTS

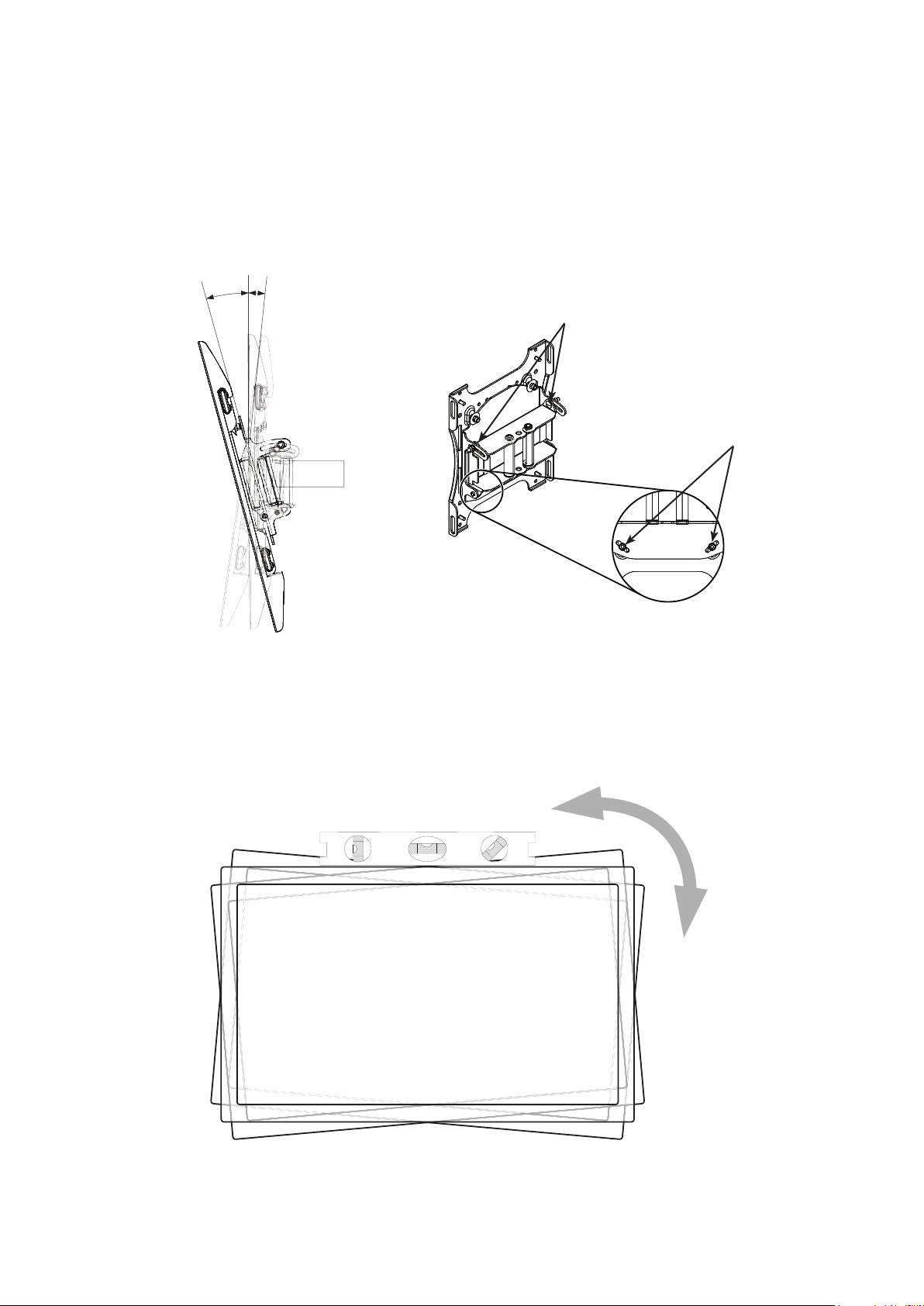

Tilt Adjustment

1. Using the provided socket wrench (N), loosen tilt lock bolts each side of mount head (only enough to allow controlled

adjustment) (Figure 6).

2. Adjust tilt.

3. Tighten locking Tilt Levers.

NOTE: Once the tilt levers are locked, the position of the levers can be adjusted without loosening or tightening the unit

by pulling the levers outward and then repositioning them to a vertical, less obtrusive position.

15° 5°

Tilt Lock Bolts(1 on each
side)

Hex Nuts

Figure 6

Horizontal Adjustment

1. To adjust the horizontal angle of the display, rst slightly loosen the bottom two hex nuts with provided socket wrench

(N) on back side of the Mount Head. Then rmly hold opposite corners of the display and gently turn it into the desired

position. When level, re-tighten hex nuts to lock in position (Figure 7).

+/- 5°

Figure 7

7

CONTACTING TECHNICAL SUPPORT

Phone: [phone]

Email: [email protected]

LIFETIME LIMITED WARRANTY

Strong™ Mounts have a Lifetime Limited Warranty. This warranty includes parts and labor repairs
on all components found to be defective in material or workmanship under normal conditions of

Lifetime

use. This warranty shall not apply to products which have been abused, modied or disassembled.

Products to be repaired under this warranty must be returned to Snap AV or a designated service

center with prior notication and an assigned return authorization (RA) number.

190703_1400
