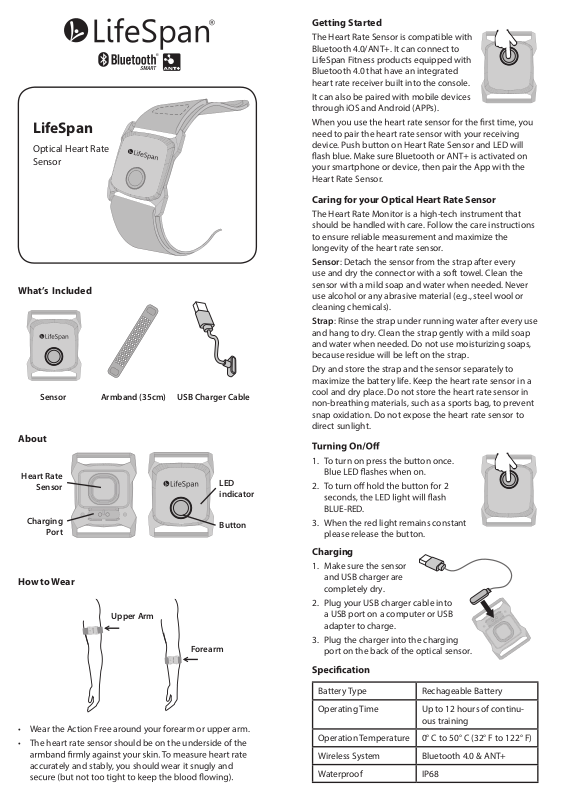

Strength Master Fitness Tech ACTF Users manual

LifeSpan

Optical Heart Rate
Sensor

What’s Included

Sensor

About

Heart Rate

Sensor

Charging

Port

How to Wear

SMART

Upper Arm

USB Charger CableArmband (35cm)

Forearm

LED
indicator

Button

Getting Started

The Heart Rate Sensor is compatible with
Bluetooth 4.0/ANT+. It can connect to
LifeSpan Fitness products equipped with
Bluetooth 4.0 that have an integrated
heart rate receiver built into the console.

It can also be paired with mobile devices
through iOS and Android (APPs).

need to pair the heart rate sensor with your receiving
device. Push button on Heart Rate Sensor and LED will

your smartphone or device, then pair the App with the
Heart Rate Sensor.

Caring for your Optical Heart Rate Sensor

The Heart Rate Monitor is a high-tech instrument that
should be handled with care. Follow the care instructions
to ensure reliable measurement and maximize the
longevity of the heart rate sensor.

Sensor: Detach the sensor from the strap after every
use and dry the connector with a soft towel. Clean the
sensor with a mild soap and water when needed. Never
use alcohol or any abrasive material (e.g., steel wool or
cleaning chemicals).

Strap: Rinse the strap under running water after every use
and hang to dry. Clean the strap gently with a mild soap
and water when needed. Do not use moisturizing soaps,
because residue will be left on the strap.

Dry and store the strap and the sensor separately to
maximize the battery life. Keep the heart rate sensor in a
cool and dry place. Do not store the heart rate sensor in
non-breathing materials, such as a sports bag, to prevent
snap oxidation. Do not expose the heart rate sensor to
direct sunlight.

1. To turn on press the button once.

2.

BLUE-RED.

3. When the red light remains constant
please release the button.

2

Charging

1. Make sure the sensor
and USB charger are
completely dry.

2. Plug your USB charger cable into
a USB port on a computer or USB
adapter to charge.

3. Plug the charger into the charging
port on the back of the optical sensor.

• Wear the Action Free around your forearm or upper arm.

• The heart rate sensor should be on the underside of the

accurately and stably, you should wear it snugly and

Battery Type Rechageable Battery

Operating Time Up to 12 hours of continu-

ous training

Operation Temperature 0° C to 50° C (32° F to 122° F)

Wireless System Bluetooth 4.0 & ANT+

Waterproof IP68

Warranty

The Heart Rate Sensor has a one-year warranty from the date
you purchase it. LifeSpan will replace the Heart Rate Sensor if it
does not work and meets the following criteria.

• Limited warranty valid in North America only.

• The warranty does not cover damage due to misuse, abuse,
accidents or non-compliance with the care and maintenance
section.

• The warranty does not cover any damage, losses, costs or
expenses, directly or indirectly related to the product.

• Items purchased second-hand are not covered with this
warranty, unless otherwise stipulated by local law.

Should you need to process a warranty claim, make sure you
retain your purchase receipt to verify the date of purchase.

Warnings & Troubleshooting

Warning:

• Action-Free is not a medical device. It’s just a tracker to
detect your heart rate during exercise.

• If you have an allergic reaction or skin irritation while using
Action Free with wristband, please stop using it immediately
and consult a doctor.

• Do not disassemble Action Free, or attempt to repair it by
yourself.

Troubleshooting:

If Action Free cannot pair with your device or measure your
heart rate successfully, or the data is not stable, you may check:

• If your device does not support Bluetooth 4.0 or ANT

• If Bluetooth or ANT+ is not activated in your device.

• If the protection pad is still on optical sensor, please remove
it.

• If the stat is not well detected when the sensor is used in
very cold weather, please use it indoors, or wear a long
sleeve to cover the Action Free.

• If Action Free still cannot work properly, try to wear it on
another hadn’t or the position we suggest (wrist / forearm
upper arm).

+

Please log in to the LifeSpan website at www.LifeSpanFitness.
com/support, click on “Customer Service” and complete the
form to request assistance or call 877.654.3837 option 4 for
a Customer Service Agent. Please note that certain kinds

technician.

If you are outside of these areas, please contact your local
distributor.

Federal Communication Commission
Interference Statement

This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation.

This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the

the interference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

•
from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for
help.

FCC Caution: To assure continued compliance, any changes or

for compliance could void the user’s authority to operate this
equipment. (Example - use only shielded interface cables when
connecting to computer or peripheral devices).

FCC Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits
set forth for an uncontrolled environment. This equipment
should be installed and operated with a minimum distance of

0.5 centimeters between the radiator and your body.

This transmitter must not be located or operating in
conjunction with any other antenna or transmitter.

The antennas used for this transmitter must be installed to
provide a separation distance of at least 0.5 cm from all persons
and must not be located or operating in conjunction with any
other antenna or transmitter.

This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause
undesired operation.
