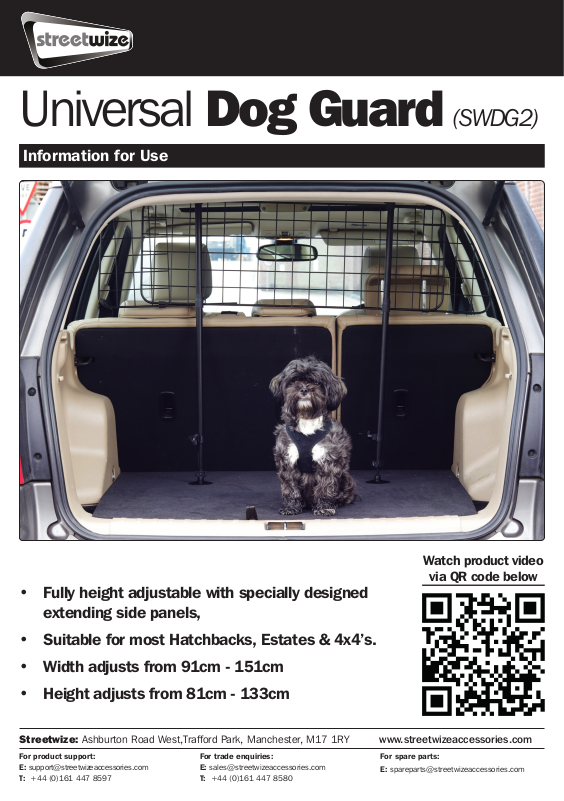

Streetwize SWDG2 User guide

Universal Dog Guard (SWDG2)

Information for Use

Watch product video

via QR code below

• Fully height adjustable with specially designed
extending side panels,

• Suitable for most Hatchbacks, Estates & 4x4’s.

• Width adjusts from 91cm - 151cm

• Height adjusts from 81cm - 133cm

Streetwize: Ashburton Road West,Trafford Park, Manchester, M17 1RY www.streetwizeaccessories.com

For product support:
E: [email protected]
T: [phone]

For trade enquiries:
E: [email protected]
T: [phone]

For spare parts:

E: [email protected]

1

2 2

3

3

4 4 4 4

5555

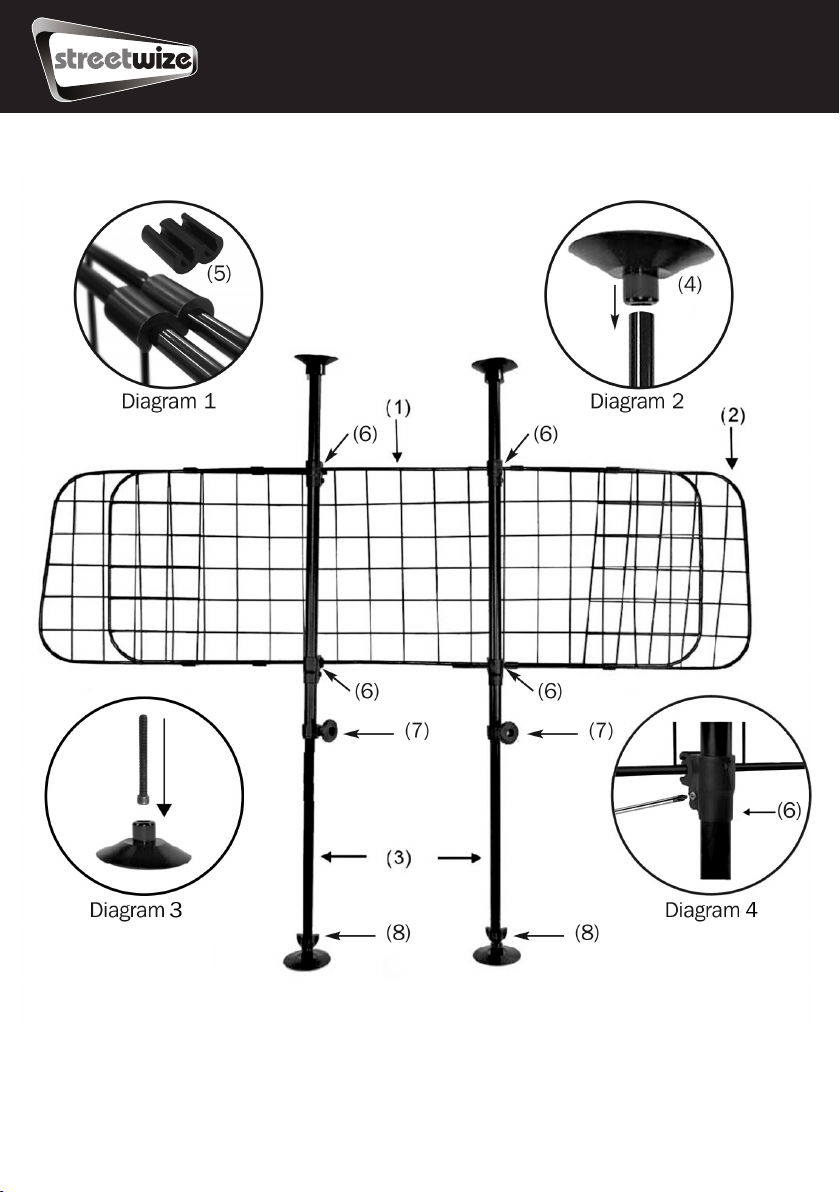

1. Arrange the wire mesh assembly (parts 1 and 2-(x2)) to the appropriate size to fit the width
of the vehicle and secure using the clips (5)-x4 supplied as in (Diagram 1 - opposite).

2. Add two of the end caps supplied (4)-x4 to the ends of the support bars (Diagram 2 ­opposite) and insert bolts (6) into the remaining two end caps (Diagram 3 - opposite)

3. Screw the bolts (6) with end caps attached into the bottom of support bars

4. When assembled, connect the support bars (3) to the wire meshassembly, using the 4
clips (6) on each support bar (Diagram 4 - opposite), and tighten using a phillips screw­driver (not supplied).

5. Adjust the height of the support bars to the approximate height of the vehicle floor and
roof and tighten adjustable screw (7) to secure.

6. Place in the vehicle as shown in the image on the front of these instructions, adjust the
extending screws (8) to tighten the support bars securely to the roof & floor of the vehicle.

7. If using dog guard for a prolonged period, ensure to regularly check all fittings and
tighten as necessary.
