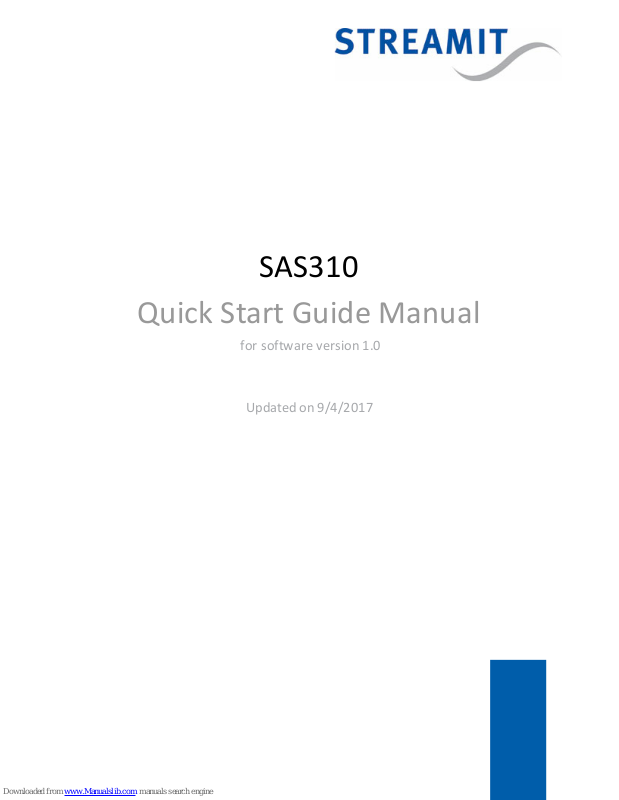

SAS310
Quick Start Guide Manual
for software version 1.0
Updated on 9/4/201 7
Contents
1. I nstallation
................................................................................................................................................. 41.1 Included materials
................................................................................................................................................. 41.2 Requirements
................................................................................................................................................. 41.3 Connecting the SAS310 to the audio system
................................................................................................................................................. 51.4 Connecting the SAS310 to the power outlet
................................................................................................................................................. 51.5 Connecting the SAS310 to the network
2. The configuration interface
................................................................................................................................................. 62.1 Username and password of the configuration interface
3. Configuration
................................................................................................................................................. 73.1 For Kerkdienstgemist
................................................................................................................................................. 73.2 As streaming server
................................................................................................................................................. 83.3 For point-to-(multi)point streaming
4. Device register
4
6
7
9
5. Streamit support
10
SAS310 2
EU Declaration of Conformity
This product carries the CE-Mark in accordance with the related European Directives. CE marking is the
FCC Compliance Statement
NOTE: This device complies with Part 15 of the FCC limits for Class B digital devices FOR HOME OR
OFFICE USE (“home or office” interference requirements are more stringent than “outdoor” requirements). Operation
of this device is subject to the following conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.
The Streamit internet radio device does not contain any user-serviceable parts. Repairs should be made only by an
authorized Streamit service center. Unauthorized repairs or modifications could result in permanent damage to the
equipment, and void your warranty and your authority to operate the device under Part 15 regulations.
responsibility of Streamit B.V. The Netherlands.
This is a class A product. In a domestic environment this product may cause radio interference in which case
the user may be required to take adequate measures.
Disclaimer
This manual has been validated and reviewed for accuracy. The instructions and descriptions it contains are
accurate for the Streamit internet radio devices at the time of this manual’s production. However, later Streamit
internet radio devices and manuals are subject to change without notice. Streamit assumes no liability for
damages incurred directly or indirectly from errors, omissions or discrepancies between the internet radio and the
manual.
Understanding of Instructions
WARNING: These are instructions which can cause harm to people or damage to the device if not followed
properly. It is important to read and follow these instructions carefully.
IMPORTANT: These instructions are important in order to understand the correct behavior of the device.
Notices about trademarks
·
The Lisa family of devices is a registered trademark of Streamit
·
Streamit is a registered trademark
·
All other trade names that are used in this Quick Start Guide are owned by their respective owners
SAS310 3
1
Installation
1.1 Included materials
Please check if the following parts are in the box when you receive it. If one or more parts are missing or
damaged, please contact your Streamit reseller or sales employee.
·
SAS310
·
Power adapter
·
Behringer UCA222 USB sound capture device (see image below)
·
Ethernet cable
1.2 Requirements
For audio streams via the internet, you need the following in addition to the SAS310:
·
An internet connection
·
A streaming server: This can be the SAS310 itself, or the streaming server of a provider such as
Kerkdienstgemist or Streampartner.
For questions, please contact Streamit support.
1.3 Connecting the SAS310 to the audio system
Connect the Behringer UCA222 to one of the USB ports on the back of the SAS310. Connect the signal
from the audio installation to the input ports on the Behringer UCA222.
SAS310 4
For reliable operation of the SAS310, the audio installation has to be connected via a galvanic isolator.
This is available from Streamit.
1.4 Connecting the SAS310 to the power outlet
Plug the power cord into the power outlet and plug the other end of the cord into the SAS310.
Take the following into account when connecting the SAS310 to the power outlet:
·
Never use wet hands to plug the power adapter in the mains and never remove the power adapter from
the mains with wet hands.
·
Do not cut or damage the cord of the power adapter. Do not place heavy objects on the cord. This can
cause short-circuit, resulting in electrical shocks or even fire.
·
Pulling the cord can damage the wire and/or isolation causing electrical shocks or fire.
·
Using power adapters other than the one recommended for your SAS310, can result in overheating and
damage your device. This can cause fire, electrical shocks and other hazards. Only use the supplied
power adapter.
·
Do not use, place, or store the SAS310 in places that are subject to intense sun light or high
temperatures. This may discolor and/or deform the SAS310 or its parts. Make sure there is sufficient
ventilation around the power adapter and around the SAS310.
·
Exposing the SAS310 to situations with rapid changing temperatures can result in condensation (a
small amount of water) on the inner and outer surface of your device. To ensure a long lifetime of your
SAS310, this should be prevented. In case of such a scenario, wait until you device is 'dry' before you
use it again
1.5 Connecting the SAS310 to the network
Connect the included ethernet cable to the LAN1 connection of the SAS310. Connect the other end of
the Ethernet cable to the Ethernet connection of the local network, or the ADSL router.
Only the network connection LAN1 is active, make sure that you do not use connection LAN2.
The green LED next to the LAN1 connector should light up continuously when the connection is made.
The yellow LED should start to flicker intermittently. If this is not the case, please check The LEDs of the
network connection do not light up for possible causes and solutions. to read what could be the cause.
SAS310 5
2
Username
streamit
Password
lukas
The configuration interface
The SAS310 has a configuration interface that consists of a number of web pages to setup e.g. the
stream and recording settings. The configuration interface is accessible by navigating in a browser to the
IP address of the SAS310: http://<SAS310 IP address>. You can find this IP address in the device
register http://register.streamit.eu/sas. You can click on the IP address directly, it is a link to the web
interface of the device (see also SAS310 register).
If you have problems accessing the web interface of the SAS310, see the corresponding section in the
user manual which is available on the device itself, or on the Streamit website under 'Support'.
2.1 Username and password of the configuration interface
When you access the configuration interface, you will be asked for a user name and password (except
for the Status page). Enter the following credentials:
SAS310 6
3
Setting
Value
Streaming mode
External icecast-2
External stream server
streams.kerkdienstgemist.nl
Mount point
see the information provided by Kerkdienstgemist
Upstream port
80
Password
see the information provided by Kerkdienstgemist
Setting
Value
Streaming mode
Internal icecast-2
Mount point
Choose a mount point name
Configuration
In this section the major configuration options are outlined at high level. For more details and other
configuration options, see the user manual which is available on the device itself, or on the Streamit
website under 'Support'.
3.1 For Kerkdienstgemist
To configure the SAS310 for Kerkdienstgemist, navigate to the 'Stream' page and make the following
settings:
These are the minimal required settings to be configured. Other settings may optionally be changed,
according to the requirements of the situation.
3.2 As streaming server
To configure the SAS310 as Icecast streaming server, navigate to the 'Stream' page and make the
following settings:
These are the minimal required settings to be configured. Other settings may optionally be changed,
according to the requirements of the situation.
SAS310 7
Connect to the stream of the SAS310
To play the stream from the SAS310, the URL shown at 'Stream URL' on the Status page can be used.
Note that port-forwarding is required when the stream is played from outside the local network in which
the SAS310 is placed.
3.3 For point-to-(multi)point streaming
To configure the SAS310 for point-to-(multi)point, see the instructions for setting up the SAS310 as
streaming server. This is what is required on the side of the SAS310. If desired, the value for 'Maximum
clients (listeners)' on the Streams page can be adjusted.
SAS310 8
4
Field
Meaning
Type
This shows the device type. This should be SAS310
Name
Name as set on the 'Misc' page of the configuration interface (see
Device name)
Local IP address
The local IP address of the SAS310. You can click on this link to
navigate with a browser to the configuration interface of the SAS310
MAC address
Address of the physical Ethernet interface of the SAS310
Firmware version
The firmware version of the SAS310, compare this to the version of this
manual
Image version
Version number of the core of the SAS310
Last update
The moment at which the SAS310 sent this information, which is a few
seconds after switching on the SAS310
Device register
If you switch on the SAS310, it will report to the Streamit device register, http://register.streamit.eu/sas,
or the device register that is set by the Device register URL.
The Streamit SAS310 register appears as shown here and has the information described in the table
below.
By default the SAS310 register will show only devices that have registered in the past 24 hours. If the
SAS310 is on for a longer period of time, click on the button 'Show registered anytime' to see devices
that have registered any time in the past.
SAS310 9
5
Streamit support
With this Quick Start Guide we have tried to make the working of the SAS310 as clear as possible. We
can imagine, however, that you may come across a question or problem that is not covered. In that case
we recommend to check the user manual which is available on the device itself, or on the Streamit
website under 'Support': https://www.streamit.eu.
If this does not provide an answer, we would like to ask you to contact the person from whom you bought
or received the SAS310. Streamit can only provide support (through telephone or email) to customers
who bought the SAS310 directly from Streamit.
In addition we provide free support via the support page on our website http://support.streamit.eu/.
We appreciate your opinion on this product and your tips for improvement. So, feel free to send us an
email: support@streamit.eu.
SAS310 10
