1. Introduction
User manual - English
1 Introduction
Thank you for purchasing the Streamit Lukas Video. The Lukas Video is an audio-video receiver with which you can easily receive video and audio over the internet. It receives the video stream and converts it to an analog audio- and video signal (RCA/Composite or HDMI). The method used (H264/AAC) guarantees high quality audio and video with limited bandwidth use.
For more information about the products and solutions that Streamit offers, we would like to invite you to our website: http://www.streamit.eu.
We hope you enjoy using your Lukas Video.
Streamit B.V.
1.1 Included materials
Check if the following parts are in the box when recieving it. If one or more parts are missing or damaged, please contact your Streamit dealer or sales employee.
Lukas Video audio/video receiver
Power adapter
Composite/RCA audio-video cable
Ethernet cable
Remote control with batteries
User manual
With the help of this manual and the right equipment you are able to install and configure the Lukas Video yourself, provided that you have some PC and internet knowledge.
The operation of the Lukas Video is very easy, using only the remote control that is included.
1.2 Introduction
In this user manual the following symbols will be used for important instructions. Always pay attention to the instructions accompanied with these symbols.
Instructions which could cause injury to persons or damage to the device as result of not following the instructions when operating the device. These instructions do always need to be followed for safe operation.
Instruction which is required to understand the correct functioning of the device.
Version v1.2 November 2011 2 of 15
1.3 If you do not succeed
Trademark notes All trademarks and registered trademarks mentioned in this manual are the property of their respective owners. Copyright 2011 Streamit BV All rights reserved. No part of this publication may be transferred or copied in any form without express written permission. Disclaimer This manual has been carefully validated and reviewed. The instructions and descriptions were correct for the Maven at the time this manual was printed. Newer Streamit Lukas Video devices and manuals can be changed without notification. Streamit assumes no liability for damage which are directly or indirectly related to errors or omisions in this manual, or discrepancies between this product and the manual. See the Streamit website (http://www.streamit.eu) for the latest version of this manual.
EU Declaration of Conformity
This product carries the CE-mark in conformation with the relevant European guidelines. The responsibility for the allocation of this conformity lies with Streamit BV, Verdunplein 10, 5627 SZ Eindhoven, Netherlands.
This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
FCC Compliance Statement
NOTE: This device complies with Part 15 of the FCC limits for Class B digital devices FOR HOME OR OFFICE USE (home or office interference require­ments are more stringent than outdoor requirements). Operation of this device is subject to the following conditions: (1) This device may not cause harmful in­terference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The Streamit Internet Radio device does not contain any user-serviceable parts. Repairs should be made only by an authorized Streamit service center. Unau­thorized repairs or modifications could result in permanent damage to the equipment, and void your warranty and your authority to operate the device under Part 15 regulations.
1.3 If you do not succeed
We can imagine that the installation of the Lukas Video for persons with limited knowledge of computers and software can be difficult, but this is not necessary.
In case you cannot get it to work, we would like to ask you to contact the person from whom you bought or received the Lukas Video. Streamit only supports (through telephone or email) customers who bought the Lukas Video directly from Streamit. In addition we deliver free support via the support page on our website http://www.streamit.eu/support/.
2 Installation
To receive video streams via the internet with the Lukas Video, you need the following in addition to the Lukas Video:
A broadband internet connection (ADSL, cable, or glass fibre). The minimum required download speed depends on the video material on offer. In practice this varies between 300 kbps and 8 Mbit/s.
A TV set.
Version v1.2 November 2011 3 of 15
2.1 Preparing the Lukas Video
An ADSL connection often does not deliver the advertised speed. You can check the actual speed of your connection easily on Visualware:
http://myspeed.visualware.com/ and get an indication whether your connection is
sufficient for streaming video.
2.1 Preparing the Lukas Video

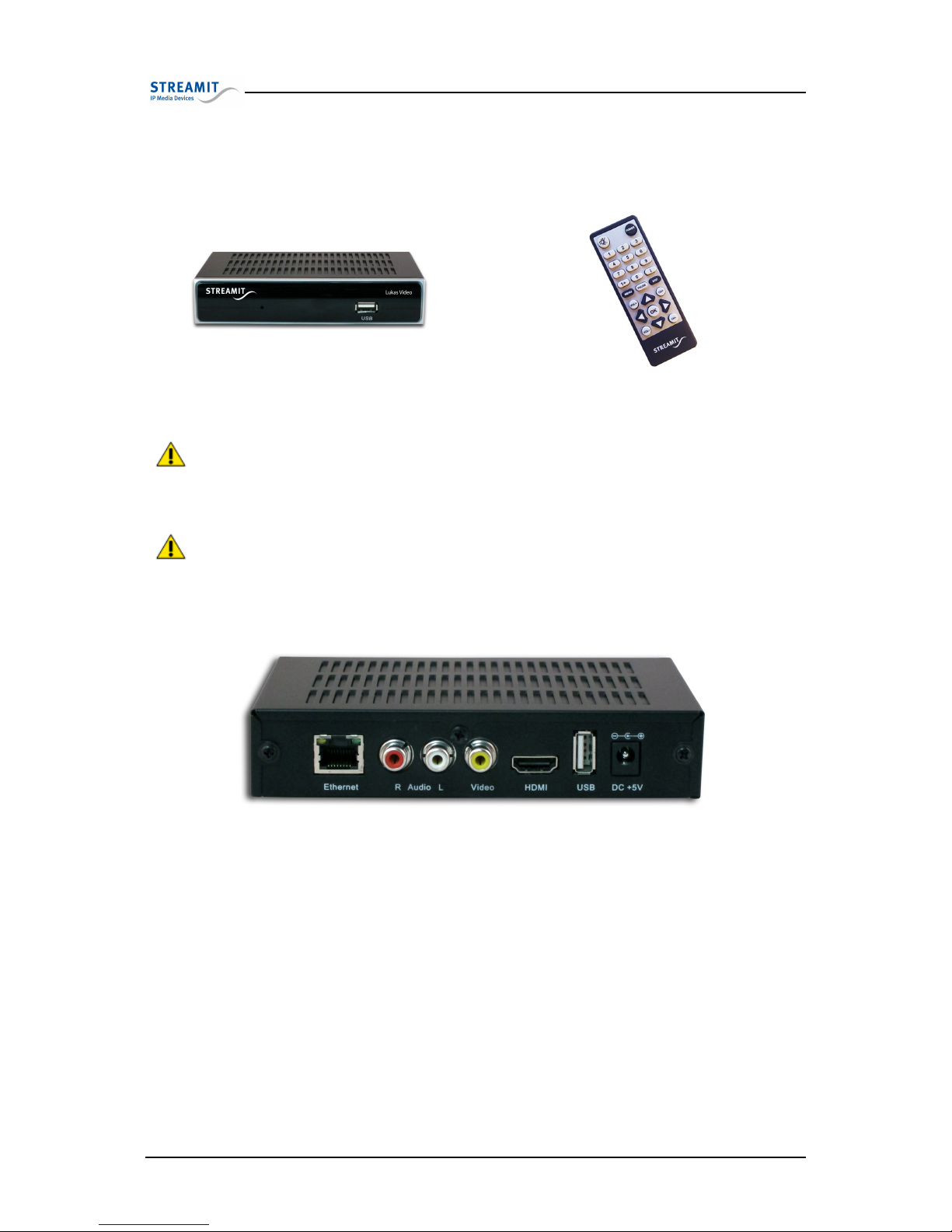

Fig. 1: Front view of the Lukas Video
Fig. 2: Remote control
It is very important to place the Lukas Video such that the front of the Lukas Video is well visible for the remote control.
Make sure that the Lukas Video can cool itself. E.g., do not place it in a closet without ventilation openings. Do not in any case cover the ventilation holes in the top of the Lukas Video.
Fig. 3: Back view of the Lukas Video
2.2 Connecting the Lukas Video to the TV set
To connect the Lukas Video to the TV set you can choose between an HDMI or a Composite/RCA audio-video connection. If your TV set has both options, HDMI is recommended for better image quality.
Version v1.2 November 2011 4 of 15
