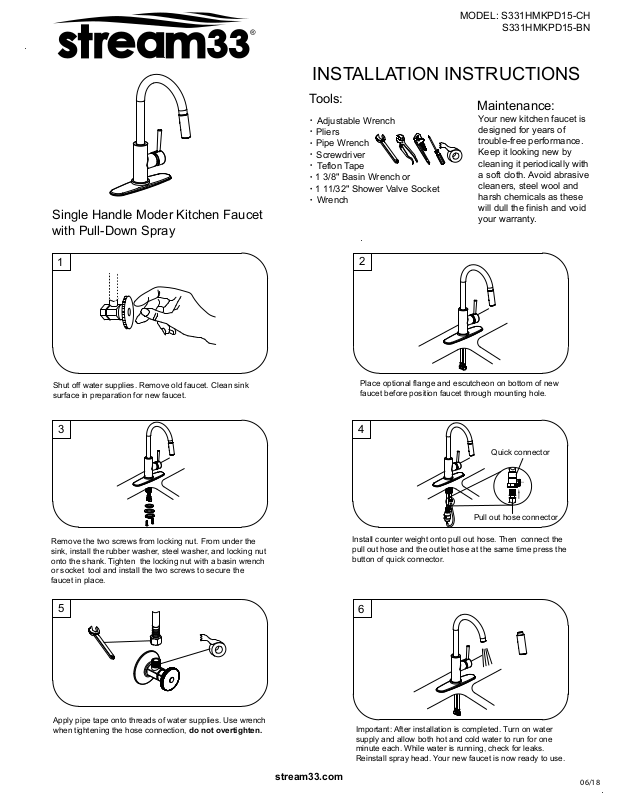

MODEL: S331HMKPD15-CH
S331HMKPD15-BN
INSTALLATION INSTRUCTIONS
Single Handle Moder Kitchen Faucet
with Pull-Down Spray
1
Shut off water supplies. Remove old faucet. Clean sink
surface in preparation for new faucet.
Tools:
Adjustable Wrench
Pliers
Pipe Wrench
Screwdriver
Teflon Tape
1 3/8" Basin Wrench or
1 11/32" Shower Valve Socket
Wrench
2
Place optional flange and escutcheon on bottom of new
faucet before position faucet through mounting hole.
Maintenance:
Your new kitchen faucet is
designed for years of
trouble-free performance.
Keep it looking new by
cleaning it periodically with
a soft cloth. Avoid abrasive
cleaners, steel wool and
harsh chemicals as these
will dull the finish and void
your warranty.
3 4
Remove the two screws from locking nut. From under the
sink, install the rubber washer, steel washer, and locking nut
onto the shank. Tighten the locking nut with a basin wrench
or socket tool and install the two screws to secure the
faucet in place.
5
Apply pipe tape onto threads of water supplies. Use wrench
when tightening the hose connection, do not overtighten.
Quick connector
Pull out hose connector
Install counter weight onto pull out hose. Then
pull out hose and the outlet hose at the same time press the
button of quick connector.
connect the
6
Important: After installation is completed. Turn on water
supply and allow both hot and cold water to run for one
minute each. While water is running, check for leaks.
Reinstall spray head. Your new faucet is now ready to use.
stream33.com
06/18
