StraubelStone STEELMAN & EXECUTIVE GAS BARBECUE CARTS, PEDESTALS & BUILT-INS, STEELMAN Series, EXECUTIVE Series Installation And Operation Instructions Manual

INSTALLATION AND OPERATION INSTRUCTIONS

STRAUBELSTONE STEELMAN &

EXECUTIVE GAS BARBECUE CARTS,

PEDESTALS & BUILT-INS

CONGRATULATIONS, on the purchase of your new STRAUBELSTONE GAS BARBECUE. These units are designed and intended for outdoor use only.

GENERAL INFORMATION

These instructions are intended as a general guide and do not supersede national or local codes in any way. Authorities having jurisdiction should be consulted before installation.

Installation and provision for combustion and ventilation air must conform to the National Fuel Gas Code, ANSI

Z223.1, or CAN/CGA-B149.1, Natural Gas Installation Code, or CAN/CGA-B149.2, Propane Installation Code.

This barbecue has been tested to, and complies with,

ANSI Z21.58 and CAN/CGA 1.6 ( 1995 ), STANDARDS FOR OUTDOOR COOKING GAS APPLIANCES.

!!! IMPORTANT !!!

Read these instructions carefully before installing or operating this gas barbecue. These instructions should be left with the homeowner for future reference.

!!! WARNING !!!

If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

Do not store combustible materials or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

A liquid propane tank, not connected for use with this gas barbecue, shall not be stored in the vicinity of this or any other appliance.

Installation and service must be performed by a: Qualified technician, service agency, or the gas supplier.

TABLE OF CONTENTS

GENERAL INFORMATION 1 MODELS 2 SHIPPING AND PACKING LIST 5 SAFETY INFORMATION 5 SPECIFICATIONS - Carts & Pedestals 6 INSTALLATION - Carts & Pedestals 6 SET-UP & ASSEMBLY - Carts & Pedestals 7 INSTALLATION - Built-ins 10 LIQUID PROPANE INFORMATION 12 NATURAL GAS INFORMATION 14 OPERATION 16 MAINTENANCE 18 PARTS LISTING 20 TROUBLE SHOOTING 27 WARRANTY 28

!!! WARNING !!!

Gas supply system must be installed in accordance with the U.S. National Fuel Gas Code.

This appliance and its individual shut off valve must be disconnected from the gas supply piping system during any system pressure test in excess of ½ PSI ( 3.5 KPA ).

Use a system manual shut off valve to shut off the gas supply to this gas appliance before continuing with installation procedures.

GAS-FIRED OUTDOOR COOKING APPLIANCE IN ACCORDANCE WITH THE AMERICAN NATIONAL STANDARDS INSTITUTE (ANSI) STANDARD FOR OUTDOOR COOKING GAS APPLIANCES Z21.581995 83EK

WHAT TO DO IF YOU SMELL GAS:

< Shut off gas supply to the appliance.

< Extinguish any open flames.

< Open barbecue lid.

< If odor continues, Immediately call your

gas supplier. Follow the gas supplier’s instructions.

< If you can not reach your gas supplier, call the fire department.

STRAUBELSTONE STEELMAN

STRAUBELSTONE EXECUTIVE

GAS BARBECUE MODELS

STRAUBELSTONE STEELMAN

PEDESTAL GAS BARBECUE

MODELS

BUILT-IN GAS BARBECUE

MODELS

STRAUBELSTONE GAS BARBECUE ACCESSORIES

UNDER SHELF & CONDIMENT HOLDER SIDE SHELF COVER

COOKING & SEARING GRATES ROTISSERIE

DOOR PANELS SIDE PANELS

SIDE GRILL DEEP FRYER & BASKET GRIDDLE

MESH SHELF CONDIMENT TRAY

SHIPPING AND PACKING LIST

Your STRAUBELSTONE GAS BARBECUE comes assembled, ready for the gas connection, with the exception of hood and/or shelf assembly, wheel and axle assembly, condiment holder, and handle on some models.

SHIPPING CARTON CONTAINS

1- StraubelStone Gas Barbecue 2- Gas Barbecue Cooking Grates 1- Gas Barbecue Warming Rack 1- Gas Barbecue Manual Pack with Warranty Card 2- Chassis Installation Brackets ( Built-ins only )

OPTIONAL ACCESSORIES: ( included on some models )

1- LP tank, regulator, and hose assembly

Liquid Propane models only 1- Extra Top Cooking Grate 1- Cutting Board 1- Gas Barbecue Cover 1- Rotisserie Kit 1- Searing Grate 1- Under Shelf 1- Condiment Holder 1- Side Shelf 2- Door Panels 2- Side Panels 1- Side Grill 1- Flame Cone 1- Griddle 1- Deep Fryer 1- Mesh Shelf 1- Condiment Tray

SAFETY INFORMATION

< THIS GAS APPLIANCE IS DESIGNED FOR

OUTDOOR USE ONLY. IT IS NOT INTENDED FOR

INSTALLATION IN ANY BUILDING, GARAGE, OR

ENCLOSED STRUCTURE. IT IS NOT INTENDED

FOR INSTALLATION IN OR ON RECREATIONAL

VEHICLES OR BOATS.

< WARNING

this manual, prior to operation.

< WARNING

appliances, and the products of combustion of such

fuels, contain chemicals known to the State of

California to cause cancer, birth defects, and/or other

reproductive harm. This warning is issued pursuant

to California Health & Safety Code Sec. 25249.6.

< Liquid Propane tanks must be stored outdoors, out of

reach of children and must not be stored in any

building, garage, or other enclosed structure.

< While this appliance is not in use, the gas must be

turned off at the gas supply.

< DO NOT

ANY GAS FITTING WHILE THIS APPLIANCE IS IN

OPERATION.

: Follow all gas leak check procedures in

: Fuels used in gas or oil – fired

ATTEMPT TO DISCONNECT THE GAS OR

PROPER CLEARANCES FROM COMBUSTIBLE CONSTRUCTION AND MATERIALS MUST BE MAINTAINED FROM ALL SIDES, TOP, AND BOTTOM OF THIS APPLIANCE ( 24" IN ANY DIRECTION ).

THIS APPLIANCE SHOULD NEVER BE PLACED NEAR ANY COMBUSTIBLE SURFACE.

THIS APPLIANCE SHOULD NEVER BE PLACED UNDER ANY COMBUSTIBLE CONSTRUCTION OR MATERIALS.

THIS APPLIANCE SHOULD NEVER BE PLACED CLOSER THAN TWENTY-FOUR ( 24 ) INCHES FROM ANY SIDE OR BACK, TO ANY COMBUSTIBLE CONSTRUCTION OR MATERIAL. ( FIGURE 1,2 & 3 )

< Inspect the hose and gas connections of this outdoor

cooking gas appliance prior to each use. Do not operate the unit if there is a gas leak present. If the hose shows wear or is cut, it must be replaced before barbecue operation.

< DO NOT

on or in the tank area beneath the barbecue.

< NEVER

operation.

< NEVER

< NEVER lean over an open barbecue, or place hands

or fingers on the front edge of the cooking basin.

< Should a grease fire occur, turn off all burners, and

stay away from the barbecue until the fire is out.

< NEVER

or natural gas in a liquid propane unit. GAS CONVERSIONS SHOULD ONLY BE DONE BY A QUALIFIED SERVICE TECHNICIAN.

< Use heat-resistant barbecue mitts or gloves when

operating this barbecue.

< DO NOT

gas barbecue.

< While this appliance is not in use, it should be

covered, to protect it from weather and other adverse elements.

< WARNING:

and rotisserie simultaneously.

< If rotisserie ( optional ) is to be used, the external

electrical source must be grounded in accordance with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1. KEEP ANY ELECTRICAL SUPPLY CORD AWAY FROM ANY HEATED SURFACES.

< Storage of this appliance indoors is permissible only if

the LP cylinder ( tank ) is disconnected and removed from the appliance. Never move unit with LP tank installed.

put a barbecue cover or anything flammable

leave the barbecue unattended while in

allow children to operate this barbecue.

use liquid propane gas in a natural gas unit,

use charcoal briquettes or lighter fluid in any

DO NOT operate the optional Side Grill

STRAUBELSTONE STEELMAN SERIES

GAS BARBECUE SPECIFICATIONS

NATURAL GAS

- RATED PRESSURE - 7.0” W.C.

MINIMUM GAS MAXIMUM GAS ORIFICE BTU/HR

PRESSURE PRESSURE SIZE INLET

7.0” W.C. 10.5” W.C. #52 30,000

With optional Side Grill #52 45,000

LIQUID PROPANE

- RATED PRESSURE – 11.0” W.C.

MINIMUM GAS MAXIMUM GAS ORIFICE BTU/HR

PRESSURE PRESSURE SIZE INLET

11.0” W.C. 13.0” W.C. #59 30,000

With optional Side Grill #59 45,000

STRAUBELSTONE EXECUTIVE SERIES

GAS BARBECUE SPECIFICATIONS

NATURAL GAS

MINIMUM GAS MAXIMUM GAS ORIFICE BTU/HR

PRESSURE PRESSURE SIZE INLET

7.0” W.C. 10.5” W.C. #54 33,000

LIQUID PROPANE

MINIMUM GAS MAXIMUM GAS ORIFICE BTU/HR

PRESSURE PRESSURE SIZE INLET

11.0” W.C. 13.0” W.C. #62 36,000

HIGH ALTITUDE DERATE In the U.S.A., input BTU shall be de-rated 4% ( 1 orifice size ) per 1000 ft. for altitudes above 2000 ft.. In Canada, input BTU shall be de-rated 10% ( 2 orifice sizes ) at altitudes from 2000 ft. to 4500 ft..

- RATED PRESSURE - 7.0” W.C.

- RATED PRESSURE – 11.0” W.C.

INSTALLATION

Installation will be much easier if two ( 2 ) or more people co-operate in locating and installing the unit. For Built-in units, adjustable installation brackets have been provided ( use of these brackets is not absolutely required for installation ). See " BUILT-IN INSTALLATION " on Page 10 for suggestions.

LOCATION

Your StraubelStone Gas Barbecue can be installed on any flat, stable surface away from any combustible materials or construction. See " CLEARANCES FOR COMBUSTIBLE CONSTRUCTION AND MATERIALS " on Page 5. ( SEE FIGURE 1, 2, and 3 )

24"

FIGURE 2

When selecting a location for the unit, DO NOT OBSTRUCT THE FLOW OF COMBUSTION AND VENTILATION AIR.

24"

FIGURE 1

When selecting a location for the Built-in unit, DO NOT OBSTRUCT THE FLOW OF COMBUSTION AND VENTILATION AIR.

24"

FIGURE 3

When selecting a location for the unit, DO NOT OBSTRUCT THE FLOW OF COMBUSTION AND VENTILATION AIR.

SET UP AND ASSEMBLY FOR CART AND

PEDESTAL UNITS

Your StraubelStone Gas Barbecue comes assembled, ready for the gas connection, with the exception of hood and/or shelf assembly, wheel and axle assembly, condiment holder, and handle on some models. If your unit comes without hood attached, it is packaged in a cardboard box within the unit. If your unit comes with a side shelf, it is packaged in a cardboard box within the shipping carton.

!!! IMPORTANT !!!

Barbecue units are shipped with the appropriate gas connections for each type of gas, i.e., Natural Gas or Liquid Propane. If you have purchased an inappropriate unit for your application, gas conversion kits are available. Call the StraubelStone Service Center. Gas conversions must be performed by a qualified installer.

1- Remove all contents from the shipping

container. 2- Check the contents of the shipping container

against the shipping and packing list. Report

any missing or damaged parts to your retailer. 3- Remove any and all protective wrapping from

the appliance.

TOOLS THAT YOU WILL NEED

2- Adjustable wrenches; at least one of which has

a range of 3/4" 1- 5/32" male hex driver or L-wrench 1- 7/16" open-end wrench ( optional ) 1- 9/16" open-end wrench ( optional ) 1- 3/4" open-end wrench ( optional )

!!! WARNING !!!

DO NOT attempt any assembly operation with the Liquid Propane tank installed. Remove LP tank from unit before attempting any assembly operation.

!!! WARNING !!!

For Natural Gas models, with Side Grill applications, both Barbecue and Side Grill must be converted to Natural Gas. Call the StraubelStone Customer Service Center for information on how to convert the Side Grill for Natural Gas applications.

FOR UNITS REQUIRING HANDLE ASSEMBLY

1- Remove handle assembly from carton.

NOTE: For units with Side Grill installed, the Side Grill must be removed to install handle. See the " STRAUBELSTONE STEELMAN GAS BARBECUE SIDE GRILLL " instruction manual for information on assembly.

2- Reaching through the cutting board mounting

hole, place the two ( 2 ) 5/16" x 2 1/2" hex mounting bolts, with lock washer and fender washer, through each of the handle mounting holes, located on the top right side of the cart chassis.

3- Using an adjustable wrench, or a 9/16" open-

end wrench, align and tighten each mounting bolt into the handle. Do not over tighten. ( SEE FIGURE 4 )

FIGURE 4

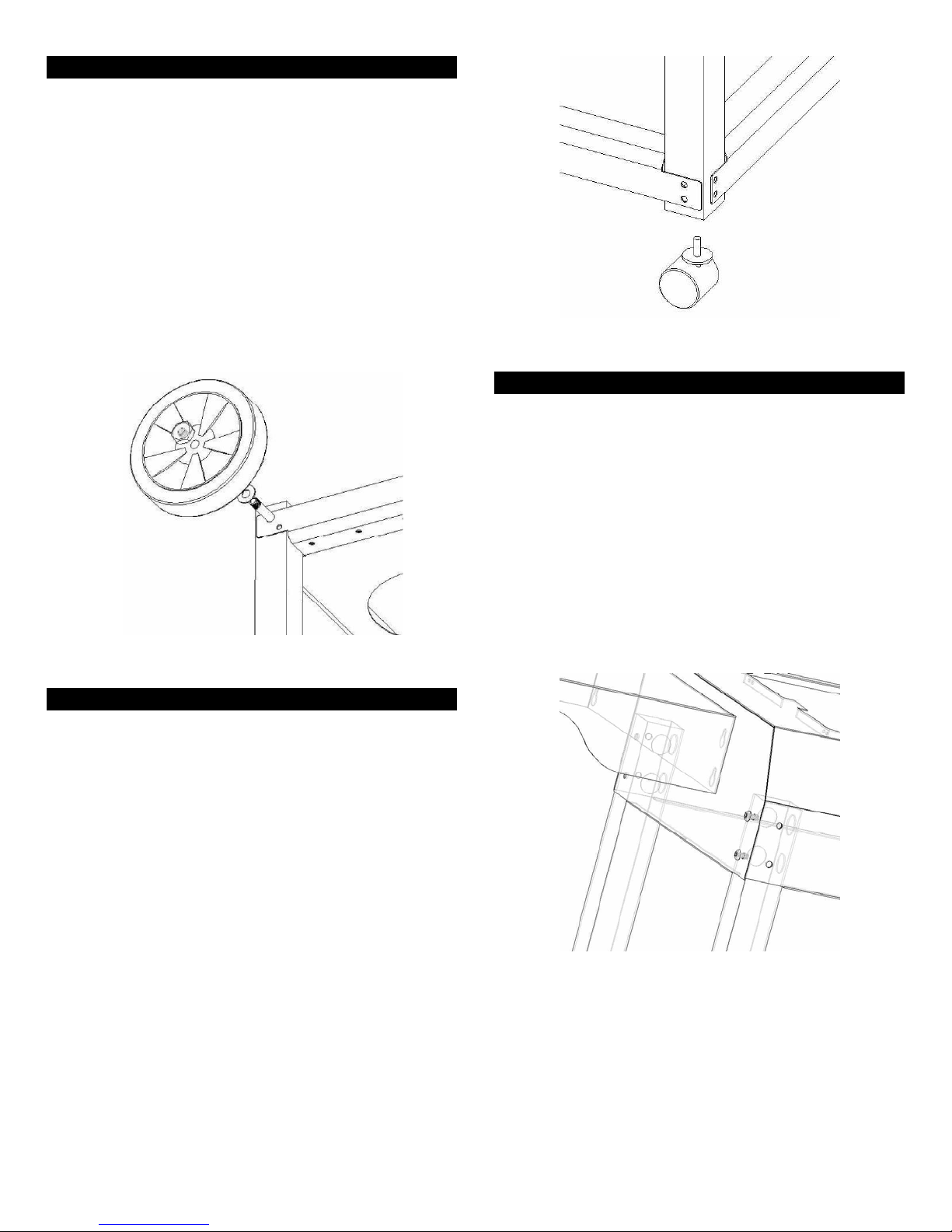

FOR UNITS REQUIRING WHEEL ASSEMBLY

1- Remove wheels from carton. 2- Using an adjustable wrench, or a 3/4" open-end

wrench, remove wheel nuts from each end of

axle. 3- Leave wheel spacers in place on axle. 4- Place one ( 1 ) wheel ( spoke side in ) over each

end of the axle. 5- Using an adjustable wrench, or a 3/4" open-end

wrench, tighten one ( 1 ) 1/2" wheel nut on each

end of the axle. Do not over tighten.

( SEE FIGURE 5 ) 6- Place one ( 1 ) plastic hub cap over each end of

the axle assembly, and lightly tap them in place

with the palm of your hand.

FIGURE 5

FOR UNITS REQUIRING CASTER ASSEMBLY

The following assembly may require two ( 2 ) people.

1- Remove the two ( 2 ) casters from carton. 2- While lifting the right side of cart chassis,

carefully align and tighten one ( 1 ) caster, into

the caster mounting bracket, located on the

bottom of each leg, on the bottom right side of

the cart chassis base frame. (SEE FIGURE 6 )

FIGURE 6

FOR UNITS REQUIRING SIDE SHELF ASSEMBLY

1- Remove the side shelf from carton, being careful

not to scratch the stainless steel shelf.

2- Using a 5/32" male hex driver, loosen, but do not

remove, the four ( 4 ) leg mounting screws, from the top left-hand side of the cart chassis.

3- Carefully align the " keyholes " in the shelf, with

and over the four ( 4 ) leg-mounting screws. Make sure the washers are not between the shelf and the cart chassis. Push the shelf down into position.

4- Re-tighten the four ( 4 ) leg-mounting screws.

( SEE FIGURE 7 )

5- Carefully remove the plastic protective wrap.

FIGURE 7

LEVELING

Once you have selected the location for your barbecue, adjust the adjuster nuts, located on the casters, at each of the two ( 2 ) bottom right side corners of the cart chassis base frame, for level adjustment. For triangular pedestal units, all four casters are adjustable. Use an adjustable wrench, a 9/16" open-end wrench, or the caster adjuster wheel, to make any adjustments.

FOR UNITS REQUIRING HOOD ASSEMBLY

1- Remove hood from cardboard box within unit. 2- Remove Cotter clips from hinge pins at rear of

barbecue basin. 3- Remove hinge pins from hinges. 4- Place hood in position. 5- Replace hinge pins through hinge pinholes in

hood and hinges. 6- Replace Cotter clips in hinge pins.

FOR UNITS REQUIRING ANY OTHER ACCESSORY

ASSEMBLY

See the instructions that come with the accessory kit.

LIQUID PROPANE TANK HOOK ASSEMBLY

FOR RECTANGULAR CART UNITS:

Once all assemblies have been completed, and the Liquid Propane tank has been filled, place the LP tank into the Liquid Propane tank mount, located on the bottom left side of the cart chassis base frame. Attach the LP tank hook ( located on the bottom left side of the cart chassis, above the LP tank ) through the tank handle, and tighten tank hook nut(s). Tank hook is adjustable.

LIQUID PROPANE TANK HOOK & VALVE SHIELD

ASSEMBLY

FOR TRIANGULAR PEDESTAL UNITS:

1- Remove the Liquid Propane Tank Hook from the

shipping container. 2- Tighten the Liquid Propane Tank Hook into the

rear leg of the barbecue as shown in Figure 8,

but do not tighten the tank hook nut(s). 3- Remove the Liquid Propane Valve Shield from

the shipping container. 4- Using a 5/32" male hex driver, two ( 2 ) 5/32"

button head screws, and two ( 2 ) washers,

mount the Liquid Propane Valve Shield to the

rear leg of the barbecue, as shown in Figure 8.

The 90 degree bend is mounted in the " down "

direction.

FIGURE 8

5- Once all assemblies have been completed, and

the Liquid Propane tank has been filled, place the LP tank into the Liquid Propane tank mount, located beneath the barbecue basin.

6- Attach the LP tank hook, through the tank

handle, and tighten tank hook nut(s). Tank hook is adjustable. ( SEE FIGURE 9 )

FIGURE 9

FOR LIQUID PROPANE GAS APPLICATIONS - GO TO THE LIQUID PROPANE GAS SECTION, ON PAGE 12, OF THIS MANUAL.

FOR NATURAL GAS APPLICATIONS - GO TO THE NATURAL GAS SECTION, ON PAGE 14, OF THIS MANUAL.

BUILT-IN INSTALLATION

Before attempting any Built-in installation, read the sections "CLEARANCES FOR COMBUSTIBLE CONSTRUCTION AND MATERIALS " on Page 5, and preview the gas application section ( either Liquid Propane or Natural Gas ), appropriate for your installation method. ( SEE FIGURE 1, PAGE 6 )

As StraubelStone can not anticipate any one particular Built-in installation method, adjustable installation brackets have been provided ( use of these brackets is not absolutely required for installation ). ( SEE FIGURE 10 )

FIGURE 10

LOCATION

StraubelStone Built-in Barbecues are designed and intended for outdoor use only. Enclosures should be constructed of masonry, and/or other noncombustible materials. See " CLEARANCES FOR COMBUSTIBLE CONSTRUCTION AND MATERIALS " on page 5, and FIGURE 1, PAGE 6.

!!! IMPORTANT !!!

1- Remove all contents from the shipping

container. 2- Check the contents of the shipping container

against the shipping and packing list. Report

any missing or damaged parts to your retailer. 3- Remove any and all protective wrapping from

the appliance.

!!! WARNING !!!

For Liquid Propane models, with Side Grill applications, both Barbecue and Side Grill must be converted to Liquid Propane. Call the StraubelStone Customer Service Center for information on how to convert the Side Grill for Liquid Propane applications.

MINIMUM CUTOUT DIMENSIONS:

24" Built-in Barbecues

Width - 27 1/4" Depth - allowing 3" for control panel venting - 18" Height - optional - not to exceed - 7 1/2"

Venting below control panel lower edge - 2"

36" Built-in Barbecues

Width - 39 1/4" Depth - allowing 3" for control panel venting - 18" Height - optional - not to exceed - 7 1/2"

Venting below control panel lower edge - 2"

12" Built-in Barbecues

Width - 14 1/4" Depth - allowing 3" for control panel venting - 18" Height - optional - not to exceed - 7 1/2"

Venting below control panel lower edge - 2"

MINIMUM CUTOUT DIMENSIONS: ( with brackets )

24" Built-in Barbecues

Width - 27 5/8" Depth - allowing 2" for control panel venting - 19" Height - optional - not to exceed - 7 1/2"

Venting below control panel lower edge - 2"

36" Built-in Barbecues

Width - 39 5/8" Depth - allowing 2" for control panel venting - 19" Height - optional - not to exceed - 7 1/2"

Venting below control panel lower edge - 2"

12" Built-in Barbecues

Width - 14 5/8" Depth - allowing 2" for control panel venting - 19" Height - optional - not to exceed - 7 1/2"

Venting below control panel lower edge - 2"

( without brackets )

!!! WARNING !!!

DO NOT attempt any assembly operation with the Liquid Propane tank installed. Remove LP tank from unit before attempting any assembly operation.

!!! IMPORTANT !!!

For Liquid Propane applications, the barbecue enclosure must have ten ( 10 ) square inches of venting, on any two ( 2 ) opposing sides of the enclosure, at the height of the LP tank valve; twenty ( 20 ) square inches total.

!!! WARNING !!!

When finishing masonry, or non-flammable counter top construction, DO NOT grout above the lower edge of the barbecue rim; venting holes in the basin rim must be left unobstructed, so as to permit the flow of combustion and ventilation air.

!!! IMPORTANT !!!

Be sure to allow for access to the grease cup. The grease cup is located on glide rails, at the bottom center, beneath the barbecue basin.

!!! WARNING !!!

Barbecue units should NEVER be placed in a fully enclosed patio area. When installed under a patio roof, the barbecue should be covered by a chimney, or nonflammable exhaust hood, with an efficient exhaust fan.

STRAUBELSTONE STEELMAN BUILT-IN

SERIES GAS BARBECUE

SPECIFICATIONS

NATURAL GAS

MINIMUM GAS MAXIMUM GAS ORIFICE BTU/HR

PRESSURE PRESSURE SIZE INLET

7.0” W.C. 10.5” W.C. #52 30,000

With optional Side Grill #52 45,000

LIQUID PROPANE

MINIMUM GAS MAXIMUM GAS ORIFICE BTU/HR

PRESSURE PRESSURE SIZE INLET

11.0” W.C. 13.0” W.C. #59 30,000

With optional Side Grill #59 45,000

- RATED PRESSURE - 7.0” W.C.

- RATED PRESSURE – 11.0” W.C.

STRAUBELSTONE EXECUTIVE BUILT IN

SERIES GAS BARBECUE

SPECIFICATIONS

NATURAL GAS - RATED PRESSURE - 7.0” W.C.

MINIMUM GAS MAXIMUM GAS ORIFICE BTU/HR

PRESSURE PRESSURE SIZE INLET

7.0” W.C. 10.5” W.C. #54 33,000

LIQUID PROPANE

MINIMUM GAS MAXIMUM GAS ORIFICE BTU/HR

PRESSURE PRESSURE SIZE INLET

11.0” W.C. 13.0” W.C. #62 36,000

FOR LIQUID PROPANE GAS APPLICATIONS - GO TO THE LIQUID PROPANE GAS SECTION, ON PAGE 12, OF THIS MANUAL.

FOR NATURAL GAS APPLICATIONS - GO TO THE NATURAL GAS SECTION, ON PAGE 14, OF THIS MANUAL.

- RATED PRESSURE – 11.0” W.C.

LIQUID PROPANE TANK INFORMATION

Liquid Propane units are designed for, and can only be used, with a standard twenty pound ( 20 LB ) LP gas cylinder ( tank ). DO NOT LP cylinder ( tank ) exceeding this capacity. The LP cylinder ( tank ) used with this appliance must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S. Department of Transportation ( DOT ) or the National Standards of Canada, CAN/CSA-B339, Cylinders,

Spheres, and Tubes for the Transportation of Dangerous Goods.

The LP cylinder ( tank ) used with this appliance must also be equipped with:

1- A collar to protect the cylinder valve. 2- A shutoff valve terminating an LP gas cylinder

valve outlet QCV-TYPE 1 as specified in the

American National Standards for Compressed

Gas Cylinder Valve Outlet and Inlet

Connections, ANSI Z21.58. 3- A safety relief valve having direct

communication with the vapor space of the

cylinder. 4- An arrangement for vapor withdrawal. 5- A bottom rim with holes for securing tank

support assembly.

Liquid Propane gas is safe to use when properly handled. Careless handling of the LP gas cylinder could result in a fire and/or an explosion. Therefore:

1- Keep the ventilation opening(s) of the LP

cylinder enclosure free and clear from debris. 2- Keep the LP cylinder upright and secure in its

mounting within the cylinder enclosure. 3- Avoid tipping the LP cylinder on its side when

connected to a regulator - this may cause

damage to the diaphragm in the regulator. 4- Handle LP tank valves with care. 5- Never

6- Close the gas shut-off valve on the LP gas

connect an unregulated LP gas cylinder

to this appliance.

cylinder after each use.

use this appliance with any

Raises while filling and stops when full

FIGURE 11

The Liquid Propane cylinder ( tank ) designed for use with this appliance is equipped with an OPD ( Overfilling Prevention Device ) Type 1 - LP TANK CONNECTOR ( SEE FIGURE 11 ). The OPD is a secondary device that prevents the overfilling of your LP gas tank. The Type - 1 LP TANK CONNECTOR permits connection to the tank without the use of tools and will not permit the flow of gas unless a proper connection is made.

!!! WARNING !!!

Never store an extra LP gas cylinder within or near the barbecue cart, pedestal, or enclosure. Failure to observe this condition may result in a fire or explosion.

TRANSPORTATION, STORAGE AND RE-FILL OF

LIQUID PROPANE GAS CYLINDERS

1- Transport only one ( 1 ) cylinder at time. 2- Keep the cylinder in an upright, secure position

with the valve turned off.

3- DO NOT

compartment of an automobile.

4- DO NOT leave cylinders in direct sunlight or in

high heat areas. Store in a cool, well-ventilated area.

5- Use the cylinder gas cap during transportation of

LP cylinder or whenever cylinder is not in use.

6- An LP cylinder may appear to be empty,

however, gas may still be present. Always take great care when transporting or storing LP cylinder tanks.

7- A dented or rusty LP cylinder may be hazardous

and should be checked by a qualified service technician.

Proper LP re-fill methods are standardized by weight or volume. Take time to insure that your Liquid Propane supplier fills the LP gas cylinder according to established procedures. Ask your supplier to read purging and filling instructions on the LP gas cylinder before attempting filling procedures. DO NOT operation is complete, ask your supplier to check for leaks and verify the relief valve is working properly.

Do not exchange the LP gas cylinder provided with your barbecue, unless the exchange LP gas cylinder is equipped with an OPD and QCV-TYPE 1 connection. Other types of LP gas cylinders will not connect with the QCC-1 hose and regulator furnished with this appliance.

The manufacturer of the Liquid Propane tank is responsible for the materials, workmanship, and performance of the LP tank. If the tank has a defect, malfunctions, or you have a question regarding the tank, please call the tank manufacturer's customer service center. If the tank manufacturer does not resolve any issue to your satisfaction, please call the StraubelStone Customer Service Center.

transport the cylinder in the passenger

OVERFILL! When re-fill

!!! IMPORTANT !!!

LIQUID PROPANE HOSE & REGULATOR

INFORMATION

Liquid Propane gas is highly flammable, is heavier than air, and when vaporized, collects in low areas. Always check for leaks to verify a safe condition.

WARNING:

DO NOT ATTEMPT TO ADJUST THE REGULATOR. The regulator supplied with this appliance has been pre-set to operate with Liquid Propane gas at a regulated pressure of an eleven inch water column ( 11" W.C. ) with a minimum tank pressure of an eleven inch water column ( 11" W.C. ). Use only the hose and regulator furnished with this appliance or a StraubelStone approved replacement. ( SEE FIGURE 12 ).

LIQUID PROPANE GAS CONNECTION

The hose connection comes pre-assembled to the valve/burner manifold from the factory, however, check the connection to insure that it is snug and has not loosened during shipping.

NOTE: Brass to brass connections do not require Teflon tape or pipe dope.

1- Remove protective plastic cap from LP tank

valve.

2- Align the TYPE 1 - LP TANK CONNECTOR with

the valve threads.

3- Turn the fitting clock-wise until snug. DO NOT

OVER TIGHTEN! ( SEE FIGURE 13 )

Figure 2

HOSE & REGULATOR

Hose & Regulator

FIGURE 12

The hose and regulator assembly furnished with this appliance contains a system protection device ( QCC-1 ) that:

1- WILL NOT

permit the flow of gas until a positive

connection has been established.

2- Has a thermal element that will stop the flow of

gas between 240 degrees and 300 degrees Fahrenheit.

3- Has a flow limiting device which, when activated,

will limit the flow of gas to ten ( 10 ) cubic feet per hour.

The QCC-1 protection device must be protected when disconnected from the LP gas cylinder. If the fitting is allowed to drag on the ground, nicks and scratches may result in a leak when reconnected to the tank. Retain and use the plastic protector cap provided.

TO INSURE TROUBLE FREE OPERATION:

1- Keep the regulator vent clean and dirt free. 2- Consult LP gas supplier if regulator does not

operate properly.

3- Keep the LP gas supply hose at least three ( 3 )

inches away from hot surfaces.

4- DO NOT

attempt to alter the hose and regulator

assembly.

Figure 3

LP TANK

Quick Connect Fitti

CONNECTION

FIGURE 13

4- Slowly turn on the LP tank gas supply by

rotating the tank valve in a counter-clockwise direction.

5- CHECK FOR LEAKS! Apply soapy water to

each connection and watch for bubbles. If bubbles are seen, turn off the LP gas supply valve, re-tighten the connections and CHECK AGAIN! DO NOT use a lighted match or other source of ignition to check for leaks. Repeat this procedure until you are sure that there are no leaks in the gas connections.

WHEN YOU ARE ASSURED THAT THERE ARE NO GAS LEAKS PRESENT - GO TO THE SECTION: " FINAL SET UP ", ON PAGE 15, OF THIS MANUAL.

NATURAL GAS APPLICATIONS

Natural Gas units are designed for, and should only be operated with Natural Gas. Never attempt to operate this appliance with gases other than the type specified.

Installation of the gas supply must be performed by a qualified technician, service agency, or the gas supplier.

Natural Gas units are designed for operation using standard household Natural Gas at a pressure of a seven inch water column ( 7" W.C. ). NOTE: In some areas, Natural Gas pressures as supplied by utility companies, do not achieve this rated pressure. A regulated Natural Gas kit may be purchased by calling the StraubelStone Customer Service Center.

This appliance comes assembled from the factory using a 3/8" NPT male flare fitting on the valve/burner manifold for gas connection. Some brass adapter fittings ( not included ) may be required depending on your gas supply system.

This appliance is shipped ready for gas connection with any one ( 1 ) of several methods: ( Your method may vary )

HARD PIPING TO UNIT WITHOUT GAS PROXIMITY

1- TURN OFF THE GAS SUPPLY SYSTEM

NOTE: All gas connections ( except for brass to brass ) require the following:

Clean pipe threads using either a wire brush or steel wool. Apply Teflon tape or pipe dope to the steel fittings before making any connection.

BE CAREFUL! Make sure all gas connections are snug, but do not over tighten!

2- Extend the gas supply system ( using 1/2” black

iron pipe ) from current house supply. This may be accomplished by “ teeing off ” or tapping into a convenient gas line connection; installing the necessary pipe for the distance required; and then installing a manual valve at exterior house wall. If pipe is to pass through a foundation or house wall, make sure to re-seal the area around the pipe with weather sealant.

3- From manual valve, extend piping to the

barbecue. NOTE: If pipe is to be placed in an underground trench, check with local codes for required depth and material construction.

4- Connect a 1/2” female x 3/8” male flare brass

fitting ( not included ) to the 1/2” steel pipe making sure to clean the pipe threads and use Teflon tape or pipe dope.

5- GO TO SECTION: " FLEX PIPING TO UNIT

WITH GAS PROXIMITY ", ITEM #4, of this manual.

FLEX PIPING TO UNIT WITH GAS PROXIMITY

1- TURN OFF THE GAS SUPPLY SYSTEM

NOTE: All gas connections ( except for brass to brass ) require the following:

Clean pipe threads using either a wire brush or steel wool. Apply Teflon tape or pipe dope to the steel fittings before making any connection.

BE CAREFUL! Make sure all gas connections are snug, but do not over tighten!

2- Remove the existing cap or gas jet assembly

from the gas stub.

3- Install a manual valve. Install a 3/8" male flare

brass fitting to the output side of the manual valve. Some brass adapter fittings ( not included ) may be required depending on your gas supply system. NOTE: Brass to brass connections do not require Teflon tape or pipe dope.

4- From the 3/8" male flare brass fitting, extend

your required length of 3/8"” flex piping with female flared ends ( not included ) to the barbecue valve/burner manifold.

5- Make sure the valve on the barbecue is turned

off. 6- Make sure the valve at the gas stub is turned off. 7- Turn on the main gas supply system. 8- CHECK FOR LEAKS! Apply soapy water to

each connection and watch for bubbles. If

bubbles are seen, turn off the main gas supply

system, retighten the connections and CHECK

AGAIN! DO NOT use a lighted match or other

source of ignition to check for leaks. Repeat this

procedure until you are sure that there are no

leaks in the gas connections. When you are

assured that no gas leaks are present: 9- Turn on the gas supply valve at the gas stub. 10- CHECK FOR LEAKS! Apply soapy water to

each connection and watch for bubbles. If

bubbles are seen, turn off the gas supply valve

at the wall of the house, retighten the

connections and CHECK AGAIN! DO NOT use

a lighted match or other source of ignition to

check for leaks. Repeat this procedure until you

are sure that there are no leaks in the gas

connections. 11- WHEN YOU ARE ASSURED THAT THERE

ARE NO GAS LEAKS PRESENT - GO TO THE

SECTION: " FINAL SET UP " ON PAGE 15,

OF THIS MANUAL.

NOTE: ON NEW OR RETRO-FIT CONSTRUCTION OF

GAS SYSTEM, AIR IN THE PIPING WILL

HAVE TO BE BLED BEFORE IGNITION CAN

TAKE PLACE.

QUICK DISCONNECT GAS SUPPLY HOSES

Quick Disconnect gas supply hose kits, for use with either natural gas or liquid propane are available through hardware retail stores. Once gas proximity has been established, these kits can be used in place of hard piping or flex lines. Quick disconnect kits can promote safety and climate flexibility in that, whenever the unit is not in use, it can be “ quickly disconnected “ from the gas supply and the barbecue, once the gas has been turned off. If you choose to use a quick disconnect gas supply hose kit, after you have established gas supply proximity, follow the instructions that come with the kit, then follow the safety instructions in the “ Installation Proximity “ sections of this manual.

FINAL SET UP

Final set up on your StraubelStone Gas Barbecue may vary depending on the model purchased.

BURNER COVER PAN - STEELMAN SERIES

Remove the protective wrapping from the burner cover pan and place it evenly over the burners, on the bottom step of the barbecue basin. The four ( 4 ) v-shaped bends should point upwards.

BURNER COVER PANS - EXECUTIVE SERIES

Remove the protective wrapping from the Burner Cover Pans and place them evenly over the burners, on the bottom step of the barbecue basin ( Pans may be placed in either position, left or right ). When Flame Cone is in use, the smaller burner cover pan should be removed. The v-shaped bends should point upwards.

FLAME CONE AND GRIDDLE - EXECUTIVE SERIES

The Flame Cone is an accessory that may be used to focus heat convection to a central area of the top grate, for boiling water or steaming vegetables in a pot, or for focusing heat convection to a central area of the optional griddle. Remove the protective wrapping from the Flame Cone. Remove the smaller Burner Cover Pan, and place Flame Cone on the bottom step of the grill, when in use. Griddle should be placed on the top step.

COOKING GRATES

Remove the protective wrapping from the cooking grates and place them on the top step of the barbecue basin. The support bars should face down.

SEARING GRATE(S)

Remove the protective wrapping from the searing grate(s) and place them on the second or center step of the barbecue basin.

WARMING RACK

The warming rack may be mounted on top of the cooking grates when the appliance is turned off and cooled to ambient temperature. DO NOT attempt to remove the warming rack when it is HOT

SIDE GRILL

For installation and operation of the Side Grill, see the instructions that come with the Side grill.

DEEP FRYER

For installation and operation of the Deep Fryer, see the instructions that come with the Deep Fryer.

ROTISSERIE KIT

For installation of the rotisserie kit, see the instructions that come with the kit.

WIRE MESH SHELF

Remove the protective wrapping from the shelf, and place it between the bottom two ( 2 ) struts of the cart frame.

CUTTING BOARD

Remove the protective wrapping from the Cutting Board, and place it, in the opening, on the right hand side of the top of the cart chassis.

CONDIMENT TRAY

1- Remove the protective wrapping from the

Condiment Tray. 2- Remove the Cutting Board from the cart chassis

opening. 3- Place Condiment Tray in the cart chassis

opening. 4- Cutting Board may be replaced over the

Condiment Tray, as desired.

LAVA ROCK AND CERAMIC BRIQUETTES

You may use lava rock and ceramic briquettes with the barbecue, however they are not necessary. If you choose to use either or both, spread them evenly, in a single layer, over the burner cover pan.

ONCE YOU HAVE COMPLETED " FINAL SET UP " OF YOUR STRAUBELSTONE GAS BARBECUE, GO TO THE OPERATION SECTION, ON PAGE 16 OF THIS MANUAL.

OPERATION

FOR YOUR SAFETY – READ BEFORE LIGHTING

!!! WARNING !!!

Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the barbecue and replace any part of the control system and any gas control that has been under water.

This appliance, depending on model, has an electronic ignition that uses, a Triple A battery ( AAA - 1.5v ), ( Battery should be checked periodically ), or on Side Grills, an electronic piezo igniter. Units can also be lit by long hearth match, hand fire starter, or book match clip extender ( included with unit ), via the FLAME VIEW or inserted between the grill grates. Follow these instructions exactly when lighting the barbecue. BEFORE LIGHTING, smell around the appliance area for gas. Be sure to smell next to the ground, as LP gas is heavier than air and will settle to the ground.

BATTERY CHECK

BATTERY COMPARTMENT IS LOCATED BENEATH THE ELECTRONIC IGNITER PUSH BUTTON, ON THE CONTROL PANEL. DEPRESS THE PUSH BUTTON AND ROTATE THE PUSH BUTTON COUNTER-CLOCKWISE TO EXPOSE THE BATTERY COMPARTMENT. WHEN REPLACING BATTERY, BE SURE TO ATTACH POSITIVE AND NEGATIVE TERMINALS APPROPRIATELY.

CHECK THE IGNITER BY PUSHING THE BUTTON. YOU SHOULD HEAR A " CLICKING SPARK " SOUND.

!!! WARNING !!!

All gas burning appliances produce smoke and carbon monoxide gas during operation. These fumes can be harmful if the appliance is used in any other than an open air, fully vented area.

HI IGNITE

LOW

LEFT BURNER

FLAME

OFF

VIEWER

P U S H

IGNITION

PRESS TO IGNITE

HI IGNITE

LOW

CENTER BURNER

FLAME

OFF

VIEWER

P U S H

HI IGNITE

LOW

RIGHT BURNER

FIGURE 14

IGNITION

FLAME VIEWER

HI IGNITE

LOW

OFF

P U S H

FLAME

OFF

VIEWER

HI IGNITE

P U S H

LOW

LEFT BURNER RIGHT BURNER

FIGURE 15

FLAME

OFF

VIEWER

P U S H

FLAME VIEWER

HI IGNITE

LOW

OFF

P U S H

PRESS TO IGNITE

BURNER

FIGURE 16

LIGHTING INSTRUCTIONS

1- OPEN BARBECUE GRILL HOOD.

!!! DANGER !!!

Failure to open hood while igniting the barbecue may cause flash - flame up or explosion. Never attempt to light the barbecue with the hood closed. If ignition does not take place, wait five ( 5 ) minutes for gas to dissipate.

2- For Liquid Propane units, make sure the LP gas

cylinder contains Liquid Propane. 3- Make sure all burner control knobs are in the

OFF position. Push each knob down and turn in

a clockwise direction until the knob stops.

WARNING: The burner control knobs must be in the OFF position before opening the LP gas cylinder valve. If the valve is opened with the burner control knobs in the ON position, the excess flow of gas will activate the QCC-1, limiting the flow of gas from the LP gas cylinder. IF THIS OCCURS, TURN OFF the LP gas cylinder valve and burner control knobs. Wait five ( 5 ) minutes for gas to dissipate, and then begin again.

4- For Liquid Propane units, open the LP gas

cylinder valve in a counter-clockwise direction

until it stops. DO NOT FORCE THE VALVE!

For Natural Gas units, make sure that you have

line valve(s) open, delivering gas to the

appliance.

WARNING

5- While pushing any burner control knob down,

6- Press the electronic igniter button, or on Side

: DO NOT LEAN OVER THE BARBECUE!

( SEE FIGURE 14, 15, or 16 ) and turning the

knob counter-clockwise to the HIGH position,

Grills, the piezo igniter button, ( you should hear

a clicking sound ). Burner should ignite.

LIGHTING INSTRUCTIONS continued

WARNING

control knob to the OFF position and wait five ( 5 ) minutes. A long hearth match, hand fire starter, or book match clip extender ( included with unit ), may also be inserted through the FLAME VIEW, or between the grill grates to achieve ignition. If, after repeated attempts the burner does not light, call the StraubelStone Customer Service Center or your installer.

NOTE

at the factory before shipping.

7- Once you have achieved ignition on the first

8- Once all burners are lit, close the lid and

: If the burner does not light, turn the burner

: All StraubelStone Gas Barbecues are test fired

burner, you may light the others with the same procedure. ( SEE FIGURE 14, 15, or 16 )

preheat the barbecue for five ( 5 ) minutes before cooking.

9- Once the barbecue has been preheated, adjust

the control knobs for proper cooking temperature ( SEE FIGURE 14, 15, or 16 ). DO NOT LEAVE THE BURNERS ON THE HIGHEST SETTING FOR AN EXTENDED PERIOD - THIS CONDITION MAY DAMAGE YOUR BARBECUE

WARNING: Should the burners go out during operation, TURN ALL GAS VALVES OFF! Open the lid and wait five ( 5 ) minutes before attempting to re-light the barbecue.

10- To shut off the barbecue after use, turn burner

control knobs clockwise to the OFF position. ( SEE FIGURE 14, 15, or 16 ) After the flame goes out, turn off the gas supply at either the LP gas cylinder or the Natural Gas line valve.

COOKING OPERATION

Your StraubelStone Gas Barbecue comes equipped with an easily removable hood for open air cooking. To remove hood before you begin any cooking operation:

1- Remove Cotter clips from hinge pins at rear of

barbecue basin. 2- Remove hinge pins from hinges. 3- Remove hood. Set aside 4- Replace hinge pins through hinge pinholes in

hood and hinges. 5- Replace Cotter clips in hinge pins.

To replace hood, reverse the foregoing procedure.

NEVER APPLIANCE IS IN OPERATION OR IS HOT!

NOTE: Cooking with the hood off or in upright position is not recommended during any windy condition. Cooking without the hood may also extend cooking time.

ATTEMPT THIS OPERATION WHILE THE

BURNER CONTROL SETTINGS

The highest control setting is normally too hot for direct cooking. Use the highest control setting as preheat, minimum five ( 5 ) minutes with the hood closed; for quick searing of meat, and at the end of each cooking cycle to burn off excess grease and food.

Medium settings should be used for cooking steaks, pork chops, grilled fowl parts, and burgers.

Lower settings should be used for roasts and rotisserie use, and for finish cooking after searing at higher setting.

Control settings may also vary from left to right, i.e., higher on one side and lower or OFF on the other.

GREASE DRIPPINGS

Your StraubelStone Gas Barbecue was designed to " carbonize " grease and fat drippings before they drip below the burner plate onto the burners or inside the unit. Cooking some high fat foods may cause excessive grease drippings. A grease collection cup is located beneath the barbecue basin, and may be accessed beneath the cart chassis. It should be removed periodically and cleaned. The following steps may also help:

1- Make sure that the unit is level. 2- Preheat the appliance on HIGH control settings

for at least ten to fifteen ( 10 to 15 ) minutes. This will insure cooking surfaces are hot enough to " carbonize " fats when burner control settings are lowered. This is especially important if you are using indirect cooking methods, i.e., cooking on one side of the grill by using heat from the burners on the opposite side.

3- Use lava rock or ceramic briquettes in an even,

single layer, covering the burner plate. This will provide an added layer of evenly heated cooking surface to dissipate and " carbonize " grease.

!!! GREASE FIRE WARNING !!!

SHOULD A GREASE FIRE OCCUR

1- Turn off the gas at the burner control panel or

gas supply. 2- Allow the fire to burn itself out. 3- Allow the unit to cool. 4- Make sure that the gas supply is OFF. 5- Clean the appliance and inspect all parts for

damage. 6- Replace any parts that are damaged before

using the appliance.

NEVER THROW WATER ON A GREASE FIRE!!!

MAINTENANCE

Your StraubelStone Gas Barbecue should be thoroughly cleaned on a regular basis. Remove the cooking grates and burner plate to collect or vacuum ashes and food debris.

Visually check the burner flames on a regular basis. Flames should appear blue in color and approximately one inch ( 1" ) in height. ( SEE FIGURE 17 )

Desired Flame

Figure 4

FLAME

COMPARISON

If flames are excessively yellow and/or irregular, burners may need to be cleaned of oil or fat residue. In some conditions ( high altitude ), primary air mixer openings, at the entrance to each burner, may need to be adjusted to control the mixture of primary air with gas ( Air mixture is pre-set at the factory for gas conditions at sea level. ) Disassembly of the barbecue is required to adjust the air mixer openings. ( SEE BURNER ASSEMBLY - AIR MIXTURE ADJUSTMENT )

Visually check the burners for insects and insect nests on a regular basis. Obstructions in the burners may lead to a fire beneath the barbecue basin. If obstructions are found in the burners, remove burners and clean thoroughly. Use mild detergent, hot water, a wire brush, paper clip, nylon cleaning pad, or similar items to clean burners and other parts of the barbecue. ( SEE BURNER ASSEMBLY )

DO NOT

enlarge valve orifices or burner ports when

cleaning valves or burners.

BURNER ASSEMBLY

1- TURN OFF THE GAS SUPPLY! 2- NEVER

attempt any maintenance operation

while the appliance is in operation or is HOT.

3- You may wish to remove the hood, however, it is

not necessary. ( SEE COOKING OPERATION ) 4- Remove cooking grates. 5- Remove lava rock and ceramic briquettes. 6- Remove burner plate to expose burners. 7- Carefully lift burner from rear burner guide so

that it clears the guide.

ellow Tip

Blue Flame

Burner Tube

FIGURE 17

Undesirable Flame

BURNER ASSEMBLY continued

FOR STEELMAN SERIES:

8- For left side burner: Lift outside of burner in a

clockwise direction until it is perpendicular to its original position. For right side burner: Lift outside of burner in a counter-clockwise direction until it is perpendicular to its original position.

9- Carefully pull the burner away from you, towards

the rear of the barbecue basin. This will expose the igniter wire and igniter electrode.

10- Using a #2 Phillips screw driver, remove the

igniter wire mounting screw. This will free the burner from its mounting, for removal, inspection and cleaning. DO NOT

remove the igniter wire!

FOR EXECUTIVE SERIES:

11- Lift outside of burner in a clockwise direction

until it is perpendicular to its original position.

12- Carefully pull the burner away from you, towards

the rear of the barbecue basin. This will expose the igniter wire and igniter electrode.

13- Using a #2 Phillips screw driver, remove the

igniter wire mounting screw. This will free the burner from its mounting, for removal, inspection and cleaning. DO NOT remove the igniter wire!

AIR MIXTURE ADJUSTMENT

The air mixer sleeve for each burner has been pre-set at the factory for gas conditions at sea level. However, if the burner flame is to yellow ( this may occur at higher altitudes - high altitude de-rate may also be necessary ), open the air mix sleeve slightly until the flame turns blue.

TO REINSTALL BURNER: Reverse the above order of operations.

GAS VALVE MANIFOLD ASSEMBLY

Should it become necessary to dis-assemble the gas valve manifold, or perform gas conversions, the following instructions are for qualified technicians only.

1- TURN OFF THE GAS SUPPLY! 2- NEVER

attempt any maintenance operation

while the appliance is in operation or is HOT!

3- For LP units: Disconnect the TYPE 1 - LP

TANK CONNECTOR by turning the fitting in a counter-clockwise direction. Remove LP gas cylinder from cart chassis base frame. Remove regulator and hose assembly.

For Natural Gas units: Disconnect the gas supply at the 3/8" male flare fitting on the gas valve manifold, beneath the cart chassis.

GAS VALVE MANIFOLD ASSEMBLY continued

4- Remove burner control knobs by gripping firmly

and pulling away from control plate. 5- Using a #2 Phillips screw driver, remove the four

( 4 ) control plate mounting screws. 6- Remove burner assembly. ( See Burner

Assembly ) 7- Remove the igniter wires from the back of the

push button igniter ( mark the locations of the

wires ). 8- Using a 7/16" nut driver, socket, or end wrench,

remove the 7/16" flange nuts from the base of

the gas valve manifold. ( This may be

accomplished by reaching beneath the face of

the barbecue cart ) 9- Carefully, push the gas valve manifold away

from the cart face until the valve stems clear the

holes. Rotate the gas manifold downward, and

pull clear of the cart face.

TO REINSTALL GAS VALVE MANIFOLD: Reverse the above order of operations.

GENERAL CARE AND MAINTENANCE

STAIN REMOVAL

DO NOT

allow food or liquid spills to accumulate on the barbecue cart. Wipe up any drippings or spills immediately. If the barbecue becomes stained, you may scrub it with normal strength household cleaners, or a mild solution of ammonia, vinegar, and water. Stainless steel parts may be cleaned and polished with stainless steel cleaners and stainless steel polish.

WEATHER PROTECTION

While this appliance is not in use, it should be covered with a cover, to protect it from weather and other adverse elements. In high humidity and/or ocean beach areas, be sure to keep the unit clean and polished, with stainless steel cleaners, polishes, and/or stainless steel oil protectants.

CARE OF BARBECUE GRILL - METAL PARTS

When the barbecue is not is use, KEEP it CLEAN! DO NOT

allow food or liquid spills to accumulate.

Cooking grates should be cleaned before each use by: removal, brushing or scrubbing with any ordinary barbecue brush, then washed with any dishwashing detergent and water.

Barbecue hood and basin may be wiped down with mild detergent and water. DO NOT USE ABRASIVE!

STRAUBELSTONE STEELMAN GAS BARBECUE

PARTS LIST

ITEM DESCRIPTION QUANTITY

MSS-HB1420/12 MACHINE SCREW STAINLESS - 5/32 HEX BUTTON HEAD 1/4 20 X 1/2 4

Q24-BS BBQ 24 BASIN - STAINLESS STEEL 1

Q24-BB BBQ 24 BASIN - BLACK 1

Q24-GC BBQ 24 GREASE CUP 1

QPR-316/600 BBQ 24 POP RIVET - 3/16" SHAFT X .600 HEAD 4

QPRS-316/18 BBQ 24 POP RIVET SPACER - 3/16" SHAFT HOLE X 1/8" 4

Q24-BHA/L BBQ 24 BASIN HINGE ALUMINUM - LEFT 1

Q24-BHB/L BBQ 24 BASIN HINGE BLACK - LEFT 1

Q24-BHA/R BBQ 24 BASIN HINGE ALUMINUM - RIGHT 1

Q24-BHB/R BBQ 24 BASIN HINGE BLACK - RIGHT 1

Q24-HMP BBQ 24 HINGE MOUNTING PLATE 2

CPS-516/112 CLEVIS PIN - 5/16" X 1 1/2" 2

CCS-HP/112 COTTER CLIP - HAIR PIN - 1 1/2" 2

SBS-1420/1 SOCKET BOLT - 1/4 20 X 1" HINGE MOUNTING BOLT 2

SBS-1420/2 SOCKET BOLT - 1/4 20 X 2" HINGE MOUNTING BOLT 2

Q24-QB/L BBQ 24 Q-BURNER - LEFT - WITH ELECTRODE MOUNT, AIR MIXER, & SCREW 1

Q24-QB/R BBQ 24 Q-BURNER - RIGHT - WITH ELECTRODE MOUNT, AIR MIXER, & SCREW 1

Q24-BHS/B BBQ 24 BASIN HEAT SHIELD - BLACK 1

Q24-BHS/S BBQ 24 BASIN HEAT SHIELD - STAINLESS 1

Q24-BPS/2414 BBQ 24 BURNER PLATE - 24" X 14" 1

Q24-IE/L BBQ 24 IGNITION ELECTRODE - LEFT 1

Q24-IE/R BBQ 24 IGNITION ELECTRODE - RIGHT 1

MSS-832/58 MACHINE SCREW - 8/32 X 5/8" ELECTRODE MOUNTING SCREW 2

MNS-832/6M MACHINE NUT - 8/32 X 6MM ELECTRODE MOUNTING NUT 2

Q24N-GVM/A BBQ 24 NATURAL GAS MANIFOLD ASSEMBLY 1

Q24P-GVM/A BBQ 24 LIQUID PROPANE GAS MANIFOLD ASSEMBLY 1

OR-7M/N BBQ 24 ORIFICE - NATURAL GAS 2

OR-7M/P BBQ 24 ORIFICE - LIQUID PROPANE 2

MFNS-1420/716 MACHINE FLANGE NUT SERRATED - 1/4 20 X 7/16" 2

Q24-HS/A BBQ 24 HOOD - STAINLESS STEEL ASSEMBLY 1

Q24-HB/A BBQ 24 HOOD - BLACK ASSEMBLY 1

Q24-TG BBQ 24 TEMPERATURE GAUGE 1

Q24-HAN/S BBQ 24 HANDLE - STAINLESS STEEL 1

Q24-HSB/L BBQ 24 HOOD SUPPORT BRACE - LEFT 1

Q24-HSB/R BBQ 24 HOOD SUPPORT BRACE - RIGHT 1

Q24-SCA/L BBQ 24 SIDE CASTING ALUMINUM - LEFT 1

Q24-SCA/R BBQ 24 SIDE CASTING ALUMINUM - RIGHT 1

Q24-SCB/L BBQ 24 SIDE CASTING BLACK - LEFT 1

Q24-SCB/R BBQ 24 SIDE CASTING BLACK - RIGHT 1

Q24-SB BBQ 24 SILICONE BUMPERS - HI TEMP 2

SCDP-516/114 BBQ 24 SIDE CASTING DOWEL PIN - 5/16" X 1 1/4" 2

MSS-2F1420/34 MACHINE SCREW - #2 PHILLIPS FLAT 1/4 20 X 3/4" SIDE CASTING SCREW 14

MNS-1420/716 MACHINE NUT - 1/4 20 X 7/16" 14

WFS-14 WASHER FLAT - 1/4" 14

Q24-CP/PI BBQ 24 CONTROL PANEL - PIEZO IGNITER 1

Q24-CP/EI15 BBQ 24 CONTROL PANEL ELECTRONIC IGNITER - 1.5 VOLT - 2 SPARK 1

MSS-2P4M/12 MACHINE SCREW - #2 PHILLIPS 4MM X 1/2 4

BAT-AAA BATTERY - AAA - 1.5 VOLT 1

Q24-CP/K BBQ 24 CONTROL PANEL - KNOB 2

STRAUBELSTONE STEELMAN GAS BARBECUE

PARTS LIST CONTINUED

ITEM DESCRIPTION QUANTITY

Q24-BMCE BBQ 24 BOOK MATCH CLIP EXTENDER 1

Q24-G/1612 BBQ 24 GRATE - PORCELAIN - 16" X 12" 2

Q24-SG/1512 BBQ 24 SEARING GRATE - PORCELAIN - 15" X 12" 2

Q24-WR BBQ 24 WARMING RACK 1

Q24P-REG/A BBQ 24 LIQUID PROPANE REGULATOR AND HOSE ASSEMBLY 1

IM-SEPB INSTRUCTION MANUAL - STRAUBELSTONE STEELMAN, EXECUTIVE, PEDESTAL, BUILT-IN 1

ST-WC STRAUBELSTONE WARRANTY CARD 1

Q24-NGC BBQ 24 NATURAL GAS CONVERSION KIT 1

Q24N-REG/A BBQ 24 NATURAL GAS REGULATOR ASSEMBLY 1

Q24-LPT LIQUID PROPANE TANK 1

Q24-BRK/FG BBQ 24 ROTISSERIE KIT - BOXED - MOTOR, SPIT, BRACKETS 1

Q24-BRM BBQ-24 ROTISSERIE MOTOR 1

Q24-BRS BBQ 24 ROTISSERIE SPIT 1

Q24-BRB/A BBQ 24 ROTISSERIE BRACKETS ASSEMBLY PAIR ( 2 ) 1

Q24-BSG/FG BBQ 24 SEARING GRATES - BOXED PAIR ( 2 ) 1

Q24-COV/S BBQ 24 COVER - SMALL - HEAD ONLY 1

Q24-COV/LC BBQ 24 COVER - LARGE - CART DELUXE WITH SHELVES 1

Q24-COV/LDC BBQ 24 COVER - DIPLOMAT - STANDARD CART 1

STRAUBELSTONE SIDE GRILL PARTS LIST

ITEM DESCRIPTION QUANTITY

Q13-BS BBQ 13 BASIN - STAINLESS STEEL 1 Q24-GC BBQ 24 - GREASE CUP 1 Q24-QB/L BBQ 24 - Q BURNER LEFT WITH ELECTRODE MOUNT, AIR MIXER, & SCREW 1 Q24-IE/L BBQ 24 IGNITION ELECTRODE - LEFT 1 Q13-BPS/1014 BBQ 13 BURNER PLATE - STAINLESS - 10" X 13 " 1 Q24-G/1612 BBQ 24 GRATE - PORCELAIN - 16" X 12 " 1 Q13-SG/1510 BBQ 13 SEARING GRATE - 15" X 10" 1 MSS-832/58 MACHINE SCREW - 8/32 X 5/8" ELECTRODE MOUNTING SCREW 1 MNS-832/6M MACHINE NUT - 8/32 X 6MM ELECTRODE MOUNTING NUT 1 Q13N-GVM/A BBQ 13 NATURAL GAS MANIFOLD ASSEMBLY 1 Q13P-GVM/A BBQ 13 LIQUID PROPANE MANIFOLD ASSEMBLY 1 OR-7M/N BBQ 24 ORIFICE - NATURAL GAS 1 OR-7M/P BBQ 24 ORIFICE - LIQUID PROPANE 1 MFNS-1420/716 MACHINE FLANGE NUT SERRATED - 1/4 20 X 7/16" 2 MSS-2P4M/12 MACHINE SCREW STAINLESS - # 2 PHILLIPS - 4MM X 1/2 CONTROL PANEL MOUNTING SCREW 2 Q24-CP/PI BBQ 24 CONTROL PANEL - PIEZO IGNITER 1 Q13-CONE BBQ 13 FLAME CONE 1 Q13-G BBQ 13 GRIDDLE 1 Q13-DF BBQ 13 DEEP FRYER 1 Q13-DFB BBQ 13 DEEP FRYER BASKET 1 Q13-VS BBQ 13 VEGTABLE STEAMER 1 Q24-CP/PI BBQ 24 CONTROL PANEL - PIEZO IGNITER 1 Q24-CP/K BBQ 24 CONTROL PANEL - KNOB 1 Q13N-REG/A BBQ 13 NATURAL GAS REGULATOR & HOSE ASSEMBLY 1 Q13P-REG/A BBQ 13 LIQUID PROPANE REGULATOR & HOSE ASSEMBLY 1 Q13-RHC BBQ 13 REGULATOR HOSE CLIPS 2 Q13-NGC BBQ 13 NATURAL GAS CONVERSION KIT 1

STRAUBELSTONE STEELMAN CART SECTION

PARTS LIST

ITEM DESCRIPTION QUANTITY

Q24C-TOP/S BBQ 24 CART - TOP - STAINLESS 1 Q24C-HAN/S BBQ 24 CART - HANDLE - STAINLESS 1 Q24C-LFL/S BBQ 24 CART - LEG FRONT LEFT - SILVER 1 Q24C-LFR/S BBQ 24 CART - LEG FRONT RIGHT - SILVER 1 Q24C-LBL/S BBQ 24 CART - LEG BACK LEFT - SILVER 1 Q24C-LBR/S BBQ 24 CART - LEG BACK RIGHT - SILVER 1 Q24C-LFL/B BBQ 24 CART - LEG FRONT LEFT - BLACK 1 Q24C-LFR/B BBQ 24 CART - LEG FRONT RIGHT - BLACK 1 Q24C-LBL/B BBQ 24 CART - LEG BACK LEFT - BLACK 1 Q24C-LBR/B BBQ 24 CART - LEG BACK RIGHT - BLACK 1 Q24C-FS/S BBQ 24 CART - FRONT STRUT - STAINLESS 1 Q24C-BS/S BBQ 24 CART - BACK STRUT - STAINLESS 1 Q24C-RS/S BBQ 24 CART - RIGHT STRUT - STAINLESS 1 Q24C-LPTM/S BBQ 24 CART - LP TANK MOUNT - STAINLESS 1 Q24C-FS/B BBQ 24 CART - FRONT STRUT - BLACK 1 Q24C-BS/B BBQ 24 CART - BACK STRUT - BLACK 1 Q24C-RS/B BBQ 24 CART - RIGHT STRUT - BLACK 1 Q24C-LPTM/B BBQ 24 CART - LP TANK MOUNT - BLACK 1 Q24C-LP/TH BBQ 24 CART - LP TANK HOOK 1 WFS-14 WASHER FLAT - 1/4" 62 MSS-HB1420/12 MACHINE SCREW - 5/32 HEX BUTTON HEAD 1/4 20 X 1/2" CHASSIS SCREW 60 MFNS-1420/716 MACHINE FLANGE NUT STAINLESS - 1/4 20 X 7/16 - TANK HOOK NUT 1 WFS-516/112 WASHER FENDER STAINLESS - 5/16 ID X 1 1/2 OD - HANDLE WASHER 2 WLS-516 WASHER LOCK STAINLESS - 5/16 ID - HANDLE LOCK WASHER 2 MBS-51618/212 MACHINE BOLT STAINLESS - 5/16 18 X 2 1/2" - HANDLE BOLT 2 Q24C-AX12/24 BBQ 24 CART - AXLE - 1/2 X 24 1 WFS-12/34 WASHER FENDER SPACER - 1/2 ID X 3/4 OD X 1/8 THICK - WHEEL SPACER 2 MNN-AN/34 MACHINE NUT NYLOC-AXLE NUT - 3/4" HEX HEAD - THIN PROFILE 2 Q24C-WHL/8 BBQ 24 CART - WHEEL - 8" X 1/2 SHAFT 2 Q24C-WHC BBQ 24 CART - WHEEL HUB CAP 2 Q24C-CSTR BBQ 24 CART - CASTER 2 C24S-SS/S BBQ 24 CART - SIDE SHELF - STAINLESS - 20 1/2 X 12 X 4 1 C24S-US/S BBQ 24 CART - UNDER SHELF - STAINLESS 1 C24S-US/LF BBQ 24 CART - UNDER SHELF - LEG FRONT 1 C24S-US/LB BBQ 24 CART - UNDER SHELF - LEG BACK 1 C24S-CH/S BBQ 24 CART - CONDIMENT HOLDER - STAINLESS 1 C24S-LFFP BBQ 24 CART- LEFT FRONT FILLER PANEL 1 C24S-LFD BBQ 24 CART - LEFT FRONT DOOR 1 C24S-RFD BBQ 24 CART - RIGHT FRONT DOOR 1 CPS-14/1 COTTER PIN - 1/4" X 1 " - DOOR HINGE MOUNT 4 CCS-HP/1 COTTER CLIP - HAIR PIN - 1" - DOOR HINGE MOUNT 4 C24S-LFDS BBQ 24 CART - LEFT FRONT DOOR STOP 1 C24S-RFDBS BBQ 24 CART - RIGHT FRONT DOOR BALL STOP 1 C24S-RFDL BBQ 24 CART - RIGHT FRONT DOOR LATCH 1 C24S-LOGO/RP BBQ 24 CART - LOGO - REMOVABLE PANEL 1 C24S-SFP BBQ 24 CART - SIDE FILLER PANELS 2 MFNS-1420/716 MACHINE FLANGE NUT SERRATED - 1/4 20 X 7/16" 3 Q24-CB/AD BBQ 24 CART - CUTTING BOARD 1 Q24-LOGO BBQ 24 CART - LOGO PLATE 1 C24S-MS BBQ 24 CART - MESH SHELF 1 C24S-CT BBQ 24 CART - CONDIMENT TRAY 1

STRAUBELSTONE EXECUTIVE GAS BARBECUE

PARTS LIST

ITEM DESCRIPTION QUANTITY

MSS-1420HB/12 MACHINE SCREW STAINLESS - 5/32 HEX BUTTON HEAD - 1/4 20 X 1/2 4

Q36-BS BBQ 36 BASIN - STAINLESS STEEL 1

Q36-BB BBQ 36 BASIN - BLACK 1

Q36-GC BBQ 36 GREASE CUP 1

QPR-316/600 BBQ 24 POP RIVET - 3/16" SHAFT X .600 HEAD 4

QPRS-316/18 BBQ 24 POP RIVET SPACER - 3/16" SHAFT HOLE X 1/8" 4

Q24-BHA/L BBQ 24 BASIN HINGE ALUMINUM - LEFT 1

Q24-BHB/L BBQ 24 BASIN HINGE BLACK - LEFT 1

Q24-BHA/R BBQ 24 BASIN HINGE ALUMINUM - RIGHT 1

Q24-BHB/R BBQ 24 BASIN HINGE BLACK - RIGHT 1

Q24-HMP BBQ 24 HINGE MOUNTING PLATE 2

CPS-516/112 CLEVIS PIN - 5/16" X 1 1/2" 2

CCS-HP/112 COTTER CLIP - HAIR PIN - 1 1/2" 2

SBS-1420/1 SOCKET BOLT - 1/4 20 X 1" HINGE MOUNTING BOLT 2

SBS-1420/2 SOCKET BOLT - 1/4 20 X 2" HINGE MOUNTING BOLT 2

Q24-QB/L BBQ 24 Q-BURNER - LEFT - WITH ELECTRODE MOUNT, AIR MIXER, & SCREW 3

Q36-BHS/B BBQ 36 BASIN HEAT SHIELD - BLACK 1

Q36-BHS/S BBQ 36 BASIN HEAT SHIELD - STAINLESS 1

Q24-BPS/2414 BBQ 24 BURNER PLATE - 24" X 14" 1

Q36-BPS/1314 BBQ 36 BURNER PLATE - 13" X 14" 1

Q24-IE/L BBQ 24 IGNITION ELECTRODE - LEFT 3

MSS-832/58 MACHINE SCREW STAINLESS- 8/32 X 5/8" ELECTRODE MOUNTING SCREW 3

MNS-832/6M MACHINE NUT - 8/32 X 6MM ELECTRODE MOUNTING NUT 3

Q36N-GVM/A BBQ 36 NATURAL GAS MANIFOLD ASSEMBLY 1

Q36P-GVM/A BBQ 36 LIQUID PROPANE GAS MANIFOLD ASSEMBLY 1

OR-7M/36N BBQ 36 ORIFICE - NATURAL GAS 3

OR-7M/36P BBQ 36 ORIFICE - LIQUID PROPANE 3

MFNS-1420/716 MACHINE FLANGE NUT SERRATED - 1/4 20 X 7/16" 2

Q36-HS/A BBQ 36 HOOD - STAINLESS STEEL ASSEMBLY 1

Q36-HB/A BBQ 36 HOOD - BLACK ASSEMBLY 1

Q24-TG BBQ 24 TEMPERATURE GAUGE 1

Q36-HAN/S BBQ 36 HANDLE - STAINLESS STEEL 1

Q24-HSB/L BBQ 24 HOOD SUPPORT BRACE - LEFT 1

Q24-HSB/R BBQ 24 HOOD SUPPORT BRACE - RIGHT 1

Q24-SCA/L BBQ 24 SIDE CASTING ALUMINUM - LEFT 1

Q24-SCA/R BBQ 24 SIDE CASTING ALUMINUM - RIGHT 1

Q24-SCB/L BBQ 24 SIDE CASTING BLACK - LEFT 1

Q24-SCB/R BBQ 24 SIDE CASTING BLACK - RIGHT 1

Q24-SB BBQ 24 SILICONE BUMPERS - HI TEMP 2

SCDP-516/114 BBQ 24 SIDE CASTING DOWEL PIN - 5/16" X 1 1/4" 2

MSS-2F1420/34 MACHINE SCREW - #2 PHILLIPS FLAT 1/4 20 X 3/4" SIDE CASTING SCREW 14

MNS-1420/716 MACHINE NUT - 1/4 20 X 7/16" 14

WFS-14 WASHER FLAT - 1/4" 14

STRAUBELSTONE EXECUTIVE GAS BARBECUE

PARTS LIST CONTINUED

ITEM DESCRIPTION QUANTITY

Q36-CP/EI15 BBQ 36 CONTROL PANEL ELECTRONIC IGNITER - 1.5 VOLT - 4 SPARK 1

MSS-2P4M/12 MACHINE SCREW - #2 PHILLIPS - 4MM X 1/2 - CONTROL PANEL MOUNTING SCREW 6

BAT-AAA BATTERY - AAA - 1.5 VOLT 1

Q24-CP/K BBQ 24 CONTROL PANEL - KNOB 3

Q24-BMCE BBQ 24 BOOK MATCH CLIP EXTENDER 1

Q24-G/1612 BBQ 24 GRATE - PORCELAIN - 16" X 12" 3

Q24-SG/1512 BBQ 24 SEARING GRATE - PORCELAIN - 15" X 12" 2

Q24-WR BBQ 24 WARMING RACK 1

IM-SBQCS36 INSTRUCTION MANUAL - STRAUBELSTONE STEELMAN GAS BBQ 1

ST-WC STRAUBELSTONE WARRANTY CARD 1

Q36-NGC BBQ 36 NATURAL GAS CONVERSION KIT 1

Q36N-REG/A BBQ 36 NATURAL GAS REGULATOR ASSEMBLY 1

Q24P-REG/A BBQ 24 LIQUID PROPANE REGULATOR AND HOSE ASSEMBLY 1

Q24-LPT LIQUID PROPANE TANK 1

Q13-CONE FLAME CONE 1

Q13-G GRIDDLE 1

Q36-BRK/FG BBQ 36 ROTISSERIE KIT - BOXED - MOTOR, SPIT, BRACKETS 1

Q24-BRM BBQ-24 ROTISSERIE MOTOR 1

Q36-BRS BBQ 36 ROTISSERIE SPIT 1

Q24-BRB/A BBQ 24 ROTISSERIE BRACKETS ASSEMBLY PAIR ( 2 ) 1

Q24-BSG/FG BBQ 24 SEARING GRATES - BOXED PAIR ( 2 ) 1

Q36-COV/S BBQ 36 COVER - SMALL - HEAD ONLY 1

Q36-COV/LC BBQ 36 COVER - LARGE - CART DELUXE WITH SHELVES 1

STRAUBELSTONE EXECUTIVE CART SECTION

PARTS LIST

ITEM DESCRIPTION QUANTITY

Q36C-TOP/S BBQ 24 CART - TOP - STAINLESS 1 Q24C-HAN/S BBQ 24 CART - HANDLE - STAINLESS 1 Q24C-LFL/S BBQ 24 CART - LEG FRONT LEFT - SILVER 1 Q24C-LFR/S BBQ 24 CART - LEG FRONT RIGHT - SILVER 1 Q24C-LBL/S BBQ 24 CART - LEG BACK LEFT - SILVER 1 Q24C-LBR/S BBQ 24 CART - LEG BACK RIGHT - SILVER 1 Q24C-LFL/B BBQ 24 CART - LEG FRONT LEFT - BLACK 1 Q24C-LFR/B BBQ 24 CART - LEG FRONT RIGHT - BLACK 1 Q24C-LBL/B BBQ 24 CART - LEG BACK LEFT - BLACK 1 Q24C-LBR/B BBQ 24 CART - LEG BACK RIGHT - BLACK 1 Q24C-FS/S BBQ 24 CART - FRONT STRUT - STAINLESS 1 Q24C-BS/S BBQ 24 CART - BACK STRUT - STAINLESS 1 Q24C-RS/S BBQ 24 CART - RIGHT STRUT - STAINLESS 1 Q24C-LPTM/S BBQ 24 CART - LP TANK MOUNT - STAINLESS 1 Q24C-FS/B BBQ 24 CART - FRONT STRUT - BLACK 1 Q24C-BS/B BBQ 24 CART - BACK STRUT - BLACK 1 Q24C-RS/B BBQ 24 CART - RIGHT STRUT - BLACK 1 Q24C-LPTM/B BBQ 24 CART - LP TANK MOUNT - BLACK 1 Q24C-LP/TH BBQ 24 CART - LP TANK HOOK 1 WFS-14 WASHER FLAT - 1/4" 62 MSS-HB1420/12 MACHINE SCREW - 5/32 HEX BUTTON HEAD 1/4 20 X 1/2" CHASSIS SCREW 60 MFNZ-516/18 MACHINE FLANGE NUT ZINC - 5/16 X 18 - TANK HOOK NUTS 2 WFZ-516/112 WASHER FENDER ZINC - 5/16 ID X 1 1/2 OD - HANDLE WASHER 2 WLZ-516 WASHER LOCK ZINC - 5/16 ID - HANDLE LOCK WASHER 2 MBS-51618/212 MACHINE BOLT STAINLESS - 5/16 18 X 2 1/2" - HANDLE BOLT 2 Q24C-AX12/24 BBQ 24 CART - AXLE - 1/2 X 24 1 WFS-12/34 WASHER FENDER SPACER - 1/2 ID X 3/4 OD X 1/8 THICK - WHEEL SPACER 2 MNN-AN/34 MACHINE NUT NYLOC-AXLE NUT - 3/4" HEX HEAD - THIN PROFILE 2 Q24C-WHL/8 BBQ 24 CART - WHEEL - 8" X 1/2 SHAFT 2 Q24C-WHC BBQ 24 CART - WHEEL HUB CAP 2 Q24C-CSTR BBQ 24 CART - CASTER 2 C24S-SS/S BBQ 24 CART - SIDE SHELF - STAINLESS - 20 1/2 X 12 X 4 1 C24S-US/S BBQ 24 CART - UNDER SHELF - STAINLESS 1 C24S-US/LF BBQ 24 CART - UNDER SHELF - LEG FRONT 1 C24S-US/LB BBQ 24 CART - UNDER SHELF - LEG BACK 1 C24S-CH/S BBQ 24 CART - CONDIMENT HOLDER - STAINLESS 1 C24S-LFFP BBQ 24 CART- LEFT FRONT FILLER PANEL 1 C24S-LFD BBQ 24 CART - LEFT FRONT DOOR 1 C24S-RFD BBQ 24 CART - RIGHT FRONT DOOR 1 CPS-14/1 COTTER PIN - 1/4" X 1 " - DOOR HINGE MOUNT 4 CCS-HP/1 COTTER CLIP - HAIR PIN - 1" - DOOR HINGE MOUNT 4 C24S-LFDS BBQ 24 CART - LEFT FRONT DOOR STOP 1 C24S-RFDBS BBQ 24 CART - RIGHT FRONT DOOR BALL STOP 1 C24S-RFDL BBQ 24 CART - RIGHT FRONT DOOR LATCH 1 C24S-LOGO/RP BBQ 24 CART - LOGO - REMOVABLE PANEL 1 C24S-SFP BBQ 24 CART - SIDE FILLER PANELS 2 MFNS-1420/716 MACHINE FLANGE NUT SERRATED - 1/4 20 X 7/16" 3 C24S-MS BBQ 24 CART - MESH SHELF 1

STRAUBELSTONE STEELMAN PEDESTAL

SECTION PARTS LIST

ITEM DESCRIPTION QUANTITY

Q24PT-TOP/S BBQ 24 TRIPOD PEDESTAL - TOP - STAINLESS 1 Q24PT-LFL/S BBQ 24 TRIPOD PEDESTAL - LEG FRONT LEFT - SILVER 1 Q24PT-LFR/S BBQ 24 TRIPOD PEDESTAL - LEG FRONT RIGHT - SILVER 1 Q24PT-LB/S BBQ 24 TRIPOD PEDESTAL - LEG BACK - SILVER 1 Q24PT-LBLS/S BBQ 24 TRIPOD PEDESTAL - LEG BACK LEFT STRUT - SILVER 1 Q24PT-LBRS/S BBQ 24 TRIPOD PEDESTAL - LEG BACK RIGHT STRUT - SILVER 1 Q24PT-SMB/S BBQ 24 TRIPOD PEDESTAL - STRUT MOUNTING BRACKET - STAINLESS 1 Q24PT-LFL/B BBQ 24 TRIPOD PEDESTAL - LEG FRONT LEFT - BLACK 1 Q24PT-LFR/B BBQ 24 TRIPOD PEDESTAL - LEG FRONT RIGHT - BLACK 1 Q24PT-LB/B BBQ 24 TRIPOD PEDESTAL - LEG BACK - BLACK 1 Q24PT-LBLS/B BBQ 24 TRIPOD PEDESTAL - LEG BACK LEFT STRUT - BLACK 1 Q24PT-LBRS/B BBQ 24 TRIPOD PEDESTAL - LEG BACK RIGHT STRUT - BLACK 1 Q24PT-SMB/B BBQ 24 TRIPOD PEDESTAL - STRUT MOUNTING BRACKET - BLACK 1 Q24PT-LPTM/S BBQ 24 TRIPOD PEDESTAL - LP TANK MOUNT - STAINLESS 1 Q24PT-LPTM/B BBQ 24 TRIPOD PEDESTAL - LP TANK MOUNT - BLACK 1 Q24C-LP/TH BBQ 24 CART - LP TANK HOOK 1 Q24PT-LPVS/B BBQ 24 TRIPOD PEDESTAL LP TANK VALVE SHIELD - BLACK 1 Q24PT-LPVSM/B BBQ 24 TRIPOD PEDESTAL LP TANK VALVE SHIELD MOUNT - BLACK 1 MNS-1420/10 MACHINE NUT STAINLESS - 1/4 20 X 10MM 2 WFS-14 WASHER FLAT STAINLESS - 1/4" 42 MSS-HB1420/12 MACHINE SCREW STAINLESS - 5/32 HEX BUTTON HEAD 1/4 20 X 1/2" CHASSIS SCREW 42 MFNS-1420/716 MACHINE FLANGE NUT SERRATED - 1/4 20 X 7/16 - TANK HOOK NUT 1 MBS-3816/1 MACHINGE BOLT STAINLESS - 3/8 16 X 1 - ALLEN HEAD 3 Q24PT-PEC PLASTIC END CAPS - 2 X 2 2 Q24C-CSTR BBQ 24 CART - CASTER 4 Q24PT-SS/S BBQ 24 TRIPOD PEDESTAL - SIDE SHELF - STAINLESS - 14 X 12 X 4 1 OR 2 Q24PT-FFP BBQ 24 TRIPOD PEDESTAL - FRONT FILLER PANEL 1 LPT-VC LP TANK VINYL COVER 1 Q24PT-CH CONDOMENT HOLDER FOR PEDTESTAL TRIPOD 1

STRAUBELSTONE GAS BARBECUE

TROUBLE SHOOTING

PROBLEM OBSERVED POSSIBLE CAUSE CORRECTIVE MEASURE

Gas odor during set up Gas leak See " What to do if you smell gas " page 1

Check all gas connections

Gas odor before first ignition Gas leak See " What to do if you smell gas " page 1

Check all gas connections When ignition button is pressed, there is Igniter electrode or switch wires not Reconnnect igniter electrode or wires no spark at burner electrode connected

Broken electrode or switch wires Replace broken electrode or wires

Electrode positioned improperly Reposition electrode - 3/16" clearance

Faulty electronic igniter Replace electronic igniter

Batteries dead or missing Replace batteries

Electronic ignition is wet Keep ignition system dry

When igniter button is pressed, there is Gas supply not turned on Turn on gas supply spark at the electrode, but no ignition Control knob not in HIGH ON position Follow Operational Instructions

Air in gas lines not fully bled from system Bleed air from system

Low gas pressure Check gas supply pressure

Faulty Regulator Replace regulator

Electrode positioned improperly Reposition electrode - 3/16" clearance

Delayed ignition Low gas pressure Check gas supply pressure

Clogged or dirty burner ports Clean burner ports - see manual section

Blocked orifice Check orifice opening

Faulty valve Replace valve

Burner lights but does not stay lit Low gas pressure Check gas supply pressure

Faulty valve Replace valve

Clogged or dirty burner ports Clean burner ports - see manual section

Faulty Regulator Replace regulator

Windy conditions Shield from wind

Incorrect burner flame Incorrect gas supply or pressure Check gas supply pressure

Incorrect primary air mix Adjust air mixer - see manual section

Blocked orifice Check orifice opening

Clogged or dirty burner ports Clean burner ports - see manual section

Faulty valve Replace valve

Faulty Regulator Replace regulator

High altitude Adjust orifice size for altitude

Backfire of burner Blocked orifice Check orifice opening

Clogged or dirty burner ports Clean burner ports - see manual section

Incorrect primary air mix Adjust air mixer - see manual section

LIMITED WARRANTY

StraubelStone™ hereby warrants to the ORIGINAL PURCHASER of this StraubelStone™ Gas Barbecue, that it will be free from defects in material and workmanship from the date of purchase as follows:

Steel & Aluminum castings - 15 years

Cooking Grates - 2 years

Burners - 3 years

Electronic Piezo - 1 year

Spark igniters - 1 year

All Remaining Parts - 15 years

When assembled and operated in accordance with the accompanying printed instructions.

StraubelStone may require reasonable proof of your date of purchase. YOU SHOULD RETAIN YOUR SALES SLIP OR INVOICE AND RETURN THE WARRANTY REGISTRATION CARD WITHIN 10 DAYS OF PURCHASE.

This Limited Warranty shall be limited to the repair and/or replacement of parts that prove defective under normal use and service and which on examination shall indicate, to StraubelStone’s satisfaction, that they are defective. Before returning any parts, contact StraubelStone Customer Service Center. If StraubelStone confirms the defect and approves the claim, StraubelStone will replace such parts without charge. If you are required to return defective parts, transportation charges must be prepaid. StraubelStone will return parts to the purchaser, freight or postage prepaid.

This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or service, or failure to perform normal and routine maintenance, including but not limited to, damage caused by insects within the burner tubes, as set out in this owner’s manual warranty section.

Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes, tornadoes, discoloration due to exposure to chemicals ( including salt ), either directly or in the atmosphere, or very high humidity, is not covered by this Limited Warranty.

There are no other express warranties except as set forth herein and any applicable implied warranties of merchantability and fitness are limited in duration to the period of coverage of this express written Limited Warranty. Some states do not allow limitation on how long an implied warranty lasts, so this limitation may not apply to you.

StraubelStone is not liable for any special, indirect or consequential damages. StraubelStone’s liability is limited to the purchase price of this StraubelStone Gas Barbecue. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.

StraubelStone does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on StraubelStone.

This Warranty applies only to products sold at retail and manufactured by:

STRAUBELSTONE™ 16781 Noyes Ave. Irvine, CA 92606

(800) 640-7687 (949) 296-0121 (949) 296-0127 fax

e-mail – support@straubelstone.com

StraubelStone STEELMAN & EXECUTIVE GAS BARBECUE CARTS, PEDESTALS & BUILT-INS, STEELMAN Series, EXECUTIVE Series Installation And Operation Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
