Page 1

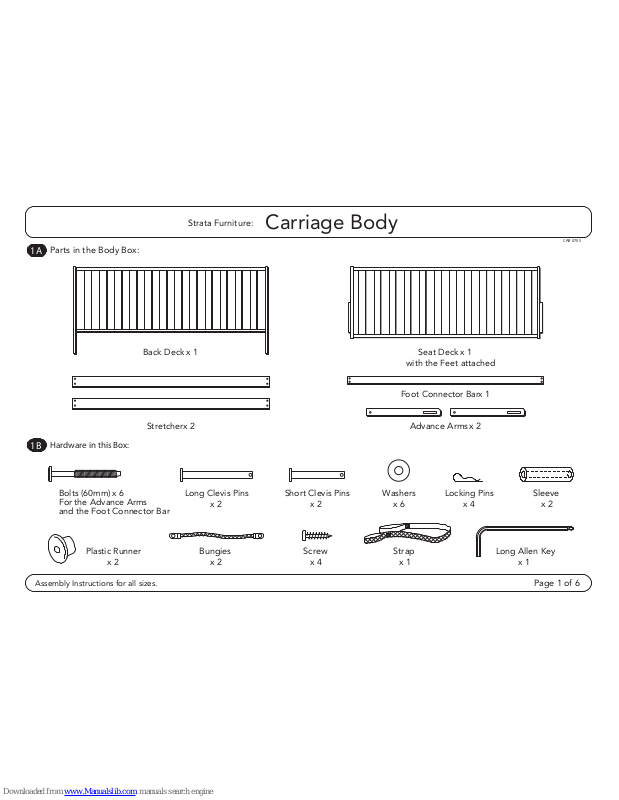

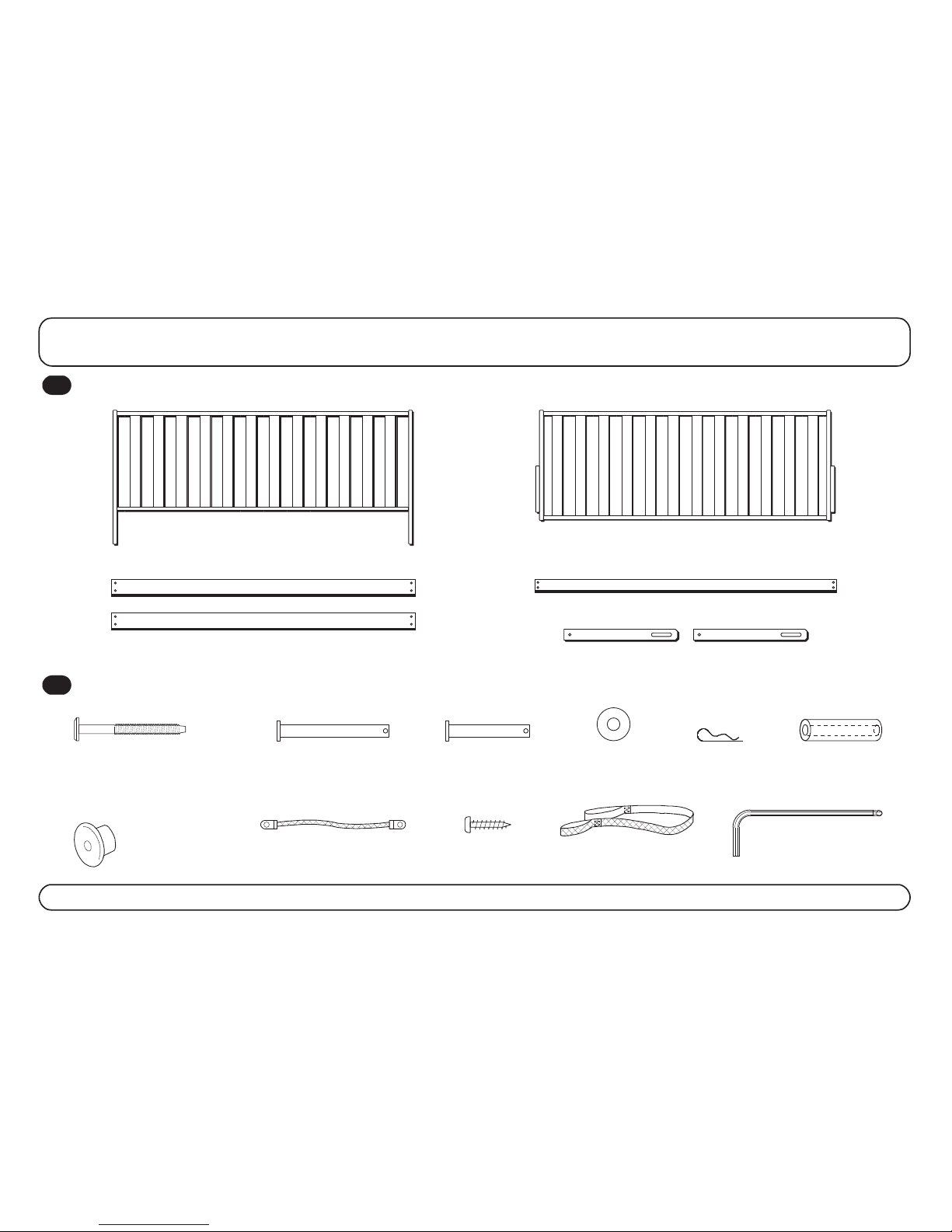

Hardware in this Box:
1B
Parts in the Body Box:
1A
Page 1 of 6
Assembly Instructions for all sizes.
CAR 0705
Back Deck x 1 Seat Deck x 1
with the Feet attached
Foot Connector Bar x 1
Advance Arms x 2Stretcherx 2
Long Allen Key
x 1
Short Clevis Pins
x 2
Bungies
x 2
Long Clevis Pins
x 2
Plastic Runner
x 2
Sleeve
x 2
Strap
x 1
Bolts (60mm) x 6
For the Advance Arms
and the Foot Connector Bar
Screw
x 4
Locking Pins
x 4
Washers
x 6
Strata Furniture:
Carriage Body
Page 2

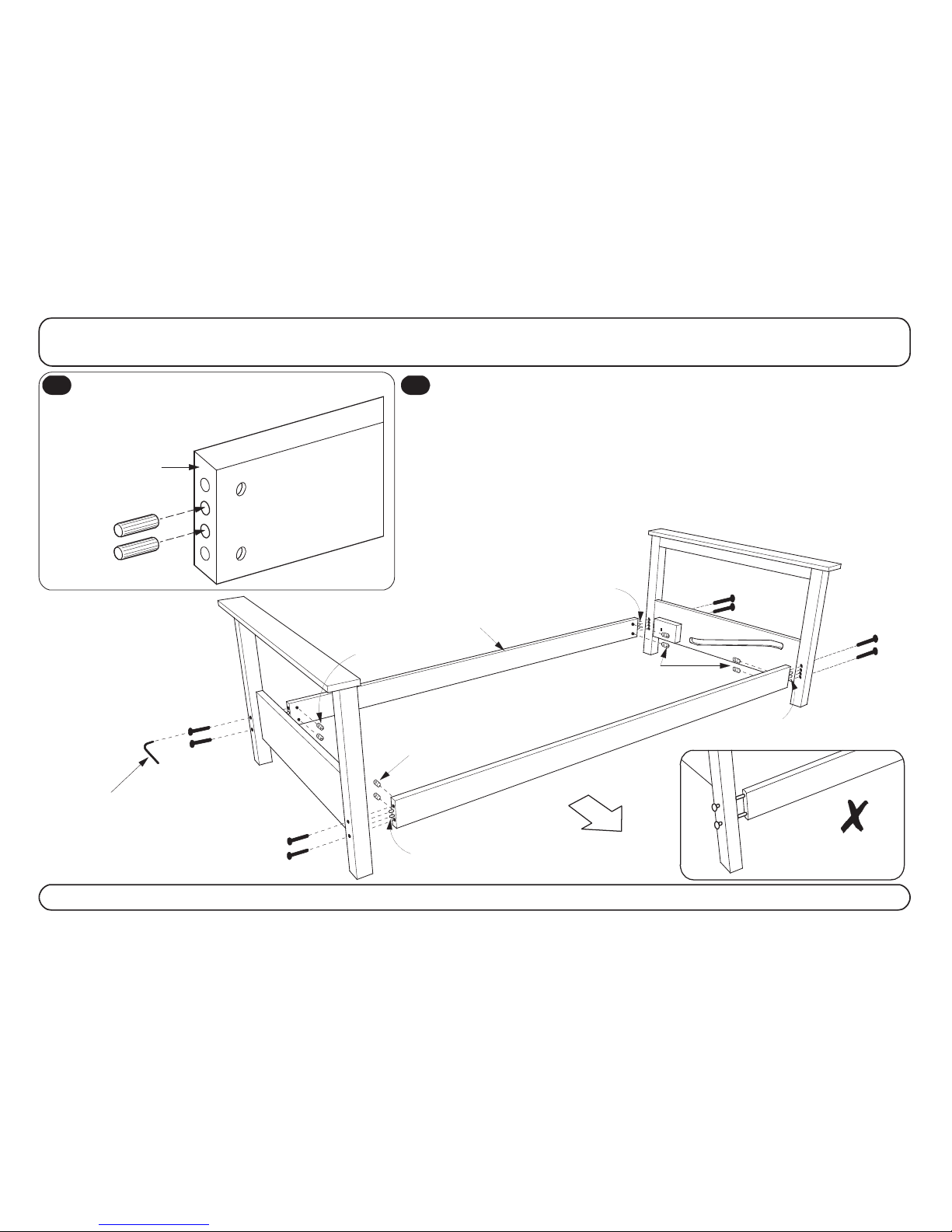

Fit the Wooden Dowels into the Stretchers.
2A
Assembly Instructions for all sizes.
Be patient, it can be tricky to start the bolts in the nuts A screwdriver will help you line up the Barrel Nut with the Bolt.
CAR 0705
Attach the Arms to the Stretchers.
2B
Drive the Bolts in until they just catch the Nuts.
It is important that thses bolts
are left loose !
Page 2 of 6
Your arm style may vary.
Bolts
Barrel Nuts
Wooden
Dowels
Barrel
Nuts
Bolts
Barrel
Nuts
Wooden
Dowels
Bolts
Wooden
Dowels
Stretcher
Do not tighten the
Bolts at this stage!
Allen Key Leave bolts LOOSE!
THIS END
FRONT
Bolts
Wooden
Dowels
End of
Stretcher
Strata Furniture:
Carriage Body

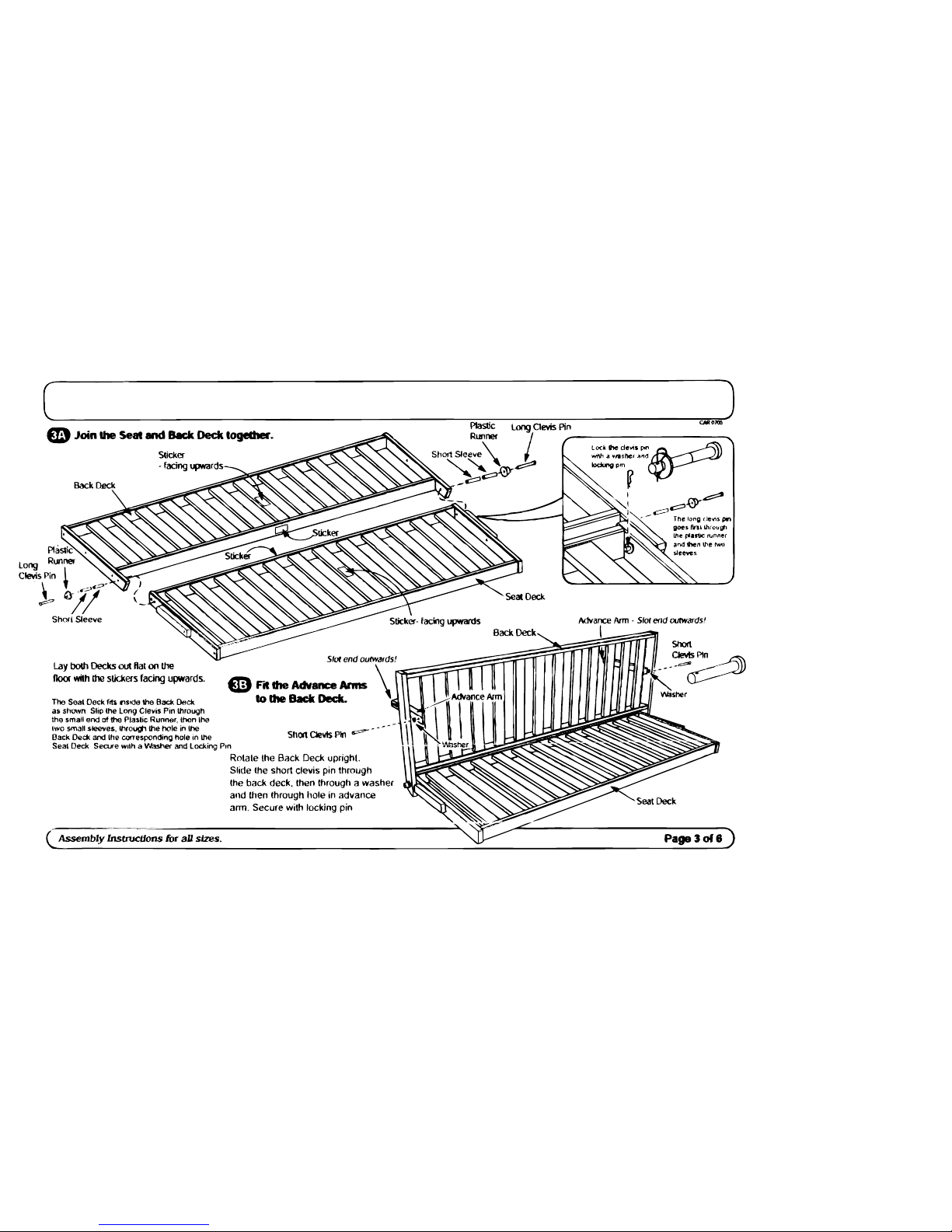

Page 3
Strata Furniture:
Carriage Body

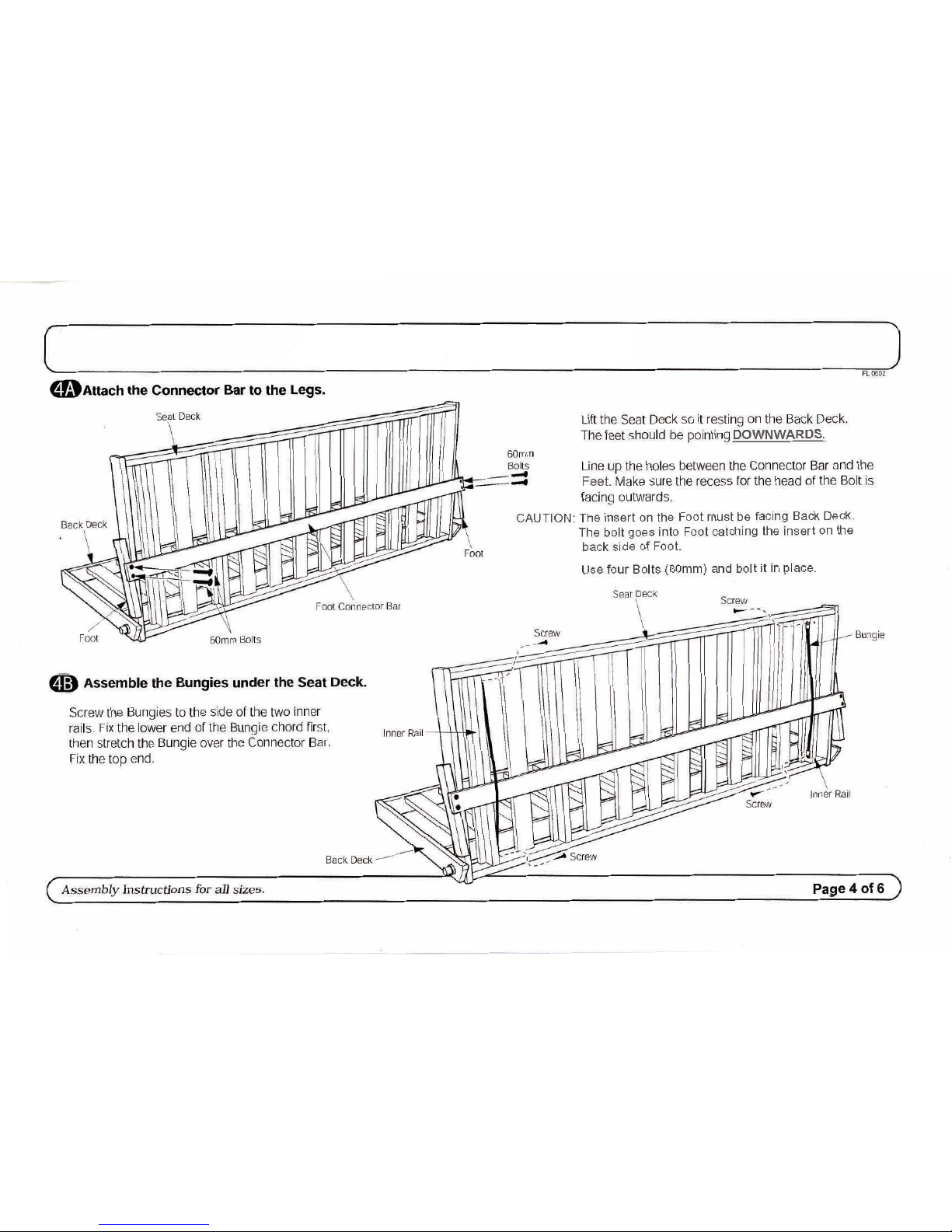

Page 4
Strata Furniture:
Carriage Body
Page 5

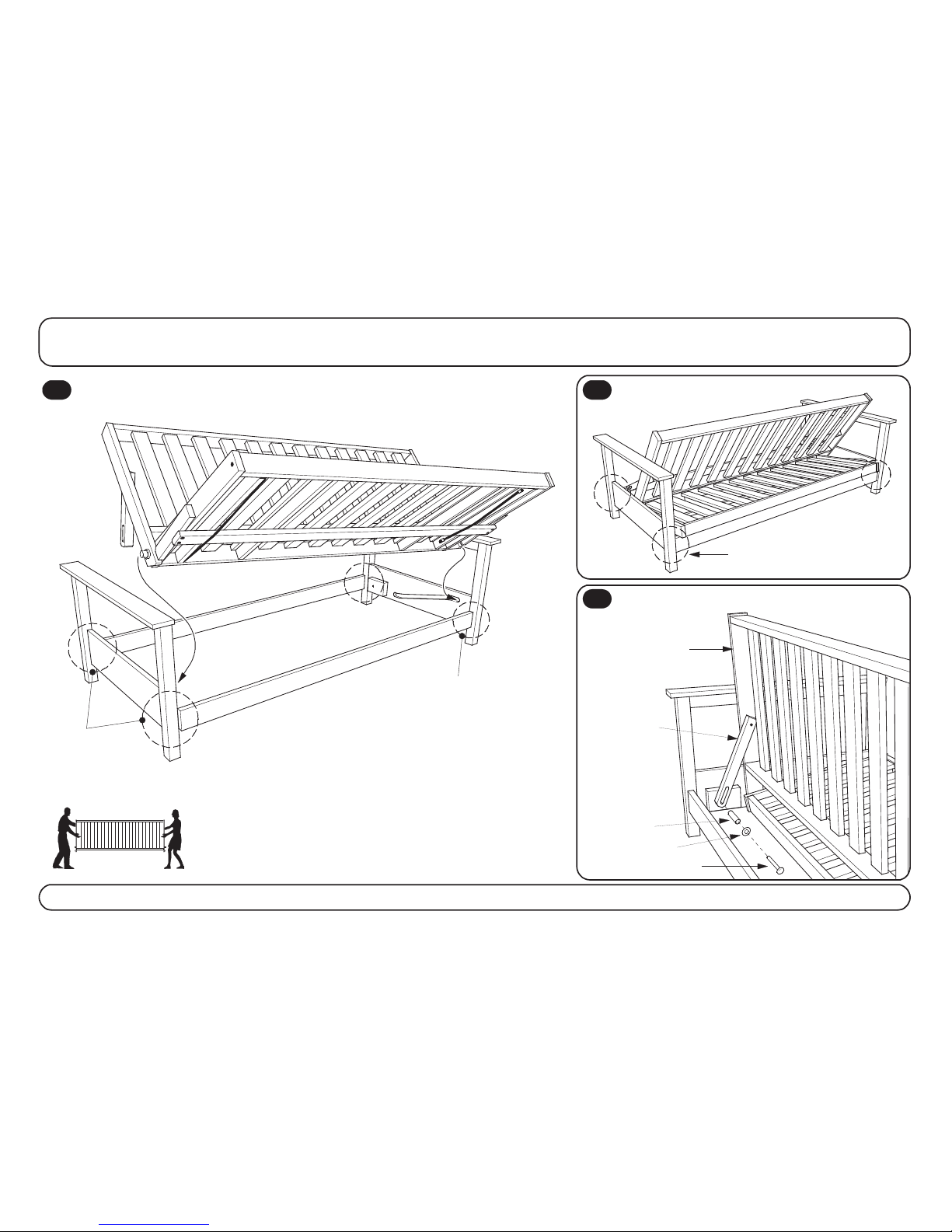

Fit the Seat and Back Decks to the Frame.
5A
Use 2 People!
Please Note:
All joints must
be left loose.
Page 5 of 6
Assembly Instructions for all sizes.
Tighten all the Bolts.
5B
CAR 0705
Insert the decks into the partially completed frame.
This is where a helper may be useful.
When the Plastic Runners are in the grooves in the
Arms, slide the assembly towards the back of the
frame.
Connect the Advance Arms to the Arms.
5C
Tighten all the Bolts
Strata Furniture:
Carriage Body
All joints must
be left loose.
Sleeve
Washer
60mm Bolt
Back Deck
Advance Arm
Page 6
Pust fit or lightly tap the Wood
Wood
Buttons
Wood
Buttons

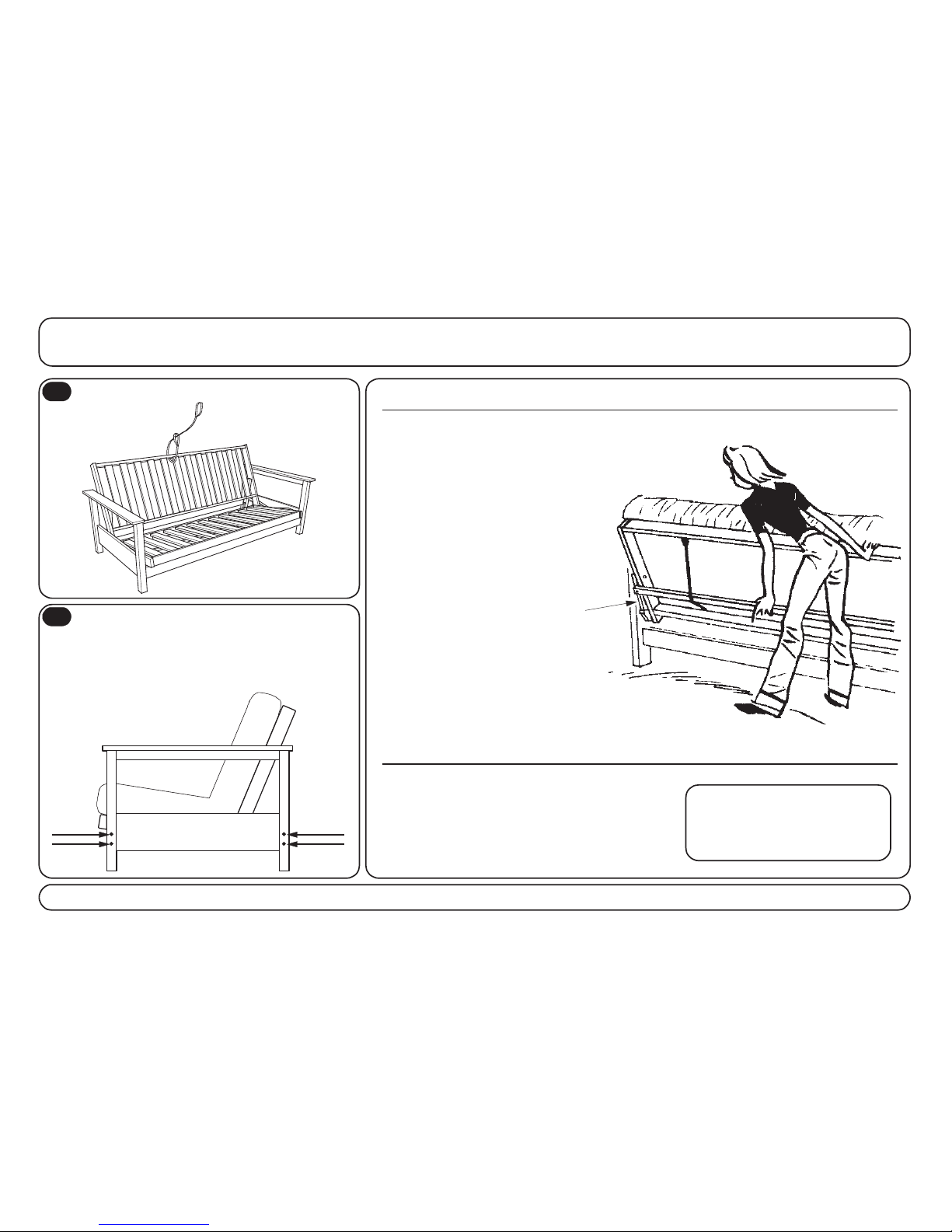

Finally, when the frame is fully assembled,
make sure all the bolts are secure.
Buttons into the bolt holes
on the Arms.
Fit the Strap to the Back Deck.
6A
Page 6 of 6
Assembly Instructions for all sizes.
Correct Foot position
Note: Never lift the frame by
the arm caps - Always lift
from the bottom of the arms.
CAR 0705
Fit the Wood Buttons to the Arms.
6B
To convert into couch position:
Lift up the seat deck into a vertical position.
Resting seat deck on your hip, rotate the foot
connectortowards you until the feet are fully
extended.
Set the frame down gently.
Operating Instructions:
Operating Instructions:
•
•
•
Remove any pillows and other obstructions. Reach to
the back and lay the strap on top of the mattress.
Lift up the seat deck into a vertical position.
Resting seat deck on your hip,
push the foot connector down all
the way so that the foot connector
touches the side rail It is Very Important that the feet are
in proper position - see diagram.
With one hand lightly push the seat
deck down and with other hand
pull the back using the Strap, making
sure that the matress clears back rail.
Push the seat deck in all the way.
•
•
•
•
•
DO NOT FORCE - the frame should operate easily.
To convert into bed position:
Strata Furniture:
Carriage Body
