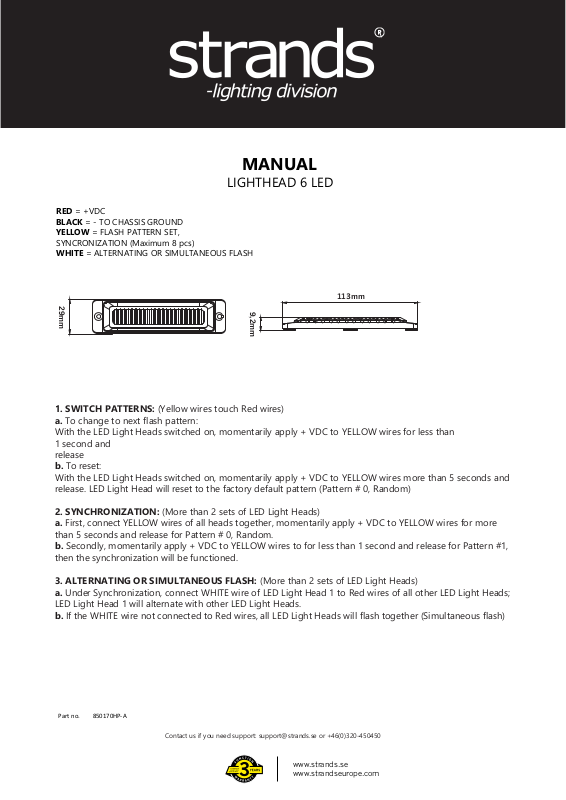

Page 1
MANUAL
LIGHTHEAD 6 LED
RED = +VDC
BLACK = - TO CHASSIS GROUND
YELLOW = FLASH PATTERN SET,
SYNCRONIZATION (Maximum
WHITE = ALTERNATING OR SIMULTANEOUS FLASH
8 pcs)

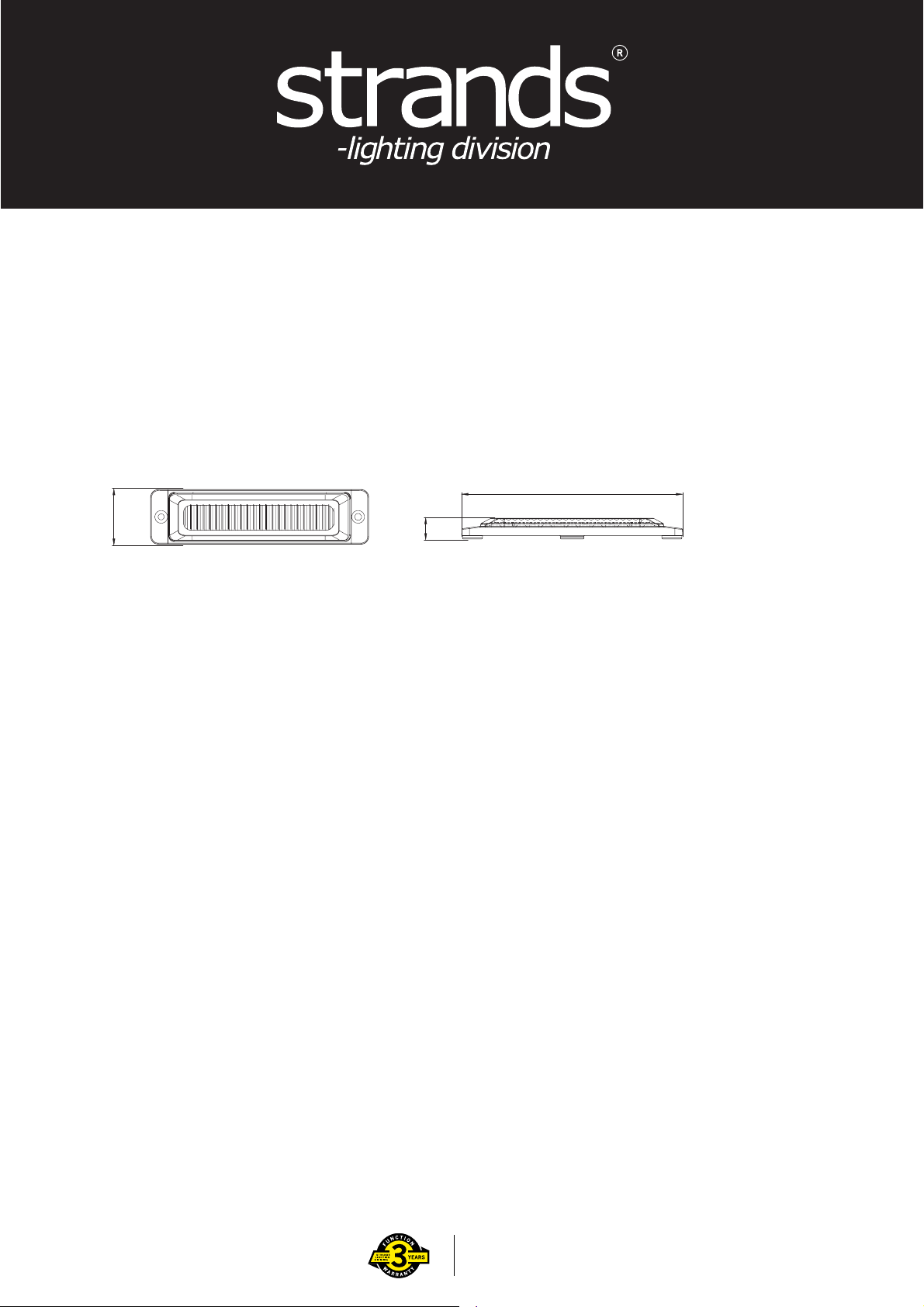

29mm
9,2mm
113mm
1. SWITCH PATTERNS: (Yellow wires touch Red wires)
a. To change to next flash pattern:
With the LED Light Heads switched on, momentarily apply + VDC to YELLOW wires for less than
1 second and
release
b. To reset:
With the LED Light Heads switched on, momentarily apply + VDC to YELLOW wires more than 5 seconds and

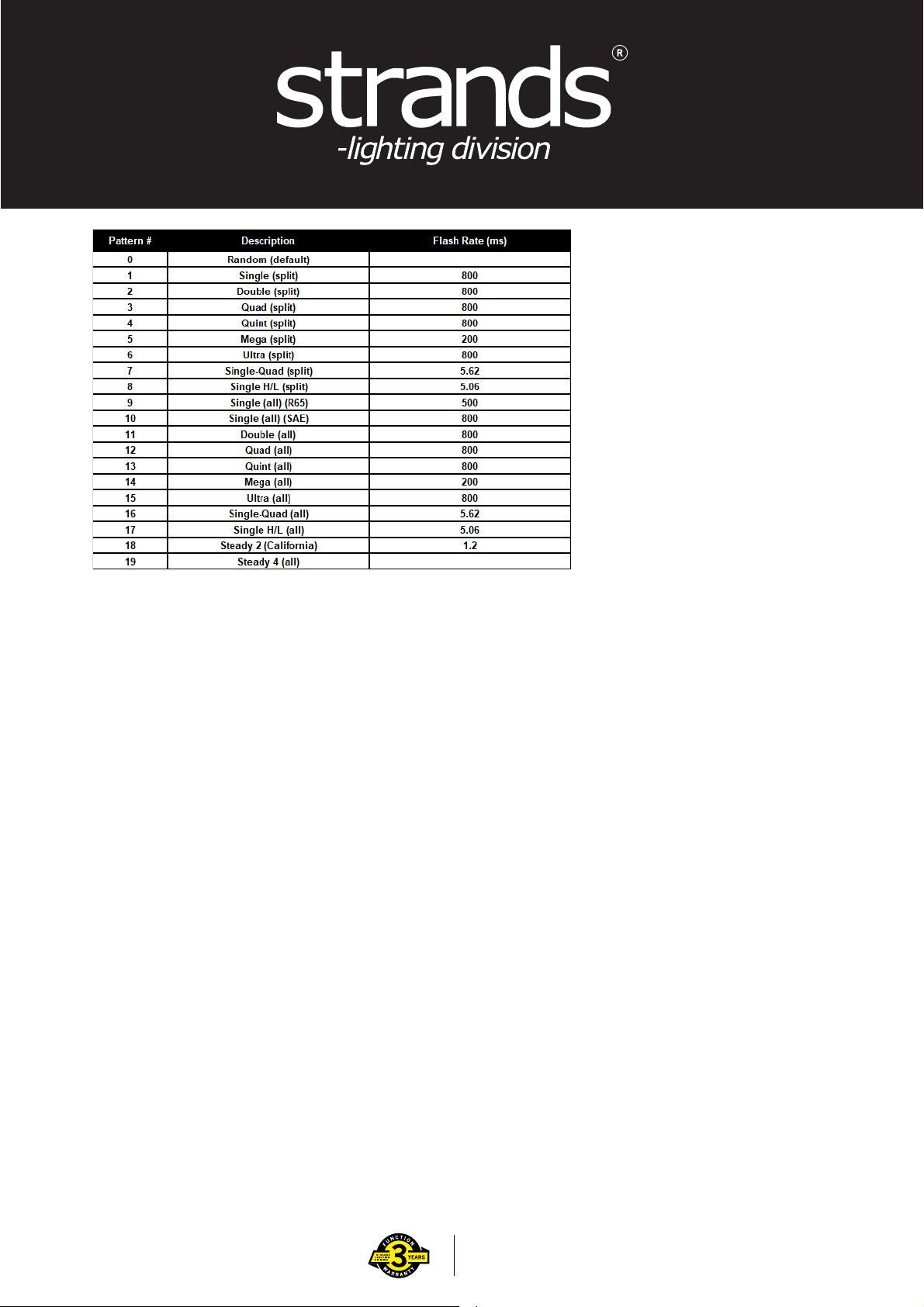

release. LED Light Head will reset to the factory default pattern (Pattern # 0, Random)
2. SYNCHRONIZATION: (More than 2 sets of LED Light Heads)
a. First, connect YELLOW wires of all heads together, momentarily apply + VDC to YELLOW wires for more
than 5 seconds and release for Pattern # 0, Random.
b. Secondly, momentarily apply + VDC to YELLOW wires to for less than 1 second and release for Pattern #1,
then the synchronization will be functioned.
3. ALTERNATING OR SIMULTANEOUS FLASH:
(More than 2 sets of LED Light Heads)
a. Under Synchronization, connect WHITE wire of LED Light Head 1 to Red wires of all other LED Light Heads;
LED Light Head 1 will alternate with other LED Light Heads.
b. If the WHITE wire not connected to Red wires, all LED Light Heads will flash together (Simultaneous flash)
Part no. 850170HP-A
Contact us if you need support: [email protected] or +46(0)320-450450
www.strands.se
www.strandseurope.com
Page 2
READ THIS BEFORE INSTALLATION
READ ALL INSTRUCTIONS AND STUDY DIAGRAMS BEFORE INSTALLING YOUR NEW LIGHTS!
LEGAL MOUNTING
Check with state or local authorities for laws governing usage and proper mounting of your new lights.
TAKE CARE OF YOUR PRODUCT
Keep the product clean. Dirt on the lens and heat-sink may shorten the products lifetime.
We recommend using lukewarm water and alkaline degreasing.
Follow the degreasing instructions carefully and rinse off gently with cold or lukewarm water on low pressure.
WARNING!
Strong chemicals should not be used on the product. If you accidently get strong chemicals on the product, rinse off immediately, use
plenty of water so that no chemicals remain in any joint.
Some chemicals have a small amount of solvent in them, this can dissolve sealing adhesives and compromise the product's
waterproofness.
Some chemicals pull out liquid from plastic and rubber-based components, which makes the plastic or rubber brittle and bursts more
easily.
Be careful not to use high water pressure close up on the product.
If you use high water pressure at short distances, most products find it difficult to close out the water.
INSTALLATION
If there is a contact/connector on the product, it should not be cutted. If the connector is cut, the warranty is not valid.
If the product has loose cable and no connector. If the cable is shorter than 50 cm, the cable must not be cutted. If the cable is cut, the
warranty is not valid.
If the cable is longer than 50 cm, it is ok to shorten the cable, but not shorter than 50 cm.
If the cable is cut shorter than 50 cm, the warranty is not valid.
Tighten screws and bolts so that they do not loosen or chafe.
Do not tighten screws so hard that the protective bearings on the product breaks.
WARNING!
Do not use higher volts than the product description states. (12-24V DC)
This light becomes hot under continuous use. Don´t remove or touch the casing for at least 30 minutes after turning the lamp off.
Part no. 850170HP-A
Contact us if you need support: [email protected] or +46(0)320-450450
www.strands.se
www.strandseurope.com
