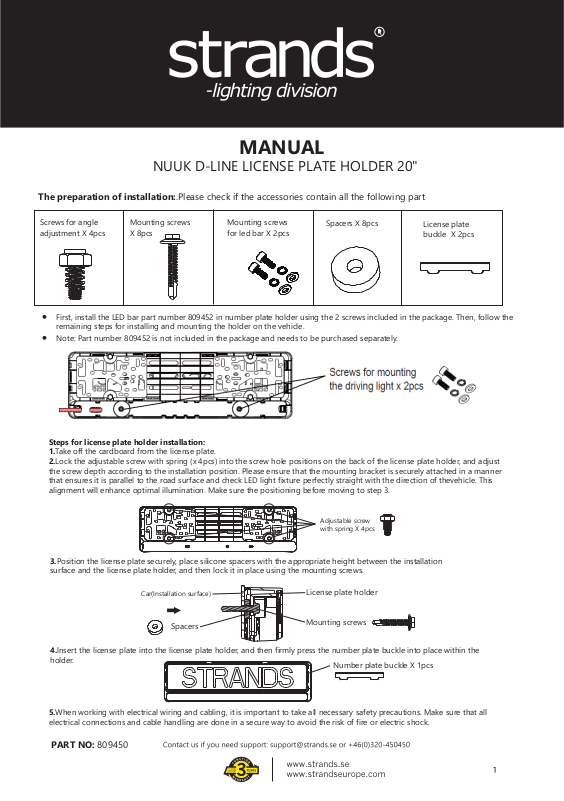

NUUK D-LINE LICENSE PLATE HOLDER 20"

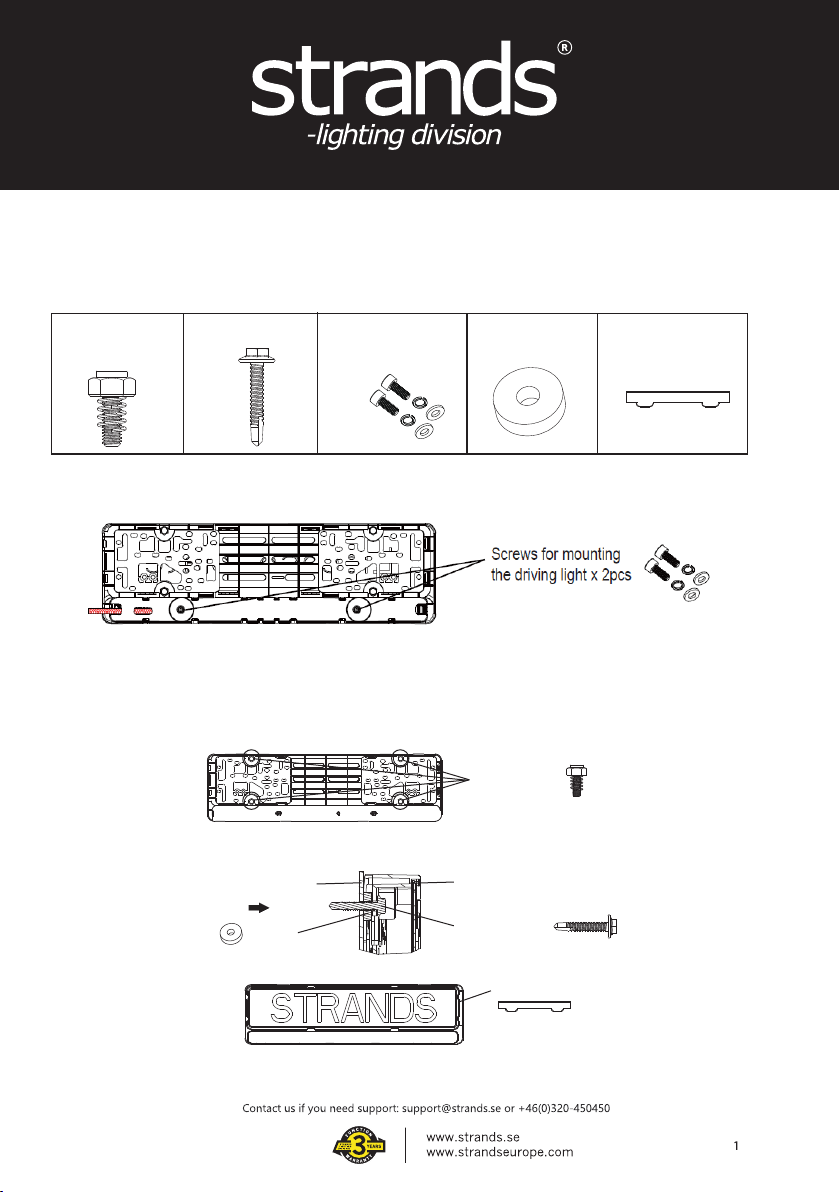

The preparation of installation:.Please check if the accessories contain all the following part
Screws for angle
adjustment X 4pcs
• First, install the LED bar part number 809452 in number plate holder using the 2 screws included in the package. Then, follow the
remaining steps for installing and mounting the holder on the vehicle.
Mounting screws
X 8pcs
Mounting screws
for led bar X 2pcs
Spacers X 8pcs
License plate
buckle X 2pcs
• Note: Part number 809452 is not included in the package and needs to be purchased separately.
Steps for license plate holder installation:
1.Take off the cardboard from the license plate.
2.Lock the adjustable screw with spring (x 4pcs) into the screw hole positions on the back of the license plate holder, and adjust
the screw depth according to the installation position. Please ensure that the mounting bracket is securely attached in a manner
that ensures it is parallel to the road surface and check LED light fixture perfectly straight with the direction of thevehicle. This
alignment will enhance optimal illumination. Make sure the positioning before moving to step 3.
Adjustable screw
with spring X 4pcs
3.Position the license plate securely, place silicone spacers with the appropriate height between the installation
surface and the license plate holder, and then lock it in place using the mounting screws.
Car(Installation surface)
License plate holder
Spacers
4.lnsert the license plate into the license plate holder, and then firmly press the number plate buckle into place within the
holder.
5.When working with electrical wiring and cabling, it is important to take all necessary safety precautions. Make sure that all
electrical connections and cable handling are done in a secure way to avoid the risk of fire or electric shock.
Mounting screws
Number plate buckle X 1pcs
PART NO: 809450
Page 2

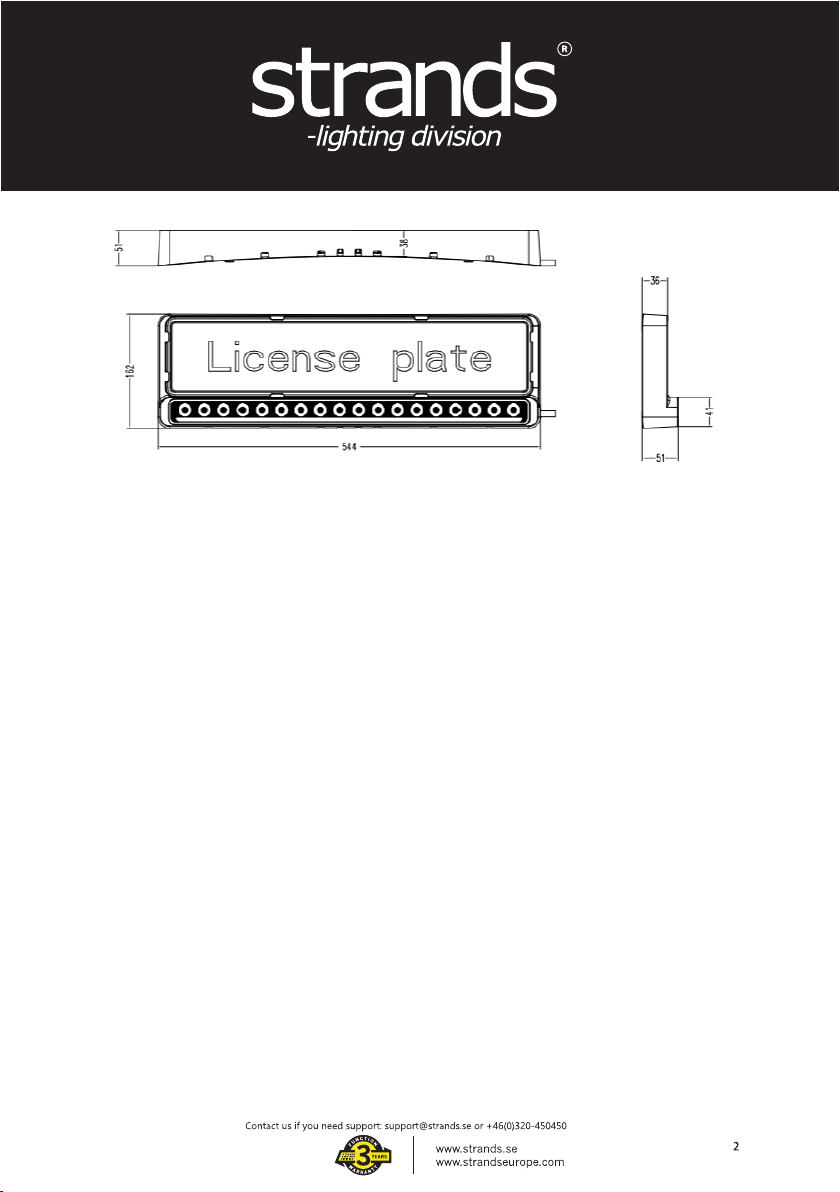

(Technical drawing)
READ THIS BEFORE INSTALLATION OR PAINTING
READ ALL INSTRUCTIONS AND STUDY DIAGRAMS BEFORE PAINTING OR INSTALLING YOUR NEW LIGHTS!
LEGAL MOUNTING
Check with state or local authorities for laws governing usage and proper mounting of your new lights.
TAKE CARE OF YOUR PRODUCT
Keep the product clean. Dirt on the lens and heat-sink may shorten the products lifetime.
We recommend using lukewarm water and alkaline degreasing.
Follow the degreasing instructions carefully and rinse off gently with cold or lukewarm water on low pressure.
WARNING!
Strong chemicals should not be used on the product. lf you accidently get strong chemicals on the product,
rinse off immediately, use plenty of water so that no chemicals remain in any joint. Some chemicals have a
small amount of solvent in them, this can dissolve sealing adhesives and compromise the product's
waterproofness.
Some chemicals pull out liquid from plastic and rubber-based components, which makes the plastic or rubber
brittle and bursts more easily.
Be careful not to use high water pressure close up on the product.
lf you use high water pressure at short distances, most products find it difficult to close out the water.
INSTALLATION
Tighten screws and bolts so that they do not loosen or chafe.
Do not tighten screws so hard that the protective bearings on the product breaks.
WARNING!
Do not use higher volts than the product description states.
This light becomes hot under continuous use. Don't remove or touch the casing for at least 30 minutes after
turning the lamp off.
PART NO: 809450
