Page 1

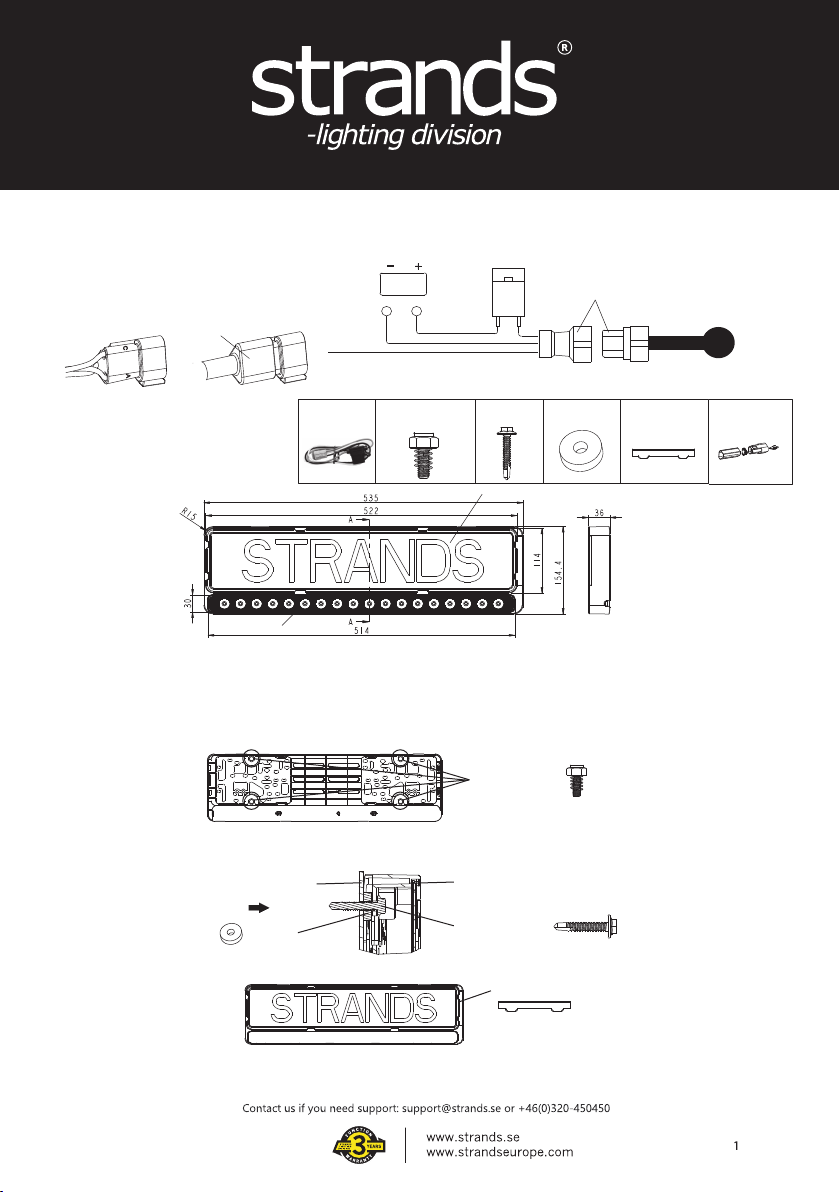

WIRING INSTRUCTIONS:
(PIN A) RED = +VDC
(PIN B) BLACK =-TO CHASSIS GROUND
(PIN C) WHITE = + SIGNAL WIRE
Heat shrink sleeve

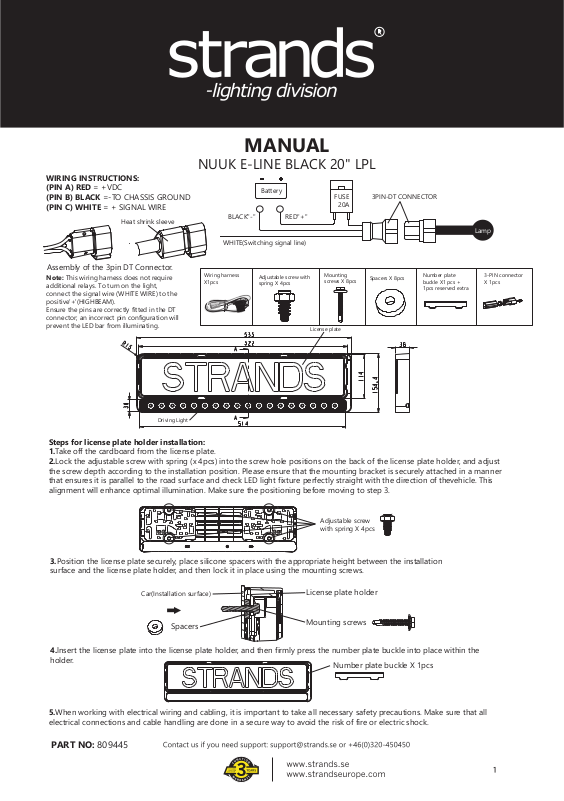

MANUAL
NUUK E-LINE BLACK 20" LPL
Battery
20A
RED"+"BLACK"-"
WHITE(Switching signal line)
3PIN-DT CONNECTORFUSE
Lamp
Assembly of the 3pin DT Connector.
Note: This wiring harness does not require
additional relays. To turn on the light,
connect the signal wire (WHITE WIRE) to the
positive'+'(HIGHBEAM).
Ensure the pins are correctly fitted in the DT
connector; an incorrect pin configuration will
prevent the LED bar from illuminating.
Driving Light
Steps for license plate holder installation:
1.Take off the cardboard from the license plate.
2.Lock the adjustable screw with spring (x 4pcs) into the screw hole positions on the back of the license plate holder, and adjust
the screw depth according to the installation position. Please ensure that the mounting bracket is securely attached in a manner
that ensures it is parallel to the road surface and check LED light fixture perfectly straight with the direction of thevehicle. This
alignment will enhance optimal illumination. Make sure the positioning before moving to step 3.
3.Position the license plate securely, place silicone spacers with the appropriate height between the installation
surface and the license plate holder, and then lock it in place using the mounting screws.
Car(Installation surface)
Wiring harness
X1pcs
Adjustable screw with
spring X 4pcs
Spacers
4.lnsert the license plate into the license plate holder, and then firmly press the number plate buckle into place within the
holder.
Mounting
screws X 8pcs
License plate
Adjustable screw
with spring X 4pcs
License plate holder
Mounting screws
Number plate buckle X 1pcs
Spacers X 8pcs
Number plate
buckle X1 pcs +
1pcs reserved extra
3-PIN connector
X 1pcs
5.When working with electrical wiring and cabling, it is important to take all necessary safety precautions. Make sure that all
electrical connections and cable handling are done in a secure way to avoid the risk of fire or electric shock.
PART NO: 809445
Page 2
READ THIS BEFORE INSTALLATION OR PAINTING
READ ALL INSTRUCTIONS AND STUDY DIAGRAMS BEFORE PAINTING OR INSTALLING YOUR
NEW LIGHTS!
LEGAL MOUNTING
Check with state or local authorities for laws governing usage and proper mounting of your new
lights.
TAKE CARE OF YOUR PRODUCT
Keep the product clean. Dirt on the lens and heat-sink may shorten the products lifetime.
We recommend using lukewarm water and alkaline degreasing.
Follow the degreasing instructions carefully and rinse off gently with cold or lukewarm water on
low pressure.
WARNING!
Strong chemicals should not be used on the product. lf you accidently get strong chemicals on
the product, rinse off immediately, use plenty of water so that no chemicals remain in any joint.
Some chemicals have a small amount of solvent in them, this can dissolve sealing adhesives and
compromise the product's waterproofness.
Some chemicals pull out liquid from plastic and rubber-based components, which makes the
plastic or rubber brittle and bursts more easily.
Be careful not to use high water pressure close up on the product.
lf you use high water pressure at short distances, most products find it difficult to close out the
water.
INSTALLATION
If there is a contact/connector on the product, it should not be cutted. lf the connector is cut, the
warranty is not valid.
If the product has loose cable and no connector. lf the cable is shorter than 50 cm, the cable
must not be cutted, lf the cable is cut, the warranty is not valid.
lf the cable is longer than 50 cm, it is ok to shorten the cable, but not shorter than 50 cm.
If the cable is cut shorter than 50 cm, the warranty is not valid.
Tighten screws and bolts so that they do not loosen or chafe.
Do not tighten screws so hard that the protective bearings on the product breaks.
WARNING!
Do not use higher volts than the product description states.
This light becomes hot under continuous use. Don't remove or touch the casing for at least 30
minutes after turning the lamp off.
PART NO: 809445
