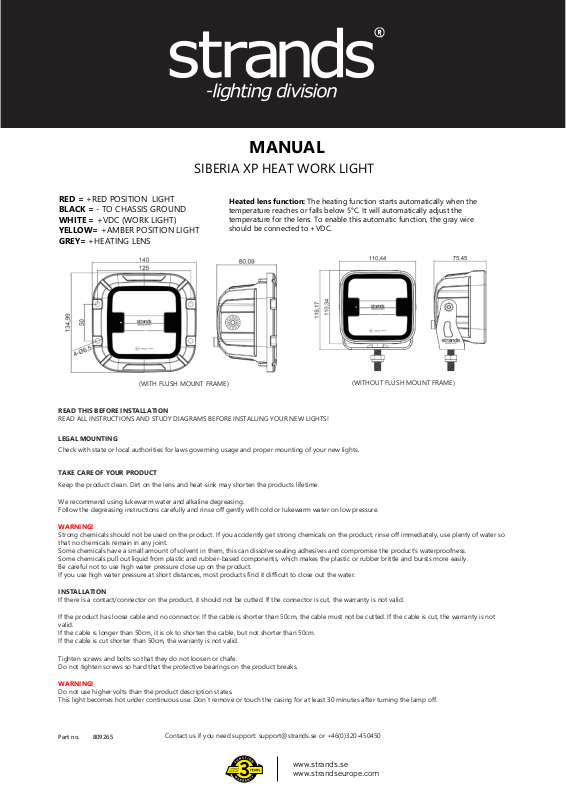

MANUAL
SIBERIA XP HEAT WORK LIGHT
RED = +RED POSITION LIGHT
BLACK = - TO CHASSIS GROUND
WHITE = +VDC (WORK LIGHT)
YELLOW= +AMBER POSITION LIGHT
Heated lens function: The heating function starts automatically when the
temperature reaches or falls below 5°C. It will automatically adjust the
temperature for the lens. To enable this automatic function, the gray wire
should be connected to +VDC.
GREY= +HEATING LENS
(WITH FLUSH MOUNT FRAME)
READ THIS BEFORE INSTALLATION
READ ALL INSTRUCTIONS AND STUDY DIAGRAMS BEFORE INSTALLING YOUR NEW LIGHTS!
LEGAL MOUNTING
Check with state or local authorities for laws governing usage and proper mounting of your new lights.
TAKE CARE OF YOUR PRODUCT
Keep the product clean. Dirt on the lens and heat-sink may shorten the products lifetime.
(WITHOUT FLUSH MOUNT FRAME)
We recommend using lukewarm water and alkaline degreasing.
Follow the degreasing instructions carefully and rinse off gently with cold or lukewarm water on low pressure.
WARNING!
Strong chemicals should not be used on the product. If you accidently get strong chemicals on the product, rinse off immediately, use plenty of water so
that no chemicals remain in any joint.
Some chemicals have a small amount of solvent in them, this can dissolve sealing adhesives and compromise the product's waterproofness.
Some chemicals pull out liquid from plastic and rubber-based components, which makes the plastic or rubber brittle and bursts more easily.
Be careful not to use high water pressure close up on the product.
If you use high water pressure at short distances, most products find it difficult to close out the water.
INSTALLATION
If there is a contact/connector on the product, it should not be cutted. If the connector is cut, the warranty is not valid.
If the product has loose cable and no connector. If the cable is shorter than 50cm, the cable must not be cutted. If the cable is cut, the warranty is not
valid.
If the cable is longer than 50cm, it is ok to shorten the cable, but not shorter than 50cm.
If the cable is cut shorter than 50cm, the warranty is not valid.
Tighten screws and bolts so that they do not loosen or chafe.
Do not tighten screws so hard that the protective bearings on the product breaks.
WARNING!
Do not use higher volts than the product description states.
This light becomes hot under continuous use. Don´t remove or touch the casing for at least 30 minutes after turning the lamp off.
Part no. 809265
Contact us if you need support: [email protected] or +46(0)320-450450
www.strands.se
www.strandseurope.com
