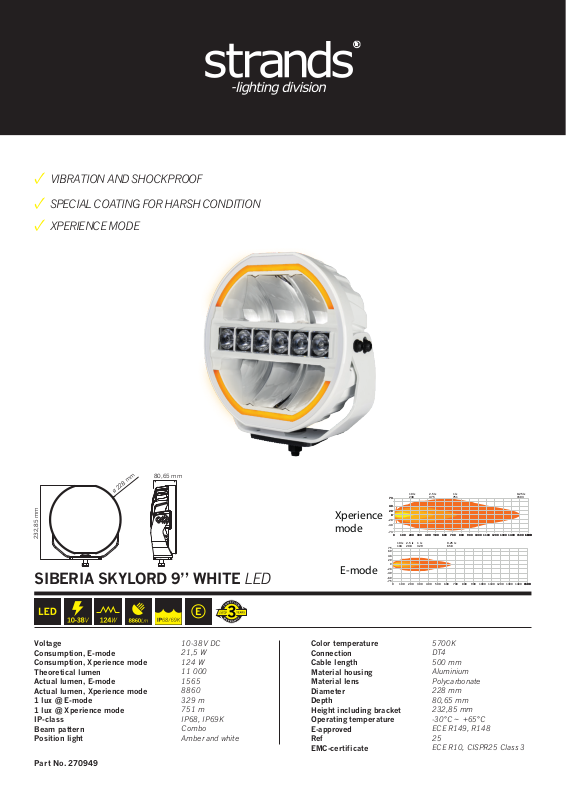

Strands 270949 User guide

✓ VIBRATION AND SHOCKPROOF

✓ SPECIAL COATING FOR HARSH CONDITION
✓ XPERIENCE MODE

80,65 mm

ø 228 mm

232,85 mm

SIBERIA SKYLORD 9” WHITE LED

Voltage
Consumption, E-mode
Consumption, Xperience mode
Theoretical lumen
Actual lumen, E-mode
Actual lumen, Xperience mode
1 lux @ E-mode
1 lux @ Xperience mode
IP-class
Beam pattern
Position light

Part No. 270949

10-38V DC
21,5 W
124 W
11 000
1565
8860
329 m
751 m
IP68, IP69K
Combo
Amber and white

7373

4040

2020

0

Xperience
mode

E-mode

0

0-2

-40

-73

75
60

40

20

0

-20

-40

-60

-75
0 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 15001500

Color temperature
Connection
Cable length
Material housing
Material lens
Diameter
Depth
Height including bracket
Operating temperature
E-approved
Ref
EMC-certificate

10 lx

2.5 lx

238

0 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 16001600

0 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 16001600

10 lx

2.5 lx

1 lx

104

208

329

1 lx

475

751

0.25 lx
658

0.25 lx
1503

1500

5700K
DT4
500 mm
Aluminium
Polycarbonate
228 mm
80,65 mm
232,85 mm

-30°C ~ +65°C
ECE R149, R148
25
ECE R10, CISPR25 Class 3
