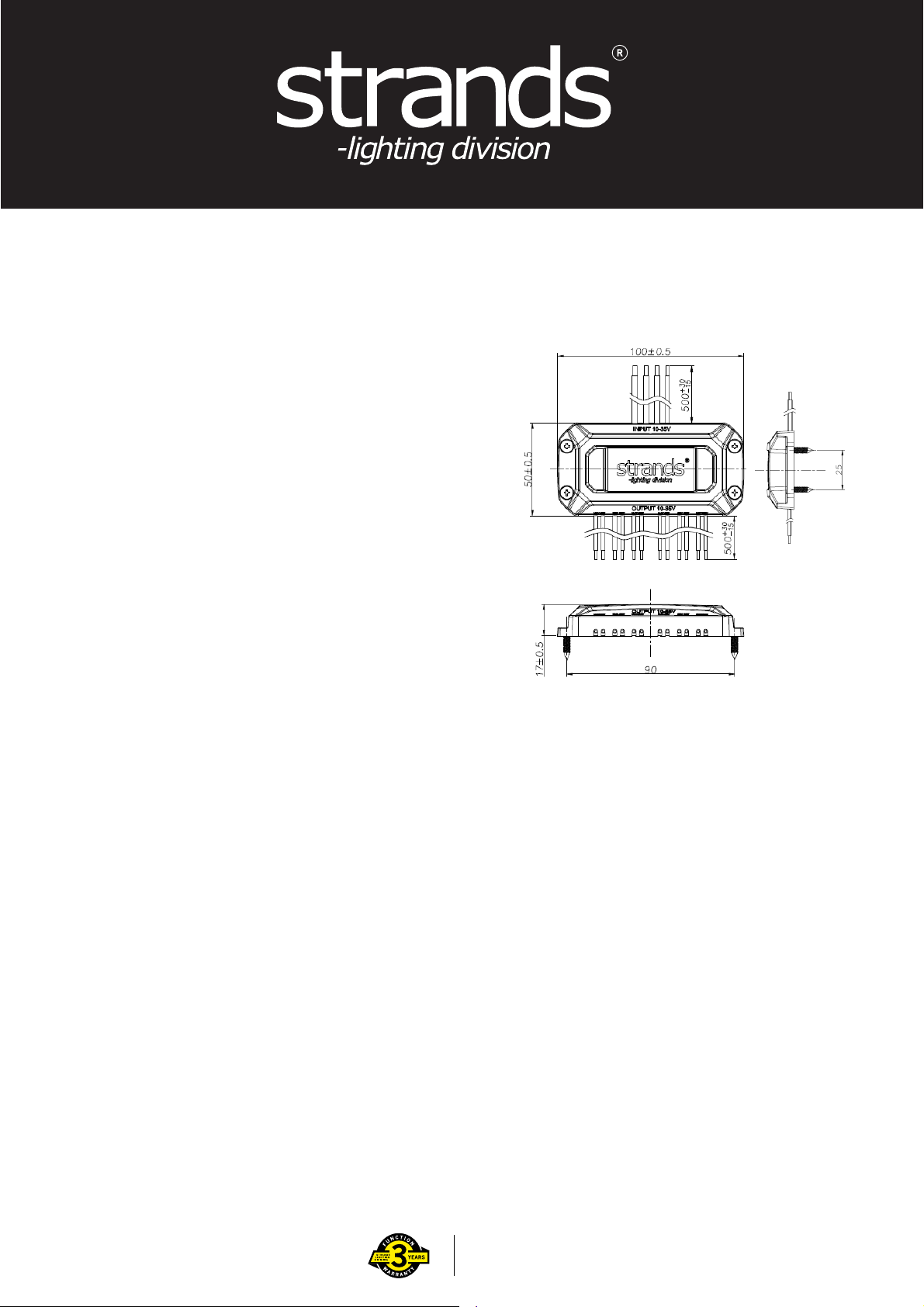

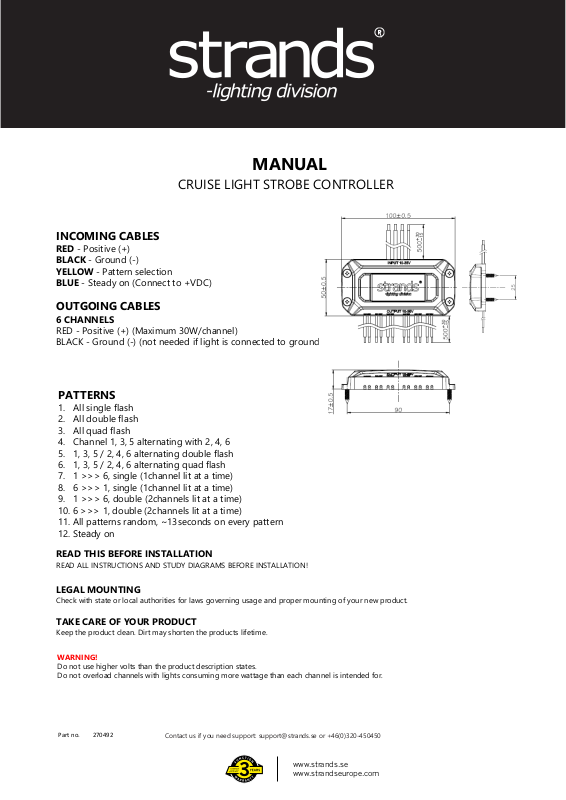

CRUISE LIGHT STROBE CONTROLLER
INCOMING CABLES
RED - Positive (+)
BLACK - Ground (-)
YELLOW - Pattern selection
BLUE - Steady on (Connect to +VDC)
OUTGOING CABLES
6 CHANNELS
RED - Positive (+) (Maximum 30W/channel)
BLACK - Ground (-) (not needed if light is connected to ground)
PATTERNS
1. All single flash
2. All double flash
3. All quad flash
hannel 1, 3, 5 alternating with 2, 4, 6
4. C
5. 1, 3, 5 / 2, 4, 6 alternating double flash
6. 1, 3, 5 / 2, 4, 6 alternating quad flash
7. 1 >>> 6, single (1channel lit at a time)
8. 6 >>> 1, single (1channel lit at a time)
9. 1 >>> 6, double (2channels lit at a time)
10. 6 >>> 1, double (2channels lit at a time)
11. All patterns random, ~13seconds on every pattern
12. Steady on
READ THIS BEFORE INSTALLATION
READ ALL INSTRUCTIONS AND STUDY DIAGRAMS BEFORE INSTALLATION!
LEGAL MOUNTING
Check with state or local authorities for laws governing usage and proper mounting of your new product.
TAKE CARE OF YOUR PRODUCT
Keep the product clean. Dirt may shorten the products lifetime.
WARNING!
Do not use higher volts than the product description states.
Do not overload channels with lights consuming more wattage than each channel is intended for.
Part no.
270492
