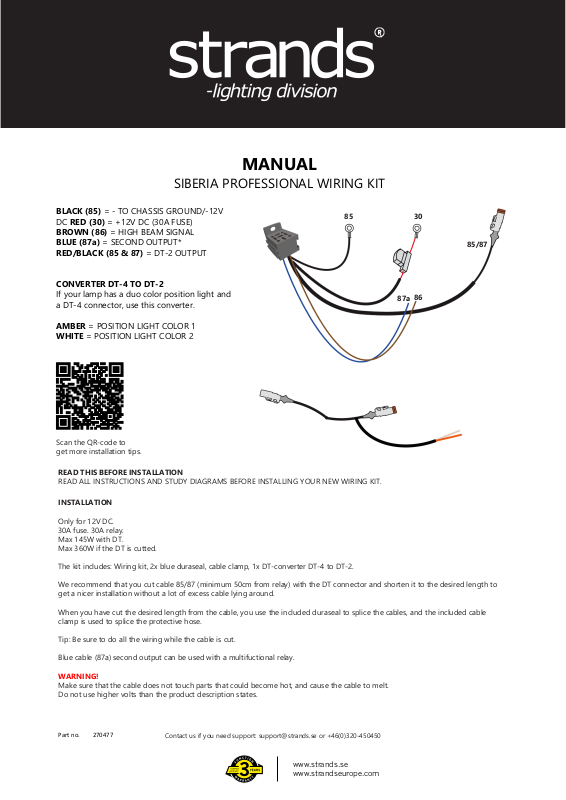

MANUAL

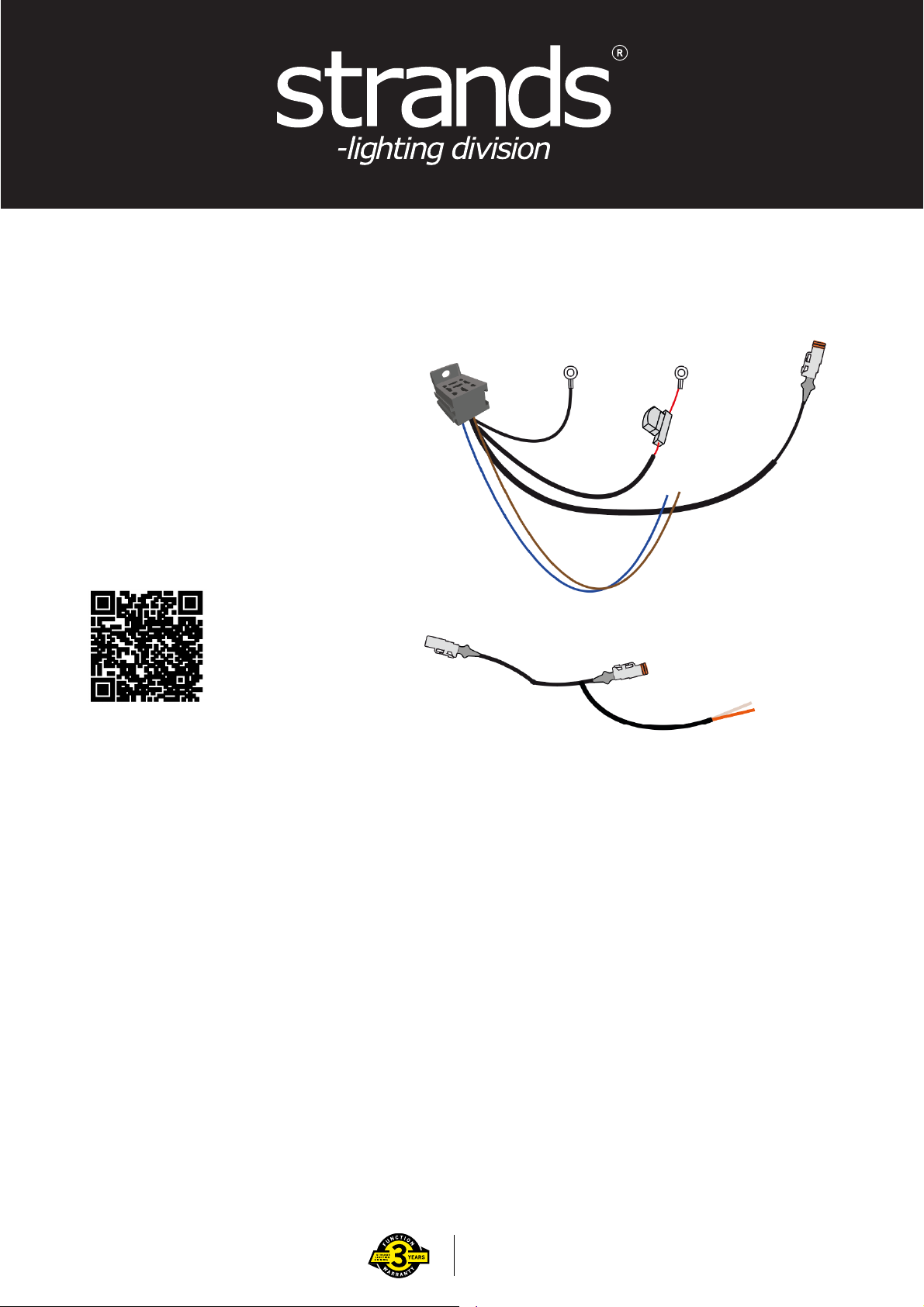

SIBERIA PROFESSIONAL WIRING KIT
BLACK (85) = - TO CHASSIS GROUND/-12V
DC RED (30) = +12V DC (30A FUSE)
85
BROWN (86) = HIGH BEAM SIGNAL
BLUE (87a) = SECOND OUTPUT*
RED/BLACK (85 & 87) = DT-2 OUTPUT
CONVERTER DT-4 TO DT-2
If your lamp has a duo color position light and
a DT-4 connector, use this converter.
AMBER = POSITION LIGHT COLOR 1
WHITE = POSITION LIGHT COLOR 2
Scan the QR-code to
get more installation tips.
READ THIS BEFORE INSTALLATION
READ ALL INSTRUCTIONS AND STUDY DIAGRAMS BEFORE INSTALLING YOUR NEW WIRING KIT.
87a
30
85/87
86
INSTALLATION
Only for 12V DC.
30A fuse. 30A relay.
Max 145W with DT.
Max 360W if the DT is cutted.
The kit includes: Wiring kit, 2x blue duraseal, cable clamp, 1x DT-converter DT-4 to DT-2.
We recommend that you cut cable 85/87 (minimum 50cm from relay) with the DT connector and shorten it to the desired length to
get a nicer installation without a lot of excess cable lying around.
When you have cut the desired length from the cable, you use the included duraseal to splice the cables, and the included cable
clamp is used to splice the protective hose.
Tip: Be sure to do all the wiring while the cable is cut.
Blue cable (87a) second output can be used with a multifuctional relay.
WARNING!
Make sure that the cable does not touch parts that could become hot, and cause the cable to melt.
Do not use higher volts than the product description states.
Part no. 270477
Contact us if you need support: [email protected] or +46(0)320-450450
www.strands.se
www.strandseurope.com
