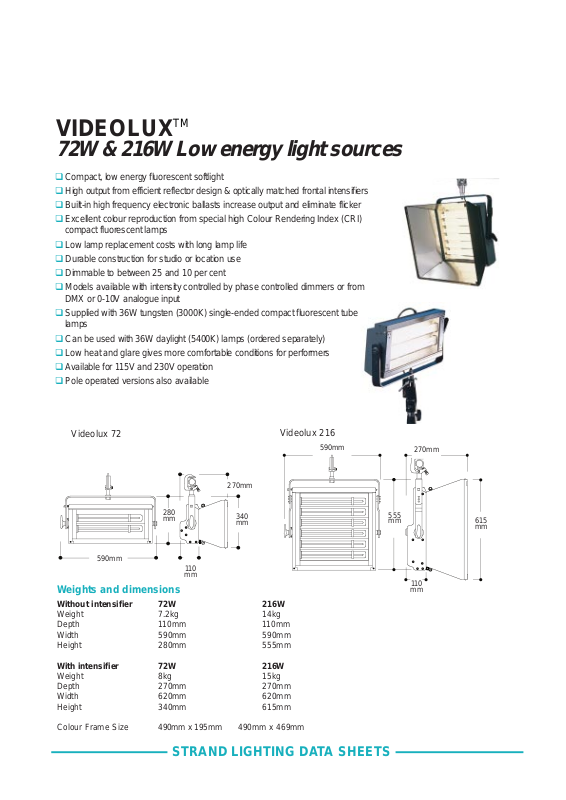

Strand Videolux Datasheet

STRAND LIGHTING DATA SHEETS

VIDEOLUX

TM

72W & 216W Low energy light sources

340
mm

280
mm

110
mm

590mm

270mm

Videolux 72

Videolux 216

555
mm

615
mm

110
mm

590mm

270mm

q Compact, low energy fluorescent softlight
q High output from efficient reflector design & optically matched frontal intensifiers
q Built-in high frequency electronic ballasts increase output and eliminate flicker
q Excellent colour reproduction from special high Colour Rendering Index (CRI)

compact fluorescent lamps

q Low lamp replacement costs with long lamp life
q Durable construction for studio or location use
q Dimmable to between 25 and 10 per cent
q Models available with intensity controlled by phase controlled dimmers or from

DMX or 0-10V analogue input

q Supplied with 36W tungsten (3000K) single-ended compact fluorescent tube

lamps

q Can be used with 36W daylight (5400K) lamps (ordered separately)
q Low heat and glare gives more comfortable conditions for performers
q Available for 1 15V and 230V operation
q Pole operated versions also available

Weights and dimensions

Without intensifier 72W 216W

Weight 7.2kg 14kg
Depth 110mm 110mm
Width 590mm 590mm
Height 280mm 555mm

With intensifier 72W 216W

Weight 8kg 15kg
Depth 270mm 270mm
Width 620mm 620mm
Height 340mm 615mm

Colour Frame Size 490mm x 195mm 490mm x 469mm

Cat No Description

22014 Videolux 72D 230V
22024 Videolux 72A 230V
22071 Videolux 72A 115V
22034 Videolux 72DMX 230V
22081 Videolux 72DMX 115V
22114 Videolux 216D 230V
22100 Videolux 216D 230V, p.o.
22124 Videolux 216A 230V
22171 Videolux 216A 115V
22134 Videolux 216DMX 230V
22181 Videolux 216DMX 115V
22090 Videolux 216DMX 230V, p.o.

Optional accessories

45910 36W SE lamp (3000K)
45920 36W SE lamp (5400K)
28339 Colour frame for 72W range
28338 Colour frame for 216W range
28330 Add. intensifier Videolux 72
28331 Add. intensifier Videolux 216
28332 Eggcrate, standard 72
28334 Eggcrate, narrow 72
28333 Eggcrate, standard 216
28335 Eggcrate, narrow 216
82001 Safety cable

Ordering information
Videolux 72D, 72A, 72DMX, 216D, 216A, 216DMX

Compact fluorescent softlight and baselight. Supplied with intensifier attachment,
stirrup with 29mm spigot, power input cable with bare ends, and 2 x 36W (72D,
72A, 72DMX) or 6 x 36W (216D, 216A, 216DMX) single-ended high colour ren­dering index (CRI) compact fluorescent lamps.

Electrical & mechanical data

Supply Voltage

115V or 230V +/- 10%
Max Lamp Watts:36W per socket

Ballast

36W High Frequency Electronic
Ballast
72DMX and 72A 230V ­Single 2 x 36W
216DMX and 216A 230V ­Three 2 x 36W
198V to 264V 50Hz operating voltage
Continuous dimming from 100% to
25% of light output.

72DMX and 72A 115V ­Single 3 x 36W
216DMX and 216A 115V ­Two 3 x 36W
90V to 145V 60Hz operating voltage
Continuous dimming from 100% to
20% of light output.

72DMX and 72D 230V (only) - Single
2 x 36W
216D 230V (only) - Three 2 x 36W
198V to 264V 50Hz operating voltage
Continuous dimming from 100% to
10% of light output.

1

2070

2

510

3

230

4

129

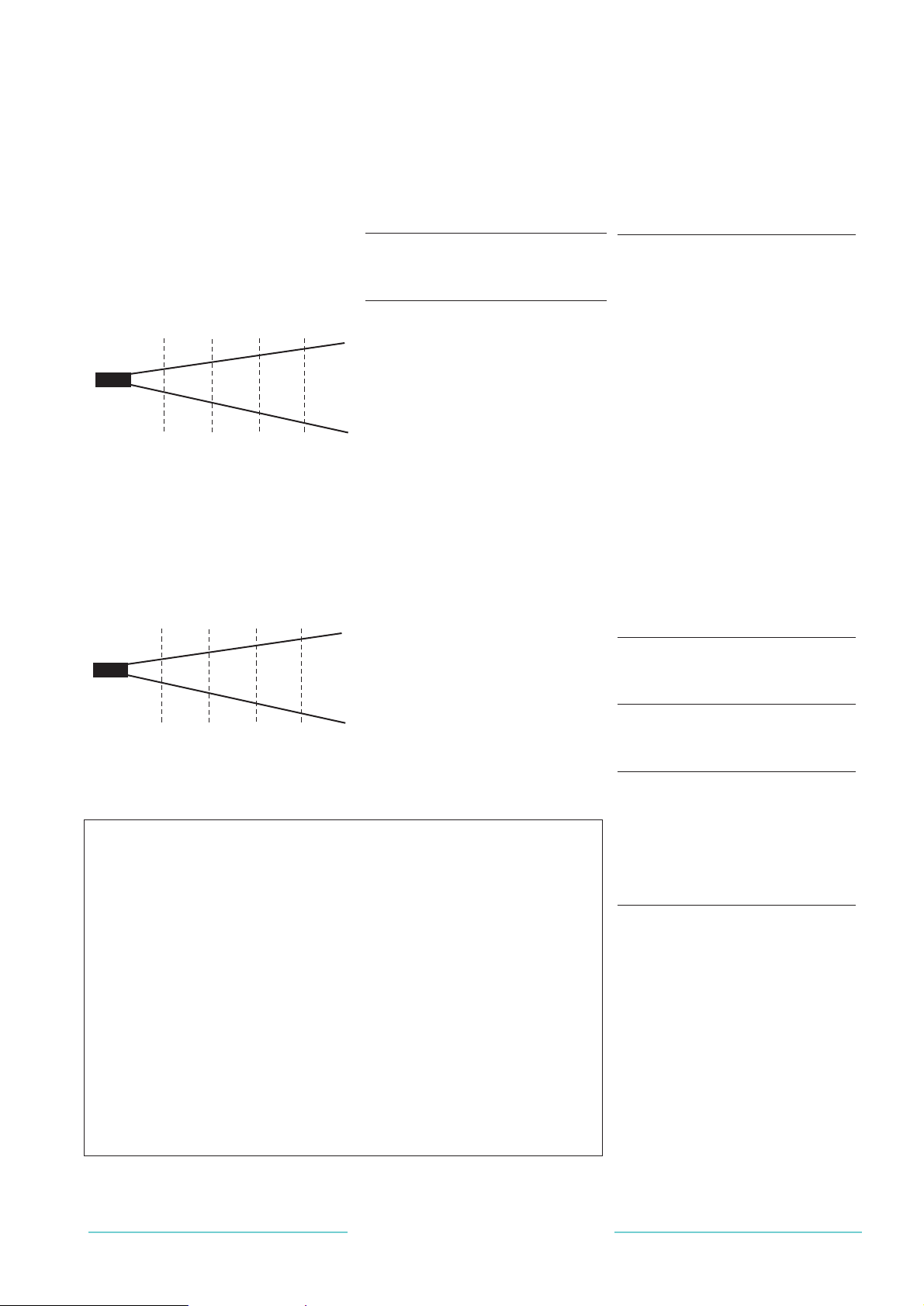

Illum

(lux)

Illum (lux)

Distance (m)

Videolux 72

with intensifier

Beam Angle (50% Peak) 57°(Vert) 75°(Horiz)

without intensifier

Beam Angle (50% Peak) 91°(Vert) 107°(Horiz)

1080

270 120

67.5

1

5230

2

1315

3

585

4

325

Illum

(lux)

Illum (lux)

Distance (m)

Videolux 216

with intensifier

Beam Angle (50% Peak) 72°(Vert) 74°(Horiz)

without intensifier

Beam Angle (50% Peak) 106°(Vert) 107°(Horiz)

3000

750 335

187.5

Control Connections

72D and 216D: Control of these lumi­naires is through a studio dimming
and control system by means of
power input cables connected directly
to the dimmer output.
72A and 216A: Control by 3-pin XLR
in-put socket for + 0 ± 10V signal. A
three position switch provides for:
Full-on, Nominal 50%, and Control
Signal operation, (or 25% output
when no control input connected).
72DMX and 216DMX: 5-pin XLR in
and out connectors for DMX512 sig­nal. DIL switches to select luminaire
address.
Edge wheel for local control of inten­sity when DMX not engaged.
Separate 3-pin XLR for alternative
connection to 0 - 10V analog control
signal.
Programmable to set maximum and
minimum light levels.

Standards Compliance

EN60 598 2-17
EN 55015

Construction

Formed and extruded aluminium with
powder coated epoxy grey finish.

.

Reflector

High reflectivity polished and
anodised aluminium, specially formed
to ensure smooth distribution from
CFL lamps. 72W units have specially
selected textured reflector to ensure
smooth distribution.

Intensifier

Four leaf high reflectivity aluminium
intensifier is detachable and folds flat
for storage in carrying case.

Photometric data

The Company reserves the right to make any
variation in design or construction to the
equipment described. © Strand Lighting Ltd

1998. Strand™ and Strand Lighting™ are
trade marks of Strand Lighting Limited and
Strand Lighting Inc.

www.strandlight.com

Strand Lighting Ltd North Hyde House Hayes Road Heston Middx UB2 5NL UK Tel: [phone] Fax: [phone]
Strand Lighting GmbH Ullsteinstrasse 114-142 D-12109 Berlin Germany Tel: [phone] Fax: [phone]
Strand Lighting Italia srl Via delle Gardenie 33 00040 Pomezia-Roma Italy Tel: [phone] Fax: [phone]
