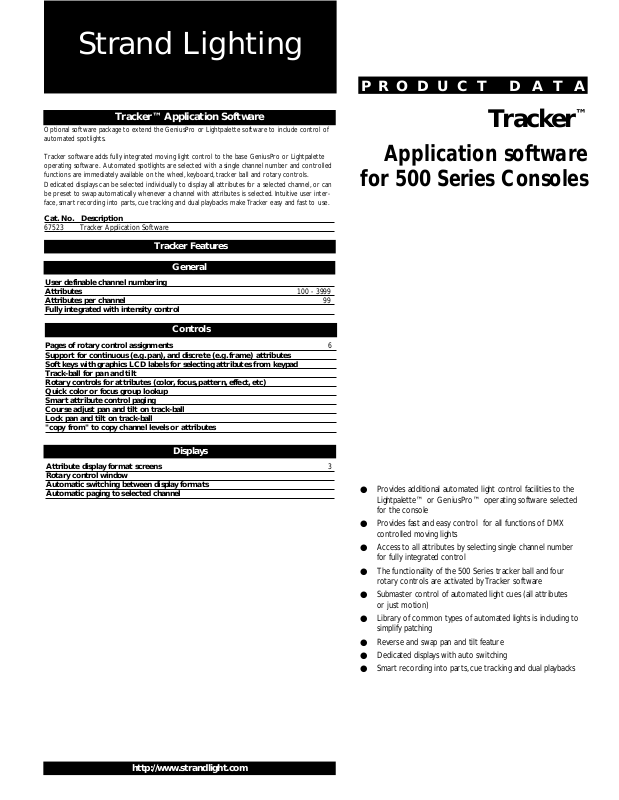

T rack er™ Application Software

Optional software package to extend the GeniusPro or Lightpalette software to include control of automated spotlights.

Tracker software adds fully integrated moving light control to the base GeniusPro or Lightpalette operating software. Automated spotlights are selected with a single channel number and controlled functions are immediately available on the wheel,keyboard,tracker ball and rotary controls. Dedicated displays can be selected individually to display all attributes for a selected channel, or can be preset to swap automatically whenever a channel with attributes is selected.Intuitive user interface, smar t recording into parts, cue tracking and dual playbacks make Tracker easy and fast to use.

Cat. No. Description

67523 T racker Application Software

Tracker Features

General

User definable channel numbering Attributes 100 - 3999 Attributes per channel 99 Fully integrated with intensity control

Controls

Pages of rotary control assignments 6 Support for continuous (e.g. pan),and discrete (e.g. frame) attributes Soft keys with graphics LCD labels for selecting attributes from keypad Track-ball for pan and tilt Rotary controls for attributes (color,focus, pattern,effect, etc) Quick color or focus group lookup Smart attribute control paging Course adjust pan and tilt on track-ball Lock pan and tilt on track-ball "copy from" to copy channel levels or attributes

Tracker

™

Application software

for 500 Series Consoles

Displays

Attribute display format screens 3 Rotary control window Automatic switching between display formats Automatic paging to selected channel

● Provides additional automated light control facilities to the Lightpalette™ or GeniusPro™ operating software selected for the console

● Provides fast and easy control for all functions of DMX controlled moving lights

● Access to all attributes by selecting single channel number for fully integrated control

● The functionality of the 500 Series tracker ball and four rotary controls are activated by Tracker software

● Submaster control of automated light cues (all attributes or just motion)

● Library of common types of automated lights is including to simplify patching

● Reverse and swap pan and tilt feature

● Dedicated displays with auto switching

● Smart recording into parts, cue tracking and dual playbacks
